Parade Series - NVR Storage

config.ini

[system]
home=nginx-rtmp\html
store=store\nvr.db
version=V20240301001

[http]
address = 0.0.0.0
port = 8080

[monitor]
list=rtsp01,rtsp02,rtsp03

[rtsp01]
ip=10.10.20.234
usr=admin
pwd=password
[rtsp02]
ip=10.10.20.235
usr=admin
pwd=password
[rtsp03]
ip=10.10.20.236
usr=admin
pwd=password

get-ini

@SETLOCAL ENABLEDELAYEDEXPANSION
@TYPE ini\config.ini | awk -F'=' -v section=%INISECTION% -v key=%INIKEY% '{if($0=="["section"]"){flag=1;next;}if(/\[/){flag=0;next;}if(flag==1){if(key==$1){print $2}}}'

@SET MESSAGE=

@SETLOCAL ENABLEDELAYEDEXPANSION
FOR /F %%a IN (' get-ini.cmd monitor list ') DO @(
    @SET cmd_out=%%a
    @SET MESSAGE=%MESSAGE%!cmd_out!
)
@ECHO !MESSAGE!

FOR %%a IN ( %MESSAGE% ) DO @(
    @SET cmd_one=%%a
    @SET cmd_line=monitor !cmd_one!

    FOR /F %%b IN (' get-ini !cmd_line! ') DO @(
        @SET cmd_two=%%b
        @ECHO !cmd_line! !cmd_two!
    )
)

C:\Conda\parading-cam>show-jobs.cmd
----------------------------------------------------------
rtsp01,rtsp02,rtsp03
----------------------------------------------------------
rtsp01 10.10.20.234 rtsp://admin:password@10.10.20.234
rtsp02 10.10.20.235 rtsp://admin:password@10.10.20.235
rtsp03 10.10.20.236 rtsp://admin:password@10.10.20.236
----------------------------------------------------------

FFMPEG Codec

FFMPEG Manual

@ffmpeg -version
ffmpeg version 4.2.3 Copyright (c) 2000-2020 the FFmpeg developers
built with gcc 9.3.1 (GCC) 20200523
configuration: --enable-gpl --enable-version3 --enable-sdl2 --enable-fontconfig --enable-gnutls --enable-iconv --enable-libass --enable-libdav1d --enable-libbluray --enable-libfreetype --enable-libmp3lame --enable-libopencore-amrnb --enable-libopencore-amrwb --enable-libopenjpeg --enable-libopus --enable-libshine --enable-libsnappy --enable-libsoxr --enable-libtheora --enable-libtwolame --enable-libvpx --enable-libwavpack --enable-libwebp --enable-libx264 --enable-libx265 --enable-libxml2 --enable-libzimg --enable-lzma --enable-zlib --enable-gmp --enable-libvidstab --enable-libvorbis --enable-libvo-amrwbenc --enable-libmysofa --enable-libspeex --enable-libxvid --enable-libaom --enable-libmfx --enable-amf --enable-ffnvcodec --enable-cuvid --enable-d3d11va --enable-nvenc --enable-nvdec --enable-dxva2 --enable-avisynth --enable-libopenmpt
libavutil      56. 31.100 / 56. 31.100
libavcodec     58. 54.100 / 58. 54.100
libavformat    58. 29.100 / 58. 29.100
libavdevice    58.  8.100 / 58.  8.100
libavfilter     7. 57.100 /  7. 57.100
libswscale      5.  5.100 /  5.  5.100
libswresample   3.  5.100 /  3.  5.100
libpostproc    55.  5.100 / 55.  5.100

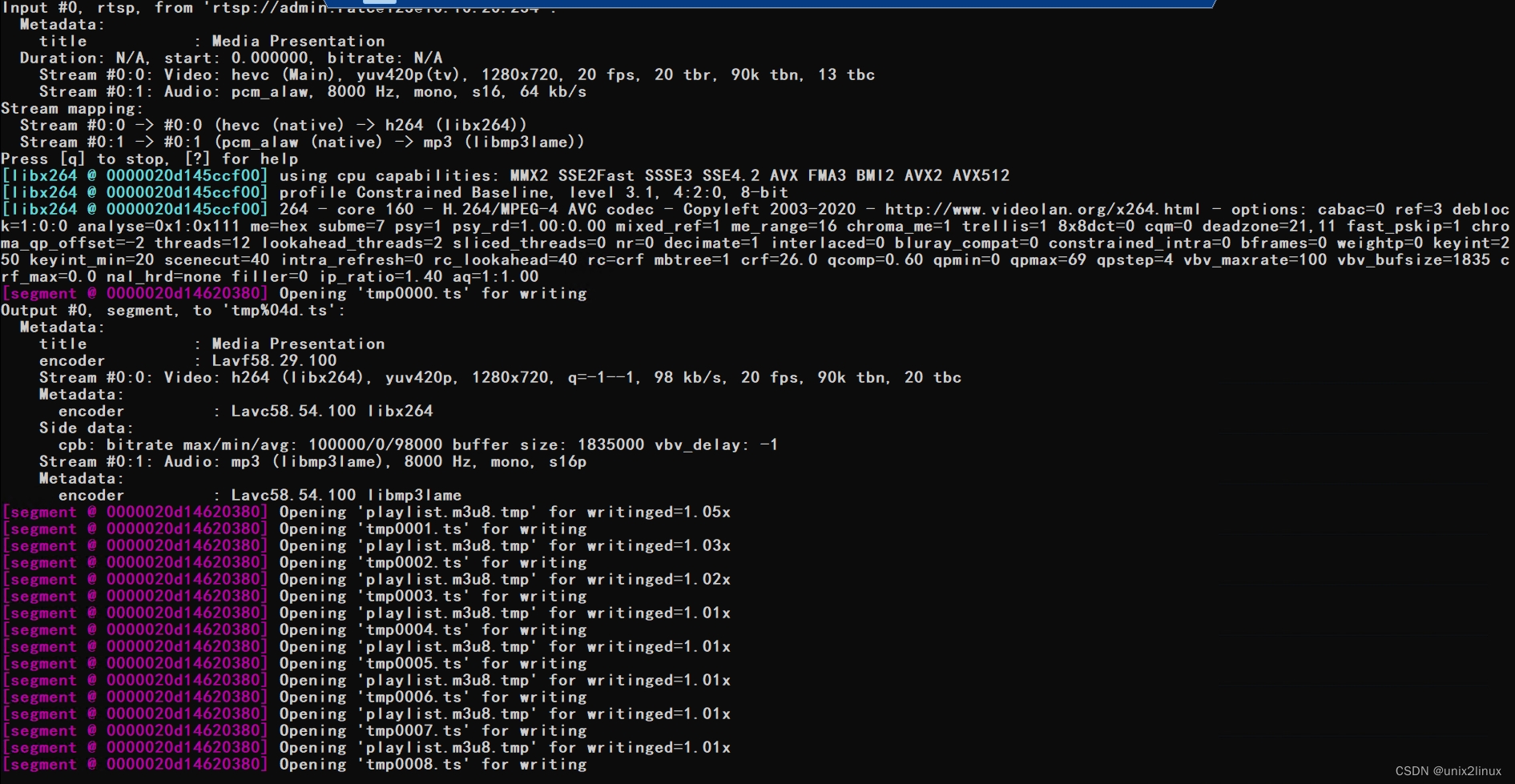

@ffmpeg
    -i rtsp://admin:password@10.10.10.10     input-url
    -t 120                                       limit the duration of data read from the input (120 : 2 minutes)
    -c:v libx264                                 encodes video with libx264
    -c:a libmp3lame -b:a 8k -ac 1                encodes audio with mp3 sampling rate 8000 HZ mono channel
    -crf 26                                      Constant Rate Factor
    -profile:v baseline                          hardware compatibility (iOS & Android)
    -b:v 100k                                    video codec bit rate
    -maxrate 100k                                maximum average bit rate
    -bufsize 1835k                               codec buffer size
    -pix_fmt yuv420p                             Quick time Compatible format
    -force_key_frames "expr:gte(t,n_forced*1)"
    -strict -2
    -hls_time 1                                  HTTP Live Streaming duration (1 : 1 second)
    -start_number 0
    -f segment -segment_format mpegts
    -segment_list playlist.m3u8                  play list file
    -segment_list_flags +live                    living stream mode
    -segment_time 10                             segment duration (10 : 10 seconds)
    %TIME_STAMP%-%04d.ts
