ReadStdfTest.exe has triggered a breakpoint.

发现一个奇怪的现象,在构造PTR record时,出现.exe has triggered a breakpoint.

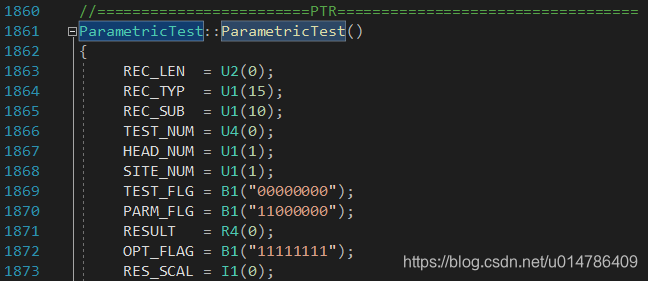

报错位置
debug时候查看程序占用内存,发现每次都是超过2G时,发生错误,查询了一下win32 console程序所能访问的最大内存,是2G:
How much memory can an application access in Win32 and Win64?
*When developing a software product for a Windows-family operating system, you must keep in mind the restrictions imposed on sizes of data a program can declare and use.

Windows imposes the following 3 types of restrictions on applications:
1.Static data. The restriction is imposed on the size of the program source code itself and the size of statically allocated memory. In C++, such data is usually represented by global variables defined by outside procedures. The restriction concerning the size of statically allocated memory is 2 Gbytes both for 32-bit and 64-bit programs.
2.Dynamic data. This is data for which memory is being allocated while executing the program. In C++, this allocation is usually performed by the malloc function or new operator. In 32-bit programs the size of dynamically allocated memory is restricted to 2 Gbytes, in 64-bit programs to 8 Tbytes.
3.Stack data. Memory is allocated for this data when entering a procedure, and is released after exiting the procedure. The maximum size of program stack is 1 Gbyte for both 32-bit and 64-bit applications. (The stack size is defined by the linker and is 1 Mbyte by default)

For a 32-bit application launched in a 32-bit Windows, the total size of all the mentioned data types must not exceed 2 Gbytes. (Actually it is 1.75 Gbytes due to memory requirements of the operating system itself). A 32-bit program compiled with the switch /LARGEADDRESSAWARE:YES can allocate up to 3 Gbytes of memory if the 32-bit Windows is launched with the /3gb switch. The same 32-bit program launched in a 64-bit system can allocate about 4 Gbytes (actually about 3.5 Gbytes).

Note that the restrictions for maximum sizes of statically allocated memory and stack memory are the same for 32-bit and 64-bit Windows-applications. This is determined by the format of file type Portable Executable (PE), which is used in Windows to describe exe and dll files. You should keep in mind that these restrictions are imposed by the operating system itself, and do not depend on the compiler you are using.*

Reference:
Memory Limits for Applications on Windows*
Support of 32-bit applications in the 64-bit Windows environment

### 问题分析 在 Windows 系统中,当可执行文件(.exe)运行时触发断点(breakpoint),通常意味着调试器检测到了一个异常或错误条件,这可能是程序中的逻辑错误、内存访问越界、库链接错误,或者是调试器自身设置的问题。 根据提供的背景信息,以下是一些常见的原因和排查方向: #### 1. **内存访问越界或非法操作** - 程序在运行过程中访问了未分配的内存区域,或者访问了已经释放的内存,导致触发断点。例如,在使用动态数组时索引超出范围[^3]。 - 这类问题通常在程序运行过程中不会立即崩溃,但会在退出时触发异常,例如成员变量的值在构造函数中赋值后却在其他地方丢失[^2]。 #### 2. **调试器断点设置问题** - 在调试过程中,调试器可能设置了某种条件断点或异常捕获机制,导致程序在特定条件下暂停。如果用户点击“Continue”,程序可能会继续运行,但这种异常仍需排查。 - 常见于使用 Visual Studio 调试器时,某些异常被设置为中断,例如访问冲突(Access Violation)。 #### 3. **静态库与动态库链接错误** - MFC(Microsoft Foundation Classes)项目中,若链接了错误的库类型(如应使用静态库却链接了动态库),可能导致运行时断点触发。例如,OpenCV 库的某些依赖项需要链接特定的静态库[^4]。 #### 4. **资源释放错误** - 程序正常运行后退出时报错,可能与资源释放顺序有关,例如: - 某些全局或静态对象在析构时访问了已经被释放的资源。 - 多线程环境下未正确同步资源释放。 --- ### 排查建议 #### 1. **启用调试器详细输出** - 在 Visual Studio 中启用“输出窗口”查看详细的调试信息,包括调用堆栈和触发断点的代码位置。 - 设置调试器选项,忽略非关键异常(如“First-chance exceptions”),仅在程序真正崩溃时中断。 #### 2. **检查数组与指针操作** - 检查所有数组访问是否超出边界,尤其是通过 `new` 或 `malloc` 动态分配的内存。 - 使用 `std::vector` 或 `std::array` 替代原生数组,避免手动管理内存带来的风险。 #### 3. **确认库链接方式** - 确保所有依赖库(如 OpenCV、PNG、TIFF、ZLib 等)使用正确的链接方式(静态或动态)[^4]。 - 检查项目属性中的“C/C++ -> Code Generation -> Runtime Library”是否与所链接的库一致。 #### 4. **审查构造与析构过程** - 检查类成员变量(如 `m_fTemp`)在构造函数中是否正确初始化,并在后续使用中未被意外修改或覆盖[^2]。 - 若使用了单例模式或全局对象,确保其生命周期管理无误。 #### 5. **使用内存检查工具** - 使用 Valgrind(适用于 Linux)或 Visual Leak Detector(适用于 Windows)等工具检测内存泄漏和非法访问。 - 启用 CRT(C Runtime)调试功能,检查堆内存使用情况: ```cpp #define _CRTDBG_MAP_ALLOC #include <crtdbg.h> int main() { _CrtSetDbgFlag(_CRTDBG_ALLOC_MEM_DF | _CRTDBG_LEAK_CHECK_DF); // your code here return 0; } ``` --- ### 总结 Windows 系统提示 `.exe has triggered a breakpoint` 通常是由于程序中存在内存访问错误、调试器设置不当、库链接错误或资源释放问题所致。通过启用详细调试输出、检查指针与数组操作、确认库链接方式、审查构造/析构逻辑以及使用内存检查工具,可以逐步定位并解决该问题。 ---
