Design Spec Template

SLSC Regression Test Design Spec

Details
The current SLSC Switch LV API test is manual test. It uses VI Tester to perform SET-2010 and SLSC-12252 test cases. This feature will automate the Switch regression test and integrate it into Dashboard.

Feature Team
Spec Owner:
Feature Manager:
Section Manager:
Feature Tech Lead:
Product Owner:
Tech Writer:
IxD:
Other contacts:

Design
Hardware Setup

1. SLSC Chassis and Modules: SLSC-12001, SLSC FIU 12252, SET-2010
2. PXI Chassis and Module: PXI chassis and controller, PXIe-7822R
3. Cable and accessories: SHC68-68-RDIO2 (x3), RTI-12302, RTI-12306, SCB-68 HSDIO Terminal Block

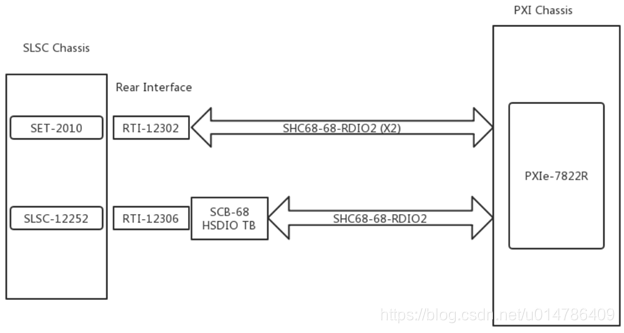

4. System Diagram


Software Setup

1. LabVIEW
2. LabVIEW FPGA Module
3. NI R Series Multifunction RIO
4. NI-SLSC (with SLSC Switch)
5. Python library: mobilize and pyriott

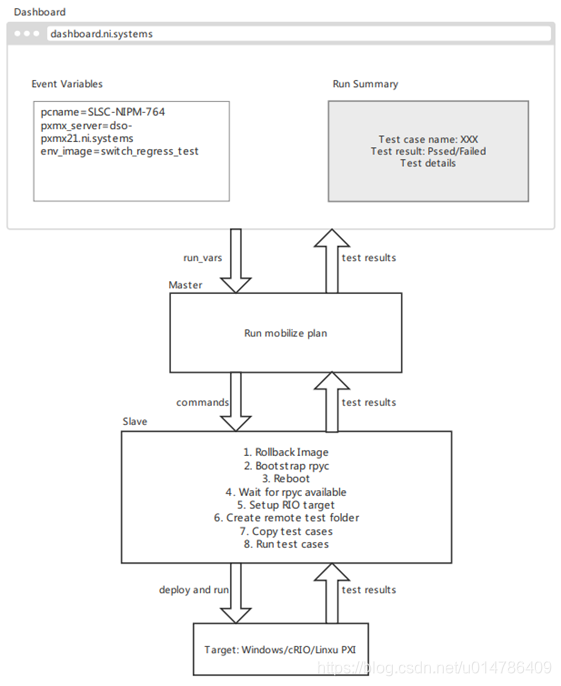

Architecture

Test Flow

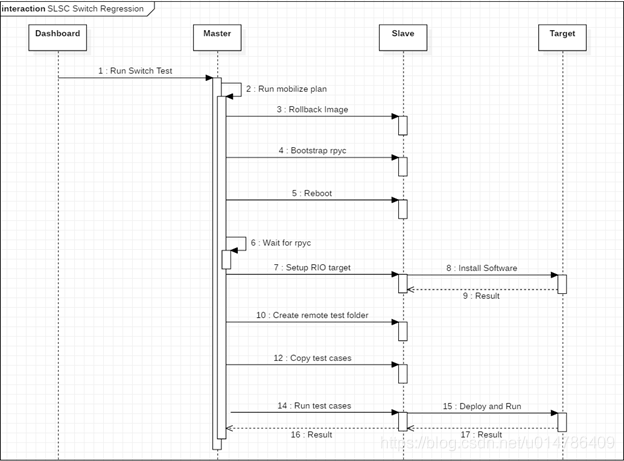

时序图

For Loopback test cases, when they are deployed to RT targets, they need to call FPGA set/get function on Windows:

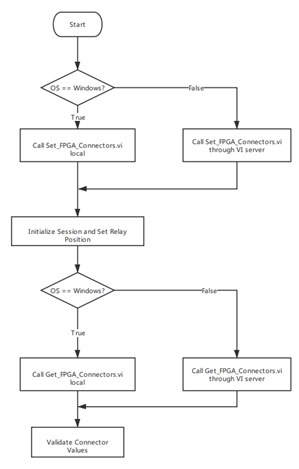

流程图

Alternatives Considered
Using Skynet framework to automate the test. But the hardware connection and all parameters are fixed. So, the Skynet framework is not suitable.

Feature Checklist

1. Add a Dashboard event and specific Even Variables;
2. Modify the manual test cases so that they can be deployed and ran both on Windows and RT targets;
3. Send parameters from Dashboard to tell the master SLSC driver versions and Slave target;
4. Copy or download the test cases to Slave;
5. Read the test case results from Slave;

Impact
Build process: N/A.
Content/Documentation: N/A
Installer/Package Manager: N/A
Localization: Documentation or API is not localized. N/A
NI Licensing: N/A
Third-Party Licensing: N/A

Estimated Effort
Total: 5 days
• 2 days for modify test cases from JKI VI Test to ATS and porting PXIe-6363 application to PXIe-7822R
• 2 day for code review and follow comments;
• 1 day to perform ATS to make sure no failure will appear due to the change;
