本文介绍如何使用D3.js版本3.x绘制一个水平布局的家谱图，并记录了在绘制过程中遇到的问题及解决办法。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

d3新手上路，记个笔记(*^_^*)

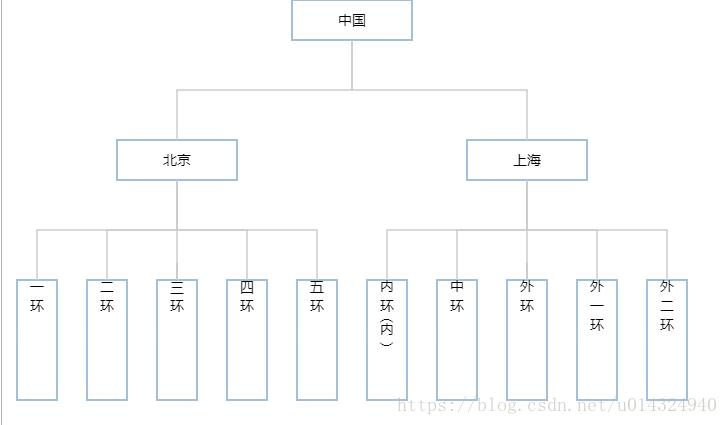

先上效果图：

主要参考：https://bl.ocks.org/mbostock/3184089

https://github.com/justincy/d3-pedigree-examples

d3版本为3.x

主要代码如下：

<!DOCTYPE html>
<html>
<head>
  <meta charset="utf-8" />
  <style>
    body { text-align: center; } svg { margin-top: 32px; border: 1px solid #aaa; } .link { fill: none; stroke: #ccc; stroke-width: 1.5px; } .person rect { fill: #fff; stroke: steelblue; stroke-width: 1px; } .person { font: 14px sans-serif; cursor: pointer; }
  </style>
  <script src="//cdnjs.cloudflare.com/ajax/libs/d3/3.5.5/d3.min.js"></script>
</head>
<body>
  <div id="pedigreehoriz"></div>
  <script>
    const data = {
      name: '中国',
      id: '06ada7cd-3078-54bc-bb87-72e9d6f38abf',
      _parents: [ { name: '北京', id: 'a39bfa73-6617-5e8e-9470-d26b68787e52', _parents: [ { name: '一环', id: 'fc956046-a5c3-502f-b853-d669804d428f' }, { name: '二环', id: 'fa5b0c07-9000-5475-a90e-b76af7693a57' }, { name: '三环', id: '667d2bb6-c26e-5881-9bdc-7ac9805f96c2' }, { name: '四环', id: '104039bb-d353-54a9-a4f2-09fda08b58bb' }, { name: '五环', id: '06c7b0cb-cd21-53be-81bd-9b088af96904' } ] },
        { name: '上海', id: '522266d2-f01a-5ec0-9977-622e4cb054c0', _parents: [ { name: '内环(内)', id: 'da430aa2-f438-51ed-ae47-2d9f76f8d831' }, { name: '中环', id: 'd384197e-2e1e-5fb2-987b-d90a5cdc3c15' }, { name: '外环', id: 'ea01728f-e542-53a6-acd0-6f43805c31a3' }, { name: '外一环', id: '4f910be4-b827-50be-b783-6ba3249f6ebc' }, { name: '外二环', id: 'bfd1612c-b90d-5975-824c-49ecf62b3d5f' } ] }
      ]
    }
    const width = 1200
    const height = 500
    const boxWidth = 120,
      boxHeight = 40
    // Setup zoom and pan
    let zoom = d3.behavior
      .zoom()
      .scaleExtent([0.1, 1])
      .on('zoom', function () {
        svg.attr( 'transform', 'translate(' + d3.event.translate + ') scale(' + d3.event.scale + ')' )
      })

    let svg = d3
      .select('#pedigreehoriz')
      .append('svg')
      .attr('width', width)
      .attr('height', height)
      .call(zoom)
      .append('g')
      .attr('transform', 'translate(0)')

    // Compute the layout.
    let tree = d3.layout
      .tree()
      .size([width - 500, height - 220])
      .separation(function () {
        return 0.5
      })
      .children(function (person) {
        if (person.collapsed) {
          return
        } else {
          return person._parents
        }
      }),
      nodes = tree.nodes(data),
      links = tree.links(nodes)

    // Update nodes
    var node = svg
      .selectAll('g.person')
      // The function we are passing provides d3 with an id
      // so that it can track when data is being added and removed.
      // This is not necessary if the tree will only be drawn once
      // as in the basic example.
      .data(nodes, function (person) {
        return person.id
      })

    // Add any new nodes
    var nodeEnter = node
      .enter()
      .append('g')
      .attr('class', 'person')
    // .on('click', togglePerson);

    // Draw the rectangle person boxes
    nodeEnter
      .append('rect')
      .attr('y', 0)
      .attr('x', function (d) {
        return d.depth !== 2 ? -(boxWidth / 2) : -(boxHeight / 2)
      })
      .attr('width', function (d) {
        return d.depth !== 2 ? boxWidth : boxHeight
      })
      .attr('height', function (d) {
        return d.depth !== 2 ? boxHeight : boxWidth
      })
      .on('click', function (evt) {
        console.log(evt)
      })

    // Draw the person's name and position it inside the box
    nodeEnter
      .append('text')
      .attr('y', function (d) {
        return d.depth !== 2 ? boxHeight / 2 + 5 : 0
      })
      .attr('rotate', function (d) {
        //显示竖直显示中文时rotate为0，英文-90
        return 0
      })
      .attr('style', function (d) {
        return d.depth !== 2 ? '' : 'writing-mode: tb;letter-spacing:0px'
      })
      .attr('text-anchor', function (d) {
        return d.depth !== 2 ? 'middle' : 'start'
      })
      .text(function (d) {
        return d.name
      })

    // Update the position of both old and new nodes
    node.attr('transform', function (d) {
      return 'translate(' + d.x + ',' + d.y + ')'
    })

    // Remove nodes we aren't showing anymore
    node.exit().remove()

    // Update links
    var link = svg
      .selectAll('path.link')
      // The function we are passing provides d3 with an id
      // so that it can track when data is being added and removed.
      // This is not necessary if the tree will only be drawn once
      // as in the basic example.
      .data(links, function (d) {
        return d.target.id
      })

    // Add new links
    link
      .enter()
      .append('path')
      .attr('class', 'link')
    // Remove any links we don't need anymore
    // if part of the tree was collapsed
    link.exit().remove()

    // Update the links positions (old and new)
    link.attr('d', elbow)

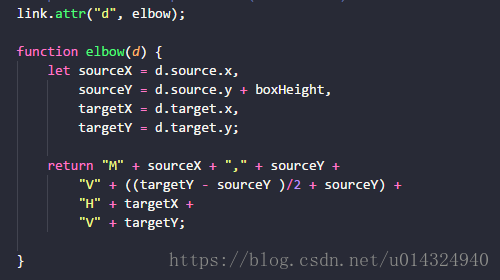

    function elbow(d) {
      let sourceX = d.source.x,
        sourceY = d.source.y + boxHeight,
        targetX = d.target.x,
        targetY = d.target.y

      return ( 'M' + sourceX + ',' + sourceY + 'V' + ((targetY - sourceY) / 2 + sourceY) + 'H' + targetX + 'V' + targetY )
    }
  </script>
</body>
</html>

主要遇到的问题：

树的横向纵向：
