demo代码在ssm-demo中

一、rabbitmq的几种工作模式

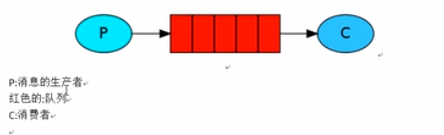

1、simple

三个对象：生产者、队列、消费者

代码：

Sender：

package com.my.test.rabbitmq.simple;

import com.my.test.rabbitmq.utils.ConnectionUtils;
import com.rabbitmq.client.Channel;
import com.rabbitmq.client.Connection;

import java.io.IOException;
import java.util.concurrent.TimeoutException;

/**
 * @author QinHe at 2019-09-18
 */
public class Send {

    static final String QUEUE_NAME = "test_simple_queue";

    public static void main(String[] args) throws IOException, TimeoutException {
        //获取连接
        Connection connection = ConnectionUtils.getConnection();

        //从连接中创建一个管道
        Channel channel = connection.createChannel();

        //创建队列声明
        channel.queueDeclare(QUEUE_NAME, false, false, false, null);

        String msg = "hello simple";
        channel.basicPublish("", QUEUE_NAME, null, msg.getBytes());

        System.out.println();

        channel.close();
        connection.close();

    }
}

Receiver：

package com.my.test.rabbitmq.simple;

import com.my.test.rabbitmq.utils.ConnectionUtils;
import com.rabbitmq.client.*;

import java.io.IOException;
import java.nio.charset.StandardCharsets;
import java.util.concurrent.TimeoutException;

/**
 * @author QinHe at 2019-09-18
 */
public class Receive {

    public static void main(String[] args) throws IOException, TimeoutException {

        Connection connection = ConnectionUtils.getConnection();
        Channel channel = connection.createChannel();
        channel.queueDeclare(Send.QUEUE_NAME, false, false, false, null);
        DefaultConsumer consumer = new DefaultConsumer(channel) {
            @Override
            public void handleDelivery(String consumerTag, Envelope envelope, AMQP.BasicProperties properties, byte[] body) throws IOException {
                String msg = new String(body, StandardCharsets.UTF_8);
                System.out.println(Send.QUEUE_NAME + "receive:" + msg);
            }
        };

        channel.basicConsume(Send.QUEUE_NAME, true, consumer);
    }

}

缺点：耦合性高，生产者一一对应消费者，如果我想有多个消费者消费队列中的消息，这就不行了；如果对列名变更，这时要把生产者和消费者同时变更

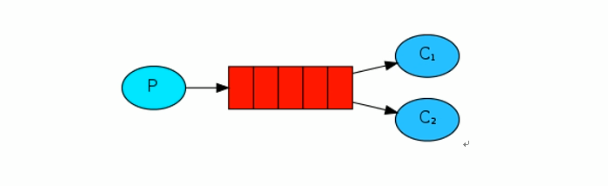

2、work queue 工作队列

模型：

为什么会出现工作队列
simple队列是一一对应的，而且实际开发中，生产者发送消息是毫不费力的，而消费者一般是要跟业务相结合的，消费者接收到消息之后就需要处理，可能会需要花费很多时间，这时候队列可能会积压很多消息
代码：

sender：

package com.my.test.rabbitmq.workqueue;

import com.my.test.rabbitmq.utils.ConnectionUtils;
import com.rabbitmq.client.Channel;
import com.rabbitmq.client.Connection;

import java.io.IOException;
import java.util.concurrent.TimeUnit;
import java.util.concurrent.TimeoutException;

/**
 * @author QinHe at 2019-09-29
 */
public class Send {
    protected final static String QUEUE_NAME = "test_work_queue";

    public static void main(String[] args) throws IOException, TimeoutException, InterruptedException {
        //获取连接
        Connection connection = ConnectionUtils.getConnection();
        //获取channel
        Channel channel = connection.createChannel();
        //声明队列
        channel.queueDeclare(QUEUE_NAME, false, false, false, null);
        for (int i = 0; i < 50; i++) {
            String msg = "hello " + i;
            channel.basicPublish("", QUEUE_NAME, null, msg.getBytes());
            TimeUnit.MICROSECONDS.sleep(i * 20);
        }
        channel.close();
        connection.close();
    }
}

receive1：

package com.my.test.rabbitmq.workqueue;

import com.my.test.rabbitmq.utils.ConnectionUtils;
import com.rabbitmq.client.*;

import java.io.IOException;
import java.nio.charset.StandardCharsets;
import java.util.concurrent.TimeUnit;
import java.util.concurrent.TimeoutException;

/**
 * @author QinHe at 2019-09-29
 */
public class Receive1 {
    public static void main(String[] args) throws IOException, TimeoutException {
        //获取连接
        Connection connection = ConnectionUtils.getConnection();
        //获取channel
        Channel channel = connection.createChannel();
        //声明队列
        channel.queueDeclare(Send.QUEUE_NAME, false, false, false, null);
        //定义消费者
        DefaultConsumer consumer1 = new DefaultConsumer(channel) {
            //消息到达 触发这个方法
            @Override
            public void handleDelivery(String consumerTag, Envelope envelope,
                                       AMQP.BasicProperties properties, byte[] body) throws IOException {
                String msg = new String(body, StandardCharsets.UTF_8);
                System.out.println("[1] receive msg :" + msg);
                try {
                    TimeUnit.SECONDS.sleep(2);
                } catch (InterruptedException e) {
                    e.printStackTrace();
                } finally {
                    System.out.println("[1] receive msg :" + msg);
                }
            }
        };

        boolean autoAck = true;
        channel.basicConsume(Send.QUEUE_NAME, autoAck, consumer1);
    }
}

receive2：

package com.my.test.rabbitmq.workqueue;

import com.my.test.rabbitmq.utils.ConnectionUtils;
import com.rabbitmq.client.*;

import java.io.IOException;
import java.nio.charset.StandardCharsets;
import java.util.concurrent.TimeUnit;
import java.util.concurrent.TimeoutException;

/**
 * @author QinHe at 2019-09-29
 */
public class Receive2 {
    public static void main(String[] args) throws IOException, TimeoutException {
        //获取连接
        Connection connection = ConnectionUtils.getConnection();
        //获取channel
        Channel channel = connection.createChannel();
        //声明队列
        channel.queueDeclare(Send.QUEUE_NAME, false, false, false, null);
        //定义消费者
        DefaultConsumer consumer1 = new DefaultConsumer(channel) {
            //消息到达 触发这个方法
            @Override
            public void handleDelivery(String consumerTag, Envelope envelope,
                                       AMQP.BasicProperties properties, byte[] body) throws IOException {
                String msg = new String(body, StandardCharsets.UTF_8);
                System.out.println("[2] receive msg :" + msg);
                try {
                    TimeUnit.SECONDS.sleep(1);
                } catch (InterruptedException e) {
                    e.printStackTrace();
                }
            }
        };

        boolean autoAck = true;
        channel.basicConsume(Send.QUEUE_NAME, autoAck, consumer1);
    }
}

现象：

消费者1和消费者2处理的消息数是一样的，消费者1都是偶数消费者2都是奇数，这种方式是轮询分发（round-robin）

不管谁忙或者谁清闲，都不会多给一个消息，任务消息总是轮询的

3、workqueue公平分发(fair dipatch)

必须关闭自动应答ack，改成手动
代码:

send:

package com.my.test.rabbitmq.workfairqueue;

import com.my.test.rabbitmq.utils.ConnectionUtils;
import com.rabbitmq.client.Channel;
import com.rabbitmq.client.Connection;

import java.io.IOException;
import java.util.concurrent.TimeUnit;
import java.util.concurrent.TimeoutException;

/**
 * @author QinHe at 2019-09-29
 */
@SuppressWarnings("DuplicatedCode")
public class Send {
    final static String QUEUE_NAME = "test_work_queue";

    public static void main(String[] args) throws IOException, TimeoutException, InterruptedException {
        //获取连接
        Connection connection = ConnectionUtils.getConnection();
        //获取channel
        Channel channel = connection.createChannel();
        //声明队列
        channel.queueDeclare(QUEUE_NAME, false, false, false, null);

        /**
         * 每个消费者 发送确认消息之前，消息队列不发送下一个消息到消费者，一次只处理一条消息
         */
        channel.basicQos(1);

        for (int i = 0; i < 50; i++) {
            String msg = "hello " + i;
            channel.basicPublish("", QUEUE_NAME, null, msg.getBytes());
            TimeUnit.MICROSECONDS.sleep(i * 20);
        }
        channel.close();
        connection.close();
    }
}

receive1:

package com.my.test.rabbitmq.workfairqueue;

import com.my.test.rabbitmq.utils.ConnectionUtils;
import com.rabbitmq.client.*;

import java.io.IOException;
import java.nio.charset.StandardCharsets;
import java.util.concurrent.TimeUnit;
import java.util.concurrent.TimeoutException;

/**
 * @author QinHe at 2019-09-29
 */
public class Receive1 {
    public static void main(String[] args) throws IOException, TimeoutException {
        //获取连接
        Connection connection = ConnectionUtils.getConnection();
        //获取channel
        Channel channel = connection.createChannel();
        //声明队列
        channel.queueDeclare(Send.QUEUE_NAME, false, false, false, null);

        /**
         * 每个消费者 发送确认消息之前，消息队列不发送下一个消息到消费者，一次只处理一条消息
         */
        channel.basicQos(1);

        //定义消费者
        DefaultConsumer consumer1 = new DefaultConsumer(channel) {
            //消息到达 触发这个方法
            @Override
            public void handleDelivery(String consumerTag, Envelope envelope,
                                       AMQP.BasicProperties properties, byte[] body) throws IOException {
                String msg = new String(body, StandardCharsets.UTF_8);
                System.out.println("[1] receive msg :" + msg);
                try {
                    TimeUnit.SECONDS.sleep(2);
                } catch (InterruptedException e) {
                    e.printStackTrace();
                } finally {
                    System.out.println("[1] done");
                    /**
                     * 手动回执一个消息
                     * deliveryTag:该消息的index
                     * multiple：是否批量.true:将一次性ack所有小于deliveryTag的消息。
                     */
                    channel.basicAck(envelope.getDeliveryTag(), false);
                }
            }
        };

        /**
         * 自动应答改成false
         */
        boolean autoAck = false;
        channel.basicConsume(Send.QUEUE_NAME, autoAck, consumer1);
    }
}

receive2:

package com.my.test.rabbitmq.workfairqueue;

import com.my.test.rabbitmq.utils.ConnectionUtils;
import com.rabbitmq.client.*;

import java.io.IOException;
import java.nio.charset.StandardCharsets;
import java.util.concurrent.TimeUnit;
import java.util.concurrent.TimeoutException;

/**
 * @author QinHe at 2019-09-29
 */
@SuppressWarnings("DuplicatedCode")
public class Receive2 {
    public static void main(String[] args) throws IOException, TimeoutException {
        //获取连接
        Connection connection = ConnectionUtils.getConnection();
        //获取channel
        Channel channel = connection.createChannel();
        //声明队列
        channel.queueDeclare(Send.QUEUE_NAME, false, false, false, null);
        //定义消费者
        DefaultConsumer consumer1 = new DefaultConsumer(channel) {
            //消息到达 触发这个方法
            @Override
            public void handleDelivery(String consumerTag, Envelope envelope,
                                       AMQP.BasicProperties properties, byte[] body) throws IOException {
                String msg = new String(body, StandardCharsets.UTF_8);
                System.out.println("[2] receive msg :" + msg);
                try {
                    TimeUnit.SECONDS.sleep(1);
                } catch (InterruptedException e) {
                    e.printStackTrace();
                } finally {
                    System.out.println("[1] done");
                    /**
                     * 手动回执一个消息
                     * deliveryTag:该消息的index
                     * multiple：是否批量.true:将一次性ack所有小于deliveryTag的消息。
                     */
                    channel.basicAck(envelope.getDeliveryTag(), false);
                }
            }
        };

        /**
         * 自动应答改成false
         */
        boolean autoAck = false;
        channel.basicConsume(Send.QUEUE_NAME, autoAck, consumer1);
    }
}

现象：

消费之2处理的消息比消费者1多，能者多劳

autoAck消息应答：

boolean autoAck = false;
channel.basicConsume(Send.QUEUE_NAME, autoAck, consumer1);

①如果ack为true

自动确认模式，一旦rabbitmq把消息给到消费者，会自动从内存中吧消息删除

这种情况下，如果杀死正在执行的消费者，就会丢失正在处理的消息

②如果ack为false

手动确认模式，如果有一个消费者挂掉，就会交付给其他消费者，消费者执行成功后可以发送一个消息应答，告知mq已经消费完毕，可以删除消息了

消息应答默认是打开的，false

Message Acknowkedgment

消息的持久化

如果mq挂了，因为消息在内存中存储，我们的消息仍然会丢失

//声明队列
channel.queueDeclare(QUEUE_NAME, false, false, false, null);

queueDeclare(String queue, boolean durable, boolean exclusive, boolean autoDelete,                             Map<String, Object> arguments) throws IOException;

durable 就是是否持久化，生产端和消费端都要，声明好的队列不能修改，true就是持久化，这是队列持久化

channel.basicPublish(EXCHANGE_NAME,
                routingKey,
                MessageProperties.MINIMAL_PERSISTENT_BASIC//持久化消息
                , msg.getBytes());

增加properties，这个properties 就是消费端 callback函数中的properties

delivery_mode = 2 持久化消息

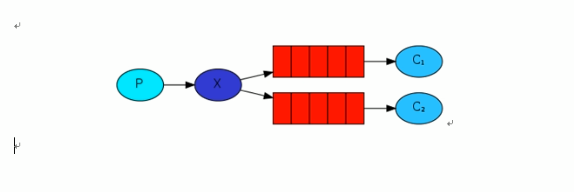

4、订阅模式（publish/subscribe）

RocketMQ的设计上，是不考虑消息去重的问题，即不考虑消息是否会重复的消费的问题，而是将这个问题抛给业务端自己去处理幂等的问题。

模型：

work模式，一个生产者对应一个队列一个队列对应多个消费者

订阅模式，一个生产者对应多个队列一个队列对应一个消费者

生产者没有直接把消息发到队列中，而是发送到了交换机

send：

package com.my.test.rabbitmq.publish_subscribe;

import com.my.test.rabbitmq.utils.ConnectionUtils;
import com.rabbitmq.client.Channel;
import com.rabbitmq.client.Connection;

import java.io.IOException;
import java.util.concurrent.TimeUnit;
import java.util.concurrent.TimeoutException;

/**
 * @author QinHe at 2019-09-29
 */
@SuppressWarnings("DuplicatedCode")
public class Send {
    final static String EXCHANGE_NAME = "test_exchange_fanout";

    public static void main(String[] args) throws IOException, TimeoutException, InterruptedException {
        //获取连接
        Connection connection = ConnectionUtils.getConnection();
        //获取channel
        Channel channel = connection.createChannel();

        //声明交换机

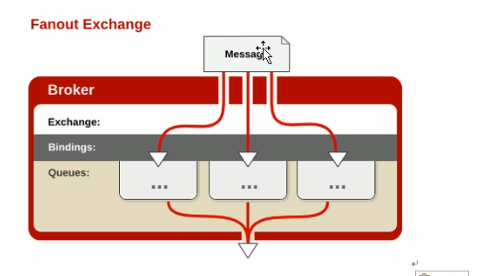

        channel.exchangeDeclare(EXCHANGE_NAME, "fanout");//分发

        //发送消息
        String msg = "hello ps";
        channel.basicPublish(EXCHANGE_NAME, "", null, msg.getBytes());
        System.out.println("send :" + msg);
        channel.close();
        connection.close();
    }
}

消息哪里去了？

丢失了，rabbitmq中只有队列有存储能力，因为这时候还没有队列绑定到这个交换机，所以消息就丢失了

receive：

package com.my.test.rabbitmq.publish_subscribe;

import com.my.test.rabbitmq.utils.ConnectionUtils;
import com.rabbitmq.client.*;

import java.io.IOException;
import java.nio.charset.StandardCharsets;
import java.util.concurrent.TimeUnit;
import java.util.concurrent.TimeoutException;

/**
 * @author QinHe at 2019-09-29
 */
@SuppressWarnings("DuplicatedCode")
public class Receive1 {
    final static String QUEUE_NAME = "test_ps_fanout_queue1";

    public static void main(String[] args) throws IOException, TimeoutException {
        //获取连接
        Connection connection = ConnectionUtils.getConnection();
        //获取channel
        Channel channel = connection.createChannel();
        //声明队列
        channel.queueDeclare(QUEUE_NAME, true, false, false, null);

        //绑定队列到交换机
        channel.queueBind(QUEUE_NAME, Send.EXCHANGE_NAME, "");

        /**
         * 每个消费者 发送确认消息之前，消息队列不发送下一个消息到消费者，一次只处理一条消息
         */
        channel.basicQos(1);

        //定义消费者
        DefaultConsumer consumer1 = new DefaultConsumer(channel) {
            //消息到达 触发这个方法
            @Override
            public void handleDelivery(String consumerTag, Envelope envelope,
                                       AMQP.BasicProperties properties, byte[] body) throws IOException {
                String msg = new String(body, StandardCharsets.UTF_8);
                System.out.println("[1] receive msg :" + msg);
                try {
                    TimeUnit.SECONDS.sleep(2);
                } catch (InterruptedException e) {
                    e.printStackTrace();
                } finally {
                    System.out.println("[1] done");
                    /**
                     * 手动回执一个消息
                     * deliveryTag:该消息的index
                     * multiple：是否批量.true:将一次性ack所有小于deliveryTag的消息。
                     */
                    channel.basicAck(envelope.getDeliveryTag(), false);
                }
            }
        };

        /**
         * 自动应答改成false
         */
        boolean autoAck = false;
        channel.basicConsume(QUEUE_NAME, autoAck, consumer1);
    }
}

package com.my.test.rabbitmq.publish_subscribe;

import com.my.test.rabbitmq.utils.ConnectionUtils;
import com.rabbitmq.client.*;

import java.io.IOException;
import java.nio.charset.StandardCharsets;
import java.util.concurrent.TimeUnit;
import java.util.concurrent.TimeoutException;

/**
 * @author QinHe at 2019-09-29
 */
@SuppressWarnings("DuplicatedCode")
public class Receive2 {
    final static String QUEUE_NAME = "test_ps_fanout_queue2";

    public static void main(String[] args) throws IOException, TimeoutException {
        //获取连接
        Connection connection = ConnectionUtils.getConnection();
        //获取channel
        Channel channel = connection.createChannel();
        //声明队列
        channel.queueDeclare(QUEUE_NAME, true, false, false, null);

        //绑定队列到交换机
        channel.queueBind(QUEUE_NAME, Send.EXCHANGE_NAME, "");

        /**
         * 每个消费者 发送确认消息之前，消息队列不发送下一个消息到消费者，一次只处理一条消息
         */
        channel.basicQos(1);

        //定义消费者
        DefaultConsumer consumer1 = new DefaultConsumer(channel) {
            //消息到达 触发这个方法
            @Override
            public void handleDelivery(String consumerTag, Envelope envelope,
                                       AMQP.BasicProperties properties, byte[] body) throws IOException {
                String msg = new String(body, StandardCharsets.UTF_8);
                System.out.println("[2] receive msg :" + msg);
                try {
                    TimeUnit.SECONDS.sleep(5);
                } catch (InterruptedException e) {
                    e.printStackTrace();
                } finally {
                    System.out.println("[2] done");
                    /**
                     * 手动回执一个消息
                     * deliveryTag:该消息的index
                     * multiple：是否批量.true:将一次性ack所有小于deliveryTag的消息。
                     */
                    channel.basicAck(envelope.getDeliveryTag(), false);
                }
            }
        };

        /**
         * 自动应答改成false
         */
        boolean autoAck = false;
        channel.basicConsume(QUEUE_NAME, autoAck, consumer1);
    }
}

Exchange 交换机转换器

①一方面是接收生产者的消息，另一方面是向队列推送消息

②匿名转发 exchange=""
```
basicPublish(String exchange, String routingKey, BasicProperties props, byte[] body) throws IOException;
```
③fanout（不处理路由键）只要是跟exchange绑定的队列都可以接收到消息
```
//声明交换机
channel.exchangeDeclare(EXCHANGE_NAME, "fanout");//分发
```

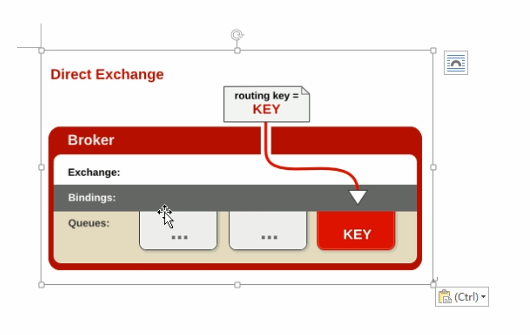

④direct（处理路由键）

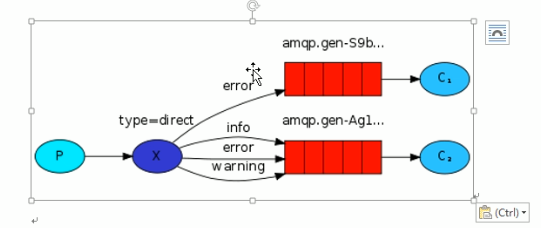

5、路由模式

send：

package com.my.test.rabbitmq.routing;

import com.my.test.rabbitmq.utils.ConnectionUtils;
import com.rabbitmq.client.BuiltinExchangeType;
import com.rabbitmq.client.Channel;
import com.rabbitmq.client.Connection;

import java.io.IOException;
import java.util.concurrent.TimeoutException;

/**
 * @author QinHe at 2019-09-29
 */
@SuppressWarnings("DuplicatedCode")
public class Send {
    final static String EXCHANGE_NAME = "test_exchange_direct";

    public static void main(String[] args) throws IOException, TimeoutException, InterruptedException {
        //获取连接
        Connection connection = ConnectionUtils.getConnection();
        //获取channel
        Channel channel = connection.createChannel();

        //声明交换机
        channel.exchangeDeclare(EXCHANGE_NAME, BuiltinExchangeType.DIRECT);//direct

        //发送消息
        String msg = "hello direct";
        //routing key
        String routingKey = "error";
        channel.basicPublish(EXCHANGE_NAME, routingKey, null, msg.getBytes());
        System.out.println("send :" + msg);
        channel.close();
        connection.close();
    }
}

receive1：

package com.my.test.rabbitmq.routing;

import com.my.test.rabbitmq.utils.ConnectionUtils;
import com.rabbitmq.client.*;

import java.io.IOException;
import java.nio.charset.StandardCharsets;
import java.util.concurrent.TimeUnit;
import java.util.concurrent.TimeoutException;

/**
 * @author QinHe at 2019-09-29
 */
@SuppressWarnings("DuplicatedCode")
public class Receive1 {
    final static String QUEUE_NAME = "test_routing_queue1";

    public static void main(String[] args) throws IOException, TimeoutException {
        //获取连接
        Connection connection = ConnectionUtils.getConnection();
        //获取channel
        Channel channel = connection.createChannel();
        //声明队列
        channel.queueDeclare(QUEUE_NAME, true, false, false, null);

        //绑定队列到交换机
        channel.queueBind(QUEUE_NAME, Send.EXCHANGE_NAME, "error");

        /**
         * 每个消费者 发送确认消息之前，消息队列不发送下一个消息到消费者，一次只处理一条消息
         */
        channel.basicQos(1);

        //定义消费者
        DefaultConsumer consumer1 = new DefaultConsumer(channel) {
            //消息到达 触发这个方法
            @Override
            public void handleDelivery(String consumerTag, Envelope envelope,
                                       AMQP.BasicProperties properties, byte[] body) throws IOException {
                String msg = new String(body, StandardCharsets.UTF_8);
                System.out.println("[1] receive msg :" + msg);
                try {
                    TimeUnit.SECONDS.sleep(2);
                } catch (InterruptedException e) {
                    e.printStackTrace();
                } finally {
                    System.out.println("[1] done");
                    /**
                     * 手动回执一个消息
                     * deliveryTag:该消息的index
                     * multiple：是否批量.true:将一次性ack所有小于deliveryTag的消息。
                     */
                    channel.basicAck(envelope.getDeliveryTag(), false);
                }
            }
        };

        /**
         * 自动应答改成false
         */
        boolean autoAck = false;
        channel.basicConsume(QUEUE_NAME, autoAck, consumer1);
    }
}

receive2：

package com.my.test.rabbitmq.routing;

import com.my.test.rabbitmq.utils.ConnectionUtils;
import com.rabbitmq.client.*;

import java.io.IOException;
import java.nio.charset.StandardCharsets;
import java.util.concurrent.TimeUnit;
import java.util.concurrent.TimeoutException;

/**
 * @author QinHe at 2019-09-29
 */
@SuppressWarnings("DuplicatedCode")
public class Receive2 {
    final static String QUEUE_NAME = "test_routing_queue2";

    public static void main(String[] args) throws IOException, TimeoutException {
        //获取连接
        Connection connection = ConnectionUtils.getConnection();
        //获取channel
        Channel channel = connection.createChannel();
        //声明队列
        channel.queueDeclare(QUEUE_NAME, true, false, false, null);

        //绑定队列到交换机
        channel.queueBind(QUEUE_NAME, Send.EXCHANGE_NAME, "error");
        channel.queueBind(QUEUE_NAME, Send.EXCHANGE_NAME, "info");
        channel.queueBind(QUEUE_NAME, Send.EXCHANGE_NAME, "warning");



        /**
         * 每个消费者 发送确认消息之前，消息队列不发送下一个消息到消费者，一次只处理一条消息
         */
        channel.basicQos(1);

        //定义消费者
        DefaultConsumer consumer1 = new DefaultConsumer(channel) {
            //消息到达 触发这个方法
            @Override
            public void handleDelivery(String consumerTag, Envelope envelope,
                                       AMQP.BasicProperties properties, byte[] body) throws IOException {
                String msg = new String(body, StandardCharsets.UTF_8);
                System.out.println("[2] receive msg :" + msg);
                try {
                    TimeUnit.SECONDS.sleep(5);
                } catch (InterruptedException e) {
                    e.printStackTrace();
                } finally {
                    System.out.println("[2] done");
                    /**
                     * 手动回执一个消息
                     * deliveryTag:该消息的index
                     * multiple：是否批量.true:将一次性ack所有小于deliveryTag的消息。
                     */
                    channel.basicAck(envelope.getDeliveryTag(), false);
                }
            }
        };

        /**
         * 自动应答改成false
         */
        boolean autoAck = false;
        channel.basicConsume(QUEUE_NAME, autoAck, consumer1);
    }
}

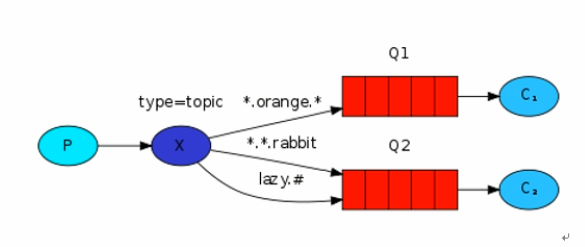

6、topic主题模式

将路由和某个模式匹配
topic exchange
#：匹配一个或者多个
*：匹配一个
商品 Goods.# (Goods.fruit)

[外链图片转存失败,源站可能有防盗链机制,建议将图片保存下来直接上传(img-jjNS7GBY-1570518722699)(E:\anotes_and_information\一些后端服务\rabbitmq\Snipaste_2019-09-30_11-46-24.png)]

send:

package com.my.test.rabbitmq.topic;

import com.my.test.rabbitmq.utils.ConnectionUtils;
import com.rabbitmq.client.*;

import java.io.IOException;
import java.util.concurrent.TimeoutException;

/**
 * @author QinHe at 2019-09-29
 */
@SuppressWarnings("DuplicatedCode")
public class Send {
    final static String EXCHANGE_NAME = "test_exchange_topic";

    public static void main(String[] args) throws IOException, TimeoutException {
        //获取连接
        Connection connection = ConnectionUtils.getConnection();
        //获取channel
        Channel channel = connection.createChannel();

        //声明交换机
        channel.exchangeDeclare(EXCHANGE_NAME, BuiltinExchangeType.TOPIC);//topic

        //发送消息
        String msg = "商品......";
        //routing key
        String routingKey = "goods.add";
//        String routingKey = "goods.delete";
//        String routingKey = "goods.update";
        channel.basicPublish(EXCHANGE_NAME,
                routingKey,
                MessageProperties.MINIMAL_PERSISTENT_BASIC//持久化消息
                , msg.getBytes());
        System.out.println("------send :" + msg);
        channel.close();
        connection.close();
    }
}

receive1:

package com.my.test.rabbitmq.topic;

import com.my.test.rabbitmq.utils.ConnectionUtils;
import com.rabbitmq.client.*;

import java.io.IOException;
import java.nio.charset.StandardCharsets;
import java.util.concurrent.TimeUnit;
import java.util.concurrent.TimeoutException;

/**
 * @author QinHe at 2019-09-29
 */
@SuppressWarnings("DuplicatedCode")
public class Receive1 {
    private final static String QUEUE_NAME = "test_topic_queue1";

    public static void main(String[] args) throws IOException, TimeoutException {
        //获取连接
        Connection connection = ConnectionUtils.getConnection();
        //获取channel
        Channel channel = connection.createChannel();
        //声明队列
        channel.queueDeclare(QUEUE_NAME, true, false, false, null);

        //绑定队列到交换机
        channel.queueBind(QUEUE_NAME, Send.EXCHANGE_NAME, "goods.add");

        /**
         * 每个消费者 发送确认消息之前，消息队列不发送下一个消息到消费者，一次只处理一条消息
         */
        channel.basicQos(1);

        //定义消费者
        DefaultConsumer consumer1 = new DefaultConsumer(channel) {
            //消息到达 触发这个方法
            @Override
            public void handleDelivery(String consumerTag, Envelope envelope,
                                       AMQP.BasicProperties properties, byte[] body) throws IOException {
                String msg = new String(body, StandardCharsets.UTF_8);
                System.out.println("[1] receive msg :" + msg);
                try {
                    TimeUnit.SECONDS.sleep(2);
                } catch (InterruptedException e) {
                    e.printStackTrace();
                } finally {
                    System.out.println("[1] done");
                    /**
                     * 手动回执一个消息
                     * deliveryTag:该消息的index
                     * multiple：是否批量.true:将一次性ack所有小于deliveryTag的消息。
                     */
                    channel.basicAck(envelope.getDeliveryTag(), false);
                }
            }
        };

        /**
         * 自动应答改成false
         */
        boolean autoAck = false;
        channel.basicConsume(QUEUE_NAME, autoAck, consumer1);
    }
}

receive2:

package com.my.test.rabbitmq.topic;

import com.my.test.rabbitmq.utils.ConnectionUtils;
import com.rabbitmq.client.*;

import java.io.IOException;
import java.nio.charset.StandardCharsets;
import java.util.concurrent.TimeUnit;
import java.util.concurrent.TimeoutException;

/**
 * @author QinHe at 2019-09-29
 */
@SuppressWarnings("DuplicatedCode")
public class Receive2 {
    /**
     * 如果和receive1是同一个队列名，则每个消息只会有一个消费者消费
     */
    private final static String QUEUE_NAME = "test_topic_queue2";

    public static void main(String[] args) throws IOException, TimeoutException {
        //获取连接
        Connection connection = ConnectionUtils.getConnection();
        //获取channel
        Channel channel = connection.createChannel();
        //声明队列
        channel.queueDeclare(QUEUE_NAME, true, false, false, null);

        //绑定队列到交换机
        channel.queueBind(QUEUE_NAME, Send.EXCHANGE_NAME, "goods.#");

        /**
         * 每个消费者 发送确认消息之前，消息队列不发送下一个消息到消费者，一次只处理一条消息
         */
        channel.basicQos(1);

        //定义消费者
        DefaultConsumer consumer1 = new DefaultConsumer(channel) {
            //消息到达 触发这个方法
            @Override
            public void handleDelivery(String consumerTag, Envelope envelope,
                                       AMQP.BasicProperties properties, byte[] body) throws IOException {
                String msg = new String(body, StandardCharsets.UTF_8);
                System.out.println("[2] receive msg :" + msg);
                try {
                    TimeUnit.SECONDS.sleep(2);
                } catch (InterruptedException e) {
                    e.printStackTrace();
                } finally {
                    System.out.println("[2] done");
                    /**
                     * 手动回执一个消息
                     * deliveryTag:该消息的index
                     * multiple：是否批量.true:将一次性ack所有小于deliveryTag的消息。
                     */
                    channel.basicAck(envelope.getDeliveryTag(), false);
                }
            }
        };

        /**
         * 自动应答改成false
         */
        boolean autoAck = false;
        channel.basicConsume(QUEUE_NAME, autoAck, consumer1);
    }
}

7、rabbitmq消息确认机制

在rabbitmq中，我们可以通过持久化数据解决rabbitmq服务器的异常的数据丢失问题

问题：生产者将消息发送出去之后，消息到底有没有到达rabbitmq服务器

两种方式：

①、AMQP实现了事务机制

txSelect txCommit txRollback

txSelect ：用于将当前channel设置成transaction模式

txCommit ：用于提交事务

txRollback：回滚事务

send：

package com.my.test.rabbitmq.transaction;

import com.my.test.rabbitmq.utils.ConnectionUtils;
import com.rabbitmq.client.Channel;
import com.rabbitmq.client.Connection;

import java.io.IOException;
import java.util.concurrent.TimeoutException;

/**
 * @author QinHe at 2019-09-18
 */
@SuppressWarnings("DuplicatedCode")
public class Send {

    static final String QUEUE_NAME = "test_simple_queue_tx";

    public static void main(String[] args) throws IOException, TimeoutException {
        //获取连接
        Connection connection = ConnectionUtils.getConnection();

        //从连接中创建一个管道
        Channel channel = connection.createChannel();

        //创建队列声明
        channel.queueDeclare(QUEUE_NAME, true, false, false, null);

        String msg = "hello tx";

        try {
            /**
             * 开启事务
             */
            channel.txSelect();

            /**
             * 发送消息
             */
            channel.basicPublish("", QUEUE_NAME, null, msg.getBytes());

            /**
             * 提交事务
             */
            channel.txCommit();
            System.out.println("send " + msg);
        } catch (Exception e) {
            e.printStackTrace();
            /**
             * 回滚事务
             */
            channel.txRollback();
            System.out.println("send rollback " + msg);
        }

        channel.close();
        connection.close();

    }
}

receive：

package com.my.test.rabbitmq.transaction;

import com.my.test.rabbitmq.utils.ConnectionUtils;
import com.rabbitmq.client.*;

import java.io.IOException;
import java.nio.charset.StandardCharsets;
import java.util.concurrent.TimeoutException;

/**
 * @author QinHe at 2019-09-18
 */
@SuppressWarnings("DuplicatedCode")
public class Receive {

    public static void main(String[] args) throws IOException, TimeoutException {

        Connection connection = ConnectionUtils.getConnection();
        Channel channel = connection.createChannel();
        channel.queueDeclare(Send.QUEUE_NAME, true, false, false, null);
        DefaultConsumer consumer = new DefaultConsumer(channel) {
            @Override
            public void handleDelivery(String consumerTag, Envelope envelope, AMQP.BasicProperties properties, byte[] body) throws IOException {
                String msg = new String(body, StandardCharsets.UTF_8);
                System.out.println(Send.QUEUE_NAME + "receive:" + msg);
            }
        };

        channel.basicConsume(Send.QUEUE_NAME, true, consumer);
    }

}

②、confirm模式

生产者端confirm模式的实现原理：

生产者将信道设置成confirm模式，一旦信道进入confirm模式，所有在该信道上发布的消息都会被指派一个唯一的ID（从1开始），一旦消息被投递到所有匹配的队列之后，broker就会发送一个确认给生产者（包含消息的唯一ID），这就使得生产者知道消息已经正确到达目的队列了，如果消息和队列是可持久化的，那么确认消息会将消息写入磁盘之后发送给生产者。broker回传给生产者的确认消息中deliver-tag域中包含了确认消息的序列号，此外broker也可以设置basic.ack的multiple域，表示到这个序列号之前的所有消息都已经得到了处理。
confirm模式最大的好处在于异步

开启confirm模式：channel.confirmSelect()

编程模式：

1、普通发一条 waitForConfirms()

package com.my.test.rabbitmq.confirm;

import com.my.test.rabbitmq.utils.ConnectionUtils;
import com.rabbitmq.client.Channel;
import com.rabbitmq.client.Connection;

import java.io.IOException;
import java.util.concurrent.TimeoutException;

/**
 * @author QinHe at 2019-09-18
 * 单条确认
 */
@SuppressWarnings("DuplicatedCode")
public class Send1 {

    static final String QUEUE_NAME = "test_queue_confirm1";

    public static void main(String[] args) throws IOException, TimeoutException, InterruptedException {
        //获取连接
        Connection connection = ConnectionUtils.getConnection();

        //从连接中创建一个管道
        Channel channel = connection.createChannel();

        //创建队列声明
        channel.queueDeclare(QUEUE_NAME, true, false, false, null);

        /**
         * 将channel设为confirm模式,注意不能同时设为事务模式
         */
        channel.confirmSelect();

        String msg = "hello confirm";

        channel.basicPublish("", QUEUE_NAME, null, msg.getBytes());

        if (!channel.waitForConfirms()) {
            System.out.println("message send failed");
        } else {
            System.out.println("send success " + msg);
        }

        channel.close();
        connection.close();

    }
}

2、批量的发一批 waitForConfirms()

package com.my.test.rabbitmq.confirm;

import com.my.test.rabbitmq.utils.ConnectionUtils;
import com.rabbitmq.client.Channel;
import com.rabbitmq.client.Connection;

import java.io.IOException;
import java.util.concurrent.TimeoutException;

/**
 * @author QinHe at 2019-09-18
 * 批量确认
 */
@SuppressWarnings("DuplicatedCode")
public class Send2 {

    static final String QUEUE_NAME = "test_queue_confirm2";

    public static void main(String[] args) throws IOException, TimeoutException, InterruptedException {
        //获取连接
        Connection connection = ConnectionUtils.getConnection();

        //从连接中创建一个管道
        Channel channel = connection.createChannel();

        //创建队列声明
        channel.queueDeclare(QUEUE_NAME, true, false, false, null);

        /**
         * 将channel设为confirm模式,注意不能同时设为事务模式
         */
        channel.confirmSelect();

        String msg = "hello confirm";

        //批量发送
        for (int i = 0; i < 10; i++) {
            channel.basicPublish("", QUEUE_NAME, null, msg.getBytes());
        }

        //确认
        if (!channel.waitForConfirms()) {
            System.out.println("message send failed");
        } else {
            System.out.println("send success " + msg);
        }

        channel.close();
        connection.close();

    }
}

3、异步confirm模式提供一个回调方法

channel对象提供的ConfirmListen()回调方法中质保函deliveryTag（当前channel发出的消息序号），我们需要自己为每一个channel维护一个unconfirm的消息序号集合，每publish一条数据，集合中元素加1，每回调一次handleAck方法，unconfirm集合删掉相应的一条(multiple=false) 或者多条（multiple=true）记录。从程序运行效率上看，这个unconfirm集合最好采用有序集合SortedSet存储结构

8、spring+rabbitmq

添加maven依赖

<!--rabbit spring-->
<dependency>
    <groupId>org.springframework.amqp</groupId>
    <artifactId>spring-rabbit</artifactId>
    <version>2.0.0.RELEASE</version>
</dependency>

spring配置文件 spring-rabbitmq.xml：

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:rabbit="http://www.springframework.org/schema/rabbit"
       xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd
       http://www.springframework.org/schema/rabbit http://www.springframework.org/schema/rabbit/spring-rabbit.xsd">

    <!--定义rabbitmq的连接工厂-->
    <rabbit:connection-factory id="rabbitConnectionFactory"
                               host="dev.com" port="5672" username="user_mmr"
                               password="123456" virtual-host="/vhost_mmr"/>

    <!--定义rabbit模板,指定连接工厂以及定义exchange-->
    <rabbit:template id="rabbitTemplate" connection-factory="rabbitConnectionFactory" exchange="fanoutExchange"/>
    <!--mq的管理  包括队列 交换机声明等-->
    <rabbit:admin connection-factory="rabbitConnectionFactory"/>
    <!--定义队列,自动声明-->
    <rabbit:queue name="myQueue" auto-declare="true" durable="true"/>
    <!--定义交换机,自动声明-->
    <rabbit:fanout-exchange name="fanoutExchange" auto-declare="true">
        <rabbit:bindings>
            <rabbit:binding queue="myQueue"/>
        </rabbit:bindings>
    </rabbit:fanout-exchange>
    <!--队列监听-->
    <rabbit:listener-container connection-factory="rabbitConnectionFactory">
        <rabbit:listener ref="myConsumer" method="listen" queue-names="myQueue"/>
    </rabbit:listener-container>
    <!--消费者-->
    <bean id="myConsumer" class="com.my.rabbitmq.MyConsumer"/>
</beans>

发送消息 SendService：

package com.my.rabbitmq;

import org.springframework.amqp.rabbit.core.RabbitTemplate;
import org.springframework.stereotype.Service;

/**
 * @author QinHe at 2019-09-30
 */
@Service
public class SendService {
    private final RabbitTemplate rabbitTemplate;

    public SendService(RabbitTemplate rabbitTemplate) {
        this.rabbitTemplate = rabbitTemplate;
    }

    /**
     * 发送消息
     * @param msg
     */
    public void send(String msg) {
        rabbitTemplate.convertAndSend(msg);
    }
}

消费 MyConsumer：

package com.my.rabbitmq;

/**
 * @author QinHe at 2019-09-30
 */
public class MyConsumer {
    public void listen(String foo) {
        System.out.println("消费者接受消息：" + foo);
    }
}

rable=“true”/>

<rabbit:fanout-exchange name=“fanoutExchange” auto-declare=“true”>
rabbit:bindings
<rabbit:binding queue=“myQueue”/>
</rabbit:bindings>
</rabbit:fanout-exchange>

<rabbit:listener-container connection-factory=“rabbitConnectionFactory”>
<rabbit:listener ref=“myConsumer” method=“listen” queue-names=“myQueue”/>
</rabbit:listener-container>


* 发送消息 SendService：

```java
package com.my.rabbitmq;

import org.springframework.amqp.rabbit.core.RabbitTemplate;
import org.springframework.stereotype.Service;

/**
 * @author QinHe at 2019-09-30
 */
@Service
public class SendService {
    private final RabbitTemplate rabbitTemplate;

    public SendService(RabbitTemplate rabbitTemplate) {
        this.rabbitTemplate = rabbitTemplate;
    }

    /**
     * 发送消息
     * @param msg
     */
    public void send(String msg) {
        rabbitTemplate.convertAndSend(msg);
    }
}

消费 MyConsumer：

package com.my.rabbitmq;

/**
 * @author QinHe at 2019-09-30
 */
public class MyConsumer {
    public void listen(String foo) {
        System.out.println("消费者接受消息：" + foo);
    }
}
