一目标

1，了解看源代码最有效的方式，先猜测后验证，不要一开始就去调试代码

2，用300行最简洁的代码提炼Spring的基础设计思想

3，结合设计模式，掌握Spring框架的基本脉络

二 Spring如何下手，从哪里开始看？

Spring的如何开始的，我们先从原理来了解一下。

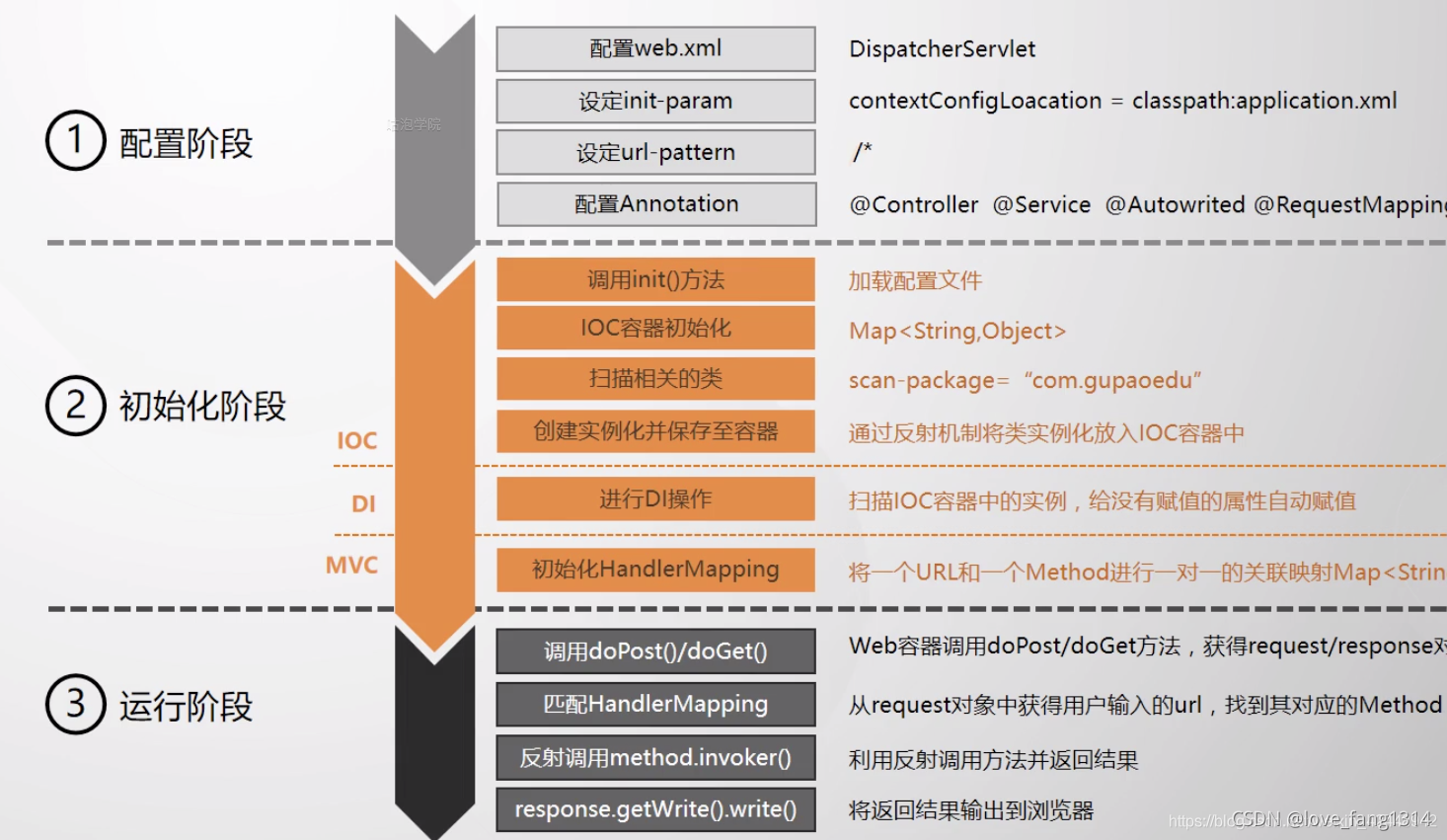

Spring主要有3个阶段：

第一阶段：配置阶段

在web.xml中设定DispatchServle，设置Spring-*.xml相关的配置信息或者直接设置*.properties文件，包含@Controller @Service @Autowrited @RequestMapping 等等

第二阶段：初始化阶段

1，调用init()方法，加载配置文件

2，IOC容器初始化，根据spring-*.xml或者*.properties中的配置扫描相关的类。

3，根据扫描的类，创建实例化类并保存到IOC容器中，主要是通过反射机制将类实例化放入IOC容器中

4，进行DI操作，即依赖注入，通过扫描IOC容器中的实例，给没有赋值的属性自动赋值

5，初始化HandelerMappping，就是将URL和Method进行一对一的关联映射到Map<String,Object>中

第三个阶段：运行阶段

1，掉用doPost()/doGet()请求，获取request/response。

2，匹配handlerMapping，从request对象中获得用户输入的url，并从hangdlerMapping中找到对应的Method方法。

3，反射调用method.invoker()，返回结果

4，response.getWrite().wirte()，将结果返回给浏览器

三代码实现

第一步我们要新建一个maven web工程。

这个不会建的请移步度娘，自己去百度。

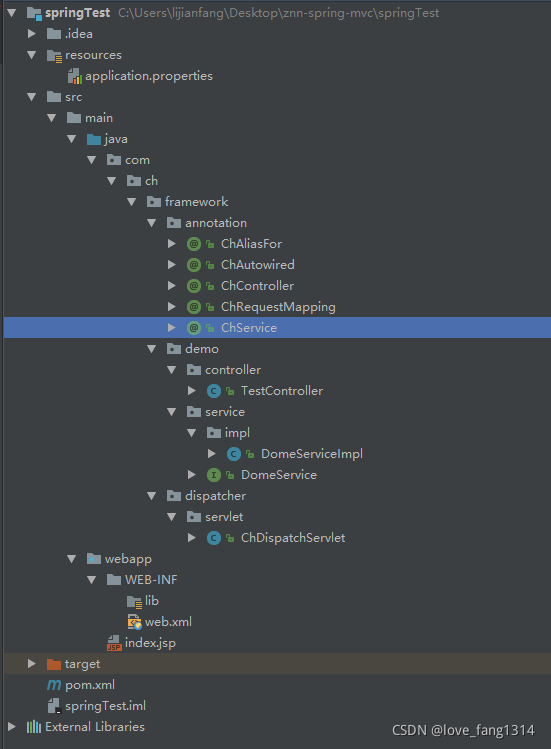

我的项目结构如下图：

第二步，新建我们自己的相关的注解以及配置web.xml，pom.xml以及application.properties文件

ChService注解代码如下：

package com.ch.framework.annotation;

import java.lang.annotation.*;

/**
 * Created by lijianfang on 2021/10/25.
 */
@Target({ElementType.TYPE})
@Retention(RetentionPolicy.RUNTIME)
@Documented
public @interface ChService {
    String value() default "";
}

ChRequestMapping注解代码如下：

package com.ch.framework.annotation;

import java.lang.annotation.*;

/**
 * Created by lijianfang on 2021/10/25.
 */
@Target({ ElementType.METHOD, ElementType.TYPE })
@Retention(RetentionPolicy.RUNTIME)
@Documented
public @interface ChRequestMapping {
    String name() default "";
    @ChAliasFor("path")
    String[] value() default {};
    @ChAliasFor("value")
    String[] path() default {};
    String[] params() default {};

    String[] headers() default {};

    String[] consumes() default {};

    String[] produces() default {};
}

ChController注解代码如下：

package com.ch.framework.annotation;

import java.lang.annotation.*;

/**
 * Created by lijianfang on 2021/10/25.
 */
@Target({ElementType.TYPE})
@Retention(RetentionPolicy.RUNTIME)
@Documented
public @interface ChController {
    String value() default "";
}

ChAutowired注解代码如下：

package com.ch.framework.annotation;

import java.lang.annotation.*;

/**
 * Created by lijianfang on 2021/10/25.
 */
@Target({ElementType.CONSTRUCTOR, ElementType.METHOD, ElementType.PARAMETER, ElementType.FIELD, ElementType.ANNOTATION_TYPE})
@Retention(RetentionPolicy.RUNTIME)
@Documented
public @interface ChAutowired {
    boolean required() default true;
    String value() default "";
}

ChAliasFor注解代码如下：

package com.ch.framework.annotation;

import java.lang.annotation.*;

/**
 * Created by lijianfang on 2021/10/25.
 */
@Retention(RetentionPolicy.RUNTIME)
@Target({ElementType.METHOD})
@Documented
public @interface ChAliasFor {

//    @ChAliasFor("attribute");
    String value() default "";

//    @ChAutowired("value");
    String attribute() default "";

    Class<? extends Annotation> annotation() default Annotation.class;
}

pom.xml文件中需要配置编译相关的组件，pom.xml具体如下：

<?xml version="1.0" encoding="UTF-8"?>

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
  xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
  <modelVersion>4.0.0</modelVersion>

  <groupId>com.ch.framework</groupId>
  <artifactId>springTest</artifactId>
  <version>1.0-SNAPSHOT</version>
  <packaging>war</packaging>

  <name>springTest Maven Webapp</name>
  <!-- FIXME change it to the project's website -->
  <url>http://www.example.com</url>

  <properties>
    <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
    <maven.compiler.source>1.7</maven.compiler.source>
    <maven.compiler.target>1.7</maven.compiler.target>
  </properties>

  <dependencies>
    <dependency>
      <groupId>junit</groupId>
      <artifactId>junit</artifactId>
      <version>4.11</version>
      <scope>test</scope>
    </dependency>
    <dependency>
      <groupId>javax.servlet</groupId>
      <artifactId>javax.servlet-api</artifactId>
      <version>3.0.1</version>
    </dependency>
    <dependency>
      <groupId>org.glassfish</groupId>
      <artifactId>bean-validator</artifactId>
      <version>3.0-JBoss-4.0.2</version>
    </dependency>
  </dependencies>

  <build>
    <finalName>springTest</finalName>
    <pluginManagement><!-- lock down plugins versions to avoid using Maven defaults (may be moved to parent pom) -->
      <plugins>
        <plugin>
          <artifactId>maven-clean-plugin</artifactId>
          <version>3.1.0</version>
        </plugin>
        <!-- see http://maven.apache.org/ref/current/maven-core/default-bindings.html#Plugin_bindings_for_war_packaging -->
        <plugin>
          <artifactId>maven-resources-plugin</artifactId>
          <version>3.0.2</version>
        </plugin>
        <plugin>
          <artifactId>maven-compiler-plugin</artifactId>
          <version>3.8.0</version>
        </plugin>
        <plugin>
          <artifactId>maven-surefire-plugin</artifactId>
          <version>2.22.1</version>
        </plugin>
        <plugin>
          <artifactId>maven-war-plugin</artifactId>
          <version>3.2.2</version>
        </plugin>
        <plugin>
          <artifactId>maven-install-plugin</artifactId>
          <version>2.5.2</version>
        </plugin>
        <plugin>
          <artifactId>maven-deploy-plugin</artifactId>
          <version>2.8.2</version>
        </plugin>
      </plugins>
    </pluginManagement>
    <resources>
      <resource>
        <directory>src/main/java</directory>
        <includes>
          <include>**/*.xml</include>
        </includes>
      </resource>
      <resource>
        <directory>resources</directory>
        <includes>
          <include>**/*.yml</include>
          <include>**/*.properties</include>
          <include>**/*.xml</include>
          <include>**/*.jpg</include>
          <include>**/*.ttf</include>
          <include>**/*.xml</include>
        </includes>
        <excludes>
          <exclude>**/*.yml</exclude>
        </excludes>
      </resource>
    </resources>
  </build>
</project>

web.xml中设置我们自己定义的dispatchServlet类，详情如下：

<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns="http://java.sun.com/xml/ns/javaee" xmlns:web="http://java.sun.com/xml/ns/javaee/web-app_2_5.xsd" xsi:schemaLocation="http://java.sun.com/xml/ns/javaee http://java.sun.com/xml/ns/javaee/web-app_3_0.xsd" version="3.0">
  <display-name>springTest</display-name>
  <servlet>
    <servlet-name>znnmvc</servlet-name>
    <servlet-class>com.ch.framework.dispatcher.servlet.ChDispatchServlet</servlet-class>
    <init-param>
      <param-name>contextConfigLocation</param-name>
      <param-value>application.properties</param-value>
    </init-param>
    <load-on-startup>1</load-on-startup>
  </servlet>
  <servlet-mapping>
    <servlet-name>znnmvc</servlet-name>
    <url-pattern>/*</url-pattern>
  </servlet-mapping>
  <welcome-file-list>
    <welcome-file>index.jsp</welcome-file>
  </welcome-file-list>
</web-app>

application.properties文件中定义需要扫描的类包名。

scanPackage=com.ch.framework.demo

第三步，开发我们自己的dispatchSetvlet类，我新建的是ChDispatchServlet.java

具体代码如下：

package com.ch.framework.dispatcher.servlet;


import com.ch.framework.annotation.ChAutowired;
import com.ch.framework.annotation.ChController;
import com.ch.framework.annotation.ChRequestMapping;
import com.ch.framework.annotation.ChService;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;

import javax.servlet.ServletConfig;
import javax.servlet.ServletException;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import java.io.File;
import java.io.IOException;
import java.io.InputStream;
import java.lang.reflect.Field;
import java.lang.reflect.Method;
import java.net.URL;
import java.util.*;

/**
 * 手写自己的servlet
 * Created by lijianfang on 2021/10/25.
 */
public class ChDispatchServlet extends HttpServlet{
    private static final Logger logger = LoggerFactory.getLogger(ChDispatchServlet.class);
    private Properties contextConfig = new Properties();
    private List<String> classNames = new ArrayList<String>();
    private Map<String, Object> ioc = new HashMap<String, Object>();
    private Map<String, Object> handlerMapping = new HashMap<String, Object>();
    @Override
    protected void doGet(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {
        this.doPost(req, resp);
    }
    @Override
    protected void doPost(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {
        try{
            //6,调用
            doDispatch(req,resp);
        }catch (Exception e){
            logger.error("调用报错，错误信息",e);
        }
    }
    private void doDispatch(HttpServletRequest req, HttpServletResponse resp) throws Exception{
        if(this.handlerMapping.isEmpty()){
            return;
        }
        String url = req.getRequestURI();
        String contextPath = req.getContextPath();
        url = url.replaceAll(contextPath, "").replaceAll("/", "/");
        //用户访问的路径是不是在hangdlerMapping中
        if(!this.handlerMapping.containsKey(url)){
            resp.getWriter().write("没有找到相关的路径，请确认路径是否正确！");
            return;
        }
        Method method = (Method) this.handlerMapping.get(url);
        //获取方法的参数列表
        Class<?>[] paramterTypes = method.getParameterTypes();
        //获取请求的参数
        Map<String,String[]> parameterMap = req.getParameterMap();
        Object [] parameValues = new Object[paramterTypes.length];
        //方法的参数列表
        for(int i = 0;i<paramterTypes.length;i++){
            Class paramterType = paramterTypes[i];
            if(paramterType==HttpServletRequest.class){
                parameValues[i] = req;
                continue;
            }else if(paramterType==HttpServletResponse.class){

                parameValues[i] = resp;
                continue;
            }else if(paramterType==String.class){
                for (Map.Entry<String, String[]> param : parameterMap.entrySet()) {
                    System.out.println("param.getValue()==="+param.getValue()[0]);
                    String value = Arrays.toString(param.getValue()).replaceAll("\\[|\\]","").
                            replaceAll(",\\s",",");
                    parameValues[i] = value;
                    i++;
                }
            }
        }
        String beanName = toLowerFirstCase(method.getDeclaringClass().getSimpleName());
        //反射调用方法
        method.invoke(this.ioc.get(beanName), parameValues);
    }

    /**
     * 初始化相关参数
     * @param config
     * @throws ServletException
     */
    @Override
    public void init(ServletConfig config) throws ServletException {
        //1、加载配置文件
        doLoadConfig(config.getInitParameter("contextConfigLocation"));
        //2、扫描相关的类
        doScanner(contextConfig.getProperty("scanPackage"));
        //3、初始化扫描的类，并将他们放到IOC容器中
        doInstance();
        //4、完成依赖注入
        doAutowired();
        //5、初始化handerMapping
        initHandlerMapping();
        //6、调用
    }
    /**
     * 初始化url跟method的一一对应关系
     */
    private void initHandlerMapping() {
        if (ioc.isEmpty()) {
            return;
        }
        for (Map.Entry<String, Object> entry : ioc.entrySet()) {
            Class<?> clazz = entry.getValue().getClass();
            //当前类的注解是不是controller,不是直接跳过
            if (!clazz.isAnnotationPresent(ChController.class)) {
                continue;
            }
            String baseUrl = "";
            //是controller注解，获取注解上的路径名称
            if (clazz.isAnnotationPresent(ChRequestMapping.class)) {
                ChRequestMapping requestMapping = clazz.getAnnotation(ChRequestMapping.class);
                baseUrl = requestMapping.value()[0];
            }
            // 默认获取所有的public，获取class类的方法（公共方法）
            for (Method method : clazz.getMethods()) {
                //判断方法上的注解是不是requestMap注解，不是就直接跳过
                if (!method.isAnnotationPresent(ChRequestMapping.class)) {
                    continue;
                }
                //获取注解上的路径
                ChRequestMapping requestMapping = method.getAnnotation(ChRequestMapping.class);
                //合成最终访问的路径
                String url = ("/"+baseUrl + "/" + requestMapping.value()[0]).replaceAll("/", "/");
                // 将访问的路径放到handlerMapping中
                handlerMapping.put(url, method);
                logger.info("Mapped" + url + method);
            }
        }
    }
    /**
     * 完成依赖注入
     */
    private void doAutowired() {
        if(ioc.isEmpty()){
            return;
        }
        //循环ioc中的类，给对应的类中的依赖的属性注入相应的bean
        for(Map.Entry<String,Object> entry:ioc.entrySet()){
            //获取对应类的私有属性
            Field[] fields = entry.getValue().getClass().getDeclaredFields();
            //循环私有属性，看是否是autowired注解
            for(Field field:fields){
                //看是不是service注解
                if(field.isAnnotationPresent(ChService.class)){
                    continue;
                }
                //查看是不是依赖注入的注解
                ChAutowired autowired = field.getAnnotation(ChAutowired.class);
                //获取对应注解的名字，先查看是否注解上是不是有写了默认的值，没有值时，使用类型注入
                String beanName = autowired.value().trim();
                if("".equals(beanName)){
                    beanName=field.getType().getName();
                }
                //设置注解类的可用属性
                field.setAccessible(true);
                try {
                    field.set(entry.getValue(),ioc.get(beanName));
                } catch (IllegalAccessException e) {
                    e.printStackTrace();
                }
            }
        }
    }

    /**
     * 初始化扫描的类
     */
    private void doInstance(){
        if(classNames.isEmpty()){
            return;
        }
        try {
            for(String className:classNames){
                Class<?> clazz = Class.forName(className);
                // 什么样的类才需要初始化，添加了注解的类才初始化
                //controller,service
                if (clazz.isAnnotationPresent(ChController.class)){
                    Object instance = clazz.newInstance();
                    String beanName = toLowerFirstCase(clazz.getSimpleName());
                    ioc.put(beanName, instance);
                }else if(clazz.isAnnotationPresent(ChService.class)){
                    ChService service = clazz.getAnnotation(ChService.class);
                    // 1、默认首字母小写
                    String beanName = service.value();
                    // 2、自定义bean名字
                    if ("".equals(beanName.trim())) {
                        beanName = toLowerFirstCase(clazz.getSimpleName());
                    }
                    Object instance = clazz.newInstance();
                    ioc.put(beanName, instance);
                    // 3、根据类自动赋值
                    for (Class<?> i : clazz.getInterfaces()) {
                        if (ioc.containsKey(i.getName())) {
                            try {
                                throw new Exception("这个" + i.getName() + " 已经存在！");
                            } catch (Exception e) {
                                logger.error("这个" + i.getName() + " 已经存在！");
                            }
                        }
                        ioc.put(i.getName(), instance);
                    }
                }else {
                    continue;
                }

            }
        } catch (ClassNotFoundException e) {
            logger.error("报错信息：",e);
        } catch (InstantiationException e) {
            logger.error("报错信息：",e);
        } catch (IllegalAccessException e) {
            logger.error("报错信息：",e);
        }
    }
    /**
     * <p>
     * 首字母小写
     * </p>
     *
     * @param simpleName
     * @return
     */
    private String toLowerFirstCase(String simpleName) {
        char[] chars = simpleName.toCharArray();
        chars[0] += 32;
        return String.valueOf(chars);
    }
    /**
     * <p>
     * 扫描配置文件配置的类路径
     * </p>
     *
     * @param scanPackage
     */
    private void doScanner(String scanPackage) {
        URL url = this.getClass().getClassLoader().getResource(""+scanPackage.replaceAll("\\.","/"));
        File classPath = new File(url.getFile());
        for(File file:classPath.listFiles()){
            if(file.isDirectory()){
                doScanner(scanPackage + "." + file.getName());
            }else{
                if (!file.getName().endsWith(".class")) {
                    continue;
                }
                String className = (scanPackage + "." + file.getName().replace(".class", ""));
                classNames.add(className);
            }
        }
    }

    /**
     * <p>
     * 加载配置文件，直接从类路径下找到spring主配置文件夹所在的路径并且将其读取出来放到Properties对象中<br/>
     * 将application.properties文件中的scanPackage=com.ch.framework.demo 放到properties对象中
     * </p>
     * @param contextConfigLocation
     */
    private void doLoadConfig(String contextConfigLocation){
        InputStream fis = this.getClass().getClassLoader().getResourceAsStream(contextConfigLocation);
        try{
            contextConfig.load(fis);
        }catch (Exception e){
            logger.error("加载配置失败，错误原因：", e);
        }finally{
            if(null!=fis){
                try {
                    fis.close();
                } catch (IOException e) {
                    logger.error("关闭流失败，错误原因：", e);
                }
            }
        }
    }
}

第四步，编写测试类

我新建了一个demo包，

TestController.java文件代码如下：

package com.ch.framework.demo.controller;

import com.ch.framework.annotation.ChAutowired;
import com.ch.framework.annotation.ChController;
import com.ch.framework.annotation.ChRequestMapping;
import com.ch.framework.demo.service.DomeService;

import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import java.io.IOException;

/**
 * Created by lijianfang on 2021/11/15.
 */
@ChController
@ChRequestMapping("test")
public class TestController {


    @ChAutowired
    private DomeService domeService;

    @ChRequestMapping("getData")
    public void getData(HttpServletRequest request, HttpServletResponse response){
        String name = request.getParameter("name");
        System.out.println("name=="+name);
        try {
            String result = domeService.getData(name);
            response.getWriter().write(result);
        } catch (IOException e) {
            e.printStackTrace();
        }
    }
    @ChRequestMapping("addData")
    public void addData(HttpServletRequest request, HttpServletResponse response){
        int a = Integer.parseInt(request.getParameter("a"));
        int b = Integer.parseInt(request.getParameter("b"));
        System.out.println("name=="+a);
        try {
            int result = domeService.addData(a,b);
            response.getWriter().write("result:a+b="+result);
        } catch (IOException e) {
            e.printStackTrace();
        }
    }
}

DomeService.java文件代码如下：

package com.ch.framework.demo.service;

/**
 * Created by lijianfang on 2021/11/15.
 */
public interface DomeService {
    public String getData(String name);
    public int addData(int a,int b);
}

DomeServiceImpl.java文件代码如下：

package com.ch.framework.demo.service.impl;

import com.ch.framework.annotation.ChService;
import com.ch.framework.demo.service.DomeService;

/**
 * Created by lijianfang on 2021/11/15.
 */
@ChService
public class DomeServiceImpl implements DomeService {
    @Override
    public String getData(String name) {
        return "My name is "+name;
    }

    @Override
    public int addData(int a, int b) {
        return a+b;
    }
}

第五步，测试结果
