《a20开源平板led灯编程》

1.现象展示： 2
        2.app源码： 3
        3.JNI源码： 4
        4.HAL源码： 5
        5.硬件驱动源码： 6
        6.编译： 8

1.现象展示：

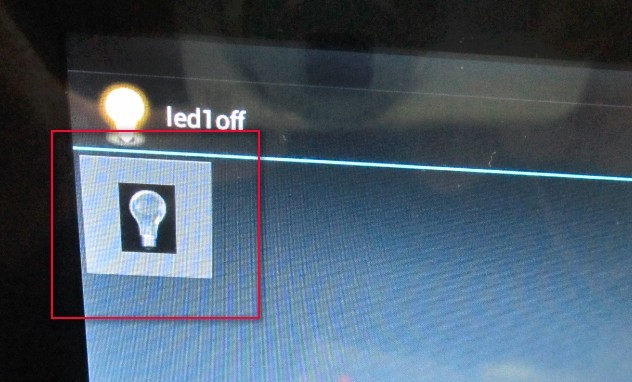

点击按钮，关灯:

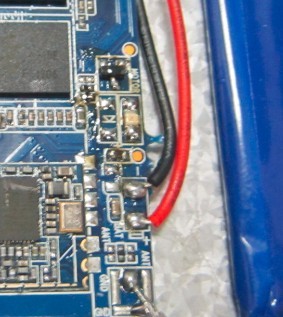

硬件现象：

点击按钮，开灯：

硬件现象：

2.app源码：

led_srv = new LedService();
        btn0 = (ImageButton)this.findViewById(R.id.imageButton1);
        this.btn0.setOnClickListener(new OnClickListener(){
                public void onClick(View v){
                        String title = new String();
                        if (iflag) {
                                title = led_srv.set_on(1);
                                setTitle(title);
                                btn0.setImageResource(R.drawable.bulb_on);
                                iflag = false;
                        } else {
                                title = led_srv.set_off(1);
                                setTitle(title);
                                btn0.setImageResource(R.drawable.bulb_off);
                                iflag = true;
                        }
                }
        });

3.JNI源码：

....
        static const JNINativeMethod gMethods[] = {
                {"_init", "()Z",
                        (void*)led_init},
                { "_set_on", "(I)I",
                        (void*)led_setOn },
                { "_set_off", "(I)I",
                        (void*)led_setOff },
                { "_get_count", "()I",
                        (void*)get_count },
        };

        static int registerMethods(JNIEnv* env) {
                static const char* const kClassName =
                "com/farsight/service/LedService";
                jclass clazz;
                /* look up the class */
                clazz = env->FindClass(kClassName);
                if (clazz == NULL) {
                        LOGE("Can't find class %s\n", kClassName);
                        return -1;
                }

                /* register all the methods */
                if (env->RegisterNatives(clazz, gMethods,
                sizeof(gMethods) / sizeof(gMethods[0])) != JNI_OK)
                {
                        LOGE("Failed registering methods for %s\n", kClassName);
                        return -1;
                }
                /* fill out the rest of the ID cache */
                return 0;
        }

        jint JNI_OnLoad(JavaVM* vm, void* reserved) {
                JNIEnv* env = NULL;
                jint result = -1;
                LOGI("JNI_OnLoad");

                if (vm->GetEnv((void**) &env, JNI_VERSION_1_4) != JNI_OK) {
                        LOGE("ERROR: GetEnv failed\n");
                        goto fail;
                }

                assert(env != NULL);
                if (registerMethods(env) != 0) {
                        LOGE("ERROR: PlatformLibrary native registration failed\n");
                        goto fail;
                }
                /* success -- return valid version number */
                result = JNI_VERSION_1_4;

                fail:
                return result;
        }
        ....

4.HAL源码：

...
        static int led_device_open(const struct hw_module_t* module, const char* name,
        struct hw_device_t** device)
        {
                struct led_control_context_t *context;
                LOGD("led_device_open");
                context = (struct led_control_context_t *)malloc(sizeof(*context));
                memset(context, 0, sizeof(*context));
                context->device.common.tag= HARDWARE_DEVICE_TAG;
                context->device.common.version = 0;
                context->device.common.module= module;
                context->device.common.close = led_device_close;
                context->device.set_on= led_set_on;
                context->device.set_off= led_set_off;
                context->device.getcount_led = led_getcount;
                *device= (struct hw_device_t *)&(context->device);

                if((fd=open("/dev/led",O_RDWR))==-1)
                {
                        LOGI("open error");
                        // exit(1);
                }else
                LOGI("open ok\n");

                return 0;
        }

        static struct hw_module_methods_t led_module_methods = {
                open: led_device_open
        };

        const struct led_module_t HAL_MODULE_INFO_SYM = {
                common: {
                        tag: HARDWARE_MODULE_TAG,
                        version_major: 1,
                        version_minor: 0,
                        id: LED_HARDWARE_MODULE_ID,
                        name: "led HAL module",
                        author: "farsight",
                        methods: &led_module_methods,
                },

        };
        ...

5.硬件驱动源码：

...
        static int simple_release(struct inode *node, struct file *file)
        {
                return 0;
        }
        static void simple_setup_cdev(struct cdev *dev, int minor,
        struct file_operations *fops)
        {
                int err, devno = MKDEV(simple_major, minor);

                cdev_init(dev, fops);
                dev->owner = THIS_MODULE;
                dev->ops = fops;
                err = cdev_add (dev, devno, 1);
                if (err)
                printk (KERN_NOTICE "Error %d adding simple%d", err, minor);
        }
        static struct file_operations simple_remap_ops = {
                .owner = THIS_MODULE,
                .open = simple_open,
                .release = simple_release,
                .read = simple_read,
                .write = simple_write,
                .unlocked_ioctl = simple_ioctl,
        };
        static struct cdev SimpleDevs;
        static struct class *my_class;
        static int simple_init(void)
        {
                int result;
                dev_t dev = MKDEV(simple_major, 0);
                if (simple_major)
                result = register_chrdev_region(dev, 1, "simple");
                else {
                        result = alloc_chrdev_region(&dev, 0, 1, "simple");
                        simple_major = MAJOR(dev);
                }
                if (result < 0) {
                        printk(KERN_WARNING "simple: unable to get major %d\n", simple_major);
                        return result;
                }
                if (simple_major == 0)
                simple_major = result;
                simple_setup_cdev(&SimpleDevs, 0, &simple_remap_ops);
                printk("Led simple simple device installed, with major %d\n", simple_major);
                my_class= class_create(THIS_MODULE, "simple");
                device_create(my_class, NULL, MKDEV(simple_major, 0),
                NULL, "led");
                return 0;
        }

        static void simple_cleanup(void)
        {
                cdev_del(&SimpleDevs);
                unregister_chrdev_region(MKDEV(simple_major, 0), 1);
                device_destroy(my_class,MKDEV(simple_major,0));
                printk("led device uninstalled\n");
        }

        module_init(simple_init);
        module_exit(simple_cleanup);
        ....
