【Android Audio】audioserver与audio hal hidl通信

Hal audio

1. 第一步AudioFlinger （audioserver进程）
   eg: AudioFlinger::PatchPanel::createAudioPatch
   frameworks/av/services/audioflinger/PatchPanel.cpp
   /system/lib/ibaudioflinger.so

2. 第二步libaudiohal（audioserver进程）
   eg: DeviceHalHidl::createAudioPatch
   Android P:
   frameworks/av/media/libaudiohal/4.0/DeviceHalHidl.cpp
   /system/lib/libaudiohal@4.0.so
   Android Q:
   frameworks/av/media/libaudiohal/impl/DeviceHalHidl.cpp
   /system/lib/libaudiohal@5.0.so

3. 第三步device impl （android.hardware.audio.service-droidlogic进程）
   eg: Device::createAudioPatch
   Android P:
   hardware/interfaces/audio/core/all-versions/default/include/core/all-versions/default/Device.impl.h
   /vendor/lib/hw/android.hardware.audio@4.0-impl.so
   Android Q:
   hardware/interfaces/audio/core/all-versions/default/Device.cpp
   /vendor/lib/hw/android.hardware.audio@5.0-impl.so

4. 第四步 audio hal （android.hardware.audio.service-droidlogic进程）
   eg: audio_hw.c create_audio_patch
   /vendor/lib/hw/audio.primary.xxx.so

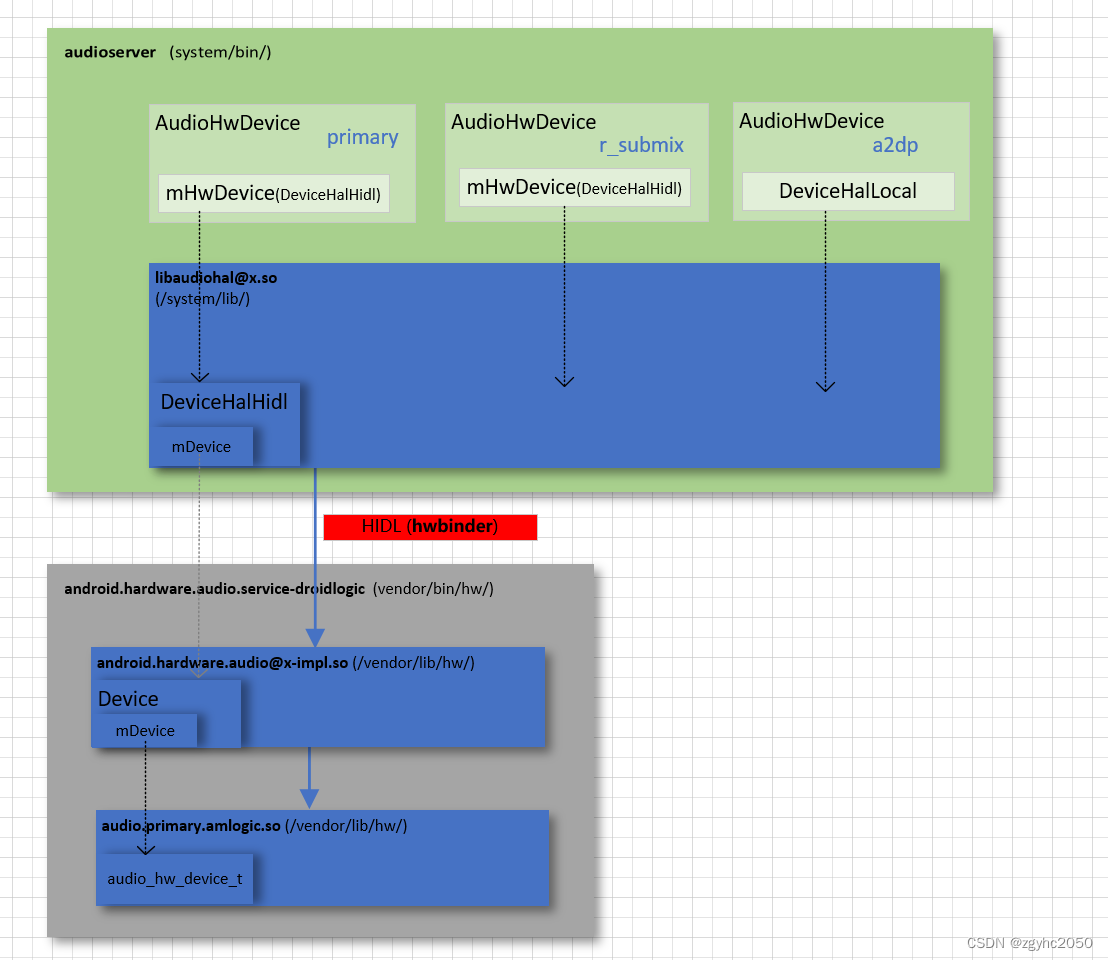

系统上下文

audioserver和android.hardware.audio.service-droidlogic两个进程之间调用，之间通过vndbinder通信，system分区调用vendor分区。

1. audioserver

frameworks\av\services\audioflinger\AudioFlinger.cpp

AudioFlinger::AudioFlinger()
...
{
...
    // 拿去对应版本的android.hardware.audio  IDevicesFactory 服务
    mDevicesFactoryHal = DevicesFactoryHalInterface::create();
...

frameworks\av\media\libaudiohal\DevicesFactoryHalInterface.cpp

sp<DevicesFactoryHalInterface> DevicesFactoryHalInterface::create() {
    using namespace std::string_literals;
    return createPreferredImpl<DevicesFactoryHalInterface>(
            std::make_pair("android.hardware.audio"s, "IDevicesFactory"s),
            std::make_pair("android.hardware.audio.effect"s, "IEffectsFactory"s));
}

frameworks\av\media\libaudiohal\FactoryHalHidl.cpp

bool createHalService(const std::string& version, const std::string& interface,
        void** rawInterface) {
    const std::string libName = "libaudiohal@" + version + ".so";
    const std::string factoryFunctionName = "create" + interface;
    constexpr int dlMode = RTLD_LAZY;
    void* handle = nullptr;
    dlerror(); // clear
    ALOGI("[%s:%d] google  dlopen :%s", __func__, __LINE__, libName.c_str());
    // dlopen 对应版本的libaudiohal@x.so， 注：x为版本号
    handle = dlopen(libName.c_str(), dlMode);
    if (handle == nullptr) {
        const char* error = dlerror();
        ALOGE("Failed to dlopen %s: %s", libName.c_str(),
                error != nullptr ? error : "unknown error");
        return false;
    }
    void* (*factoryFunction)();
    // 获取指定版本libaudiohal@x.so中的createIDevicesFactory函数地址
    *(void **)(&factoryFunction) = dlsym(handle, factoryFunctionName.c_str());
    if (!factoryFunction) {
        const char* error = dlerror();
        ALOGE("Factory function %s not found in library %s: %s",
                factoryFunctionName.c_str(), libName.c_str(),
                error != nullptr ? error : "unknown error");
        dlclose(handle);
        return false;
    }
    // 返回createIDevicesFactory函数地址
    *rawInterface = (*factoryFunction)();
    ALOGW_IF(!*rawInterface, "Factory function %s from %s returned nullptr",
            factoryFunctionName.c_str(), libName.c_str());
    return true;
}

bool hasHalService(const std::string& package, const std::string& version,
        const std::string& interface) {
    using ::android::hidl::manager::V1_0::IServiceManager;
    sp<IServiceManager> sm = ::android::hardware::defaultServiceManager();
    if (!sm) {
        ALOGE("Failed to obtain HIDL ServiceManager");
        return false;
    }
    // Since audio HAL doesn't support multiple clients, avoid instantiating
    // the interface right away. Instead, query the transport type for it.
    using ::android::hardware::Return;
    using Transport = IServiceManager::Transport;
    const std::string fqName = package + "@" + version + "::" + interface;
    const std::string instance = "default";
    // 检测指定版本的service是否存在
    Return<Transport> transport = sm->getTransport(fqName, instance);
    if (!transport.isOk()) {
        ALOGE("Failed to obtain transport type for %s/%s: %s",
                fqName.c_str(), instance.c_str(), transport.description().c_str());
        return false;
    }
    ALOGI("[%s:%d] google  transport:%d, package:%s", __func__, __LINE__, transport != Transport::EMPTY, fqName.c_str());
    return transport != Transport::EMPTY;
}

void* createPreferredImpl(const InterfaceName& iface, const InterfaceName& siblingIface) {
    auto findMostRecentVersion = [](const InterfaceName& iface) {
        // 根据sAudioHALVersions中定义的audio 版本进行分别遍历各个版本的service是否存在，从高版本开始遍历。
        return std::find_if(detail::sAudioHALVersions.begin(), detail::sAudioHALVersions.end(),
                [&](const auto& v) { return hasHalService(iface.first, v.second, iface.second); });
    };
    ALOGI("[%s:%d] google createPreferredImpl begin+++++", __func__, __LINE__);
    auto ifaceVersionIt = findMostRecentVersion(iface);
    ALOGI("[%s:%d] google ", __func__, __LINE__);
    auto siblingVersionIt = findMostRecentVersion(siblingIface);
    if (ifaceVersionIt != detail::sAudioHALVersions.end() &&
            siblingVersionIt != detail::sAudioHALVersions.end() &&
            // same major version
            ifaceVersionIt->first.first == siblingVersionIt->first.first) {
        // 优先使用android.hardware.audio的Major版本的service，android.hardware.audio.effect跟随
        std::string libraryVersion =
                ifaceVersionIt->first >= siblingVersionIt->first ?
                ifaceVersionIt->second : siblingVersionIt->second;
        void* rawInterface;
        ALOGI("[%s:%d] google  Interface:%s, version:%s", __func__, __LINE__, iface.second.c_str(), libraryVersion.c_str());
        if (createHalService(libraryVersion, iface.second, &rawInterface)) {
            ALOGI("[%s:%d] google createHalService Interface:%s, version:%s",
                __func__, __LINE__, iface.second.c_str(), libraryVersion.c_str());
            return rawInterface;
        }
    }
    return nullptr;
}

646   646 I FactoryHalHidl: [createPreferredImpl:109] google createPreferredImpl begin+++++
646   646 I FactoryHalHidl: [hasHalService:98] google  transport:1, package:android.hardware.audio@7.1::IDevicesFactory
646   646 I FactoryHalHidl: [createPreferredImpl:111] google
646   646 I FactoryHalHidl: [hasHalService:98] google  transport:0, package:android.hardware.audio.effect@7.1::IEffectsFactory
646   646 I FactoryHalHidl: [hasHalService:98] google  transport:1, package:android.hardware.audio.effect@7.0::IEffectsFactory
646   646 I FactoryHalHidl: [createPreferredImpl:121] google  Interface:IDevicesFactory, version:7.1
646   646 I FactoryHalHidl: [createHalService:54] google  dlopen :libaudiohal@7.1.so
646   646 I FactoryHalHidl: [createPreferredImpl:124] google createHalService Interface:IDevicesFactory, version:7.1

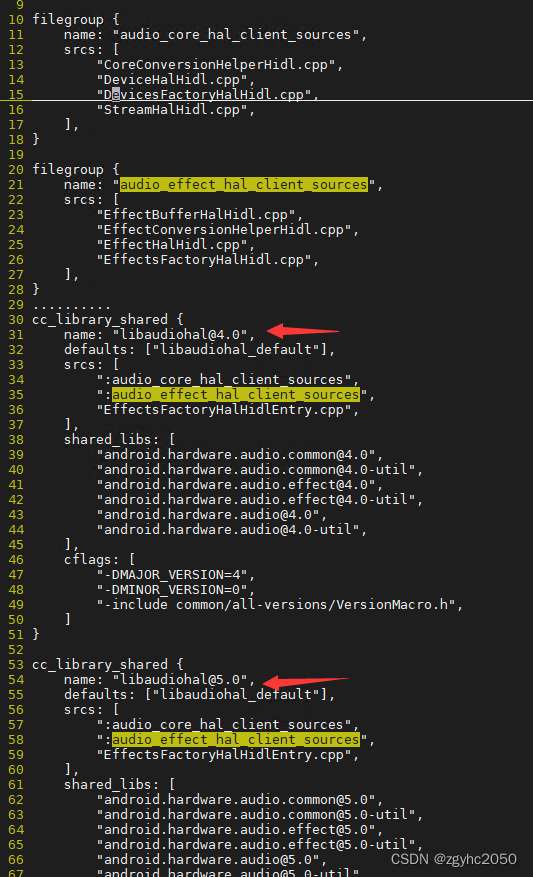

frameworks\av\media\libaudiohal\impl\DevicesFactoryHalHidl.cpp

// Main entry-point to the shared library.
extern "C" __attribute__((visibility("default"))) void* createIDevicesFactory() {
    auto service = hardware::audio::CPP_VERSION::IDevicesFactory::getService();
    return service ? new DevicesFactoryHalHidl(service) : nullptr;
}

DevicesFactoryHalHidl.cpp被编译到各个版本的libaudiohal@x.so当中

2. android.hardware.audio.service

hardware/interfaces/audio/common/all-versions/default/service/service.cpp
不同的版本实现

hardware\interfaces\audio\core\all-versions\default\DevicesFactory.cpp

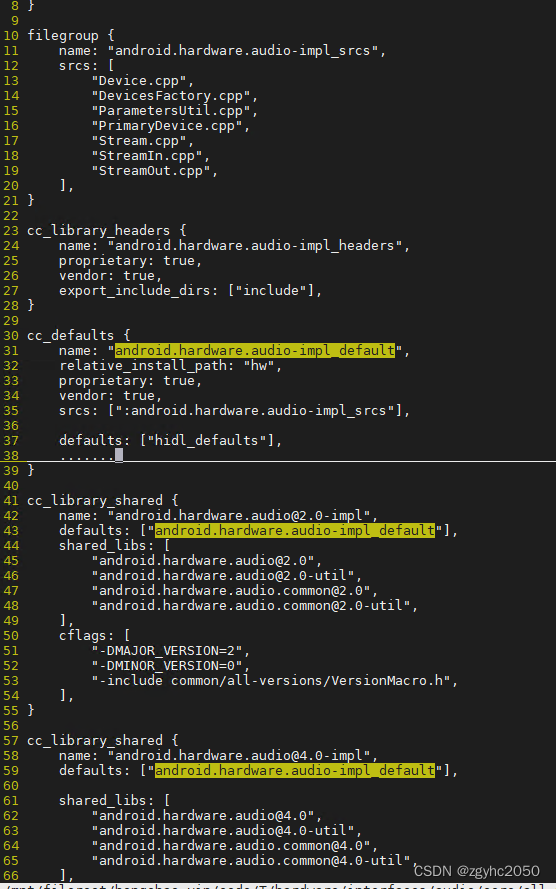

DevicesFactory.cpp被编译到各个版本的android.hardware.audio@x-impl当中

audio hal的 adev_open返回的hw_device_t / audio_hw_device指针变量的地址也在PrimaryDevice实例中管理

template <class DeviceShim, class Callback>
Return<void> DevicesFactory::openDevice(const char* moduleName, Callback _hidl_cb) {
    ALOGI("[%s:%d] this:%p MAJOR_VERSION:%d MINOR_VERSION:%d moduleName:%s", __func__, __LINE__, this, MAJOR_VERSION, MINOR_VERSION, moduleName);
    audio_hw_device_t* halDevice;
    Result retval(Result::INVALID_ARGUMENTS);
    sp<DeviceShim> result;
    int halStatus = loadAudioInterface(moduleName, &halDevice);
    if (halStatus == OK) {
        result = new DeviceShim(halDevice);
        retval = Result::OK;
    } else if (halStatus == -EINVAL) {
        retval = Result::NOT_INITIALIZED;
    }
    _hidl_cb(retval, result);
    return Void();
}

// static
int DevicesFactory::loadAudioInterface(const char* if_name, audio_hw_device_t** dev) {
    ALOGI("[%s:%d]  MAJOR_VERSION:%d MINOR_VERSION:%d if_name:%s", __func__, __LINE__,  MAJOR_VERSION, MINOR_VERSION, if_name);
    const hw_module_t* mod;
    int rc;

    rc = hw_get_module_by_class(AUDIO_HARDWARE_MODULE_ID, if_name, &mod);
    if (rc) {
        ALOGE("%s couldn't load audio hw module %s.%s (%s)", __func__, AUDIO_HARDWARE_MODULE_ID,
              if_name, strerror(-rc));
        goto out;
    }
    rc = audio_hw_device_open(mod, dev);
    ALOGI("[%s:%d]  name:%s, adev:%p", __func__, __LINE__, if_name, *dev);
    if (rc) {
        ALOGE("%s couldn't open audio hw device in %s.%s (%s)", __func__, AUDIO_HARDWARE_MODULE_ID,
              if_name, strerror(-rc));
        goto out;
    }
    if ((*dev)->common.version < AUDIO_DEVICE_API_VERSION_MIN) {
        ALOGE("%s wrong audio hw device version %04x", __func__, (*dev)->common.version);
        rc = -EINVAL;
        audio_hw_device_close(*dev);
        goto out;
    }
    return OK;

out:
    *dev = NULL;
    return rc;
}
