HBase与Sqoop集成

楔子

使用sqoop将RDBMS数据导入到HBase当中

1 配置sqoop-env.sh

主要配置如下

#Set path to where bin/hadoop is available
export HADOOP_COMMON_HOME=/opt/module/hadoop250

#Set path to where hadoop-*-core.jar is available
export HADOOP_MAPRED_HOME=/opt/module/hadoop250

#set the path to where bin/hbase is available
export HBASE_HOME=/opt/module/hbase0986

#Set the path to where bin/hive is available
export HIVE_HOME=/opt/module/hive013

#Set the path for where zookeper config dir is
export ZOOCFGDIR=/opt/module/zookeeper345/conf
export ZOOKEEPER_HOME=/opt/module/zookeeper345

2MySQL数据

CREATE DATABASE /*!32312 IF NOT EXISTS*/`life` /*!40100 DEFAULT CHARACTER SET utf8 */;

USE `life`;

/*Table structure for table `k_s_fam` */

DROP TABLE IF EXISTS `k_s_fam`;

CREATE TABLE `k_s_fam` (
  `id` int(11) NOT NULL DEFAULT '0',
  `name` varchar(25) DEFAULT NULL,
  `birthN` int(11) DEFAULT NULL,
  `birthG` int(11) DEFAULT NULL,
  `rela` varchar(40) DEFAULT '友',
  PRIMARY KEY (`id`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8;

/*Data for the table `k_s_fam` */

insert  into `k_s_fam`(`id`,`name`,`birthN`,`birthG`,`rela`) values
(141,'修',0,603,'友'),
(143,'刘',511,622,'友'),
(144,'李',0,727,'友'),
(145,'邱',0,916,'友'),
(146,'刘',1006,1115,'友'),
(147,'陈',0,1208,'友'),
(148,'党',0,1209,'友'),
(149,'王',0,1229,'友'),
(150,'郭',619,0,'友'),
(151,'孙',709,0,'友'),
(152,'邢',1121,113,'友'),
(153,'弓',123,0,'友'),
(154,'王',918,0,'友'),
(155,'高',214,0,'友'),
(156,'南',206,0,'友'),
(157,'李',0,100,'10月多那会'),
(158,'马',528,711,'友'),
(159,'陈',506,603,'友'),
(160,'林',619,810,'友');

3 执行sqoop导入数据操作

hbase中不存在的表 导入的过程中会自动创建

bin/sqoop import \
--connect jdbc:mysql://192.168.48.3:3306/life \
--username root \
--password 123456 \
--table k_s_fam \
--columns "id,name,birthN,birthG,rela" \
--column-family "info" \
--hbase-create-table \
--hbase-row-key "id" \
--hbase-table "hbase_fam" \
--num-mappers 1  \
--split-by id

---

sqoop 执行部分过程

[grq@hadoop sqoop145]$ bin/sqoop import \
> --connect jdbc:mysql://192.168.48.3:3306/life \
> --username root \
> --password 123456 \
> --table k_s_fam \
> --columns "id,name,birthN,birthG,rela" \
> --column-family "info" \
> --hbase-create-table \
> --hbase-row-key "id" \
> --hbase-table "hbase_fam" \
> --num-mappers 1  \
> --split-by id
Warning: /opt/module/sqoop145/bin/../../hcatalog does not exist! HCatalog jobs will fail.

 ………………
# 省略 部分内容
 ………………

18/10/29 09:19:06 INFO mapreduce.Job: Counters: 30
	File System Counters
		FILE: Number of bytes read=0
		FILE: Number of bytes written=158346
		FILE: Number of read operations=0
		FILE: Number of large read operations=0
		FILE: Number of write operations=0
		HDFS: Number of bytes read=87
		HDFS: Number of bytes written=0
		HDFS: Number of read operations=1
		HDFS: Number of large read operations=0
		HDFS: Number of write operations=0
	Job Counters
		Launched map tasks=1
		Other local map tasks=1
		Total time spent by all maps in occupied slots (ms)=8602
		Total time spent by all reduces in occupied slots (ms)=0
		Total time spent by all map tasks (ms)=8602
		Total vcore-seconds taken by all map tasks=8602
		Total megabyte-seconds taken by all map tasks=8808448
	Map-Reduce Framework
		Map input records=12
		Map output records=12
		Input split bytes=87
		Spilled Records=0
		Failed Shuffles=0
		Merged Map outputs=0
		GC time elapsed (ms)=118
		CPU time spent (ms)=1780
		Physical memory (bytes) snapshot=106479616
		Virtual memory (bytes) snapshot=2066251776
		Total committed heap usage (bytes)=30474240
	File Input Format Counters
		Bytes Read=0
	File Output Format Counters
		Bytes Written=0
18/10/29 09:19:06 INFO mapreduce.ImportJobBase: Transferred 0 bytes in 31.8101 seconds (0 bytes/sec)
18/10/29 09:19:06 INFO mapreduce.ImportJobBase: Retrieved 12 records.
[grq@hadoop sqoop145]$

4 在hive中创建hbase外部表关联hbase表

此操作可以不需要，只是为了方便观察数据，而采取的

CREATE EXTERNAL TABLE relevance_hbase_fam(
id int,
name string,
birthN int,
birthG int,
rela string)
STORED BY
'org.apache.hadoop.hive.hbase.HBaseStorageHandler'
WITH SERDEPROPERTIES ("hbase.columns.mapping" =
":key,info:name,info:birthN,info:birthG,info:rela")
TBLPROPERTIES ("hbase.table.name" = "hbase_fam");

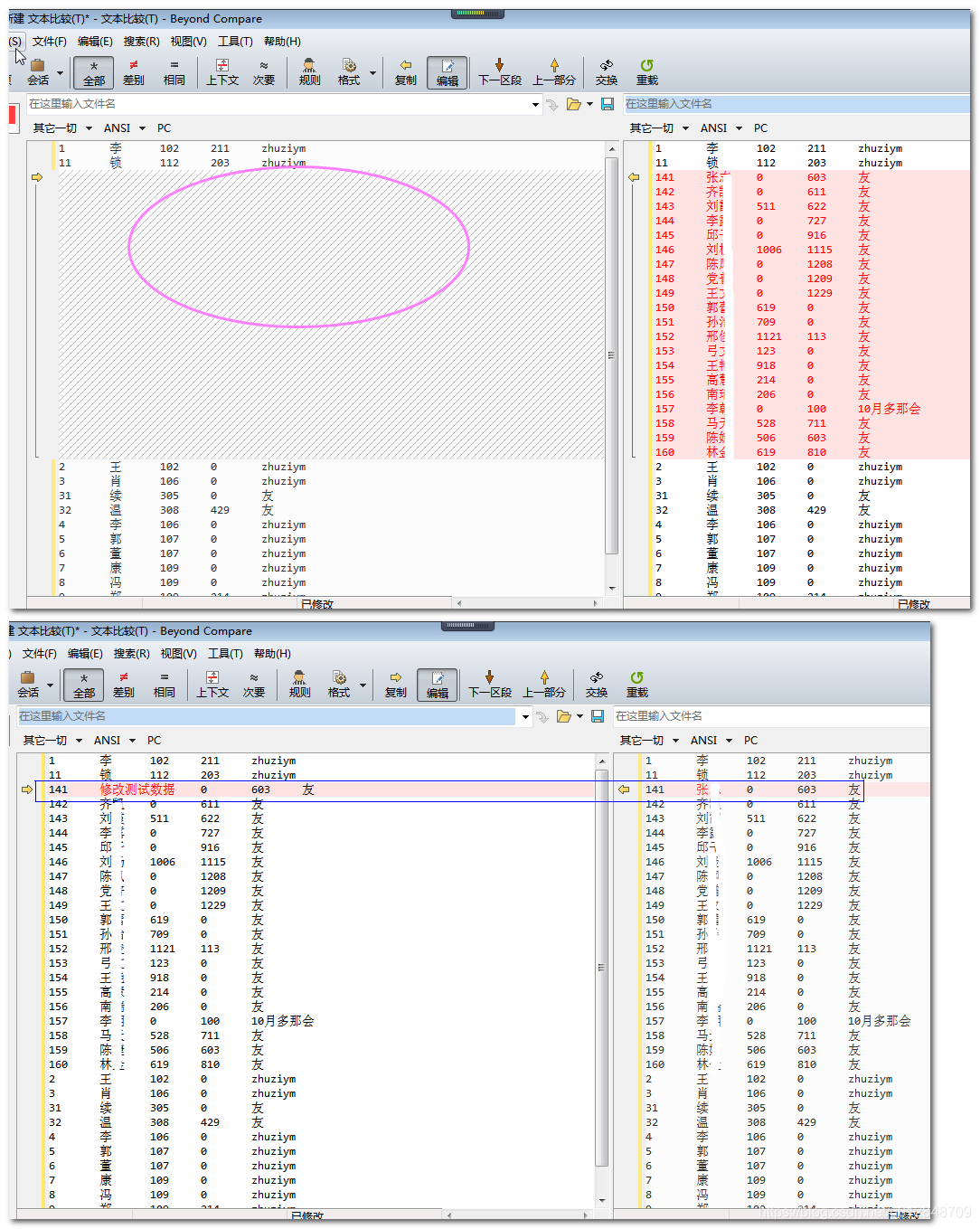

5 多次导入不同的数据测试

hive查询结果

hive (default)> select * from relevance_hbase_fam;
OK
relevance_hbase_fam.id	relevance_hbase_fam.name	relevance_hbase_fam.birthn	relevance_hbase_fam.birthg	relevance_hbase_fam.rela
1	李	102	211	zhuziym
11	锁	112	203	zhuziym
2	王	102	0	zhuziym
3	肖	106	0	zhuziym
31	续	305	0	友
32	温	308	429	友
4	李	106	0	zhuziym
5	郭	107	0	zhuziym
6	董	107	0	zhuziym
7	康	109	0	zhuziym
8	冯	109	0	zhuziym
9	郑	109	214	zhuziym
Time taken: 0.371 seconds, Fetched: 12 row(s)
hive (default)> select * from relevance_hbase_fam;

---

1：相同的数据导入2次，hbase中不会出现重复数据
2：2次先后导入不同的数据，hbase都会保留这些数据
3：导入rowkey相同的数据，其他字段不同，会根据rowkey在hbase中保留最新导入的数据
