cesium示例集--5.气泡框实现跟随地图移动

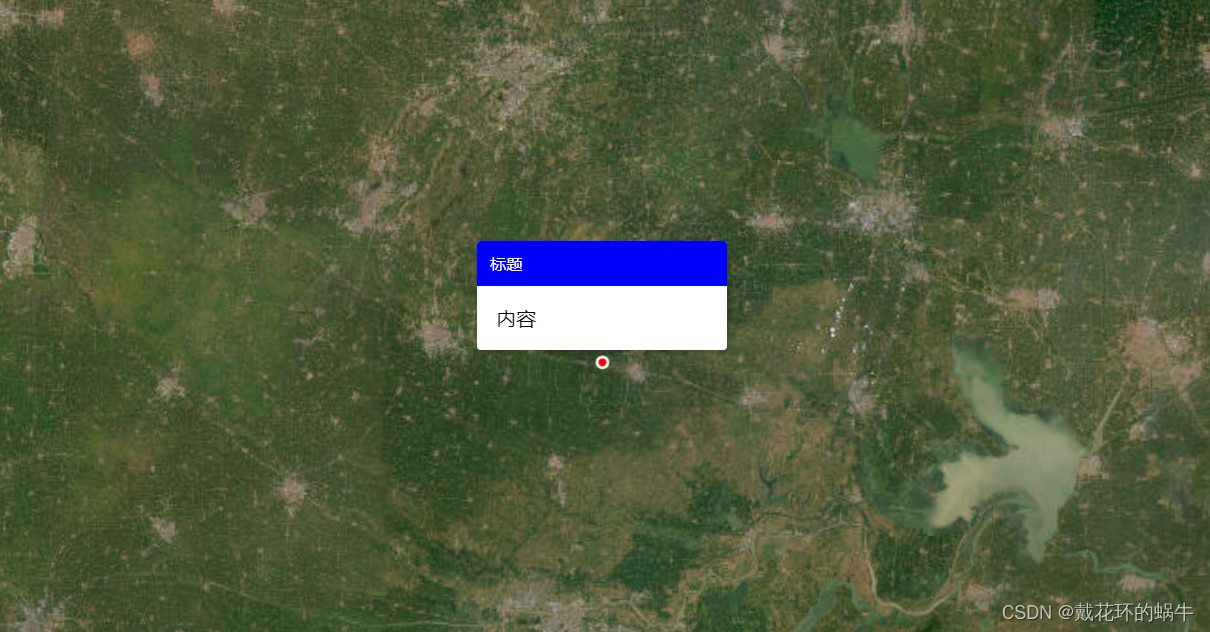

在地图开发中，气泡框是项目中经常要用到的功能，那么在cesium中如何实现气泡信息框并让其跟随地图移动呢？
原理就是在地图移动时，将地理坐标转换为屏幕坐标，并实时地传给气泡框，更改其位置即可，这里主要用到scene.postRender

核心代码：

//实时更改位置
this.renderListener = this.viewer.scene.postRender.addEventListener(this.render, this)

var position = Cesium.SceneTransforms.wgs84ToWindowCoordinates(this.viewer.scene, geometry)
if (!position) {
    return
}
if (this.popupContainer) {
    this.popupContainer.style.left = position.x - this.popupContainer.offsetWidth / 2 + 'px'
    this.popupContainer.style.top = position.y - this.popupContainer.offsetHeight - 10 + 'px'
}

viewer.entities.add({
                id: 'point',
                position: new Cesium.Cartesian3.fromDegrees(117.456, 33.5633),
                point: {
                    pixelSize: 6,
                    color: Cesium.Color.RED,
                    outlineColor: Cesium.Color.WHITE,
                    outlineWidth: 2
                }
            });

            handler = new Cesium.ScreenSpaceEventHandler(viewer.scene.canvas);
            handler.setInputAction(function (evt) {
                let pick = this.viewer.scene.pick(evt.position);
                if (pick && pick.id) {
                    initPopup();
                } else {
                    if (popupObj) {
                        popupObj.remove();
                    }
                }
            }, Cesium.ScreenSpaceEventType.LEFT_CLICK)

CesiumPopup.js完整代码

(function (window, document) {
    var CesiumPopup = function (viewer, options) {
        if (!(this instanceof CesiumPopup)) return new CesiumPopup(viewer, options);
        this.viewer = viewer
        this.position = options.position;

        this.options = this.extend({}, options);


        var popupContainer = document.createElement("div");
        popupContainer.classList.add('popup');
        var popupInner = '<div class="popup-title">标题</div><div class="popup-body">内容</div>';
        popupContainer.innerHTML = popupInner;
        popupContainer.style.display = 'none';
        viewer.cesiumWidget.container.appendChild(popupContainer);
        popupContainer.style.cssText = "display: none;position: absolute;left: 0;top: 0;min-width: 200px;z-index:9999;";

        this.popupContainer = popupContainer;

        // 初始化
        this.init();
    };
    CesiumPopup.prototype = {
        init: function () {
            if (this.position) {
                this.popupContainer.style.display = 'block'
                this.renderListener = this.viewer.scene.postRender.addEventListener(this.render, this)
            }
        },
        render: function () {
            var ellipsoid = this.viewer.scene.globe.ellipsoid;
            var geometry = Cesium.Cartesian3.fromDegrees(
                this.position[0],
                this.position[1],
                0,
                ellipsoid
            );

            if (!geometry) return
            var position = Cesium.SceneTransforms.wgs84ToWindowCoordinates(this.viewer.scene, geometry)
            if (!position) {
                return
            }
            if (this.popupContainer) {
                this.popupContainer.style.left = position.x - this.popupContainer.offsetWidth / 2 + 'px'
                this.popupContainer.style.top = position.y - this.popupContainer.offsetHeight - 10 + 'px'
            }
        },
        remove: function () {
            if (this.popupContainer) {
                this.popupContainer.parentNode.removeChild(this.popupContainer)
                this.popupContainer = null
            }

            if (this.renderListener) {
                this.renderListener()
                this.renderListener = null
            }

            if (this.viewer) {
                this.viewer = null
            }
        },
        extend: function (obj, obj2) {
            for (var k in obj2) {
                obj[k] = obj2[k];
            }
            return obj;
        },
    };

    window.CesiumPopup = CesiumPopup;
}(window, document));
