Citus Test Report for Disk Usage

The test environment

pgsql-ha

service name	cpu	memory	disk
pgpool	2	4	HHD 200G
pg-master	8	16	HHD 500G
pg-slave1	8	16	HHD 500G
pg-slave2	8	16	HHD 500G

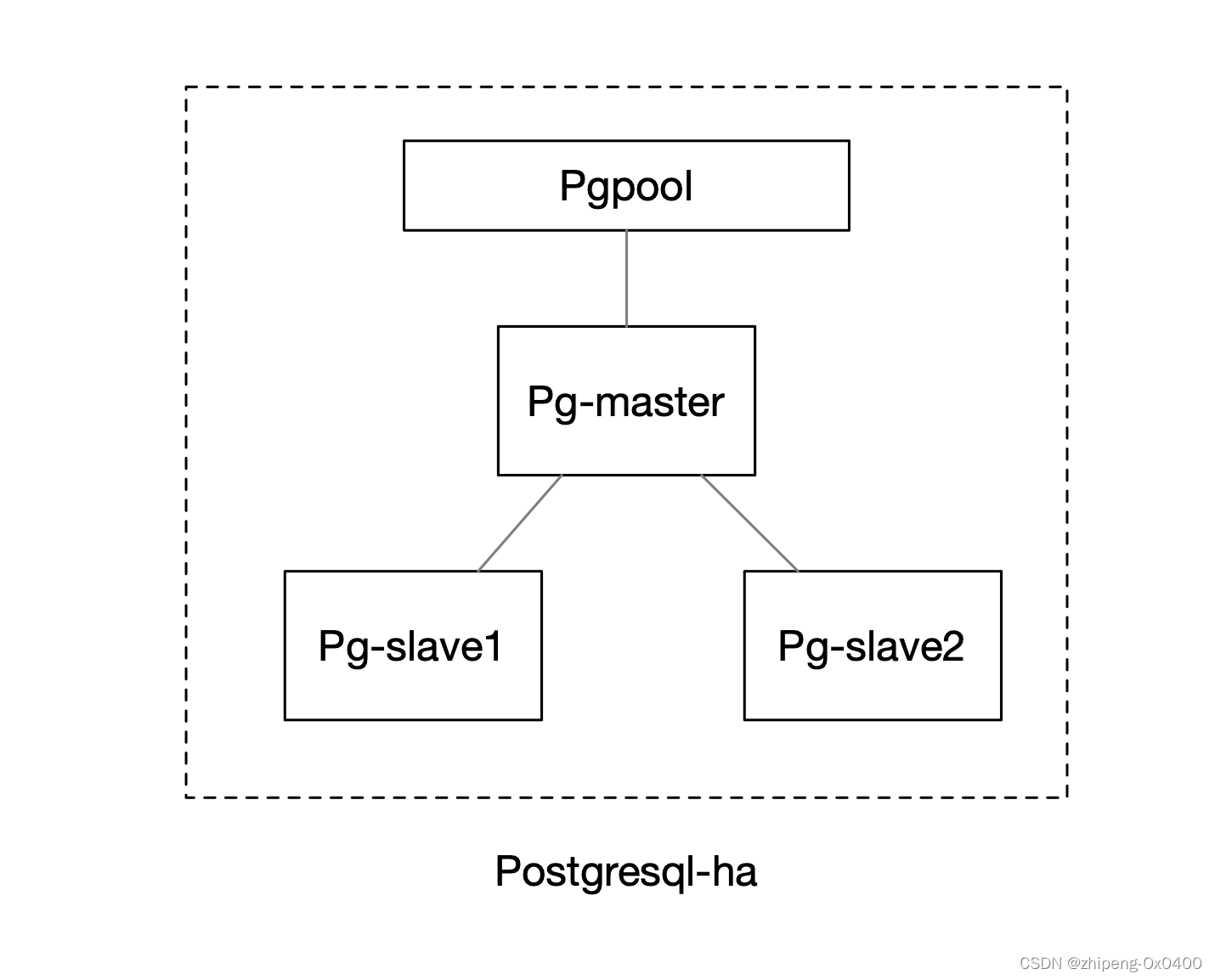

diagram

Citus-ha

master

service name	cpu	memory	disk
pgpool	2	4	HHD 200G
pg-master	8	16	HHD 500G
pg-slave1	8	16	HHD 500G
pg-slave2	8	16	HHD 500G

worker-node * 2

service name	cpu	memory	disk
pgpool & pg-master	4	8	HHD 500G
pg-slave1	4	8	HHD 500G
pg-slave2	4	8	HHD 500G

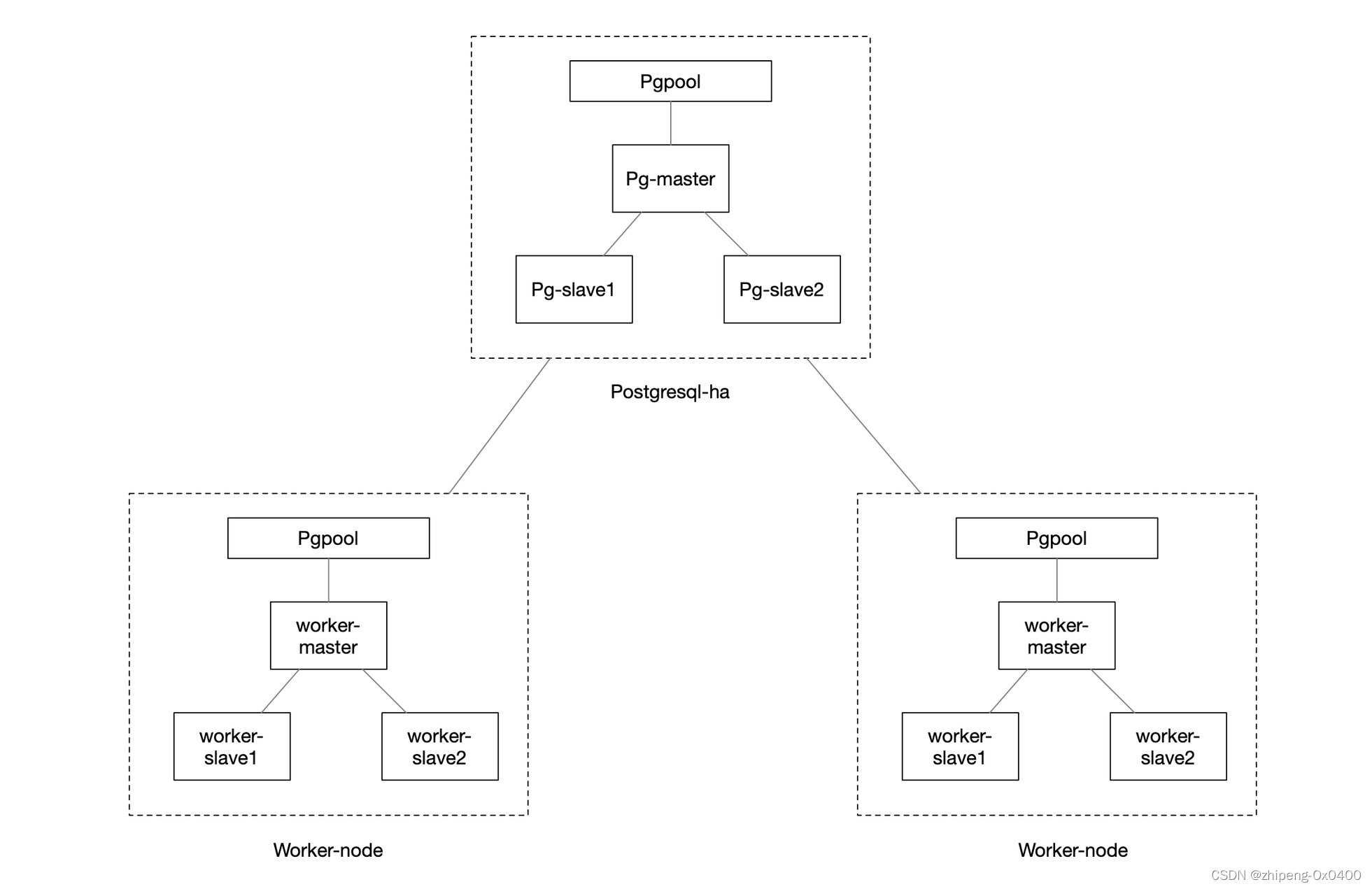

diagram

report

320W	pgsql-ha	citus-shard8	citus-shard12	citus-shard16	citus-shard20	citus-shard24	citus-shard28	citus-shard32
no index	10781.747 ms	2437.940 ms	2213.936 ms	2194.031 ms	2022.280 ms	2094.108 ms	2040.045 ms	2138.645 ms
index	8669.755 ms	1717.051 ms	1667.949 ms	1634.968 ms	1447.810 ms	1303.432 ms	1306.975 ms	1314.583 ms

sql

explain analyse
SELECT
  "col0" AS diffcol0,
  count('*') AS count
FROM
  "stream_620392b78a6fdca19ee6ba54_300w" AS tab0,
  (
    SELECT
      tab0._id,
      c_unnest_taxonomy_with_null("f_fxi_bc70_t_labels$textual") AS "col0"
    FROM
      "stream_620392b78a6fdca19ee6ba54_300w" as tab0
  ) AS tab1
WHERE
  (
    (
      "f_sxi_f158_ngrams$textual" && (ARRAY ['汽车_之家', '销售_顾问']::text [])
    )
    AND "tab1"."_id" = "tab0"."_id"
  )
GROUP BY
  "diffcol0"
ORDER BY
  "diffcol0" ASC NULLS FIRST
LIMIT
  200 OFFSET 0;

Tips

distributed

You can create indexes for distributed first. If you create an index first and then distribute, you will wait a long time

undistributed

You can clear the index first and undistribute it. If you have index in your table and undistributed it, you will be waiting too long and may cause unknown errors

ERROR

Controls are used to query on client-endpoint, An error.

SELECT
	 topic_id, token_name, topic_weight, mp_mn_arr, (
		 ( first_text ).doc_id, ( first_text ).pos, ( first_text ).neg, content_fields, ( first_text ).score
	) :: first_text, row_number_by_topic, bytopic_token_count
FROM
	(
		 SELECT
		topic_id, token_name, topic_weight, mp_mn_arr, first_text, row_number_by_topic, COUNT ( * ) OVER ( PARTITION BY topic_id ) AS bytopic_token_count
	FROM
		(
			 WITH topic_unwind AS (
				 SELECT UNNEST
				( "f_xxi_bd74_topics$numerical" ) AS topic_id, tab0._id AS ID, NAME AS token_name, "f_rxi_f161_s_positive$numerical" AS positive, "f_pxi_f161_s_negative$numerical" AS negative, analysis.weight AS arr_weight
			FROM
				"stream_620392b78a6fdca19ee6ba54" AS tab0, "analysis_620395c98a6fdca19ee6bd74" AS analysis
			WHERE
				tab0._id = analysis._id
				AND "f_xxi_bd74_topics$numerical" != ARRAY [ NULL ]:: FLOAT []
			)  SELECT
			 topic_id, token_name, c_sentiment_score_aggregation ( positive, negative ) AS mp_mn_arr, c_best_topic_score_aggregation (
				 ID, positive, negative, arr_weight [ topic_id + 1 ]
				) AS first_text, ROW_NUMBER ( ) OVER (
				PARTITION BY topic_id
			ORDER BY
				SUM ( arr_weight [ topic_id + 1 ] ) DESC
			) AS row_number_by_topic, SUM ( arr_weight [ topic_id + 1 ] ) AS topic_weight
		FROM
			topic_unwind
		GROUP BY
			topic_id,
			token_name,
			arr_weight
		) AS to_reg_token
	WHERE
		row_number_by_topic < 21
	) filtered_tb
	LEFT JOIN LATERAL (
		 SELECT
		array_to_string( ARRAY [ "f_pwi_ba54_顾问$textual" ],  ' \' ) AS content_fields
	FROM
		 "stream_620392b78a6fdca19ee6ba54" s
	WHERE
		 s._id = ( first_text ).doc_id
	) f2 ON TRUE
ORDER BY
	topic_id
	```


```sql
[ ERROR ][dev-chinarc][2022-02-14 08:05:06 - handler.linked.relations-34-139732885411584] - Runtime error: direct joins between distributed and local tables are not supported
HINT:  Use CTE's or subqueries to select from local tables and use them in joins
Traceback (most recent call last):
  File "client_endpoint/handlers/actions/analyses.py", line 339, in client_endpoint.handlers.actions.analyses.AnalysesActions.POST_generate_views
  File "aggregation/controllers_sql/unstructure_controller.py", line 154, in aggregation.controllers_sql.unstructure_controller.UnstructureWidgetController.generate_packet
  File "aggregation/controllers_sql/unstructure_widgets.py", line 854, in aggregation.controllers_sql.unstructure_widgets.TopicWheelWidget.generate_packet
  File "aggregation/controllers_sql/unstructure_widgets.py", line 190, in aggregation.controllers_sql.unstructure_widgets.PSQLQueryExecutor.__enter__
  File "aggregation/storage/postgres.py", line 917, in aggregation.storage.postgres.RenewCursor.execute
  File "aggregation/storage/postgres.py", line 994, in aggregation.storage.postgres.RenewCursor.__execute
psycopg2.errors.FeatureNotSupported: direct joins between distributed and local tables are not supported
HINT:  Use CTE's or subqueries to select from local tables and use them in joins

Try to distribute the Analysis table. An error.

[ ERROR ][dev-chinarc][2022-02-14 08:10:42 - handler.linked.relations-32-139733829428992] - Runtime error: cannot pushdown the subquery
DETAIL:  Complex subqueries and CTEs cannot be in the outer part of the outer join
,
Traceback (most recent call last):
  File "client_endpoint/handlers/actions/analyses.py", line 339, in client_endpoint.handlers.actions.analyses.AnalysesActions.POST_generate_views
  File "aggregation/controllers_sql/unstructure_controller.py", line 154, in aggregation.controllers_sql.unstructure_controller.UnstructureWidgetController.generate_packet
  File "aggregation/controllers_sql/unstructure_widgets.py", line 854, in aggregation.controllers_sql.unstructure_widgets.TopicWheelWidget.generate_packet
  File "aggregation/controllers_sql/unstructure_widgets.py", line 190, in aggregation.controllers_sql.unstructure_widgets.PSQLQueryExecutor.__enter__
  File "aggregation/storage/postgres.py", line 917, in aggregation.storage.postgres.RenewCursor.execute
  File "aggregation/storage/postgres.py", line 994, in aggregation.storage.postgres.RenewCursor.__execute
psycopg2.errors.FeatureNotSupported: cannot pushdown the subquery
DETAIL:  Complex subqueries and CTEs cannot be in the outer part of the outer join

SQL Support and Workarounds - Citus 9.5 documentation
