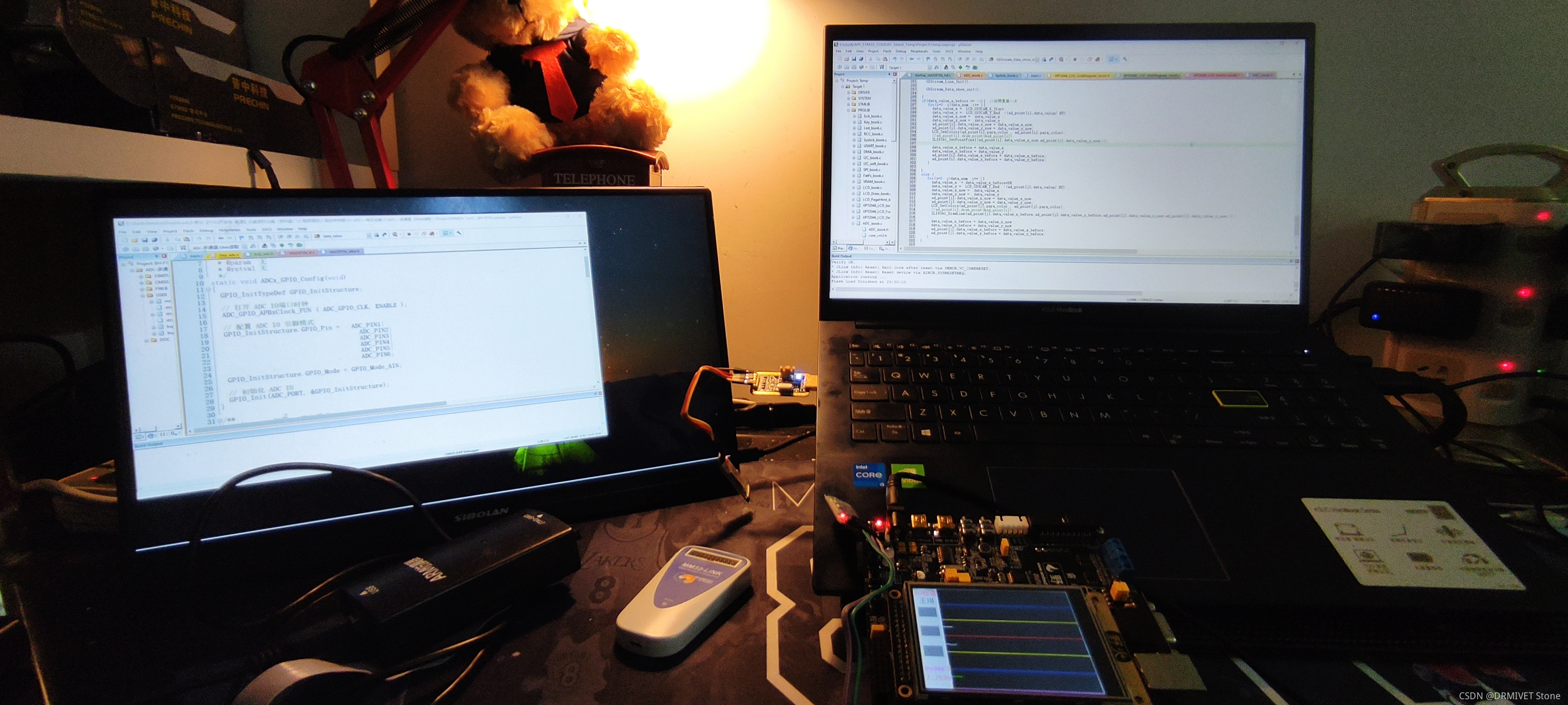

***AD多通道DMA采集 与多路LCD 的示波制作 **
本文展示了STM32 AD 多路采集的 LCD 波形 显示 :
内容涉及 :
内容涉及对AD多通道DMA采集与存储调用
AD采样点的构造体封装
AD 的处理以及 LCD波形输出 模仿示波器的原理
LCD触摸画板的控制
SRAM 内存扩展管理
FatFs 文件系统移植
SPI函数移植过程
SPI字节数据模拟输出独写 缓存读写
USART串口的识别
IO口输入输出
按键的外部中断处理
32位数据通讯，字符串通讯，单字符通讯
完整代码 ： 源代码代码
stm32多通道AD采集与蓝牙显示
stm32蓝牙传输多通道ad示波器独立模式
蓝牙传输部分：

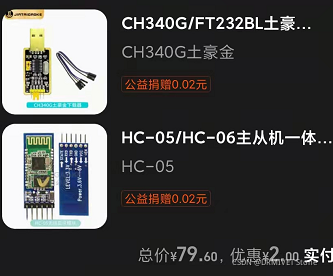

我在淘宝购买了 蓝牙从机HC06

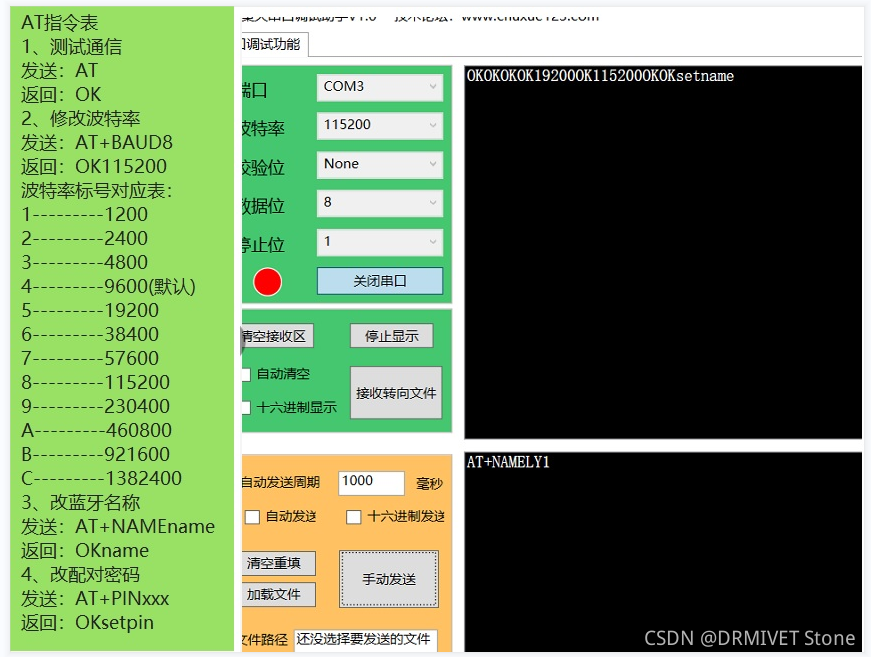

根据PC端 串口分别对两个模块进行设置，
AT+VERSION? //查看版本信息
AT+ORGL //恢复默认状态
AT+ADDR? //查看蓝牙地址
AT+PSWD? //查看配对码
AT+UART? //查看串口参数
其中一块:发送AT+ROLE=M//设置为主//返回OK+ROLE:M//
另一块:发送AT+ROLE=S//返回 ok+ROLE:S

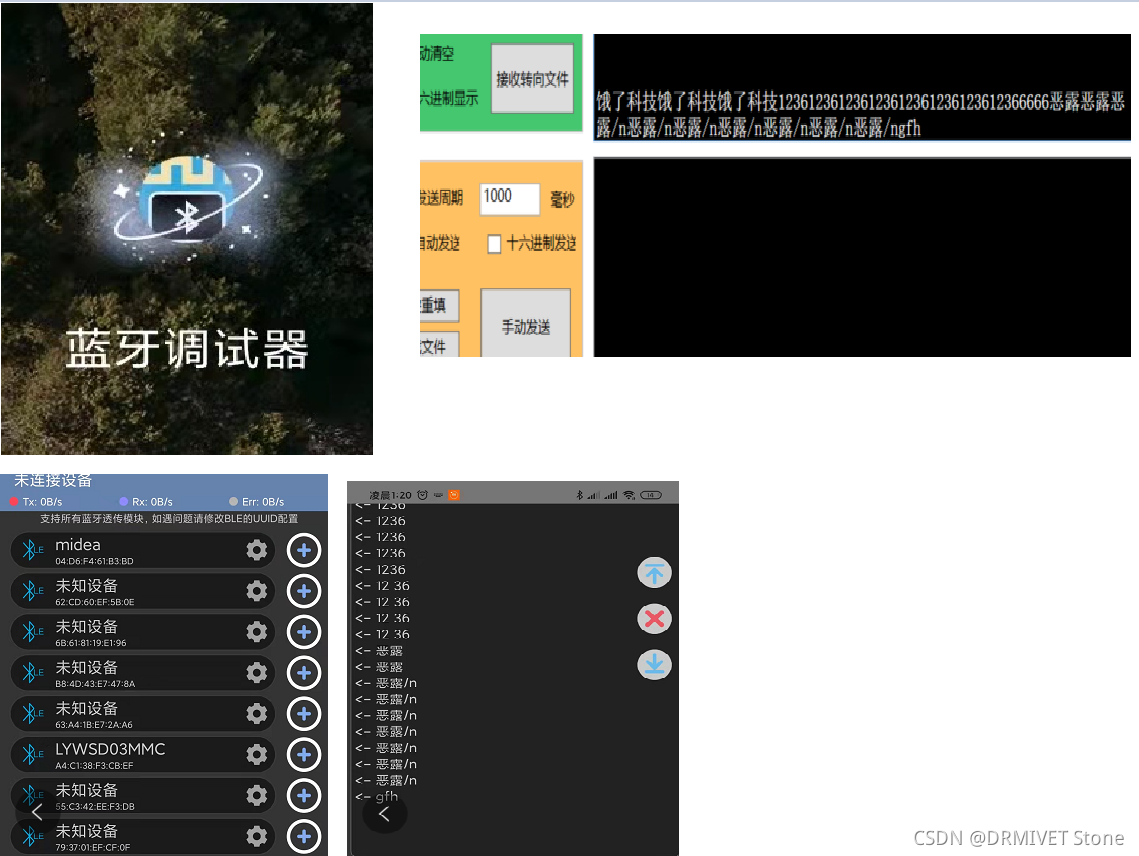

设置STM32 为主机 从机为PC端口，并用手机进行验证，下图为手机端口对送机模式 的调试

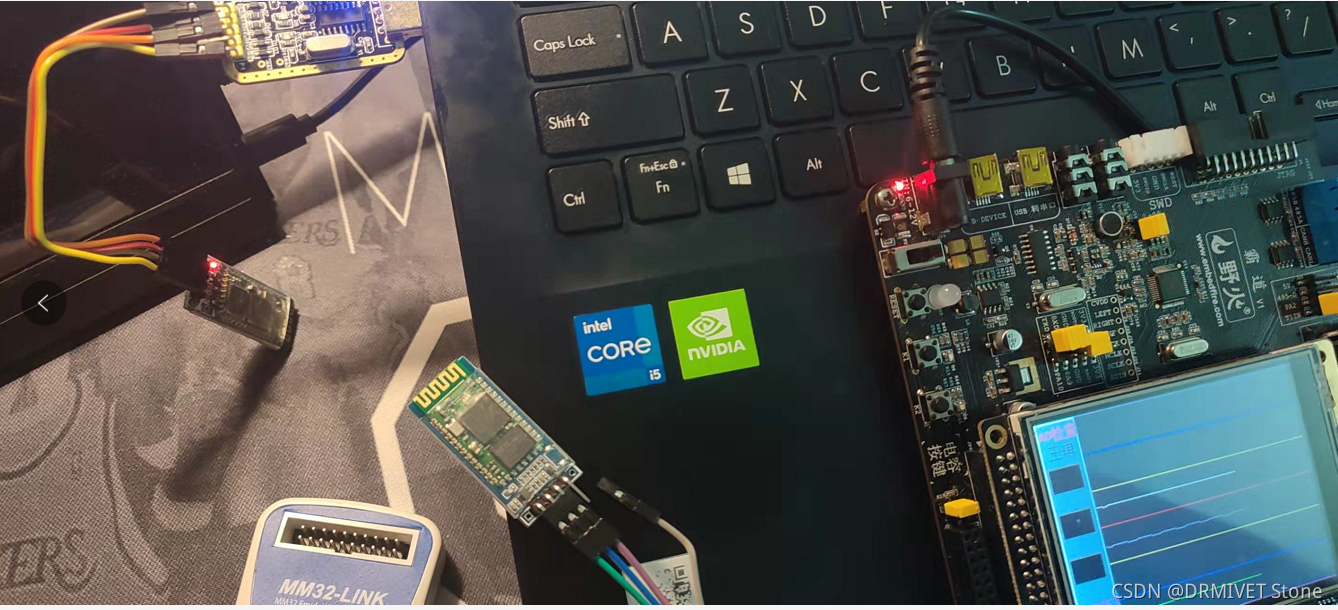

完成对于 蓝牙模块的调试，图中主机在STM32 s
文章目录
- 前言
- 一、 编程要点
- 二、使用步骤
- （注意）Keil 配置状态
- 建立主程序 main.c
- 建立ADC采集驱动文件ADC_book.h
- 建立ADC采集程序ADC_book.c
- 建立波形显示的LCD驱动文件XPT2046_LCD_GridDiagram_book.h
- 建立波形显示的LCD程序文件XPT2046_LCD_GridDiagram_book.c

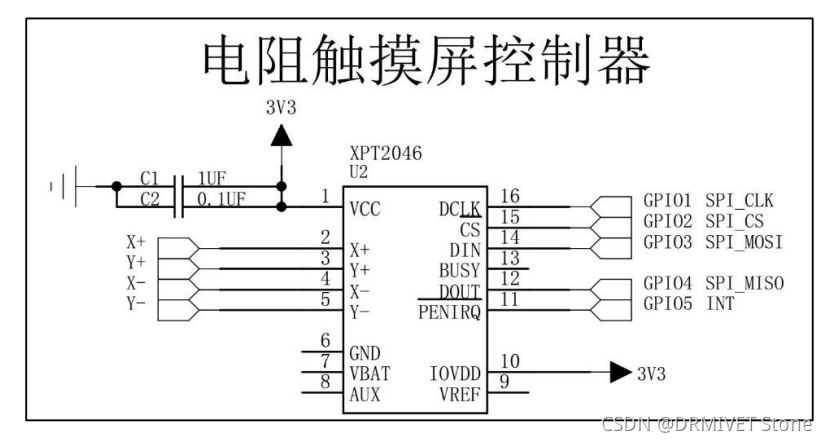

- 建立XPT2046驱动文件XPT2046_LCD_Device_book.h
- 建立XPT2046程序文件XPT2046_LCD_Device_book.c
- 建立XPT2046驱动文件XPT2046_LCD_book.h
- 建立XPT2046驱动文件XPT2046_LCD_book.c
- 建立XPT2046驱动文件XPT2046_LCD_Function_book.h
- 建立XPT2046驱动文件XPT2046_LCD_Function_book.c

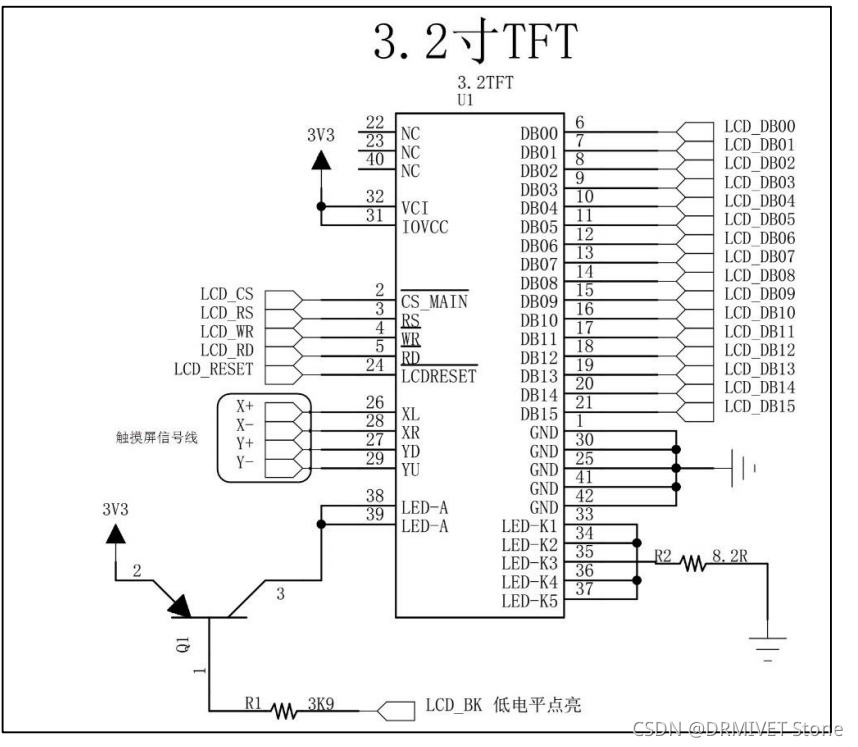

- 建立 LCD驱动 管理文件LCD_book.h
- 建立 LCD驱动 管理文件LCD_book.c
- 建立 LCD 绘制函数文件LCD_Draw_book.h
- 建立 LCD 绘制文件LCD_Draw_book.c
- 建立 LCD页面绘制 文件LCD_PageHtml_book.h
- 建立 LCD页面绘制 文件LCD_PageHtml_book.c
- 建立 LCD 文字库 内存管理文件fonts.h
- 建立 LCD 文字库 内存管理文件fonts.c
前言

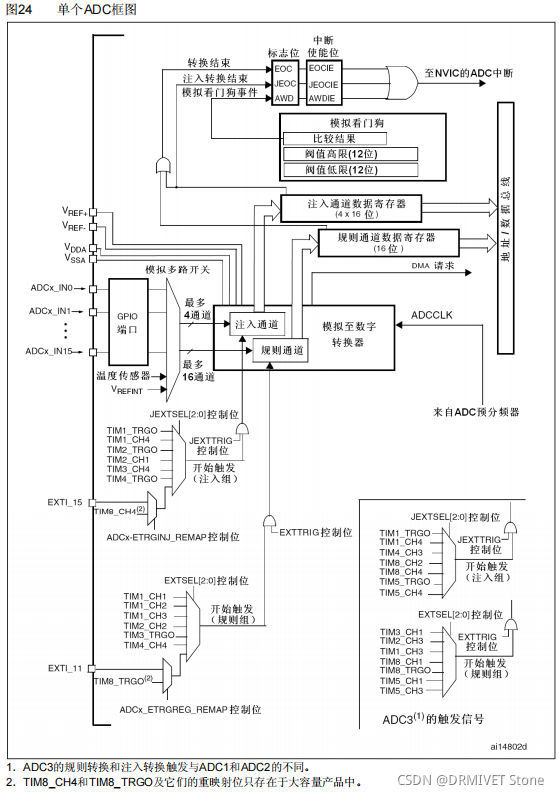

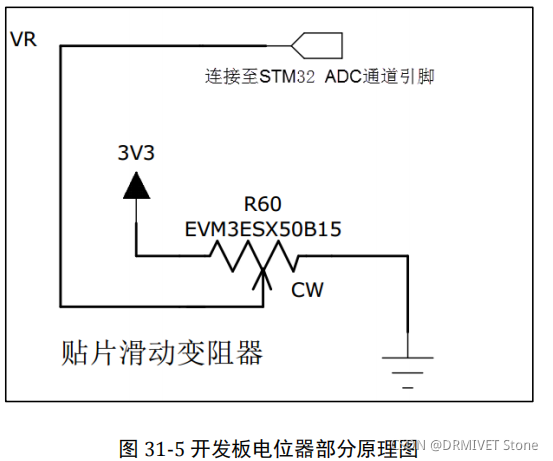

STM32f103 系列有 3 个 ADC，精度为 12 位，每个 ADC 最多有 16 个外部通道。其中ADC1 和 ADC2 都有 16 个外部通道，ADC3 根据 CPU 引脚的不同通道数也不同，一般都有8 个外部通道。ADC 的模式非常多，功能非常强大，具体的我们在功能框图中分析每个部分的功能。触摸检测的主体是型号为 XPT2046 的芯片，它接收触摸屏的 X+/X-/Y+/Y-信号进行处理，把触摸信息使用 SPI接口输出到 STM32等控制器，注意，由于控制 XPT2046 芯片的并不是 STM32 专用的硬件 SPI 接口，所以在编写程序时，需要使用软件模拟 SPI 时序与触摸芯片进行通讯。
ADC 输入范围为：VREF- ≤ VIN ≤ VREF+。由 VREF-、VREF+ 、VDDA 、VSSA、这四个外部引脚决定。 我们在设计原理图的时候一般把VSSA和VREF-接地，把VREF+和VDDA 接3V3，得到ADC的输入电压范围为：0~3.3V。如果我们想让输入的电压范围变宽，去到可以测试负电压或者更高的正电压，我们可以在外部加一个电压调理电路，把需要转换的电压抬升或者降压到 0~3.3V，这样 ADC 就可以测量了。 输入通道：

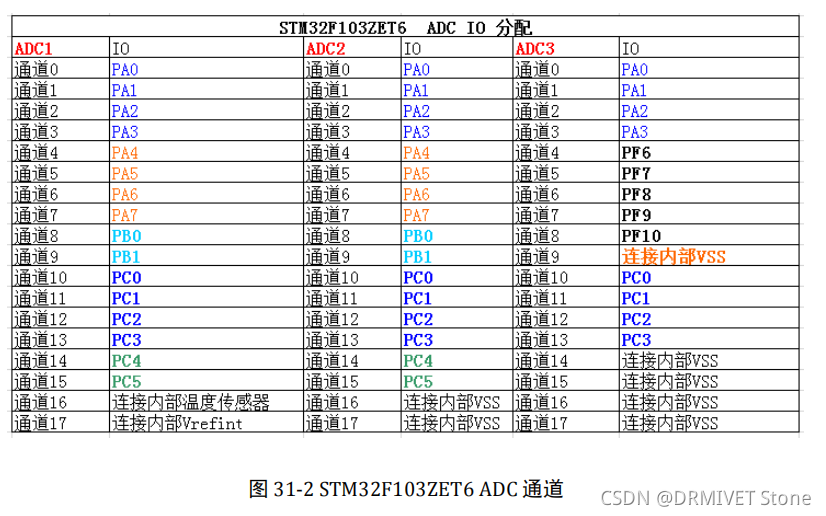

我们确定好 ADC 输入电压之后，那么电压怎么输入到 ADC？这里我们引入通道的概念，STM32 的 ADC 多达 18 个通道，其中外部的 16 个通道就是框图中的 ADCx_IN0、ADCx_IN1...ADCx_IN5。这 16 个通道对应着不同的 IO 口，具体是哪一个 IO 口可以从手册查询到。其中ADC1/2/3还有内部通道：ADC1的通道16连接到了芯片内部的温度传感器， Vrefint 连接到了通道 17。ADC2 的模拟通道 16 和 17 连接到了内部的 VSS。ADC3 的模拟通道 9、14、15、16 和 17 连接到了内部的 VSS。
规则通道：顾名思意，规则通道就是很规矩的意思，我们平时一般使用的就是这个通道，或者应该说我们用到的都是这个通道，没有什么特别要注意的可讲。
注入通道
注入，可以理解为插入，插队的意思，是一种不安分的通道。它是一种在规则通道转换的时候强行插入要转换的一种。如果在规则通道转换过程中，有注入通道插队，那么就要先转换完注入通道，等注入通道转换完成后，再回到规则通道的转换流程。这点跟中断程序很像，都是不安分的主。所以，注入通道只有在规则通道存在时才会出现。
转换顺序

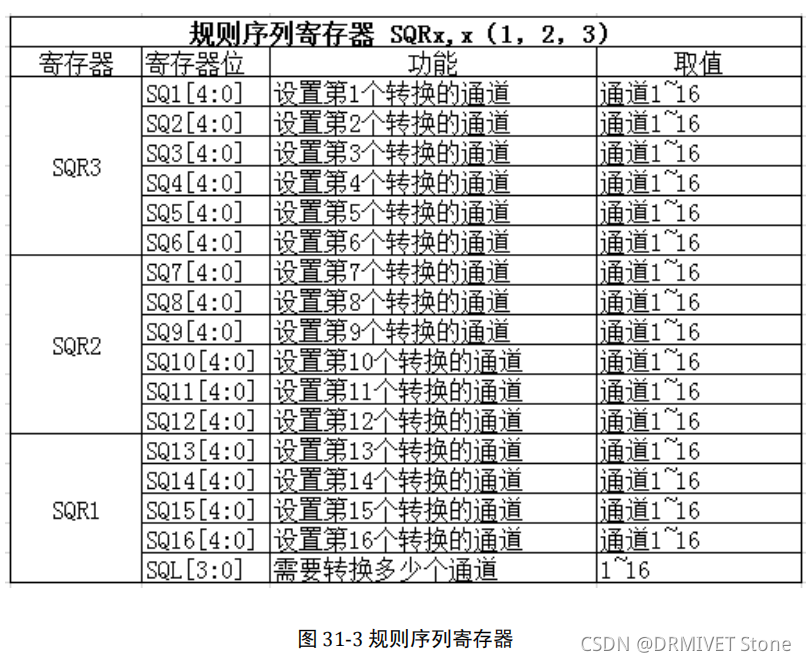

规则序列规则序列寄存器有 3 个，分别为 SQR3、SQR2、SQR1。SQR3 控制着规则序列中的第一个到第六个转换，对应的位为：SQ1[4:0]~SQ6[4:0]，第一次转换的是位 4:0 SQ1[4:0]，如果通道 16 想第一次转换，那么在 SQ1[4:0]写 16 即可。SQR2 控制着规则序列中的第 7 到第12 个转换，对应的位为：SQ7[4:0]~SQ12[4:0]，如果通道 1 想第 8 个转换，则 SQ8[4:0]写 1即可。SQR1 控制着规则序列中的第 13 到第 16 个转换，对应位为：SQ13[4:0]~SQ16[4:0]，如果通道 6 想第 10 个转换，则 SQ10[4:0]写 6 即可。具体使用多少个通道，由 SQR1 的位 L[3:0]决定，最多 16 个通道

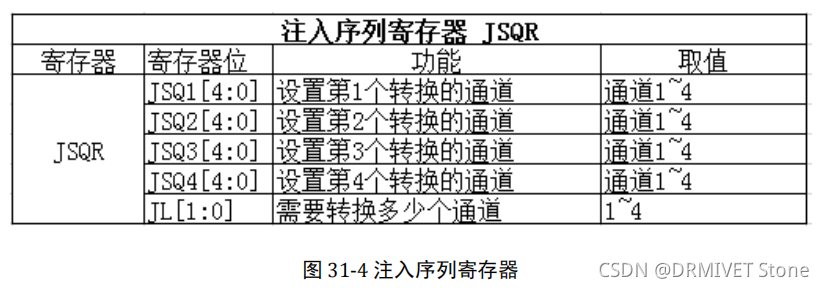

注入序列
注入序列寄存器 JSQR 只有一个，最多支持 4 个通道，具体多少个由 JSQR 的 JL[2:0]决定。如果 JL的 值小于 4 的话，则 JSQR 跟 SQR决定转换顺序的设置不一样，第一次转换的不是 JSQR1[4:0]，而是 JCQRx[4:0] ，x = （4-JL），跟 SQR 刚好相反。如果 JL=00（1 个转换），那么转换的顺序是从 JSQR4[4:0]开始，而不是从 JSQR1[4:0]开始，这个要注意，编程的时候不要搞错。当 JL 等于 4 时，跟 SQR 一样。
触发源
通道选好了，转换的顺序也设置好了，那接下来就该开始转换了。ADC 转换可以由ADC 控制寄存器 2: ADC_CR2 的 ADON 这个位来控制，写 1 的时候开始转换，写 0 的时候停止转换，这个是最简单也是最好理解的开启 ADC 转换的控制方式，理解起来没啥技术含量。除了这种庶民式的控制方法，ADC 还支持触发转换，这个触发包括内部定时器触发和外部 IO 触发。触发源有很多，具体选择哪一种触发源，由 ADC 控制寄存器 2:ADC_CR2 的 EXTSEL[2:0]和 JEXTSEL[2:0]位来控制。EXTSEL[2:0]用于选择规则通道的触发源，JEXTSEL[2:0]用于选择注入通道的触发源。选定好触发源之后，触发源是否要激活，则由ADC 控制寄存器 2:ADC_CR2 的 EXTTRIG 和 JEXTTRIG 这两位来激活。其中 ADC3 的规则转换和注入转换的触发源与 ADC1/2 的有所不同，在框图上已经表示出来。
转换时间
ADC转换时间： ─ STM32F103xx增强型产品：时钟为56MHz时为1μs(时钟为72MHz为1.17μs)
─ STM32F101xx基本型产品：时钟为28MHz时为1μs(时钟为36MHz为1.55μs)
─ STM32F102xxUSB型产品：时钟为48MHz时为1.2μs
─ STM32F105xx和STM32F107xx产品：时钟为56MHz时为1μs(时钟为72MHz为1.17μs)
ADC 时钟ADC 输入时钟 ADC_CLK 由 PCLK2 经过分频产生，最大是 14M，分频因子由 RCC 时钟配置寄存器 RCC_CFGR 的位 15:14 DCPRE[1:0]设置，可以是 2/4/6/8 分频，注意这里没有 1 分频。一般我们设置 PCLK2=HCLK=72M。采样时间ADC 使用若干个 ADC_CLK 周期对输入的电压进行采样，采样的周期数可通过 ADC 采样时间寄存器 ADC_SMPR1 和 ADC_SMPR2 中的 SMP[2:0]位设置，ADC_SMPR2 控制的是通道 0~9，ADC_SMPR1 控制的是通道 10~17。每个通道可以分别用不同的时间采样。其 中采样周期最小是 1.5 个，即如果我们要达到最快的采样，那么应该设置采样周期为 1.5 个周期，这里说的周期就是 1/ADC_CLK。
ADC 的转换时间跟 ADC 的输入时钟和采样时间有关，公式为：Tconv = 采样时间 + 12.5 个周期。当 ADCLK = 14MHZ （最高），采样时间设置为 1.5 周期（最快），那么总的转换时间（最短）Tconv = 1.5 周期 + 12.5 周期 = 14 周期 = 1us。一般我们设置 PCLK2=72M，经过 ADC 预分频器能分频到最大的时钟只能是 12M，采样周期设置为 1.5 个周期，算出最短的转换时间为 1.17us，这个才是最常用的。
数据寄存器
一切准备就绪后，ADC 转换后的数据根据转换组的不同，规则组的数据放在 ADC_DR寄存器，注入组的数据放在 JDRx。
规则数据寄存器
ADC 规则组数据寄存器 ADC_DR 只有一个，是一个 32 位的寄存器，低 16 位在单 ADC时使用，高 16 位是在 ADC1 中双模式下保存 ADC2 转换的规则数据，双模式就是 ADC1 和ADC2 同时使用。在单模式下，ADC1/2/3 都不使用高 16 位。因为 ADC 的精度是 12 位，无论 ADC_DR 的高 16 或者低 16 位都放不满，只能左对齐或者右对齐，具体是以哪一种方式 存放，由 ADC_CR2 的 11 位 ALIGN 设置。规则通道可以有 16 个这么多，可规则数据寄存器只有一个，如果使用多通道转换，那转换的数据就全部都挤在了 DR 里面，前一个时间点转换的通道数据，就会被下一个时间点的另外一个通道转换的数据覆盖掉，所以当通道转换完成后就应该把数据取走，或者开启 DMA 模式，把数据传输到内存里面，不然就会造成数据的覆盖。最常用的做法就是开启 DMA 传输。
注入数据寄存器
ADC 注入组最多有 4 个通道，刚好注入数据寄存器也有 4 个，每个通道对应着自己的寄存器，不会跟规则寄存器那样产生数据覆盖的问题。ADC_JDRx 是 32 位的，低 16 位有效，高 16 位保留，数据同样分为左对齐和右对齐，具体是以哪一种方式存放，由ADC_CR2 的 11 位 ALIGN 设置。
一、 编程要点
1) 初始 ADC 用到的 GPIO；2) 设置 ADC 的工作参数并初始化；
3) 设置 ADC 工作时钟；
4) 设置 ADC 转换通道顺序及采样时间；
5) 配置 DMA 工作参数；；
6) 使能 ADC
7) 读取 ADC 采集的数据。
ADC 转换结果数据使用中断方式读取，这里没有使用 DMA 进行数据传输。
ADC 的工作参数具体如下：
打开 ADC 外设时钟；因为只是使用一个 ADC，所有模式配置为独立模式；
多通道采集，开启扫描模式；需要不断的采集外部的模拟数据，所有使能连续转换模式；
不使用外部触发转换信号；
转换结果右对齐；
设置需要转换的通道的个数，最后调用 ADC_Init()函数把这些参数写入 ADC 的寄存器完成配置。
因为是多通道采集，所以调用 ADC_RegularChannelConfig()函数设置每个通道的转换顺序和采样实际。
DMA的工作参数具体如下：
我们是把ADC采集到的数据通过 DMA传输到存储器上， 则外设地址为 ADC 的数据寄存器；
存储器的地址是我们定义的用来存放 ADC 数据的数组 的地址；传输方向为外设到存储器；
缓冲区大小等于等于我们定义的存储 ADC 数据的数组 大小；
所有通道转换的数据都放在一个数据寄存器中，则外设地址不变；采集存储的数据 有多个，则存储器地址递增；
外设和存储器单位均为两个字节；开启循环传输模式；只有 一个 DMA 通道工作，优先级随便设置；
禁用存储器到存储器模式，最后最后调用 DMA_Init()函数把这些参数写入 DMA 的寄存器完成配置。
完成配置之后则使能 ADC 和 DMA，开启软件触发，让 ADC 开始采集数据。
二、使用步骤
（注意）Keil 配置状态
我的博客这里有项目配置 设计;
点击链接
(https://blog.youkuaiyun.com/u012651389/article/details/119189949)
（注意）蓝牙 配置状态
建立主程序 main.c
代码如下 ：
/*******************************************************************************
* @file GPIO/JTAG_Remap/main.c
* @author MCD Application Team
* @version V3.5.0
* @date 08-April-2011
* @brief Main program body
******************************************************************************
* @attention
*
*
******************************************************************************
*/
/* Includes ------------------------------------------------------------------*/
#include "stm32f10x.h"
#include "PROJ_book.h"
//SD卡及flash的根目录
#define SD_ROOT "0:"
#define FLASH_ROOT "1:"
/* 资源在SD卡中的路径 */
#define RESOURCE_DIR "0:/srcdata"
/* 资源烧录到的FLASH基地址（目录地址） */
#define RESOURCE_BASE_ADDR (4096)
/* 存储在FLASH中的资源目录大小 */
#define CATALOG_SIZE (8*1024)
/* 生成的烧录信息文件名 */
#define BURN_INFO_NAME "burn_info.txt"
/* 完整烧录信息文件名*/
#define BURN_INFO_NAME_FULL (RESOURCE_DIR "/" BURN_INFO_NAME)
/* 记录忽略的文件名 */
#define IGNORE_NAME "ignore.txt"
/* 完整忽略文件名*/
#define IGNORE_NAME_FULL (RESOURCE_DIR "/" IGNORE_NAME)
extern char src_dir[];
/* Private functions ---------------------------------------------------------*/
/**
* @brief Main program.
* @param None
* @retval None
*/
void delay(int x);
void fn_LED_Flash_Init(void);
void fn_usart_show_Init(void);
void fn_DMA_show_Init(void);
void fn_I2C_EE_Init(void);
void fn_I2C_EE_Soft_Init(void);
void fn_SPI_FLASH_Soft_Init(void);
void fn_FatFs_Document_Init(void);
void fn_SRAM_Init(void);
void fn_LCD_Init(void);
void fn_XPT2046_Init(void);
void fn_Adc_Init(void);
#define countof(a) (sizeof(a) / sizeof(*(a)))
#define _I2C_BufferSize (countof(writeData)-1)
static uint8_t writeData[_I2C_PageSize]={4,5,6,7,8,9,10,11};
static uint8_t writeData2[_I2C_PageSize]={24,25,26,27,28,29,30,31};
static uint8_t ReadData[_I2C_BufferSize]={0};
#define _SPI_BufferSize SPI_PAGE_SIZE //(countof(write_SPI_Data)-1)
static uint8_t write_SPI_Data[_SPI_BufferSize]={0};
static uint8_t Read_SPI_Data[_SPI_BufferSize]={0};
int main(void)
{
int16_t sAD_X, sAD_Y ;
//*************系统接口初始化**************
fn_RCC_Init(); //CPU 倍频
fn_Led_Init(); //LED 输出初始化
fn_Key_Init(); //按键 输入初始化
//*************串口通讯系统初始化**************
fn_USART_Init(); //串口输出初始化
printf("\n\n\r\n********** IC系统开始运行 **********\r\n");
fn_Systick_Delay_Handler_set(10,_Systick_ms);
//*************功能系统初始化*******************
// fn_LED_Flash_Init(); //RGB 输出测试
fn_usart_show_Init(); //串口输出测试
fn_EXTI_GPIO_Config(); //外部中断入口
//*************数据系统初始化**************
// fn_DMA_show_Init(); //初始化DMA数据链路
// fn_I2C_EE_Init(); //初始化硬件I2C数据链路
// fn_I2C_EE_Soft_Init(); //初始化软件I2C数据链路
// Display_Char_test();
fn_LCD_Init();
// fn_SPI_FLASH_Soft_Init(); //SPI测试通讯
// fn_FatFs_Document_Init(); //FatFs文件读取测试
// fn_SRAM_Init(); //SRAM文件读取测试
fn_Adc_Init(); //ADC 采集
//*************LCD系统初始化**************
fn_XPT2046_Init();
fn_Lcd_Page_Init();
fn_Systick_Delay_Handler_set(10,_Systick_ms);
Count_Modle_flag = 3;
while(1){
fn_key_Check();
if(bkey_change == 1){
bkey_change = 0;
switch(Count_Modle_flag){
case 0:
fn_Lcd_Page1();
break;
case 1:
fn_Lcd_Page2();
break;
case 2:
fn_Lcd_Page3();
//触摸检测函数，本函数至少10ms调用一次
break;
case 3:
fn_Lcd_Page4();
//ADC检测函数，本函数至少10ms调用一次
break;
default:
break;
}
}
else{
switch(Count_Modle_flag){
case 0:
break;
case 1:
break;
case 2:
XPT2046_TouchEvenHandler();
break;
case 3:
ADC_get_value();
break;
default:
break;
}
}
}
}
//======================================================================
//======================================================================
void fn_LED_Flash_Init(void){
uint16_t count_Init = 2;
printf("\n ---> LED开始运行 \n");
while(count_Init-->0){
fn_LED_ALL_OFF();
__R_OUT__;
fn_Systick_Delay(500,_Systick_ms);
fn_LED_ALL_OFF();
__G_OUT__;
fn_Systick_Delay(500,_Systick_ms);
fn_LED_ALL_OFF();
__B_OUT__;
fn_Systick_Delay(500,_Systick_ms);
fn_LED_ALL_OFF();
__R_OUT__;
}
}
//======================================================================
//======================================================================
void fn_usart_show_Init(void){
fn_Usart_Send_Byte(_DEBUG_USARTx,'\r');
printf("-->串口通信指测试完毕 \n");
fn_Usart_SendString(_DEBUG_USARTx," : wangqi \n");
}
//======================================================================
//======================================================================
void fn_DMA_show_Init(void){
printf("\n ---> DMA开始运行 \n");
_DMA_ROM_TO_RAM(Map_BUFFER_SIZE ,aSRC_Cont_Buffer , aDST_Buffer);
_DMA_RAM_TO_USART(Map_BUFFER_SIZE ,USART_Source_ADDR , aDST_Buffer);
printf("---> DMA运行完毕 \n");
}
//======================================================================
//======================================================================
void fn_I2C_EE_Init(void){
printf("\n-->I2C_函数写入开始 \n");
_I2C_EE_Init();
I2C_Write_fun(writeData ,EEP_Firstpage ,_I2C_BufferSize);
I2C_Read_fun(ReadData ,EEP_Firstpage ,_I2C_BufferSize);
printf("--->I2C_函数写入完毕\n\r");
}
//======================================================================
//======================================================================
void fn_I2C_EE_Soft_Init(void){
printf("\n-->I2C_软件函数写入开始 \n");
I2C_Soft_Init();
I2C_Soft_Write_fun(writeData2 ,EEP_Firstpage ,_I2C_BufferSize);
I2C_Soft_Read_fun(ReadData ,EEP_Firstpage ,_I2C_BufferSize);
printf("\n--->I2C_软件函数写入完毕\n\r");
}
//======================================================================
//======================================================================
void fn_SPI_FLASH_Soft_Init(void){
uint16_t i,FlashID;
printf("-->SPI通信指测试开始 \n");
SPI_FLASH_Init();
FlashID = SPI_Read_ID() ;
if(FlashID == _SPI_FLASH_ID){
printf("-->SPI 0x%x \n",FlashID);
}
SPI_Erase_Sector(0); //清除一个页的空间
printf("\n\n-->SPI清空开始 \n");
SPI_Read_Data(Read_SPI_Data , 0, SPI_PAGE_SIZE);
SPI_Show_Data(Read_SPI_Data , SPI_PAGE_SIZE);
printf("\n\n-->SPI清空完成 \n");
for(i=0 ; i < _SPI_BufferSize ; i++){
write_SPI_Data[i] = 0xA7;
}
SPI_Show_Data(write_SPI_Data , SPI_PAGE_SIZE);
SPI_BufferWrite_Data(write_SPI_Data ,0x000000,_SPI_BufferSize);
printf("\n\n-->SPI输入完成 \n");
SPI_Read_Data(Read_SPI_Data , 0x000000, _SPI_BufferSize);
SPI_Show_Data(Read_SPI_Data , _SPI_BufferSize);
printf("-->SPI通信指测试完毕 \n");
}
//======================================================================
//======================================================================
void fn_FatFs_Document_Init(void){
/*----------------------- 格式化测试 -----------------*/
FatFs_equipment_flash("1:");
/*----------------------- 文件系统读写测试 -------------------*/
FatFs_document_Text(FileTest_ADDR_Buffer_Document, "Wangqi加油!\n" );
/*----------------------- 文件具体内容识别 -------------------*/
file_check(FileTest_ADDR_Buffer_Document);
/*----------------------- 文件目录更改测试 -------------------*/
FatFs_document_set_content(FileTest_ADDR_Buffer_Document , FileTest_ADDR_Buffer_path , FileTest_ADDR_Buffer_NewDocument2);
/*----------------------- 文件具体内容识别 -------------------*/
file_check(FileTest_ADDR_Buffer_NewDocument2);
/*----------------------- 文件目录查找识别 -------------------*/
Scan_file_Check("1:");
/*----------------------- 完成操作 -------------------*/
FatFs_Close_flash("1:");
}
//======================================================================
//======================================================================
void fn_SRAM_Init(void){ //SRAM文件读取测试
printf("********** SRAM_扩展内存测试 ********** \n");
printf("-->外部SRAM_内存函数初始化开始 \n");
SRAM_Init();
printf("\n-->外部SRAM_内存函数测试开始 \n");
SRAM_Test();
printf("\n-->外部SRAM_内存函数写入开始 \n");
SRAM_Write();
}
//======================================================================
//======================================================================
void fn_LCD_Init(void){ //LCD运行测试
__IO int16_t int_check;
fn_Systick_Delay(500,_Systick_ms);
int_check = (__IO int16_t)ILI9341_Init();
Display_LCD_clear();
switch(int_check){
case 0x05:
printf("\n-->LCD 运行正常");
Lcd_display_String(" LCD 运行正常");
break;
default:
printf("\n-->LCD 运行异常");
Lcd_display_String(" LCD 运行异常");
}
}
//======================================================================
//======================================================================
void fn_XPT2046_Init(void){ //XPT2046运行测试
printf("\n-->LCD 触摸初始化");
Lcd_display_String(" LCD 触摸初始化");
XPT2046_GPIO_Init();
// while(XPT2046_Touch_Calibrate_Page() == 0){;}
Lcd_display_String(" LCD 触摸初始化ok");
}
//======================================================================
//======================================================================
void fn_Adc_Init(void){
ADCx_Init();
}
//======================================================================
//======================================================================
void delay(int x){
int y = 0xFFFFF;
while((x--)>0){
while((y--)>0){
__NOP();
__NOP();
__NOP();
__NOP();
__NOP();
}
}
}
/******************* (C) COPYRIGHT 2011 STMicroelectronics *****END OF FILE****/
建立ADC采集驱动文件ADC_book.h
代码如下 ：
#ifndef __ADC_BOOK_H
#define __ADC_BOOK_H
#include "stm32f10x.h"
// ADC GPIO宏定义
// 注意：用作ADC采集的IO必须没有复用，否则采集电压会有影响// ADC 编号选择
// 可以是 ADC1/2，如果使用ADC3，中断相关的要改成ADC3的
#define ADC_GPIO_APBxClock_FUN RCC_APB2PeriphClockCmd
#define ADC_GPIO_CLK RCC_APB2Periph_GPIOC
#define ADC_PORT GPIOC
// ADC 编号选择
// 可以是 ADC1/2，如果使用ADC3，中断相关的要改成ADC3的
#define ADC_APBxClock_FUN RCC_APB2PeriphClockCmd
#define ADC_X ADC1 //ADC2
#define ADC_CLK RCC_APB2Periph_ADC1//RCC_APB2Periph_ADC2
#define __ADC_DMA_Mode__ //使能标志位
#ifdef __ADC_DMA_Mode__
#define ADC_DMA_CLK RCC_AHBPeriph_DMA1
#define ADC_DMA_CHANEL DMA1_Channel1
#endif
//ADC 中断相关宏定义
#define ADC_IRQ ADC1_2_IRQn
#define ADC_IRQHandler ADC1_2_IRQHandler
//多通道设置
//转换通道的个数
#define __ADC_More_Mode__ //使能标志位
#ifdef __ADC_More_Mode__
#define NOFCHANEL 6
#define ADC_PIN GPIO_Pin_1
#define ADC_CHANNEL ADC_Channel_11
#define ADC_PIN1 GPIO_Pin_0
#define ADC_CHANNEL1 ADC_Channel_10
#define ADC_PIN2 GPIO_Pin_2
#define ADC_CHANNEL2 ADC_Channel_12
#define ADC_PIN3 GPIO_Pin_3
#define ADC_CHANNEL3 ADC_Channel_13
#define ADC_PIN4 GPIO_Pin_4
#define ADC_CHANNEL4 ADC_Channel_14
#define ADC_PIN5 GPIO_Pin_5
#define ADC_CHANNEL5 ADC_Channel_15
#else
#define ADC_PIN GPIO_Pin_1
//ADC 通道宏定义
#define ADC_CHANNEL ADC_Channel_11
#endif
typedef union {
struct{
unsigned char BIT0:1;unsigned char BIT1:1;unsigned char BIT2:1;unsigned char BIT3:1;
unsigned char BIT4:1;unsigned char BIT5:1;unsigned char BIT6:1;unsigned char BIT7:1;
//unsigned char BIT8:1;unsigned char BIT9:1;unsigned char BIT10:1;unsigned char BIT11:1;
//unsigned char BIT12:1;unsigned char BIT13:1;unsigned char BIT14:1;unsigned char BIT15:1;
}DATA_BIT;
uint8_t DATA_BYTE;
}Per_adc_type;
extern volatile Per_adc_type adc_flag;
#define badc_10ms adc_flag.DATA_BIT.BIT0
extern volatile uint16_t Count_Adc_flag;
//-----------AD多通道采集-------
#ifdef __ADC_More_Mode__
extern volatile uint16_t ADC_More_ConvertedValue[NOFCHANEL];
extern volatile float ADC_More_ConvertedValueLocal[NOFCHANEL];
//-----------AD多通道采集-------
#else
//-----------AD单独通道采集-------
extern volatile uint16_t ADC_ConvertedValue;
extern volatile float ADC_ConvertedValueLocal;
#endif
//-----------AD通道采集-------
void ADCx_Init(void);
void ADC_get_value(void);
#endif
建立ADC采集程序ADC_book.c
代码如下 ：
#include "ADC_book.h"
#include "XPT2046_LCD_GridDiagram_book.h"
volatile Per_adc_type adc_flag;
volatile uint16_t Count_Adc_flag;
//-----------AD多通道采集-------
#ifdef __ADC_More_Mode__
//-----------AD多通道采集-------
__IO uint16_t ADC_More_ConvertedValue[NOFCHANEL]={0,0,0,0,0,0};
__IO uint16_t ADC_More_ConvertedValue_Show[NOFCHANEL]={0,0,0,0,0,0};
__IO float ADC_More_ConvertedValueLocal[NOFCHANEL];
#else
//-----------AD单独通道采集-------
__IO uint16_t ADC_ConvertedValue;
__IO float ADC_ConvertedValueLocal;
#endif
//-----------AD通道采集-------
/**
* @brief ADC GPIO 初始化
* @param 无
* @retval 无
*/
static void ADCx_GPIO_Config(void){
GPIO_InitTypeDef GPIO_InitStructure;
// 打开ADC IO 端口时钟
ADC_GPIO_APBxClock_FUN (ADC_GPIO_CLK , ENABLE);
//配置 ADC IO 端口的模式
// 必须为模拟输入
//-----------AD多通道采集-------
#ifdef __ADC_More_Mode__
//-----------AD多通道采集-------
GPIO_InitStructure.GPIO_Pin = ADC_PIN |
ADC_PIN1|
ADC_PIN2|
ADC_PIN3|
ADC_PIN4|
ADC_PIN5;
#else
//-----------AD单独通道采集-------
GPIO_InitStructure.GPIO_Pin = ADC_PIN;
#endif
//-----------AD多通道采集-------
GPIO_InitStructure.GPIO_Mode = GPIO_Mode_AIN;
//初始化 ADDC_IO
GPIO_Init(ADC_PORT , &GPIO_InitStructure );
}
/**
* @brief 配置ADC DMA 工作模式
* @param
* @retval
*/
static void ADCx_DMA_Config(void){
DMA_InitTypeDef DMA_InitStructure;
//打开DMA时钟
RCC_AHBPeriphClockCmd(ADC_DMA_CLK , ENABLE);
//复位DMA 控制器
DMA_DeInit(ADC_DMA_CHANEL);
//配置DMA初始化结构体
// 外设基址为：ADC 数据寄存器地址
DMA_InitStructure.DMA_PeripheralBaseAddr = (uint32_t)(&(ADC_X->DR));
// 存储器地址，实际上就是一个内部SRAM的变量
//-----------AD通道采集-------
#ifdef __ADC_More_Mode__
//-----------AD多通道采集-------
DMA_InitStructure.DMA_MemoryBaseAddr = (u32)ADC_More_ConvertedValue;
#else
//-----------AD单通道采集-------
DMA_InitStructure.DMA_MemoryBaseAddr = (32)&ADC_ConvertedValue;
#endif
//-----------AD通道采集-------
// 数据源来自外设
DMA_InitStructure.DMA_DIR = DMA_DIR_PeripheralSRC;
// 缓冲区大小为1，缓冲区的大小应该等于存储器的大小
//-----------AD通道采集-------
#ifdef __ADC_More_Mode__
//-----------AD多通道采集-------
DMA_InitStructure.DMA_BufferSize = NOFCHANEL ;
// 外设寄存器只有一个，地址不用递增
DMA_InitStructure.DMA_PeripheralInc = DMA_PeripheralInc_Disable;
// 存储器地址固定
DMA_InitStructure.DMA_MemoryInc = DMA_MemoryInc_Enable;
#else
//-----------AD单独通道采集-------
DMA_InitStructure.DMA_BufferSize = 1 ;
// 外设寄存器只有一个，地址不用递增
DMA_InitStructure.DMA_PeripheralInc = DMA_PeripheralInc_Disable;
// 存储器地址固定
DMA_InitStructure.DMA_MemoryInc = DMA_MemoryInc_Disable;
#endif
//-----------AD通道采集-------
// 外设数据大小为半字，即两个字节
DMA_InitStructure.DMA_PeripheralDataSize = DMA_PeripheralDataSize_HalfWord;
// 存储器数据大小也为半字，跟外设数据大小相同
DMA_InitStructure.DMA_MemoryDataSize = DMA_MemoryDataSize_HalfWord;
// 循环传输模式
DMA_InitStructure.DMA_Mode = DMA_Mode_Circular;
// DMA 传输通道优先级为高，当使用一个DMA通道时，优先级设置不影响
DMA_InitStructure.DMA_Priority = DMA_Priority_High;
// 禁止存储器到存储器模式，因为是从外设到存储器
DMA_InitStructure.DMA_M2M = DMA_M2M_Disable;
// 初始化DMA
DMA_Init(ADC_DMA_CHANEL,&DMA_InitStructure);
// 使能 DMA 通道
DMA_Cmd(ADC_DMA_CHANEL , ENABLE);
}
/**
* @brief 配置ADC 工作模式
* @param
* @retval
*/
static void ADCx_Mode_Config(void){
ADC_InitTypeDef ADC_InitStructure;
//打开ADC时钟
ADC_APBxClock_FUN (ADC_CLK , ENABLE);
//--------DMA模式-----
#ifdef __ADC_DMA_Mode__
ADCx_DMA_Config();
#endif
//--------DMA模式-----
//ADC 模式配置
// 只使用一个ADC，属于单模式
ADC_InitStructure.ADC_Mode = ADC_Mode_Independent;
//-----------AD通道采集-------
#ifdef __ADC_More_Mode__
//-----------AD多通道采集-------
扫描模式
ADC_InitStructure.ADC_ScanConvMode = ENABLE;
#else
//-----------AD单通道采集-------
// 只使用一个ADC , 属于独立模式
ADC_InitStructure.ADC_ScanConvMode = DISABLE;
#endif
//-----------AD通道采集-------
//连续转换模式
ADC_InitStructure.ADC_ContinuousConvMode = ENABLE;
// 不用外部触发转换 ，软件开启即可
ADC_InitStructure.ADC_ExternalTrigConv = ADC_ExternalTrigConv_None;
//转换结果右侧对齐
ADC_InitStructure.ADC_DataAlign = ADC_DataAlign_Right;
//-----------AD通道采集-------
#ifdef __ADC_More_Mode__
//-----------AD多通道采集-------
//转换通道6个
ADC_InitStructure.ADC_NbrOfChannel = NOFCHANEL;
#else
//-----------AD单通道采集-------
//转换通道1个
ADC_InitStructure.ADC_NbrOfChannel = 1;
#endif
//-----------AD通道采集-------
//初始化ADC
ADC_Init(ADC_X , &ADC_InitStructure);
//配置ADC时钟为PCLCK2的8分频 为9HZ
RCC_ADCCLKConfig(RCC_PCLK2_Div8);
//配置ADC转换通道转换顺序和采样时间
//-----------AD通道采集-------
#ifdef __ADC_More_Mode__
//-----------AD多通道采集-------
ADC_RegularChannelConfig(ADC_X , ADC_CHANNEL , 1 , ADC_SampleTime_55Cycles5);
ADC_RegularChannelConfig(ADC_X , ADC_CHANNEL1 , 2 , ADC_SampleTime_55Cycles5);
ADC_RegularChannelConfig(ADC_X , ADC_CHANNEL2 , 3 , ADC_SampleTime_55Cycles5);
ADC_RegularChannelConfig(ADC_X , ADC_CHANNEL3 , 4 , ADC_SampleTime_55Cycles5);
ADC_RegularChannelConfig(ADC_X , ADC_CHANNEL4 , 5 , ADC_SampleTime_55Cycles5);
ADC_RegularChannelConfig(ADC_X , ADC_CHANNEL5 , 6 , ADC_SampleTime_55Cycles5);
#else
//-----------AD单通道采集-------
ADC_RegularChannelConfig(ADC_X , ADC_CHANNEL , 1 , ADC_SampleTime_55Cycles5);
#endif
//-----------AD通道采集-------
//--------DMA模式-----
#ifdef __ADC_DMA_Mode__
// 使能ADC DMA 请求
ADC_DMACmd(ADC_X, ENABLE);
#else
//ADC 转换结束产生中断,在中断服务程序中读取转换值
ADC_ITConfig(ADC_X , ADC_IT_EOC , ENABLE);
// 使能ADC DMA 请求
ADC_DMACmd(ADC_X, ENABLE);
#endif
//--------DMA模式-----
//开启ADC 并开始转换
ADC_Cmd(ADC_X , ENABLE);
// 初始化ADC 校准寄存器
ADC_ResetCalibration(ADC_X);
// 等待校准寄存器初始化完成
while(ADC_GetResetCalibrationStatus(ADC_X));
//ADC_采集校准
ADC_StartCalibration(ADC_X);
//等待校准完成
while(ADC_GetCalibrationStatus(ADC_X));
//由于没有采用外部触发 ，所以使用软件ADC转换
ADC_SoftwareStartConvCmd(ADC_X , ENABLE);
}
static void ADC_NVIC_Config(void){
NVIC_InitTypeDef NVIC_InitStructure;
//优先级分组
NVIC_PriorityGroupConfig(NVIC_PriorityGroup_1);
//配置中断优先级
NVIC_InitStructure.NVIC_IRQChannel = ADC_IRQ;
NVIC_InitStructure.NVIC_IRQChannelPreemptionPriority = 1;
NVIC_InitStructure.NVIC_IRQChannelCmd = ENABLE;
NVIC_Init(&NVIC_InitStructure);
}
void ADC_IRQHandler(void){
if( ADC_GetITStatus(ADC_X , ADC_IT_EOC )==SET ){
//读取ADC的转换值
//--------DMA模式-----
#ifdef __ADC_DMA_Mode__
#else
ADC_ConvertedValue = ADC_GetConversionValue(ADC_X);
#endif
//--------DMA模式-----
}
ADC_ClearITPendingBit(ADC_X , ADC_IT_EOC);
}
/**********************END OF FILE**********************/
/**
* @brief ADC初始化
* @param 无
* @retval 无
*/
void ADCx_Init(void){
//--------DMA模式-----
#ifdef __ADC_DMA_Mode__
ADCx_GPIO_Config();
ADCx_Mode_Config();
#else
ADCx_GPIO_Config();
ADCx_Mode_Config();
ADC_NVIC_Config(); // DMA 模式不需要对中断进行处理
#endif
//--------DMA模式-----
}
void ADC_get_value(void){
uint8_t i = 0;
if(badc_10ms==0){return;}
badc_10ms = 0;
//-----------AD通道采集-------
#ifdef __ADC_More_Mode__
//-----------AD多通道采集-------
for( i=0;i<NOFCHANEL ; i++){
ADC_More_ConvertedValue_Show[i]= (float)ADC_More_ConvertedValue[i]/4096*3.3;
ADC_More_ConvertedValueLocal[i]= (float)ADC_More_ConvertedValue[i];
}
for( i=0;i<NOFCHANEL ; i++){
ADC_More_ConvertedValueLocal[i]= (float)ADC_More_ConvertedValue[i]/4096*3.3;
printf("The current AD value %d = 0x%04X %f V\n",i,ADC_More_ConvertedValue[i],ADC_More_ConvertedValueLocal[i]);
}
printf("\r\n\r\n");
#else
//-----------AD单通道采集-------
ADC_ConvertedValueLocal = (float)ADC_ConvertedValue/4096*3.3;
printf("\r\n The current AD value = 0x%04X \r\n",ADC_ConvertedValue);
printf("\r\n The current AD value = %f V \r\n",ADC_ConvertedValueLocal);
printf("\r\n\r\n");
#endif
//-----------AD通道采集-------
GDScream_Data_show(ADC_More_ConvertedValue,NOFCHANEL);
}

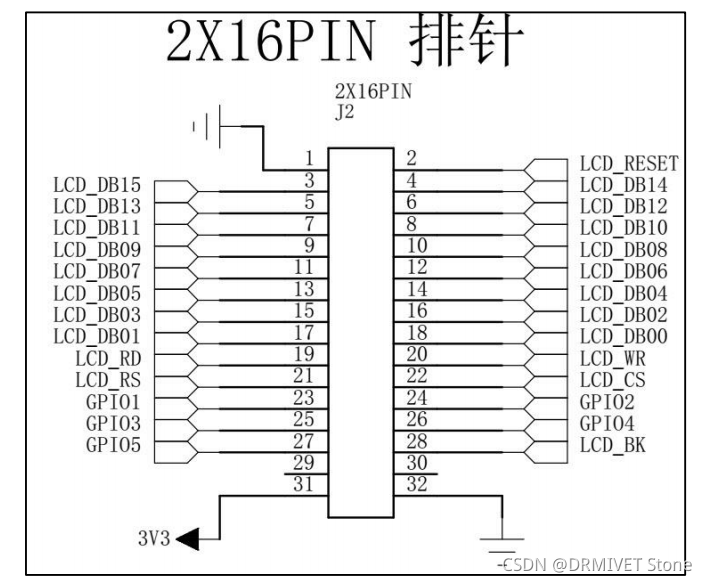

建立波形显示的LCD驱动文件XPT2046_LCD_GridDiagram_book.h
代码如下 ：
#ifndef __XPT2046_LCD_GRIDDIAGRAM_BOOK__
#define __XPT2046_LCD_GRIDDIAGRAM_BOOK__
#include "stm32f10x.h"
#include "XPT2046_LCD_Function_book.h"
#include "XPT2046_LCD_book.h"
#include "LCD_book.h"
#include "LCD_Draw_book.h"
#include "XPT2046_LCD_Device_book.h"
#include "ADC_book.h"
#include "USART_book.h"
//======================================================形式是默认还是定制化=====================================================
/**
模式0： . 模式1： . 模式2： . 模式3：
A . A . A . A
| . | . | . |
Y . X . Y . X
0 . 1 . 2 . 3
<--- X0 o . <----Y1 o . o 2X---> . o 3Y--->
------------------------------------------------------------
模式4： . 模式5： . 模式6： . 模式7：
<--- X4 o . <--- Y5 o . o 6X---> . o 7Y--->
4 . 5 . 6 . 7
Y . X . Y . X
| . | . | . |
V . V . V . V
---------------------------------------------------------
LCD屏示例
|---------|-----------------------------|
| AD测试 | |
| | |
| | |
| | |
| | |
| | |
| | |
| | |
| | |
|---------|-----------------------------|
屏幕正面（宽240，高320）270 50 -2
**/
///******************************* XPT2046 触摸屏参数定义 ***************************/
#define XPT2046_GDCHANNEL_X ILI9341_MORE_PIXEL //通道Y+的选择控制字
#define XPT2046_GDCHANNEL_Y ILI9341_LESS_PIXEL //通道X+的选择控制字
#define LCD_GDWork_X_LENGTH 270
#define LCD_GDNwork_Y_LENGTH 238
#define LCD_GDControl_X_Start 0
#define LCD_GDControl_Y_Start 0
#define LCD_GDControl_X_LENGTH (XPT2046_GDCHANNEL_X - LCD_GDWork_X_LENGTH - 2)
#define LCD_GDControl_Y_LENGTH XPT2046_GDCHANNEL_Y
#define LCD_GDSCAN_X_Start (LCD_GDControl_X_LENGTH+1)
#define LCD_GDSCAN_Y_Start 1
#define LCD_GDSCAN_X_LENGTH LCD_GDWork_X_LENGTH
#define LCD_GDSCAN_Y_LENGTH LCD_GDNwork_Y_LENGTH
#define LCD_GDSCAN_X_End (XPT2046_GDCHANNEL_X-1)
#define LCD_GDSCAN_Y_End (XPT2046_GDCHANNEL_Y-1)
#define Center_lineNum 6
#define GDBUTTON_NUM 3
typedef struct{
int16_t value_x_before ;
int16_t value_x_now ;
int16_t value_y_before ;
int16_t value_y_now ;
uint32_t para_color;
uint16_t data_value;
void (*draw_point)(void *draw_pot); //按键描绘函数
}AD_Point;
void GDScream_Data_show(u32 *data_value , uint16_t data_num);
#endif
建立波形显示的LCD程序文件XPT2046_LCD_GridDiagram_book.c
代码如下 ：
/**
******************************************************************************
* @file palette.c
* @author fire
* @version V1.0
* @date
* @brief 触摸画板应用函数
******************************************************************************
* @attention
*
******************************************************************************
*/
#include "XPT2046_LCD_GridDiagram_book.h"
#include <stdio.h>
#include <string.h>
Touch_Button GDbutton[GDBUTTON_NUM];
static void GDTouch_Button_Init(void);
static void Draw_btn_GDcontrol_Button(void *btn);
static void Btn_command_GDcontrol_Button(void);
static void GDControl_Text_Init(void);
static void GDScream_show_Init(void);
static void GDScream_Line_Init(void);
static void GDScream_Data_show_init(void);
static void Draw_point(void * draw_pot);
/**
* @brief Palette_Init 画板初始化
* @param 无
* @retval 无
*/
#define _LCD_GDSCAN_MODE LCD_SCAN_MODE_3
void GridDiagram_Init(void){
uint16_t datax , datay;
ILI9341_GramScan(_LCD_GDSCAN_MODE);
//初始化画板颜色
LCD_SetBackColor(CL_GREY2);
ILI9341_Clear(0,0,XPT2046_GDCHANNEL_X+1,XPT2046_GDCHANNEL_Y+1);
LCD_SetColors(CL_YELLOW , CL_WHITE);
ILI9341_DrawRectangle(1,1,LCD_GDControl_X_LENGTH-1,LCD_GDControl_Y_LENGTH-1,0,1);
LCD_SetColors(CL_WHITE , CL_WHITE);
ILI9341_DrawRectangle(LCD_GDControl_X_Start ,
LCD_GDControl_Y_Start ,
LCD_GDControl_X_LENGTH,
LCD_GDControl_Y_LENGTH,0,1);
LCD_SetColors(CL_BLACK , CL_WHITE);
ILI9341_DrawRectangle(LCD_GDSCAN_X_Start,
LCD_GDSCAN_Y_Start,
LCD_GDSCAN_X_LENGTH,
LCD_GDSCAN_Y_LENGTH,1,1);
GDScream_Line_Init();
GDScream_Data_show_init();
//初始化按钮
GDTouch_Button_Init();
GDControl_Text_Init();
//对属性物件进行刷新
GDScream_show_Init();
}
/**
* @brief GDTouch_Button_Init 画板初始化
* @param 无
* @retval 无
*/
static void GDTouch_Button_Init(void){
uint8_t i ;
for(i = 0 ;i<=GDBUTTON_NUM ;i++ ){
GDbutton[i].start_x = BUTTON_START_X+3;
GDbutton[i].end_x = GDbutton[i].start_x+COLOR_BLOCK_WIDTH ;
GDbutton[i].start_y = (COLOR_BLOCK_HEIGHT + 20)*(i+1);
GDbutton[i].end_y = GDbutton[i].start_y + COLOR_BLOCK_HEIGHT ;
GDbutton[i].touch_flag = 0;
GDbutton[i].draw_btn = Draw_btn_GDcontrol_Button ;
GDbutton[i].btn_command = Btn_command_GDcontrol_Button ;
}
GDbutton[0].para = CL_GREY; //构建按钮的属性
GDbutton[1].para = CL_GREY; //构建按钮的属性
GDbutton[2].para = CL_GREY; //构建按钮的属性
//描绘按钮
for(i=0 ;i<GDBUTTON_NUM ;i++ ){
GDbutton[i].draw_btn(&GDbutton[i]);
}
}
/**
* @brief Draw_btn_GDcontrol_Button 画板初始化
* @param 无
* @retval 无
*/
static void Draw_btn_GDcontrol_Button(void *btn){
Touch_Button *ptr = (Touch_Button *)btn;
//释放按键
if( ptr->touch_flag == 0){
//背景为功能键的颜色
LCD_SetColors(ptr->para , CL_WHITE);
ILI9341_DrawRectangle(ptr->start_x , ptr->start_y,\
ptr->end_x - ptr->start_x,\
ptr->end_y - ptr->start_y,1,1);
//白色背景边框
LCD_SetColors(CL_BOX_BORDER1 , CL_WHITE);
ILI9341_DrawRectangle(ptr->start_x , ptr->start_y,\
ptr->end_x - ptr->start_x,\
ptr->end_y - ptr->start_y,0,2);
}else{//按键按下
//白色背景
LCD_SetColors(CL_WHITE , CL_WHITE);
ILI9341_DrawRectangle(ptr->start_x , ptr->start_y,\
ptr->end_x - ptr->start_x,\
ptr->end_y - ptr->start_y,1,1);
//白色背景边框
LCD_SetColors(CL_BOX_BORDER2 , CL_WHITE);
ILI9341_DrawRectangle(ptr->start_x , ptr->start_y,\
ptr->end_x - ptr->start_x,\
ptr->end_y - ptr->start_y,0,2);
}
}
/**
* @brief Btn_command_GDcontrol_Button 画板初始化
* @param 无
* @retval 无
*/
static void Btn_command_GDcontrol_Button(void){
;
}
/**
* @brief Draw_btn_GDcontrol_Button 画板初始化
* @param 无
* @retval 无
*/
static void GDControl_Text_Init(void){
LCD_SetColors(CL_RED,CL_WHITE);
/*选择字体，使用中英文显示时，尽量把英文选择成8*16的字体，
*中文字体大小是16*16的，需要其它字体请自行制作字模*/
/*这个函数只对英文字体起作用*/
LCD_SetFont(&Font8x16);
ILI9341_DispString_EN_CH( LCD_GDControl_X_Start +2, LCD_GDControl_Y_Start + 5, "AD检查");
LCD_SetColors(CL_BLACK,CL_WHITE);
/*选择字体，使用中英文显示时，尽量把英文选择成8*16的字体，
*中文字体大小是16*16的，需要其它字体请自行制作字模*/
/*这个函数只对英文字体起作用*/
LCD_SetFont(&Font8x16);
ILI9341_DispString_EN_CH( LCD_GDControl_X_Start +2, LCD_GDControl_Y_Start + 25, " 王琪");
}
/**
* @brief Draw_btn_GDcontrol_Button 画板初始化
* @param 无
* @retval 无
*/
static void GDScream_Line_Init(void){
uint8_t i ;
uint16_t center_linexstart , center_lineystart ,center_linexend , center_lineyend;
uint16_t center_linespace ;
center_linexstart = LCD_GDSCAN_X_Start ;
center_lineystart = XPT2046_GDCHANNEL_Y / 2;
center_linexend = LCD_GDSCAN_X_End;
center_lineyend = center_lineystart ;
center_linespace = (XPT2046_GDCHANNEL_Y - 2 )/Center_lineNum ;
LCD_SetColors(CL_RED , CL_WHITE);
ILI9341_DrawLine( center_linexstart ,center_lineystart ,center_linexend ,center_lineyend,1 );
LCD_SetColors(CL_YELLOW , CL_WHITE);
ILI9341_DrawLine( center_linexstart ,center_lineystart + center_linespace ,center_linexend ,center_lineyend + center_linespace,1 );
ILI9341_DrawLine( center_linexstart ,center_lineystart - center_linespace ,center_linexend ,center_lineyend - center_linespace,1 );
LCD_SetColors(CL_BLUE , CL_WHITE);
ILI9341_DrawLine( center_linexstart ,center_lineystart + (center_linespace*2) ,center_linexend ,center_lineystart + (center_linespace*2),1 );
ILI9341_DrawLine( center_linexstart ,center_lineystart - (center_linespace*2) ,center_linexend ,center_lineystart - (center_linespace*2),1 );
}
/**
* @brief Draw_btn_GDcontrol_Button 画板初始化
* @param 无
* @retval 无
*/
static void GDScream_show_Init(void){
uint8_t i ;
for( i=0 ; i< (GDBUTTON_NUM); i++ ) {
GDbutton[i].draw_btn(&GDbutton[i]);
}
}
//===============================================关于屏幕画点的程序函数==============================================
// 屏幕正面（宽320，高240）
// 270 个像素
// 238 / 6 38
// 500MS 一个数字
// 像素间隔 Dx = 2 = 135 个数字
// 可以测试85S 的数据
// 4096 12 AD 每个像素高度为 20 *38 = 760 大约 0.6V 精度为0.02V
// 设定变量 ：uint16 data_value / DX = 2 DY = 1 HX= 1 HY = 20 ， uint16 data_value_before data_value_now ,
#define DX 1
#define DY 1
#define HX 1
#define HY 20
__IO int16_t data_value_x_before = -1; //之前的状态点
__IO int16_t data_value_x_now = -1; // 现在的状态点
__IO int16_t data_value_y_before = -1;
__IO int16_t data_value_y_now = -1;
AD_Point ad_point[NOFCHANEL]; //采样数据模块
static void GDScream_Data_show_init(void){ //显示数据AD的样式初始化
uint8_t i=0 ;
data_value_x_before = -1 ;
data_value_x_now = -1;
data_value_y_before = -1 ;
data_value_y_now = -1;
for( i=0;i<NOFCHANEL ;i++ ){
ad_point[i].value_x_before =data_value_x_before;
ad_point[i].value_x_now = data_value_x_now;
ad_point[i].value_y_before = data_value_y_before ;
ad_point[i].value_y_now = data_value_y_now;
ad_point[i].draw_point = Draw_point;
}
ad_point[0].para_color = CL_WHITE;
ad_point[1].para_color = CL_GREEN;
ad_point[2].para_color = CL_GREY3;
ad_point[3].para_color = CL_YELLOW;
ad_point[4].para_color = CL_BLUE;
ad_point[5].para_color = CL_MAGENTA;
}
static void Draw_point(void *draw_pot){ //AD模块采样点的绘制功能
AD_Point *ptr_point = (AD_Point *)draw_pot;
if((ptr_point->value_x_before) == -1){
ILI9341_SetPointPixel(ptr_point->value_x_now,ptr_point->value_y_now,1);
}else{
ILI9341_DrawLine(ptr_point->value_x_before,ptr_point->value_y_before,ptr_point->value_x_now,ptr_point->value_y_now,1);
}
}
void GDScream_Data_show(u32 *data_value , uint16_t data_num){ //GD显示
uint8_t i=0 , j=0 ;
char cStr [ 100 ];
char * pStr = 0;
__IO float ADC_ValueLocal;
__IO int16_t data_value_x , data_value_y ;
for(i=0 ; i<data_num;i++){
ad_point[i].data_value = (int16_t) data_value[i]; //对数据进行模块存储，将采集到的数据一一存入采样点的实时存储寄存器
}
LCD_SetColors(CL_WHITE , CL_WHITE);
if((data_value_x_now<0)||(data_value_x_now > LCD_GDSCAN_X_End-2)){ // 如果是第一次进入最左端存储点就刷新程序
LCD_SetColors(CL_BLACK , CL_WHITE);
ILI9341_DrawRectangle(LCD_GDSCAN_X_Start,
LCD_GDSCAN_Y_Start,
LCD_GDSCAN_X_LENGTH,
LCD_GDSCAN_Y_LENGTH,1,1);
GDScream_Line_Init();
GDScream_Data_show_init();
}
if(data_value_x_before == -1){ //说明是第一次 如果是初始化第一次需要在最左端绘制描绘点
for(i=0 ;i<data_num ;i++ ){
data_value_x = LCD_GDSCAN_X_Start;
data_value_y = LCD_GDSCAN_Y_End -(ad_point[i].data_value/ HY) ;
data_value_x_now = data_value_x ;
data_value_y_now = data_value_y ;
ad_point[i].value_x_now = data_value_x_now;
ad_point[i].value_y_now = data_value_y_now;
LCD_SetColors(ad_point[i].para_color , ad_point[i].para_color);
ad_point[i].draw_point(&ad_point[i]);
//ILI9341_SetPointPixel(ad_point[i].data_value_x_now,ad_point[i].data_value_y_now,1);
data_value_x_before = data_value_x ;
data_value_y_before = data_value_y ;
ad_point[i].value_x_before = data_value_x_before;
ad_point[i].value_y_before = data_value_y_before;
}
}
else {
for(j=0 ;j<data_num ;j++ ){ //正常绘制注意当前数据与之前数据的切换
data_value_x = data_value_x_before+DX ;
data_value_y = LCD_GDSCAN_Y_End -(ad_point[j].data_value/ HY) ;
data_value_x_now = data_value_x ;
data_value_y_now = data_value_y ;
ad_point[j].value_x_now = data_value_x_now;
ad_point[j].value_y_now = data_value_y_now;
LCD_SetColors(ad_point[j].para_color , ad_point[j].para_color);
ad_point[j].draw_point(&ad_point[j]);
//ILI9341_DrawLine(ad_point[j].data_value_x_before,ad_point[j].data_value_y_before,ad_point[j].data_value_x_now,ad_point[j].data_value_y_now,1);
data_value_x_before = data_value_x_now ;
data_value_y_before = data_value_y_now ;
ad_point[j].value_x_before = data_value_x_before;
ad_point[j].value_y_before = data_value_y_before;
}
}
ADC_ValueLocal =(float)ad_point[0].data_value/4096*3.3;
sprintf ( cStr, "0x%04X",ad_point[0].data_value );
LCD_SetColors(CL_MAGENTA,CL_WHITE);
/*选择字体，使用中英文显示时，尽量把英文选择成8*16的字体，
*中文字体大小是16*16的，需要其它字体请自行制作字模*/
/*这个函数只对英文字体起作用*/
LCD_SetFont(&Font8x16);
ILI9341_DispString_EN_CH( LCD_GDControl_X_Start+2 , LCD_GDControl_Y_LENGTH - 50, cStr);
sprintf ( cStr, "%.3fV",ADC_ValueLocal );
LCD_SetColors(CL_RED,CL_WHITE);
/*选择字体，使用中英文显示时，尽量把英文选择成8*16的字体，
*中文字体大小是16*16的，需要其它字体请自行制作字模*/
/*这个函数只对英文字体起作用*/
LCD_SetFont(&Font8x16);
ILI9341_DispString_EN_CH( LCD_GDControl_X_Start +2, LCD_GDControl_Y_LENGTH - 30, cStr);
}

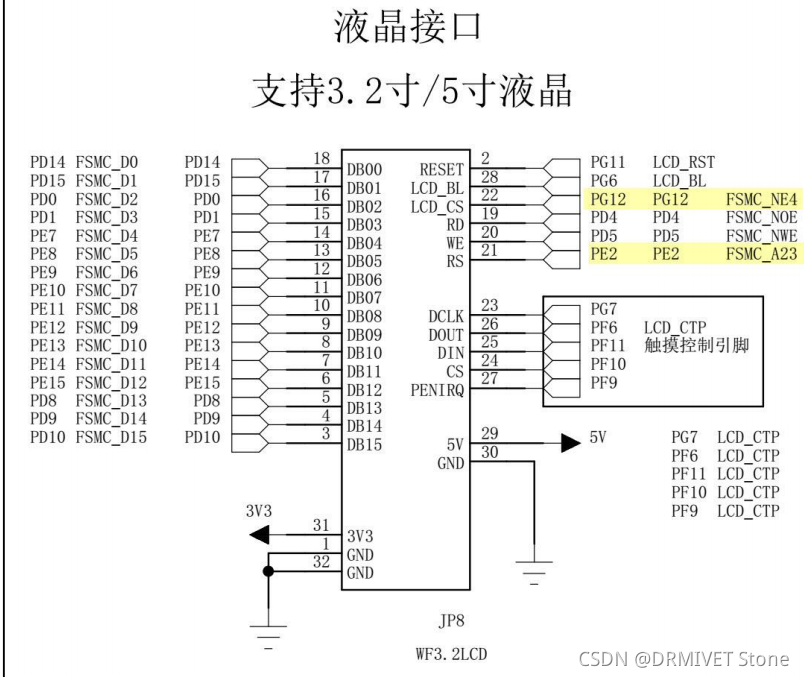

建立XPT2046驱动文件XPT2046_LCD_Device_book.h
代码如下 ：
#ifndef __XPT2046_LCD_DEVICE_BOOK_H__
#define __XPT2046_LCD_DEVICE_BOOK_H__
#include "stm32f10x.h"
#include "XPT2046_LCD_Function_book.h"
#include "XPT2046_LCD_book.h"
#include "LCD_book.h"
#include "LCD_Draw_book.h"
#include "USART_book.h"
//======================================================颜色参数=====================================================
/*
LCD 颜色代码，CL_是Color的简写
16Bit由高位至低位， RRRR RGGG GGGB BBBB
下面的RGB 宏将24位的RGB值转换为16位格式。
启动windows的画笔程序，点击编辑颜色，选择自定义颜色，可以获得的RGB值。
推荐使用迷你取色器软件获得你看到的界面颜色。
*/
#define LCD_RGB_565 1
#if LCD_RGB_565
#define RGB(Rh,Gh,Bh) (((Rh&0xf8)<<8)|((Gh&0xfc)<<3)|((Bh&0xf8)>>3))
#else
#define RGB(RGB) ((((RGB&0xf80000)) | ((RGB&0x00fc00)<<3)| ((RGB&0x0000f8)<<5))>>8)
#endif
enum{
CL_WHITE = RGB(255,255,255), /* 白色 */
CL_BLACK = RGB( 0, 0, 0), /* 黑色 */
CL_RED = RGB(255, 0, 0), /* 红色 */
CL_GREEN = RGB( 0,255, 0), /* 绿色 */
CL_BLUE = RGB( 0, 0,255), /* 蓝色 */
CL_YELLOW = RGB(255,255, 0), /* 黄色 */
CL_GREY = RGB( 98, 98, 98), /* 深灰色 */
CL_GREY1 = RGB( 150, 150, 150), /* 浅灰色 */
CL_GREY2 = RGB( 180, 180, 180), /* 浅灰色 */
CL_GREY3 = RGB( 200, 200, 200), /* 最浅灰色 */
CL_GREY4 = RGB( 230, 230, 230), /* 最浅灰色 */
CL_BUTTON_GREY = RGB( 195, 195, 195), /* WINDOWS 按钮表面灰色 */
CL_MAGENTA = RGB(255, 0, 255), /* 红紫色，洋红色 */
CL_CYAN = RGB( 0, 255, 255), /* 蓝绿色，青色 */
CL_BLUE1 = RGB( 0, 0, 240), /* 深蓝色 */
CL_BLUE2 = RGB( 0, 0, 128), /* 深蓝色 */
CL_BLUE3 = RGB( 68, 68, 255), /* 浅蓝色1 */
CL_BLUE4 = RGB( 0, 64, 128), /* 浅蓝色1 */
/* UI 界面 Windows控件常用色 */
CL_BTN_FACE = RGB(236, 233, 216), /* 按钮表面颜色(灰) */
CL_BOX_BORDER1 = RGB(172, 168,153), /* 分组框主线颜色 */
CL_BOX_BORDER2 = RGB(255, 255,255), /* 分组框阴影线颜色 */
CL_MASK = 0x7FFF /* RGB565颜色掩码，用于文字背景透明 */
};
//======================================================形式是默认还是定制化=====================================================
typedef enum{
Type_default = 0,
Type_particularly ,
Type_especially, //橡皮
}Type_Style_Device;
//======================================================按键按钮的参数=====================================================
typedef struct{
uint16_t start_x; //按键的x起始坐标
uint16_t start_y; //按键的y起始坐标
uint16_t end_x; //按键的x结束坐标
uint16_t end_y; //按键的y结束坐标
uint32_t para; //颜色按钮中表示选择的颜色，笔迹形状按钮中表示选择的画刷
uint8_t touch_flag; //按键按下的标志
void (*draw_btn)(void * btn); //按键描绘函数
void (*btn_command)(void * btn); //按键功能执行函数，例如切换颜色、画刷
}Touch_Button;
//======================================================按键画图功能的参数=====================================================
typedef enum{
LINE_SING_PIXCEL = 0 ,//单像素线
LINE_2_PIXCEL, //2像素线
LINE_4_PIXCEL, //4像素线
LINE_6_PIXCEL, //6像素线
LINE_8_PIXCEL, //8像素线
LINE_16_PIXCEL, //16像素线
LINE_20_PIXCEL, //20像素线
LINE_WITH_CIRCLE, //珠子连线
RUBBER, //橡皮
Draw_CLEAR,
}SHAPE;
/*画刷参数*/
typedef struct
{
uint32_t color; //颜色参数
SHAPE shape; // 形状参数
}Brush_Style;
extern Brush_Style brush;
//======================================================功能参数=====================================================
void Palette_Init(
uint8_t _LCD_GramScan_Mode ,//屏幕方向
uint16_t _Page_Color , //画板颜色
uint16_t _Brush_Color //画笔颜色
);
void Touch_Button_Down(uint16_t x,uint16_t y);
void Touch_Button_Up(uint16_t x,uint16_t y);
void Draw_Trail(int16_t pre_x,int16_t pre_y,int16_t x,int16_t y,Brush_Style* brush);
//======================================================功能参数=====================================================
#define COLOR_BLOCK_WIDTH 40 //默认按钮的大小
#define COLOR_BLOCK_HEIGHT 28 //默认按钮的高度
#define BUTTON_NUM 18 //默认按钮的数量
#define PALETTE_START_Y 0 //默认按钮的排列顺序
#define PALETTE_END_Y LCD_Y_LENGTH //该参数定义再LCD_BOOK 中扩展变量
#define PALETT_Left 1
#if PALETT_Left //按钮栏在左边
#define BUTTON_START_X 0
#define PALETTE_START_X (COLOR_BLOCK_WIDTH*2+1)
#define PALETTE_END_X LCD_X_LENGTH
#else //按钮栏在右边，(存在触摸按键时也会的bug仅用于测试触摸屏左边界)
#define BUTTON_START_X (LCD_X_LENGTH-2*COLOR_BLOCK_WIDTH)
#define PALETTE_START_X 0
#define PALETTE_END_X (LCD_X_LENGTH-2*COLOR_BLOCK_WIDTH)
#endif
#endif /* __XPT2046_LCD_DEVICE_BOOK_H__ */
建立XPT2046程序文件XPT2046_LCD_Device_book.c
代码如下 ：
/**
******************************************************************************
* @file palette.c
* @author fire
* @version V1.0
* @date
* @brief 触摸画板应用函数
******************************************************************************
* @attention
*
******************************************************************************
*/
#include "XPT2046_LCD_Device_book.h"
//按钮的结构体数组
Touch_Button button[BUTTON_NUM];
//画笔参数
Brush_Style brush;
static void Touch_Button_Init(void);
static void Draw_Color_Button(void *btn);
static void Draw_Shape_Button(void *btn);
static void Draw_RUBBER_Button(void *btn);
static void Draw_Clear_Button(void *btn);
static void Command_Select_Color(void *btn);
static void Command_Select_Brush(void *btn);
static void Command_RUBBER_Palette(void *btn);
static void Command_Clear_Palette(void *btn);
/**
* @brief Palette_Init 画板初始化
* @param 无
* @retval 无
*/
void Palette_Init(
uint8_t _LCD_GramScan_Mode ,//屏幕方向
uint16_t _Page_Color , //画板颜色
uint16_t _Brush_Color //画笔颜色
){
uint8_t i ;
ILI9341_GramScan(_LCD_GramScan_Mode);
//初始化画板颜色
LCD_SetBackColor(_Page_Color);
ILI9341_Clear(0,0,LCD_X_LENGTH,LCD_Y_LENGTH);
LCD_SetColors(GB888(0xEAC599) , CL_WHITE);
ILI9341_DrawRectangle(0,
0,
LCD_X_LENGTH-(PALETTE_END_X-PALETTE_START_X),
LCD_Y_LENGTH,1,1);
//初始化按钮
Touch_Button_Init();
//描绘按钮
for(i=0 ;i<BUTTON_NUM ;i++ ){
button[i].draw_btn(&button[i]);
}
//初始化画笔
brush.color = _Brush_Color;
brush.shape = LINE_SING_PIXCEL ;//单像素线
//初始化文本颜色
LCD_SetTextColor(brush.color);
}
/**
* @brief Touch_Button_Init 初始化按钮参数
* @param 无
* #define COLOR_BLOCK_WIDTH 40 //默认按钮的大小
* #define COLOR_BLOCK_HEIGHT 28 //默认按钮的高度
*
* @retval 无
*/
static void Touch_Button_Init(void){
int i;
//第一列
for(i = 0 ;i<=8 ;i++ ){
button[i].start_x = BUTTON_START_X;
button[i].end_x = button[i].start_x+COLOR_BLOCK_WIDTH ;
button[i].start_y = COLOR_BLOCK_HEIGHT*(i+1);
button[i].end_y = button[i].start_y + COLOR_BLOCK_HEIGHT;
button[i].touch_flag = 0;
button[i].draw_btn = Draw_Color_Button ;
button[i].btn_command = Command_Select_Color ;
}
button[0].para = CL_BLACK; //构建按钮的属性
button[1].para = CL_YELLOW;
button[2].para = CL_BLUE ;
button[3].para = CL_CYAN;
button[4].para = CL_RED;
button[5].para = CL_MAGENTA;
button[6].para = CL_GREEN;
button[7].para = CL_GREY1;
button[8].para = CL_WHITE;
/*第二列，主要为画刷按钮*/
for(i = 0 ;i<7 ;i++ ){
button[i+9].start_x = BUTTON_START_X + COLOR_BLOCK_WIDTH;
button[i+9].end_x = button[i+9].start_x + COLOR_BLOCK_WIDTH ;
button[i+9].start_y = COLOR_BLOCK_HEIGHT*(i+1);
button[i+9].end_y = button[i+9].start_y + COLOR_BLOCK_HEIGHT;
button[i+9].touch_flag = 0;
button[i+9].draw_btn = Draw_Shape_Button ;
button[i+9].btn_command = Command_Select_Brush ;
}
button[9].para = LINE_SING_PIXCEL;
button[10].para = LINE_2_PIXCEL;
button[11].para = LINE_4_PIXCEL;
button[12].para = LINE_6_PIXCEL;
button[13].para = LINE_8_PIXCEL;
button[14].para = LINE_16_PIXCEL;
button[15].para = LINE_20_PIXCEL;
button[16].start_x = BUTTON_START_X + COLOR_BLOCK_WIDTH;
button[16].end_x = button[16].start_x + COLOR_BLOCK_WIDTH ;
button[16].start_y = COLOR_BLOCK_HEIGHT*(7+1);
button[16].end_y = button[16].start_y + COLOR_BLOCK_HEIGHT;
button[16].touch_flag = 0;
button[16].draw_btn = Draw_RUBBER_Button ;
button[16].btn_command = Command_RUBBER_Palette ;
button[16].para = RUBBER;
button[17].start_x = BUTTON_START_X + COLOR_BLOCK_WIDTH;
button[17].end_x = button[17].start_x + COLOR_BLOCK_WIDTH ;
button[17].start_y = COLOR_BLOCK_HEIGHT*(8+1);
button[17].end_y = button[17].start_y + COLOR_BLOCK_HEIGHT;
button[17].touch_flag = 0;
button[17].draw_btn = Draw_Clear_Button ;
button[17].btn_command = Command_Clear_Palette ;
button[17].para = Draw_CLEAR;
}
//==================================按钮触摸识别函数=====================================
//=====================================================================================
/**
* @brief Touch_Button_Down 按键被按下时调用的函数，由触摸屏调用
* @param x 触摸位置的x坐标
* @param y 触摸位置的y坐标
* @retval 无
*/
void Touch_Button_Down(uint16_t x,uint16_t y){
uint8_t i ;
for(i=0 ;i<BUTTON_NUM ;i++ ){
//触摸到了按钮
if((x>=button[i].start_x)&&(y>=button[i].start_y)&&(x<=button[i].end_x)&&(y<=button[i].end_y)){
if(button[i].touch_flag == 0){ /*原本的状态为没有按下，则更新状态*/
button[i].touch_flag = 1; /* 改变按下标志 */
button[i].draw_btn(&button[i]); /*重绘按钮*/
}
}
else{ /* 触摸移出了按键的范围且之前有按下按钮 */
if(button[i].touch_flag == 1){ /* 触摸移出了按键的范围且之前有按下按钮 */
button[i].touch_flag = 0; /* 清除按下标志，判断为误操作*/
button[i].draw_btn(&button[i]); /*重绘按钮*/
}
}
}
}
/**
* @brief Touch_Button_Up 按键被释放时调用的函数，由触摸屏调用
* @param x 触摸最后释放时的x坐标
* @param y 触摸最后释放时的y坐标
* @retval 无
*/
void Touch_Button_Up(uint16_t x,uint16_t y){
uint8_t i ;
for(i=0 ;i<BUTTON_NUM ;i++ ){
if((x>=button[i].start_x)&&(y>=button[i].start_y)&&(x<=button[i].end_x)&&(y<=button[i].end_y)){
button[i].touch_flag = 0; /* 清除按下标志，判断为误操作*/
button[i].draw_btn(&button[i]); /*重绘按钮*/
button[i].btn_command(&button[i]); /*执行按键的功能命令*/
break;//安照按键顺序优先级执行
}
}
}
//==================================按钮的动作函数=====================================
//=====================================================================================
/**
* @brief Draw_Color_Button 颜色按钮的描绘函数
* @param btn Touch_Button 类型的按键参数
* @retval 无
*/
static void Draw_Color_Button(void *btn){
Touch_Button *ptr = (Touch_Button *)btn;
//释放按键
if( ptr->touch_flag == 0){
//背景为功能键的颜色
LCD_SetColors(ptr->para , CL_WHITE);
ILI9341_DrawRectangle(ptr->start_x , ptr->start_y,\
ptr->end_x - ptr->start_x,\
ptr->end_y - ptr->start_y,1,1);
//白色背景边框
LCD_SetColors(CL_BOX_BORDER1 , CL_WHITE);
ILI9341_DrawRectangle(ptr->start_x , ptr->start_y,\
ptr->end_x - ptr->start_x,\
ptr->end_y - ptr->start_y,0,2);
}else{//按键按下
//白色背景
LCD_SetColors(CL_WHITE , CL_WHITE);
ILI9341_DrawRectangle(ptr->start_x , ptr->start_y,\
ptr->end_x - ptr->start_x,\
ptr->end_y - ptr->start_y,1,1);
//白色背景边框
LCD_SetColors(CL_BOX_BORDER2 , CL_WHITE);
ILI9341_DrawRectangle(ptr->start_x , ptr->start_y,\
ptr->end_x - ptr->start_x,\
ptr->end_y - ptr->start_y,0,2);
}
}
/**
* @brief Draw_Shape_Button 笔刷按钮的描绘函数
* @param btn Touch_Button 类型的按键参数
* @retval 无
*/
static void Draw_Shape_Button(void *btn){
Touch_Button *ptr = (Touch_Button *)btn;
uint16_t i;
//背景颜色 没按下去的时候为灰色 按下去是后为白色
if(ptr->touch_flag == 0){
LCD_SetColors(CL_BUTTON_GREY , CL_WHITE);
ILI9341_DrawRectangle( ptr->start_x,
ptr->start_y,
ptr->end_x - ptr->start_x,
ptr->end_y - ptr->start_y,1,1);
//显示文字的背景颜色
LCD_SetColors(CL_BLUE4 , CL_BUTTON_GREY);
ILI9341_DrawRectangle(ptr->start_x,
ptr->start_y,
ptr->end_x - ptr->start_x,
ptr->end_y - ptr->start_y,0,1);
}
else{
LCD_SetColors(CL_WHITE,CL_WHITE);
ILI9341_DrawRectangle( ptr->start_x,
ptr->start_y,
ptr->end_x - ptr->start_x,
ptr->end_y - ptr->start_y,1,1);
/*显示文字时的背景颜色*/
LCD_SetColors(CL_BLUE4,CL_WHITE);
ILI9341_DrawRectangle( ptr->start_x,
ptr->start_y,
ptr->end_x - ptr->start_x,
ptr->end_y - ptr->start_y,0,1);
}
LCD_SetColors(CL_BLACK , CL_WHITE);
// 根据画刷形状描绘按钮图案
switch(ptr->para){
case LINE_SING_PIXCEL:
LCD_SetColors(CL_BLACK , CL_WHITE);
ILI9341_DrawLine(ptr->start_x+20,
ptr->start_y+(ptr->end_y-ptr->start_y)/2,
ptr->end_x-20,
ptr->start_y+(ptr->end_y-ptr->start_y)/2,1);
break;
case LINE_2_PIXCEL:
LCD_DrawUniLineCircle(ptr->start_x+20,
ptr->start_y+(ptr->end_y-ptr->start_y)/2,ptr->end_x-20,
ptr->start_y+(ptr->end_y-ptr->start_y)/2,
1);
break;
case LINE_4_PIXCEL:
LCD_DrawUniLineCircle(ptr->start_x+20,
ptr->start_y+(ptr->end_y-ptr->start_y)/2,ptr->end_x-20,
ptr->start_y+(ptr->end_y-ptr->start_y)/2,
2);
break;
case LINE_6_PIXCEL:
LCD_DrawUniLineCircle(ptr->start_x+20,
ptr->start_y+(ptr->end_y-ptr->start_y)/2,ptr->end_x-20,
ptr->start_y+(ptr->end_y-ptr->start_y)/2,
3);
break;
case LINE_8_PIXCEL:
LCD_DrawUniLineCircle(ptr->start_x+20,
ptr->start_y+(ptr->end_y-ptr->start_y)/2,ptr->end_x-20,
ptr->start_y+(ptr->end_y-ptr->start_y)/2,
4);
break;
case LINE_16_PIXCEL:
LCD_DrawUniLineCircle(ptr->start_x+20,
ptr->start_y+(ptr->end_y-ptr->start_y)/2,ptr->end_x-20,
ptr->start_y+(ptr->end_y-ptr->start_y)/2,
8 );
break;
case LINE_20_PIXCEL:
LCD_DrawUniLineCircle(ptr->start_x+20,
ptr->start_y+(ptr->end_y-ptr->start_y)/2,ptr->end_x-20,
ptr->start_y+(ptr->end_y-ptr->start_y)/2,
10);
break;
case LINE_WITH_CIRCLE:
LCD_SetColors(CL_BLACK,CL_WHITE);
ILI9341_DrawLine(ptr->start_x+5,
ptr->start_y+(ptr->end_y-ptr->start_y)/2,
ptr->end_x-5,
ptr->start_y+(ptr->end_y-ptr->start_y)/2,1);
for(i=0;i<((ptr->end_x - ptr->start_x-10)/10);i++){
ILI9341_DrawCircle( ptr->start_x+5+i*10,
ptr->start_y+(ptr->end_y-ptr->start_y)/2,
3,1,1);
}
break;
}
}
/**
* @brief Draw_RUBBER_Button 清屏按钮的描绘函数
* @param btn Touch_Button 类型的按键参数
* @retval 无
*/
static void Draw_RUBBER_Button(void *btn){
Touch_Button *ptr = (Touch_Button *) btn;
//释放按键
if(ptr->touch_flag == 0){
LCD_SetColors(CL_BUTTON_GREY,CL_WHITE);
ILI9341_DrawRectangle( ptr->start_x,
ptr->start_y,
ptr->end_x - ptr->start_x,
ptr->end_y - ptr->start_y,1,1);
LCD_SetColors(CL_RED , CL_BUTTON_GREY);
/*选择字体，使用中英文显示时，尽量把英文选择成8*16的字体，
*中文字体大小是16*16的，需要其它字体请自行制作字模*/
/*这个函数只对英文字体起作用*/
LCD_SetFont(&Font8x16);
ILI9341_DispString_EN_CH( ptr->start_x + (ptr->end_x - ptr->start_x - 16*2)/2,
ptr->start_y +(ptr->end_y - ptr->start_y - 16)/2,"橡皮");
}
else{ //按键按下
LCD_SetColors(CL_WHITE , CL_WHITE);
ILI9341_DrawRectangle(ptr->start_x,
ptr->start_y,
ptr->end_x - ptr->start_x,
ptr->end_y - ptr->start_y,1,1);
LCD_SetColors(CL_RED,CL_WHITE);
/*选择字体，使用中英文显示时，尽量把英文选择成8*16的字体，
*中文字体大小是16*16的，需要其它字体请自行制作字模*/
/*这个函数只对英文字体起作用*/
LCD_SetFont(&Font8x16);
ILI9341_DispString_EN_CH( ptr->start_x + (ptr->end_x - ptr->start_x - 16*2 )/2,
ptr->start_y+ ((ptr->end_y - ptr->start_y-16)/2),"橡皮");
}
//按钮边框
LCD_SetColors(CL_BLUE4 , CL_WHITE);
ILI9341_DrawRectangle(ptr->start_x,
ptr->start_y,
ptr->end_x - ptr->start_x,
ptr->end_y - ptr->start_y,0,1);
}
/**
* @brief Draw_Clear_Button 清屏按钮的描绘函数
* @param btn Touch_Button 类型的按键参数
* @retval 无
*/
static void Draw_Clear_Button(void *btn){
Touch_Button *ptr = (Touch_Button *) btn;
//释放按键
if(ptr->touch_flag == 0){
LCD_SetColors(CL_BUTTON_GREY,CL_WHITE);
ILI9341_DrawRectangle( ptr->start_x,
ptr->start_y,
ptr->end_x - ptr->start_x,
ptr->end_y - ptr->start_y,1,1);
LCD_SetColors(CL_RED , CL_BUTTON_GREY);
/*选择字体，使用中英文显示时，尽量把英文选择成8*16的字体，
*中文字体大小是16*16的，需要其它字体请自行制作字模*/
/*这个函数只对英文字体起作用*/
LCD_SetFont(&Font8x16);
ILI9341_DispString_EN_CH( ptr->start_x + (ptr->end_x - ptr->start_x - 16*2)/2,
ptr->start_y +(ptr->end_y - ptr->start_y - 16)/2,"清屏");
}
else{ //按键按下
LCD_SetColors(CL_WHITE , CL_WHITE);
ILI9341_DrawRectangle(ptr->start_x,
ptr->start_y,
ptr->end_x - ptr->start_x,
ptr->end_y - ptr->start_y,1,1);
LCD_SetColors(CL_RED,CL_WHITE);
/*选择字体，使用中英文显示时，尽量把英文选择成8*16的字体，
*中文字体大小是16*16的，需要其它字体请自行制作字模*/
/*这个函数只对英文字体起作用*/
LCD_SetFont(&Font8x16);
ILI9341_DispString_EN_CH( ptr->start_x + (ptr->end_x - ptr->start_x - 16*2 )/2,
ptr->start_y+ ((ptr->end_y - ptr->start_y-16)/2),"清屏");
}
//按钮边框
LCD_SetColors(CL_BLUE4 , CL_WHITE);
ILI9341_DrawRectangle(ptr->start_x,
ptr->start_y,
ptr->end_x - ptr->start_x,
ptr->end_y - ptr->start_y,0,1);
}
//==================================按钮的指令函数=====================================
//=====================================================================================
/**
* @brief Command_Select_Color 切换画刷颜色，颜色按键的功能执行函数
* @param btn Touch_Button 类型的按键参数
* @retval 无
*/
static void Command_Select_Color(void *btn){
Touch_Button *ptr = (Touch_Button *)btn;
brush.color = ptr->para;
LCD_SetColors (brush.color , CL_WHITE );
}
/**
* @brief Command_Select_Brush 切换画刷颜色，画刷按键的功能执行函数
* @param btn Touch_Button 类型的按键参数
* @retval 无
*/
static void Command_Select_Brush(void *btn){
Touch_Button *ptr = (Touch_Button *)btn;
brush.shape = (SHAPE)ptr->para;
LCD_SetColors(brush.color , CL_WHITE);
}
/**
* @brief Command_RUBBER_Palette 切换画刷颜色，清屏按键的功能执行函数
* @param btn Touch_Button 类型的按键参数
* @retval 无
*/
static void Command_RUBBER_Palette(void *btn){
brush.color = CL_WHITE;
brush.shape = LINE_6_PIXCEL;
LCD_SetColors(brush.color , CL_WHITE);
}
/**
* @brief Command_Select_Brush 切换画刷颜色，清屏按键的功能执行函数
* @param btn Touch_Button 类型的按键参数
* @retval 无
*/
static void Command_Clear_Palette(void *btn){
LCD_SetColors(CL_WHITE , CL_WHITE);
ILI9341_DrawRectangle(PALETTE_START_X,
PALETTE_START_Y,
PALETTE_END_X-(PALETTE_START_X+1),
PALETTE_END_Y-PALETTE_START_Y ,1,1);
}
//==================================按钮的动作函数=====================================
//=====================================================================================
/**
* @brief Draw_Trail 在画板区域描绘触摸轨迹
* @param pre_x 上一点的x坐标
* @param pre_y 上一点的y坐标
* @param x 最新一点的x坐标
* @param y 最新一点的y坐标
* @param brush 画刷参数
* @retval 无
*/
void Draw_Trail(
int16_t pre_x,int16_t pre_y,
int16_t x,int16_t y,
Brush_Style* brush
){
//设置画板区域为活动窗口
/*触摸位置在画板区域*/
if((x > PALETTE_START_X)&&(pre_x > PALETTE_START_X)){
switch( brush->shape ){ // 根据画刷的不同绘画不同的轨迹
//描绘1像素宽度的轨迹线
case LINE_SING_PIXCEL:
if((pre_x < 0)&&(pre_y<0)){ //新的笔记
ILI9341_SetPointPixel(x,y,1);
}else{
ILI9341_DrawLine(pre_x,pre_y,x,y,1);
}
break;
case LINE_2_PIXCEL:
if(((x-1) < PALETTE_START_X )|| ((y-1) < PALETTE_START_X))
break;
LCD_DrawUniLineCircle(pre_x,pre_y,x,y,1);
break;
case LINE_4_PIXCEL:
if(x-2<PALETTE_START_X||pre_x-2<PALETTE_START_X) //画板左边界
break;
LCD_DrawUniLineCircle(pre_x,pre_y,x,y,2);
break;
case LINE_6_PIXCEL:
if(x-3<PALETTE_START_X||pre_x-3<PALETTE_START_X) //画板左边界
break;
LCD_DrawUniLineCircle(pre_x,pre_y,x,y,3);
break;
case LINE_8_PIXCEL:
if(x-4<PALETTE_START_X||pre_x-4<PALETTE_START_X) //画板左边界
break;
LCD_DrawUniLineCircle(pre_x,pre_y,x,y,4);
break;
case LINE_16_PIXCEL:
if(x-8<PALETTE_START_X||pre_x-8<PALETTE_START_X) //画板左边界
break;
LCD_DrawUniLineCircle(pre_x,pre_y,x,y,8);
break;
case LINE_20_PIXCEL:
if(x-10<PALETTE_START_X ||pre_x-10<PALETTE_START_X) //画板左边界
break;
LCD_DrawUniLineCircle(pre_x,pre_y,x,y,10);
break;
/*描绘带珠子的单像素线*/
case LINE_WITH_CIRCLE:
if(x-3<PALETTE_START_X||pre_x-3<PALETTE_START_X) //画板左边界
break;
if(pre_x< 0 || pre_y< 0){//新的笔迹
ILI9341_SetPointPixel(x,y,1);
}
else{ //继续上一次的笔迹
ILI9341_DrawLine(pre_x,pre_y,x,y,1);
ILI9341_DrawCircle(x,y,3,1,1);
}
break;
/*橡皮功能*/
case RUBBER:
if(x-20<PALETTE_START_X || //画板左边界
x+20>LCD_X_LENGTH || x-20<0 || //液晶左右边界
y+20>LCD_Y_LENGTH || y-20<0) //液晶上下边界
break;
// if(x>PALETTE_START_X+20)
{ LCD_SetColors(CL_WHITE,CL_WHITE);
ILI9341_DrawRectangle( x-40/2,y-40/2,40,40,1,1);
}
break;
}
}
}
/* ------------------------------------------end of file---------------------------------------- */
建立XPT2046驱动文件XPT2046_LCD_book.h
代码如下 ：
#ifndef __XPT2046_LCD_BOOK_H__
#define __XPT2046_LCD_BOOK_H__
#include "stm32f10x.h"
/******************************* XPT2046 触摸屏触摸信号指示引脚定义(不使用中断) ***************************/
#define XPT2046_PENIRQ_GPIO_CLK RCC_APB2Periph_GPIOF
#define XPT2046_PENIRQ_GPIO_PORT GPIOF
#define XPT2046_PENIRQ_GPIO_PIN GPIO_Pin_9
/******************************* XPT2046 触摸屏模拟SPI引脚定义 ***************************/
#define XPT2046_SPI_GPIO_CLK RCC_APB2Periph_GPIOF| RCC_APB2Periph_GPIOG
#define XPT2046_SPI_CS_PIN GPIO_Pin_10
#define XPT2046_SPI_CS_PORT GPIOF
#define XPT2046_SPI_CLK_PIN GPIO_Pin_7
#define XPT2046_SPI_CLK_PORT GPIOG
#define XPT2046_SPI_MOSI_PIN GPIO_Pin_11
#define XPT2046_SPI_MOSI_PORT GPIOF
#define XPT2046_SPI_MISO_PIN GPIO_Pin_6
#define XPT2046_SPI_MISO_PORT GPIOF
#define XPT2046_CS_DISABLE() GPIO_SetBits ( XPT2046_SPI_CS_PORT, XPT2046_SPI_CS_PIN )
#define XPT2046_CS_ENABLE() GPIO_ResetBits ( XPT2046_SPI_CS_PORT, XPT2046_SPI_CS_PIN )
#define XPT2046_CLK_HIGH() GPIO_SetBits ( XPT2046_SPI_CLK_PORT, XPT2046_SPI_CLK_PIN )
#define XPT2046_CLK_LOW() GPIO_ResetBits ( XPT2046_SPI_CLK_PORT, XPT2046_SPI_CLK_PIN )
#define XPT2046_MOSI_1() GPIO_SetBits ( XPT2046_SPI_MOSI_PORT, XPT2046_SPI_MOSI_PIN )
#define XPT2046_MOSI_0() GPIO_ResetBits ( XPT2046_SPI_MOSI_PORT, XPT2046_SPI_MOSI_PIN )
#define XPT2046_MISO() GPIO_ReadInputDataBit ( XPT2046_SPI_MISO_PORT, XPT2046_SPI_MISO_PIN )
/******************************* XPT2046 触摸屏参数定义 ***************************/
#define XPT2046_CHANNEL_X 0x90 //通道Y+的选择控制字
#define XPT2046_CHANNEL_Y 0xd0 //通道X+的选择控制字
void XPT2046_ReadAdc_XY ( int16_t * sX_Ad, int16_t * sY_Ad );
#endif /* __BSP_TOUCH_H */
建立XPT2046驱动文件XPT2046_LCD_book.c
代码如下 ：
#include "XPT2046_LCD_book.h"
#include "LCD_Draw_book.h"
#include "USART_book.h"
#include "SPI_book.h"
//======================================================================
======================== 模拟SPI通讯 ===============================
//======================================================================
/**
* @brief XPT2046_GPIO_Init 初始化函数
* @param 无
* @retval 无
*/
void XPT2046_GPIO_Init(void){
GPIO_InitTypeDef GPIO_InitStructure;
/* 开启GPIO时钟 */
RCC_APB2PeriphClockCmd ( XPT2046_SPI_GPIO_CLK|XPT2046_PENIRQ_GPIO_CLK, ENABLE );
/* 模拟SPI GPIO初始化 */
GPIO_InitStructure.GPIO_Pin=XPT2046_SPI_CLK_PIN;
GPIO_InitStructure.GPIO_Speed=GPIO_Speed_10MHz ;
GPIO_InitStructure.GPIO_Mode=GPIO_Mode_Out_PP;
GPIO_Init(XPT2046_SPI_CLK_PORT, &GPIO_InitStructure);
GPIO_InitStructure.GPIO_Pin = XPT2046_SPI_MOSI_PIN;
GPIO_Init(XPT2046_SPI_MOSI_PORT, &GPIO_InitStructure);
GPIO_InitStructure.GPIO_Pin = XPT2046_SPI_MISO_PIN;
GPIO_InitStructure.GPIO_Speed = GPIO_Speed_10MHz ;
GPIO_InitStructure.GPIO_Mode = GPIO_Mode_IPU;
GPIO_Init(XPT2046_SPI_MISO_PORT, &GPIO_InitStructure);
GPIO_InitStructure.GPIO_Pin = XPT2046_SPI_CS_PIN;
GPIO_InitStructure.GPIO_Speed = GPIO_Speed_10MHz ;
GPIO_InitStructure.GPIO_Mode = GPIO_Mode_Out_PP;
GPIO_Init(XPT2046_SPI_CS_PORT, &GPIO_InitStructure);
/* 拉低片选，选择XPT2046 */
XPT2046_CS_ENABLE();
//触摸屏触摸信号指示引脚，不使用中断
GPIO_InitStructure.GPIO_Pin = XPT2046_PENIRQ_GPIO_PIN;
GPIO_InitStructure.GPIO_Mode = GPIO_Mode_IPU; // 上拉输入
GPIO_Init(XPT2046_PENIRQ_GPIO_PORT, &GPIO_InitStructure);
}
/**
* @brief 用于 XPT2046 的简单微秒级延时函数
* @param nCount ：延时计数值，单位为微妙
* @retval 无
*/
static void XPT2046_DelayUS ( __IO uint32_t ulCount ){
uint32_t i;
for ( i = 0; i < ulCount; i ++ ) {
uint8_t uc = 12; //设置值为12，大约延1微秒
while ( uc -- ); //延1微秒
}
}
/**
* @brief XPT2046 的写入命令
* @param ucCmd ：命令
* 该参数为以下值之一：
* @arg 0x90 :通道Y+的选择控制字
* @arg 0xd0 :通道X+的选择控制字
* @retval 无
*/
static void XPT2046_WriteCMD(uint8_t ucCmd){
uint8_t i ;
//片选开始
XPT2046_CS_ENABLE();//引脚的出示状态
XPT2046_MOSI_0();
XPT2046_CLK_LOW();
//产生8个时钟发送数据
for(i=0 ;i<8 ;i++ ){
//指令要提前准备好
((ucCmd &(0x80>>i)) ==0 ) ? XPT2046_MOSI_0() : XPT2046_MOSI_1();
XPT2046_DelayUS(5);
XPT2046_CLK_HIGH();//时钟准备
XPT2046_DelayUS(5);
XPT2046_CLK_LOW();
}
}
/**
* @brief XPT2046 的读取命令
* @param 无
* @retval 读取到的数据
*/
//读取函数 AD 为１２位的
static uint16_t XPT2046_ReadCMD(void){
uint8_t i ;
uint16_t usTemp = 0;
XPT2046_MOSI_0();
XPT2046_CLK_HIGH();
for ( i=0;i<12;i++ ){
usTemp<<=1;
XPT2046_CLK_LOW();
(XPT2046_MISO() == Bit_SET )?(usTemp |= 0x01):(usTemp |= 0x00);
XPT2046_CLK_HIGH();
}
XPT2046_CS_DISABLE();
return usTemp;
}
/**
* @brief 对 XPT2046 选择一个模拟通道后，
* 启动ADC，并返回ADC采样结果
* @param ucChannel
* 该参数为以下值之一：
* @arg 0x90 :通道Y+的选择控制字
* @arg 0xd0 :通道X+的选择控制字
* @retval 该通道的ADC采样结果
*/
static uint16_t XPT2046_ReadAdc( uint8_t ucChannel ){
XPT2046_WriteCMD(ucChannel);
return XPT2046_ReadCMD();
}
/**
* @brief 读取 XPT2046 的X通道和Y通道的AD值（12 bit，最大是4096）
* @param sX_Ad ：存放X通道AD值的地址
* @param sY_Ad ：存放Y通道AD值的地址
* @retval 无
*/
void XPT2046_ReadAdc_XY ( int16_t * sX_Ad, int16_t * sY_Ad ){
*sX_Ad = XPT2046_ReadAdc(XPT2046_CHANNEL_X);
XPT2046_DelayUS(1);
*sY_Ad = XPT2046_ReadAdc (XPT2046_CHANNEL_Y);
//#ifdef _USEUSARTSHOW //#endif
printf("触摸点 X: 0x%x Y:0x%x \n" ,*sX_Ad ,*sY_Ad );
//#endif
}
建立XPT2046驱动文件XPT2046_LCD_Function_book.h
代码如下 ：
#ifndef __XPT2046_LCD_FUNCTION_BOOK_H__
#define __XPT2046_LCD_FUNCTION_BOOK_H__
#include "stm32f10x.h"
typedef union {
struct{
unsigned char BIT0:1;unsigned char BIT1:1;unsigned char BIT2:1;unsigned char BIT3:1;
unsigned char BIT4:1;unsigned char BIT5:1;unsigned char BIT6:1;unsigned char BIT7:1;
//unsigned char BIT8:1;unsigned char BIT9:1;unsigned char BIT10:1;unsigned char BIT11:1;
//unsigned char BIT12:1;unsigned char BIT13:1;unsigned char BIT14:1;unsigned char BIT15:1;
}DATA_BIT;
uint8_t DATA_BYTE;
}Per_XPT2046_LCD_type;
/*******************************触摸状态机相关*************************************/
typedef enum
{
XPT2046_STATE_RELEASE = 0, //触摸释放
XPT2046_STATE_WAITING, //触摸按下
XPT2046_STATE_PRESSED, //触摸按下
}enumTouchState ;
#define TOUCH_NOT 0
#define TOUCH_PRESSED 1
#define TOUCH_NOT_PRESSED 2
//触摸消抖阈值
#define DURIATION_TIME 3
//触屏信号有效电平
#define XPT2046_PENIRQ_ActiveLevel 0
#define XPT2046_PENIRQ_Read() GPIO_ReadInputDataBit ( XPT2046_PENIRQ_GPIO_PORT, XPT2046_PENIRQ_GPIO_PIN )
/// 声明 XPT2046 相关的外部全局变量
extern volatile uint8_t ucXPT2046_TouchFlag;
extern volatile Per_XPT2046_LCD_type XPT2046_LCD_flag;
#define bXPT2046_LCD_10ms XPT2046_LCD_flag.DATA_BIT.BIT0
/*******************************触摸坐标判断 *************************************/
typedef struct{ //液晶坐标结构体
/*负数值表示无新数据*/
int16_t x; //记录最新的触摸参数值
int16_t y;
/*用于记录连续触摸时(长按)的上一次触摸位置*/
int16_t pre_x;
int16_t pre_y;
} strType_XPT2046_Coordinate;
typedef struct{ //校准因子结构体
float An, //注:sizeof(long double) = 8
Bn,
Cn,
Dn,
En,
Fn,
Divider;
} strType_XPT2046_Calibration;
typedef struct{ //校准系数结构体（最终使用）
float dX_X,
dX_Y,
dX,
dY_X,
dY_Y,
dY;
} strType_XPT2046_TouchPara;
/// 声明 XPT2046 相关的外部全局变量
extern strType_XPT2046_TouchPara strXPT2046_TouchPara[];
// 触摸校验4点校验点
extern strType_XPT2046_Coordinate strCrossCoordinate[4];
extern strType_XPT2046_Coordinate strScreenSample[4];
//======================================================================
======================== 触摸状态机制通讯 ==========================
//======================================================================
/** 状态机制
* @brief 触摸屏检测状态机
* @retval 触摸状态
* 该返回值为以下值之一：
* @arg TOUCH_PRESSED :触摸按下
* @arg TOUCH_NOT_PRESSED :无触摸
*/
uint8_t XPT2046_TouchDetect(void);
uint8_t XPT2046_ReadAdc_Smooth_XY ( strType_XPT2046_Coordinate * pScreenCoordinate );
/**
* @brief XPT2046 触摸屏校准初始化
* @param LCD_Mode：指定要校正哪种液晶扫描模式的参数
* @note 本函数调用后会把液晶模式设置为LCD_Mode
* @retval 校准结果
* 该返回值为以下值之一:
* @arg 1 :校准成功
* @arg 0 :校准失败
*/
void XPT2046_Touch_Calibrate_SetStand4Pint(void);
/**
* @brief XPT2046 触摸屏校准
* @param LCD_Mode：指定要校正哪种液晶扫描模式的参数
* @note 本函数调用后会把液晶模式设置为LCD_Mode
* @retval 校准结果
* 该返回值为以下值之一：
* @arg 1 :校准成功
* @arg 0 :校准失败
*/
uint8_t XPT2046_Touch_Calibrate ( uint8_t LCD_Mode );
/**
* @brief 获取 XPT2046 触摸点（校准后）的坐标
* @param pDisplayCoordinate ：该指针存放获取到的触摸点坐标
* @param pTouchPara：坐标校准系数
* @retval 获取情况
* 该返回值为以下值之一：
* @arg 1 :获取成功
* @arg 0 :获取失败
*/
uint8_t XPT2046_Get_TouchedPoint ( strType_XPT2046_Coordinate * pDisplayCoordinate, strType_XPT2046_TouchPara * pTouchPara );
/**
* @brief 触摸屏被按下的时候会调用本函数
* @param touch包含触摸坐标的结构体
* @note 请在本函数中编写自己的触摸按下处理应用
* @retval 无
*/
void XPT2046_TouchDown(strType_XPT2046_Coordinate * touch);
/**
* @brief 触摸屏释放的时候会调用本函数
* @param touch包含触摸坐标的结构体
* @note 请在本函数中编写自己的触摸释放处理应用
* @retval 无
*/
void XPT2046_TouchUp(strType_XPT2046_Coordinate * touch);
/**
* @brief 检测到触摸中断时调用的处理函数,通过它调用tp_down 和tp_up汇报触摸点
* @note 本函数需要在while循环里被调用，也可使用定时器定时调用
* 例如，可以每隔5ms调用一次，消抖阈值宏DURIATION_TIME可设置为2，这样每秒最多可以检测100个点。
* 可在XPT2046_TouchDown及XPT2046_TouchUp函数中编写自己的触摸应用
* @param none
* @retval none
*/
void XPT2046_TouchEvenHandler(void );
#endif /* __BSP_TOUCH_H */
建立XPT2046驱动文件XPT2046_LCD_Function_book.c
代码如下 ：
#include "XPT2046_LCD_Function_book.h"
#include "XPT2046_LCD_book.h"
#include "LCD_book.h"
#include "XPT2046_LCD_Device_book.h"
#include "USART_book.h"
//======================================================================
======================== 触摸状态机制通讯 ==========================
//======================================================================
/** 状态机制
* @brief 触摸屏检测状态机
* @retval 触摸状态
* 该返回值为以下值之一：
* @arg TOUCH_PRESSED :触摸按下
* @arg TOUCH_NOT_PRESSED :无触摸
*/
volatile uint8_t ucXPT2046_TouchFlag;
volatile Per_XPT2046_LCD_type XPT2046_LCD_flag;
uint8_t XPT2046_TouchDetect(void){
if(bXPT2046_LCD_10ms == 0){return TOUCH_NOT ;}
bXPT2046_LCD_10ms = 0;
static enumTouchState touch_state = XPT2046_STATE_RELEASE;
static uint8_t count_Touch = 0;
uint8_t detectResult = TOUCH_NOT_PRESSED;
switch(touch_state){
case XPT2046_STATE_RELEASE:
if(XPT2046_PENIRQ_Read() == XPT2046_PENIRQ_ActiveLevel){
touch_state = XPT2046_STATE_WAITING;
detectResult = TOUCH_NOT_PRESSED;
}else{
touch_state = XPT2046_STATE_RELEASE;
detectResult = TOUCH_NOT_PRESSED;
}
break;
case XPT2046_STATE_WAITING:
if(XPT2046_PENIRQ_Read() == XPT2046_PENIRQ_ActiveLevel){
if(count_Touch++>DURIATION_TIME){
count_Touch = 0;
touch_state = XPT2046_STATE_PRESSED;
detectResult = TOUCH_PRESSED;
}else{
touch_state = XPT2046_STATE_WAITING;
detectResult = TOUCH_NOT_PRESSED;
}
}else{
count_Touch = 0;
touch_state = XPT2046_STATE_RELEASE;
detectResult = TOUCH_NOT_PRESSED;
}
break;
case XPT2046_STATE_PRESSED:
if(XPT2046_PENIRQ_Read() == XPT2046_PENIRQ_ActiveLevel){
touch_state = XPT2046_STATE_PRESSED;
detectResult = TOUCH_PRESSED;
}else{
touch_state = XPT2046_STATE_RELEASE;
detectResult = TOUCH_NOT_PRESSED;
}
break;
}
return detectResult;
}
//======================================================================
======================== 触摸坐标采集 ===============================
//======================================================================
#if 0 //注意：校正较精准，但是相对复杂，速度较慢
/**
* @brief 在触摸 XPT2046 屏幕时获取一组坐标的AD值，并对该坐标进行滤波
* @param 无
* @retval 滤波之后的坐标AD值
*/
static uint8_t XPT2046_ReadAdc_Smooth_XY ( strType_XPT2046_Coordinate * pScreenCoordinate ){
uint8_t ucCount = 0;
int16_t sAD_X, sAD_Y;
int16_t sBufferArray [ 2 ] [ 9 ] = { { 0 }, { 0 } }; //坐标X和Y进行9次采样
int32_t lAverage [ 3 ], lDifference [ 3 ];
do{
XPT2046_ReadAdc_XY ( & sAD_X, & sAD_Y );
sBufferArray [ 0 ] [ ucCount ] = sAD_X;
sBufferArray [ 1 ] [ ucCount ] = sAD_Y;
ucCount ++;
}while ( ( XPT2046_EXTI_Read() == XPT2046_EXTI_ActiveLevel ) && ( ucCount < 9 ) ); //用户点击触摸屏时即TP_INT_IN信号为低 并且 ucCount<9*/
/*如果触笔弹起*/
if ( XPT2046_EXTI_Read() != XPT2046_EXTI_ActiveLevel )
ucXPT2046_TouchFlag = 0; //触摸中断标志复位
/* 如果成功采样9次,进行滤波 */
if ( ucCount == 9 ){
/* 为减少运算量,分别分3组取平均值 */
lAverage [ 0 ] = ( sBufferArray [ 0 ] [ 0 ] + sBufferArray [ 0 ] [ 1 ] + sBufferArray [ 0 ] [ 2 ] ) / 3;
lAverage [ 1 ] = ( sBufferArray [ 0 ] [ 3 ] + sBufferArray [ 0 ] [ 4 ] + sBufferArray [ 0 ] [ 5 ] ) / 3;
lAverage [ 2 ] = ( sBufferArray [ 0 ] [ 6 ] + sBufferArray [ 0 ] [ 7 ] + sBufferArray [ 0 ] [ 8 ] ) / 3;
/* 计算3组数据的差值 */
lDifference [ 0 ] = lAverage [ 0 ]-lAverage [ 1 ];
lDifference [ 1 ] = lAverage [ 1 ]-lAverage [ 2 ];
lDifference [ 2 ] = lAverage [ 2 ]-lAverage [ 0 ];
/* 对上述差值取绝对值 */
lDifference [ 0 ] = lDifference [ 0 ]>0?lDifference [ 0 ]: ( -lDifference [ 0 ] );
lDifference [ 1 ] = lDifference [ 1 ]>0?lDifference [ 1 ]: ( -lDifference [ 1 ] );
lDifference [ 2 ] = lDifference [ 2 ]>0?lDifference [ 2 ]: ( -lDifference [ 2 ] );
/* 判断绝对差值是否都超过差值门限，如果这3个绝对差值都超过门限值，则判定这次采样点为野点,抛弃采样点，差值门限取为2 */
if ( lDifference [ 0 ] > XPT2046_THRESHOLD_CalDiff && lDifference [ 1 ] > XPT2046_THRESHOLD_CalDiff && lDifference [ 2 ] > XPT2046_THRESHOLD_CalDiff )
return 0;
/* 计算它们的平均值，同时赋值给strScreenCoordinate */
if ( lDifference [ 0 ] < lDifference [ 1 ] ){
if ( lDifference [ 2 ] < lDifference [ 0 ] )
pScreenCoordinate ->x = ( lAverage [ 0 ] + lAverage [ 2 ] ) / 2;
else
pScreenCoordinate ->x = ( lAverage [ 0 ] + lAverage [ 1 ] ) / 2;
}
else if ( lDifference [ 2 ] < lDifference [ 1 ] )
pScreenCoordinate -> x = ( lAverage [ 0 ] + lAverage [ 2 ] ) / 2;
else
pScreenCoordinate ->x = ( lAverage [ 1 ] + lAverage [ 2 ] ) / 2;
/* 同上，计算Y的平均值 */
lAverage [ 0 ] = ( sBufferArray [ 1 ] [ 0 ] + sBufferArray [ 1 ] [ 1 ] + sBufferArray [ 1 ] [ 2 ] ) / 3;
lAverage [ 1 ] = ( sBufferArray [ 1 ] [ 3 ] + sBufferArray [ 1 ] [ 4 ] + sBufferArray [ 1 ] [ 5 ] ) / 3;
lAverage [ 2 ] = ( sBufferArray [ 1 ] [ 6 ] + sBufferArray [ 1 ] [ 7 ] + sBufferArray [ 1 ] [ 8 ] ) / 3;
lDifference [ 0 ] = lAverage [ 0 ] - lAverage [ 1 ];
lDifference [ 1 ] = lAverage [ 1 ] - lAverage [ 2 ];
lDifference [ 2 ] = lAverage [ 2 ] - lAverage [ 0 ];
/* 取绝对值 */
lDifference [ 0 ] = lDifference [ 0 ] > 0 ? lDifference [ 0 ] : ( - lDifference [ 0 ] );
lDifference [ 1 ] = lDifference [ 1 ] > 0 ? lDifference [ 1 ] : ( - lDifference [ 1 ] );
lDifference [ 2 ] = lDifference [ 2 ] > 0 ? lDifference [ 2 ] : ( - lDifference [ 2 ] );
if ( lDifference [ 0 ] > XPT2046_THRESHOLD_CalDiff && lDifference [ 1 ] > XPT2046_THRESHOLD_CalDiff && lDifference [ 2 ] > XPT2046_THRESHOLD_CalDiff )
return 0;
if ( lDifference [ 0 ] < lDifference [ 1 ] ){
if ( lDifference [ 2 ] < lDifference [ 0 ] )
pScreenCoordinate ->y = ( lAverage [ 0 ] + lAverage [ 2 ] ) / 2;
else
pScreenCoordinate ->y = ( lAverage [ 0 ] + lAverage [ 1 ] ) / 2;
}
else if ( lDifference [ 2 ] < lDifference [ 1 ] )
pScreenCoordinate ->y = ( lAverage [ 0 ] + lAverage [ 2 ] ) / 2;
else
pScreenCoordinate ->y = ( lAverage [ 1 ] + lAverage [ 2 ] ) / 2;
return 1;
}
else if ( ucCount > 1 ){
pScreenCoordinate ->x = sBufferArray [ 0 ] [ 0 ];
pScreenCoordinate ->y = sBufferArray [ 1 ] [ 0 ];
return 0;
}
return 0;
}
#else //注意：画板应用实例专用,不是很精准，但是简单，速度比较快
uint8_t XPT2046_ReadAdc_Smooth_XY ( strType_XPT2046_Coordinate * pScreenCoordinate ){
uint8_t ucCount = 0, i;
int16_t sAD_X, sAD_Y;
int16_t sBufferArray [ 2 ] [ 10 ] = { { 0 },{ 0 } }; //坐标X和Y进行多次采样
//存储采样中的最小值、最大值
int32_t lX_Min, lX_Max, lY_Min, lY_Max;
if ( XPT2046_PENIRQ_Read() != XPT2046_PENIRQ_ActiveLevel ){return 0;}
/* 循环采样10次 */
do{
XPT2046_ReadAdc_XY ( & sAD_X, & sAD_Y );
sBufferArray [ 0 ] [ ucCount ] = sAD_X;
sBufferArray [ 1 ] [ ucCount ] = sAD_Y;
ucCount ++;
}while ( ( XPT2046_PENIRQ_Read() == XPT2046_PENIRQ_ActiveLevel ) && ( ucCount < 10 ) );
//用户点击触摸屏时即TP_INT_IN信号为低 并且 ucCount<10
/*如果触笔弹起*/
if ( XPT2046_PENIRQ_Read() != XPT2046_PENIRQ_ActiveLevel )
ucXPT2046_TouchFlag = 0; //中断标志复位
/*如果成功采样10个样本*/
if ( ucCount ==10 ){
lX_Max = lX_Min = sBufferArray [ 0 ] [ 0 ];
lY_Max = lY_Min = sBufferArray [ 1 ] [ 0 ];
for ( i = 1; i < 10; i ++ ){
if ( sBufferArray[ 0 ] [ i ] < lX_Min )
lX_Min = sBufferArray [ 0 ] [ i ];
else if ( sBufferArray [ 0 ] [ i ] > lX_Max )
lX_Max = sBufferArray [ 0 ] [ i ];
}
for ( i = 1; i < 10; i ++ ){
if ( sBufferArray [ 1 ] [ i ] < lY_Min )
lY_Min = sBufferArray [ 1 ] [ i ];
else if ( sBufferArray [ 1 ] [ i ] > lY_Max )
lY_Max = sBufferArray [ 1 ] [ i ];
}
/*去除最小值和最大值之后求平均值*/
pScreenCoordinate ->x = ( sBufferArray [ 0 ] [ 0 ] + sBufferArray [ 0 ] [ 1 ] + sBufferArray [ 0 ] [ 2 ] + sBufferArray [ 0 ] [ 3 ] + sBufferArray [ 0 ] [ 4 ] +
sBufferArray [ 0 ] [ 5 ] + sBufferArray [ 0 ] [ 6 ] + sBufferArray [ 0 ] [ 7 ] + sBufferArray [ 0 ] [ 8 ] + sBufferArray [ 0 ] [ 9 ] - lX_Min-lX_Max ) >> 3;
pScreenCoordinate ->y = ( sBufferArray [ 1 ] [ 0 ] + sBufferArray [ 1 ] [ 1 ] + sBufferArray [ 1 ] [ 2 ] + sBufferArray [ 1 ] [ 3 ] + sBufferArray [ 1 ] [ 4 ] +
sBufferArray [ 1 ] [ 5 ] + sBufferArray [ 1 ] [ 6 ] + sBufferArray [ 1 ] [ 7 ] + sBufferArray [ 1 ] [ 8 ] + sBufferArray [ 1 ] [ 9 ] - lY_Min-lY_Max ) >> 3;
return 1;
}
return 0;
}
#endif
//======================================================================
======================== 触摸坐标校准算法 ===============================
//======================================================================
/**
* @brief 计算 XPT2046 触摸坐标校正系数（注意：只有在LCD和触摸屏间的误差角度非常小时,才能运用下面公式）
* @param pDisplayCoordinate ：屏幕人为显示的已知坐标
* @param pstrScreenSample ：对已知坐标点触摸时 XPT2046 产生的坐标
* @param pCalibrationFactor ：根据人为设定坐标和采样回来的坐标计算出来的屏幕触摸校正系数
* @retval 计算状态
* 该返回值为以下值之一：
* @arg 1 :计算成功
* @arg 0 :计算失败
*/
/******************************* 定义 XPT2046 全局变量 ***************************/
//默认触摸参数，不同的屏幕稍有差异，可重新调用触摸校准函数获取
strType_XPT2046_TouchPara strXPT2046_TouchPara[] = {
-0.006464, -0.073259, 280.358032, 0.074878, 0.002052, -6.545977,//扫描方式0
0.086314, 0.001891, -12.836658, -0.003722, -0.065799, 254.715714,//扫描方式1
0.002782, 0.061522, -11.595689, 0.083393, 0.005159, -15.650089,//扫描方式2
0.089743, -0.000289, -20.612209, -0.001374, 0.064451, -16.054003,//扫描方式3
0.000767, -0.068258, 250.891769, -0.085559, -0.000195, 334.747650,//扫描方式4
-0.084744, 0.000047, 323.163147, -0.002109, -0.066371, 260.985809,//扫描方式5
-0.001848, 0.066984, -12.807136, -0.084858, -0.000805, 333.395386,//扫描方式6
-0.085470, -0.000876, 334.023163, -0.003390, 0.064725, -6.211169,//扫描方式7
};
static uint8_t XPT2046_Calculate_CalibrationFactor (
strType_XPT2046_Coordinate * pDisplayCoordinate,
strType_XPT2046_Coordinate * pScreenSample,
strType_XPT2046_Calibration * pCalibrationFactor
){
uint8_t ucRet = 1;
/* K＝ ( X0－X2 ) ( Y1－Y2 )－ ( X1－X2 ) ( Y0－Y2 ) */
pCalibrationFactor -> Divider = ( ( pScreenSample [ 0 ] .x - pScreenSample [ 2 ] .x ) * ( pScreenSample [ 1 ] .y - pScreenSample [ 2 ] .y ) ) -
( ( pScreenSample [ 1 ] .x - pScreenSample [ 2 ] .x ) * ( pScreenSample [ 0 ] .y - pScreenSample [ 2 ] .y ) ) ;
if ( pCalibrationFactor -> Divider == 0 )
ucRet = 0;
else{
/* A＝ ( ( XD0－XD2 ) ( Y1－Y2 )－ ( XD1－XD2 ) ( Y0－Y2 ) )／K */
pCalibrationFactor -> An = ( ( pDisplayCoordinate [ 0 ] .x - pDisplayCoordinate [ 2 ] .x ) * ( pScreenSample [ 1 ] .y - pScreenSample [ 2 ] .y ) ) -
( ( pDisplayCoordinate [ 1 ] .x - pDisplayCoordinate [ 2 ] .x ) * ( pScreenSample [ 0 ] .y - pScreenSample [ 2 ] .y ) );
/* B＝ ( ( X0－X2 ) ( XD1－XD2 )－ ( XD0－XD2 ) ( X1－X2 ) )／K */
pCalibrationFactor -> Bn = ( ( pScreenSample [ 0 ] .x - pScreenSample [ 2 ] .x ) * ( pDisplayCoordinate [ 1 ] .x - pDisplayCoordinate [ 2 ] .x ) ) -
( ( pDisplayCoordinate [ 0 ] .x - pDisplayCoordinate [ 2 ] .x ) * ( pScreenSample [ 1 ] .x - pScreenSample [ 2 ] .x ) );
/* C＝ ( Y0 ( X2XD1－X1XD2 )+Y1 ( X0XD2－X2XD0 )+Y2 ( X1XD0－X0XD1 ) )／K */
pCalibrationFactor -> Cn = ( pScreenSample [ 2 ] .x * pDisplayCoordinate [ 1 ] .x - pScreenSample [ 1 ] .x * pDisplayCoordinate [ 2 ] .x ) * pScreenSample [ 0 ] .y +
( pScreenSample [ 0 ] .x * pDisplayCoordinate [ 2 ] .x - pScreenSample [ 2 ] .x * pDisplayCoordinate [ 0 ] .x ) * pScreenSample [ 1 ] .y +
( pScreenSample [ 1 ] .x * pDisplayCoordinate [ 0 ] .x - pScreenSample [ 0 ] .x * pDisplayCoordinate [ 1 ] .x ) * pScreenSample [ 2 ] .y ;
/* D＝ ( ( YD0－YD2 ) ( Y1－Y2 )－ ( YD1－YD2 ) ( Y0－Y2 ) )／K */
pCalibrationFactor -> Dn = ( ( pDisplayCoordinate [ 0 ] .y - pDisplayCoordinate [ 2 ] .y ) * ( pScreenSample [ 1 ] .y - pScreenSample [ 2 ] .y ) ) -
( ( pDisplayCoordinate [ 1 ] .y - pDisplayCoordinate [ 2 ] .y ) * ( pScreenSample [ 0 ] .y - pScreenSample [ 2 ] .y ) ) ;
/* E＝ ( ( X0－X2 ) ( YD1－YD2 )－ ( YD0－YD2 ) ( X1－X2 ) )／K */
pCalibrationFactor -> En = ( ( pScreenSample [ 0 ] .x - pScreenSample [ 2 ] .x ) * ( pDisplayCoordinate [ 1 ] .y - pDisplayCoordinate [ 2 ] .y ) ) -
( ( pDisplayCoordinate [ 0 ] .y - pDisplayCoordinate [ 2 ] .y ) * ( pScreenSample [ 1 ] .x - pScreenSample [ 2 ] .x ) ) ;
/* F＝ ( Y0 ( X2YD1－X1YD2 )+Y1 ( X0YD2－X2YD0 )+Y2 ( X1YD0－X0YD1 ) )／K */
pCalibrationFactor -> Fn = ( pScreenSample [ 2 ] .x * pDisplayCoordinate [ 1 ] .y - pScreenSample [ 1 ] .x * pDisplayCoordinate [ 2 ] .y ) * pScreenSample [ 0 ] .y +
( pScreenSample [ 0 ] .x * pDisplayCoordinate [ 2 ] .y - pScreenSample [ 2 ] .x * pDisplayCoordinate [ 0 ] .y ) * pScreenSample [ 1 ] .y +
( pScreenSample [ 1 ] .x * pDisplayCoordinate [ 0 ] .y - pScreenSample [ 0 ] .x * pDisplayCoordinate [ 1 ] .y ) * pScreenSample [ 2 ] .y;
}
return ucRet;
}
//======================================================================
======================== 触摸坐标校准执行 ===============================
//======================================================================
/**
* @brief XPT2046 触摸屏校准初始化
* @param LCD_Mode：指定要校正哪种液晶扫描模式的参数
* @note 本函数调用后会把液晶模式设置为LCD_Mode
* @retval 校准结果
* 该返回值为以下值之一:
* @arg 1 :校准成功
* @arg 0 :校准失败
*/
strType_XPT2046_Coordinate strCrossCoordinate[4];
strType_XPT2046_Coordinate strScreenSample[4];
void XPT2046_Touch_Calibrate_SetStand4Pint(void){
/* 设定“十”字交叉点的坐标 */
strCrossCoordinate [0].x = LCD_X_LENGTH >> 2;
strCrossCoordinate[0].y = LCD_Y_LENGTH >> 2;
strCrossCoordinate[1].x = strCrossCoordinate[0].x;
strCrossCoordinate[1].y = ( LCD_Y_LENGTH * 3 ) >> 2;
strCrossCoordinate[2].x = ( LCD_X_LENGTH * 3 ) >> 2;
strCrossCoordinate[2].y = strCrossCoordinate[1].y;
strCrossCoordinate[3].x = strCrossCoordinate[2].x;
strCrossCoordinate[3].y = strCrossCoordinate[0].y;
}
/**
* @brief XPT2046 触摸屏校准
* @param LCD_Mode：指定要校正哪种液晶扫描模式的参数
* @note 本函数调用后会把液晶模式设置为LCD_Mode
* @retval 校准结果
* 该返回值为以下值之一：
* @arg 1 :校准成功
* @arg 0 :校准失败
*/
uint8_t XPT2046_Touch_Calibrate ( uint8_t LCD_Mode ){
uint8_t i;
uint16_t usTest_x = 0, usTest_y = 0, usGap_x = 0, usGap_y = 0;
strType_XPT2046_Calibration CalibrationFactor;
XPT2046_Calculate_CalibrationFactor ( strCrossCoordinate, strScreenSample, & CalibrationFactor ) ; //用原始参数计算出 原始参数与坐标的转换系数
if ( CalibrationFactor.Divider == 0 ) goto Failure; //进行校验完成
usTest_x = ( ( CalibrationFactor.An * strScreenSample[3].x ) + ( CalibrationFactor.Bn * strScreenSample[3].y ) + CalibrationFactor.Cn ) / CalibrationFactor.Divider; //取一个点计算X值
usTest_y = ( ( CalibrationFactor.Dn * strScreenSample[3].x ) + ( CalibrationFactor.En * strScreenSample[3].y ) + CalibrationFactor.Fn ) / CalibrationFactor.Divider; //取一个点计算Y值
usGap_x = ( usTest_x > strCrossCoordinate[3].x ) ? ( usTest_x - strCrossCoordinate[3].x ) : ( strCrossCoordinate[3].x - usTest_x ); //实际X坐标与计算坐标的绝对差
usGap_y = ( usTest_y > strCrossCoordinate[3].y ) ? ( usTest_y - strCrossCoordinate[3].y ) : ( strCrossCoordinate[3].y - usTest_y ); //实际Y坐标与计算坐标的绝对差
if ( ( usGap_x > 15 ) || ( usGap_y > 15 ) ) goto Failure; //可以通过修改这两个值的大小来调整精度
/* 校准系数为全局变量 */
strXPT2046_TouchPara[LCD_Mode].dX_X = ( CalibrationFactor.An * 1.0 ) / CalibrationFactor.Divider;
strXPT2046_TouchPara[LCD_Mode].dX_Y = ( CalibrationFactor.Bn * 1.0 ) / CalibrationFactor.Divider;
strXPT2046_TouchPara[LCD_Mode].dX = ( CalibrationFactor.Cn * 1.0 ) / CalibrationFactor.Divider;
strXPT2046_TouchPara[LCD_Mode].dY_X = ( CalibrationFactor.Dn * 1.0 ) / CalibrationFactor.Divider;
strXPT2046_TouchPara[LCD_Mode].dY_Y = ( CalibrationFactor.En * 1.0 ) / CalibrationFactor.Divider;
strXPT2046_TouchPara[LCD_Mode].dY = ( CalibrationFactor.Fn * 1.0 ) / CalibrationFactor.Divider;
#if 1 //输出调试信息，注意要先初始化串口
{
float * ulHeadAddres ;
/* 打印校校准系数 */
printf ( "显示模式【%d】校准系数如下：", LCD_Mode);
ulHeadAddres = ( float* ) ( & strXPT2046_TouchPara[LCD_Mode] );
for ( i = 0; i < 6; i ++ )
{
printf ( "%12f,", *ulHeadAddres++ );
}
printf("\r\n");
}
#endif
return 1;
Failure:
return 0;
}
/**
* @brief 获取 XPT2046 触摸点（校准后）的坐标
* @param pDisplayCoordinate ：该指针存放获取到的触摸点坐标
* @param pTouchPara：坐标校准系数
* @retval 获取情况
* 该返回值为以下值之一：
* @arg 1 :获取成功
* @arg 0 :获取失败
*/
uint8_t XPT2046_Get_TouchedPoint ( strType_XPT2046_Coordinate * pDisplayCoordinate, strType_XPT2046_TouchPara * pTouchPara )
{
uint8_t ucRet = 1; //若正常，则返回0
strType_XPT2046_Coordinate strScreenCoordinate;
if ( XPT2046_ReadAdc_Smooth_XY ( & strScreenCoordinate ) )
{
pDisplayCoordinate ->x = ( ( pTouchPara[LCD_SCAN_MODE].dX_X * strScreenCoordinate.x ) + ( pTouchPara[LCD_SCAN_MODE].dX_Y * strScreenCoordinate.y ) + pTouchPara[LCD_SCAN_MODE].dX );
pDisplayCoordinate ->y = ( ( pTouchPara[LCD_SCAN_MODE].dY_X * strScreenCoordinate.x ) + ( pTouchPara[LCD_SCAN_MODE].dY_Y * strScreenCoordinate.y ) + pTouchPara[LCD_SCAN_MODE].dY );
}
else ucRet = 0; //如果获取的触点信息有误，则返回0
return ucRet;
}
//--------------------------------按键动作------------------------------------
//----------------------------------------------------------------------------
/**
* @brief 触摸屏被按下的时候会调用本函数
* @param touch包含触摸坐标的结构体
* @note 请在本函数中编写自己的触摸按下处理应用
* @retval 无
*/
void XPT2046_TouchDown(strType_XPT2046_Coordinate * touch){
//如果是负数 表示之前已经处理过完毕
if((touch->pre_x == -1)&&(touch->pre_y==-1)){
return;
}
/***在此处编写自己的触摸按下处理应用***/
Touch_Button_Down(touch->x,touch->y);
/*处理描绘轨迹*/
Draw_Trail(touch->pre_x,touch->pre_y,touch->x,touch->y,&brush);
/***在上面编写自己的触摸按下处理应用***/
}
/**
* @brief 触摸屏释放的时候会调用本函数
* @param touch包含触摸坐标的结构体
* @note 请在本函数中编写自己的触摸释放处理应用
* @retval 无
*/
void XPT2046_TouchUp(strType_XPT2046_Coordinate * touch)
{
//若为负值表示之前已处理过
if(touch->pre_x == -1 && touch->pre_x == -1)
return;
/***在此处编写自己的触摸释放处理应用***/
/*处理触摸画板的选择按钮*/
Touch_Button_Up(touch->pre_x,touch->pre_y);
/***在上面编写自己的触摸释放处理应用***/
}
/**
* @brief 检测到触摸中断时调用的处理函数,通过它调用tp_down 和tp_up汇报触摸点
* @note 本函数需要在while循环里被调用，也可使用定时器定时调用
* 例如，可以每隔5ms调用一次，消抖阈值宏DURIATION_TIME可设置为2，这样每秒最多可以检测100个点。
* 可在XPT2046_TouchDown及XPT2046_TouchUp函数中编写自己的触摸应用
* @param none
* @retval none
*/
void XPT2046_TouchEvenHandler(void ){
static strType_XPT2046_Coordinate cinfo={-1,-1,-1,-1};
if(XPT2046_TouchDetect() == TOUCH_PRESSED){
printf("\nIdentify the screen by pressing\n" );
//获取触摸坐标
XPT2046_Get_TouchedPoint(&cinfo,strXPT2046_TouchPara);
//输出调试信息到串口
printf("x=%d,y=%d",cinfo.x,cinfo.y);
//调用触摸被按下时的处理函数，可在该函数编写自己的触摸按下处理过程
XPT2046_TouchDown(&cinfo);
/*更新触摸信息到pre xy*/
cinfo.pre_x = cinfo.x; cinfo.pre_y = cinfo.y;
}
else {
if(
(cinfo.x != -1)||
(cinfo.y != -1)||
(cinfo.pre_x != -1)||
(cinfo.pre_y != -1)
){
printf(" Identify the screen by loosen\n" );
//调用触摸被释放时的处理函数，可在该函数编写自己的触摸释放处理过程
XPT2046_TouchUp(&cinfo);
/*触笔释放，把 xy 重置为负*/
cinfo.x = -1;
cinfo.y = -1;
cinfo.pre_x = -1;
cinfo.pre_y = -1;
}
}
}
建立 LCD驱动 管理文件LCD_book.h
代码如下 ：
#ifndef __LCD_BOOK_H
#define __LCD_BOOK_H
#include "stm32f10x.h"
/***************************************************************************************
2^26 =0X0400 0000 = 64MB,每个 BANK 有4*64MB = 256MB
64MB:FSMC_Bank1_NORSRAM1:0X6000 0000 ~ 0X63FF FFFF
64MB:FSMC_Bank1_NORSRAM2:0X6400 0000 ~ 0X67FF FFFF
64MB:FSMC_Bank1_NORSRAM3:0X6800 0000 ~ 0X6BFF FFFF
64MB:FSMC_Bank1_NORSRAM4:0X6C00 0000 ~ 0X6FFF FFFF
选择BANK1-BORSRAM4 连接 TFT，地址范围为0X6C00 0000 ~ 0X6FFF FFFF
FSMC_A23 接LCD的DC(寄存器/数据选择)脚
寄存器基地址 = 0X6C00 0000
RAM基地址 = 0X6D00 0000 = 0X6C00 0000+2^23*2 = 0X6C00 0000 + 0X100 0000 = 0X6D00 0000
当选择不同的地址线时，地址要重新计算
****************************************************************************************/
/******************************* ILI9341 显示屏的 FSMC 参数定义 ***************************/
//FSMC_Bank1_NORSRAM用于LCD命令操作的地址
#define FSMC_Addr_ILI9341_CMD ( ( uint32_t ) 0x6C000000 )
//FSMC_Bank1_NORSRAM用于LCD数据操作的地址
#define FSMC_Addr_ILI9341_DATA ( ( uint32_t ) 0x6D000000 )
//由片选引脚决定的NOR/SRAM块
#define FSMC_Bank1_NORSRAMx FSMC_Bank1_NORSRAM4
/******************************* ILI9341 显示屏8080通讯引脚定义 ***************************/
/******控制信号线******/
//片选，选择NOR/SRAM块
#define ILI9341_CS_CLK RCC_APB2Periph_GPIOG
#define ILI9341_CS_PORT GPIOG
#define ILI9341_CS_PIN GPIO_Pin_12
//DC引脚，使用FSMC的地址信号控制，本引脚决定了访问LCD时使用的地址
//PE2为FSMC_A23
#define ILI9341_DC_CLK RCC_APB2Periph_GPIOE
#define ILI9341_DC_PORT GPIOE
#define ILI9341_DC_PIN GPIO_Pin_2
//写使能
#define ILI9341_WR_CLK RCC_APB2Periph_GPIOD
#define ILI9341_WR_PORT GPIOD
#define ILI9341_WR_PIN GPIO_Pin_5
//读使能
#define ILI9341_RD_CLK RCC_APB2Periph_GPIOD
#define ILI9341_RD_PORT GPIOD
#define ILI9341_RD_PIN GPIO_Pin_4
//复位引脚
#define ILI9341_RST_CLK RCC_APB2Periph_GPIOG
#define ILI9341_RST_PORT GPIOG
#define ILI9341_RST_PIN GPIO_Pin_11
//背光引脚
#define ILI9341_BK_CLK RCC_APB2Periph_GPIOG
#define ILI9341_BK_PORT GPIOG
#define ILI9341_BK_PIN GPIO_Pin_6
/********数据信号线***************/
#define ILI9341_D0_CLK RCC_APB2Periph_GPIOD
#define ILI9341_D0_PORT GPIOD
#define ILI9341_D0_PIN GPIO_Pin_14
#define ILI9341_D1_CLK RCC_APB2Periph_GPIOD
#define ILI9341_D1_PORT GPIOD
#define ILI9341_D1_PIN GPIO_Pin_15
#define ILI9341_D2_CLK RCC_APB2Periph_GPIOD
#define ILI9341_D2_PORT GPIOD
#define ILI9341_D2_PIN GPIO_Pin_0
#define ILI9341_D3_CLK RCC_APB2Periph_GPIOD
#define ILI9341_D3_PORT GPIOD
#define ILI9341_D3_PIN GPIO_Pin_1
#define ILI9341_D4_CLK RCC_APB2Periph_GPIOE
#define ILI9341_D4_PORT GPIOE
#define ILI9341_D4_PIN GPIO_Pin_7
#define ILI9341_D5_CLK RCC_APB2Periph_GPIOE
#define ILI9341_D5_PORT GPIOE
#define ILI9341_D5_PIN GPIO_Pin_8
#define ILI9341_D6_CLK RCC_APB2Periph_GPIOE
#define ILI9341_D6_PORT GPIOE
#define ILI9341_D6_PIN GPIO_Pin_9
#define ILI9341_D7_CLK RCC_APB2Periph_GPIOE
#define ILI9341_D7_PORT GPIOE
#define ILI9341_D7_PIN GPIO_Pin_10
#define ILI9341_D8_CLK RCC_APB2Periph_GPIOE
#define ILI9341_D8_PORT GPIOE
#define ILI9341_D8_PIN GPIO_Pin_11
#define ILI9341_D9_CLK RCC_APB2Periph_GPIOE
#define ILI9341_D9_PORT GPIOE
#define ILI9341_D9_PIN GPIO_Pin_12
#define ILI9341_D10_CLK RCC_APB2Periph_GPIOE
#define ILI9341_D10_PORT GPIOE
#define ILI9341_D10_PIN GPIO_Pin_13
#define ILI9341_D11_CLK RCC_APB2Periph_GPIOE
#define ILI9341_D11_PORT GPIOE
#define ILI9341_D11_PIN GPIO_Pin_14
#define ILI9341_D12_CLK RCC_APB2Periph_GPIOE
#define ILI9341_D12_PORT GPIOE
#define ILI9341_D12_PIN GPIO_Pin_15
#define ILI9341_D13_CLK RCC_APB2Periph_GPIOD
#define ILI9341_D13_PORT GPIOD
#define ILI9341_D13_PIN GPIO_Pin_8
#define ILI9341_D14_CLK RCC_APB2Periph_GPIOD
#define ILI9341_D14_PORT GPIOD
#define ILI9341_D14_PIN GPIO_Pin_9
#define ILI9341_D15_CLK RCC_APB2Periph_GPIOD
#define ILI9341_D15_PORT GPIOD
#define ILI9341_D15_PIN GPIO_Pin_10
/*************************************** 调试预用 ******************************************/
#define DEBUG_DELAY()
/******************************* 定义 ILI934 常用命令 ********************************/
#define CMD_SetCoordinateX 0x2A //设置X坐标
#define CMD_SetCoordinateY 0x2B //设置Y坐标
#define CMD_SetPixel 0x2C //填充像素
/***************************** ILI934 显示区域的起始坐标和总行列数 ***************************/
#define ILI9341_DispWindow_X_Star 0 //起始点的X坐标
#define ILI9341_DispWindow_Y_Star 0 //起始点的Y坐标
#define ILI9341_LESS_PIXEL 240 //液晶屏较短方向的像素宽度
#define ILI9341_MORE_PIXEL 320 //液晶屏较长方向的像素宽度
//根据液晶扫描方向而变化的XY像素宽度
//调用ILI9341_GramScan函数设置方向时会自动更改
extern uint16_t LCD_X_LENGTH,LCD_Y_LENGTH;
//液晶屏扫描模式
//参数可选值为0-7
typedef enum {
LCD_SCAN_MODE_1 = 1,
LCD_SCAN_MODE_2 = 2,
LCD_SCAN_MODE_3 = 3,
LCD_SCAN_MODE_4 = 4,
LCD_SCAN_MODE_5 = 5,
LCD_SCAN_MODE_6 = 6,
} LCD_SCAN_MODE_enum;
#define _LCD_SCAN_MODE LCD_SCAN_MODE_6
extern uint8_t LCD_SCAN_MODE ;
void ILI9341_Delay ( __IO uint32_t nCount );
void ILI9341_Write_Cmd ( uint16_t usCmd );
void ILI9341_Write_Data ( uint16_t usData );
__IO uint16_t ILI9341_Read_Data ( void );
void ILI9341_GramScan ( uint8_t ucOption );
__IO uint16_t ILI9341_Init (void);
#endif /* __BSP_ILI9341_ILI9341_H */
建立 LCD驱动 管理文件LCD_book.c
代码如下 ：
/**
/**
******************************************************************************
* @file bsp_ili9341_lcd.c
* @version V1.0
* @date 2013-xx-xx
* @brief ili9341液晶屏驱动
******************************************************************************
* @attention
*
* 实验平台:野火 F103-霸道 STM32 开发板
* 论坛 :http://www.firebbs.cn
* 淘宝 :https://fire-stm32.taobao.com
*
******************************************************************************
*/
#include "stm32f10x.h"
#include "Systick_book.h"
#include "LCD_book.h"
#include "SPI_book.h"
//根据液晶扫描方向而变化的XY像素宽度
//调用ILI9341_GramScan函数设置方向时会自动更改
uint16_t LCD_X_LENGTH = ILI9341_LESS_PIXEL;
uint16_t LCD_Y_LENGTH = ILI9341_MORE_PIXEL;
//液晶屏扫描模式，本变量主要用于方便选择触摸屏的计算参数
//参数可选值为0-7
//调用ILI9341_GramScan函数设置方向时会自动更改
//LCD刚初始化完成时会使用本默认值
uint8_t LCD_SCAN_MODE = 6;
/**
* @brief 初始化ILI9341的IO引脚
* @param 无
* @retval 无
*/
static void ILI9341_GPIO_Config ( void ){
GPIO_InitTypeDef GPIO_InitStructure;
/* 使能FSMC对应相应管脚时钟*/
RCC_APB2PeriphClockCmd (
/*控制信号*/
ILI9341_CS_CLK|ILI9341_DC_CLK|ILI9341_WR_CLK|
ILI9341_RD_CLK |ILI9341_BK_CLK|ILI9341_RST_CLK|
/*数据信号*/
ILI9341_D0_CLK|ILI9341_D1_CLK| ILI9341_D2_CLK |
ILI9341_D3_CLK | ILI9341_D4_CLK|ILI9341_D5_CLK|
ILI9341_D6_CLK | ILI9341_D7_CLK|ILI9341_D8_CLK|
ILI9341_D9_CLK | ILI9341_D10_CLK|ILI9341_D11_CLK|
ILI9341_D12_CLK | ILI9341_D13_CLK|ILI9341_D14_CLK|
ILI9341_D15_CLK , ENABLE );
/* 配置FSMC相对应的数据线,FSMC-D0~D15 */
GPIO_InitStructure.GPIO_Speed = GPIO_Speed_50MHz;
GPIO_InitStructure.GPIO_Mode = GPIO_Mode_AF_PP;
GPIO_InitStructure.GPIO_Pin = ILI9341_D0_PIN;
GPIO_Init ( ILI9341_D0_PORT, & GPIO_InitStructure );
GPIO_InitStructure.GPIO_Pin = ILI9341_D1_PIN;
GPIO_Init ( ILI9341_D1_PORT, & GPIO_InitStructure );
GPIO_InitStructure.GPIO_Pin = ILI9341_D2_PIN;
GPIO_Init ( ILI9341_D2_PORT, & GPIO_InitStructure );
GPIO_InitStructure.GPIO_Pin = ILI9341_D3_PIN;
GPIO_Init ( ILI9341_D3_PORT, & GPIO_InitStructure );
GPIO_InitStructure.GPIO_Pin = ILI9341_D4_PIN;
GPIO_Init ( ILI9341_D4_PORT, & GPIO_InitStructure );
GPIO_InitStructure.GPIO_Pin = ILI9341_D5_PIN;
GPIO_Init ( ILI9341_D5_PORT, & GPIO_InitStructure );
GPIO_InitStructure.GPIO_Pin = ILI9341_D6_PIN;
GPIO_Init ( ILI9341_D6_PORT, & GPIO_InitStructure );
GPIO_InitStructure.GPIO_Pin = ILI9341_D7_PIN;
GPIO_Init ( ILI9341_D7_PORT, & GPIO_InitStructure );
GPIO_InitStructure.GPIO_Pin = ILI9341_D8_PIN;
GPIO_Init ( ILI9341_D8_PORT, & GPIO_InitStructure );
GPIO_InitStructure.GPIO_Pin = ILI9341_D9_PIN;
GPIO_Init ( ILI9341_D9_PORT, & GPIO_InitStructure );
GPIO_InitStructure.GPIO_Pin = ILI9341_D10_PIN;
GPIO_Init ( ILI9341_D10_PORT, & GPIO_InitStructure );
GPIO_InitStructure.GPIO_Pin = ILI9341_D11_PIN;
GPIO_Init ( ILI9341_D11_PORT, & GPIO_InitStructure );
GPIO_InitStructure.GPIO_Pin = ILI9341_D12_PIN;
GPIO_Init ( ILI9341_D12_PORT, & GPIO_InitStructure );
GPIO_InitStructure.GPIO_Pin = ILI9341_D13_PIN;
GPIO_Init ( ILI9341_D13_PORT, & GPIO_InitStructure );
GPIO_InitStructure.GPIO_Pin = ILI9341_D14_PIN;
GPIO_Init ( ILI9341_D14_PORT, & GPIO_InitStructure );
GPIO_InitStructure.GPIO_Pin = ILI9341_D15_PIN;
GPIO_Init ( ILI9341_D15_PORT, & GPIO_InitStructure );
/* 配置FSMC相对应的控制线
* FSMC_NOE :LCD-RD
* FSMC_NWE :LCD-WR
* FSMC_NE1 :LCD-CS
* FSMC_A16 :LCD-DC
*/
GPIO_InitStructure.GPIO_Speed = GPIO_Speed_50MHz;
GPIO_InitStructure.GPIO_Mode = GPIO_Mode_AF_PP;
GPIO_InitStructure.GPIO_Pin = ILI9341_RD_PIN;
GPIO_Init (ILI9341_RD_PORT, & GPIO_InitStructure );
GPIO_InitStructure.GPIO_Pin = ILI9341_WR_PIN;
GPIO_Init (ILI9341_WR_PORT, & GPIO_InitStructure );
GPIO_InitStructure.GPIO_Pin = ILI9341_CS_PIN;
GPIO_Init ( ILI9341_CS_PORT, & GPIO_InitStructure );
GPIO_InitStructure.GPIO_Pin = ILI9341_DC_PIN;
GPIO_Init ( ILI9341_DC_PORT, & GPIO_InitStructure );
/* 配置LCD复位RST控制管脚*/
GPIO_InitStructure.GPIO_Mode = GPIO_Mode_Out_PP;
GPIO_InitStructure.GPIO_Speed = GPIO_Speed_50MHz;
GPIO_InitStructure.GPIO_Pin = ILI9341_RST_PIN;
GPIO_Init ( ILI9341_RST_PORT, & GPIO_InitStructure );
/* 配置LCD背光控制管脚BK*/
GPIO_InitStructure.GPIO_Mode = GPIO_Mode_Out_PP;
GPIO_InitStructure.GPIO_Speed = GPIO_Speed_50MHz;
GPIO_InitStructure.GPIO_Pin = ILI9341_BK_PIN;
GPIO_Init ( ILI9341_BK_PORT, & GPIO_InitStructure );
}
/**
* @brief LCD FSMC 模式配置
* @param 无
* @retval 无
*/
static void ILI9341_FSMC_Config ( void )
{
FSMC_NORSRAMInitTypeDef FSMC_NORSRAMInitStructure;
FSMC_NORSRAMTimingInitTypeDef readWriteTiming;
/* 使能FSMC时钟*/
RCC_AHBPeriphClockCmd ( RCC_AHBPeriph_FSMC, ENABLE );
//地址建立时间（ADDSET）为1个HCLK 2/72M=28ns
readWriteTiming.FSMC_AddressSetupTime = 0x01; //地址建立时间
//数据保持时间（DATAST）+ 1个HCLK = 5/72M=70ns
readWriteTiming.FSMC_DataSetupTime = 0x06; //数据建立时间
//选择控制的模式
//模式B,异步NOR FLASH模式，与ILI9341的8080时序匹配
readWriteTiming.FSMC_AccessMode = FSMC_AccessMode_B;
/*以下配置与模式B无关*/
//地址保持时间（ADDHLD）模式A未用到
readWriteTiming.FSMC_AddressHoldTime = 0x00; //地址保持时间
//设置总线转换周期，仅用于复用模式的NOR操作
readWriteTiming.FSMC_BusTurnAroundDuration = 0x00;
//设置时钟分频，仅用于同步类型的存储器
readWriteTiming.FSMC_CLKDivision = 0x00;
//数据保持时间，仅用于同步型的NOR
readWriteTiming.FSMC_DataLatency = 0x00;
FSMC_NORSRAMInitStructure.FSMC_Bank = FSMC_Bank1_NORSRAMx;
FSMC_NORSRAMInitStructure.FSMC_DataAddressMux = FSMC_DataAddressMux_Disable;
FSMC_NORSRAMInitStructure.FSMC_MemoryType = FSMC_MemoryType_NOR;
FSMC_NORSRAMInitStructure.FSMC_MemoryDataWidth = FSMC_MemoryDataWidth_16b;
FSMC_NORSRAMInitStructure.FSMC_BurstAccessMode = FSMC_BurstAccessMode_Disable;
FSMC_NORSRAMInitStructure.FSMC_WaitSignalPolarity = FSMC_WaitSignalPolarity_Low;
FSMC_NORSRAMInitStructure.FSMC_WrapMode = FSMC_WrapMode_Disable;
FSMC_NORSRAMInitStructure.FSMC_WaitSignalActive = FSMC_WaitSignalActive_BeforeWaitState;
FSMC_NORSRAMInitStructure.FSMC_WriteOperation = FSMC_WriteOperation_Enable;
FSMC_NORSRAMInitStructure.FSMC_WaitSignal = FSMC_WaitSignal_Disable;
FSMC_NORSRAMInitStructure.FSMC_ExtendedMode = FSMC_ExtendedMode_Disable;
FSMC_NORSRAMInitStructure.FSMC_WriteBurst = FSMC_WriteBurst_Disable;
FSMC_NORSRAMInitStructure.FSMC_ReadWriteTimingStruct = &readWriteTiming;
FSMC_NORSRAMInitStructure.FSMC_WriteTimingStruct = &readWriteTiming;
FSMC_NORSRAMInit ( & FSMC_NORSRAMInitStructure );
/* 使能 FSMC_Bank1_NORSRAM4 */
FSMC_NORSRAMCmd ( FSMC_Bank1_NORSRAMx, ENABLE );
}
//==================================================================================
//==============================命令初始化==========================================
//==================================================================================
/**
* @brief 向ILI9341写入命令
* @param usCmd :要写入的命令（表寄存器地址）
* @retval 无
*/
__inline void ILI9341_Write_Cmd ( uint16_t usCmd ){
* ( __IO uint16_t * ) ( FSMC_Addr_ILI9341_CMD ) = usCmd;
}
/**
* @brief 向ILI9341写入数据
* @param usData :要写入的数据
* @retval 无
*/
__inline void ILI9341_Write_Data ( uint16_t usData ){
* ( __IO uint16_t * ) ( FSMC_Addr_ILI9341_DATA ) = usData;
}
/**
* @brief 从ILI9341读取数据
* @param 无
* @retval 读取到的数据
*/
__inline __IO uint16_t ILI9341_Read_Data ( void ){
return ( * ( __IO uint16_t * ) ( FSMC_Addr_ILI9341_DATA ) );
}
/**
* @brief 用于 ILI9341 简单延时函数
* @param nCount ：延时计数值
* @retval 无
*/
void ILI9341_Delay ( __IO uint32_t nCount ){
for ( ; nCount != 0; nCount -- );
}
/**
* @brief ILI9341背光LED控制
* @param enumState ：决定是否使能背光LED
* 该参数为以下值之一：
* @arg ENABLE :使能背光LED
* @arg DISABLE :禁用背光LED
* @retval 无
*/
void ILI9341_BackLed_Control ( FunctionalState enumState )
{
if ( enumState )
GPIO_ResetBits ( ILI9341_BK_PORT, ILI9341_BK_PIN );
else
GPIO_SetBits ( ILI9341_BK_PORT, ILI9341_BK_PIN );
}
/**
* @brief ILI9341 软件复位
* @param 无
* @retval 无
*/
void ILI9341_Rst ( void )
{
GPIO_ResetBits ( ILI9341_RST_PORT, ILI9341_RST_PIN ); //低电平复位
ILI9341_Delay ( 0xAFF );
GPIO_SetBits ( ILI9341_RST_PORT, ILI9341_RST_PIN );
ILI9341_Delay ( 0xAFF );
}
//==================================================================================
//============================== 显示屏幕 初始化========================================
//==================================================================================
/**
* @brief 初始化ILI9341寄存器
* @param 无
* @retval 无
*/
static void ILI9341_REG_Config ( void )
{
/* Power control B (CFh) */
DEBUG_DELAY ();
ILI9341_Write_Cmd ( 0xCF );
ILI9341_Write_Data ( 0x00 );
ILI9341_Write_Data ( 0x81 );
ILI9341_Write_Data ( 0x30 );
/* Power on sequence control (EDh) */
DEBUG_DELAY ();
ILI9341_Write_Cmd ( 0xED );
ILI9341_Write_Data ( 0x64 );
ILI9341_Write_Data ( 0x03 );
ILI9341_Write_Data ( 0x12 );
ILI9341_Write_Data ( 0x81 );
/* Driver timing control A (E8h) */
DEBUG_DELAY ();
ILI9341_Write_Cmd ( 0xE8 );
ILI9341_Write_Data ( 0x85 );
ILI9341_Write_Data ( 0x10 );
ILI9341_Write_Data ( 0x78 );
/* Power control A (CBh) */
DEBUG_DELAY ();
ILI9341_Write_Cmd ( 0xCB );
ILI9341_Write_Data ( 0x39 );
ILI9341_Write_Data ( 0x2C );
ILI9341_Write_Data ( 0x00 );
ILI9341_Write_Data ( 0x34 );
ILI9341_Write_Data ( 0x02 );
/* Pump ratio control (F7h) */
DEBUG_DELAY ();
ILI9341_Write_Cmd ( 0xF7 );
ILI9341_Write_Data ( 0x20 );
/* Driver timing control B */
DEBUG_DELAY ();
ILI9341_Write_Cmd ( 0xEA );
ILI9341_Write_Data ( 0x00 );
ILI9341_Write_Data ( 0x00 );
/* Frame Rate Control (In Normal Mode/Full Colors) (B1h) */
DEBUG_DELAY ();
ILI9341_Write_Cmd ( 0xB1 );
ILI9341_Write_Data ( 0x00 );
ILI9341_Write_Data ( 0x1B );
/* Display Function Control (B6h) */
DEBUG_DELAY ();
ILI9341_Write_Cmd ( 0xB6 );
ILI9341_Write_Data ( 0x0A );
ILI9341_Write_Data ( 0xA2 );
/* Power Control 1 (C0h) */
DEBUG_DELAY ();
ILI9341_Write_Cmd ( 0xC0 );
ILI9341_Write_Data ( 0x35 );
/* Power Control 2 (C1h) */
DEBUG_DELAY ();
ILI9341_Write_Cmd ( 0xC1 );
ILI9341_Write_Data ( 0x11 );
/* VCOM Control 1 (C5h) */
ILI9341_Write_Cmd ( 0xC5 );
ILI9341_Write_Data ( 0x45 );
ILI9341_Write_Data ( 0x45 );
/* VCOM Control 2 (C7h) */
ILI9341_Write_Cmd ( 0xC7 );
ILI9341_Write_Data ( 0xA2 );
/* Enable 3G (F2h) */
ILI9341_Write_Cmd ( 0xF2 );
ILI9341_Write_Data ( 0x00 );
/* Gamma Set (26h) */
ILI9341_Write_Cmd ( 0x26 );
ILI9341_Write_Data ( 0x01 );
DEBUG_DELAY ();
/* Positive Gamma Correction */
ILI9341_Write_Cmd ( 0xE0 ); //Set Gamma
ILI9341_Write_Data ( 0x0F );
ILI9341_Write_Data ( 0x26 );
ILI9341_Write_Data ( 0x24 );
ILI9341_Write_Data ( 0x0B );
ILI9341_Write_Data ( 0x0E );
ILI9341_Write_Data ( 0x09 );
ILI9341_Write_Data ( 0x54 );
ILI9341_Write_Data ( 0xA8 );
ILI9341_Write_Data ( 0x46 );
ILI9341_Write_Data ( 0x0C );
ILI9341_Write_Data ( 0x17 );
ILI9341_Write_Data ( 0x09 );
ILI9341_Write_Data ( 0x0F );
ILI9341_Write_Data ( 0x07 );
ILI9341_Write_Data ( 0x00 );
/* Negative Gamma Correction (E1h) */
ILI9341_Write_Cmd ( 0XE1 ); //Set Gamma
ILI9341_Write_Data ( 0x00 );
ILI9341_Write_Data ( 0x19 );
ILI9341_Write_Data ( 0x1B );
ILI9341_Write_Data ( 0x04 );
ILI9341_Write_Data ( 0x10 );
ILI9341_Write_Data ( 0x07 );
ILI9341_Write_Data ( 0x2A );
ILI9341_Write_Data ( 0x47 );
ILI9341_Write_Data ( 0x39 );
ILI9341_Write_Data ( 0x03 );
ILI9341_Write_Data ( 0x06 );
ILI9341_Write_Data ( 0x06 );
ILI9341_Write_Data ( 0x30 );
ILI9341_Write_Data ( 0x38 );
ILI9341_Write_Data ( 0x0F );
/* memory access control set */
DEBUG_DELAY ();
ILI9341_Write_Cmd ( 0x36 );
ILI9341_Write_Data ( 0xC8 ); /*竖屏 左上角到 (起点)到右下角 (终点)扫描方式*/
DEBUG_DELAY ();
/* column address control set */
ILI9341_Write_Cmd ( CMD_SetCoordinateX );
ILI9341_Write_Data ( 0x00 );
ILI9341_Write_Data ( 0x00 );
ILI9341_Write_Data ( 0x00 );
ILI9341_Write_Data ( 0xEF );
/* page address control set */
DEBUG_DELAY ();
ILI9341_Write_Cmd ( CMD_SetCoordinateY );
ILI9341_Write_Data ( 0x00 );
ILI9341_Write_Data ( 0x00 );
ILI9341_Write_Data ( 0x01 );
ILI9341_Write_Data ( 0x3F );
/* Pixel Format Set (3Ah) */
DEBUG_DELAY ();
ILI9341_Write_Cmd ( 0x3a );
ILI9341_Write_Data ( 0x55 );
/* Sleep Out (11h) */
ILI9341_Write_Cmd ( 0x11 );
ILI9341_Delay ( 0xAFFf<<2 );
DEBUG_DELAY ();
/* Display ON (29h) */
ILI9341_Write_Cmd ( 0x29 );
}
/**
* @brief uint16_t ILI9341_Read_Pixel_Pormat(void)
* @param 无
* @retval 读取到的数据
*/
static __IO uint16_t ILI9341_Read_Pixel_Pormat(void){
ILI9341_Write_Cmd(0x0C);
ILI9341_Read_Data();
return (__IO uint16_t) ILI9341_Read_Data();
}
/**
* @brief 设置ILI9341的GRAM的扫描方向
* @param ucOption ：选择GRAM的扫描方向
* @arg 0-7 :参数可选值为0-7这八个方向
*
* ！！！其中0、3、5、6 模式适合从左至右显示文字，
* 不推荐使用其它模式显示文字 其它模式显示文字会有镜像效果
*
* 其中0、2、4、6 模式的X方向像素为240，Y方向像素为320
* 其中1、3、5、7 模式下X方向像素为320，Y方向像素为240
*
* 其中 6 模式为大部分液晶例程的默认显示方向
* 其中 3 模式为摄像头例程使用的方向
* 其中 0 模式为BMP图片显示例程使用的方向
*
* @retval 无
* @note 坐标图例：A表示向上，V表示向下，<表示向左，>表示向右
X表示X轴，Y表示Y轴
------------------------------------------------------------
模式0： . 模式1： . 模式2： . 模式3：
A . A . A . A
| . | . | . |
Y . X . Y . X
0 . 1 . 2 . 3
<--- X0 o . <----Y1 o . o 2X---> . o 3Y--->
------------------------------------------------------------
模式4： . 模式5： . 模式6： . 模式7：
<--- X4 o . <--- Y5 o . o 6X---> . o 7Y--->
4 . 5 . 6 . 7
Y . X . Y . X
| . | . | . |
V . V . V . V
---------------------------------------------------------
LCD屏示例
|-----------------|
| 野火Logo |
| |
| |
| |
| |
| |
| |
| |
| |
|-----------------|
屏幕正面（宽240，高320）
*******************************************************/
void ILI9341_GramScan ( uint8_t ucOption ){
//参数检查，只可输入0-7
if(ucOption >7 )
return;
//根据模式更新LCD_SCAN_MODE的值，主要用于触摸屏选择计算参数
LCD_SCAN_MODE = ucOption;
//根据模式更新XY方向的像素宽度
if(ucOption%2 == 0)
{
//0 2 4 6模式下X方向像素宽度为240，Y方向为320
LCD_X_LENGTH = ILI9341_LESS_PIXEL;
LCD_Y_LENGTH = ILI9341_MORE_PIXEL;
}
else
{
//1 3 5 7模式下X方向像素宽度为320，Y方向为240
LCD_X_LENGTH = ILI9341_MORE_PIXEL;
LCD_Y_LENGTH = ILI9341_LESS_PIXEL;
}
//0x36命令参数的高3位可用于设置GRAM扫描方向
ILI9341_Write_Cmd ( 0x36 );
ILI9341_Write_Data ( 0x08 |(ucOption<<5));//根据ucOption的值设置LCD参数，共0-7种模式
ILI9341_Write_Cmd ( CMD_SetCoordinateX );
ILI9341_Write_Data ( 0x00 ); /* x 起始坐标高8位 */
ILI9341_Write_Data ( 0x00 ); /* x 起始坐标低8位 */
ILI9341_Write_Data ( ((LCD_X_LENGTH-1)>>8)&0xFF ); /* x 结束坐标高8位 */
ILI9341_Write_Data ( (LCD_X_LENGTH-1)&0xFF ); /* x 结束坐标低8位 */
ILI9341_Write_Cmd ( CMD_SetCoordinateY );
ILI9341_Write_Data ( 0x00 ); /* y 起始坐标高8位 */
ILI9341_Write_Data ( 0x00 ); /* y 起始坐标低8位 */
ILI9341_Write_Data ( ((LCD_Y_LENGTH-1)>>8)&0xFF ); /* y 结束坐标高8位 */
ILI9341_Write_Data ( (LCD_Y_LENGTH-1)&0xFF ); /* y 结束坐标低8位 */
/* write gram start */
ILI9341_Write_Cmd ( CMD_SetPixel );
}
//==================================================================================
//============================== 主程序初始化========================================
//==================================================================================
/**
* @brief ILI9341初始化函数，如果要用到lcd，一定要调用这个函数
* @param 无
* @retval 无
*/
__IO uint16_t ILI9341_Init (void){
// SPI_InitTypeDef SPI_InitStructure;
//
_FLASH_SPI_APBxClock_FUN(_FLASH_SPI_CLK , DISABLE);
_FLASH_SPI_GPIO_APBxClock_FUN(_FLASH_SPI_GPIO_CLK , DISABLE);
//
// SPI_StructInit(&SPI_InitStructure);
// SPI_Cmd(_FLASH_SPIx , DISABLE); //使能SPI
// fn_Systick_Delay(500,_Systick_ms);
ILI9341_GPIO_Config ();
ILI9341_FSMC_Config ();
ILI9341_Rst ();
ILI9341_BackLed_Control ( ENABLE ); //点亮LCD背光灯
ILI9341_REG_Config();
//设置默认扫描方向，其中 6 模式为大部分液晶例程的默认显示方向
ILI9341_GramScan(_LCD_SCAN_MODE );
return (__IO uint16_t)ILI9341_Read_Pixel_Pormat();
}
建立 LCD 绘制函数文件LCD_Draw_book.h
代码如下 ：
#ifndef __LCD_DRAW_BOOK_H
#define __LCD_DRAW_BOOK_H
#include "stm32f10x.h"
#include "LCD_book.h"
#include "fonts.h"
#include "USART_book.h"
/******************************* 定义 ILI934 显示屏常用颜色 ********************************/
#define BACKGROUND BLACK //默认背景颜色
#define WHITE 0xFFFF //白色
#define BLACK 0x0000 //黑色
#define GREY 0xF7DE //灰色
#define BLUE 0x001F //蓝色
#define BLUE2 0x051F //浅蓝色
#define RED 0xF800 //红色
#define MAGENTA 0xF81F //红紫色，洋红色
#define GREEN 0x07E0 //绿色
#define CYAN 0x7FFF //蓝绿色，青色
#define YELLOW 0xFFE0 //黄色
#define BRED 0xF81F
#define GRED 0xFFE0
#define GBLUE 0x07FF
//1110 1100 1101 0101 1010 1111
//11101 110101 10101
//GB565(Rh,Gh,Bh) (((Rh&0xf8)<<8)|((Gh&0xfc)<<3)|((Bh&0xf8)>>3))
//GB888(RGB) ((((RGB&0xf80000)) | ((RGB&0x00fc00)<<3)| ((RGB&0x0000f8)<<5))>>8)
#define GB565(Rh,Gh,Bh) (((Rh&0xf8)<<8)|((Gh&0xfc)<<3)|((Bh&0xf8)>>3))
#define GB888(RGB) ((((RGB&0xf80000)) | ((RGB&0x00fc00)<<3)| ((RGB&0x0000f8)<<5))>>8)
extern sFONT *LCD_Currentfonts ; //英文字体
extern uint16_t CurrentForecolor ;//前景色
extern uint16_t CurrentBackColor ;//背景色
//================================ 接口函数=======================================
void ILI9341_OpenWindow (
uint16_t usX, //usX ：在特定扫描方向下窗口的起点X坐标
uint16_t usY, //usY ：在特定扫描方向下窗口的起点Y坐标
uint16_t usWidth, //usWidth ：窗口的宽度
uint16_t usHeight //usHeight ：窗口的高度
);
static void ILI9341_SetCursor (
uint16_t usX, // usX ：在特定扫描方向下光标的X坐标
uint16_t usY, // usY ：在特定扫描方向下光标的Y坐标
uint16_t usW
);
static __inline void ILI9341_FillColor (
uint32_t ulAmout_Point,// ulAmout_Point ：要填充颜色的像素点的总数目
uint16_t usColor // usColor ：颜色
);
void ILI9341_Clear (
uint16_t usX, //usX ：在特定扫描方向下窗口的起点X坐标
uint16_t usY, //usY ：在特定扫描方向下窗口的起点Y坐标
uint16_t usWidth, //usWidth ：窗口的宽度
uint16_t usHeight //usHeight ：窗口的高度
);
void LCD_ClearLine(uint16_t Line);
//================================ 颜色状态函数=======================================
void LCD_SetColors(uint16_t TextColor, uint16_t BackColor); //设置LCD的前景(字体)及背景颜色,RGB565
void LCD_SetForeColor(uint16_t Color);//设置LCD的前景(字体)颜色,RGB565
void LCD_SetBackColor(uint16_t Color); //设置LCD的背景颜色,RGB565
//================================ 形状绘制应用函数=======================================
void ILI9341_SetPointPixel (
uint16_t usX, //usX ：在特定扫描方向下该点的X坐标
uint16_t usY, //usY ：在特定扫描方向下该点的Y坐标
uint16_t usW //usW ：在特定扫描宽度
);
void ILI9341_DrawLine ( //在 ILI9341 显示器上使用 Bresenham 算法画线段
uint16_t usX1, //usX1 ：在特定扫描方向下线段的一个端点X坐标
uint16_t usY1, //usY1 ：在特定扫描方向下线段的一个端点Y坐标
uint16_t usX2, //usX2 ：在特定扫描方向下线段的另一个端点X坐标
uint16_t usY2, //usY2 ：在特定扫描方向下线段的另一个端点Y坐标
uint16_t usW
);
void ILI9341_DrawRectangle (
uint16_t usX_Start, //X坐标
uint16_t usY_Start, //Y坐标
uint16_t usWidth, //X宽度
uint16_t usHeight, //Y宽度
uint8_t ucFilled , //填充类型
uint16_t usW //填充线宽度
);
void ILI9341_DrawCircle (
uint16_t usX_Center, //usX_Center ：在特定扫描方向下圆心的X坐标
uint16_t usY_Center, //usY_Center ：在特定扫描方向下圆心的Y坐标
uint16_t usRadius, //usRadius：圆的半径（单位：像素）
uint8_t ucFilled , //ucFilled ：选择是否填充该圆
uint16_t usW
);
void ILI9341_DrawCross ( uint16_t usX, uint16_t usY );
void LCD_DrawUniLineCircle(
uint16_t x1,
uint16_t y1,
uint16_t x2,
uint16_t y2,
uint8_t thick
);
//================================ 文字颜色状态绘制应用函数=======================================
void LCD_SetTextColor(uint16_t Color);
void LCD_SetFont(sFONT *fonts);
sFONT *LCD_GetFont(void);
//================================ 文字绘制应用函数=======================================
//================================ 英文文字绘制应用函数====================================
void ILI9341_DispChar_EN (
uint16_t usX,
uint16_t usY,
const char cChar );
void ILI9341_DispStringLine_EN (
uint16_t line,
char * pStr
);
void ILI9341_DispString_EN (
uint16_t usX ,
uint16_t usY,
char * pStr
);
void ILI9341_DispString_EN_YDir (
uint16_t usX,uint16_t usY ,
char * pStr
);
//================================ 中文文字绘制应用函数====================================
void ILI9341_DispChar_CH ( //在 ILI9341 显示器上显示一个中文字符
uint16_t usX,
uint16_t usY,
uint16_t usChar
);
void ILI9341_DispString_CH ( //在 ILI9341 显示器上显示中文字符串
uint16_t usX ,
uint16_t usY,
char * pStr
);
void ILI9341_DispStringLine_EN_CH (
uint16_t line, //line ：在特定扫描方向下字符串的起始Y坐标
char * pStr //pStr ：要显示的字符串的首地址
);
void ILI9341_DispString_EN_CH (
uint16_t usX , //在特定扫描方向下字符的起始X坐标
uint16_t usY, //在特定扫描方向下字符的起始Y坐标
char * pStr //要显示的字符串的首地址
);
void ILI9341_DispString_EN_CH_YDir (
uint16_t usX, //usX ：在特定扫描方向下字符的起始X坐标
uint16_t usY, //usY ：在特定扫描方向下字符的起始Y坐标
char * pStr //要显示的中英文字符串的首地址
);
/***********************缩放字体****************************/
void ILI9341_zoomChar(
uint16_t in_width, //原始字符宽度
uint16_t in_heig, //原始字符高度
uint16_t out_width, //缩放后的字符宽度
uint16_t out_heig, //缩放后的字符高度
uint8_t *in_ptr, //字库输入指针 注意：1pixel 1bit
uint8_t *out_ptr, //缩放后的字符输出指针 注意: 1pixel 8bit
uint8_t en_cn //0为英文，1为中文
);
void ILI9341_DrawChar_Ex(
uint16_t usX, //字符显示位置x
uint16_t usY, //字符显示位置y
uint16_t Font_width, //字符宽度
uint16_t Font_Height, //字符高度
uint8_t *c, //字模数据
uint16_t DrawModel //是否反色显示
);
void ILI9341_DisplayStringEx(
uint16_t x, //字符显示位置x
uint16_t y, //字符显示位置y
uint16_t Font_width, //要显示的字体宽度，英文字符在此基础上/2。注意为偶数
uint16_t Font_Height, //要显示的字体高度，注意为偶数
uint8_t *ptr, //显示的字符内容
uint16_t DrawModel //是否反色显示
);
void ILI9341_DisplayStringEx_YDir(
uint16_t x, //字符显示位置x
uint16_t y, //字符显示位置y
uint16_t Font_width, //要显示的字体宽度，英文字符在此基础上/2。注意为偶数
uint16_t Font_Height, //要显示的字体高度，注意为偶数
uint8_t *ptr, //显示的字符内容
uint16_t DrawModel //是否反色显示
);
void Lcd_display_String(uint8_t *ptr);
#endif /* __BSP_ILI9341_ILI9341_H */
建立 LCD 绘制文件LCD_Draw_book.c
代码如下 ：
#include "LCD_Draw_book.h"
#include "Systick_book.h"
sFONT *LCD_Currentfonts = &Font8x16; //英文字体
uint16_t CurrentForecolor = BLACK;//前景色
uint16_t CurrentBackColor = BACKGROUND;//背景色
//================================ 接口函数=======================================
/**
* @brief 在ILI9341显示器上开辟一个窗口
* @param usX ：在特定扫描方向下窗口的起点X坐标
* @param usY ：在特定扫描方向下窗口的起点Y坐标
* @param usWidth ：窗口的宽度
* @param usHeight ：窗口的高度
* @retval 无
*/
void ILI9341_OpenWindow ( uint16_t usX, uint16_t usY, uint16_t usWidth, uint16_t usHeight ){
ILI9341_Write_Cmd ( CMD_SetCoordinateX ); /* 设置X坐标 */
ILI9341_Write_Data ( (usX & 0xFF00) >> 8 ); /* 先高8位，然后低8位 */
ILI9341_Write_Data ( usX & 0xff ); /* 设置起始点和结束点*/
ILI9341_Write_Data ( ( usX + usWidth - 1 ) >> 8 );
ILI9341_Write_Data ( ( usX + usWidth - 1 ) & 0xff );
ILI9341_Write_Cmd ( CMD_SetCoordinateY ); /* 设置Y坐标*/
ILI9341_Write_Data ( (usY & 0xFF00 )>> 8 );
ILI9341_Write_Data ( usY & 0xff );
ILI9341_Write_Data ( ( usY + usHeight - 1 ) >> 8 );
ILI9341_Write_Data ( ( usY + usHeight - 1) & 0xff );
}
/**
* @brief 设定ILI9341的光标坐标
* @param usX ：在特定扫描方向下光标的X坐标
* @param usY ：在特定扫描方向下光标的Y坐标
* @retval 无
*/
static void ILI9341_SetCursor (
uint16_t usX,
uint16_t usY,
uint16_t usW
){
ILI9341_OpenWindow ( usX, usY, usW, usW );
}
/**
* @brief 读取ILI9341 GRAN 的一个像素数据
* @param 无
* @retval 像素数据
*/
static uint16_t ILI9341_Read_PixelData ( void )
{
uint16_t usR=0, usG=0, usB=0 ;
ILI9341_Write_Cmd ( 0x2E ); /* 读数据 */
usR = ILI9341_Read_Data (); /*FIRST READ OUT DUMMY DATA*/
usR = ILI9341_Read_Data (); /*READ OUT RED DATA */
usB = ILI9341_Read_Data (); /*READ OUT BLUE DATA*/
usG = ILI9341_Read_Data (); /*READ OUT GREEN DATA*/
return ( ( ( usR >> 11 ) << 11 ) | ( ( usG >> 10 ) << 5 ) | ( usB >> 11 ) );
}
/**
* @brief 获取 ILI9341 显示器上某一个坐标点的像素数据
* @param usX ：在特定扫描方向下该点的X坐标
* @param usY ：在特定扫描方向下该点的Y坐标
* @retval 像素数据
*/
uint16_t ILI9341_GetPointPixel ( uint16_t usX, uint16_t usY )
{
uint16_t usPixelData;
ILI9341_SetCursor ( usX, usY ,1);
usPixelData = ILI9341_Read_PixelData ();
return usPixelData;
}
/**
* @brief 在ILI9341显示器上以某一颜色填充像素点
* @param ulAmout_Point ：要填充颜色的像素点的总数目
* @param usColor ：颜色
* @retval 无
*/
static __inline void ILI9341_FillColor ( uint32_t ulAmout_Point, uint16_t usColor ){
uint32_t i = 0;
/* memory write */
ILI9341_Write_Cmd ( CMD_SetPixel );
for ( i = 0; i < ulAmout_Point; i ++ )
ILI9341_Write_Data ( usColor );
}
/**
* @brief 对ILI9341显示器的某一窗口以某种颜色进行清屏
* @param usX ：在特定扫描方向下窗口的起点X坐标
* @param usY ：在特定扫描方向下窗口的起点Y坐标
* @param usWidth ：窗口的宽度
* @param usHeight ：窗口的高度
* @note 可使用LCD_SetBackColor、LCD_SetTextColor、LCD_SetColors函数设置颜色
* @retval 无
*/
void ILI9341_Clear (
uint16_t usX,
uint16_t usY,
uint16_t usWidth,
uint16_t usHeight
){
ILI9341_OpenWindow ( usX, usY, usWidth, usHeight );
ILI9341_FillColor ( usWidth * usHeight, CurrentBackColor );
}
/**
* @brief 清除某行文字
* @param Line: 指定要删除的行
* 本参数可使用宏LINE(0)、LINE(1)等方式指定要删除的行，
* 宏LINE(x)会根据当前选择的字体来计算Y坐标值，并删除当前字体高度的第x行。
* @retval None
*/
void LCD_ClearLine(uint16_t Line){
ILI9341_Clear(0,Line,LCD_X_LENGTH,((sFONT *)LCD_GetFont())->Height); /* 清屏，显示全黑 */
}
//================================ 颜色状态函数=======================================
/**
* @brief 设置LCD的前景(字体)及背景颜色,RGB565
* @param TextColor: 指定前景(字体)颜色
* @param BackColor: 指定背景颜色
* @retval None
*/
void LCD_SetColors(uint16_t TextColor, uint16_t BackColor){
CurrentForecolor = TextColor;
CurrentBackColor = BackColor;
}
/**
* @brief 设置LCD的前景(字体)颜色,RGB565
* @param Color: 指定前景(字体)颜色
* @retval None
*/
void LCD_SetForeColor(uint16_t Color){
CurrentForecolor = Color;
}
/**
* @brief 设置LCD的背景颜色,RGB565
* @param Color: 指定背景颜色
* @retval None
*/
void LCD_SetBackColor(uint16_t Color){
CurrentBackColor = Color;
}
//================================ 形状绘制应用函数=======================================
/**
* @brief 对ILI9341显示器的某一点以某种颜色进行填充
* @param usX ：在特定扫描方向下该点的X坐标
* @param usY ：在特定扫描方向下该点的Y坐标
* @param usW ：在特定扫描宽度
* @note 可使用LCD_SetBackColor、LCD_SetTextColor、LCD_SetColors函数设置颜色
* @retval 无
*/
void ILI9341_SetPointPixel (
uint16_t usX,
uint16_t usY,
uint16_t usW
){
if ( ( usX < LCD_X_LENGTH ) && ( usY < LCD_Y_LENGTH ) ){
ILI9341_SetCursor ( usX, usY ,usW);
ILI9341_FillColor ( usW*usW, CurrentForecolor );
}
}
/**
* @brief 在 ILI9341 显示器上使用 Bresenham 算法画线段
* @param usX1 ：在特定扫描方向下线段的一个端点X坐标
* @param usY1 ：在特定扫描方向下线段的一个端点Y坐标
* @param usX2 ：在特定扫描方向下线段的另一个端点X坐标
* @param usY2 ：在特定扫描方向下线段的另一个端点Y坐标
* @note 可使用LCD_SetBackColor、LCD_SetTextColor、LCD_SetColors函数设置颜色
* @retval 无
*/
void ILI9341_DrawLine (
uint16_t usX1,
uint16_t usY1,
uint16_t usX2,
uint16_t usY2,
uint16_t usW
){
uint16_t us;
uint16_t usX_Current, usY_Current;
int32_t lError_X = 0, lError_Y = 0, lDelta_X, lDelta_Y, lDistance;
int32_t lIncrease_X, lIncrease_Y;
lDelta_X = usX2 - usX1; //计算坐标增量
lDelta_Y = usY2 - usY1;
usX_Current = usX1;
usY_Current = usY1;
if (lDelta_X > 0) lIncrease_X = 1; //设置单步方向
else if (lDelta_X == 0) lIncrease_X = 0;//垂直线
else {
lIncrease_X = -1;
lDelta_X = - lDelta_X;
}
if (lDelta_Y > 0) lIncrease_Y = 1;
else if (lDelta_Y == 0) lIncrease_Y = 0;//水平线
else {
lIncrease_Y = -1;
lDelta_Y = - lDelta_Y;
}
if (lDelta_X > lDelta_Y )
lDistance = lDelta_X; //选取基本增量坐标轴
else
lDistance = lDelta_Y;
//-------------------进行化线处理--------------------
for ( us = 0; us <= lDistance + 1; us ++ ){//画线输出
ILI9341_SetPointPixel ( usX_Current, usY_Current , usW );//画点
lError_X += lDelta_X ;
lError_Y += lDelta_Y ;
if ( lError_X > lDistance )
{
lError_X -= lDistance;
usX_Current += lIncrease_X;
}
if ( lError_Y > lDistance )
{
lError_Y -= lDistance;
usY_Current += lIncrease_Y;
}
}
}
/**
* @brief 在 ILI9341 显示器上画一个矩形
* @param usX_Start ：在特定扫描方向下矩形的起始点X坐标
* @param usY_Start ：在特定扫描方向下矩形的起始点Y坐标
* @param usWidth：矩形的宽度（单位：像素）
* @param usHeight：矩形的高度（单位：像素）
* @param ucFilled ：选择是否填充该矩形
* 该参数为以下值之一：
* @arg 0 :空心矩形
* @arg 1 :实心矩形
* @note 可使用LCD_SetBackColor、LCD_SetTextColor、LCD_SetColors函数设置颜色
* @retval 无
*/
void ILI9341_DrawRectangle (
uint16_t usX_Start, //X坐标
uint16_t usY_Start, //Y坐标
uint16_t usWidth, //X宽度
uint16_t usHeight, //Y宽度
uint8_t ucFilled , //填充类型
uint16_t usW //填充线宽度
){
if ( ucFilled ){
ILI9341_OpenWindow ( usX_Start, usY_Start, usWidth, usHeight );
ILI9341_FillColor ( usWidth * usHeight ,CurrentForecolor);
}
else {
ILI9341_DrawLine ( usX_Start, usY_Start, usX_Start + usWidth - 1, usY_Start ,usW);
ILI9341_DrawLine ( usX_Start, usY_Start + usHeight - 1, usX_Start + usWidth - 1, usY_Start + usHeight - 1 ,usW);
ILI9341_DrawLine ( usX_Start, usY_Start, usX_Start, usY_Start + usHeight - 1 ,usW);
ILI9341_DrawLine ( usX_Start + usWidth - 1, usY_Start, usX_Start + usWidth - 1, usY_Start + usHeight - 1 ,usW);
}
}
/**
* @brief 在 ILI9341 显示器上使用 Bresenham 算法画圆
* @param usX_Center ：在特定扫描方向下圆心的X坐标
* @param usY_Center ：在特定扫描方向下圆心的Y坐标
* @param usRadius：圆的半径（单位：像素）
* @param ucFilled ：选择是否填充该圆
* 该参数为以下值之一：
* @arg 0 :空心圆
* @arg 1 :实心圆
* @note 可使用LCD_SetBackColor、LCD_SetTextColor、LCD_SetColors函数设置颜色
* @retval 无
*/
void ILI9341_DrawCircle (
uint16_t usX_Center,
uint16_t usY_Center,
uint16_t usRadius,
uint8_t ucFilled ,
uint16_t usW
){
int16_t sCurrentX, sCurrentY;
int16_t sError;
sCurrentX = 0; sCurrentY = usRadius;
sError = 3 - ( usRadius << 1 ); //判断下个点位置的标志
while ( sCurrentX <= sCurrentY ){
int16_t sCountY;
if ( ucFilled )
for ( sCountY = sCurrentX; sCountY <= sCurrentY; sCountY ++ )
{
ILI9341_SetPointPixel ( usX_Center + sCurrentX, usY_Center + sCountY ,usW ); //1，研究对象
ILI9341_SetPointPixel ( usX_Center - sCurrentX, usY_Center + sCountY ,usW); //2
ILI9341_SetPointPixel ( usX_Center - sCountY, usY_Center + sCurrentX ,usW); //3
ILI9341_SetPointPixel ( usX_Center - sCountY, usY_Center - sCurrentX ,usW); //4
ILI9341_SetPointPixel ( usX_Center - sCurrentX, usY_Center - sCountY ,usW); //5
ILI9341_SetPointPixel ( usX_Center + sCurrentX, usY_Center - sCountY ,usW); //6
ILI9341_SetPointPixel ( usX_Center + sCountY, usY_Center - sCurrentX ,usW); //7
ILI9341_SetPointPixel ( usX_Center + sCountY, usY_Center + sCurrentX ,usW); //0
}
else
{
ILI9341_SetPointPixel ( usX_Center + sCurrentX, usY_Center + sCurrentY ,usW ); //1，研究对象
ILI9341_SetPointPixel ( usX_Center - sCurrentX, usY_Center + sCurrentY ,usW ); //2
ILI9341_SetPointPixel ( usX_Center - sCurrentY, usY_Center + sCurrentX ,usW ); //3
ILI9341_SetPointPixel ( usX_Center - sCurrentY, usY_Center - sCurrentX ,usW ); //4
ILI9341_SetPointPixel ( usX_Center - sCurrentX, usY_Center - sCurrentY ,usW ); //5
ILI9341_SetPointPixel ( usX_Center + sCurrentX, usY_Center - sCurrentY ,usW ); //6
ILI9341_SetPointPixel ( usX_Center + sCurrentY, usY_Center - sCurrentX ,usW ); //7
ILI9341_SetPointPixel ( usX_Center + sCurrentY, usY_Center + sCurrentX ,usW ); //0
}
sCurrentX ++;
if ( sError < 0 ) sError += 4 * sCurrentX + 6;
else{
sError += 10 + 4 * ( sCurrentX - sCurrentY );
sCurrentY --;
}
}
}
/**
* @brief 在 ILI9341 上显示校正触摸时需要的十字
* @param usX ：在特定扫描方向下十字交叉点的X坐标
* @param usY ：在特定扫描方向下十字交叉点的Y坐标
* @retval 无
*/
void ILI9341_DrawCross ( uint16_t usX, uint16_t usY ){
ILI9341_DrawLine(usX-10,usY,usX+10,usY,2);
ILI9341_DrawLine(usX, usY - 10, usX, usY+10,2);
}
/**
* @brief 在两点之间描绘轨迹
* @param x1: specifies the point 1 x position.
* @param y1: specifies the point 1 y position.
* @param x2: specifies the point 2 x position.
* @param y2: specifies the point 2 y position.
* @retval None
*/
#define ABS(X) ((X) > 0 ? (X) : -(X))
void LCD_DrawUniLineCircle(
uint16_t x1,
uint16_t y1,
uint16_t x2,
uint16_t y2,
uint8_t thick
){
int16_t deltax = 0 , deltay = 0 ;
int16_t x = 0 , y = 0 , xinc1 = 0 , xinc2 = 0 , yinc1 = 0, yinc2 = 0 ;
int16_t den = 0 , num = 0 ,numadd = 0 , numpixels = 0 , curpixel = 0 ;
deltax = ABS(x2 - x1);
deltay = ABS(y2 - y1);
x = x1 ;
y = y1 ;
/* The x-values are increasing or decreasing*/
if( x2 >= x1){
xinc1 = 1 ;
xinc2 = 1 ;
}else{
xinc1 = -1 ;
xinc2 = -1 ;
}
/* The y-values are increasing or decreasing*/
if( y2 >= y1){
yinc1 = 1 ;
yinc2 = 1 ;
}else{
yinc1 = -1 ;
yinc2 = -1 ;
}
if(deltax > deltay){
xinc1 = 0 ;
yinc2 = 0 ;
den = deltax ;
num = deltax / 2;
numadd = deltay ;
numpixels = deltax ;
}else{
xinc2 = 0 ;
yinc1 = 0 ;
den = deltay ;
num = deltay / 2;
numadd = deltax ;
numpixels = deltay ;
}
for(curpixel = 0 ; curpixel <= numpixels ; curpixel ++ ){
//判断边界
if( ((x+thick)>LCD_X_LENGTH)|| ((x-thick)<0) || //液晶左右边界
((y+thick)>LCD_Y_LENGTH)|| ((y-thick)<0) ){ //液晶上下边界
continue;
}
ILI9341_DrawCircle(x,y,thick,1,1);
num+= numadd ;
if(num >= den){
num -= den;
x += xinc1;
y += yinc1;
}
x += xinc2;
y += yinc2;
}
}
//================================ 文字颜色状态绘制应用函数=======================================
void LCD_SetTextColor(uint16_t Color){
CurrentForecolor = Color;
}
/**
* @brief 设置英文字体类型
* @param fonts: 指定要选择的字体
* 参数为以下值之一
* @arg：Font24x32;
* @arg：Font16x24;
* @arg：Font8x16;
* @retval None
*/
void LCD_SetFont(sFONT *fonts)
{
LCD_Currentfonts = fonts;
}
/**
* @brief 获取当前字体类型
* @param None.
* @retval 返回当前字体类型
*/
sFONT *LCD_GetFont(void)
{
return LCD_Currentfonts;
}
//================================ 文字绘制应用函数=======================================
//================================ 英文文字绘制应用函数====================================
/**
* @brief 在 ILI9341 显示器上显示一个英文字符
* @param usX ：在特定扫描方向下字符的起始X坐标
* @param usY ：在特定扫描方向下该点的起始Y坐标
* @param cChar ：要显示的英文字符
* @note 可使用LCD_SetBackColor、LCD_SetTextColor、LCD_SetColors函数设置颜色
* @retval 无
*/
void ILI9341_DispChar_EN ( uint16_t usX, uint16_t usY, const char cChar )
{
uint8_t byteCount, bitCount,fontLength;
uint16_t ucRelativePositon;
uint8_t *Pfont;
uint16_t back_color = ILI9341_GetPointPixel(usX,usY);
//对ascii码表偏移（字模表不包含ASCII表的前32个非图形符号）
ucRelativePositon = cChar - ' ';
//每个字模的字节数
fontLength = (LCD_Currentfonts->Width*LCD_Currentfonts->Height)/8;
//字模首地址
/*ascii码表偏移值乘以每个字模的字节数，求出字模的偏移位置*/
Pfont = (uint8_t *)&LCD_Currentfonts->table[ucRelativePositon * fontLength];
//设置显示窗口
ILI9341_OpenWindow ( usX, usY, LCD_Currentfonts->Width, LCD_Currentfonts->Height);
ILI9341_Write_Cmd ( CMD_SetPixel );
//按字节读取字模数据
//由于前面直接设置了显示窗口，显示数据会自动换行
for ( byteCount = 0; byteCount < fontLength; byteCount++ )
{
//一位一位处理要显示的颜色
for ( bitCount = 0; bitCount < 8; bitCount++ )
{
if ( Pfont[byteCount] & (0x80>>bitCount) )
ILI9341_Write_Data ( CurrentForecolor );
else
ILI9341_Write_Data (back_color);
}
}
}
/**
* @brief 在 ILI9341 显示器上显示英文字符串
* @param line ：在特定扫描方向下字符串的起始Y坐标
* 本参数可使用宏LINE(0)、LINE(1)等方式指定文字坐标，
* 宏LINE(x)会根据当前选择的字体来计算Y坐标值。
* 显示中文且使用LINE宏时，需要把英文字体设置成Font8x16
* @param pStr ：要显示的英文字符串的首地址
* @note 可使用LCD_SetBackColor、LCD_SetTextColor、LCD_SetColors函数设置颜色
* @retval 无
*/
void ILI9341_DispStringLine_EN ( uint16_t line, char * pStr ){
uint16_t usX = 0;
while ( * pStr != '\0' )
{
if ( ( usX - ILI9341_DispWindow_X_Star + LCD_Currentfonts->Width ) > LCD_X_LENGTH )
{
usX = ILI9341_DispWindow_X_Star;
line += LCD_Currentfonts->Height;
}
if ( ( line - ILI9341_DispWindow_Y_Star + LCD_Currentfonts->Height ) > LCD_Y_LENGTH )
{
usX = ILI9341_DispWindow_X_Star;
line = ILI9341_DispWindow_Y_Star;
}
ILI9341_DispChar_EN ( usX, line, * pStr);
pStr ++;
usX += LCD_Currentfonts->Width;
}
}
/**
* @brief 在 ILI9341 显示器上显示英文字符串
* @param usX ：在特定扫描方向下字符的起始X坐标
* @param usY ：在特定扫描方向下字符的起始Y坐标
* @param pStr ：要显示的英文字符串的首地址
* @note 可使用LCD_SetBackColor、LCD_SetTextColor、LCD_SetColors函数设置颜色
* @retval 无
*/
void ILI9341_DispString_EN ( uint16_t usX ,uint16_t usY, char * pStr ){
while ( * pStr != '\0' )
{
if ( ( usX - ILI9341_DispWindow_X_Star + LCD_Currentfonts->Width ) > LCD_X_LENGTH )
{
usX = ILI9341_DispWindow_X_Star;
usY += LCD_Currentfonts->Height;
}
if ( ( usY - ILI9341_DispWindow_Y_Star + LCD_Currentfonts->Height ) > LCD_Y_LENGTH )
{
usX = ILI9341_DispWindow_X_Star;
usY = ILI9341_DispWindow_Y_Star;
}
ILI9341_DispChar_EN ( usX, usY, * pStr);
pStr ++;
usX += LCD_Currentfonts->Width;
}
}
/**
* @brief 在 ILI9341 显示器上显示英文字符串(沿Y轴方向)
* @param usX ：在特定扫描方向下字符的起始X坐标
* @param usY ：在特定扫描方向下字符的起始Y坐标
* @param pStr ：要显示的英文字符串的首地址
* @note 可使用LCD_SetBackColor、LCD_SetTextColor、LCD_SetColors函数设置颜色
* @retval 无
*/
void ILI9341_DispString_EN_YDir ( uint16_t usX,uint16_t usY , char * pStr )
{
while ( * pStr != '\0' )
{
if ( ( usY - ILI9341_DispWindow_Y_Star + LCD_Currentfonts->Height ) >LCD_Y_LENGTH )
{
usY = ILI9341_DispWindow_Y_Star;
usX += LCD_Currentfonts->Width;
}
if ( ( usX - ILI9341_DispWindow_X_Star + LCD_Currentfonts->Width ) > LCD_X_LENGTH)
{
usX = ILI9341_DispWindow_X_Star;
usY = ILI9341_DispWindow_Y_Star;
}
ILI9341_DispChar_EN ( usX, usY, * pStr);
pStr ++;
usY += LCD_Currentfonts->Height;
}
}
//================================ 中文文字绘制应用函数====================================
/**
* @brief 在 ILI9341 显示器上显示一个中文字符
* @param usX ：在特定扫描方向下字符的起始X坐标
* @param usY ：在特定扫描方向下字符的起始Y坐标
* @param usChar ：要显示的中文字符（国标码）
* @note 可使用LCD_SetBackColor、LCD_SetTextColor、LCD_SetColors函数设置颜色
* @retval 无
*/
void ILI9341_DispChar_CH ( uint16_t usX, uint16_t usY, uint16_t usChar )
{
uint8_t rowCount, bitCount;
uint8_t ucBuffer [ WIDTH_CH_CHAR*HEIGHT_CH_CHAR/8 ]; //16*16*8
uint16_t usTemp;
uint16_t back_color = ILI9341_GetPointPixel(usX,usY);
//设置显示窗口
ILI9341_OpenWindow ( usX, usY, WIDTH_CH_CHAR, HEIGHT_CH_CHAR ); // 16* 16
ILI9341_Write_Cmd ( CMD_SetPixel );
//取字模数据
GetGBKCode ( ucBuffer, usChar ); //第一个参数为 返回的字符图像参数 第二个参数为 中文字符号
for ( rowCount = 0; rowCount < HEIGHT_CH_CHAR; rowCount++ )
{
/* 取出两个字节的数据，在lcd上即是一个汉字的一行 */
usTemp = ucBuffer [ rowCount * 2 ];
usTemp = ( usTemp << 8 );
usTemp |= ucBuffer [ rowCount * 2 + 1 ];
for ( bitCount = 0; bitCount < WIDTH_CH_CHAR; bitCount ++ )
{
if ( usTemp & ( 0x8000 >> bitCount ) ) //高位在前
ILI9341_Write_Data ( CurrentForecolor );
else
ILI9341_Write_Data ( back_color );
}
}
}
/**
* @brief 在 ILI9341 显示器上显示中文字符串
* @param line ：在特定扫描方向下字符串的起始Y坐标
* 本参数可使用宏LINE(0)、LINE(1)等方式指定文字坐标，
* 宏LINE(x)会根据当前选择的字体来计算Y坐标值。
* 显示中文且使用LINE宏时，需要把英文字体设置成Font8x16
* @param pStr ：要显示的英文字符串的首地址
* @note 可使用LCD_SetBackColor、LCD_SetTextColor、LCD_SetColors函数设置颜色
* @retval 无
*/
void ILI9341_DispString_CH ( uint16_t usX , uint16_t usY, char * pStr )
{
uint16_t usCh;
while( * pStr != '\0' )
{
if ( ( usX - ILI9341_DispWindow_X_Star + WIDTH_CH_CHAR ) > LCD_X_LENGTH )
{
usX = ILI9341_DispWindow_X_Star;
usY += HEIGHT_CH_CHAR;
}
if ( ( usY - ILI9341_DispWindow_Y_Star + HEIGHT_CH_CHAR ) > LCD_Y_LENGTH )
{
usX = ILI9341_DispWindow_X_Star;
usY = ILI9341_DispWindow_Y_Star;
}
usCh = * ( uint16_t * ) pStr;
usCh = ( usCh << 8 ) + ( usCh >> 8 );
ILI9341_DispChar_CH ( usX, usY, usCh );
usX += WIDTH_CH_CHAR;
pStr += 2; //一个汉字两个字节
}
}
/**
* @brief 在 ILI9341 显示器上显示中英文字符串
* @param line ：在特定扫描方向下字符串的起始Y坐标
* 本参数可使用宏LINE(0)、LINE(1)等方式指定文字坐标，
* 宏LINE(x)会根据当前选择的字体来计算Y坐标值。
* 显示中文且使用LINE宏时，需要把英文字体设置成Font8x16
* @param pStr ：要显示的字符串的首地址
* @note 可使用LCD_SetBackColor、LCD_SetTextColor、LCD_SetColors函数设置颜色
* @retval 无
*/
void ILI9341_DispStringLine_EN_CH ( uint16_t line, char * pStr )
{
uint16_t usCh;
uint16_t usX = 0;
while( * pStr != '\0' )
{
if ( * pStr <= 126 ) //英文字符
{
if ( ( usX - ILI9341_DispWindow_X_Star + LCD_Currentfonts->Width ) > LCD_X_LENGTH )
{
usX = ILI9341_DispWindow_X_Star;
line += LCD_Currentfonts->Height;
}
if ( ( line - ILI9341_DispWindow_Y_Star + LCD_Currentfonts->Height ) > LCD_Y_LENGTH )
{
usX = ILI9341_DispWindow_X_Star;
line = ILI9341_DispWindow_Y_Star;
}
ILI9341_DispChar_EN ( usX, line, * pStr );
usX += LCD_Currentfonts->Width;
pStr ++;
}
else //汉字字符
{
if ( ( usX - ILI9341_DispWindow_X_Star + WIDTH_CH_CHAR ) > LCD_X_LENGTH )
{
usX = ILI9341_DispWindow_X_Star;
line += HEIGHT_CH_CHAR;
}
if ( ( line - ILI9341_DispWindow_Y_Star + HEIGHT_CH_CHAR ) > LCD_Y_LENGTH )
{
usX = ILI9341_DispWindow_X_Star;
line = ILI9341_DispWindow_Y_Star;
}
usCh = * ( uint16_t * ) pStr;
usCh = ( usCh << 8 ) + ( usCh >> 8 );
ILI9341_DispChar_CH ( usX, line, usCh );
usX += WIDTH_CH_CHAR;
pStr += 2; //一个汉字两个字节
}
}
}
/**
* @brief 在 ILI9341 显示器上显示中英文字符串
* @param usX ：在特定扫描方向下字符的起始X坐标
* @param usY ：在特定扫描方向下字符的起始Y坐标
* @param pStr ：要显示的字符串的首地址
* @note 可使用LCD_SetBackColor、LCD_SetTextColor、LCD_SetColors函数设置颜色
* @retval 无
*/
void ILI9341_DispString_EN_CH ( uint16_t usX , uint16_t usY, char * pStr )
{
uint16_t usCh;
while( * pStr != '\0' )
{
if ( * pStr <= 126 ) //英文字符
{
if ( ( usX - ILI9341_DispWindow_X_Star + LCD_Currentfonts->Width ) > LCD_X_LENGTH )
{
usX = ILI9341_DispWindow_X_Star;
usY += LCD_Currentfonts->Height;
}
if ( ( usY - ILI9341_DispWindow_Y_Star + LCD_Currentfonts->Height ) > LCD_Y_LENGTH )
{
usX = ILI9341_DispWindow_X_Star;
usY = ILI9341_DispWindow_Y_Star;
}
ILI9341_DispChar_EN ( usX, usY, * pStr );
usX += LCD_Currentfonts->Width;
pStr ++;
}
else //汉字字符
{
if ( ( usX - ILI9341_DispWindow_X_Star + WIDTH_CH_CHAR ) > LCD_X_LENGTH )
{
usX = ILI9341_DispWindow_X_Star;
usY += HEIGHT_CH_CHAR;
}
if ( ( usY - ILI9341_DispWindow_Y_Star + HEIGHT_CH_CHAR ) > LCD_Y_LENGTH )
{
usX = ILI9341_DispWindow_X_Star;
usY = ILI9341_DispWindow_Y_Star;
}
usCh = * ( uint16_t * ) pStr;
usCh = ( usCh << 8 ) + ( usCh >> 8 );
ILI9341_DispChar_CH ( usX, usY, usCh );
usX += WIDTH_CH_CHAR;
pStr += 2; //一个汉字两个字节
}
}
}
/**
* @brief 在 ILI9341 显示器上显示中英文字符串(沿Y轴方向)
* @param usX ：在特定扫描方向下字符的起始X坐标
* @param usY ：在特定扫描方向下字符的起始Y坐标
* @param pStr ：要显示的中英文字符串的首地址
* @note 可使用LCD_SetBackColor、LCD_SetTextColor、LCD_SetColors函数设置颜色
* @retval 无
*/
void ILI9341_DispString_EN_CH_YDir ( uint16_t usX,uint16_t usY , char * pStr )
{
uint16_t usCh;
while( * pStr != '\0' )
{
//统一使用汉字的宽高来计算换行
if ( ( usY - ILI9341_DispWindow_Y_Star + HEIGHT_CH_CHAR ) >LCD_Y_LENGTH )
{
usY = ILI9341_DispWindow_Y_Star;
usX += WIDTH_CH_CHAR;
}
if ( ( usX - ILI9341_DispWindow_X_Star + WIDTH_CH_CHAR ) > LCD_X_LENGTH)
{
usX = ILI9341_DispWindow_X_Star;
usY = ILI9341_DispWindow_Y_Star;
}
//显示
if ( * pStr <= 126 ) //英文字符
{
ILI9341_DispChar_EN ( usX, usY, * pStr);
pStr ++;
usY += HEIGHT_CH_CHAR;
}
else //汉字字符
{
usCh = * ( uint16_t * ) pStr;
usCh = ( usCh << 8 ) + ( usCh >> 8 );
ILI9341_DispChar_CH ( usX,usY , usCh );
usY += HEIGHT_CH_CHAR;
pStr += 2; //一个汉字两个字节
}
}
}
/***********************缩放字体****************************/
#define ZOOMMAXBUFF 16384
uint8_t zoomBuff[ZOOMMAXBUFF] = {0}; //用于缩放的缓存，最大支持到128*128
uint8_t zoomTempBuff[1024] = {0};
/**
* @brief 缩放字模，缩放后的字模由1个像素点由8个数据位来表示
0x01表示笔迹，0x00表示空白区
* @param in_width ：原始字符宽度
* @param in_heig ：原始字符高度
* @param out_width ：缩放后的字符宽度
* @param out_heig：缩放后的字符高度
* @param in_ptr ：字库输入指针 注意：1pixel 1bit
* @param out_ptr ：缩放后的字符输出指针 注意: 1pixel 8bit
* out_ptr实际上没有正常输出，改成了直接输出到全局指针zoomBuff中
* @param en_cn ：0为英文，1为中文
* @retval 无
*/
void ILI9341_zoomChar(
uint16_t in_width, //原始字符宽度
uint16_t in_heig, //原始字符高度
uint16_t out_width, //缩放后的字符宽度
uint16_t out_heig, //缩放后的字符高度
uint8_t *in_ptr, //字库输入指针 注意：1pixel 1bit
uint8_t *out_ptr, //缩放后的字符输出指针 注意: 1pixel 8bit
uint8_t en_cn) //0为英文，1为中文
{
uint8_t *pts,*ots;
//根据源字模及目标字模大小，设定运算比例因子，左移16是为了把浮点运算转成定点运算
unsigned int xrIntFloat_16=(in_width<<16)/out_width+1;
unsigned int yrIntFloat_16=(in_heig<<16)/out_heig+1;
unsigned int srcy_16=0;
unsigned int y,x;
uint8_t *pSrcLine;
uint16_t byteCount,bitCount;
//检查参数是否合法
if(in_width >= 32) return; //字库不允许超过32像素
if(in_width * in_heig == 0) return;
if(in_width * in_heig >= 1024 ) return; //限制输入最大 32*32
if(out_width * out_heig == 0) return;
if(out_width * out_heig >= ZOOMMAXBUFF ) return; //限制最大缩放 128*128
pts = (uint8_t*)&zoomTempBuff;
//为方便运算，字库的数据由1 pixel/1bit 映射到1pixel/8bit
//0x01表示笔迹，0x00表示空白区
if(en_cn == 0x00)//英文
{
//英文和中文字库上下边界不对，可在此处调整。需要注意tempBuff防止溢出
for(byteCount=0;byteCount<in_heig*in_width/8;byteCount++)
{
for(bitCount=0;bitCount<8;bitCount++)
{
//把源字模数据由位映射到字节
//in_ptr里bitX为1，则pts里整个字节值为1
//in_ptr里bitX为0，则pts里整个字节值为0
*pts++ = (in_ptr[byteCount] & (0x80>>bitCount))?1:0;
}
}
}
else //中文
{
for(byteCount=0;byteCount<in_heig*in_width/8;byteCount++)
{
for(bitCount=0;bitCount<8;bitCount++)
{
//把源字模数据由位映射到字节
//in_ptr里bitX为1，则pts里整个字节值为1
//in_ptr里bitX为0，则pts里整个字节值为0
*pts++ = (in_ptr[byteCount] & (0x80>>bitCount))?1:0;
}
}
}
//zoom过程
pts = (uint8_t*)&zoomTempBuff; //映射后的源数据指针
ots = (uint8_t*)&zoomBuff; //输出数据的指针
for (y=0;y<out_heig;y++) /*行遍历*/
{
unsigned int srcx_16=0;
pSrcLine=pts+in_width*(srcy_16>>16);
for (x=0;x<out_width;x++) /*行内像素遍历*/
{
ots[x]=pSrcLine[srcx_16>>16]; //把源字模数据复制到目标指针中
srcx_16+=xrIntFloat_16; //按比例偏移源像素点
}
srcy_16+=yrIntFloat_16; //按比例偏移源像素点
ots+=out_width;
}
/*！！！缩放后的字模数据直接存储到全局指针zoomBuff里了*/
out_ptr = (uint8_t*)&zoomBuff; //out_ptr没有正确传出，后面调用直接改成了全局变量指针！
/*实际中如果使用out_ptr不需要下面这一句！！！
只是因为out_ptr没有使用，会导致warning。强迫症*/
out_ptr++;
}
/**
* @brief 利用缩放后的字模显示字符
* @param Xpos ：字符显示位置x
* @param Ypos ：字符显示位置y
* @param Font_width ：字符宽度
* @param Font_Heig：字符高度
* @param c ：要显示的字模数据
* @param DrawModel ：是否反色显示
* @retval 无
*/
void ILI9341_DrawChar_Ex(
uint16_t usX, //字符显示位置x
uint16_t usY, //字符显示位置y
uint16_t Font_width, //字符宽度
uint16_t Font_Height, //字符高度
uint8_t *c, //字模数据
uint16_t DrawModel) //是否反色显示
{
uint32_t index = 0, counter = 0;
uint16_t back_color = ILI9341_GetPointPixel(usX,usY);
//设置显示窗口
ILI9341_OpenWindow ( usX, usY, Font_width, Font_Height);
ILI9341_Write_Cmd ( CMD_SetPixel );
//按字节读取字模数据
//由于前面直接设置了显示窗口，显示数据会自动换行
for ( index = 0; index < Font_Height; index++ )
{
//一位一位处理要显示的颜色
for ( counter = 0; counter < Font_width; counter++ )
{
//缩放后的字模数据，以一个字节表示一个像素位
//整个字节值为1表示该像素为笔迹
//整个字节值为0表示该像素为背景
if ( *c++ == DrawModel ){
ILI9341_Write_Data ( back_color ); //!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
}else
ILI9341_Write_Data ( CurrentForecolor );
}
}
}
/**
* @brief 利用缩放后的字模显示字符串
* @param Xpos ：字符显示位置x
* @param Ypos ：字符显示位置y
* @param Font_width ：字符宽度，英文字符在此基础上/2。注意为偶数
* @param Font_Heig：字符高度，注意为偶数
* @param c ：要显示的字符串
* @param DrawModel ：是否反色显示
* @retval 无
*/
void ILI9341_DisplayStringEx(
uint16_t x, //字符显示位置x
uint16_t y, //字符显示位置y
uint16_t Font_width, //要显示的字体宽度，英文字符在此基础上/2。注意为偶数
uint16_t Font_Height, //要显示的字体高度，注意为偶数
uint8_t *ptr, //显示的字符内容
uint16_t DrawModel) //是否反色显示
{
uint16_t Charwidth = Font_width; //默认为Font_width，英文宽度为中文宽度的一半
uint8_t *psr;
uint8_t Ascii; //英文
uint16_t usCh; //中文
uint8_t ucBuffer [ WIDTH_CH_CHAR*HEIGHT_CH_CHAR/8 ];
while ( *ptr != '\0')
{
/****处理换行*****/
if ( ( x - ILI9341_DispWindow_X_Star + Charwidth ) > LCD_X_LENGTH )
{
x = ILI9341_DispWindow_X_Star;
y += Font_Height;
}
if ( ( y - ILI9341_DispWindow_Y_Star + Font_Height ) > LCD_Y_LENGTH )
{
x = ILI9341_DispWindow_X_Star;
y = ILI9341_DispWindow_Y_Star;
}
if(*ptr > 0x80) //如果是中文
{
Charwidth = Font_width;
usCh = * ( uint16_t * ) ptr;
usCh = ( usCh << 8 ) + ( usCh >> 8 );
GetGBKCode ( ucBuffer, usCh ); //取字模数据
//缩放字模数据，源字模为16*16
ILI9341_zoomChar(WIDTH_CH_CHAR,HEIGHT_CH_CHAR,Charwidth,Font_Height,(uint8_t *)&ucBuffer,psr,1);
//显示单个字符
ILI9341_DrawChar_Ex(x,y,Charwidth,Font_Height,(uint8_t*)&zoomBuff,DrawModel);
x+=Charwidth;
ptr+=2;
}
else
{
Charwidth = Font_width / 2;
Ascii = *ptr - 32;
//使用16*24字体缩放字模数据
ILI9341_zoomChar(16,24,Charwidth,Font_Height,(uint8_t *)&Font16x24.table[Ascii * Font16x24.Height*Font16x24.Width/8],psr,0);
//显示单个字符
ILI9341_DrawChar_Ex(x,y,Charwidth,Font_Height,(uint8_t*)&zoomBuff,DrawModel);
x+=Charwidth;
ptr++;
}
}
}
/**
* @brief 利用缩放后的字模显示字符串(沿Y轴方向)
* @param Xpos ：字符显示位置x
* @param Ypos ：字符显示位置y
* @param Font_width ：字符宽度，英文字符在此基础上/2。注意为偶数
* @param Font_Heig：字符高度，注意为偶数
* @param c ：要显示的字符串
* @param DrawModel ：是否反色显示
* @retval 无
*/
void ILI9341_DisplayStringEx_YDir(
uint16_t x, //字符显示位置x
uint16_t y, //字符显示位置y
uint16_t Font_width, //要显示的字体宽度，英文字符在此基础上/2。注意为偶数
uint16_t Font_Height, //要显示的字体高度，注意为偶数
uint8_t *ptr, //显示的字符内容
uint16_t DrawModel) //是否反色显示
{
uint16_t Charwidth = Font_width; //默认为Font_width，英文宽度为中文宽度的一半
uint8_t *psr;
uint8_t Ascii; //英文
uint16_t usCh; //中文
uint8_t ucBuffer [ WIDTH_CH_CHAR*HEIGHT_CH_CHAR/8 ];
while ( *ptr != '\0')
{
//统一使用汉字的宽高来计算换行
if ( ( y - ILI9341_DispWindow_X_Star + Font_width ) > LCD_X_LENGTH )
{
y = ILI9341_DispWindow_X_Star;
x += Font_width;
}
if ( ( x - ILI9341_DispWindow_Y_Star + Font_Height ) > LCD_Y_LENGTH )
{
y = ILI9341_DispWindow_X_Star;
x = ILI9341_DispWindow_Y_Star;
}
if(*ptr > 0x80) //如果是中文
{
Charwidth = Font_width;
usCh = * ( uint16_t * ) ptr;
usCh = ( usCh << 8 ) + ( usCh >> 8 );
GetGBKCode ( ucBuffer, usCh ); //取字模数据
//缩放字模数据，源字模为16*16
ILI9341_zoomChar(WIDTH_CH_CHAR,HEIGHT_CH_CHAR,Charwidth,Font_Height,(uint8_t *)&ucBuffer,psr,1);
//显示单个字符
ILI9341_DrawChar_Ex(x,y,Charwidth,Font_Height,(uint8_t*)&zoomBuff,DrawModel);
y+=Font_Height;
ptr+=2;
}
else
{
Charwidth = Font_width / 2;
Ascii = *ptr - 32;
//使用16*24字体缩放字模数据
ILI9341_zoomChar(16,24,Charwidth,Font_Height,(uint8_t *)&Font16x24.table[Ascii * Font16x24.Height*Font16x24.Width/8],psr,0);
//显示单个字符
ILI9341_DrawChar_Ex(x,y,Charwidth,Font_Height,(uint8_t*)&zoomBuff,DrawModel);
y+=Font_Height;
ptr++;
}
}
}
void Lcd_display_String(uint8_t *ptr){
LCD_SetColors(GB888(0x000000), GB888(0xFFFFFF));
ILI9341_Clear(0,(LCD_Y_LENGTH-Font24x32.Height),LCD_X_LENGTH,Font24x32.Height); /* 清屏，显示 粉色的界面 */
LCD_SetFont(&Font24x32); //制作对话框
LCD_SetForeColor( GB888(0xBB3756)); //红色文字
ILI9341_DisplayStringEx(0,LCD_Y_LENGTH-Font24x32.Height,Font24x32.Width , Font24x32.Height , ptr,0);
fn_Systick_Delay(1000,_Systick_ms);
}
建立 LCD页面绘制 文件LCD_PageHtml_book.h
代码如下 ：
#ifndef __LCD_PAGEHTML_BOOK_H
#define __LCD_PAGEHTML_BOOK_H
#include "stm32f10x.h"
void Display_Char_test(void);
void Display_LCD_clear(void);
uint8_t XPT2046_Touch_Calibrate_Page (void);
void fn_Lcd_Page_Init(void);
void fn_Lcd_Page1(void);
void fn_Lcd_Page2(void);
void fn_Lcd_Page3(void);
#endif
建立 LCD页面绘制 文件LCD_PageHtml_book.c
代码如下 ：
#include "LCD_PageHtml_book.h"
#include "LCD_book.h"
#include "LCD_Draw_book.h"
#include "XPT2046_LCD_Function_book.h"
#include "USART_book.h"
#include "XPT2046_LCD_Device_book.h"
#include "XPT2046_LCD_GridDiagram_book.h"
#include "fonts.h"
#include <stdio.h>
#include <string.h>
/// 自模 设计 字宽 16 字高 16
// 阴码 逐行 24 24 顺向 16进制
uint8_t test_modu[] ={
0x00,0x00,0x7F,0xFC,0x01,0x00,0x01,0x00,0x01,0x00,0x01,
0x00,0x01,0x00,0x3F,0xF8,0x01,0x00,0x01,0x00,0x01,0x00,0x01,0x00 ,
0x01,0x00,0x01,0x00,0xFF,0xFE,0x00,0x00};/*"王",0*/
//#define _row_count 16
//#define _byte_count 2
//#define _bit_count 8
/// 自模 设计 字宽 32 字高 32
// 阴码 逐行 24 24 顺向 16进制
uint8_t test_modu2[2][32*32] ={
{
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00 ,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x03,0xFF,0xFF,0xC0,0x07,0xFF,0xFF,0xC0 ,
0x04,0x03,0xC0,0x00,0x00,0x03,0xC0,0x00,0x00,0x03,0xC0,0x00,0x00,0x03,0xC0,0x00,0x01,0xFF,0xFF,0x00,0x03,0xFF,0xFF,0x00 ,
0x03,0x03,0xC0,0x00,0x00,0x03,0xC0,0x00,0x00,0x03,0xC0,0x00,0x00,0x03,0xC0,0x00,0x1F,0xFF,0xFC,0x00,0x3F,0xFF,0xFF,0xFE ,
0x7F,0x80,0x7F,0xFE,0x60,0x00,0x03,0xFC,0x00,0x00,0x00,0x78,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00 ,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"王",0*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00 ,
0x00,0x00,0x00,0x00,0x00,0x00,0x02,0x00,0x00,0x03,0x87,0x00,0x00,0x03,0x87,0x00,0x18,0x07,0x87,0xC0,0x3F,0xEF,0xFF,0xC0 ,
0x3F,0xCF,0x87,0x00,0x03,0x83,0x87,0x00,0x03,0x83,0xFF,0x00,0x1F,0x83,0x87,0x00,0x3F,0xE3,0x87,0x00,0x3F,0x83,0xFF,0x00 ,
0x03,0x83,0x87,0x00,0x03,0xB3,0x87,0x00,0x03,0xFF,0xFF,0xFE,0x3F,0xDF,0xFF,0xFC,0x7E,0x18,0x00,0xFC,0x78,0x01,0x87,0x38 ,
0x40,0x03,0x87,0x80,0x00,0x0F,0x03,0xC0,0x00,0x1C,0x00,0xE0,0x00,0x20,0x00,0x10,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00 ,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00}/*"琪",0*/
};
#define _row_count 32
#define _byte_count 4
#define _bit_count 8
void Display_Char_test(void){
uint8_t row_count , byte_count , bit_count ;
uint8_t i;
for(i=0 ;i<2 ;i++ ){
for(row_count = 0 ;row_count< _row_count; row_count++){
printf("\n");
for(byte_count = 0 ;byte_count< _byte_count ; byte_count++){
for( bit_count = 0;bit_count < _bit_count ; bit_count++){
if(test_modu2[i][row_count*_byte_count+byte_count] &(0x80 >>bit_count)){
printf("*");
}else{
printf(" ");
}
}
}
}
}
}
void Display_LCD_clear(void){
LCD_SetColors(GB888(0x000000), GB888(0xFFFFFF));
ILI9341_Clear ( 0, 0, LCD_X_LENGTH, LCD_Y_LENGTH );
}
//================================ 页面设计函数=======================================
//================================ 页面设计函数=======================================
uint8_t XPT2046_Touch_Calibrate_Page (void){
uint8_t i;
char cStr [ 100 ];
char * pStr = 0;
LCD_SetFont(&Font8x16);
LCD_SetColors(GB888(0xFE5632),GB888(0xCFDA00));
XPT2046_Touch_Calibrate_SetStand4Pint();
for ( i = 0; i < 4; i ++ ){
ILI9341_Clear ( 0, 0, LCD_X_LENGTH, LCD_Y_LENGTH );
pStr = "Touch Calibrate 触摸校验...";
//插入空格，居中显示
sprintf(cStr,"%*c%s",((LCD_X_LENGTH/(((sFONT *)LCD_GetFont())->Width))-strlen(pStr))/2,' ',pStr) ;
ILI9341_DispStringLine_EN_CH (LCD_Y_LENGTH >> 1, cStr );
//插入空格，居中显示
sprintf ( cStr, "%*c%d",((LCD_X_LENGTH/(((sFONT *)LCD_GetFont())->Width)) -1)/2,' ',i + 1 );
ILI9341_DispStringLine_EN_CH (( LCD_Y_LENGTH >> 1 ) - (((sFONT *)LCD_GetFont())->Height), cStr );
ILI9341_Delay ( 0xFFFFF ); //适当的延时很有必要
LCD_SetForeColor( GB888(0x8C78EB));
ILI9341_DrawCircle(strCrossCoordinate[i] .x, strCrossCoordinate[i].y , 20 , 1, 1);
LCD_SetForeColor( GB888(0xDA44A6));
ILI9341_DrawCross ( strCrossCoordinate[i] .x, strCrossCoordinate[i].y ); //显示校正用的“十”字
while ( ! XPT2046_ReadAdc_Smooth_XY ( & strScreenSample [i] ) ); //读取XPT2046数据到变量pCoordinate，当ptr为空时表示没有触点被按下
}
if( XPT2046_Touch_Calibrate(_LCD_SCAN_MODE)==1){
goto XPT2046_Touch_Calibrate_SUCCESS ;
}else{
goto XPT2046_Touch_Calibrate_Failure ;
}
XPT2046_Touch_Calibrate_SUCCESS:
ILI9341_Clear ( 0, 0, LCD_X_LENGTH, LCD_Y_LENGTH );
LCD_SetColors(GB888(0x331B93),GB888(0xE4C294));
LCD_SetTextColor(GB888(0xFF5B93));
pStr = "Calibrate Succed";
//插入空格，居中显示
sprintf(cStr,"%*c%s",((LCD_X_LENGTH/(((sFONT *)LCD_GetFont())->Width))-strlen(pStr))/2,' ',pStr) ;
ILI9341_DispStringLine_EN (LCD_Y_LENGTH >> 1, cStr );
ILI9341_Delay ( 0xFFFFFF );
return 1;
XPT2046_Touch_Calibrate_Failure:
ILI9341_Clear ( 0, 0, LCD_X_LENGTH, LCD_Y_LENGTH );
LCD_SetColors(GB888(0x331B93),GB888(0xFF5B93));
LCD_SetTextColor(RED);
pStr = "Calibrate fail";
//插入空格，居中显示
sprintf(cStr,"%*c%s",((LCD_X_LENGTH/(((sFONT *)LCD_GetFont())->Width))-strlen(pStr))/2,' ',pStr) ;
ILI9341_DispStringLine_EN (LCD_Y_LENGTH >> 1, cStr );
pStr = "try again";
//插入空格，居中显示
sprintf(cStr,"%*c%s",((LCD_X_LENGTH/(((sFONT *)LCD_GetFont())->Width))-strlen(pStr))/2,' ',pStr) ;
ILI9341_DispStringLine_EN ( ( LCD_Y_LENGTH >> 1 ) + (((sFONT *)LCD_GetFont())->Height), cStr );
ILI9341_Delay ( 0xFFFFFF );
return 0;
}
//================================ 页面设计函数=======================================
void fn_Lcd_Page_Init(void){
fn_Lcd_Page4();
}
//================================ 页面设计函数=======================================
/**
* @brief 在ILI9341显示器上开辟一个窗口
* @param usX ：在特定扫描方向下窗口的起点X坐标
* @param usY ：在特定扫描方向下窗口的起点Y坐标
* @param usWidth ：窗口的宽度
* @param usHeight ：窗口的高度
* @retval 无
*/
void fn_Lcd_Page1(void){
// printf("\n-->LCD %x",GB565(255, 193 ,98));
// printf("\n-->LCD %x",GB888(0xFFC162));
ILI9341_GramScan(LCD_SCAN_MODE_6);
LCD_SetColors( GB888(0x589447), GB888(0xFFC162));
ILI9341_Clear(0,0,LCD_X_LENGTH,LCD_Y_LENGTH); /* 清屏，显示 黄色的界面 */
LCD_SetForeColor(GB888(0x589447)); //标题绿色的框
ILI9341_DrawRectangle( 0,0,LCD_X_LENGTH,25,1,1);
LCD_SetForeColor(GB888(0x797979));//阴影框
ILI9341_DrawLine(0,25,LCD_X_LENGTH,25,2);
LCD_SetForeColor(GB888(0xCDCDCD));
ILI9341_DrawLine(0,27,LCD_X_LENGTH,27,1);
LCD_SetForeColor(WHITE);//Wifi设计
ILI9341_DrawLine(LCD_X_LENGTH-20,19,LCD_X_LENGTH-15,19,3);
ILI9341_DrawLine(LCD_X_LENGTH-25,12,LCD_X_LENGTH-10,12,3);
ILI9341_DrawLine(LCD_X_LENGTH-28,5,LCD_X_LENGTH-7,5,3);
LCD_SetFont(&Font8x16);
LCD_SetForeColor(GB888(0xE8E5C4)); //白色文字，绿色背景
/********显示字符串示例*******/
ILI9341_DispStringLine_EN(LINE(0),"Wangqi Telephone:");
LCD_SetFont(&Font8x16); //制作对话框
LCD_SetForeColor( GB888(0x000000));
ILI9341_DispStringLine_EN(LINE(3)," Personnal News:");
LCD_SetForeColor(GB888(0x589447)); //灰色的框
ILI9341_DrawRectangle( 10,65,(LCD_X_LENGTH-20),30,0,1);
LCD_SetForeColor(GB888(0xC3C09C)); //里面的
ILI9341_DrawRectangle( 11,66,(LCD_X_LENGTH-20-1),30-1,1,1);
LCD_SetFont(&Font8x16);
LCD_SetColors(GB888(0xE8E5C4), GB888(0x589447));
LCD_SetForeColor(GB888(0x589447)); //绿色的按钮
ILI9341_DrawRectangle( 180,110,(50),30,1,1);
LCD_SetForeColor(WHITE); //白色阴影
ILI9341_DrawRectangle( 180,110,(50),30,0,1);
//-------------------------
LCD_SetFont(&Font8x16); //制作对话框
LCD_SetForeColor( GB888(0xC90000)); //红色文字
ILI9341_DispStringLine_EN(LINE(9)," Have Girlfriend?");
//-------------------------
LCD_SetColors( GB888(0xF0A0A1), GB888(0xFFC162)); //圆圈
ILI9341_DrawCircle(210,180,10,1,1);
LCD_SetForeColor(GB888(0x797979));//阴影框
ILI9341_DrawCircle(210,180,10,0,1);
LCD_SetColors( GB888(0x34BDD5), GB888(0xFFC162)); //圆圈
ILI9341_DrawCircle(210,205,10,1,1);
LCD_SetForeColor(GB888(0x797979));//阴影框
ILI9341_DrawCircle(210,205,10,0,1);
//-------------------------
LCD_SetFont(&Font16x24); //制作对话框
LCD_SetForeColor( GB888(0xBB3756)); //红色文字
ILI9341_DispStringLine_EN(LINE(7)," Yes!");
LCD_SetForeColor( GB888(0x310F29)); //红色文字
ILI9341_DispStringLine_EN(LINE(8)," NO!");
//-------------------------
LCD_SetForeColor(GB888(0xA6A6A6));//阴影框
ILI9341_DrawLine(0,230,LCD_X_LENGTH,230,1);
LCD_SetForeColor( GB888(0xBF5BBA)); //红色文字
ILI9341_DispStringLine_EN(LINE(10)," My LOVE ");
LCD_SetForeColor( GB888(0x2369FC)); //白色文字
ILI9341_DispStringLine_EN(LINE(12)," Hi 2021-8-14 ");
}
//=============================================================================
/**
* @brief 在ILI9341显示器上开辟一个窗口
* @param usX ：在特定扫描方向下窗口的起点X坐标
* @param usY ：在特定扫描方向下窗口的起点Y坐标
* @param usWidth ：窗口的宽度
* @param usHeight ：窗口的高度
* @retval 无
*/
void fn_Lcd_Page2(void){
// printf("\n-->LCD %x",GB565(255, 193 ,98));
// printf("\n-->LCD %x",GB888(0xFFC162));
ILI9341_GramScan(LCD_SCAN_MODE_6);
LCD_SetColors( GB888(0xF09387), GB888(0xF09387));
ILI9341_Clear(0,0,LCD_X_LENGTH,LCD_Y_LENGTH); /* 清屏，显示 粉色的界面 */
LCD_SetForeColor(GB888(0xFFDC78)); //标题绿色的框
ILI9341_DrawRectangle( 0,0,LCD_X_LENGTH,25,1,1);
LCD_SetForeColor(GB888(0x797979));//阴影框
ILI9341_DrawLine(0,25,LCD_X_LENGTH,25,2);
LCD_SetForeColor(GB888(0xCDCDCD));
ILI9341_DrawLine(0,27,LCD_X_LENGTH,27,1);
LCD_SetForeColor(GB888(0xA700A7));//Wifi设计
ILI9341_DrawLine(LCD_X_LENGTH-20,19,LCD_X_LENGTH-15,19,3);
ILI9341_DrawLine(LCD_X_LENGTH-25,12,LCD_X_LENGTH-10,12,3);
ILI9341_DrawLine(LCD_X_LENGTH-28,5,LCD_X_LENGTH-7,5,3);
LCD_SetFont(&Font8x16);
LCD_SetForeColor(GB888(0xA700A7)); //白色文字，绿色背景
/********显示字符串示例*******/
ILI9341_DispString_EN_CH(10,5,"输入 Telephone!");
LCD_SetFont(&Font8x16); //制作对话框
LCD_SetForeColor( GB888(0x000000));
ILI9341_DispStringLine_EN_CH(LINE(3)," 信息:");
LCD_SetForeColor(GB888(0x589447)); //灰色的框
ILI9341_DrawRectangle( 10,65,(LCD_X_LENGTH-20),30,0,1);
LCD_SetForeColor(GB888(0xC3C09C)); //里面的
ILI9341_DrawRectangle( 11,66,(LCD_X_LENGTH-20-1),30-1,1,1);
LCD_SetFont(&Font8x16); //制作对话框
LCD_SetForeColor( GB888(0x000000));
ILI9341_DispString_CH(13,72,"不顾一切的去看你");
LCD_SetFont(&Font8x16);
LCD_SetColors(GB888(0xE8E5C4), GB888(0x589447));
LCD_SetForeColor(GB888(0x589447)); //绿色的按钮
ILI9341_DrawRectangle( 180,110,(50),30,1,1);
LCD_SetForeColor(WHITE); //白色阴影
ILI9341_DrawRectangle( 180,110,(50),30,0,1);
LCD_SetFont(&Font8x16); //制作对话框
LCD_SetForeColor( GB888(0x000000));
ILI9341_DispStringLine_EN_CH(LINE(7)," 确定");
//-------------------------
LCD_SetFont(&Font8x16); //制作对话框
LCD_SetForeColor( GB888(0xC90000)); //红色文字
ILI9341_DispStringLine_EN_CH(LINE(9)," 回忆化成蝶?");
//-------------------------
LCD_SetColors( GB888(0xF0A0A1), GB888(0xFFC162)); //圆圈
ILI9341_DrawCircle(210,180,10,1,1);
LCD_SetForeColor(GB888(0x797979));//阴影框
ILI9341_DrawCircle(210,180,10,0,1);
LCD_SetColors( GB888(0x34BDD5), GB888(0xFFC162)); //圆圈
ILI9341_DrawCircle(210,205,10,1,1);
LCD_SetForeColor(GB888(0x797979));//阴影框
ILI9341_DrawCircle(210,205,10,0,1);
//-------------------------
LCD_SetFont(&Font24x32); //制作对话框
LCD_SetForeColor( GB888(0xBB3756)); //红色文字
ILI9341_DisplayStringEx(0,200,Font24x32.Width , Font24x32.Height , " Yes!",0);
LCD_SetForeColor( GB888(0x310F29)); //红色文字
ILI9341_DisplayStringEx(0,230,Font24x32.Width , Font24x32.Height ," NO!",0);
//-------------------------
LCD_SetForeColor(GB888(0xA6A6A6));//阴影框
ILI9341_DrawLine(0,230,LCD_X_LENGTH,230,1);
LCD_SetForeColor( GB888(0xBF5BBA)); //红色文字
ILI9341_DisplayStringEx(0,260,Font24x32.Width , Font24x32.Height ," My LOVE ",0);
LCD_SetForeColor( GB888(0x2369FC)); //白色文字
LCD_SetFont(&Font16x24); //制作对话框
ILI9341_DispStringLine_EN(LINE(12)," Hi 2021-8-16 ");
}
//=============================================================================
/**
* @brief 在ILI9341显示器上开辟一个窗口
* @param usX ：在特定扫描方向下窗口的起点X坐标
* @param usY ：在特定扫描方向下窗口的起点Y坐标
* @param usWidth ：窗口的宽度
* @param usHeight ：窗口的高度
* @retval 无
*/
void fn_Lcd_Page3(void){
//绘制触摸画板界面
Palette_Init(_LCD_SCAN_MODE ,CL_WHITE , CL_BLACK);
}
//=============================================================================
/**
* @brief 在ILI9341显示器上开辟一个窗口
* @param usX ：在特定扫描方向下窗口的起点X坐标
* @param usY ：在特定扫描方向下窗口的起点Y坐标
* @param usWidth ：窗口的宽度
* @param usHeight ：窗口的高度
* @retval 无
*/
void fn_Lcd_Page4(void){
//绘制触摸画板界面
GridDiagram_Init();
}
建立 LCD 文字库 内存管理文件fonts.h
代码如下 ：
#ifndef __FONT_H
#define __FONT_H
#include "stm32f10x.h"
/** @defgroup FONTS_Exported_Types
* @{
*/
typedef struct _tFont
{
const uint8_t *table;
uint16_t Width;
uint16_t Height;
} sFONT;
extern sFONT Font24x32;
extern sFONT Font16x24;
extern sFONT Font8x16;
/*******************中文********** 在显示屏上显示的字符大小 ***************************/
#define WIDTH_CH_CHAR 16 //中文字符宽度
#define HEIGHT_CH_CHAR 16 //中文字符高度
#define LINE(x) ((x) * (((sFONT *)LCD_GetFont())->Height))
//LINEY统一使用汉字字模的高度
#define LINEY(x) ((x) * (WIDTH_CH_CHAR))
//0表示使用SD卡字模，非零表示FLASH字模,由于SD卡字模有文件系统，速度慢很多。
#define GBKCODE_FLASH 1
#if GBKCODE_FLASH
/*使用FLASH字模*/
/*中文字库存储在FLASH的起始地址*/
/*FLASH*/
#define GBKCODE_START_ADDRESS 387*4096
/*获取字库的函数*/
//定义获取中文字符字模数组的函数名，ucBuffer为存放字模数组名，usChar为中文字符（国标码）
#define GetGBKCode( ucBuffer, usChar ) GetGBKCode_from_EXFlash( ucBuffer, usChar )
int GetGBKCode_from_EXFlash( uint8_t * pBuffer, uint16_t c);
#else
/*使用SD字模*/
/*SD卡字模路径*/
#define GBKCODE_FILE_NAME "0:/Font/GB2312_H1616.FON"
/*获取字库的函数*/
//定义获取中文字符字模数组的函数名，ucBuffer为存放字模数组名，usChar为中文字符（国标码）
#define GetGBKCode( ucBuffer, usChar ) GetGBKCode_from_sd( ucBuffer, usChar )
int GetGBKCode_from_sd ( uint8_t * pBuffer, uint16_t c);
#endif
#endif /*end of __FONT_H */
建立 LCD 文字库 内存管理文件fonts.c
代码如下 ：
/**
******************************************************************************
* @file bsp_ili9341_lcd.c
* @version V1.0
* @date 2013-xx-xx
* @brief 液晶屏字模相关（仅支持英文）
******************************************************************************
* @attention
*
* 实验平台:野火 F103-霸道 STM32 开发板
* 论坛 :http://www.firebbs.cn
* 淘宝 :https://fire-stm32.taobao.com
*
******************************************************************************
*/
#include "./fonts.h"
#include "SPI_book.h"
/***********************英文字模******************************/
/*
* 常用ASCII表，偏移量32，大小:16（高度）* 8 （宽度）
*/
/***********************英文字模******************************/
/*
* 常用ASCII表，偏移量32，大小:16（高度）* 8 （宽度）
*/
const uint8_t ASCII8x16_Table [ ] = { //@conslons字体，阴码点阵格式，逐行顺向取摸
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x18,0x18,0x18,0x18,0x18,0x18,0x08,0x00,0x08,0x18,0x00,0x00,0x00,
0x00,0x00,0x00,0x34,0x24,0x24,0x24,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x16,0x24,0x7f,0x24,0x24,0x24,0x7e,0x24,0x24,0x00,0x00,0x00,
0x00,0x00,0x00,0x08,0x3e,0x68,0x48,0x68,0x1c,0x16,0x12,0x12,0x7c,0x10,0x10,0x00,
0x00,0x00,0x00,0x61,0xd2,0x96,0x74,0x08,0x10,0x16,0x29,0x49,0xc6,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x3c,0x64,0x64,0x38,0x72,0x4a,0xce,0x46,0x7f,0x00,0x00,0x00,
0x00,0x00,0x00,0x18,0x18,0x18,0x18,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x04,0x08,0x18,0x10,0x30,0x30,0x30,0x30,0x10,0x10,0x18,0x0c,0x04,
0x00,0x00,0x00,0x20,0x10,0x08,0x08,0x0c,0x04,0x04,0x04,0x0c,0x08,0x18,0x10,0x20,
0x00,0x00,0x00,0x08,0x0a,0x34,0x1c,0x6a,0x08,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x18,0x18,0x18,0x7f,0x18,0x18,0x18,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x18,0x18,0x08,0x30,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x3c,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x18,0x18,0x00,0x00,0x00,
0x00,0x00,0x00,0x02,0x06,0x04,0x0c,0x08,0x08,0x10,0x10,0x20,0x20,0x40,0x00,0x00,
0x00,0x00,0x00,0x00,0x3c,0x66,0x42,0x47,0x5b,0x73,0x42,0x66,0x3c,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x18,0x78,0x48,0x08,0x08,0x08,0x08,0x08,0x7e,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x3c,0x46,0x06,0x06,0x04,0x08,0x10,0x20,0x7e,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x7c,0x06,0x06,0x04,0x3c,0x02,0x02,0x06,0x7c,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x0c,0x1c,0x14,0x24,0x64,0x44,0xff,0x04,0x04,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x7e,0x60,0x60,0x60,0x7e,0x02,0x02,0x06,0x7c,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x1e,0x30,0x60,0x48,0x76,0x42,0x42,0x62,0x3c,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x7e,0x02,0x06,0x04,0x0c,0x08,0x18,0x10,0x30,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x3c,0x62,0x42,0x36,0x1c,0x66,0x42,0x42,0x3c,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x3c,0x66,0x42,0x42,0x66,0x1a,0x02,0x04,0x78,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x18,0x18,0x00,0x00,0x00,0x18,0x18,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x18,0x18,0x00,0x00,0x00,0x18,0x18,0x08,0x30,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x04,0x18,0x30,0x60,0x10,0x0c,0x06,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x7e,0x00,0x7e,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x30,0x18,0x04,0x06,0x0c,0x10,0x20,0x00,0x00,0x00,
0x00,0x00,0x00,0x30,0x1c,0x06,0x06,0x06,0x18,0x10,0x00,0x10,0x10,0x00,0x00,0x00,
0x00,0x00,0x00,0x1c,0x22,0x41,0x41,0xdd,0xb5,0xa5,0xa5,0xaf,0x94,0xc0,0x40,0x3c,
0x00,0x00,0x00,0x00,0x18,0x1c,0x34,0x24,0x26,0x62,0x7e,0x43,0xc1,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x7c,0x46,0x42,0x46,0x7c,0x42,0x42,0x42,0x7c,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x1e,0x20,0x40,0x40,0x40,0x40,0x40,0x60,0x3e,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x7c,0x46,0x42,0x43,0x43,0x43,0x42,0x46,0x78,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x7e,0x60,0x60,0x60,0x7e,0x60,0x60,0x60,0x7e,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x7e,0x60,0x60,0x60,0x7e,0x60,0x60,0x60,0x60,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x1e,0x60,0x40,0x40,0xce,0x42,0x42,0x62,0x3e,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x42,0x42,0x42,0x42,0x7e,0x42,0x42,0x42,0x42,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x7e,0x18,0x18,0x18,0x18,0x18,0x18,0x18,0x7e,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x7c,0x04,0x04,0x04,0x04,0x04,0x04,0x44,0x78,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x42,0x44,0x48,0x50,0x70,0x58,0x4c,0x44,0x42,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x20,0x20,0x20,0x20,0x20,0x20,0x20,0x20,0x3e,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x62,0x66,0x67,0x5f,0x5b,0x5b,0xc1,0xc1,0xc1,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x62,0x62,0x72,0x52,0x5a,0x4a,0x4e,0x46,0x46,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x3c,0x62,0x43,0xc3,0xc3,0xc3,0x43,0x62,0x3c,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x7c,0x46,0x42,0x42,0x46,0x78,0x40,0x40,0x40,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x3c,0x62,0x43,0xc3,0xc3,0xc3,0x43,0x62,0x3c,0x18,0x0f,0x00,
0x00,0x00,0x00,0x00,0x7c,0x66,0x62,0x66,0x7c,0x6c,0x64,0x66,0x62,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x3e,0x60,0x40,0x60,0x1c,0x06,0x02,0x02,0x7c,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x7f,0x18,0x18,0x18,0x18,0x18,0x18,0x18,0x18,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x42,0x42,0x42,0x42,0x42,0x42,0x42,0x62,0x3c,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0xc1,0x43,0x42,0x62,0x26,0x24,0x34,0x1c,0x18,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0xc1,0xc1,0x41,0x49,0x5b,0x5b,0x76,0x66,0x66,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x43,0x66,0x34,0x18,0x18,0x1c,0x24,0x66,0xc3,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0xc1,0x42,0x66,0x34,0x1c,0x18,0x18,0x18,0x18,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x7e,0x02,0x04,0x0c,0x18,0x10,0x20,0x60,0x7e,0x00,0x00,0x00,
0x00,0x00,0x00,0x1c,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x1c,
0x00,0x00,0x00,0x40,0x20,0x20,0x10,0x10,0x08,0x08,0x0c,0x04,0x06,0x02,0x00,0x00,
0x00,0x00,0x00,0x3c,0x0c,0x0c,0x0c,0x0c,0x0c,0x0c,0x0c,0x0c,0x0c,0x0c,0x0c,0x3c,
0x00,0x00,0x00,0x00,0x18,0x1c,0x24,0x62,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xff,
0x00,0x00,0x00,0x20,0x10,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x3c,0x06,0x02,0x3e,0x42,0x46,0x7a,0x00,0x00,0x00,
0x00,0x00,0x00,0x40,0x40,0x40,0x5c,0x62,0x42,0x42,0x42,0x42,0x7c,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x1e,0x20,0x60,0x40,0x60,0x20,0x3e,0x00,0x00,0x00,
0x00,0x00,0x00,0x02,0x02,0x02,0x3e,0x62,0x42,0x42,0x42,0x66,0x3a,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x3c,0x62,0x42,0x7e,0x40,0x60,0x3e,0x00,0x00,0x00,
0x00,0x00,0x00,0x0f,0x18,0x10,0x10,0x7e,0x10,0x10,0x10,0x10,0x10,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x3f,0x66,0x42,0x66,0x58,0x40,0x3e,0x43,0x42,0x3c,
0x00,0x00,0x00,0x40,0x40,0x40,0x5c,0x62,0x42,0x42,0x42,0x42,0x42,0x00,0x00,0x00,
0x00,0x00,0x00,0x18,0x18,0x00,0x78,0x08,0x08,0x08,0x08,0x08,0x7e,0x00,0x00,0x00,
0x00,0x00,0x00,0x04,0x0c,0x00,0x7c,0x04,0x04,0x04,0x04,0x04,0x04,0x04,0x0c,0x78,
0x00,0x00,0x00,0x60,0x60,0x60,0x62,0x6c,0x78,0x70,0x68,0x64,0x62,0x00,0x00,0x00,
0x00,0x00,0x00,0x78,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x7e,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x76,0x4b,0x4b,0x4b,0x4b,0x4b,0x4b,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x5c,0x62,0x42,0x42,0x42,0x42,0x42,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x3c,0x62,0x42,0x43,0x42,0x62,0x3c,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x5c,0x62,0x42,0x42,0x42,0x42,0x7c,0x40,0x40,0x40,
0x00,0x00,0x00,0x00,0x00,0x00,0x3e,0x62,0x42,0x42,0x42,0x66,0x3a,0x02,0x02,0x02,
0x00,0x00,0x00,0x00,0x00,0x00,0x6e,0x72,0x63,0x60,0x60,0x60,0x60,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x3e,0x20,0x20,0x3c,0x06,0x02,0x7c,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x10,0x10,0xfe,0x10,0x10,0x10,0x10,0x10,0x1e,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x42,0x42,0x42,0x42,0x42,0x66,0x3a,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x43,0x42,0x66,0x24,0x34,0x18,0x18,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0xc1,0xc1,0x5b,0x5a,0x5e,0x66,0x66,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x62,0x26,0x1c,0x18,0x1c,0x26,0x62,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x43,0x42,0x66,0x24,0x34,0x1c,0x18,0x18,0x30,0xe0,
0x00,0x00,0x00,0x00,0x00,0x00,0x7e,0x06,0x0c,0x18,0x10,0x20,0x7e,0x00,0x00,0x00,
0x00,0x00,0x00,0x0e,0x18,0x10,0x10,0x10,0x30,0x70,0x10,0x10,0x10,0x10,0x18,0x0e,
0x00,0x00,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x08,
0x00,0x00,0x00,0x30,0x18,0x08,0x08,0x08,0x0c,0x0e,0x08,0x08,0x08,0x08,0x18,0x30,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x71,0x4b,0x06,0x00,0x00,0x00,0x00,0x00,
};
/*
* 常用ASCII表，偏移量32，大小:24（高度）* 16 （宽度）
*/
const uint8_t ASCII16x24_Table [ ] = { //@conslons字体，阴码点阵格式，逐行顺向取摸
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x03,0x80,0x01,0x80,0x01,0x80,
0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x00,0x00,
0x00,0x00,0x03,0xc0,0x03,0xc0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x0e,0x70,0x0e,0x70,0x0e,0x70,
0x0c,0x30,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x06,0x18,0x06,0x38,
0x06,0x30,0x7f,0xfe,0x0c,0x30,0x0c,0x30,0x0c,0x30,0x0c,0x30,0x7f,0xfe,0x0c,0x60,
0x1c,0x60,0x18,0x60,0x18,0x60,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xc0,0x00,0xc0,0x0f,0xf8,0x3c,0xc8,
0x31,0xc0,0x31,0x80,0x3d,0x80,0x1f,0x80,0x03,0xf0,0x01,0xf8,0x03,0x1c,0x03,0x0c,
0x03,0x1c,0x3f,0xf8,0x3f,0xe0,0x07,0x00,0x06,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x1c,0x00,0x7e,0x0e,0x63,0x0c,0x63,0x18,
0x63,0x30,0x7e,0x60,0x00,0xc0,0x01,0x80,0x03,0x00,0x07,0x7c,0x0e,0xe6,0x1c,0xc6,
0x18,0xc6,0x30,0xc6,0x60,0x7c,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x0f,0xe0,0x1c,0xf0,0x38,0x70,
0x38,0x70,0x1c,0x60,0x1f,0xc0,0x0f,0x00,0x3f,0x8c,0x71,0xcc,0x60,0xec,0x60,0x7c,
0x70,0x38,0x3c,0xfc,0x1f,0xce,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x03,0xc0,0x01,0x80,0x01,0x80,
0x01,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x30,0x00,0xe0,0x01,0xc0,0x01,0x80,
0x03,0x00,0x07,0x00,0x06,0x00,0x06,0x00,0x0e,0x00,0x0e,0x00,0x0e,0x00,0x0e,0x00,
0x06,0x00,0x07,0x00,0x03,0x00,0x03,0x80,0x01,0xc0,0x00,0xe0,0x00,0x30,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x0c,0x00,0x06,0x00,0x03,0x80,0x01,0x80,
0x01,0xc0,0x00,0xe0,0x00,0x60,0x00,0x60,0x00,0x70,0x00,0x70,0x00,0x70,0x00,0x60,
0x00,0x60,0x00,0xe0,0x00,0xc0,0x01,0x80,0x03,0x80,0x06,0x00,0x0c,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x80,0x11,0x88,0x1d,0xb8,
0x03,0xc0,0x07,0xe0,0x3d,0xbc,0x01,0x88,0x01,0x80,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x7f,0xfe,0x01,0x80,0x01,0x80,
0x01,0x80,0x01,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x03,0xc0,0x03,0xc0,0x01,0xc0,0x01,0xc0,0x03,0x80,0x1f,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x0f,0xf0,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x03,0xc0,0x03,0xc0,0x03,0xc0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x18,0x00,0x38,0x00,0x30,
0x00,0x60,0x00,0xe0,0x00,0xc0,0x01,0xc0,0x01,0x80,0x03,0x00,0x03,0x00,0x06,0x00,
0x0e,0x00,0x0c,0x00,0x1c,0x00,0x18,0x00,0x30,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x80,0x0f,0xf0,0x1c,0x38,
0x38,0x1c,0x30,0x1c,0x70,0x7e,0x70,0xee,0x73,0x8e,0x7e,0x0e,0x7c,0x0c,0x30,0x0c,
0x38,0x1c,0x1e,0x78,0x0f,0xe0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x07,0xc0,0x1f,0xc0,
0x39,0xc0,0x01,0xc0,0x01,0xc0,0x01,0xc0,0x01,0xc0,0x01,0xc0,0x01,0xc0,0x01,0xc0,
0x01,0xc0,0x3f,0xfc,0x3f,0xfc,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x03,0x80,0x1f,0xf0,0x18,0x38,
0x00,0x38,0x00,0x18,0x00,0x38,0x00,0x38,0x00,0x70,0x01,0xe0,0x03,0x80,0x07,0x00,
0x1c,0x00,0x3f,0xfc,0x3f,0xfc,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x07,0x80,0x1f,0xf0,0x00,0x38,
0x00,0x38,0x00,0x38,0x00,0x30,0x07,0xe0,0x07,0xf0,0x00,0x38,0x00,0x1c,0x00,0x1c,
0x00,0x18,0x20,0xf8,0x3f,0xe0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xf0,0x01,0xb0,
0x03,0x30,0x07,0x30,0x0e,0x30,0x1c,0x30,0x38,0x30,0x70,0x30,0x7f,0xfe,0x7f,0xfe,
0x00,0x30,0x00,0x30,0x00,0x30,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x1f,0xf8,0x18,0x00,
0x18,0x00,0x18,0x00,0x18,0x00,0x1f,0xe0,0x00,0xf8,0x00,0x1c,0x00,0x1c,0x00,0x1c,
0x00,0x38,0x00,0xf0,0x1f,0xc0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x03,0xf8,0x0f,0x00,
0x1c,0x00,0x18,0x00,0x30,0x00,0x37,0xf8,0x3c,0x3c,0x30,0x0c,0x30,0x0c,0x38,0x0c,
0x38,0x1c,0x1e,0x38,0x0f,0xf0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x3f,0xfc,0x00,0x1c,
0x00,0x18,0x00,0x38,0x00,0x70,0x00,0x60,0x00,0xe0,0x01,0xc0,0x01,0x80,0x03,0x80,
0x07,0x00,0x06,0x00,0x0e,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x03,0xc0,0x1f,0xf8,0x38,0x1c,
0x38,0x1c,0x38,0x1c,0x1c,0x38,0x0f,0xf0,0x07,0xf0,0x1c,0x78,0x38,0x1c,0x30,0x0c,
0x38,0x1c,0x3c,0x38,0x0f,0xf0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x03,0x80,0x1f,0xf0,0x38,0x38,
0x30,0x1c,0x70,0x1c,0x70,0x0c,0x38,0x0c,0x1f,0xfc,0x0f,0xcc,0x00,0x1c,0x00,0x18,
0x00,0x70,0x1f,0xe0,0x1f,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x03,0xc0,0x03,0xc0,0x01,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x03,0xc0,0x03,0xc0,0x03,0xc0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x03,0xc0,0x03,0xc0,0x01,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x03,0xc0,0x03,0xc0,0x01,0xc0,0x01,0xc0,0x03,0x80,0x0f,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x38,0x00,0xf0,0x01,0xc0,0x07,0x00,0x1e,0x00,0x38,0x00,0x0e,0x00,0x07,0x80,
0x01,0xc0,0x00,0x70,0x00,0x30,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x3f,0xfc,0x00,0x00,0x00,0x00,0x3f,0xfc,0x3f,0xfc,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x1c,0x00,0x0f,0x00,0x03,0x80,0x01,0xe0,0x00,0x78,0x00,0x1c,0x00,0x70,0x01,0xe0,
0x03,0x80,0x0e,0x00,0x0c,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x0f,0xc0,0x00,0xf0,0x00,0x38,
0x00,0x38,0x00,0x38,0x00,0x38,0x03,0xf0,0x03,0x80,0x03,0x00,0x03,0x00,0x00,0x00,
0x00,0x00,0x07,0x80,0x07,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xe0,0x07,0xf8,0x0c,0x0c,0x18,0x06,
0x30,0x06,0x70,0x03,0x63,0xf3,0x66,0x33,0xc6,0x73,0xcc,0x63,0xcc,0x62,0xcc,0x66,
0xcc,0xe6,0xc7,0xfc,0xe0,0x00,0x60,0x00,0x70,0x00,0x38,0x10,0x1f,0xf0,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x03,0xc0,0x07,0xe0,
0x06,0xe0,0x0e,0x70,0x0e,0x70,0x0c,0x30,0x1c,0x38,0x18,0x18,0x3f,0xfc,0x3f,0xfc,
0x70,0x0e,0x60,0x0e,0xe0,0x07,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x3f,0xf0,0x38,0x38,
0x38,0x1c,0x38,0x1c,0x38,0x38,0x3f,0xf0,0x3f,0xf8,0x38,0x1c,0x38,0x0c,0x38,0x0c,
0x38,0x1c,0x3f,0xf8,0x3f,0xe0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xe0,0x07,0xfc,0x1e,0x04,
0x38,0x00,0x38,0x00,0x30,0x00,0x70,0x00,0x70,0x00,0x70,0x00,0x30,0x00,0x38,0x00,
0x3c,0x00,0x1f,0x9c,0x07,0xfc,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x3f,0xf0,0x30,0x78,
0x30,0x1c,0x30,0x0c,0x30,0x0e,0x30,0x0e,0x30,0x0e,0x30,0x0e,0x30,0x0e,0x30,0x1c,
0x30,0x38,0x3f,0xf0,0x3f,0xc0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x1f,0xf8,0x18,0x00,
0x18,0x00,0x18,0x00,0x18,0x00,0x1f,0xf8,0x1f,0xf8,0x18,0x00,0x18,0x00,0x18,0x00,
0x18,0x00,0x1f,0xf8,0x1f,0xf8,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x1f,0xf8,0x18,0x00,
0x18,0x00,0x18,0x00,0x18,0x00,0x1f,0xf8,0x1f,0xf8,0x18,0x00,0x18,0x00,0x18,0x00,
0x18,0x00,0x18,0x00,0x18,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xf0,0x07,0xfc,0x1e,0x04,
0x38,0x00,0x30,0x00,0x70,0x00,0x70,0x00,0x70,0xfc,0x70,0x0c,0x70,0x0c,0x30,0x0c,
0x38,0x0c,0x1f,0x1c,0x07,0xfc,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x30,0x0c,0x30,0x0c,
0x30,0x0c,0x30,0x0c,0x30,0x0c,0x3f,0xfc,0x3f,0xfc,0x30,0x0c,0x30,0x0c,0x30,0x0c,
0x30,0x0c,0x30,0x0c,0x30,0x0c,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x3f,0xfc,0x01,0x80,
0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,
0x01,0x80,0x3f,0xfc,0x3f,0xfc,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x1f,0xf0,0x00,0x30,
0x00,0x30,0x00,0x30,0x00,0x30,0x00,0x30,0x00,0x30,0x00,0x30,0x00,0x30,0x00,0x30,
0x00,0x70,0x1d,0xe0,0x1f,0xc0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x38,0x1c,0x38,0x70,
0x38,0xe0,0x39,0xc0,0x3b,0x80,0x3f,0x00,0x3f,0x00,0x3b,0x80,0x39,0xc0,0x38,0xe0,
0x38,0x70,0x38,0x38,0x38,0x1c,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x1c,0x00,0x1c,0x00,
0x1c,0x00,0x1c,0x00,0x1c,0x00,0x1c,0x00,0x1c,0x00,0x1c,0x00,0x1c,0x00,0x1c,0x00,
0x1c,0x00,0x1f,0xfc,0x1f,0xfc,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x38,0x1c,0x7c,0x3c,
0x6c,0x3e,0x6e,0x6e,0x66,0x6e,0x66,0xce,0x63,0xc6,0x63,0x86,0x61,0x86,0x60,0x06,
0x60,0x06,0x60,0x06,0x60,0x06,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x3c,0x0c,0x3c,0x0c,
0x3e,0x0c,0x36,0x0c,0x33,0x0c,0x33,0x8c,0x31,0x8c,0x31,0xcc,0x30,0xec,0x30,0x6c,
0x30,0x7c,0x30,0x3c,0x30,0x1c,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0xc0,0x0f,0xf8,0x1c,0x3c,
0x38,0x1c,0x70,0x0e,0x70,0x0e,0x60,0x06,0x60,0x06,0x70,0x0e,0x70,0x0e,0x70,0x0c,
0x38,0x1c,0x1e,0x78,0x0f,0xe0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x3f,0xf0,0x38,0x3c,
0x38,0x1c,0x38,0x0c,0x38,0x0c,0x38,0x1c,0x38,0x78,0x3f,0xe0,0x38,0x00,0x38,0x00,
0x38,0x00,0x38,0x00,0x38,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0xc0,0x0f,0xf8,0x1c,0x3c,
0x38,0x1c,0x70,0x0e,0x70,0x0e,0x60,0x06,0x60,0x06,0x70,0x0e,0x70,0x0e,0x70,0x0c,
0x38,0x1c,0x1e,0x78,0x0f,0xe0,0x01,0x80,0x01,0xc0,0x00,0xff,0x00,0x3c,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x3f,0xf0,0x38,0x38,
0x38,0x18,0x38,0x18,0x38,0x38,0x38,0xf0,0x3f,0xc0,0x38,0xe0,0x38,0x70,0x38,0x38,
0x38,0x38,0x38,0x1c,0x38,0x0e,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0xe0,0x0f,0xf8,0x38,0x00,
0x38,0x00,0x38,0x00,0x3c,0x00,0x1f,0x80,0x03,0xf0,0x00,0x78,0x00,0x1c,0x00,0x1c,
0x00,0x1c,0x38,0x78,0x3f,0xe0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x7f,0xfe,0x01,0x80,
0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,
0x01,0x80,0x01,0x80,0x01,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x30,0x0c,0x30,0x0c,
0x30,0x0c,0x30,0x0c,0x30,0x0c,0x30,0x0c,0x30,0x0c,0x30,0x0c,0x30,0x0c,0x30,0x0c,
0x38,0x1c,0x1c,0x38,0x0f,0xf0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xe0,0x06,0x70,0x0e,
0x70,0x0e,0x38,0x1c,0x38,0x1c,0x1c,0x18,0x1c,0x38,0x0c,0x30,0x0e,0x70,0x06,0x60,
0x07,0xe0,0x03,0xc0,0x03,0xc0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x60,0x06,0x60,0x06,
0x60,0x06,0x60,0x06,0x61,0x86,0x63,0x86,0x73,0xc6,0x73,0xce,0x76,0x6c,0x36,0x6c,
0x3c,0x3c,0x3c,0x3c,0x38,0x1c,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x30,0x1c,0x38,0x18,
0x1c,0x38,0x0e,0x70,0x07,0xe0,0x03,0xc0,0x03,0xc0,0x07,0xe0,0x0e,0x70,0x1c,0x38,
0x18,0x38,0x38,0x1c,0x70,0x0e,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x70,0x0e,0x70,0x0c,
0x38,0x1c,0x1c,0x38,0x0e,0x70,0x06,0x60,0x07,0xe0,0x03,0xc0,0x01,0x80,0x01,0x80,
0x01,0x80,0x01,0x80,0x01,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x3f,0xfc,0x00,0x1c,
0x00,0x38,0x00,0x70,0x00,0xe0,0x01,0xc0,0x03,0x80,0x07,0x00,0x0e,0x00,0x0c,0x00,
0x18,0x00,0x3f,0xfc,0x3f,0xfc,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x07,0xf0,0x07,0xf0,0x06,0x00,0x06,0x00,
0x06,0x00,0x06,0x00,0x06,0x00,0x06,0x00,0x06,0x00,0x06,0x00,0x06,0x00,0x06,0x00,
0x06,0x00,0x06,0x00,0x06,0x00,0x06,0x00,0x06,0x00,0x06,0x00,0x07,0xf0,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x18,0x00,0x1c,0x00,0x0c,0x00,
0x06,0x00,0x07,0x00,0x03,0x00,0x03,0x80,0x01,0x80,0x01,0xc0,0x00,0xc0,0x00,0x60,
0x00,0x70,0x00,0x30,0x00,0x38,0x00,0x18,0x00,0x0c,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x0f,0xe0,0x0f,0xe0,0x00,0x60,0x00,0x60,
0x00,0x60,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0x60,
0x00,0x60,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0x60,0x0f,0xe0,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x03,0xc0,0x06,0xc0,
0x06,0x60,0x0c,0x30,0x18,0x18,0x30,0x1c,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xff,0xff,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x1e,0x00,0x03,0x80,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x1f,0xf0,0x10,0x38,0x00,0x1c,0x00,0x1c,0x0f,0xfc,0x1c,0x1c,0x38,0x1c,
0x38,0x1c,0x3c,0xfc,0x1f,0xdc,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x38,0x00,0x38,0x00,0x38,0x00,
0x38,0x00,0x3b,0xf8,0x3e,0x1c,0x3c,0x1c,0x38,0x0c,0x38,0x0c,0x38,0x0c,0x38,0x0c,
0x38,0x1c,0x3c,0x78,0x1f,0xe0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x07,0xf8,0x0e,0x00,0x1c,0x00,0x38,0x00,0x38,0x00,0x38,0x00,0x38,0x00,
0x1c,0x00,0x0f,0x18,0x07,0xf8,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x1c,0x00,0x1c,0x00,0x1c,
0x00,0x1c,0x0f,0xfc,0x1c,0x1c,0x38,0x1c,0x30,0x1c,0x30,0x1c,0x30,0x1c,0x30,0x1c,
0x38,0x3c,0x1c,0xfc,0x0f,0x9c,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x0f,0xf0,0x1c,0x38,0x38,0x1c,0x30,0x0c,0x3f,0xfc,0x30,0x00,0x30,0x00,
0x38,0x00,0x1e,0x0c,0x07,0xfc,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x3c,0x01,0xfe,0x03,0x80,0x03,0x00,
0x03,0x00,0x03,0x00,0x7f,0xfc,0x7f,0xfc,0x03,0x00,0x03,0x00,0x03,0x00,0x03,0x00,
0x03,0x00,0x03,0x00,0x03,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x0f,0xfe,0x1c,0x38,0x38,0x18,0x38,0x18,0x18,0x38,0x1f,0xf0,0x3b,0x80,
0x30,0x00,0x3f,0xf0,0x1f,0xfc,0x30,0x0e,0x70,0x0e,0x38,0x1c,0x1f,0xf8,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x38,0x00,0x38,0x00,0x38,0x00,
0x38,0x00,0x3b,0xf8,0x3e,0x38,0x3c,0x1c,0x38,0x1c,0x38,0x1c,0x38,0x1c,0x38,0x1c,
0x38,0x1c,0x38,0x1c,0x38,0x1c,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x80,0x03,0xc0,0x03,0xc0,0x00,0x00,
0x00,0x00,0x1f,0xc0,0x01,0xc0,0x01,0xc0,0x01,0xc0,0x01,0xc0,0x01,0xc0,0x01,0xc0,
0x01,0xc0,0x01,0xc0,0x3f,0xfc,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x20,0x00,0x70,0x00,0x70,0x00,0x00,
0x00,0x00,0x3f,0xf0,0x00,0x70,0x00,0x70,0x00,0x70,0x00,0x70,0x00,0x70,0x00,0x70,
0x00,0x70,0x00,0x70,0x00,0x70,0x00,0x70,0x00,0x70,0x20,0xe0,0x3f,0xc0,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x18,0x00,0x18,0x00,0x18,0x00,
0x18,0x00,0x18,0x3c,0x18,0x70,0x18,0xe0,0x1b,0x80,0x1f,0x00,0x1b,0x80,0x19,0xe0,
0x18,0x70,0x18,0x38,0x18,0x1c,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x1f,0xc0,0x01,0xc0,0x01,0xc0,
0x01,0xc0,0x01,0xc0,0x01,0xc0,0x01,0xc0,0x01,0xc0,0x01,0xc0,0x01,0xc0,0x01,0xc0,
0x01,0xc0,0x01,0xc0,0x3f,0xfc,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x6f,0x3c,0x79,0xee,0x71,0xce,0x71,0x8e,0x71,0x8e,0x71,0x8e,0x71,0x8e,
0x71,0x8e,0x71,0x8e,0x71,0x8e,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x3b,0xf8,0x3e,0x38,0x3c,0x1c,0x38,0x1c,0x38,0x1c,0x38,0x1c,0x38,0x1c,
0x38,0x1c,0x38,0x1c,0x38,0x1c,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x0f,0xf0,0x1c,0x3c,0x38,0x1c,0x70,0x0e,0x70,0x0e,0x70,0x0e,0x70,0x0c,
0x38,0x1c,0x1e,0x78,0x0f,0xe0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x3b,0xf8,0x3e,0x1c,0x3c,0x1c,0x38,0x0c,0x38,0x0c,0x38,0x0c,0x38,0x0c,
0x38,0x1c,0x3c,0x78,0x3f,0xe0,0x38,0x00,0x38,0x00,0x38,0x00,0x38,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x0f,0xfc,0x1c,0x1c,0x38,0x1c,0x30,0x1c,0x30,0x1c,0x30,0x1c,0x30,0x1c,
0x38,0x3c,0x1c,0xfc,0x0f,0x9c,0x00,0x1c,0x00,0x1c,0x00,0x1c,0x00,0x1c,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x19,0xf8,0x1f,0x1c,0x1c,0x0c,0x18,0x0e,0x18,0x00,0x18,0x00,0x18,0x00,
0x18,0x00,0x18,0x00,0x18,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x0f,0xf8,0x1c,0x00,0x18,0x00,0x1e,0x00,0x0f,0xc0,0x01,0xf8,0x00,0x18,
0x00,0x18,0x18,0x38,0x1f,0xf0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x06,0x00,0x06,0x00,
0x06,0x00,0x7f,0xfc,0x06,0x00,0x06,0x00,0x06,0x00,0x06,0x00,0x06,0x00,0x06,0x00,
0x07,0x00,0x07,0x84,0x01,0xfc,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x38,0x1c,0x38,0x1c,0x38,0x1c,0x38,0x1c,0x38,0x1c,0x38,0x1c,0x38,0x1c,
0x38,0x3c,0x1c,0xfc,0x0f,0xdc,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x70,0x0c,0x38,0x1c,0x38,0x18,0x1c,0x38,0x0c,0x30,0x0e,0x70,0x06,0x60,
0x07,0xe0,0x03,0xc0,0x03,0xc0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x60,0x06,0x60,0x06,0x61,0x86,0x73,0x8e,0x73,0xcc,0x33,0xcc,0x36,0x6c,
0x36,0x6c,0x3c,0x3c,0x3c,0x38,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x38,0x1c,0x1c,0x38,0x0e,0x70,0x07,0xe0,0x03,0xc0,0x03,0xc0,0x07,0xe0,
0x0e,0x70,0x1c,0x38,0x38,0x1e,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x70,0x0c,0x38,0x1c,0x38,0x18,0x1c,0x38,0x0c,0x30,0x0e,0x70,0x06,0x60,
0x07,0xe0,0x03,0xc0,0x03,0xc0,0x03,0x80,0x07,0x00,0x0e,0x00,0x7c,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x1f,0xf8,0x00,0x38,0x00,0x70,0x00,0xe0,0x01,0xc0,0x03,0x80,0x07,0x00,
0x0c,0x00,0x1f,0xfc,0x3f,0xfc,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x78,0x01,0xf8,0x03,0x80,0x03,0x80,
0x03,0x80,0x03,0x80,0x03,0x80,0x03,0x00,0x3f,0x00,0x3e,0x00,0x03,0x00,0x03,0x80,
0x03,0x80,0x03,0x80,0x03,0x80,0x03,0x80,0x03,0x80,0x01,0xc0,0x00,0xf8,0x00,0x00,
0x00,0x00,0x00,0x00,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,
0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,
0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x1e,0x00,0x1f,0x80,0x01,0x80,0x01,0xc0,
0x01,0xc0,0x01,0xc0,0x01,0xc0,0x00,0xc0,0x00,0xfc,0x00,0x7c,0x00,0xc0,0x01,0xc0,
0x01,0xc0,0x01,0xc0,0x01,0xc0,0x01,0xc0,0x01,0xc0,0x03,0x80,0x1f,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x1c,0x00,0x3f,0x06,0x71,0xce,0x60,0xfc,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
};
/*
* 常用ASCII表，偏移量32，大小:32（高度）* 24 （宽度）
*/
const uint8_t ASCII24x32_Table [ ] = { //@conslons字体，阴码点阵格式，逐行顺向取摸
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x3c,0x00,0x00,0x3c,0x00,0x00,0x3c,0x00,0x00,0x3c,0x00,0x00,0x3c,
0x00,0x00,0x3c,0x00,0x00,0x3c,0x00,0x00,0x3c,0x00,0x00,0x3c,0x00,0x00,0x3c,0x00,
0x00,0x3c,0x00,0x00,0x3c,0x00,0x00,0x3c,0x00,0x00,0x3c,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x3c,0x00,0x00,0x7e,0x00,0x00,0x3c,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x03,0xc3,0xe0,0x03,0xc3,0xe0,0x03,0xc3,0xc0,0x03,0xc3,0xc0,0x03,0xc3,
0xc0,0x03,0xc3,0xc0,0x03,0xc1,0xc0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0xe0,0xe0,0x01,0xc0,0xe0,0x01,0xc0,
0xe0,0x01,0xc0,0xe0,0x3f,0xff,0xfe,0x3f,0xff,0xfe,0x03,0xc1,0xc0,0x03,0x81,0xc0,
0x03,0x81,0xc0,0x03,0x81,0xc0,0x7f,0xff,0xfc,0x7f,0xff,0xfc,0x07,0x83,0x80,0x07,
0x03,0x80,0x07,0x03,0x80,0x07,0x03,0x80,0x07,0x07,0x80,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x07,0x00,0x00,0x0f,0x00,0x00,0x0e,0x00,0x01,0xff,0xf0,0x07,0xff,0xf0,0x1f,0x0e,
0x00,0x1e,0x1e,0x00,0x1e,0x1c,0x00,0x1e,0x1c,0x00,0x0f,0xdc,0x00,0x07,0xfc,0x00,
0x00,0xff,0x80,0x00,0x3f,0xf0,0x00,0x38,0xf8,0x00,0x38,0x78,0x00,0x78,0x3c,0x00,
0x70,0x78,0x30,0x71,0xf8,0x3f,0xff,0xe0,0x1f,0xff,0x00,0x00,0xe0,0x00,0x00,0xe0,
0x00,0x00,0xe0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x0f,0x80,0x0f,0x3f,0xe0,0x1e,0x78,0x70,0x3c,0x70,0x70,0x70,0x70,0x70,
0xe0,0x70,0x71,0xc0,0x3f,0xe3,0x80,0x1f,0xc7,0x00,0x00,0x0e,0x00,0x00,0x1c,0x00,
0x00,0x78,0x00,0x00,0xf0,0xf0,0x01,0xe7,0xfc,0x03,0xcf,0x0e,0x07,0x8e,0x0e,0x0f,
0x0e,0x0e,0x1e,0x0e,0x0e,0x3c,0x07,0xbc,0x70,0x03,0xf8,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x01,0xff,0x00,0x07,0xff,0x80,0x0f,0x03,0xc0,0x0f,0x03,
0xc0,0x0f,0x03,0xc0,0x0f,0x07,0x80,0x07,0x9f,0x00,0x03,0xfe,0x00,0x03,0xf0,0x00,
0x0f,0xf8,0x3c,0x3e,0x7c,0x3c,0x3c,0x1f,0x3c,0x78,0x0f,0xf8,0x78,0x07,0xf8,0x7c,
0x01,0xf0,0x3e,0x03,0xf8,0x1f,0xff,0xfc,0x07,0xfe,0x1f,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x3e,0x00,0x00,0x3c,0x00,0x00,0x3c,0x00,0x00,0x3c,0x00,0x00,0x3c,
0x00,0x00,0x3c,0x00,0x00,0x3c,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x80,0x00,0x01,0xc0,0x00,0x07,0x80,0x00,0x0f,0x00,0x00,0x1e,0x00,0x00,0x3c,
0x00,0x00,0x78,0x00,0x00,0xf0,0x00,0x00,0xe0,0x00,0x01,0xe0,0x00,0x01,0xe0,0x00,
0x01,0xc0,0x00,0x03,0xc0,0x00,0x03,0xc0,0x00,0x01,0xc0,0x00,0x01,0xe0,0x00,0x01,
0xe0,0x00,0x00,0xf0,0x00,0x00,0xf0,0x00,0x00,0x78,0x00,0x00,0x3c,0x00,0x00,0x1e,
0x00,0x00,0x0f,0x00,0x00,0x07,0xc0,0x00,0x01,0xc0,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x03,0xc0,0x00,0x01,0xe0,0x00,0x00,0xf0,0x00,0x00,0x7c,0x00,0x00,0x3e,
0x00,0x00,0x1e,0x00,0x00,0x0f,0x00,0x00,0x07,0x80,0x00,0x07,0x80,0x00,0x03,0x80,
0x00,0x03,0xc0,0x00,0x03,0xc0,0x00,0x03,0xc0,0x00,0x03,0xc0,0x00,0x03,0x80,0x00,
0x07,0x80,0x00,0x07,0x80,0x00,0x0f,0x00,0x00,0x1e,0x00,0x00,0x3c,0x00,0x00,0x78,
0x00,0x00,0xf0,0x00,0x01,0xe0,0x00,0x03,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x1c,0x00,0x00,0x1c,0x00,0x00,0x18,0x00,0x0f,0x18,0xf0,0x07,0xdb,
0xe0,0x00,0x7f,0x00,0x00,0xff,0x00,0x07,0xdb,0xe0,0x0e,0x18,0x70,0x00,0x18,0x00,
0x00,0x1c,0x00,0x00,0x1c,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x3c,0x00,0x00,0x3c,0x00,0x00,0x3c,0x00,0x00,0x3c,0x00,0x00,0x3c,0x00,
0x00,0x3c,0x00,0x3f,0xff,0xfc,0x3f,0xff,0xfc,0x00,0x3c,0x00,0x00,0x3c,0x00,0x00,
0x3c,0x00,0x00,0x3c,0x00,0x00,0x3c,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x7c,0x00,0x00,0x7e,0x00,0x00,0x7e,0x00,0x00,0x3e,0x00,0x00,0x1e,0x00,0x00,0x3c,
0x00,0x00,0xf8,0x00,0x07,0xe0,0x00,0x04,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x03,0xff,0xe0,0x03,0xff,0xe0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x7c,0x00,0x00,0xfe,0x00,0x00,0xfe,0x00,0x00,0x7e,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x78,0x00,0x00,0xf0,0x00,0x00,0xe0,0x00,0x01,0xe0,0x00,0x03,
0xc0,0x00,0x03,0x80,0x00,0x07,0x80,0x00,0x0f,0x00,0x00,0x0e,0x00,0x00,0x1e,0x00,
0x00,0x3c,0x00,0x00,0x38,0x00,0x00,0x70,0x00,0x00,0xf0,0x00,0x00,0xe0,0x00,0x01,
0xc0,0x00,0x03,0xc0,0x00,0x07,0x80,0x00,0x07,0x00,0x00,0x0f,0x00,0x00,0x1e,0x00,
0x00,0x1c,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0xff,0xc0,0x07,0xff,0xe0,0x0f,0x00,
0xf0,0x1e,0x00,0x78,0x1e,0x00,0x3c,0x3c,0x00,0xfc,0x3c,0x07,0xfc,0x3c,0x1f,0xbc,
0x3c,0x7c,0x1c,0x3d,0xf0,0x3c,0x3f,0xc0,0x3c,0x3f,0x00,0x3c,0x1e,0x00,0x38,0x1e,
0x00,0x78,0x0f,0x80,0xf0,0x07,0xff,0xe0,0x01,0xff,0x80,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x7e,0x00,0x03,0xfe,0x00,0x1f,0xde,
0x00,0x0e,0x1e,0x00,0x00,0x1e,0x00,0x00,0x1e,0x00,0x00,0x1e,0x00,0x00,0x1e,0x00,
0x00,0x1e,0x00,0x00,0x1e,0x00,0x00,0x1e,0x00,0x00,0x1e,0x00,0x00,0x1e,0x00,0x00,
0x1e,0x00,0x00,0x1e,0x00,0x0f,0xff,0xf8,0x0f,0xff,0xf8,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x03,0xff,0x80,0x0f,0xff,0xe0,0x0e,0x01,
0xf0,0x00,0x00,0xf0,0x00,0x00,0xf0,0x00,0x00,0xf0,0x00,0x00,0xf0,0x00,0x01,0xe0,
0x00,0x03,0xc0,0x00,0x0f,0x80,0x00,0x3e,0x00,0x00,0x7c,0x00,0x01,0xf0,0x00,0x03,
0xc0,0x00,0x0f,0x80,0x00,0x1f,0xff,0xfc,0x1f,0xff,0xfc,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x0f,0xff,0x80,0x0f,0xff,0xe0,0x00,0x01,
0xe0,0x00,0x00,0xf0,0x00,0x00,0xf0,0x00,0x01,0xe0,0x00,0x03,0xc0,0x01,0xff,0x00,
0x01,0xff,0xc0,0x00,0x03,0xf0,0x00,0x00,0x78,0x00,0x00,0x78,0x00,0x00,0x78,0x00,
0x00,0x78,0x00,0x01,0xf0,0x0f,0xff,0xc0,0x0f,0xff,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x0f,0xc0,0x00,0x1f,0xc0,0x00,0x3f,
0xc0,0x00,0x7b,0xc0,0x00,0xf3,0xc0,0x01,0xe3,0xc0,0x03,0xc3,0xc0,0x07,0x83,0xc0,
0x0f,0x03,0xc0,0x1c,0x03,0xc0,0x38,0x03,0xc0,0x7f,0xff,0xfe,0x7f,0xff,0xfe,0x00,
0x03,0xc0,0x00,0x03,0xc0,0x00,0x03,0xc0,0x00,0x03,0xc0,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x0f,0xff,0xe0,0x0f,0xff,0xe0,0x0f,0x00,
0x00,0x0f,0x00,0x00,0x0f,0x00,0x00,0x0f,0x00,0x00,0x0f,0x00,0x00,0x0f,0xff,0x80,
0x0f,0xff,0xe0,0x00,0x00,0xf0,0x00,0x00,0x78,0x00,0x00,0x78,0x00,0x00,0x78,0x00,
0x00,0xf0,0x00,0x03,0xe0,0x0f,0xff,0xc0,0x0f,0xfe,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x3f,0xf0,0x01,0xff,0xf0,0x03,0xe0,
0x00,0x07,0x80,0x00,0x0f,0x00,0x00,0x1e,0x00,0x00,0x1e,0x1f,0x00,0x1f,0xff,0xe0,
0x1f,0xc1,0xf8,0x1e,0x00,0x78,0x1e,0x00,0x3c,0x1e,0x00,0x3c,0x1e,0x00,0x3c,0x0f,
0x00,0x78,0x0f,0x80,0xf8,0x07,0xff,0xe0,0x01,0xff,0x80,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x1f,0xff,0xfc,0x1f,0xff,0xfc,0x00,0x00,
0x78,0x00,0x00,0xf0,0x00,0x00,0xe0,0x00,0x01,0xe0,0x00,0x03,0xc0,0x00,0x07,0x80,
0x00,0x0f,0x00,0x00,0x0f,0x00,0x00,0x1e,0x00,0x00,0x3c,0x00,0x00,0x78,0x00,0x00,
0xf0,0x00,0x01,0xf0,0x00,0x01,0xe0,0x00,0x03,0xc0,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x03,0xff,0xe0,0x0f,0xe3,0xf0,0x0f,0x00,
0x78,0x1e,0x00,0x78,0x1e,0x00,0x78,0x0f,0x00,0xf0,0x07,0xe3,0xe0,0x01,0xff,0x80,
0x01,0xff,0x80,0x07,0xe7,0xe0,0x0f,0x00,0xf8,0x1e,0x00,0x78,0x1e,0x00,0x3c,0x1e,
0x00,0x7c,0x1f,0x00,0xf8,0x0f,0xff,0xf0,0x03,0xff,0xc0,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x03,0xff,0x80,0x0f,0xc7,0xe0,0x1e,0x00,
0xf0,0x1e,0x00,0x78,0x3c,0x00,0x78,0x3c,0x00,0x78,0x3c,0x00,0x38,0x1e,0x00,0x78,
0x0f,0xef,0xf8,0x07,0xff,0xb8,0x00,0x00,0x78,0x00,0x00,0x78,0x00,0x00,0xf0,0x00,
0x01,0xe0,0x00,0x0f,0xc0,0x0f,0xff,0x00,0x0f,0xf0,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x7e,0x00,0x00,0x7e,0x00,0x00,0x7e,0x00,0x00,0x18,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x3c,0x00,0x00,0x7e,0x00,0x00,0x7e,0x00,0x00,0x3e,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x7e,0x00,0x00,0x7e,0x00,0x00,0x7e,0x00,0x00,0x18,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x3e,0x00,0x00,0x7e,0x00,0x00,0x7f,0x00,0x00,0x1f,0x00,0x00,0x1e,0x00,0x00,0x1e,
0x00,0x00,0xfc,0x00,0x07,0xf0,0x00,0x04,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x40,0x00,0x01,0xe0,0x00,0x07,0xc0,0x00,0x1f,0x00,0x00,0x7e,0x00,0x01,0xf8,0x00,
0x03,0xe0,0x00,0x0f,0x80,0x00,0x0f,0x80,0x00,0x03,0xe0,0x00,0x00,0xf8,0x00,0x00,
0x3e,0x00,0x00,0x0f,0x80,0x00,0x03,0xe0,0x00,0x00,0xe0,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x1f,0xff,0xf8,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x1f,0xff,0xf8,0x1f,0xff,0xf8,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x07,0x80,0x00,0x03,0xe0,0x00,0x00,0xf8,0x00,0x00,0x3e,0x00,0x00,0x0f,0x80,
0x00,0x03,0xe0,0x00,0x00,0xf8,0x00,0x01,0xf0,0x00,0x07,0xc0,0x00,0x1f,0x00,0x00,
0x7c,0x00,0x01,0xf0,0x00,0x07,0xc0,0x00,0x03,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x01,0xc0,0x00,0x01,0xfe,0x00,0x00,0x7f,0x80,0x00,0x07,0xc0,0x00,0x01,
0xe0,0x00,0x00,0xf0,0x00,0x00,0xf0,0x00,0x01,0xf0,0x00,0x03,0xe0,0x00,0x7f,0xc0,
0x00,0x7e,0x00,0x00,0x70,0x00,0x00,0x70,0x00,0x00,0x70,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0xf8,0x00,0x00,0xf8,0x00,0x00,0xf8,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x1f,0x80,0x00,0xff,0xf0,0x03,0xc0,0x78,0x07,0x80,0x1c,0x0e,0x00,
0x0e,0x1c,0x00,0x0e,0x3c,0x00,0x0f,0x38,0x3f,0xc7,0x78,0xff,0xc7,0x70,0xe3,0xc7,
0x71,0xc3,0xc7,0xf3,0xc3,0x87,0xe3,0xc3,0x87,0xe3,0x87,0x8e,0xe3,0x87,0x8e,0xe3,
0xcf,0x8e,0xe3,0xff,0xfc,0x71,0xf9,0xf0,0x70,0x00,0x00,0x70,0x00,0x00,0x38,0x00,
0x00,0x3c,0x00,0x00,0x0f,0x01,0xc0,0x07,0xff,0xc0,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x7e,0x00,0x00,0x7f,0x00,0x00,0xff,
0x00,0x00,0xe7,0x80,0x01,0xe7,0x80,0x03,0xc3,0xc0,0x03,0xc3,0xc0,0x07,0x81,0xe0,
0x07,0x81,0xe0,0x0f,0x00,0xf0,0x0f,0x00,0xf8,0x1f,0xff,0xf8,0x1f,0xff,0xfc,0x3c,
0x00,0x3c,0x3c,0x00,0x1e,0x78,0x00,0x1e,0xf0,0x00,0x0f,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x1f,0xff,0xc0,0x1f,0xff,0xf0,0x1e,0x00,
0xf0,0x1e,0x00,0x78,0x1e,0x00,0x78,0x1e,0x00,0xf0,0x1e,0x01,0xf0,0x1f,0xff,0xc0,
0x1f,0xff,0xe0,0x1e,0x01,0xf8,0x1e,0x00,0x78,0x1e,0x00,0x3c,0x1e,0x00,0x3c,0x1e,
0x00,0x78,0x1e,0x00,0xf8,0x1f,0xff,0xe0,0x1f,0xff,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xff,0xf8,0x03,0xff,0xf8,0x07,0xc0,
0x00,0x0f,0x00,0x00,0x1e,0x00,0x00,0x1e,0x00,0x00,0x3c,0x00,0x00,0x3c,0x00,0x00,
0x3c,0x00,0x00,0x3c,0x00,0x00,0x3c,0x00,0x00,0x3e,0x00,0x00,0x1e,0x00,0x00,0x0f,
0x00,0x00,0x0f,0xc0,0x08,0x03,0xff,0xf8,0x00,0xff,0xf8,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x3f,0xff,0x00,0x3f,0xff,0xe0,0x3c,0x01,
0xf0,0x3c,0x00,0x78,0x3c,0x00,0x3c,0x3c,0x00,0x3c,0x3c,0x00,0x3c,0x3c,0x00,0x1e,
0x3c,0x00,0x1e,0x3c,0x00,0x1e,0x3c,0x00,0x3c,0x3c,0x00,0x3c,0x3c,0x00,0x78,0x3c,
0x00,0xf8,0x3c,0x07,0xe0,0x3f,0xff,0xc0,0x3f,0xfc,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x0f,0xff,0xf0,0x0f,0xff,0xf0,0x0f,0x00,
0x00,0x0f,0x00,0x00,0x0f,0x00,0x00,0x0f,0x00,0x00,0x0f,0x00,0x00,0x0f,0xff,0xf0,
0x0f,0xff,0xf0,0x0f,0x00,0x00,0x0f,0x00,0x00,0x0f,0x00,0x00,0x0f,0x00,0x00,0x0f,
0x00,0x00,0x0f,0x00,0x00,0x0f,0xff,0xf0,0x0f,0xff,0xf0,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x0f,0xff,0xf0,0x0f,0xff,0xf0,0x0f,0x00,
0x00,0x0f,0x00,0x00,0x0f,0x00,0x00,0x0f,0x00,0x00,0x0f,0x00,0x00,0x0f,0xff,0xf0,
0x0f,0xff,0xf0,0x0f,0x00,0x00,0x0f,0x00,0x00,0x0f,0x00,0x00,0x0f,0x00,0x00,0x0f,
0x00,0x00,0x0f,0x00,0x00,0x0f,0x00,0x00,0x0f,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xff,0xfc,0x03,0xff,0xfc,0x0f,0xc0,
0x04,0x1f,0x00,0x00,0x1e,0x00,0x00,0x3c,0x00,0x00,0x3c,0x00,0x00,0x78,0x0f,0xfc,
0x78,0x0f,0xfc,0x78,0x00,0x3c,0x3c,0x00,0x3c,0x3c,0x00,0x3c,0x3e,0x00,0x3c,0x1f,
0x00,0x3c,0x0f,0xc0,0x3c,0x03,0xff,0xfc,0x00,0xff,0xf8,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x3c,0x00,0x3c,0x3c,0x00,0x3c,0x3c,0x00,
0x3c,0x3c,0x00,0x3c,0x3c,0x00,0x3c,0x3c,0x00,0x3c,0x3c,0x00,0x3c,0x3f,0xff,0xfc,
0x3f,0xff,0xfc,0x3c,0x00,0x3c,0x3c,0x00,0x3c,0x3c,0x00,0x3c,0x3c,0x00,0x3c,0x3c,
0x00,0x3c,0x3c,0x00,0x3c,0x3c,0x00,0x3c,0x3c,0x00,0x3c,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x0f,0xff,0xf8,0x0f,0xff,0xf8,0x00,0x3c,
0x00,0x00,0x3c,0x00,0x00,0x3c,0x00,0x00,0x3c,0x00,0x00,0x3c,0x00,0x00,0x3c,0x00,
0x00,0x3c,0x00,0x00,0x3c,0x00,0x00,0x3c,0x00,0x00,0x3c,0x00,0x00,0x3c,0x00,0x00,
0x3c,0x00,0x00,0x3c,0x00,0x0f,0xff,0xf8,0x0f,0xff,0xf8,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x0f,0xff,0xe0,0x0f,0xff,0xe0,0x00,0x01,
0xe0,0x00,0x01,0xe0,0x00,0x01,0xe0,0x00,0x01,0xe0,0x00,0x01,0xe0,0x00,0x01,0xe0,
0x00,0x01,0xe0,0x00,0x01,0xe0,0x00,0x01,0xe0,0x00,0x01,0xe0,0x00,0x01,0xe0,0x00,
0x03,0xc0,0x0c,0x07,0xc0,0x0f,0xff,0x80,0x07,0xfe,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x1e,0x00,0x78,0x1e,0x01,0xf0,0x1e,0x03,
0xc0,0x1e,0x07,0x80,0x1e,0x1f,0x00,0x1e,0x3c,0x00,0x1e,0x78,0x00,0x1e,0xf0,0x00,
0x1f,0xf0,0x00,0x1e,0xf8,0x00,0x1e,0x3c,0x00,0x1e,0x1e,0x00,0x1e,0x0f,0x80,0x1e,
0x07,0xc0,0x1e,0x01,0xe0,0x1e,0x00,0xf8,0x1e,0x00,0x7c,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x07,0x80,0x00,0x07,0x80,0x00,0x07,0x80,
0x00,0x07,0x80,0x00,0x07,0x80,0x00,0x07,0x80,0x00,0x07,0x80,0x00,0x07,0x80,0x00,
0x07,0x80,0x00,0x07,0x80,0x00,0x07,0x80,0x00,0x07,0x80,0x00,0x07,0x80,0x00,0x07,
0x80,0x00,0x07,0x80,0x00,0x07,0xff,0xf8,0x07,0xff,0xf8,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x3e,0x00,0x7c,0x3f,0x00,0xfc,0x3f,0x81,
0xdc,0x3b,0x81,0xdc,0x3b,0xc3,0x9c,0x39,0xc3,0x9c,0x38,0xe7,0x1c,0x38,0xef,0x1c,
0x38,0x7e,0x1c,0x38,0x7c,0x1e,0x38,0x3c,0x1e,0x78,0x00,0x1e,0x78,0x00,0x1e,0x78,
0x00,0x1e,0x78,0x00,0x1e,0x78,0x00,0x1e,0x78,0x00,0x1e,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x1f,0x00,0x3c,0x1f,0x80,0x3c,0x1f,0xc0,
0x3c,0x1d,0xc0,0x3c,0x1d,0xe0,0x3c,0x1c,0xf0,0x3c,0x1c,0x78,0x3c,0x1c,0x78,0x3c,
0x1c,0x3c,0x3c,0x1c,0x1e,0x3c,0x1c,0x0f,0x3c,0x1c,0x0f,0x3c,0x1c,0x07,0xbc,0x1c,
0x03,0xfc,0x1c,0x01,0xfc,0x1c,0x00,0xfc,0x1c,0x00,0xfc,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0xff,0xc0,0x07,0xff,0xf0,0x0f,0x00,
0xf8,0x1e,0x00,0x7c,0x3c,0x00,0x3c,0x3c,0x00,0x1e,0x78,0x00,0x1e,0x78,0x00,0x1e,
0x78,0x00,0x1e,0x78,0x00,0x1e,0x78,0x00,0x1e,0x3c,0x00,0x3c,0x3c,0x00,0x3c,0x1e,
0x00,0x78,0x1f,0x00,0xf0,0x07,0xff,0xe0,0x01,0xff,0x80,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x1f,0xff,0x80,0x1f,0xff,0xf0,0x1e,0x00,
0xf8,0x1e,0x00,0x7c,0x1e,0x00,0x3c,0x1e,0x00,0x3c,0x1e,0x00,0x3c,0x1e,0x00,0x78,
0x1e,0x03,0xf0,0x1f,0xff,0xc0,0x1f,0xfe,0x00,0x1e,0x00,0x00,0x1e,0x00,0x00,0x1e,
0x00,0x00,0x1e,0x00,0x00,0x1e,0x00,0x00,0x1e,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0xff,0xc0,0x07,0xff,0xf0,0x0f,0x00,
0xf8,0x1e,0x00,0x7c,0x3c,0x00,0x3c,0x3c,0x00,0x1e,0x78,0x00,0x1e,0x78,0x00,0x1e,
0x78,0x00,0x1e,0x78,0x00,0x1e,0x78,0x00,0x1e,0x3c,0x00,0x3c,0x3c,0x00,0x3c,0x1e,
0x00,0x78,0x1f,0x80,0xf0,0x07,0xff,0xe0,0x01,0xff,0x80,0x00,0x3c,0x00,0x00,0x3c,
0x00,0x00,0x1f,0x06,0x00,0x0f,0xff,0x00,0x01,0xf8,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x0f,0xff,0x80,0x0f,0xff,0xe0,0x0e,0x01,
0xf0,0x0e,0x00,0xf0,0x0e,0x00,0xf0,0x0e,0x00,0xf0,0x0e,0x01,0xf0,0x0f,0xff,0xc0,
0x0f,0xff,0x00,0x0e,0x1f,0x00,0x0e,0x07,0x80,0x0e,0x03,0xc0,0x0e,0x01,0xe0,0x0e,
0x00,0xf0,0x0e,0x00,0xf8,0x0e,0x00,0x78,0x0e,0x00,0x3c,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x03,0xff,0xf0,0x0f,0xff,0xf0,0x1f,0x00,
0x00,0x1e,0x00,0x00,0x1e,0x00,0x00,0x1f,0x00,0x00,0x0f,0xc0,0x00,0x07,0xfc,0x00,
0x00,0xff,0x80,0x00,0x0f,0xf0,0x00,0x01,0xf8,0x00,0x00,0x78,0x00,0x00,0x78,0x00,
0x00,0x78,0x20,0x00,0xf8,0x3f,0xff,0xe0,0x3f,0xff,0x80,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x3f,0xff,0xfc,0x3f,0xff,0xfc,0x00,0x3c,
0x00,0x00,0x3c,0x00,0x00,0x3c,0x00,0x00,0x3c,0x00,0x00,0x3c,0x00,0x00,0x3c,0x00,
0x00,0x3c,0x00,0x00,0x3c,0x00,0x00,0x3c,0x00,0x00,0x3c,0x00,0x00,0x3c,0x00,0x00,
0x3c,0x00,0x00,0x3c,0x00,0x00,0x3c,0x00,0x00,0x3c,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x3c,0x00,0x3c,0x3c,0x00,0x3c,0x3c,0x00,
0x3c,0x3c,0x00,0x3c,0x3c,0x00,0x3c,0x3c,0x00,0x3c,0x3c,0x00,0x3c,0x3c,0x00,0x3c,
0x3c,0x00,0x3c,0x3c,0x00,0x3c,0x3c,0x00,0x3c,0x3c,0x00,0x3c,0x3c,0x00,0x3c,0x1e,
0x00,0x78,0x1f,0x00,0xf8,0x0f,0xff,0xe0,0x03,0xff,0x80,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xf8,0x00,0x0f,0x78,0x00,0x1e,0x3c,0x00,
0x1e,0x3c,0x00,0x3c,0x1e,0x00,0x38,0x1e,0x00,0x78,0x0f,0x00,0x70,0x0f,0x00,0xf0,
0x07,0x81,0xe0,0x07,0x81,0xe0,0x03,0xc3,0xc0,0x03,0xe3,0xc0,0x01,0xe7,0x80,0x00,
0xf7,0x80,0x00,0xff,0x00,0x00,0x7e,0x00,0x00,0x7e,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x78,0x00,0x0e,0x78,0x00,0x0e,0x78,0x00,
0x0e,0x78,0x00,0x1e,0x38,0x00,0x1e,0x38,0x00,0x1e,0x38,0x3c,0x1c,0x38,0x3c,0x1c,
0x38,0x7e,0x1c,0x38,0x7f,0x1c,0x3c,0xe7,0x1c,0x3c,0xe7,0x9c,0x3d,0xc3,0x9c,0x1d,
0xc3,0xdc,0x1f,0x81,0xdc,0x1f,0x80,0xf8,0x1f,0x00,0xf8,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x3c,0x00,0x3c,0x1e,0x00,0x78,0x0f,0x00,
0xf0,0x07,0x81,0xe0,0x03,0xc3,0xc0,0x01,0xe7,0x80,0x00,0xff,0x00,0x00,0x7e,0x00,
0x00,0x7e,0x00,0x00,0xff,0x00,0x01,0xff,0x80,0x03,0xe7,0xc0,0x07,0xc3,0xe0,0x0f,
0x81,0xf0,0x1f,0x00,0xf8,0x3e,0x00,0x7c,0x7c,0x00,0x3e,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x78,0x00,0x1f,0x3c,0x00,0x3e,0x1e,0x00,
0x7c,0x1f,0x00,0x78,0x0f,0x80,0xf0,0x07,0xc1,0xe0,0x03,0xe3,0xc0,0x01,0xe7,0x80,
0x00,0xff,0x00,0x00,0x7e,0x00,0x00,0x3c,0x00,0x00,0x3c,0x00,0x00,0x3c,0x00,0x00,
0x3c,0x00,0x00,0x3c,0x00,0x00,0x3c,0x00,0x00,0x3c,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x1f,0xff,0xfc,0x1f,0xff,0xfc,0x00,0x00,
0xf8,0x00,0x01,0xe0,0x00,0x03,0xc0,0x00,0x07,0x80,0x00,0x0f,0x00,0x00,0x1e,0x00,
0x00,0x3c,0x00,0x00,0x78,0x00,0x00,0xf0,0x00,0x03,0xe0,0x00,0x07,0xc0,0x00,0x0f,
0x80,0x00,0x1f,0x00,0x00,0x3f,0xff,0xfc,0x3f,0xff,0xfc,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x01,0xff,0xc0,0x01,0xff,0xc0,0x01,0xe0,0x00,0x01,0xe0,0x00,0x01,0xe0,
0x00,0x01,0xe0,0x00,0x01,0xe0,0x00,0x01,0xe0,0x00,0x01,0xe0,0x00,0x01,0xe0,0x00,
0x01,0xe0,0x00,0x01,0xe0,0x00,0x01,0xe0,0x00,0x01,0xe0,0x00,0x01,0xe0,0x00,0x01,
0xe0,0x00,0x01,0xe0,0x00,0x01,0xe0,0x00,0x01,0xe0,0x00,0x01,0xe0,0x00,0x01,0xe0,
0x00,0x01,0xe0,0x00,0x01,0xe0,0x00,0x01,0xff,0xc0,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x0e,0x00,0x00,0x0f,0x00,0x00,0x07,0x00,0x00,0x03,0x80,0x00,0x03,0xc0,
0x00,0x01,0xe0,0x00,0x00,0xe0,0x00,0x00,0xf0,0x00,0x00,0x78,0x00,0x00,0x38,0x00,
0x00,0x3c,0x00,0x00,0x1e,0x00,0x00,0x0e,0x00,0x00,0x0f,0x00,0x00,0x07,0x80,0x00,
0x03,0x80,0x00,0x01,0xc0,0x00,0x01,0xe0,0x00,0x00,0xe0,0x00,0x00,0x70,0x00,0x00,
0x78,0x00,0x00,0x3c,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x03,0xff,0x80,0x03,0xff,0x80,0x00,0x07,0x80,0x00,0x07,0x80,0x00,0x07,
0x80,0x00,0x07,0x80,0x00,0x07,0x80,0x00,0x07,0x80,0x00,0x07,0x80,0x00,0x07,0x80,
0x00,0x07,0x80,0x00,0x07,0x80,0x00,0x07,0x80,0x00,0x07,0x80,0x00,0x07,0x80,0x00,
0x07,0x80,0x00,0x07,0x80,0x00,0x07,0x80,0x00,0x07,0x80,0x00,0x07,0x80,0x00,0x07,
0x80,0x00,0x07,0x80,0x00,0x07,0x80,0x03,0xff,0x80,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x3c,0x00,0x00,0x7e,0x00,0x00,0xe7,
0x00,0x01,0xc3,0x80,0x03,0x81,0xc0,0x07,0x00,0xe0,0x0e,0x00,0xf0,0x1e,0x00,0x78,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0xff,0xff,0xff,0xff,0xff,0xff,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x0f,0x80,0x00,0x03,0xe0,0x00,0x00,0xf8,0x00,0x00,0x3c,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x07,0xff,0xc0,0x07,0xe7,0xf0,0x00,0x00,0xf0,0x00,0x00,0x78,
0x00,0x00,0x78,0x00,0xff,0xf8,0x07,0xff,0xf8,0x0f,0x00,0x78,0x1e,0x00,0x78,0x1e,
0x00,0x78,0x1e,0x03,0xf8,0x0f,0xff,0xf8,0x07,0xfc,0x78,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x1e,0x00,0x00,0x1e,0x00,0x00,0x1e,0x00,0x00,0x1e,0x00,0x00,0x1e,0x00,
0x00,0x1e,0x00,0x00,0x1e,0x7f,0xe0,0x1e,0xff,0xf0,0x1f,0xc0,0x78,0x1f,0x00,0x78,
0x1e,0x00,0x3c,0x1e,0x00,0x3c,0x1e,0x00,0x3c,0x1e,0x00,0x3c,0x1e,0x00,0x38,0x1e,
0x00,0x78,0x1e,0x00,0xf0,0x1f,0xff,0xe0,0x07,0xff,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0xff,0xf0,0x03,0xff,0xf0,0x07,0xc0,0x00,0x0f,0x80,0x00,
0x0f,0x00,0x00,0x1e,0x00,0x00,0x1e,0x00,0x00,0x1e,0x00,0x00,0x0f,0x00,0x00,0x0f,
0x80,0x00,0x07,0xc0,0x00,0x03,0xff,0xf0,0x00,0xff,0xf0,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x78,0x00,0x00,0x78,0x00,0x00,0x78,0x00,0x00,0x78,0x00,0x00,
0x78,0x00,0x00,0x78,0x01,0xff,0xf8,0x07,0xff,0xf8,0x0f,0x00,0x78,0x1e,0x00,0x78,
0x1e,0x00,0x78,0x3c,0x00,0x78,0x3c,0x00,0x78,0x3c,0x00,0x78,0x1c,0x00,0x78,0x1e,
0x01,0xf8,0x1f,0x03,0xf8,0x0f,0xff,0x78,0x03,0xfc,0x78,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x01,0xff,0xc0,0x07,0xe3,0xf0,0x0f,0x00,0xf8,0x1e,0x00,0x78,
0x1e,0x00,0x3c,0x1f,0xff,0xfc,0x1f,0xff,0xfc,0x1c,0x00,0x00,0x1e,0x00,0x00,0x1e,
0x00,0x00,0x0f,0x80,0x00,0x07,0xff,0xf8,0x01,0xff,0xf8,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x03,0xfc,0x00,0x1f,0xfe,0x00,0x3e,0x00,0x00,0x78,0x00,0x00,0x78,
0x00,0x00,0x70,0x00,0x00,0x70,0x00,0x00,0x70,0x00,0x3f,0xff,0xfc,0x3f,0xff,0xfc,
0x00,0x70,0x00,0x00,0x70,0x00,0x00,0x70,0x00,0x00,0x70,0x00,0x00,0x70,0x00,0x00,
0x70,0x00,0x00,0x70,0x00,0x00,0x70,0x00,0x00,0x70,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x03,0xff,0xfc,0x07,0xc3,0xfc,0x0f,0x00,0xf0,0x1e,0x00,0xf0,
0x1e,0x00,0xf0,0x0f,0x00,0xf0,0x0f,0x83,0xe0,0x0f,0xff,0xc0,0x1e,0x7c,0x00,0x1c,
0x00,0x00,0x1f,0x00,0x00,0x0f,0xff,0xf0,0x0f,0xff,0xfc,0x1e,0x00,0x3c,0x3c,0x00,
0x3c,0x3c,0x00,0x3c,0x1f,0x81,0xf8,0x0f,0xff,0xe0,0x00,0x38,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x1e,0x00,0x00,0x1e,0x00,0x00,0x1e,0x00,0x00,0x1e,0x00,0x00,0x1e,0x00,
0x00,0x1e,0x00,0x00,0x1e,0x7f,0xe0,0x1e,0xff,0xf0,0x1f,0xc0,0xf0,0x1f,0x00,0x78,
0x1e,0x00,0x78,0x1e,0x00,0x78,0x1e,0x00,0x78,0x1e,0x00,0x78,0x1e,0x00,0x78,0x1e,
0x00,0x78,0x1e,0x00,0x78,0x1e,0x00,0x78,0x1e,0x00,0x78,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x3c,0x00,0x00,0x7e,0x00,0x00,0x7e,0x00,0x00,0x3c,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x0f,0xfe,0x00,0x0f,0xfe,0x00,0x00,0x1e,0x00,0x00,0x1e,0x00,
0x00,0x1e,0x00,0x00,0x1e,0x00,0x00,0x1e,0x00,0x00,0x1e,0x00,0x00,0x1e,0x00,0x00,
0x1e,0x00,0x00,0x1e,0x00,0x0f,0xff,0xf8,0x0f,0xff,0xf8,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x03,0x80,0x00,0x07,0xe0,0x00,0x07,0xe0,0x00,0x03,0x80,0x00,0x00,
0x00,0x00,0x00,0x00,0x0f,0xff,0xc0,0x0f,0xff,0xc0,0x00,0x03,0xc0,0x00,0x03,0xc0,
0x00,0x03,0xc0,0x00,0x03,0xc0,0x00,0x03,0xc0,0x00,0x03,0xc0,0x00,0x03,0xc0,0x00,
0x03,0xc0,0x00,0x03,0xc0,0x00,0x03,0xc0,0x00,0x03,0xc0,0x00,0x03,0xc0,0x00,0x03,
0xc0,0x00,0x07,0x80,0x1e,0x3f,0x00,0x1f,0xfe,0x00,0x01,0xc0,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x0f,0x00,0x00,0x0f,0x00,0x00,0x0f,0x00,0x00,0x0f,0x00,0x00,0x0f,0x00,
0x00,0x0f,0x00,0x00,0x0f,0x00,0xf8,0x0f,0x01,0xe0,0x0f,0x07,0xc0,0x0f,0x1f,0x00,
0x0f,0x3c,0x00,0x0f,0xf8,0x00,0x0f,0xf8,0x00,0x0f,0x3e,0x00,0x0f,0x1f,0x00,0x0f,
0x07,0xc0,0x0f,0x03,0xe0,0x0f,0x00,0xf8,0x0f,0x00,0x7c,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x0f,0xfe,0x00,0x0f,0xfe,0x00,0x00,0x1e,0x00,0x00,0x1e,0x00,0x00,0x1e,
0x00,0x00,0x1e,0x00,0x00,0x1e,0x00,0x00,0x1e,0x00,0x00,0x1e,0x00,0x00,0x1e,0x00,
0x00,0x1e,0x00,0x00,0x1e,0x00,0x00,0x1e,0x00,0x00,0x1e,0x00,0x00,0x1e,0x00,0x00,
0x1e,0x00,0x00,0x1e,0x00,0x0f,0xff,0xf8,0x0f,0xff,0xf8,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x39,0xf9,0xf8,0x3b,0xbb,0xbc,0x3e,0x3e,0x1c,0x3c,0x3e,0x1c,
0x38,0x3c,0x1c,0x38,0x3c,0x1c,0x38,0x3c,0x1c,0x38,0x3c,0x1c,0x38,0x3c,0x1c,0x38,
0x3c,0x1c,0x38,0x3c,0x1c,0x38,0x3c,0x1c,0x38,0x3c,0x1c,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x1e,0x7f,0xe0,0x1e,0xff,0xf0,0x1f,0xc0,0xf0,0x1f,0x00,0x78,
0x1e,0x00,0x78,0x1e,0x00,0x78,0x1e,0x00,0x78,0x1e,0x00,0x78,0x1e,0x00,0x78,0x1e,
0x00,0x78,0x1e,0x00,0x78,0x1e,0x00,0x78,0x1e,0x00,0x78,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x01,0xff,0xc0,0x07,0xe7,0xf0,0x0f,0x00,0xf8,0x1e,0x00,0x3c,
0x3c,0x00,0x3c,0x3c,0x00,0x3c,0x3c,0x00,0x3c,0x3c,0x00,0x3c,0x3c,0x00,0x3c,0x1e,
0x00,0x78,0x1f,0x00,0xf0,0x07,0xff,0xe0,0x01,0xff,0x80,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x1e,0x7f,0xe0,0x1e,0xff,0xf0,0x1f,0xc0,0x78,0x1f,0x00,0x78,
0x1e,0x00,0x3c,0x1e,0x00,0x3c,0x1e,0x00,0x3c,0x1e,0x00,0x3c,0x1e,0x00,0x38,0x1e,
0x00,0x78,0x1e,0x00,0xf0,0x1f,0xff,0xe0,0x1f,0xff,0x00,0x1e,0x00,0x00,0x1e,0x00,
0x00,0x1e,0x00,0x00,0x1e,0x00,0x00,0x1e,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x01,0xff,0xf8,0x07,0xf7,0xf8,0x0f,0x00,0x78,0x1e,0x00,0x78,
0x1e,0x00,0x78,0x3c,0x00,0x78,0x3c,0x00,0x78,0x3c,0x00,0x78,0x1c,0x00,0x78,0x1e,
0x01,0xf8,0x1f,0x03,0xf8,0x0f,0xff,0x78,0x03,0xfc,0x78,0x00,0x00,0x78,0x00,0x00,
0x78,0x00,0x00,0x78,0x00,0x00,0x78,0x00,0x00,0x78,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x0f,0x1f,0xf0,0x0f,0x7f,0xf8,0x0f,0xe0,0x3c,0x0f,0x80,0x3c,
0x0f,0x00,0x3c,0x0f,0x00,0x00,0x0f,0x00,0x00,0x0f,0x00,0x00,0x0f,0x00,0x00,0x0f,
0x00,0x00,0x0f,0x00,0x00,0x0f,0x00,0x00,0x0f,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x01,0xff,0xe0,0x07,0xe1,0xe0,0x0f,0x00,0x00,0x0f,0x00,0x00,
0x07,0x80,0x00,0x03,0xfc,0x00,0x00,0xff,0xc0,0x00,0x0f,0xf0,0x00,0x00,0xf0,0x00,
0x00,0x78,0x00,0x00,0xf0,0x0f,0xff,0xe0,0x0f,0xff,0x80,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0xe0,0x00,0x01,0xe0,0x00,0x01,0xe0,
0x00,0x01,0xe0,0x00,0x7f,0xff,0xf8,0x7f,0xff,0xf8,0x01,0xe0,0x00,0x01,0xe0,0x00,
0x01,0xe0,0x00,0x01,0xe0,0x00,0x01,0xe0,0x00,0x01,0xe0,0x00,0x01,0xe0,0x00,0x01,
0xe0,0x00,0x00,0xf0,0x00,0x00,0x7f,0xf8,0x00,0x3f,0xf8,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x1e,0x00,0x78,0x1e,0x00,0x78,0x1e,0x00,0x78,0x1e,0x00,0x78,
0x1e,0x00,0x78,0x1e,0x00,0x78,0x1e,0x00,0x78,0x1e,0x00,0x78,0x1e,0x00,0x78,0x0e,
0x00,0xf8,0x0f,0x03,0xf8,0x07,0xff,0x78,0x03,0xfc,0x78,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x3c,0x00,0x3c,0x1e,0x00,0x7c,0x1e,0x00,0x78,0x0f,0x00,0xf0,
0x0f,0x80,0xf0,0x07,0x81,0xe0,0x03,0xc3,0xc0,0x03,0xc3,0xc0,0x01,0xe7,0x80,0x00,
0xe7,0x00,0x00,0xff,0x00,0x00,0x7e,0x00,0x00,0x3c,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x78,0x00,0x0e,0x78,0x00,0x1e,0x78,0x00,0x1e,0x38,0x3c,0x1e,
0x38,0x3c,0x1c,0x3c,0x7e,0x1c,0x3c,0x7e,0x3c,0x1c,0xe7,0x3c,0x1c,0xe7,0xb8,0x1d,
0xc3,0xb8,0x1f,0xc3,0xf8,0x0f,0x81,0xf8,0x0f,0x81,0xf0,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x1f,0x00,0x7c,0x0f,0x80,0xf0,0x07,0xc1,0xe0,0x03,0xe3,0xc0,
0x00,0xf7,0x80,0x00,0x7f,0x00,0x00,0x3e,0x00,0x00,0xff,0x00,0x01,0xe7,0x80,0x03,
0xc3,0xc0,0x07,0x81,0xf0,0x1f,0x00,0xf8,0x3e,0x00,0x7c,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x3c,0x00,0x3c,0x1e,0x00,0x3c,0x1e,0x00,0x78,0x0f,0x00,0xf0,
0x07,0x80,0xf0,0x07,0x81,0xe0,0x03,0xc1,0xc0,0x03,0xc3,0xc0,0x01,0xe7,0x80,0x00,
0xf7,0x80,0x00,0xff,0x00,0x00,0x7e,0x00,0x00,0x3e,0x00,0x00,0x3c,0x00,0x00,0x78,
0x00,0x01,0xf0,0x00,0x7f,0xe0,0x00,0x7f,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x0f,0xff,0xf0,0x0f,0xff,0xf0,0x00,0x01,0xe0,0x00,0x07,0xc0,
0x00,0x0f,0x80,0x00,0x1e,0x00,0x00,0x3c,0x00,0x00,0xf8,0x00,0x01,0xe0,0x00,0x03,
0xc0,0x00,0x07,0x80,0x00,0x0f,0xff,0xf8,0x0f,0xff,0xf8,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x07,0xe0,0x00,0x1f,0xe0,0x00,0x3c,0x00,0x00,0x38,0x00,0x00,0x38,
0x00,0x00,0x78,0x00,0x00,0x78,0x00,0x00,0x78,0x00,0x00,0x78,0x00,0x00,0x78,0x00,
0x1f,0xf0,0x00,0x1f,0x80,0x00,0x01,0xf0,0x00,0x00,0x78,0x00,0x00,0x78,0x00,0x00,
0x78,0x00,0x00,0x78,0x00,0x00,0x78,0x00,0x00,0x78,0x00,0x00,0x78,0x00,0x00,0x38,
0x00,0x00,0x3c,0x00,0x00,0x1f,0x80,0x00,0x0f,0xe0,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x3c,0x00,0x00,0x3c,0x00,0x00,
0x3c,0x00,0x00,0x3c,0x00,0x00,0x3c,0x00,0x00,0x3c,0x00,0x00,0x3c,0x00,0x00,0x3c,
0x00,0x00,0x3c,0x00,0x00,0x3c,0x00,0x00,0x3c,0x00,0x00,0x3c,0x00,0x00,0x3c,0x00,
0x00,0x3c,0x00,0x00,0x3c,0x00,0x00,0x3c,0x00,0x00,0x3c,0x00,0x00,0x3c,0x00,0x00,
0x3c,0x00,0x00,0x3c,0x00,0x00,0x3c,0x00,0x00,0x3c,0x00,0x00,0x3c,0x00,0x00,0x3c,
0x00,0x00,0x3c,0x00,0x00,0x3c,0x00,0x00,0x3c,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x07,0xe0,0x00,0x07,0xf8,0x00,0x00,0x3c,0x00,0x00,0x1e,0x00,0x00,0x1e,
0x00,0x00,0x1e,0x00,0x00,0x1e,0x00,0x00,0x1e,0x00,0x00,0x1e,0x00,0x00,0x0e,0x00,
0x00,0x0f,0xf8,0x00,0x01,0xf8,0x00,0x0f,0x80,0x00,0x0e,0x00,0x00,0x1e,0x00,0x00,
0x1e,0x00,0x00,0x1e,0x00,0x00,0x1e,0x00,0x00,0x1e,0x00,0x00,0x1e,0x00,0x00,0x1e,
0x00,0x00,0x3c,0x00,0x00,0xfc,0x00,0x07,0xf0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x07,0xc0,0x00,
0x1f,0xf0,0x1e,0x3c,0x7c,0x1e,0x38,0x1f,0xfc,0x78,0x07,0xf8,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
};
sFONT Font8x16 = {
ASCII8x16_Table,
8, /* Width */
16, /* Height */
};
sFONT Font16x24 = {
ASCII16x24_Table,
16, /* Width */
24, /* Height */
};
sFONT Font24x32 = {
ASCII24x32_Table,
24, /* Width */
32, /* Height */
};
//选择使用FLASH字模还是SD卡的字模
#if GBKCODE_FLASH
//选择 1：GB2312字模
//选择 0：HZLIB字模(旧版，不建议使用)
#if 1
/*使用FLASH字模*/
//字模GB2312_H1616配套的函数
//中文字库存储在FLASH的起始地址 ：
//GBKCODE_START_ADDRESS 在fonts.h文件定义
/**
* @brief 获取FLASH中文显示字库数据
* @param pBuffer:存储字库矩阵的缓冲区
* @param c ： 要获取的文字
* @retval None.
*/
int GetGBKCode_from_EXFlash( uint8_t * pBuffer, uint16_t c)
{
unsigned char High8bit,Low8bit;
unsigned int pos;
static uint8_t everRead=0;
/*第一次使用，初始化FLASH*/
if(everRead == 0)
{
SPI_FLASH_Init();
everRead = 1;
}
High8bit= c >> 8; /* 取高8位数据 */
Low8bit= c & 0x00FF; /* 取低8位数据 */
/*GB2312 公式*/
pos = ((High8bit-0xa1)*94+Low8bit-0xa1)*WIDTH_CH_CHAR*HEIGHT_CH_CHAR/8;
SPI_Read_Data(pBuffer,GBKCODE_START_ADDRESS+pos,WIDTH_CH_CHAR*HEIGHT_CH_CHAR/8); //读取字库数据
// printf ( "%02x %02x %02x %02x\n", pBuffer[0],pBuffer[1],pBuffer[2],pBuffer[3]);
return 0;
}
#else //旧版字模HZLIB 配套的函数
//!!HZLIB不支持标点，本函数仅为兼容而保留，不建议使用
/*HZLIB中文字库存储在FLASH的起始地址*/
#define HZLIB_START_ADDRESS 1*4096
//旧版HZLIB字库使用的函数，HZLIB不支持标点
//本函数使用的寻址公式跟GB2312的也稍有区别
int GetGBKCode_from_EXFlash( uint8_t * pBuffer, uint16_t c)
{
unsigned char High8bit,Low8b
扫一扫
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
