Learning xv6-riscv-book Chapter 3 Page tables

Isolate different process’s address spaces and to multiplex them onto a single physical memory.

Sv39 RISC-V:

Xv6 runs on Sv39 RISC-V: only the bottom 39 bits of a 64-bit virtual address are used; the top 25 bits are not used.
a RISC-V page table: an array of $2^{27}$ page table entries (PTEs)
a PTE: a 44-bit physical page number (PPN) and flags.

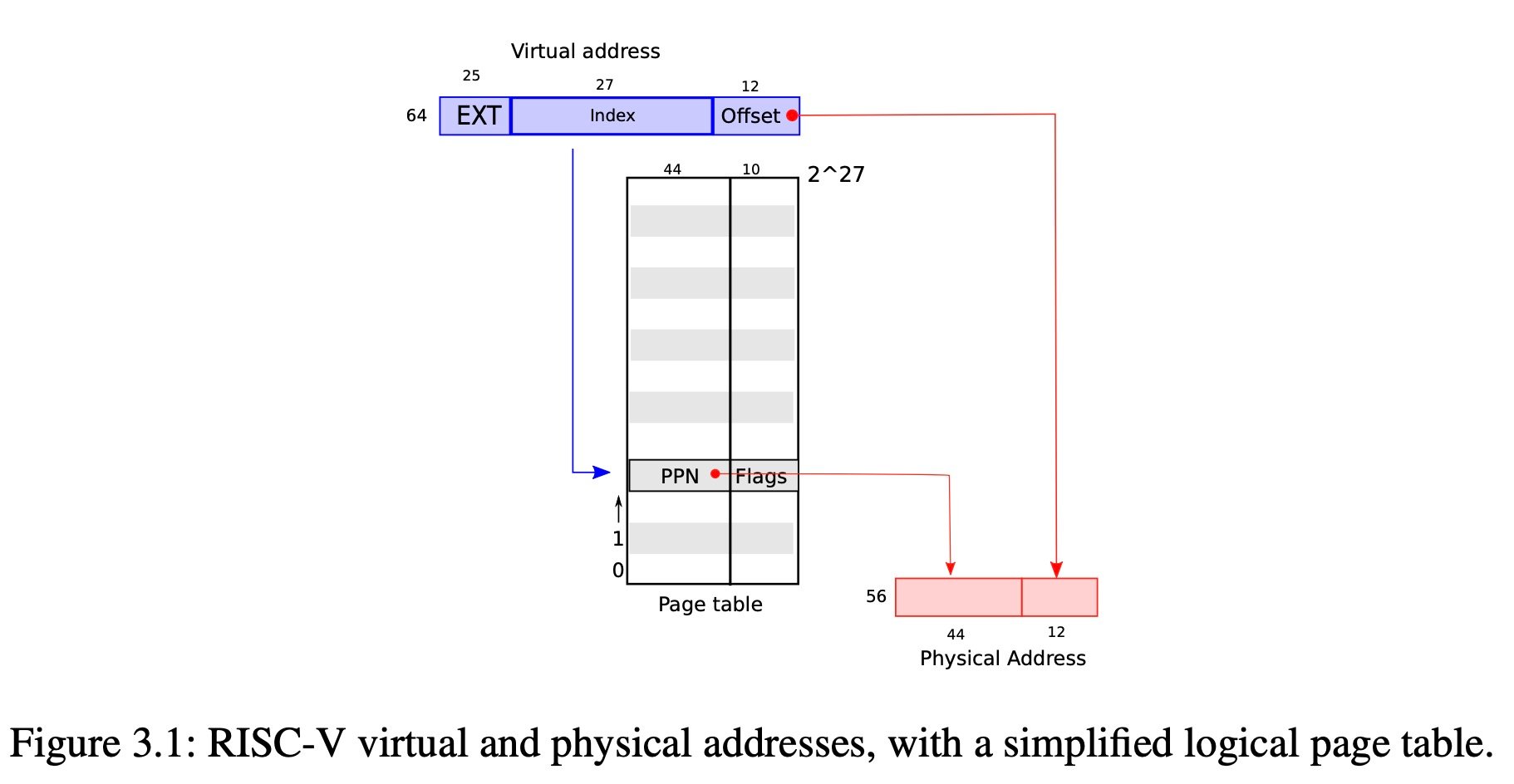

[Logically] The paging hardware: virtual address => physical address:

handle a 39-bit virtual address
- top 27 bits of the 39 bits: index into the page table to find a PTE
- bottom 12 bits: do not change
making a 56-bit physical address:
- top 44 bits come from the PPN in the PTE
- bottom 12 bits are copied from the original virtual address.
