CCNP_SEC_ASA 第十天笔记

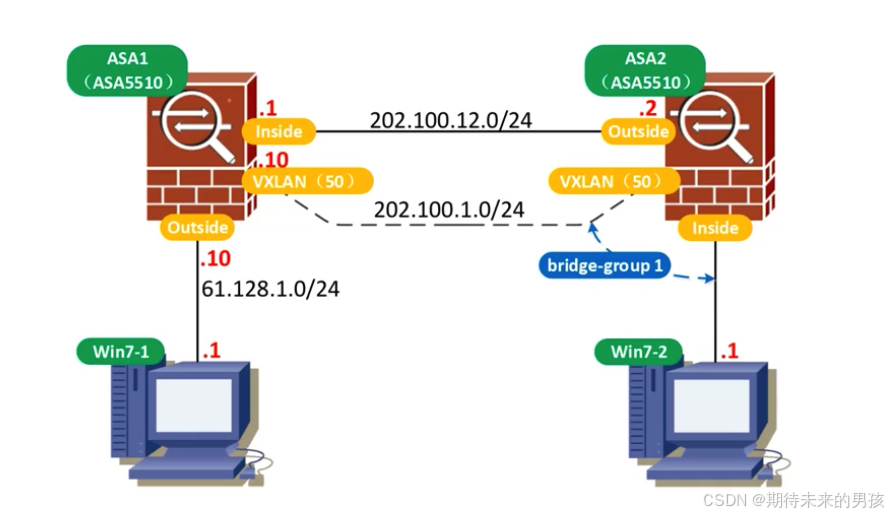

vxlan

ASA1 配置

interface GigabitEthernet0/0

 nve-only

 nameif outisde

 security-level 0

 ip address 202.100.12.1 255.255.255.0

multicast-routing

nve 1    # vtep

 encapsulation vxlan

 source-interface inside

 default-mcast-group 224.0.0.1

interface vni1

 segment-id 6000

 nameif vxlan

 security-level 50

 ip address 202.100.1.10 255.255.255.0

 vtep-nve 1

access-list out extended permit ip any any

access-group out in interface outside

ASA2

interface GigabitEthernet0/0

 nve-only

 nameif outisde

 security-level 0

 ip address 202.100.12.2 255.255.255.0

interface BVI1

 ip address 202.100.1.100 255.255.255.0

nve 1  # vtep

 encapsulation vxlan

 source-interface outisde

interface GigabitEthernet0/1

 nameif inside

 bridge-group 1

 security-level 100

interface BVI1

 ip address 202.100.1.100 255.255.255.0

interface vni1

 segment-id 6000

 nameif vxlan

 bridge-group 1

 security-level 50

 vtep-nve 1

 mcast-group 224.0.0.1

access-list vxlan extended permit ip any any

access-group vxlan in interface vxlan

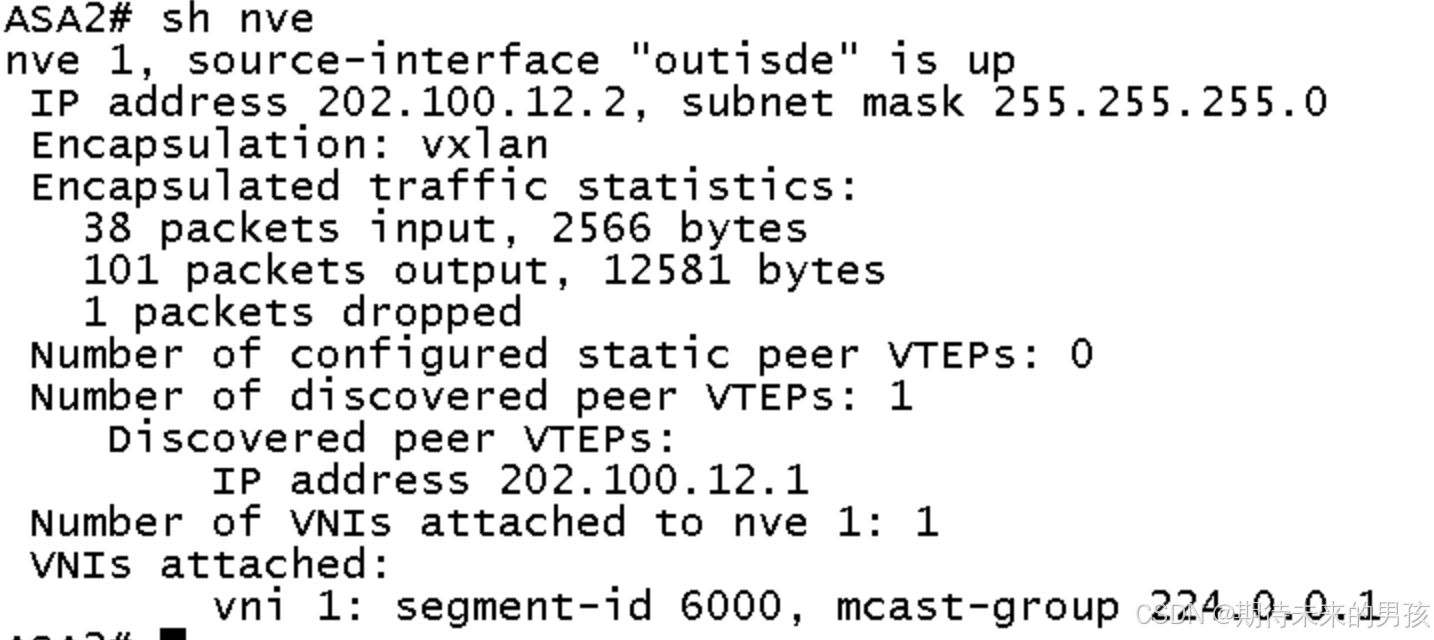

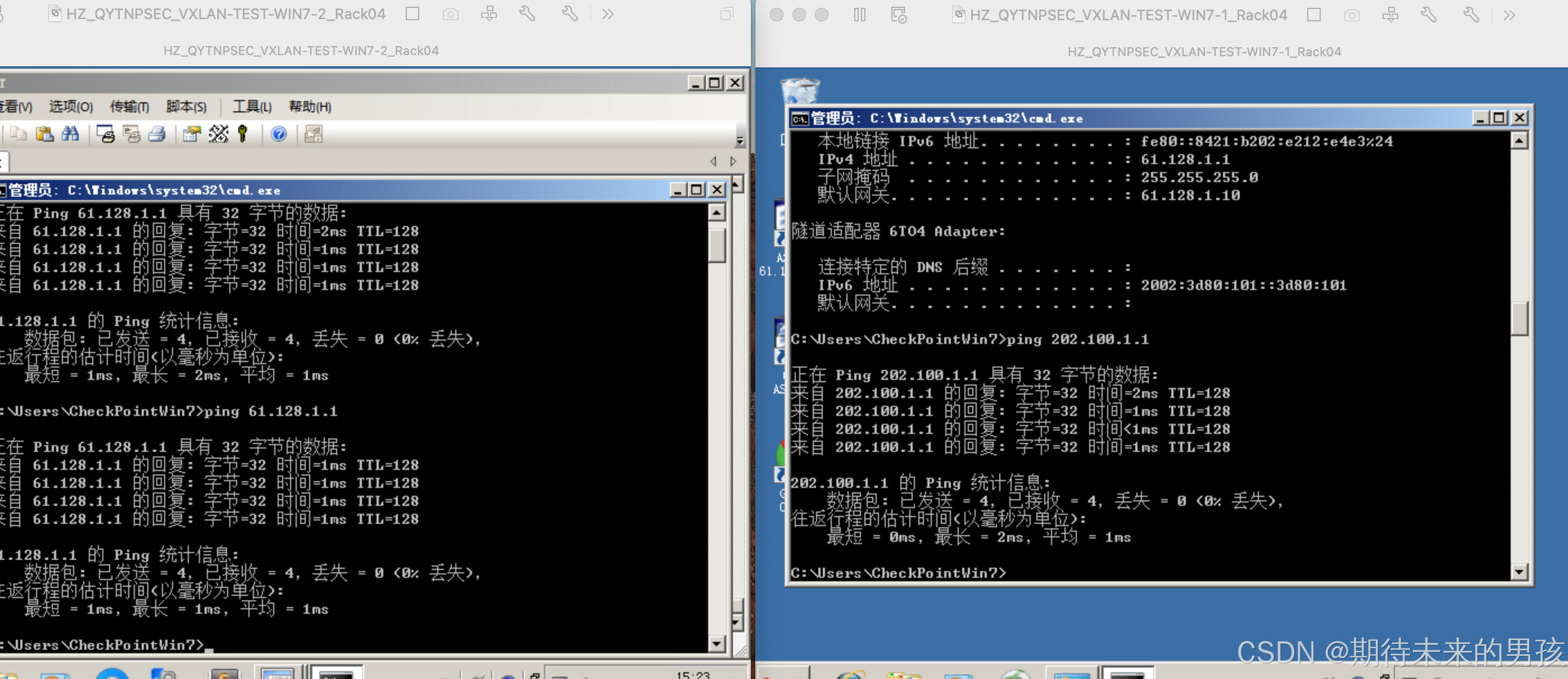

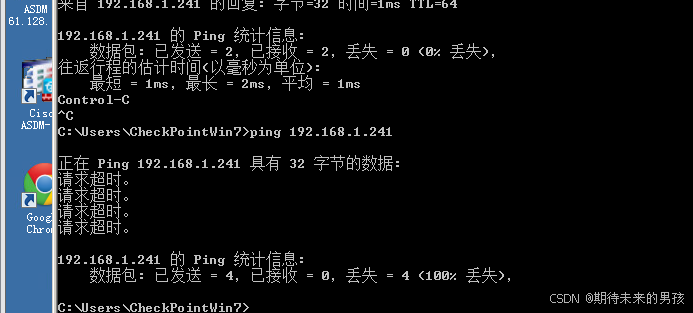

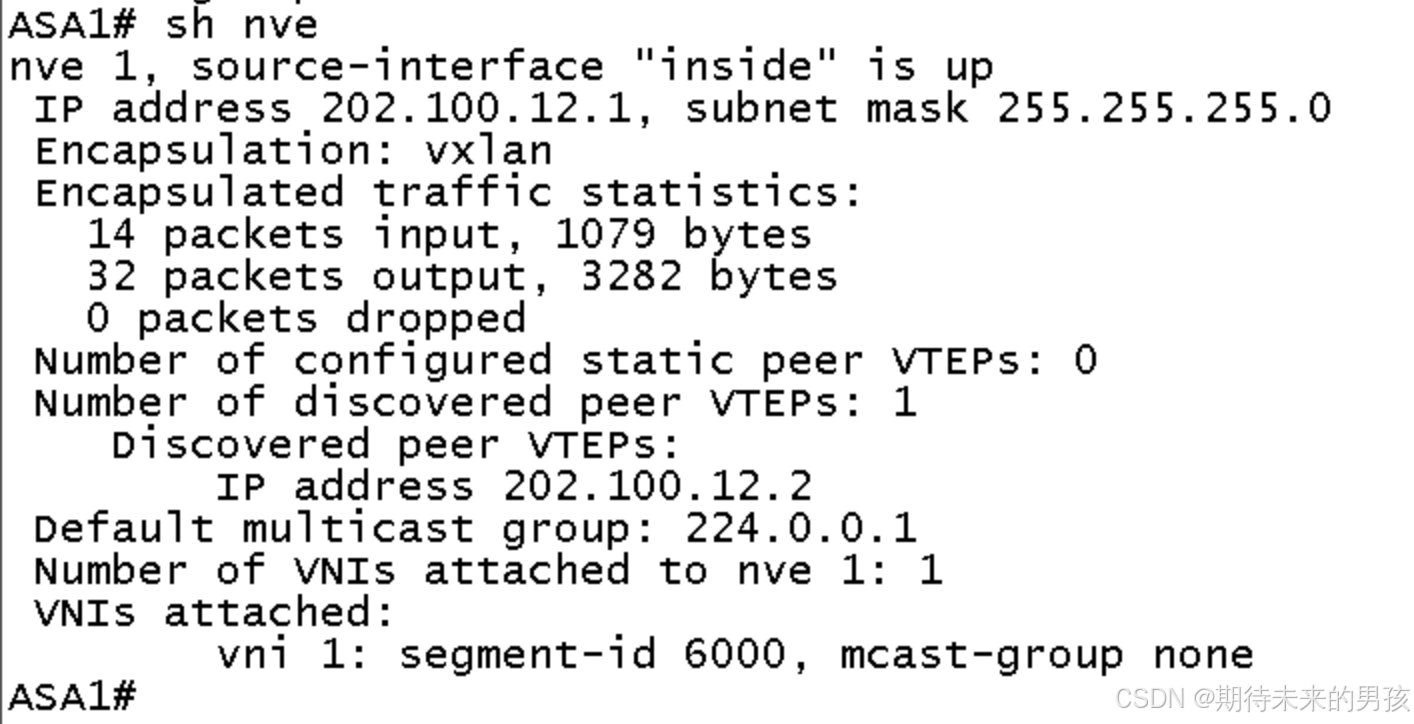

验证

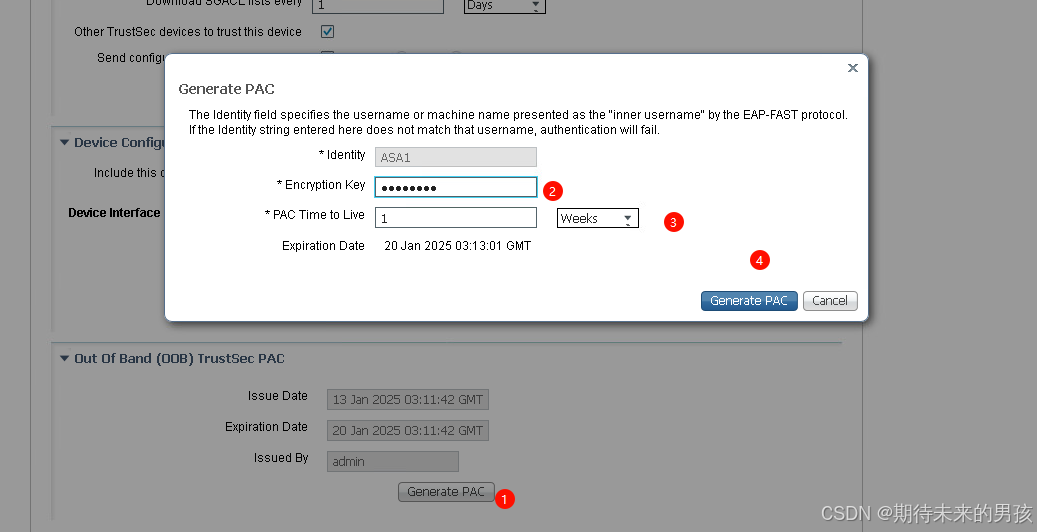

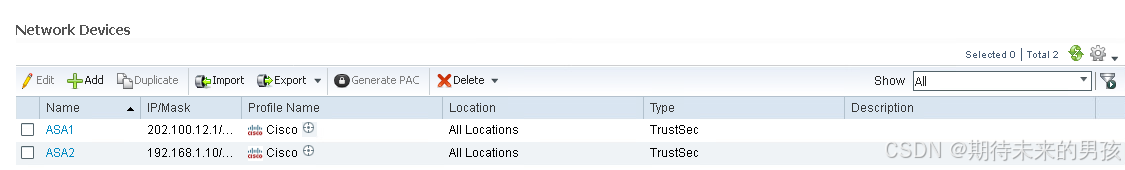

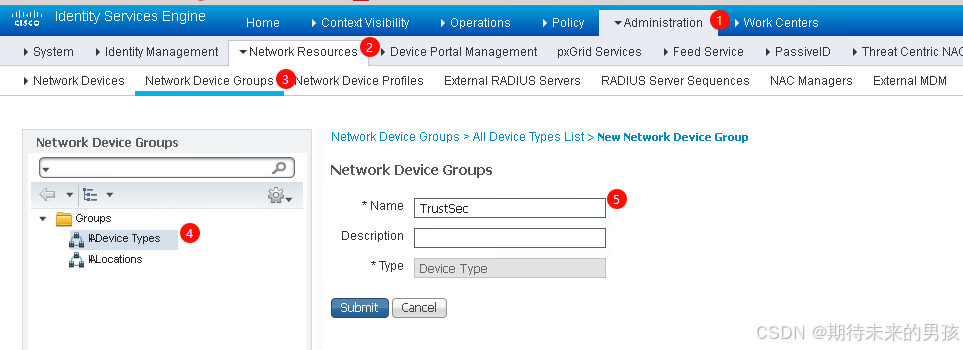

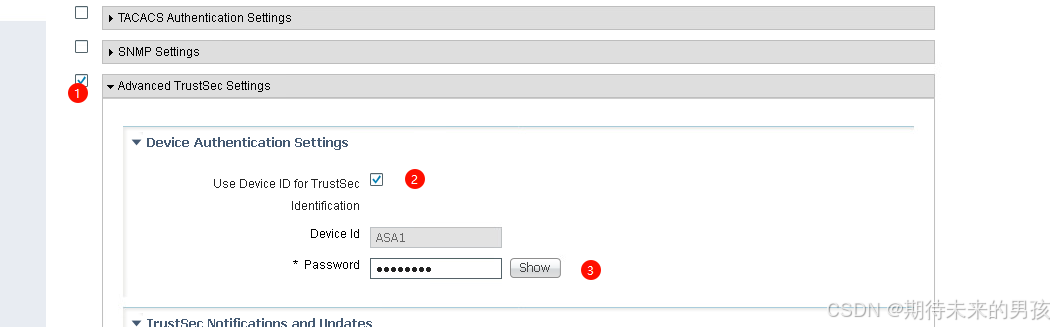

TrustSec

TG

SGT ISE 充当

SGA  安全组访问  基于标签

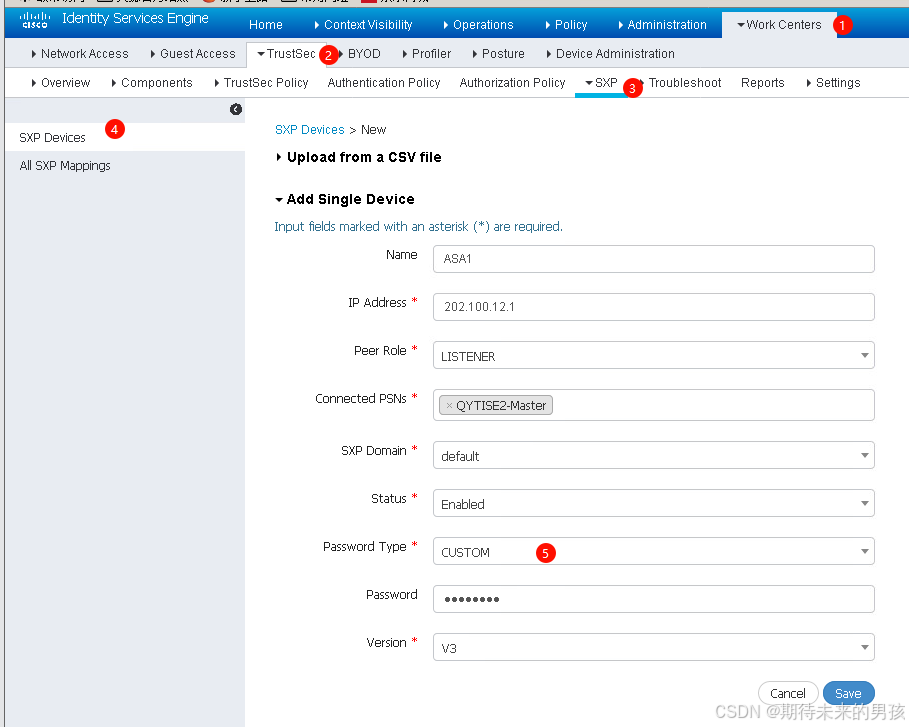

SXP 安全组交换协议

aaa-server ISE protocol radius

aaa-server ISE (inside) host 192.168.1.241

 key cisco

cts server-group ISE

PAN PSN  MNT

policy admin node

policy server node

独立部署

分布式部署

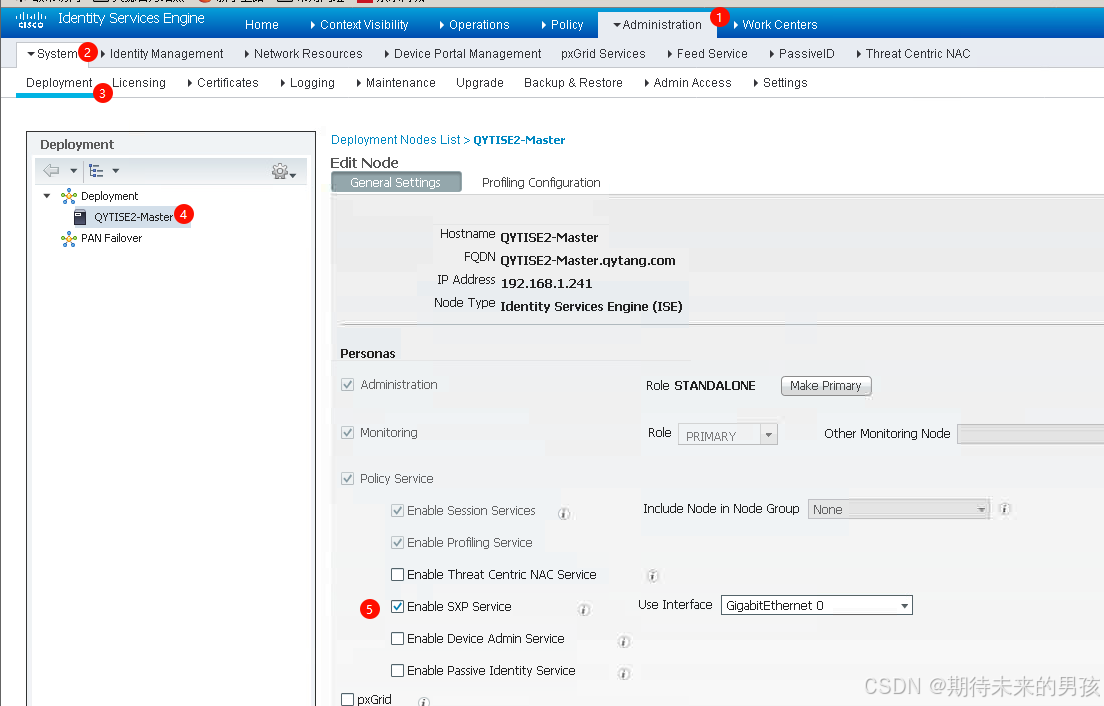

cts sxp enable

cts sxp default password Cisco0123

cts sxp default source-ip 202.100.12.1

cts sxp connection peer 192.168.1.241 password default mode peer speaker

cts sxp enable

cts sxp default password Cisco0123

cts sxp default source-ip 192.168.1.10

cts sxp connection peer 192.168.1.241 password default mode peer speaker

sh  cts sxp connections

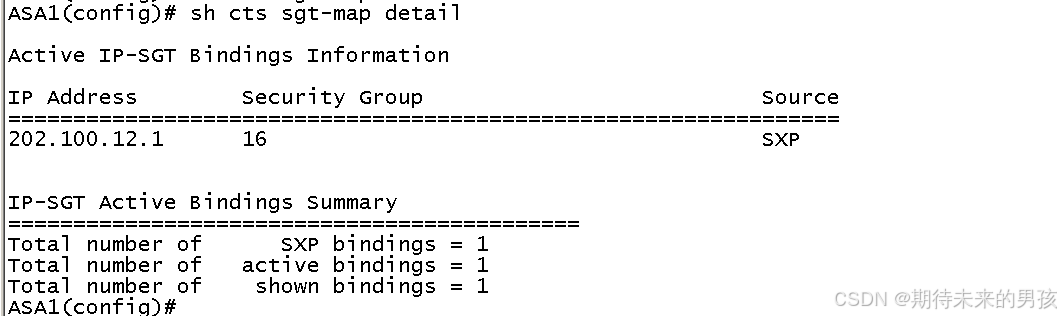

sh cts sgt-map detail

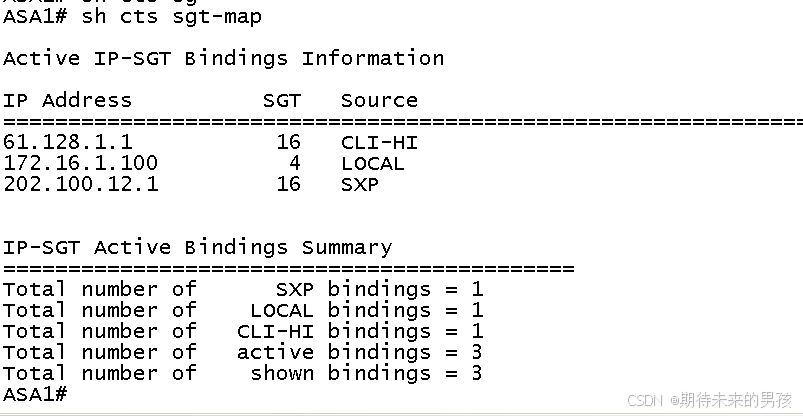

sh cts sxp sgt-map

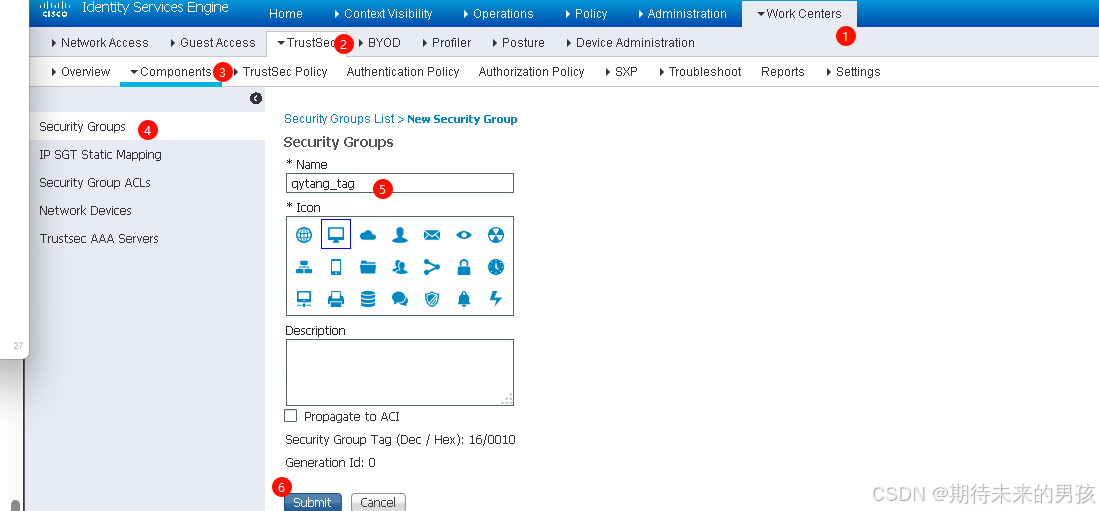

object-group security qytang-sg

 security-group tag 16

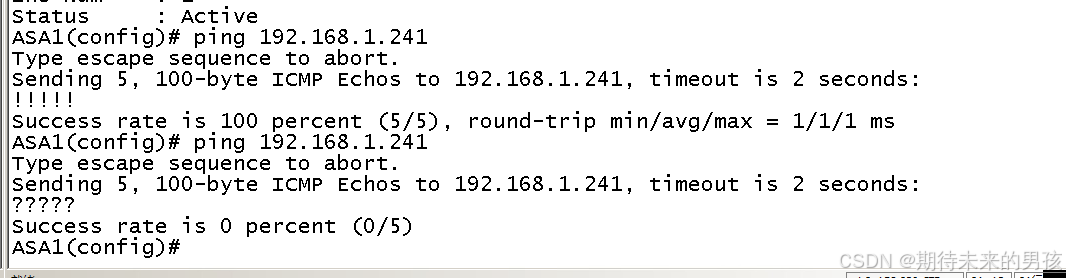

access-list out extended deny icmp object-group-security qytang-sg any any

入方向流量控制

互联接口

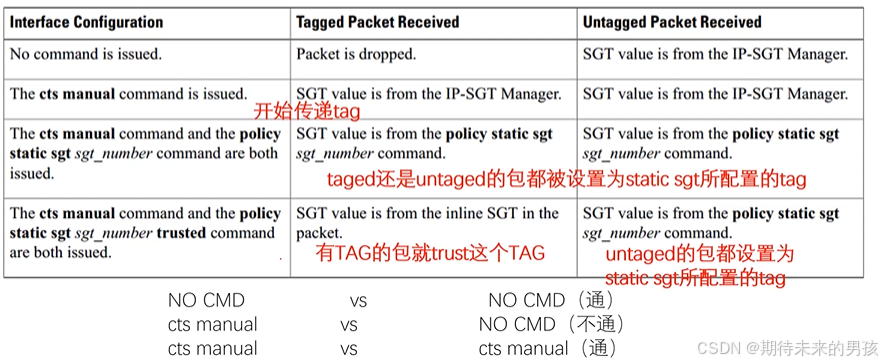

 cts manual

  policy static sgt 600 trusted

接口  传递 sgt

 cts manual

  policy static sgt 600 trusted

SXP 传递 sgt

SSL VPN

ip local pool SSLPOOL 172.16.1.100-172.16.1.200


group-policy sslpolicy internal

group-policy sslpolicy attributes

 vpn-tunnel-protocol ssl-client ssl-clientless

 address-pools value SSLPOOL

tunnel-group DefaultWEBVPNGroup general-attributes

 authentication-server-group ISE

webvpn

 enable Outside

 anyconnect image disk0:/anyconnect-win-4.3.04027-k9.pkg 1

 anyconnect enable

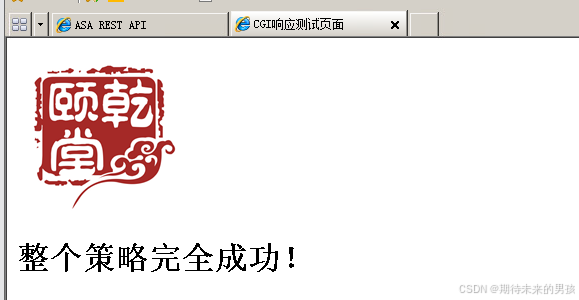

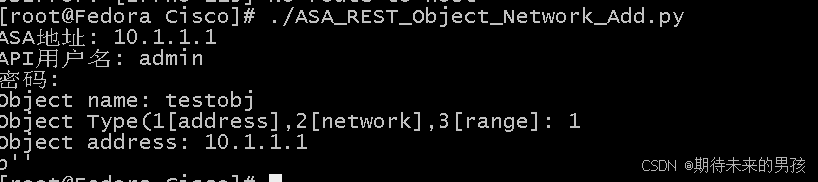

API

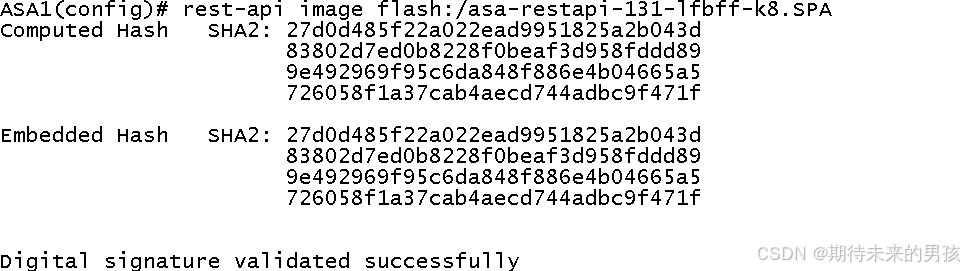

安装API

asa_acl(ip,username,password,action,pro,src,dst,dstp=0,port=443)

asa_acl('10.1.1.1','admin','Cisc0123',1,'tcp','any','Inside-Server',80,port=443)

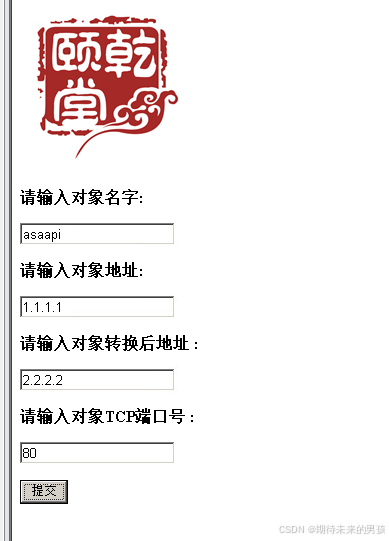

asa_nat_add(ip,username,password,srcobj,dstobj,port=443)

asa_nat_add('10.1.1.1','admin','Cisc0123','Inside-Server','outside_server')
