任务调度框架剖析系列 · Spring

Schedule调度能力源码剖析

一.使用

仅关注较为常见的一种使用方式，Spring框架下对能力启用的方式可以有很多中不同的形式，但是本质的原理是相同的。

1 2 3 4

1.@Scheduled 通过注解方法的方式将此方法抽取为可调度任务实体。 2.@EnableScheduling Spring风格的能力引入，启动调度处理的内部逻辑。

二.原理解析

1.@Scheduled注解

两个作用：标注、携带调度信息

• 标注  Spring收集调度任务（bean实例及其特定方法绑定在一起被封装为可调度任务）的标识
• 调度信息  调度类型及其调度数据

调度类型

• cron表达式  unix风格的cron表达式
• 固定时延  单位（ms），仅生效一次 ？？
• 固定频率  单位（ms）

2.@EnableScheduling注解

标准的spring风格的逻辑使能编码风格，封装了@Import，引入真正的生效逻辑处理类。

@Configuration @Role(BeanDefinition.ROLE_INFRASTRUCTURE) public class SchedulingConfiguration {     @Bean(name = TaskManagementConfigUtils.SCHEDULED_ANNOTATION_PROCESSOR_BEAN_NAME)     @Role(BeanDefinition.ROLE_INFRASTRUCTURE)     public ScheduledAnnotationBeanPostProcessor scheduledAnnotationProcessor() {         return new ScheduledAnnotationBeanPostProcessor();     } }

Configuration注解在Spring中的作用，引入bean实例。

public class ScheduledAnnotationBeanPostProcessor         implements ScheduledTaskHolder, MergedBeanDefinitionPostProcessor, DestructionAwareBeanPostProcessor,         Ordered, EmbeddedValueResolverAware, BeanNameAware, BeanFactoryAware, ApplicationContextAware,         SmartInitializingSingleton, ApplicationListener<ContextRefreshedEvent>, DisposableBean {     /**      * The default name of the {@link TaskScheduler} bean to pick up: {@value}.      * <p>Note that the initial lookup happens by type; this is just the fallback      * in case of multiple scheduler beans found in the context.      * @since 4.2      */     public static final String DEFAULT_TASK_SCHEDULER_BEAN_NAME = "taskScheduler";     private final ScheduledTaskRegistrar registrar;     @Nullable     private Object scheduler;     @Nullable     private StringValueResolver embeddedValueResolver;     @Nullable     private String beanName;     @Nullable     private BeanFactory beanFactory;     @Nullable     private ApplicationContext applicationContext;     private final Set<Class<?>> nonAnnotatedClasses = Collections.newSetFromMap(new ConcurrentHashMap<>(64));     private final Map<Object, Set<ScheduledTask>> scheduledTasks = new IdentityHashMap<>(16); }

ScheduledAnnotationBeanPostProcessor关键类，实现了MergedBeanDefinitionPostProcessor（BeanPostProcessor子类）, SmartInitializingSingleton, ApplicationListener三个spring框架的hook，将类自身的处理逻辑嵌入到Spring框架的生命周期中生效。

• SmartInitializingSingleton, ApplicationListener的具体逻辑均指向了finishRegistration()，适配应用上下文存在与不存在两种场景，作用是完成ScheduledTaskRegistrar的启动。
• MergedBeanDefinitionPostProcessor.postProcessAfterInitialization()逻辑完成了自身的核心调度逻辑处理。

2.1 MergedBeanDefinitionPostProcessor.postProcessAfterInitialization()

// 1.采集“调度任务”，注意方法外层隐含所有bean实例的一层循环 // 另外此处的容器定义也表明了调度注解在方法上的可重复性，注解类定义时存在同样的信息 Map<Method, Set<Scheduled>> annotatedMethods // 2.循环调用 annotatedMethods.forEach((method, scheduledMethods) -> scheduledMethods.forEach(scheduled -> processScheduled(scheduled, method, bean)));

trace至此，可以定位processScheduled就是核心逻辑。

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123

protected void processScheduled(Scheduled scheduled, Method method, Object bean) {         try {             Runnable runnable = createRunnable(bean, method);             boolean processedSchedule = false;             String errorMessage =                     "Exactly one of the 'cron', 'fixedDelay(String)', or 'fixedRate(String)' attributes is required";             Set<ScheduledTask> tasks = new LinkedHashSet<>(4);             // Determine initial delay             long initialDelay = scheduled.initialDelay();             String initialDelayString = scheduled.initialDelayString();             if (StringUtils.hasText(initialDelayString)) {                 Assert.isTrue(initialDelay < 0, "Specify 'initialDelay' or 'initialDelayString', not both");                 if (this.embeddedValueResolver != null) {                     initialDelayString = this.embeddedValueResolver.resolveStringValue(initialDelayString);                 }                 if (StringUtils.hasLength(initialDelayString)) {                     try {                         initialDelay = parseDelayAsLong(initialDelayString);                     }                     catch (RuntimeException ex) {                         throw new IllegalArgumentException(                                 "Invalid initialDelayString value \"" + initialDelayString + "\" - cannot parse into long");                     }                 }             }             // Check cron expression             String cron = scheduled.cron();             if (StringUtils.hasText(cron)) {                 String zone = scheduled.zone();                 if (this.embeddedValueResolver != null) {                     cron = this.embeddedValueResolver.resolveStringValue(cron);                     zone = this.embeddedValueResolver.resolveStringValue(zone);                 }                 if (StringUtils.hasLength(cron)) {                     Assert.isTrue(initialDelay == -1, "'initialDelay' not supported for cron triggers");                     processedSchedule = true;                     if (!Scheduled.CRON_DISABLED.equals(cron)) {                         TimeZone timeZone;                         if (StringUtils.hasText(zone)) {                             timeZone = StringUtils.parseTimeZoneString(zone);                         }                         else {                             timeZone = TimeZone.getDefault();                         }                         tasks.add(this.registrar.scheduleCronTask(new CronTask(runnable, new CronTrigger(cron, timeZone))));                     }                 }             }             // At this point we don't need to differentiate between initial delay set or not anymore             if (initialDelay < 0) {                 initialDelay = 0;             }             // Check fixed delay             long fixedDelay = scheduled.fixedDelay();             if (fixedDelay >= 0) {                 Assert.isTrue(!processedSchedule, errorMessage);                 processedSchedule = true;                 tasks.add(this.registrar.scheduleFixedDelayTask(new FixedDelayTask(runnable, fixedDelay, initialDelay)));             }             String fixedDelayString = scheduled.fixedDelayString();             if (StringUtils.hasText(fixedDelayString)) {                 if (this.embeddedValueResolver != null) {                     fixedDelayString = this.embeddedValueResolver.resolveStringValue(fixedDelayString);                 }                 if (StringUtils.hasLength(fixedDelayString)) {                     Assert.isTrue(!processedSchedule, errorMessage);                     processedSchedule = true;                     try {                         fixedDelay = parseDelayAsLong(fixedDelayString);                     }                     catch (RuntimeException ex) {                         throw new IllegalArgumentException(                                 "Invalid fixedDelayString value \"" + fixedDelayString + "\" - cannot parse into long");                     }                     tasks.add(this.registrar.scheduleFixedDelayTask(new FixedDelayTask(runnable, fixedDelay, initialDelay)));                 }             }             // Check fixed rate             long fixedRate = scheduled.fixedRate();             if (fixedRate >= 0) {                 Assert.isTrue(!processedSchedule, errorMessage);                 processedSchedule = true;                 tasks.add(this.registrar.scheduleFixedRateTask(new FixedRateTask(runnable, fixedRate, initialDelay)));             }             String fixedRateString = scheduled.fixedRateString();             if (StringUtils.hasText(fixedRateString)) {                 if (this.embeddedValueResolver != null) {                     fixedRateString = this.embeddedValueResolver.resolveStringValue(fixedRateString);                 }                 if (StringUtils.hasLength(fixedRateString)) {                     Assert.isTrue(!processedSchedule, errorMessage);                     processedSchedule = true;                     try {                         fixedRate = parseDelayAsLong(fixedRateString);                     }                     catch (RuntimeException ex) {                         throw new IllegalArgumentException(                                 "Invalid fixedRateString value \"" + fixedRateString + "\" - cannot parse into long");                     }                     tasks.add(this.registrar.scheduleFixedRateTask(new FixedRateTask(runnable, fixedRate, initialDelay)));                 }             }             // Check whether we had any attribute set             Assert.isTrue(processedSchedule, errorMessage);             // Finally register the scheduled tasks             synchronized (this.scheduledTasks) {                 Set<ScheduledTask> regTasks = this.scheduledTasks.computeIfAbsent(bean, key -> new LinkedHashSet<>(4));                 regTasks.addAll(tasks);             }         }         catch (IllegalArgumentException ex) {             throw new IllegalStateException(                     "Encountered invalid @Scheduled method '" + method.getName() + "': " + ex.getMessage());         }     }

方法可以拆解为如下几步：

1. 解析初始时延数据；

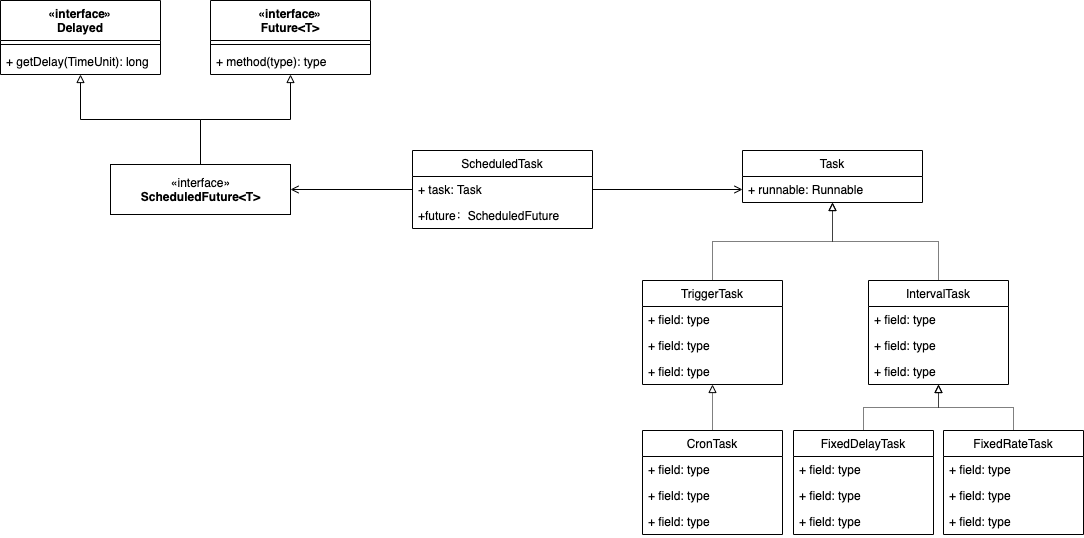

2. 解析cron表达式，如果存在有效的cron表达式，则创建CronTask加入临时容器；
3. 解析fixedDelay，如果存在有效的fixedDelay信息，则创建FixedDelayTask加入临时容器；
4. 解析fixedRate，如果存在有效的fixedRate信息，则创建FixedRateTask加入临时容器；
5. 将临时容器的任务加入固定容器（spring全生命周期存在）。

此处需要注意的是Schedule注解与调度任务的对应关系并非是1:1，可能是1:多，应用的过程中需要注意。

2.2 ScheduledTaskRegistrar

截止2.1已经完成了调度任务的采集、构造和存储（容器内存存储），后续的逻辑应该是任务的调度和执行。

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24

public class ScheduledTaskRegistrar implements ScheduledTaskHolder, InitializingBean, DisposableBean {     @Nullable     private TaskScheduler taskScheduler;     @Nullable     private ScheduledExecutorService localExecutor;     @Nullable     private List<TriggerTask> triggerTasks;     @Nullable     private List<CronTask> cronTasks;     @Nullable     private List<IntervalTask> fixedRateTasks;     @Nullable     private List<IntervalTask> fixedDelayTasks;     private final Map<Task, ScheduledTask> unresolvedTasks = new HashMap<>(16);     private final Set<ScheduledTask> scheduledTasks = new LinkedHashSet<>(16); }

ScheduledTaskRegistrar实现了InitializingBean，Spring生命周期的hook之一。

public void afterPropertiesSet() {     scheduleTasks(); } /**  * Schedule all registered tasks against the underlying  * {@linkplain #setTaskScheduler(TaskScheduler) task scheduler}.  */ @SuppressWarnings("deprecation") protected void scheduleTasks() {     if (this.taskScheduler == null) {         this.localExecutor = Executors.newSingleThreadScheduledExecutor();         this.taskScheduler = new ConcurrentTaskScheduler(this.localExecutor);     }     if (this.triggerTasks != null) {         for (TriggerTask task : this.triggerTasks) {             addScheduledTask(scheduleTriggerTask(task));         }     }     if (this.cronTasks != null) {         for (CronTask task : this.cronTasks) {             addScheduledTask(scheduleCronTask(task));         }     }     if (this.fixedRateTasks != null) {         for (IntervalTask task : this.fixedRateTasks) {             addScheduledTask(scheduleFixedRateTask(task));         }     }     if (this.fixedDelayTasks != null) {         for (IntervalTask task : this.fixedDelayTasks) {             addScheduledTask(scheduleFixedDelayTask(task));         }     } }

核心逻辑如上，其中taskScheduler的具体bean对象的创建通常是spring boot框架auto-configure注入的ThreadPoolTaskScheduler（视具体情况而定）。

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25

public class ThreadPoolTaskScheduler extends ExecutorConfigurationSupport         implements AsyncListenableTaskExecutor, SchedulingTaskExecutor, TaskScheduler {     private volatile int poolSize = 1;     @Nullable     private ScheduledExecutorService scheduledExecutor;           @Override     @Nullable     public ScheduledFuture<?> schedule(Runnable task, Trigger trigger) {         ScheduledExecutorService executor = getScheduledExecutor();         try {             ErrorHandler errorHandler = this.errorHandler;             if (errorHandler == null) {                 errorHandler = TaskUtils.getDefaultErrorHandler(true);             }             return new ReschedulingRunnable(task, trigger, executor, errorHandler).schedule();         }         catch (RejectedExecutionException ex) {             throw new TaskRejectedException("Executor [" + executor + "] did not accept task: " + task, ex);         }     } }

ReschedulingRunnable作为一个重要的设计点，实现了任务的可重复调度（扩展性的支持Trigger）。

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35

class ReschedulingRunnable extends DelegatingErrorHandlingRunnable implements ScheduledFuture<Object> {     private final Trigger trigger;     private final SimpleTriggerContext triggerContext = new SimpleTriggerContext();     private final ScheduledExecutorService executor;     @Nullable     public ScheduledFuture<?> schedule() {         synchronized (this.triggerContextMonitor) {             this.scheduledExecutionTime = this.trigger.nextExecutionTime(this.triggerContext);             if (this.scheduledExecutionTime == null) {                 return null;             }             long initialDelay = this.scheduledExecutionTime.getTime() - System.currentTimeMillis();             this.currentFuture = this.executor.schedule(this, initialDelay, TimeUnit.MILLISECONDS);             return this;         }     }     @Override     public void run() {         Date actualExecutionTime = new Date();         super.run();         Date completionTime = new Date();         synchronized (this.triggerContextMonitor) {             Assert.state(this.scheduledExecutionTime != null, "No scheduled execution");             this.triggerContext.update(this.scheduledExecutionTime, actualExecutionTime, completionTime);             if (!obtainCurrentFuture().isCancelled()) {                 schedule();             }         }     } }

ScheduledExecutorService属性最终选择java.util.concurrent.ScheduledThreadPoolExecutor作为最终的执行工具类，而其schedule方法本身是一个one-shot调度方法，如何支持cron的周期性调度？关键在于command对象传递为this对象（ReschedulingRunnable），该类的run方法就是cron周期性执行的核心。
