使用Netty框架创建网页聊天

项目搭建
- 结构介绍
源码编写
前端界面
总结

项目搭建

这是我的第一篇博客，本来想写写入门的东西，看了下其他博客大神都写的很多很详细了，这里就不在重复赘述了。因为对通信比较感兴趣，所以这里就netty网络通信框架开始学习了，这个小demo算是我的入门demo吧。

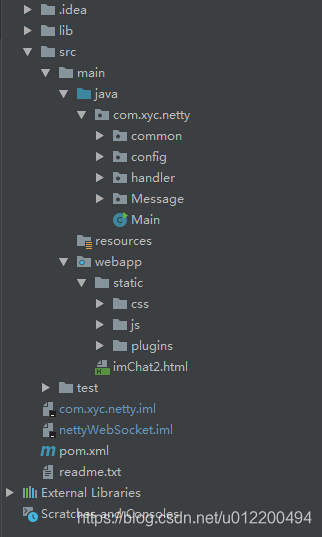

结构介绍

在这里插入图片描述

common 工具类目录；
config 服务器与客户端配置目录；
handler 消息处理器；
Message 消息缓存，用于保存未发送成功的消息，客户端上线则将缓存消息发送出去并将缓存消息删除；
webapp 前端资源与视图；

源码编写

pom.xml文件

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>nettyWebSocket</groupId>
    <artifactId>com.xyc.netty</artifactId>
    <version>1.0-SNAPSHOT</version>
    <packaging>war</packaging>
    <name>nettyWebSocket Maven Webapp</name>

    <dependencies>
        <!-- https://mvnrepository.com/artifact/io.netty/netty-all -->
        <dependency>
            <groupId>io.netty</groupId>
            <artifactId>netty-all</artifactId>
            <version>5.0.0.Alpha1</version>
        </dependency>
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>fastjson</artifactId>
            <version>1.1.29</version>
        </dependency>
        <dependency>
            <groupId>commons-codec</groupId>
            <artifactId>commons-codec</artifactId>
            <version>1.9</version>
        </dependency>
    </dependencies>

</project>

这里引入的netty版本为5.0.0.Alpha1

客户端与netty的配置类

ClientConfig.java

package com.xyc.netty.config;

import java.io.Serializable;

/**
 * Created by xycpilot on 2019/6/27.
 */
public class ClientConfig implements Serializable {


    private Integer id;

    private String name;

    private String ip;

    private Boolean isOnline;

    public ClientConfig(Integer id,String name,String ip,Boolean isOnline) {

        super();
        this.id = id;
        this.name = name;
        this.ip = ip;
        this.isOnline = isOnline;
    }
    public Integer getId() {

        return id;
    }

    public  void setId(Integer id) {

        this.id = id;
    }

    public String getName() {

        return name;
    }

    public void setName(String name) {

        this.name = name;
    }

    public String getIp() {

        return ip;
    }

    public void setIp(String ip) {

        this.ip = ip;
    }

    public Boolean getIsOnline() {

        return isOnline;
    }

    public void setIsOnline(Boolean isOnline) {

        this.isOnline = isOnline;
    }
}

ClientList.java

package com.xyc.netty.config;

import java.util.HashMap;
import java.util.Map;

/**
 * Created by xycpilot on 2019/6/27.
 */
public class ClientList {


    private Map<String,ClientConfig> clientMap = new HashMap<String,ClientConfig>();

    private  static ClientList instance = new ClientList();

    public static ClientList getInstance(){

        return instance;
    }

    public void setClientList() {

        this.clientMap.put("192.168.51.88",new ClientConfig(1,"张三","192.168.51.88",false));
        this.clientMap.put("192.168.51.132",new ClientConfig(2,"李四","192.168.51.132",false));
        this.clientMap.put("192.168.51.60",new ClientConfig(3,"王麻子","192.168.51.60",false));
        this.clientMap.put("192.168.51.58",new ClientConfig(4,"赵大","192.168.51.58",false));
        this.clientMap.put("192.168.11.139",new ClientConfig(5,"刘二","192.168.11.139",false));
    }

    public Map<String, ClientConfig> getClientMap() {

        return clientMap;
    }

    public void setClientMap(Map<String, ClientConfig> clientMap) {

        this.clientMap = clientMap;
    }
}

因为是练习所以使用的几个固定内网IP，将IP保存到HashMap中，以IP为key方便后面进行目标查找，初始化的时候所有IP都设置为离线状态，只有等相应IP客户端打开了链接才会设置成上线状态。这里将IP作为唯一依据过于简单，实际应用中可以加入多种参数配置以便确定唯一性，或者以注册账号的形式配置。

NettyConfig.java

package com.xyc.netty.config;

import io.netty.channel.group.ChannelGroup;
import io.netty.channel.group.DefaultChannelGroup;
import io.netty.util.concurrent.GlobalEventExecutor;

import java.util.HashMap;
import java.util.Map;

/**
 * Created by xycpilot on 2018/12/4.
 * 存储整个工程的全局配置
 */
public class NettyConfig {


    /*
    * 存储每一个客户接入进来时候的channel对象
    * */
    public static ChannelGroup group = new DefaultChannelGroup(GlobalEventExecutor.INSTANCE);

    public static Map<String,ChannelGroup> newChannelMap = new HashMap<String,ChannelGroup>(); //为新连接进来的客户端创建一个分组
}

消息处理器

CheckMessageCache.java

package com.xyc.netty.handler;

import com.xyc.netty.Message.MessageCache;

/**
 * Created by xycpilot on 2019/6/27.
 */
public class CheckMessageCache {


    /**
     * 当客户端连接上线的时候检查是否有未发送出去的消息
     * @param clientIp
     * @return
     */
    public static Boolean checkUnSendMsg(String clientIp){

        if(MessageCache.getInstance().getMessageListMap()!= null && MessageCache.getInstance().getMessageListMap().containsKey(clientIp)){

            return true;
        }else{

            return false;
        }
    }
}

MyWebSocketChannelHandler.java

package com.xyc.netty.handler;

import io.netty.channel.ChannelInitializer;
import io.netty.channel.socket.SocketChannel;
import io.netty.handler.codec.http.HttpObjectAggregator;
import io.netty.handler.codec.http.HttpServerCodec;
import io.netty.handler.stream.ChunkedWriteHandler;


/**
 * Created by xycpilot on 2018/12/4.
 * 初始化连接时候的各个组件
 */
public class MyWebSocketChannelHandler extends ChannelInitializer<SocketChannel> {


    @Override
    protected void initChannel(SocketChannel e) throws Exception {

        e.pipeline().addLast("http-codec",new HttpServerCodec());
        e.pipeline().addLast("aggregator",new HttpObjectAggregator(65536));
        e.pipeline().addLast("http-chunked",new ChunkedWriteHandler());
        e.pipeline().addLast("handler",new MyWebSocketHandler());
    }


}

MyWebSocketHandler.java

package com.xyc.netty.handler;

import com.alibaba.fastjson.JSON;
import com.alibaba.fastjson.JSONObject;
import com.xyc.netty.Message.MessageCache;
import com.xyc.netty.common.DateUtil;
import com.xyc.netty.common.ToolUitls;
import com.xyc.netty.config.ClientList;
import com.xyc.netty.config.NettyConfig;
import io.netty.buffer.ByteBuf;
import io.netty.buffer.Unpooled;
import io.netty.channel.ChannelFuture;
import io.netty.channel.ChannelFutureListener;
import io.netty.channel.ChannelHandlerContext;
import io.netty.channel.SimpleChannelInboundHandler;
import io.netty.channel.group.ChannelGroup;
import io.netty.channel.group.DefaultChannelGroup;
import io.netty.handler.codec.http.DefaultFullHttpResponse;
import io.netty.handler.codec.http.FullHttpRequest;
import io.netty.handler.codec.http.HttpResponseStatus;
import io.netty.handler.codec.http.HttpVersion;
import io.netty.handler.codec.http.websocketx.*;
import io.netty.util.CharsetUtil;
import io.netty.util.concurrent.GlobalEventExecutor;

import java.util.ArrayList;
import java.util.HashMap;
import java.util.List;
import java.util.Map;
import java.util.concurrent.Executors;
import java.util.concurrent<
