功能和环境

使用python3 tkinter写的一个简单的标记小工具，框选对象记录像素点位置和对象类型信息
环境：
python 3.7
opencv-python 4.1.1

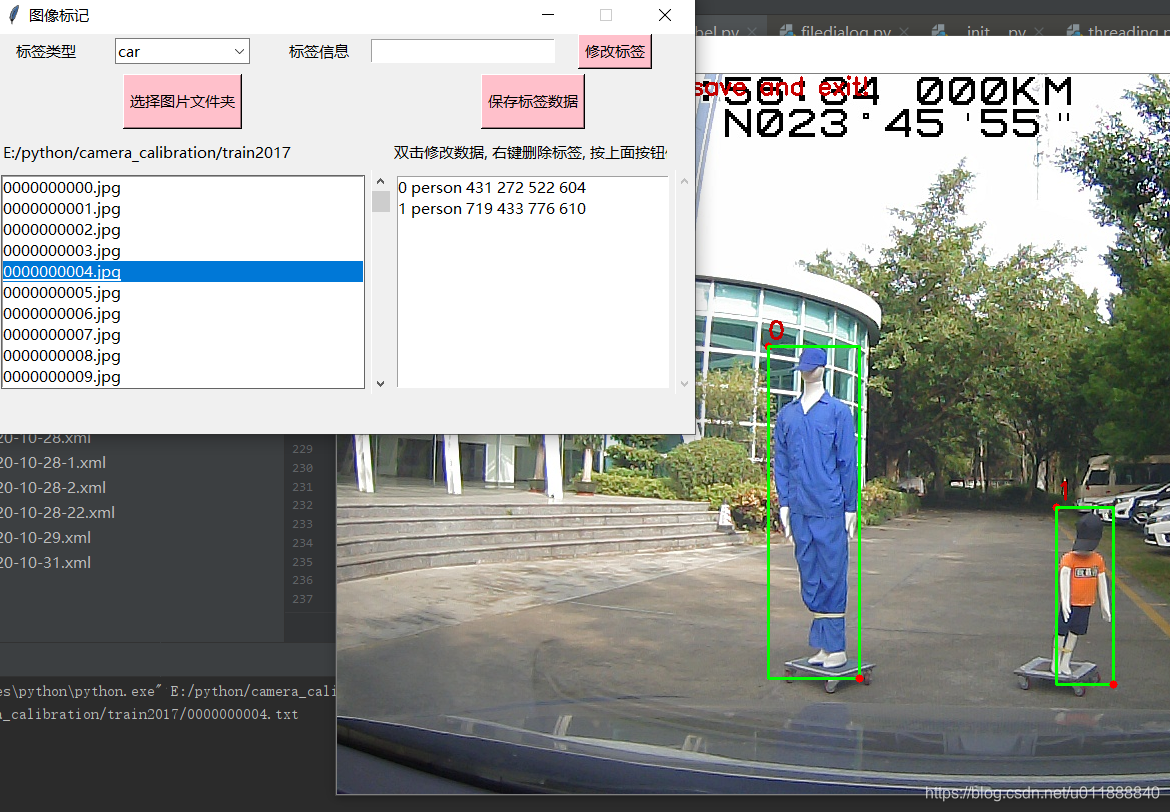

效果图

先上个效果图
在这里插入图片描述

源代码

import cv2
from tkinter import *
import threading, os
import tkinter.filedialog as filedialog
from tkinter.ttk import Combobox
from tkinter.messagebox import showwarning, askyesno


def get_files_from_dir(dir, wildcard):
    file_names = []
    exts = wildcard.split(" ")
    files = os.listdir(dir)
    for name in files:
        fullname = os.path.join(dir, name)
        if(os.path.isdir(fullname)):
            # file_names += get_files_from_dir(fullname, wildcard) # 遍历子路径，如果需要请修改pathStr获取方式，否者子路径的图片打开会有问题
            pass
        else:
            for ext in exts:
                if(name.endswith(ext)):
                    file_names.append(name)
                    break
    return file_names


# 鼠标事件处理
def on_mouse(event, x, y, flags, param):
    labels, mouse = param
    pos = labels[-1]
    # print(event, x, y, pos)
    if event == cv2.EVENT_LBUTTONDOWN:  # 第一个点
        pos[1], pos[2] = x, y
    elif event == cv2.EVENT_LBUTTONUP:  # 第二个点
        pos[3], pos[4] = x, y
        pos[0] = label_type[cb_bt.current()]  # 添加类型
        listbox_label.insert('end', f'{len(labels)-1} {pos[0]} {pos[1]} {pos[2]} {pos[3]} {pos[4]}')  # 将数据写到label listbox
    elif event == cv2.EVENT_MBUTTONDOWN:    # 退出循环
        mouse.clear()
    elif event == cv2.EVENT_MOUSEMOVE:
        mouse[0], mouse[1] = x, y
        if pos[0]*pos[1] and pos[2]*pos[3]:
            labels.append(['', 0, 0, 0, 0])


# 从文件夹获取图片列入图片listbox
def point_get_from_image():
    name = pathStr.get()+'/'+image_info['name']
    if not os.path.isfile(name):
        showwarning('警告', f'文件不存在，请核查后再试\n {name}')
        return
    img = cv2.imread(name)
    mouse = [0, 0]
    cv2.namedWindow("image")
    cv2.setMouseCallback("image", on_mouse, param=(image_info['labels'], mouse))
    flag = True
    # 打开要校准的基准图片，选取测试基准点
    while image_info['Run']:
        img_bak = img.copy()
        # print(mouse)
        for box in image_info['labels']:
            if box[1]*box[2]:
                cv2.circle(img_bak, tuple(box[1:3]), 4, (0, 0, 255), -1)  # 描左上点
                if box[3]*box[4]:
                    cv2.putText(img_bak, str(image_info['labels'].index(box)), (box[1], box[2]-8), cv2.FONT_HERSHEY_SIMPLEX, 0.8, (0, 0, 200), 2)
                    cv2.rectangle(img_bak, (box[1], box[2]), (box[3], box[4]), (0, 255, 0), 2)  # 画区域框
                    cv2.circle(img_bak, tuple(box[3:]), 4, (0, 0, 255), -1)  # 描右下点
                else:
                    cv2.rectangle(img_bak, tuple(box[1:3]), tuple(mouse), (0, 255, 0), 1)    # 动态区域显示
        cv2.putText(img_bak, 'Press Q to exit or Save button to save and exit!', (1, 20), cv2.FONT_HERSHEY_SIMPLEX, 0.8, (0, 0, 200), 2)
        cv2.imshow("image", img_bak)
        # cv2.line(img, (640, 0), (640, 720), (0, 255, 0), 1)
        if cv2.waitKey(1) == ord('q') or not mouse:  # 按Q或鼠标中键退出，不保存数据
            flag = False
            break

    # 线程结束，保存文件
    label_save(flag)


# 结束线程，保存数据
def save():
    image_info['Run'] = False


# 保存标签数据
def label_save(flag):
    if flag:
        with open(image_info['file'], 'w+', encoding='utf-8') as df:
            for label in image_info['labels'][:-1]:
                df.write(f'{label[0]} {label[1]} {label[2]} {label[3]} {label[4]}\n')
    else:
        image_info['Run'] = False  # 退出图片的标记，不保存信息
    useStr.set('双击左侧图片名打开图片开始标记')
    image_info['labels'].clear()    # 初始化标签值
    listbox_label.delete(0, END)    # 清空listbox
    cv2.destroyAllWindows()


# 选择图片文件夹获取图片
def load_files():
    listbox_image.delete(0, END)  # 清空listbox
    file_dir = filedialog.askdirectory(title='标注图片路径', initialdir=os.path.dirname(os.getcwd()), mustexist=True)
    if not file_dir:
        # showwarning("Warning", "请选择图片文件夹")
        return
    wildcard = ".png .jpg"
    files = get_files_from_dir(file_dir, wildcard)
    pathStr.set(file_dir)
    for file in files:
        listbox_image.insert('end', file)


# 使用线程打开图片，实时检测鼠标选择标签区域
def load_image(event):
    if image_info['Run']:
        showwarning('警告', '请先结束上一张图片的标记')
        return
    index = listbox_image.curselection()
    image_info['name'] = listbox_image.get(index[0])

    # 读取已有的标签文件
    file = pathStr.get() + '/' +image_info['name'].rsplit('.', 1)[0] + '.txt'
    print(file)
    if os.path.isfile(file):
        with open(file, 'r+', encoding='utf-8') as df:
            num = 0
            for line in df.readlines():
                labels = line.split()
                listbox_label.insert('end', str(num) + " " + line)
                image_info['labels'].append([labels[0]] + list(map(int, labels[1:])))
                num += 1
    # print(image_info['labels'])
    # image_info['num'] = len(image_info['labels'])
    image_info['labels'].append(["", 0, 0, 0, 0])
    image_info['file'] = file
    image_info['Run'] = True
    useStr.set('双击修改数据, 右键删除标签, 按上面按钮保存')

    threading.Thread(target=point_get_from_image, daemon=True).start()


# 获取标签数据写入list方便修改
def label_get(event):
    index = listbox_label.curselection()
    posStr.set(listbox_label.get(index[0]))


# 删除标签值
def label_delete(event):
    index = listbox_label.curselection()
    if not len(index):
        showwarning('提示', '请选选中一个标签才能键删除')
        return

    infos = listbox_label.get(index[0])
    num, info = infos.split(' ', 1)
    if YES == askyesno('删除标签', f'确定是否要删除标签【{num}】: \n{info}'):
        image_info['labels'].pop(int(num))
        label_update()


# 刷新标签信息
def label_update():
    listbox_label.delete(0, END)
    for i in range(len(image_info['labels'])):
        info = image_info['labels'][i]
        if info[0] * info[1] and info[2] * info[3]:
            listbox_label.insert(END, f'{i} {info[0]} {info[1]} {info[2]} {info[3]} {info[4]}')


# 修改标签值
def label_change():
    infos = posStr.get()
    # print(infos)
    if not infos:
        showwarning("提示", "请先双击选择要修改的标签数据")
        return
    infos = infos.split(' ')
    if len(infos) != 6:
        showwarning("提示", "修改数据错误，请确认空格分开\n 格式：序号 类型 四个点位置")
        return
    pos = list(map(int, infos[2:]))
    for i in range(4):
        image_info['labels'][int(infos[0])][i+1] = pos[i]
    image_info['labels'][int(infos[0])][0] = infos[1]
    label_update()


if __name__ == '__main__':
    root = Tk()
    root.title("图像标记")
    root.geometry('700x400+10+400')  # 位置设置
    root.wm_resizable(False, False)  # 不允许修改长宽
    posStr = StringVar()    # 位置信息，用于修改标签值
    pathStr = StringVar()   # 图片路径
    useStr = StringVar()    # 使用方法提示
    label_type = ['car', 'bus', 'person', 'ashcan']
    image_info = {"Run": False, 'name': "", 'labels': [], 'file': ""}

    Label(root, text='标签类型').grid(row=0, column=0, padx=5)
    cb_bt = Combobox(root, width=12)
    cb_bt["values"] = label_type
    cb_bt.current(0)
    cb_bt.grid(row=0, column=1, padx=5)

    Label(root, text='标签信息').grid(row=0, column=2, padx=5)
    Entry(root, textvariable=posStr, width=20, justify="left").grid(row=0, column=3, columnspan=2, sticky='W')
    Button(root, text='修改标签', background='pink', command=label_change).grid(row=0, column=5, padx=10)

    Button(root, text='选择图片文件夹', background='pink', command=load_files, height=2).grid(row=1, column=1, pady=5)
    Button(root, text='保存标签数据', background='pink', command=save, height=2).grid(row=1, column=4, columnspan=2)

    Label(root, textvariable=pathStr, width=40, anchor=W).grid(row=2, column=0, columnspan=3, padx=5, sticky='W')
    Label(root, textvariable=useStr, width=30, anchor=W).grid(row=2, column=4, columnspan=2, pady=5, sticky='W')
    pathStr.set('点击上面选择按钮选择要标记的图片路径')
    useStr.set('双击左侧图片名打开图片开始标记')

    listbox_image = Listbox(root, height=10, width=40)
    listbox_label = Listbox(root, height=10, width=30)
    listbox_image.grid(row=3, column=0, columnspan=3, padx=5, pady=5)
    listbox_label.grid(row=3, column=4,  columnspan=2, padx=5)
    scrolly_h = Scrollbar(root, width=20, orient="vertical", command=listbox_image.yview)  # 纵向, 绑定listbox
    scrolly_h.grid(row=3, column=3, sticky=NS)
    # scrolly_w = Scrollbar(root, width=20, orient='horizontal', command=listbox_image.xview)  # 横向
    # scrolly_w.grid(row=4, column=0, columnspan=3, sticky=EW)
    scrolly_h1 = Scrollbar(root, width=20, orient="vertical", command=listbox_label.yview)  # 纵向
    scrolly_h1.grid(row=3, column=6, sticky=NS)
    listbox_image['yscrollcommand'] = scrolly_h.set   # 绑定滚动条
    # listbox_image['xscrollcommand'] = scrolly_w.set
    listbox_label['yscrollcommand'] = scrolly_h1.set

    listbox_image.bind('<Double-Button-1>', load_image)  # 左键双击选择图片
    listbox_label.bind('<Double-Button-1>', label_get)   # 双击获取修改标签值
    listbox_label.bind('<Button-3>', label_delete)  # 右键删除标签值

    root.mainloop()
