AnyTransition/过渡动画, MatchedGeometryEffect/匹配几何动画效果的使用

本文链接：https://blog.youkuaiyun.com/u011193452/article/details/133785249

1. AnyTransition 过渡动画效果

1.1 创建过度动画案例 AnyTransitionBootcamp.swift

import SwiftUI

/// 旋转修饰 View
struct RotateViewModifier :ViewModifier{
    let rotation: Double

    func body(content: Content) -> some View {
        content
            .rotationEffect(Angle(degrees: rotation))
            .offset(x: rotation != 0 ? UIScreen.main.bounds.width : 0,
                    y: rotation != 0 ? UIScreen.main.bounds.height : 0)
    }
}

// 扩展
extension AnyTransition{
    /// 旋转
    static var rotation: AnyTransition{
        modifier(
            active: RotateViewModifier(rotation: 180),
            identity: RotateViewModifier(rotation: 0))
    }

    /// 旋转自定义角度
    static func rotation(rotation: Double) -> AnyTransition{
        modifier(
            active: RotateViewModifier(rotation: rotation),
            identity: RotateViewModifier(rotation: 0))
    }

    /// 旋转 不对称方式
    static var rotateOn: AnyTransition{
        asymmetric(
            insertion: .rotation,
            removal: .move(edge: .leading))
    }
}

/// 过渡动画
struct AnyTransitionBootcamp: View {
    @State private var showRectangle: Bool = false

    var body: some View {
        VStack {
            Spacer()

            if showRectangle {
                RoundedRectangle(cornerRadius: 25)
                    .fill(Color.black)
                    .frame(width: 250, height: 350)
                    .frame(maxWidth: .infinity, maxHeight: .infinity)
                //.transition(.move(edge: .leading))
                //.transition(AnyTransition.scale.animation(.easeInOut))
                //.transition(AnyTransition.rotation.animation(.easeInOut))
                // 旋转
                //.transition(.rotation)
                // 旋转自定义角度
                //.transition(.rotation(rotation: 1080))
                // 不对称旋转
                .transition(.rotateOn)
            }

            Spacer()
            Text("Click Me!")
                .withDefaultButtonFormatting()
                .padding(.horizontal, 40)
                .onTapGesture {
                    //duration: 5.0
                    withAnimation(.easeInOut) {
                        showRectangle.toggle()
                    }
                }
        }
    }
}

struct AnyTransitionBootcamp_Previews: PreviewProvider {
    static var previews: some View {
        AnyTransitionBootcamp()
    }
}

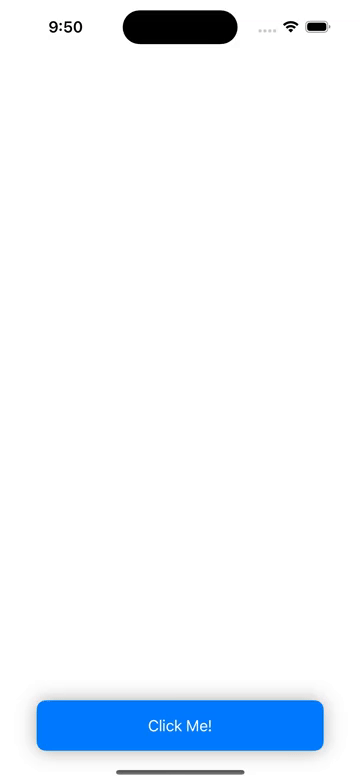

1.2 效果图:

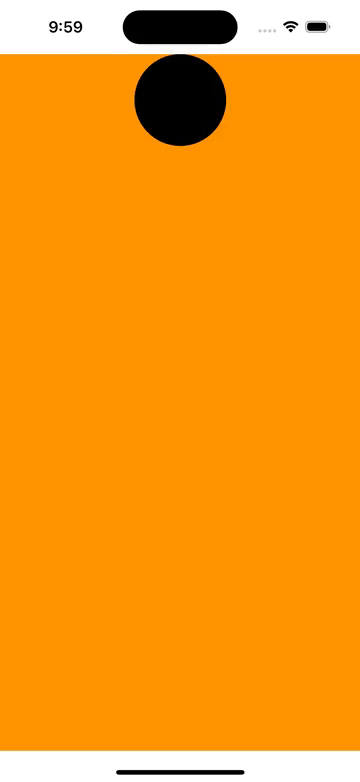

2. MatchedGeometryEffect 匹配几何动画效果

2.1 创建匹配几何效果案例，MatchedGeometryEffectBootcamp.swift

import SwiftUI

/// 匹配几何效果
struct MatchedGeometryEffectBootcamp: View {
    /// 是否单击
    @State private var isClicked: Bool = false
    @Namespace private var namespace

    var body: some View {
        VStack {
            if !isClicked {
                Circle()
                    .matchedGeometryEffect(id: "rectangle", in: namespace)
                    .frame(width: 100, height: 100)
            }
            Spacer()
            if isClicked {
                Circle()
                    .matchedGeometryEffect(id: "rectangle", in: namespace)
                    .frame(width: 300, height: 200)
            }
        }
        .frame(maxWidth: .infinity, maxHeight: .infinity)
        .background(Color.orange)
        .onTapGesture {
            withAnimation(.easeIn(duration: 0.5)) {
                isClicked.toggle()
            }
        }
    }
}

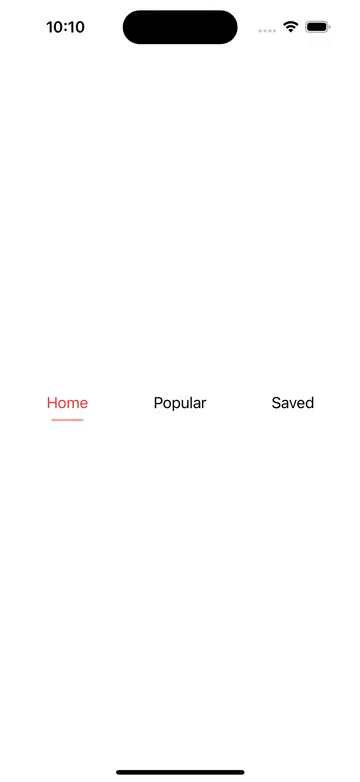

/// 匹配几何效果二
struct MatchedGeometryEffectBootcamp2: View{
    let categories: [String] = ["Home", "Popular", "Saved"]
    @State private var selected: String = "Home"
    @Namespace private var namespace2

    var body: some View{
        HStack {
            ForEach(categories, id: \.self) { category in
                ZStack(alignment: .bottom) {
                    if selected == category{
                        RoundedRectangle(cornerRadius: 10)
                            .fill(Color.red.opacity(0.5))
                            .matchedGeometryEffect(id: "category_background", in: namespace2)
                            .frame(width: 35, height: 2)
                            .offset(y: 10)
                    }

                    Text(category)
                        .foregroundColor(selected == category ? .red : .black)
                }
                .frame(maxWidth: .infinity)
                .frame(height: 55)
                .onTapGesture {
                    withAnimation(.spring()) {
                        selected = category
                    }
                }
            }
        }
        .padding()
    }
}

struct MatchedGeometryEffectBootcamp_Previews: PreviewProvider {
    static var previews: some View {
        MatchedGeometryEffectBootcamp()
        //MatchedGeometryEffectBootcamp2()
    }
}
