activeMQ集群实现负载均衡和高可用

关于更多activeMQ的实践（学习记录）请移步：https://gitee.com/ikgwr/activemq

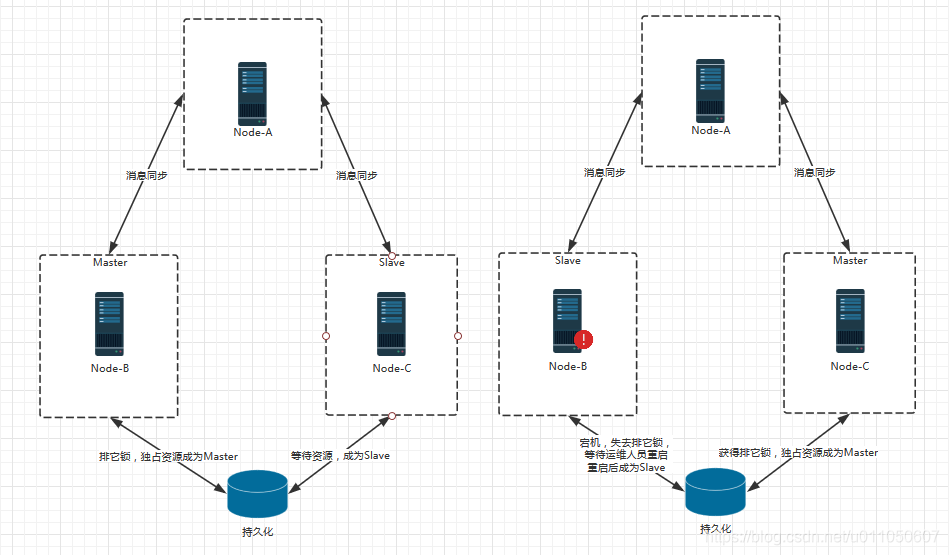

节点	服务端口	管理端口	存储	网络连接器	用途
Node-A	61616	8161	-	Node-B、Node-C	消费者
Node-B	61617	8162	/activemq/kahadb/	Node-A	生产者、消费者
Node-C	61618	8163	/activemq/kahadb/	Node-A	生产者、消费者

1、创建三个activeMQ服务器

cp -rf apache-activemq-5.15.9 activemq/activemq-a
cp -rf apache-activemq-5.15.9 activemq/activemq-b
cp -rf apache-activemq-5.15.9 activemq/activemq-c

2、创建kahadb目录，作为Master/Slave集群使用的共享储存文件夹

cd activemq/
mkdir kahadb

3、编辑activemq-a下配置文件/conf/activemq.xml以及/conf/jetty.xml，注释其他协议，保留tcp协议，并添加网络连接配置项

<bean id="jettyPort" class="org.apache.activemq.web.WebConsolePort" init-method="start">
    <!-- the default port number for the web console -->
    <property name="host" value="0.0.0.0"/>
    <property name="port" value="8161"/>
</bean>

<transportConnectors>
    <!-- DOS protection, limit concurrent connections to 1000 and frame size to 100MB -->
    <transportConnector name="openwire" uri="tcp://0.0.0.0:61616?maximumConnections=1000&amp;wireFormat.maxFrameSize=104857600"/>
   <!--  <transportConnector name="amqp" uri="amqp://0.0.0.0:5672?maximumConnections=1000&amp;wireFormat.maxFrameSize=104857600"/>
    <transportConnector name="stomp" uri="stomp://0.0.0.0:61613?maximumConnections=1000&amp;wireFormat.maxFrameSize=104857600"/>
    <transportConnector name="mqtt" uri="mqtt://0.0.0.0:1883?maximumConnections=1000&amp;wireFormat.maxFrameSize=104857600"/>
    <transportConnector name="ws" uri="ws://0.0.0.0:61614?maximumConnections=1000&amp;wireFormat.maxFrameSize=104857600"/> -->
</transportConnectors>

<networkConnectors>
    <networkConnector name="local_network" uri="static:(tcp://127.0.0.1:61617,tcp://127.0.0.1:61618)"/>
</networkConnectors>

5、编辑activemq-b下配置文件/conf/activemq.xml以及/conf/jetty.xml，注释其他协议，保留tcp协议，修改端口号，并添加网络连接配置项。因为B/C节点需要配置成Master/Slave，所以要修改共享存储文件的目录。

<bean id="jettyPort" class="org.apache.activemq.web.WebConsolePort" init-method="start">
    <!-- the default port number for the web console -->
    <property name="host" value="0.0.0.0"/>
    <property name="port" value="8162"/>
</bean>

<persistenceAdapter>
    <kahaDB directory="/software/activemq/kahadb"/>
</persistenceAdapter>
<transportConnectors>
    <!-- DOS protection, limit concurrent connections to 1000 and frame size to 100MB -->
    <transportConnector name="openwire" uri="tcp://0.0.0.0:61617?maximumConnections=1000&amp;wireFormat.maxFrameSize=104857600"/>
   <!--  <transportConnector name="amqp" uri="amqp://0.0.0.0:5672?maximumConnections=1000&amp;wireFormat.maxFrameSize=104857600"/>
    <transportConnector name="stomp" uri="stomp://0.0.0.0:61613?maximumConnections=1000&amp;wireFormat.maxFrameSize=104857600"/>
    <transportConnector name="mqtt" uri="mqtt://0.0.0.0:1883?maximumConnections=1000&amp;wireFormat.maxFrameSize=104857600"/>
    <transportConnector name="ws" uri="ws://0.0.0.0:61614?maximumConnections=1000&amp;wireFormat.maxFrameSize=104857600"/> -->
</transportConnectors>

<networkConnectors>
    <networkConnector name="network_a" uri="static:(tcp://127.0.0.1:61616)"/>
</networkConnectors>

6、编辑activemq-c下配置文件/conf/activemq.xml以及/conf/jetty.xml，注释其他协议，保留tcp协议，修改端口号，并添加网络连接配置项。因为B/C节点需要配置成Master/Slave，所以要修改共享存储文件的目录。

<bean id="jettyPort" class="org.apache.activemq.web.WebConsolePort" init-method="start">
    <!-- the default port number for the web console -->
    <property name="host" value="0.0.0.0"/>
    <property name="port" value="8163"/>
</bean>

<persistenceAdapter>
    <kahaDB directory="/software/activemq/kahadb"/>
</persistenceAdapter>
<transportConnectors>
    <!-- DOS protection, limit concurrent connections to 1000 and frame size to 100MB -->
    <transportConnector name="openwire" uri="tcp://0.0.0.0:61618?maximumConnections=1000&amp;wireFormat.maxFrameSize=104857600"/>
   <!--  <transportConnector name="amqp" uri="amqp://0.0.0.0:5672?maximumConnections=1000&amp;wireFormat.maxFrameSize=104857600"/>
    <transportConnector name="stomp" uri="stomp://0.0.0.0:61613?maximumConnections=1000&amp;wireFormat.maxFrameSize=104857600"/>
    <transportConnector name="mqtt" uri="mqtt://0.0.0.0:1883?maximumConnections=1000&amp;wireFormat.maxFrameSize=104857600"/>
    <transportConnector name="ws" uri="ws://0.0.0.0:61614?maximumConnections=1000&amp;wireFormat.maxFrameSize=104857600"/> -->
</transportConnectors>

<networkConnectors>
    <networkConnector name="network_a" uri="static:(tcp://127.0.0.1:61616)"/>
</networkConnectors>

7、分别启动a/b/c节点

./software/activemq/activemq-a/bin/activemq start
./software/activemq/activemq-b/bin/activemq start
./software/activemq/activemq-c/bin/activemq start

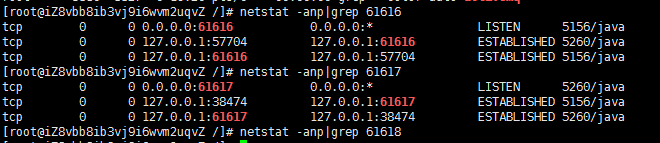

8、查看对应端口，a/b节点已启动并监听相关端口，c节点在等待获得资源，没有启动提供服务

netstat -anp|grep 61616
netstat -anp|grep 61617
netstat -anp|grep 61618

9、停掉b节点，c节点启动提供服务
