redis+keepalived 高可用方案

因公司业务需求需搭建redis 高可用方案

两台主机

10.21.10.43  master

10.21.10.44 slave

两台机器分别安装keeplived

yum install keepalived

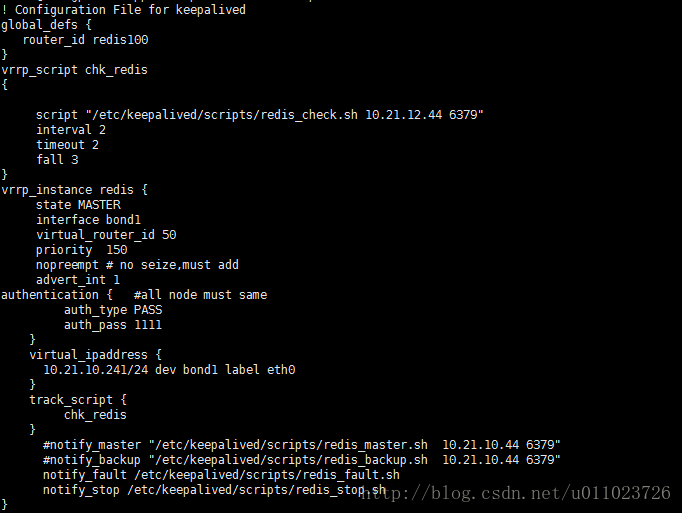

在master(110.21.10.43)上修改keepalived的住配置文件

vim /etc/keepalived/keepalived.conf

修改内容如下

! Configuration File for keepalived
global_defs {
   router_id redis100
}
vrrp_script chk_redis
{
     script "/etc/keepalived/scripts/redis_check.sh 10.21.12.43 6379"
     interval 2
     timeout 2
     fall 3
}
vrrp_instance redis {
     state MASTER
     interface bond1
     virtual_router_id 50
     priority  150
     nopreempt # no seize,must add
     advert_int 1
authentication {   #all node must same
         auth_type PASS
         auth_pass 1111
    }
    virtual_ipaddress {
      10.21.10.241/24 dev bond1 label eth0
    }
    track_script {
         chk_redis
    }
      notify_fault /etc/keepalived/scripts/redis_fault.sh
      notify_stop /etc/keepalived/scripts/redis_stop.sh
}

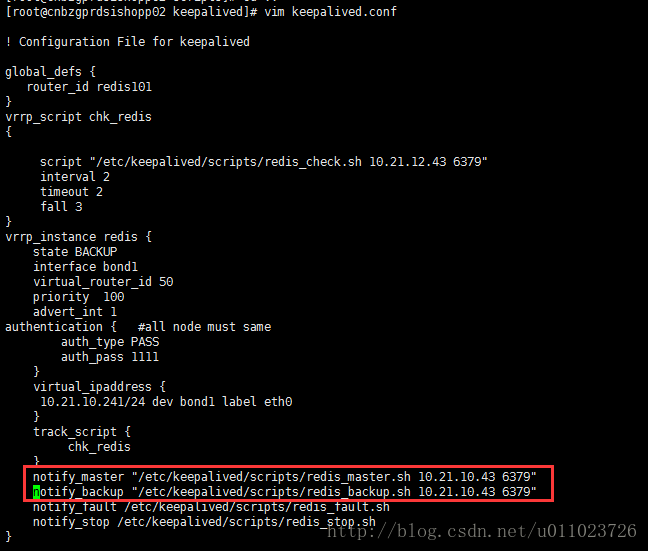

在slave(110.21.10.44)上修改keepalived的住配置文件



! Configuration File for keepalived
global_defs {
   router_id redis101
}
vrrp_script chk_redis
{
     script "/etc/keepalived/scripts/redis_check.sh 10.21.12.44 6379"
     interval 2
     timeout 2
     fall 3
}
vrrp_instance redis {
    state BACKUP
    interface bond1
    virtual_router_id 50
    priority  100
    advert_int 1
authentication {   #all node must same
        auth_type PASS
        auth_pass 1111
    }
    virtual_ipaddress {
     10.21.10.241/24 dev bond1 label eth0 #10.21.10.241是vip 地址 bond1 是本机网卡名 eth0 是虚出来的
    }
    track_script {
         chk_redis
    }
    notify_master "/etc/keepalived/scripts/redis_master.sh 10.21.10.43 6379"
    notify_backup "/etc/keepalived/scripts/redis_backup.sh 10.21.10.43 6379"
    notify_fault /etc/keepalived/scripts/redis_fault.sh
    notify_stop /etc/keepalived/scripts/redis_stop.sh
}

然后编写 脚本 在/etc/keepalived/scripts 路径下 创建 redis_check.sh redis_fault.sh redis_stop.sh 这三个脚本 和keepalived 调用的脚本一致

redis_check.sh 脚本内容如下

#!/bin/bash
ALIVE=`/usr/local/redis/bin/redis-cli -h $1 -p $2 -a 'redis 密码' PING`
LOGFILE="/var/log/keepalived-redis-check.log"
if [ "$ALIVE"x = "PONG"x ]; then :
    exit 0
else
    date >> $LOGFILE
    echo "Failed:redis-cli -h $1 -p $2 PING $ALIVE " >> $LOGFILE 2>&1
        /etc/init.d/keepalived stop
    exit 1
fi

redis_fault.sh 脚本

#!/bin/bash
LOGFILE=/var/log/keepalived-redis-state.log
echo "[fault]" >> $LOGFILE
date >> $LOGFILE

redis_stop.sh 脚本

#!/bin/bash
LOGFILE=/var/log/keepalived-redis-state.log
echo "[stop]" >> $LOGFILE
date >> $LOGFILE

注意区别 slave 的配置文件比master 多两条执行脚本命令



然后编写slave 使用脚本 在/etc/keepalived/scripts 路径下 创建 redis_master.sh redis_back.sh 和 redis_check.sh redis_fault.sh redis_stop.sh 这三个脚本 和keepalived 调用的脚本一致

比master 多两个脚本

redis_master.sh 脚本内容

#!/bin/bash
REDISCLI="/usr/local/redis/bin/redis-cli -h $1 -p $2"
LOGFILE="/var/log/keepalived-redis-state.log"
echo "[master]" >> $LOGFILE
date >> $LOGFILE
echo "Being master...." >> $LOGFILE 2>&1
echo "Run SLAVEOF cmd ... " >> $LOGFILE
#$REDISCLI SLAVEOF $1 $2 >> $LOGFILE  2>&1
#echo "SLAVEOF $1 cmd can't excute ... " >> $LOGFILE
#sleep 10 ##delay 15 s wait data sync exchange role
echo "Run SLAVEOF NO ONE cmd ..." >> $LOGFILE
$REDISCLI SLAVEOF NO ONE >> $LOGFILE 2>&1



redis_back.sh 数据同步脚本

#!/bin/bash
REDISCLI="/usr/local/redis/bin/redis-cli"
LOGFILE="/var/log/keepalived-redis-state.log"
echo "[backup]" >> $LOGFILE
date >> $LOGFILE
echo "Run SLAVEOF cmd ..." >> $LOGFILE
$REDISCLI -a 'redis密码' SLAVEOF $1 $2 >> $LOGFILE 2>&1
# echo "Being slave...." >> $LOGFILE 2>&1
sleep 15 #delay 15 s wait data sync exchange role



redis_check.sh 脚本内容如下

#!/bin/bash
ALIVE=`/usr/local/redis/bin/redis-cli -h $1 -p $2 -a 'redis 密码' PING`
LOGFILE="/var/log/keepalived-redis-check.log"
if [ "$ALIVE"x = "PONG"x ]; then :
    exit 0
else
    date >> $LOGFILE
    echo "Failed:redis-cli -h $1 -p $2 PING $ALIVE " >> $LOGFILE 2>&1
        /etc/init.d/keepalived stop
    exit 1
fi

redis_fault.sh 脚本

#!/bin/bash
LOGFILE=/var/log/keepalived-redis-state.log
echo "[fault]" >> $LOGFILE
date >> $LOGFILE

redis_stop.sh 脚本

#!/bin/bash
LOGFILE=/var/log/keepalived-redis-state.log
echo "[stop]" >> $LOGFILE
date >> $LOGFILE



给这些脚本执行权限



--------------------------------------------------------------------------------------------------------------------------------

二 安装 redis

具体安装不在这讲述 百度很多

修改redis配置文件

添加一下配置

daemonize yes

masterauth reidspass(redis住库密码)



-----------------------------------------------------------



三 验证

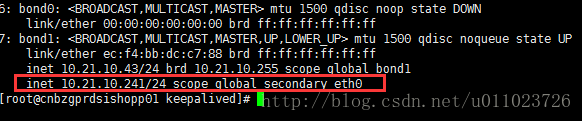

先在master 查看vip 是不是在生效

ip addr

吧 master 上 redis 停掉 查看slave vip 已经飘到slave
