将8723du复制到kernel/drivers/net/wireless/rockchip_wlan/rtl8723du

并修改makefile

修改平台

CONFIG_PLATFORM_I386_PC = n

CONFIG_PLATFORM_ARM_RK3188 = y

修改对应的Android版本

########################## Android ###########################
# CONFIG_RTW_ANDROID - 0: no Android, 4/5/6/7/8/9/10/11 : Android version
CONFIG_RTW_ANDROID = 7

修改

ifeq ($(CONFIG_PLATFORM_ARM_RK3188), y)
EXTRA_CFLAGS += -DCONFIG_LITTLE_ENDIAN -DCONFIG_PLATFORM_ANDROID -DCONFIG_PLATFORM_ROCKCHIPS
# default setting for Android 4.1, 4.2, 4.3, 4.4
EXTRA_CFLAGS += -DCONFIG_IOCTL_CFG80211 -DRTW_USE_CFG80211_STA_EVENT
EXTRA_CFLAGS += -DCONFIG_CONCURRENT_MODE

# default setting for Power control
# EXTRA_CFLAGS += -DRTW_ENABLE_WIFI_CONTROL_FUNC
EXTRA_CFLAGS += -DCONFIG_P2P_IPS
EXTRA_CFLAGS += -DCONFIG_RADIO_WORK
EXTRA_CFLAGS += -DCONFIG_RESUME_IN_WORKQUEUE

# ifeq ($(CONFIG_SDIO_HCI), y)
# EXTRA_CFLAGS += -DRTW_SUPPORT_PLATFORM_SHUTDOWN
# endif
# default setting for Special function
ARCH := arm
# CROSS_COMPILE := /home/android_sdk/Rockchip/Rk3188/prebuilts/gcc/linux-x86/arm/arm-eabi-4.6/bin/arm-eabi-
CROSS_COMPILE := /home/zhang/android/px30/prebuilts/gcc/linux-x86/aarch64/aarch64-linux-android-4.9/bin/aarch64-linux-android-
# KSRC := /home/android_sdk/Rockchip/Rk3188/kernel
KSRC := /home/zhang/android/px30/kernel
MODULE_NAME := 8723du
endif

frameworks/opt/net/wifi/libwifi_hal/rk_wifi_ctrl.cpp

frameworks/opt/net/wifi/libwifi_hal/wifi_hal_common.cpp

(hardware/libhardware_legacy/wifi/rk_wifi_ctrl.c

hardware/libhardware_legacy/wifi/wifi.c)

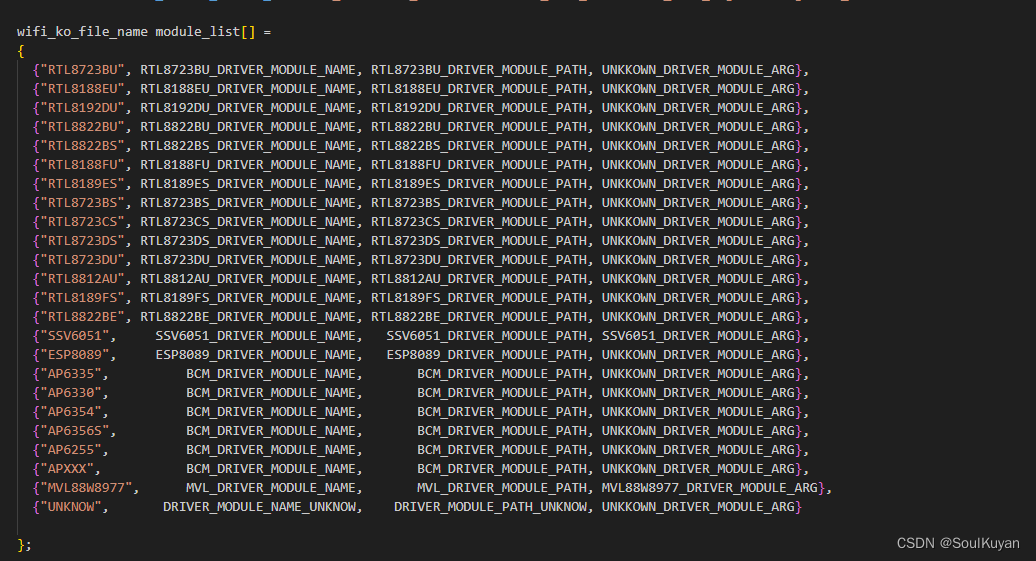

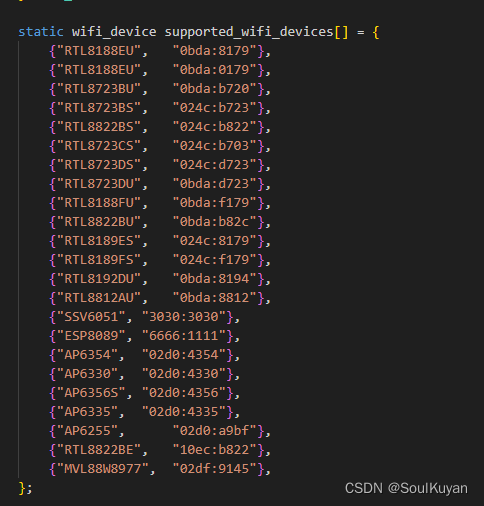

添加对应的RTL8723DU_DRIVER_MODULE_NAME，RTL8723DU_DRIVER_MODULE_PATH

关于蓝牙驱动：

1.配置dts

	wireless-bluetooth {
		compatible = "bluetooth-platdata";
		uart_rts_gpios = <&gpio4 19 GPIO_ACTIVE_LOW>;
		pinctrl-names = "default", "rts_gpio";
		pinctrl-0 = <&uart0_rts>;
		pinctrl-1 = <&uart0_gpios>;
		BT,reset_gpio    = <&gpio4 29 GPIO_ACTIVE_HIGH>;
		BT,wake_gpio     = <&gpio4 26 GPIO_ACTIVE_HIGH>;
		BT,wake_host_irq = <&gpio4 31 GPIO_ACTIVE_HIGH>;
		status = "okay";
	};

2.配置驱动kernel/drivers/bluetooth/rtk_btusb.c和rtk_btusb.h

根据vid pid配置使用对应的fw与config

static patch_info fw_patch_table[] = {
/* { vid, pid, lmp_sub_default, lmp_sub, everion, mp_fw_name, fw_name, config_name, fw_cache, fw_len, mac_offset } */
{ 0x0BDA, 0x1724, 0x1200, 0, 0, "mp_rtl8723a_fw", "rtl8723a_fw", "rtl8723a_config", NULL, 0 ,CONFIG_MAC_OFFSET_GEN_1_2, MAX_PATCH_SIZE_24K}, /* RTL8723A */
{ 0x0BDA, 0x8723, 0x1200, 0, 0, "mp_rtl8723a_fw", "rtl8723a_fw", "rtl8723a_config", NULL, 0 ,CONFIG_MAC_OFFSET_GEN_1_2, MAX_PATCH_SIZE_24K}, /* 8723AE */
{ 0x0BDA, 0xA723, 0x1200, 0, 0, "mp_rtl8723a_fw", "rtl8723a_fw", "rtl8723a_config", NULL, 0 ,CONFIG_MAC_OFFSET_GEN_1_2, MAX_PATCH_SIZE_24K}, /* 8723AE for LI */
{ 0x0BDA, 0x0723, 0x1200, 0, 0, "mp_rtl8723a_fw", "rtl8723a_fw", "rtl8723a_config", NULL, 0 ,CONFIG_MAC_OFFSET_GEN_1_2, MAX_PATCH_SIZE_24K}, /* 8723AE */
{ 0x13D3, 0x3394, 0x1200, 0, 0, "mp_rtl8723a_fw", "rtl8723a_fw", "rtl8723a_config", NULL, 0 ,CONFIG_MAC_OFFSET_GEN_1_2, MAX_PATCH_SIZE_24K}, /* 8723AE for Azurewave*/

{ 0x0BDA, 0x0724, 0x1200, 0, 0, "mp_rtl8723a_fw", "rtl8723a_fw", "rtl8723a_config", NULL, 0 ,CONFIG_MAC_OFFSET_GEN_1_2, MAX_PATCH_SIZE_24K}, /* 8723AU */
{ 0x0BDA, 0x8725, 0x1200, 0, 0, "mp_rtl8723a_fw", "rtl8723a_fw", "rtl8723a_config", NULL, 0 ,CONFIG_MAC_OFFSET_GEN_1_2, MAX_PATCH_SIZE_24K}, /* 8723AU */
{ 0x0BDA, 0x872A, 0x1200, 0, 0, "mp_rtl8723a_fw", "rtl8723a_fw", "rtl8723a_config", NULL, 0 ,CONFIG_MAC_OFFSET_GEN_1_2, MAX_PATCH_SIZE_24K}, /* 8723AU */
{ 0x0BDA, 0x872B, 0x1200, 0, 0, "mp_rtl8723a_fw", "rtl8723a_fw", "rtl8723a_config", NULL, 0 ,CONFIG_MAC_OFFSET_GEN_1_2, MAX_PATCH_SIZE_24K}, /* 8723AU */

{ 0x0BDA, 0xb720, 0x8723, 0, 0, "mp_rtl8723b_fw", "rtl8723b_fw", "rtl8723bu_config", NULL, 0 ,CONFIG_MAC_OFFSET_GEN_1_2, MAX_PATCH_SIZE_24K}, /* RTL8723BU */
{ 0x0BDA, 0xb72A, 0x8723, 0, 0, "mp_rtl8723b_fw", "rtl8723b_fw", "rtl8723bu_config", NULL, 0 ,CONFIG_MAC_OFFSET_GEN_1_2, MAX_PATCH_SIZE_24K}, /* RTL8723BU */
{ 0x0BDA, 0xb728, 0x8723, 0, 0, "mp_rtl8723b_fw", "rtl8723b_fw", "rtl8723b_config", NULL, 0 ,CONFIG_MAC_OFFSET_GEN_1_2, MAX_PATCH_SIZE_24K}, /* RTL8723BE for LC */
{ 0x0BDA, 0xb723, 0x8723, 0, 0, "mp_rtl8723b_fw", "rtl8723b_fw", "rtl8723b_config", NULL, 0 ,CONFIG_MAC_OFFSET_GEN_1_2, MAX_PATCH_SIZE_24K}, /* RTL8723BE */
{ 0x0BDA, 0xb72B, 0x8723, 0, 0, "mp_rtl8723b_fw", "rtl8723b_fw", "rtl8723b_config", NULL, 0 ,CONFIG_MAC_OFFSET_GEN_1_2, MAX_PATCH_SIZE_24K}, /* RTL8723BE */
{ 0x0BDA, 0xb001, 0x8723, 0, 0, "mp_rtl8723b_fw", "rtl8723b_fw", "rtl8723b_config", NULL, 0 ,CONFIG_MAC_OFFSET_GEN_1_2, MAX_PATCH_SIZE_24K}, /* RTL8723BE for HP */
{ 0x0BDA, 0xb002, 0x8723, 0, 0, "mp_rtl8723b_fw", "rtl8723b_fw", "rtl8723b_config", NULL, 0 ,CONFIG_MAC_OFFSET_GEN_1_2, MAX_PATCH_SIZE_24K}, /* RTL8723BE */
{ 0x0BDA, 0xb003, 0x8723, 0, 0, "mp_rtl8723b_fw", "rtl8723b_fw", "rtl8723b_config", NULL, 0 ,CONFIG_MAC_OFFSET_GEN_1_2, MAX_PATCH_SIZE_24K}, /* RTL8723BE */
{ 0x0BDA, 0xb004, 0x8723, 0, 0, "mp_rtl8723b_fw", "rtl8723b_fw", "rtl8723b_config", NULL, 0 ,CONFIG_MAC_OFFSET_GEN_1_2, MAX_PATCH_SIZE_24K}, /* RTL8723BE */
{ 0x0BDA, 0xb005, 0x8723, 0, 0, "mp_rtl8723b_fw", "rtl8723b_fw", "rtl8723b_config", NULL, 0 ,CONFIG_MAC_OFFSET_GEN_1_2, MAX_PATCH_SIZE_24K}, /* RTL8723BE */

{ 0x13D3, 0x3410, 0x8723, 0, 0, "mp_rtl8723b_fw", "rtl8723b_fw", "rtl8723b_config", NULL, 0 ,CONFIG_MAC_OFFSET_GEN_1_2, MAX_PATCH_SIZE_24K}, /* RTL8723BE for Azurewave */
{ 0x13D3, 0x3416, 0x8723, 0, 0, "mp_rtl8723b_fw", "rtl8723b_fw", "rtl8723b_config", NULL, 0 ,CONFIG_MAC_OFFSET_GEN_1_2, MAX_PATCH_SIZE_24K}, /* RTL8723BE for Azurewave */
{ 0x13D3, 0x3459, 0x8723, 0, 0, "mp_rtl8723b_fw", "rtl8723b_fw", "rtl8723b_config", NULL, 0 ,CONFIG_MAC_OFFSET_GEN_1_2, MAX_PATCH_SIZE_24K}, /* RTL8723BE for Azurewave */
{ 0x0489, 0xE085, 0x8723, 0, 0, "mp_rtl8723b_fw", "rtl8723b_fw", "rtl8723b_config", NULL, 0 ,CONFIG_MAC_OFFSET_GEN_1_2, MAX_PATCH_SIZE_24K}, /* RTL8723BE for Foxconn */
{ 0x0489, 0xE08B, 0x8723, 0, 0, "mp_rtl8723b_fw", "rtl8723b_fw", "rtl8723b_config", NULL, 0 ,CONFIG_MAC_OFFSET_GEN_1_2, MAX_PATCH_SIZE_24K}, /* RTL8723BE for Foxconn */

{ 0x0BDA, 0x2850, 0x8761, 0, 0, "mp_rtl8761a_fw", "rtl8761au_fw", "rtl8761a_config", NULL, 0 ,CONFIG_MAC_OFFSET_GEN_1_2, MAX_PATCH_SIZE_24K}, /* RTL8761AU */
{ 0x0BDA, 0xA761, 0x8761, 0, 0, "mp_rtl8761a_fw", "rtl8761au_fw", "rtl8761a_config", NULL, 0 ,CONFIG_MAC_OFFSET_GEN_1_2, MAX_PATCH_SIZE_24K}, /* RTL8761AU only */
{ 0x0BDA, 0x818B, 0x8761, 0, 0, "mp_rtl8761a_fw", "rtl8761aw8192eu_fw", "rtl8761aw8192eu_config", NULL, 0 ,CONFIG_MAC_OFFSET_GEN_1_2, MAX_PATCH_SIZE_24K}, /* RTL8761AW + 8192EU */
{ 0x0BDA, 0x818C, 0x8761, 0, 0, "mp_rtl8761a_fw", "rtl8761aw8192eu_fw", "rtl8761aw8192eu_config", NULL, 0 ,CONFIG_MAC_OFFSET_GEN_1_2, MAX_PATCH_SIZE_24K}, /* RTL8761AW + 8192EU */
{ 0x0BDA, 0x8760, 0x8761, 0, 0, "mp_rtl8761a_fw", "rtl8761au8192ee_fw", "rtl8761a_config", NULL, 0 ,CONFIG_MAC_OFFSET_GEN_1_2, MAX_PATCH_SIZE_24K}, /* RTL8761AU + 8192EE */
{ 0x0BDA, 0xB761, 0x8761, 0, 0, "mp_rtl8761a_fw", "rtl8761au_fw", "rtl8761a_config", NULL, 0 ,CONFIG_MAC_OFFSET_GEN_1_2, MAX_PATCH_SIZE_24K}, /* RTL8761AUV only */
{ 0x0BDA, 0x8761, 0x8761, 0, 0, "mp_rtl8761a_fw", "rtl8761au8192ee_fw", "rtl8761a_config", NULL, 0 ,CONFIG_MAC_OFFSET_GEN_1_2, MAX_PATCH_SIZE_24K}, /* RTL8761AU + 8192EE for LI */
{ 0x0BDA, 0x8A60, 0x8761, 0, 0, "mp_rtl8761a_fw", "rtl8761au8812ae_fw", "rtl8761a_config", NULL, 0 ,CONFIG_MAC_OFFSET_GEN_1_2, MAX_PATCH_SIZE_24K}, /* RTL8761AU + 8812AE */
{ 0x0BDA, 0x8771, 0x8761, 0, 0, "mp_rtl8761b_fw", "rtl8761b_fw", "rtl8761b_config", NULL, 0 ,CONFIG_MAC_OFFSET_GEN_4PLUS, MAX_PATCH_SIZE_40K}, /* RTL8761BU */
{ 0x0BDA, 0xB771, 0x8761, 0, 0, "mp_rtl8761b_fw", "rtl8761b_fw", "rtl8761b_config", NULL, 0 ,CONFIG_MAC_OFFSET_GEN_4PLUS, MAX_PATCH_SIZE_40K}, /* RTL8761BU */
{ 0x0BDA, 0xa725, 0x8761, 0, 0, "mp_rtl8725a_fw", "rtl8725a_fw", "rtl8725a_config", NULL, 0 ,CONFIG_MAC_OFFSET_GEN_4PLUS, MAX_PATCH_SIZE_40K}, /* RTL8725AU */
{ 0x0BDA, 0xa72A, 0x8761, 0, 0, "mp_rtl8725a_fw", "rtl8725a_fw", "rtl8725a_config", NULL, 0 ,CONFIG_MAC_OFFSET_GEN_4PLUS, MAX_PATCH_SIZE_40K}, /* RTL8725AU BT only */

{ 0x0BDA, 0x8821, 0x8821, 0, 0, "mp_rtl8821a_fw", "rtl8821a_fw", "rtl8821a_config", NULL, 0 ,CONFIG_MAC_OFFSET_GEN_1_2, MAX_PATCH_SIZE_24K}, /* RTL8821AE */
{ 0x0BDA, 0x0821, 0x8821, 0, 0, "mp_rtl8821a_fw", "rtl8821a_fw", "rtl8821a_config", NULL, 0 ,CONFIG_MAC_OFFSET_GEN_1_2, MAX_PATCH_SIZE_24K}, /* RTL8821AE */
{ 0x0BDA, 0x0823, 0x8821, 0, 0, "mp_rtl8821a_fw", "rtl8821a_fw", "rtl8821a_config", NULL, 0 ,CONFIG_MAC_OFFSET_GEN_1_2, MAX_PATCH_SIZE_24K}, /* RTL8821AU */
{ 0x13D3, 0x3414, 0x8821, 0, 0, "mp_rtl8821a_fw", "rtl8821a_fw", "rtl8821a_config", NULL, 0 ,CONFIG_MAC_OFFSET_GEN_1_2, MAX_PATCH_SIZE_24K}, /* RTL8821AE */
{ 0x13D3, 0x3458, 0x8821, 0, 0, "mp_rtl8821a_fw", "rtl8821a_fw", "rtl8821a_config", NULL, 0 ,CONFIG_MAC_OFFSET_GEN_1_2, MAX_PATCH_SIZE_24K}, /* RTL8821AE */
{ 0x13D3, 0x3461, 0x8821, 0, 0, "mp_rtl8821a_fw", "rtl8821a_fw", "rtl8821a_config", NULL, 0 ,CONFIG_MAC_OFFSET_GEN_1_2, MAX_PATCH_SIZE_24K}, /* RTL8821AE */
{ 0x13D3, 0x3462, 0x8821, 0, 0, "mp_rtl8821a_fw", "rtl8821a_fw", "rtl8821a_config", NULL, 0 ,CONFIG_MAC_OFFSET_GEN_1_2, MAX_PATCH_SIZE_24K}, /* RTL8821AE */

{ 0x0BDA, 0xB822, 0x8822, 0, 0, "mp_rtl8822b_fw", "rtl8822b_fw", "rtl8822b_config", NULL, 0 ,CONFIG_MAC_OFFSET_GEN_3PLUS, MAX_PATCH_SIZE_25K}, /* RTL8822BE */
{ 0x0BDA, 0xB82C, 0x8822, 0, 0, "mp_rtl8822b_fw", "rtl8822b_fw", "rtl8822b_config", NULL, 0 ,CONFIG_MAC_OFFSET_GEN_3PLUS, MAX_PATCH_SIZE_25K}, /* RTL8822BU */
{ 0x0BDA, 0xB81D, 0x8822, 0, 0, "mp_rtl8822b_fw", "rtl8822b_fw", "rtl8822b_config", NULL, 0 ,CONFIG_MAC_OFFSET_GEN_3PLUS, MAX_PATCH_SIZE_25K}, /* RTL8822BU BT only */
{ 0x0BDA, 0xB82E, 0x8822, 0, 0, "mp_rtl8822b_fw", "rtl8822b_fw", "rtl8822b_config", NULL, 0 ,CONFIG_MAC_OFFSET_GEN_3PLUS, MAX_PATCH_SIZE_25K}, /* RTL8822BU-VN */
{ 0x0BDA, 0xB023, 0x8822, 0, 0, "mp_rtl8822b_fw", "rtl8822b_fw", "rtl8822b_config", NULL, 0 ,CONFIG_MAC_OFFSET_GEN_3PLUS, MAX_PATCH_SIZE_25K}, /* RTL8822BE */
{ 0x0BDA, 0xB703, 0x8703, 0, 0, "mp_rtl8723c_fw", "rtl8723c_fw", "rtl8723c_config", NULL, 0 ,CONFIG_MAC_OFFSET_GEN_3PLUS, MAX_PATCH_SIZE_24K}, /* RTL8723CU */
{ 0x0BDA, 0xC82C, 0x8822, 0, 0, "mp_rtl8822c_fw", "rtl8822c_fw", "rtl8822c_config", NULL, 0 ,CONFIG_MAC_OFFSET_GEN_4PLUS, MAX_PATCH_SIZE_40K}, /* RTL8822CU */
{ 0x0BDA, 0xC82E, 0x8822, 0, 0, "mp_rtl8822c_fw", "rtl8822c_fw", "rtl8822c_config", NULL, 0 ,CONFIG_MAC_OFFSET_GEN_4PLUS, MAX_PATCH_SIZE_40K}, /* RTL8822CU-VN */
{ 0x0BDA, 0xC81D, 0x8822, 0, 0, "mp_rtl8822c_fw", "rtl8822c_fw", "rtl8822c_config", NULL, 0 ,CONFIG_MAC_OFFSET_GEN_4PLUS, MAX_PATCH_SIZE_40K}, /* RTL8822CU BT only */
{ 0x0BDA, 0xC82F, 0x8822, 0, 0, "mp_rtl8822c_fw", "rtl8822c_fw", "rtl8822c_config", NULL, 0 ,CONFIG_MAC_OFFSET_GEN_4PLUS, MAX_PATCH_SIZE_40K}, /* RTL8822CE-VS */
{ 0x0BDA, 0xC822, 0x8822, 0, 0, "mp_rtl8822c_fw", "rtl8822c_fw", "rtl8822c_config", NULL, 0 ,CONFIG_MAC_OFFSET_GEN_4PLUS, MAX_PATCH_SIZE_40K}, /* RTL8822CE */
{ 0x0BDA, 0xB00C, 0x8822, 0, 0, "mp_rtl8822c_fw", "rtl8822c_fw", "rtl8822c_config", NULL, 0 ,CONFIG_MAC_OFFSET_GEN_4PLUS, MAX_PATCH_SIZE_40K}, /* RTL8822CE */
{ 0x0BDA, 0xA82A, 0x8822, 0, 0, "mp_rtl8822e_8822c_fw", "rtl8822e_8822c_fw", "rtl8822e_8822c_config", NULL, 0 ,CONFIG_MAC_OFFSET_GEN_4PLUS, MAX_PATCH_SIZE_145K}, /* RTL8822EU */
{ 0x0BDA, 0xA82B, 0x8822, 0, 0, "mp_rtl8822e_8822c_fw", "rtl8822e_8822c_fw", "rtl8822e_8822c_config", NULL, 0 ,CONFIG_MAC_OFFSET_GEN_4PLUS, MAX_PATCH_SIZE_145K}, /* RTL8822EU */
{ 0x0BDA, 0xA822, 0x8822, 0, 0, "mp_rtl8822e_8822c_fw", "rtl8822e_8822c_fw", "rtl8822e_8822c_config", NULL, 0 ,CONFIG_MAC_OFFSET_GEN_4PLUS, MAX_PATCH_SIZE_145K}, /* RTL8822EU */
{ 0x0BDA, 0xE822, 0x8822, 0, 0, "mp_rtl8822e_8822c_fw", "rtl8822e_8822c_fw", "rtl8822e_8822c_config", NULL, 0 ,CONFIG_MAC_OFFSET_GEN_4PLUS, MAX_PATCH_SIZE_145K}, /* RTL8822EU */
/* todo: RTL8703BU */

{ 0x0BDA, 0xD723, 0x8723, 0, 0, "mp_rtl8723d_fw", "rtl8723d_fw", "rtl8723d_config", NULL, 0 ,CONFIG_MAC_OFFSET_GEN_3PLUS, MAX_PATCH_SIZE_40K}, /* RTL8723DU */
{ 0x0BDA, 0xD72A, 0x8723, 0, 0, "mp_rtl8723d_fw", "rtl8723d_fw", "rtl8723d_config", NULL, 0 ,CONFIG_MAC_OFFSET_GEN_3PLUS, MAX_PATCH_SIZE_40K}, /* RTL8723DU BT only */
{ 0x0BDA, 0xD720, 0x8723, 0, 0, "mp_rtl8723d_fw", "rtl8723d_fw", "rtl8723d_config", NULL, 0 ,CONFIG_MAC_OFFSET_GEN_3PLUS, MAX_PATCH_SIZE_40K}, /* RTL8723DE */
{ 0x0BDA, 0xB733, 0x8723, 0, 0, "mp_rtl8733b_8723f_fw", "rtl8733b_8723f_fw", "rtl8733b_8723f_config", NULL, 0 ,CONFIG_MAC_OFFSET_GEN_3PLUS, MAX_PATCH_SIZE_49_2K}, /* RTL8723FU */
{ 0x0BDA, 0xB73A, 0x8723, 0, 0, "mp_rtl8733b_8723f_fw", "rtl8733b_8723f_fw", "rtl8733b_8723f_config", NULL, 0 ,CONFIG_MAC_OFFSET_GEN_3PLUS, MAX_PATCH_SIZE_49_2K}, /* RTL8723FU */
{ 0x0BDA, 0xF72B, 0x8723, 0, 0, "mp_rtl8733b_8723f_fw", "rtl8733b_8723f_fw", "rtl8733b_8723f_config", NULL, 0 ,CONFIG_MAC_OFFSET_GEN_3PLUS, MAX_PATCH_SIZE_49_2K}, /* RTL8723FU */
{ 0x0BDA, 0xB820, 0x8821, 0, 0, "mp_rtl8821c_fw", "rtl8821c_fw", "rtl8821c_config", NULL, 0 ,CONFIG_MAC_OFFSET_GEN_3PLUS, MAX_PATCH_SIZE_40K}, /* RTL8821CU */
{ 0x0BDA, 0xC820, 0x8821, 0, 0, "mp_rtl8821c_fw", "rtl8821c_fw", "rtl8821c_config", NULL, 0 ,CONFIG_MAC_OFFSET_GEN_3PLUS, MAX_PATCH_SIZE_40K}, /* RTL8821CU */
{ 0x0BDA, 0xC82A, 0x8821, 0, 0, "mp_rtl8821c_fw", "rtl8821c_fw", "rtl8821c_config", NULL, 0 ,CONFIG_MAC_OFFSET_GEN_3PLUS, MAX_PATCH_SIZE_40K}, /* RTL8821CU BT only */
{ 0x0BDA, 0xC821, 0x8821, 0, 0, "mp_rtl8821c_fw", "rtl8821c_fw", "rtl8821c_config", NULL, 0 ,CONFIG_MAC_OFFSET_GEN_3PLUS, MAX_PATCH_SIZE_40K}, /* RTL8821CE */
{ 0x13D3, 0x3529, 0x8821, 0, 0, "mp_rtl8821c_fw", "rtl8821c_fw", "rtl8821c_config", NULL, 0 ,CONFIG_MAC_OFFSET_GEN_3PLUS, MAX_PATCH_SIZE_40K}, /* RTL8821CE */
{ 0x13D3, 0x3532, 0x8821, 0, 0, "mp_rtl8821c_fw", "rtl8821c_fw", "rtl8821c_config", NULL, 0 ,CONFIG_MAC_OFFSET_GEN_3PLUS, MAX_PATCH_SIZE_40K}, /* RTL8821CE */
{ 0x13D3, 0x3533, 0x8821, 0, 0, "mp_rtl8821c_fw", "rtl8821c_fw", "rtl8821c_config", NULL, 0 ,CONFIG_MAC_OFFSET_GEN_3PLUS, MAX_PATCH_SIZE_40K}, /* RTL8821CE */
{ 0x13D3, 0x3552, 0x8821, 0, 0, "mp_rtl8821c_fw", "rtl8821c_fw", "rtl8821c_config", NULL, 0 ,CONFIG_MAC_OFFSET_GEN_3PLUS, MAX_PATCH_SIZE_40K}, /* RTL8821CE */

/* todo: RTL8851B */
{ 0x0BDA, 0xB851, 0x8851, 0, 0, "mp_rtl8851b_fw", "rtl8851b_fw", "rtl8851b_config", NULL, 0 ,CONFIG_MAC_OFFSET_GEN_4PLUS, MAX_PATCH_SIZE_65_2K}, /*RTL8851B */
//RTL8852A
{ 0x0BDA, 0x885A, 0x8852, 0, 0, "mp_rtl8852au_fw", "rtl8852au_fw", "rtl8852au_config", NULL, 0,CONFIG_MAC_OFFSET_GEN_4PLUS, MAX_PATCH_SIZE_69_2K}, /*RTL8852AU */
{ 0x0BDA, 0x8852, 0x8852, 0, 0, "mp_rtl8852au_fw", "rtl8852au_fw", "rtl8852au_config", NULL, 0,CONFIG_MAC_OFFSET_GEN_4PLUS, MAX_PATCH_SIZE_69_2K}, /*RTL8852AE */
{ 0x0BDA, 0xA852, 0x8852, 0, 0, "mp_rtl8852au_fw", "rtl8852au_fw", "rtl8852au_config", NULL, 0 ,CONFIG_MAC_OFFSET_GEN_4PLUS, MAX_PATCH_SIZE_69_2K}, /*RTL8852AU */
{ 0x0BDA, 0x2852, 0x8852, 0, 0, "mp_rtl8852au_fw", "rtl8852au_fw", "rtl8852au_config", NULL, 0 ,CONFIG_MAC_OFFSET_GEN_4PLUS, MAX_PATCH_SIZE_69_2K}, /*RTL8852AU */
{ 0x0BDA, 0x385A, 0x8852, 0, 0, "mp_rtl8852au_fw", "rtl8852au_fw", "rtl8852au_config", NULL, 0 ,CONFIG_MAC_OFFSET_GEN_4PLUS, MAX_PATCH_SIZE_69_2K}, /*RTL8852AU */
{ 0x0BDA, 0x3852, 0x8852, 0, 0, "mp_rtl8852au_fw", "rtl8852au_fw", "rtl8852au_config", NULL, 0 ,CONFIG_MAC_OFFSET_GEN_4PLUS, MAX_PATCH_SIZE_69_2K}, /*RTL8852AU */
{ 0x0BDA, 0x1852, 0x8852, 0, 0, "mp_rtl8852au_fw", "rtl8852au_fw", "rtl8852au_config", NULL, 0 ,CONFIG_MAC_OFFSET_GEN_4PLUS, MAX_PATCH_SIZE_69_2K}, /*RTL8852AU */
{ 0x0BDA, 0x4852, 0x8852, 0, 0, "mp_rtl8852au_fw", "rtl8852au_fw", "rtl8852au_config", NULL, 0 ,CONFIG_MAC_OFFSET_GEN_4PLUS, MAX_PATCH_SIZE_69_2K}, /*RTL8852AU */
{ 0x04CA, 0x4006, 0x8852, 0, 0, "mp_rtl8852au_fw", "rtl8852au_fw", "rtl8852au_config", NULL, 0 ,CONFIG_MAC_OFFSET_GEN_4PLUS, MAX_PATCH_SIZE_69_2K}, /*RTL8852AU */
{ 0x13D3, 0x3561, 0x8852, 0, 0, "mp_rtl8852au_fw", "rtl8852au_fw", "rtl8852au_config", NULL, 0 ,CONFIG_MAC_OFFSET_GEN_4PLUS, MAX_PATCH_SIZE_69_2K}, /*RTL8852AU */
{ 0x13D3, 0x3562, 0x8852, 0, 0, "mp_rtl8852au_fw", "rtl8852au_fw", "rtl8852au_config", NULL, 0 ,CONFIG_MAC_OFFSET_GEN_4PLUS, MAX_PATCH_SIZE_69_2K}, /*RTL8852AU */
{ 0x0BDA, 0x588A, 0x8852, 0, 0, "mp_rtl8852au_fw", "rtl8852au_fw", "rtl8852au_config", NULL, 0 ,CONFIG_MAC_OFFSET_GEN_4PLUS, MAX_PATCH_SIZE_69_2K}, /*RTL8852AU */
{ 0x0BDA, 0x589A, 0x8852, 0, 0, "mp_rtl8852au_fw", "rtl8852au_fw", "rtl8852au_config", NULL, 0 ,CONFIG_MAC_OFFSET_GEN_4PLUS, MAX_PATCH_SIZE_69_2K}, /*RTL8852AU */
{ 0x0BDA, 0x590A, 0x8852, 0, 0, "mp_rtl8852au_fw", "rtl8852au_fw", "rtl8852au_config", NULL, 0 ,CONFIG_MAC_OFFSET_GEN_4PLUS, MAX_PATCH_SIZE_69_2K}, /*RTL8852AU */
{ 0x1358, 0xC125, 0x8852, 0, 0, "mp_rtl8852au_fw", "rtl8852au_fw", "rtl8852au_config", NULL, 0 ,CONFIG_MAC_OFFSET_GEN_4PLUS, MAX_PATCH_SIZE_69_2K}, /*RTL8852AU */
{ 0x0BDA, 0xE852, 0x8852, 0, 0, "mp_rtl8852au_fw", "rtl8852au_fw", "rtl8852au_config", NULL, 0 ,CONFIG_MAC_OFFSET_GEN_4PLUS, MAX_PATCH_SIZE_69_2K}, /*RTL8852AU */
{ 0x0CB8, 0xC549, 0x8852, 0, 0, "mp_rtl8852au_fw", "rtl8852au_fw", "rtl8852au_config", NULL, 0 ,CONFIG_MAC_OFFSET_GEN_4PLUS, MAX_PATCH_SIZE_69_2K}, /*RTL8852AU */
{ 0x1358, 0xC127, 0x8852, 0, 0, "mp_rtl8852au_fw", "rtl8852au_fw", "rtl8852au_config", NULL, 0 ,CONFIG_MAC_OFFSET_GEN_4PLUS, MAX_PATCH_SIZE_69_2K}, /*RTL8852AU */
{ 0x13D3, 0x3565, 0x8852, 0, 0, "mp_rtl8852au_fw", "rtl8852au_fw", "rtl8852au_config", NULL, 0 ,CONFIG_MAC_OFFSET_GEN_4PLUS, MAX_PATCH_SIZE_69_2K}, /*RTL8852AU */
{ 0x13D3, 0x3566, 0x8852, 0, 0, "mp_rtl8852au_fw", "rtl8852au_fw", "rtl8852au_config", NULL, 0 ,CONFIG_MAC_OFFSET_GEN_4PLUS, MAX_PATCH_SIZE_69_2K}, /*RTL8852AU */
{ 0x04C5, 0x165C, 0x8852, 0, 0, "mp_rtl8852au_fw", "rtl8852au_fw", "rtl8852au_config", NULL, 0 ,CONFIG_MAC_OFFSET_GEN_4PLUS, MAX_PATCH_SIZE_69_2K}, /*RTL8852AU */
//RTL8852B
{ 0x0BDA, 0x024C, 0x8852, 0, 0, "mp_rtl8852bu_fw", "rtl8852bu_fw", "rtl8852bu_config", NULL, 0 ,CONFIG_MAC_OFFSET_GEN_4PLUS, MAX_PATCH_SIZE_65_2K}, /*RTL8852B */
{ 0x0BDA, 0xA85B, 0x8852, 0, 0, "mp_rtl8852bu_fw", "rtl8852bu_fw", "rtl8852bu_config", NULL, 0 ,CONFIG_MAC_OFFSET_GEN_4PLUS, MAX_PATCH_SIZE_65_2K}, /*RTL8852B */
{ 0x0BDA, 0xB85B, 0x8852, 0, 0, "mp_rtl8852bu_fw", "rtl8852bu_fw", "rtl8852bu_config", NULL, 0 ,CONFIG_MAC_OFFSET_GEN_4PLUS, MAX_PATCH_SIZE_65_2K}, /*RTL8852B */
{ 0x0BDA, 0x4853, 0x8852, 0, 0, "mp_rtl8852bu_fw", "rtl8852bu_fw", "rtl8852bu_config", NULL, 0 ,CONFIG_MAC_OFFSET_GEN_4PLUS, MAX_PATCH_SIZE_65_2K}, /*RTL8852B */
{ 0x13D3, 0x3570, 0x8852, 0, 0, "mp_rtl8852bu_fw", "rtl8852bu_fw", "rtl8852bu_config", NULL, 0 ,CONFIG_MAC_OFFSET_GEN_4PLUS, MAX_PATCH_SIZE_65_2K}, /*RTL8852B */
//RTL8852c
{ 0x0BDA, 0xC85A, 0x8852, 0, 0, "mp_rtl8852cu_fw", "rtl8852cu_fw", "rtl8852cu_config", NULL, 0 ,CONFIG_MAC_OFFSET_GEN_4PLUS, MAX_PATCH_SIZE_78K}, /*RTL8852C */
{ 0x0BDA, 0xC85D, 0x8852, 0, 0, "mp_rtl8852cu_fw", "rtl8852cu_fw", "rtl8852cu_config", NULL, 0 ,CONFIG_MAC_OFFSET_GEN_4PLUS, MAX_PATCH_SIZE_78K}, /*RTL8852C */
{ 0x0BDA, 0x885C, 0x8852, 0, 0, "mp_rtl8852cu_fw", "rtl8852cu_fw", "rtl8852cu_config", NULL, 0 ,CONFIG_MAC_OFFSET_GEN_4PLUS, MAX_PATCH_SIZE_78K}, /*RTL8852CU */
{ 0x0BDA, 0x5852, 0x8852, 0, 0, "mp_rtl8852cu_fw", "rtl8852cu_fw", "rtl8852cu_config", NULL, 0 ,CONFIG_MAC_OFFSET_GEN_4PLUS, MAX_PATCH_SIZE_78K}, /*RTL8852C */
{ 0x0BDA, 0xC85C, 0x8852, 0, 0, "mp_rtl8852cu_fw", "rtl8852cu_fw", "rtl8852cu_config", NULL, 0 ,CONFIG_MAC_OFFSET_GEN_4PLUS, MAX_PATCH_SIZE_78K}, /*RTL8852C */
{ 0x0BDA, 0x886C, 0x8852, 0, 0, "mp_rtl8852cu_fw", "rtl8852cu_fw", "rtl8852cu_config", NULL, 0 ,CONFIG_MAC_OFFSET_GEN_4PLUS, MAX_PATCH_SIZE_78K}, /*RTL8852C */
{ 0x0BDA, 0x887C, 0x8852, 0, 0, "mp_rtl8852cu_fw", "rtl8852cu_fw", "rtl8852cu_config", NULL, 0 ,CONFIG_MAC_OFFSET_GEN_4PLUS, MAX_PATCH_SIZE_78K}, /*RTL8852C */
{ 0x04CA, 0x4007, 0x8852, 0, 0, "mp_rtl8852cu_fw", "rtl8852cu_fw", "rtl8852cu_config", NULL, 0 ,CONFIG_MAC_OFFSET_GEN_4PLUS, MAX_PATCH_SIZE_78K}, /*RTL8852C */
{ 0x0BDA, 0xC801, 0x8852, 0, 0, "mp_rtl8852cu_fw", "rtl8852cu_fw", "rtl8852cu_config", NULL, 0 ,CONFIG_MAC_OFFSET_GEN_4PLUS, MAX_PATCH_SIZE_78K}, /*RTL8852C */
{ 0x0BDA, 0xC802, 0x8852, 0, 0, "mp_rtl8852cu_fw", "rtl8852cu_fw", "rtl8852cu_config", NULL, 0 ,CONFIG_MAC_OFFSET_GEN_4PLUS, MAX_PATCH_SIZE_78K}, /*RTL8852C */
{ 0x0BDA, 0xC803, 0x8852, 0, 0, "mp_rtl8852cu_fw", "rtl8852cu_fw", "rtl8852cu_config", NULL, 0 ,CONFIG_MAC_OFFSET_GEN_4PLUS, MAX_PATCH_SIZE_78K}, /*RTL8852C */
{ 0x04C5, 0x1675, 0x8852, 0, 0, "mp_rtl8852cu_fw", "rtl8852cu_fw", "rtl8852cu_config", NULL, 0 ,CONFIG_MAC_OFFSET_GEN_4PLUS, MAX_PATCH_SIZE_78K}, /*RTL8852C */
{ 0x0CB8, 0xC558, 0x8852, 0, 0, "mp_rtl8852cu_fw", "rtl8852cu_fw", "rtl8852cu_config", NULL, 0 ,CONFIG_MAC_OFFSET_GEN_4PLUS, MAX_PATCH_SIZE_78K}, /*RTL8852C */
{ 0x13D3, 0x3587, 0x8852, 0, 0, "mp_rtl8852cu_fw", "rtl8852cu_fw", "rtl8852cu_config", NULL, 0 ,CONFIG_MAC_OFFSET_GEN_4PLUS, MAX_PATCH_SIZE_78K}, /*RTL8852C */
{ 0x13D3, 0x3586, 0x8852, 0, 0, "mp_rtl8852cu_fw", "rtl8852cu_fw", "rtl8852cu_config", NULL, 0 ,CONFIG_MAC_OFFSET_GEN_4PLUS, MAX_PATCH_SIZE_78K}, /*RTL8852C */
//RTL8852BP
{ 0x0BDA, 0xA85C, 0x8852, 0, 0, "mp_rtl8852bpu_fw", "rtl8852bpu_fw", "rtl8852bpu_config", NULL, 0 ,CONFIG_MAC_OFFSET_GEN_4PLUS, MAX_PATCH_SIZE_65_2K}, /*RTL8852BP */
{ 0x0BDA, 0xA850, 0x8852, 0, 0, "mp_rtl8852bpu_fw", "rtl8852bpu_fw", "rtl8852bpu_config", NULL, 0 ,CONFIG_MAC_OFFSET_GEN_4PLUS, MAX_PATCH_SIZE_65_2K}, /*RTL8852BPE */

/* NOTE: must append patch entries above the null entry */
{ 0, 0, 0, 0, 0, NULL, NULL, NULL, NULL, 0, 0, 0 }
};

3.使用芯片厂提供的对应的蓝牙fw与config

如rtl8821cs需要使用如下两个配置

hardware/realtek/rtkbt/system/etc/firmware/rtl8821cs_config

和hardware/realtek/rtkbt/system/etc/firmware/rtl8821cs_fw

地址也可能在（k3288_android5.1\vendor\rockchip\common\bluetooth\realtek\firmware\uart）

通过hardware/realtek/rtkbt/rtkbt.mk移动到指定位置

# RELEASE NAME: 20170109_TV_ANDROID_7.x
# RTKBT_API_VERSION=3.1.1.0

#BOARD_HAVE_BLUETOOTH := true
#BOARD_HAVE_BLUETOOTH_RTK := true
#BOARD_HAVE_BLUETOOTH_RTK_COEX := true

#BOARD_HAVE_BLUETOOTH_RTK_ADDON := bee1 rtkbtAutoPairService rtkbtAutoPairUIDemo
#BOARD_HAVE_BLUETOOTH_RTK_ADDON := bee1 rtkbtAutoPairService rtkbtAutoPairUIDemo vr_bee1_hidraw_daemon
#BOARD_HAVE_BLUETOOTH_RTK_ADDON := bee2 rtkbtAutoPairService rtkbtAutoPairUIDemo
#BOARD_HAVE_BLUETOOTH_RTK_ADDON := bee2 rtkbtAutoPairService rtkbtAutoPairUIDemo vr_bee2_hidraw_daemon
BOARD_HAVE_BLUETOOTH_RTK_ADDON := basic

ifneq ($(BOARD_HAVE_BLUETOOTH_RTK_ADDON),)
$(foreach item,$(BOARD_HAVE_BLUETOOTH_RTK_ADDON),$(call inherit-product,$(LOCAL_PATH)/addon/$(item)/addon.mk))
endif

PRODUCT_COPY_FILES += \
	$(LOCAL_PATH)/system/etc/bluetooth/rtkbt.conf:system/etc/bluetooth/rtkbt.conf \
	$(LOCAL_PATH)/system/etc/firmware/rtl8723b_config:system/etc/firmware/rtl8723b_config \
	$(LOCAL_PATH)/system/etc/firmware/rtl8723b_fw:system/etc/firmware/rtl8723b_fw \
	$(LOCAL_PATH)/system/etc/firmware/rtl8703bs_config:system/etc/firmware/rtl8703bs_config \
	$(LOCAL_PATH)/system/etc/firmware/rtl8703bs_fw:system/etc/firmware/rtl8703bs_fw \
	$(LOCAL_PATH)/system/etc/firmware/rtl8723cs_xx_config:system/etc/firmware/rtl8723cs_xx_config \
	$(LOCAL_PATH)/system/etc/firmware/rtl8723cs_xx_fw:system/etc/firmware/rtl8723cs_xx_fw \
	$(LOCAL_PATH)/system/etc/firmware/rtl8723bs_config:system/etc/firmware/rtl8723bs_config \
	$(LOCAL_PATH)/system/etc/firmware/rtl8723bs_fw:system/etc/firmware/rtl8723bs_fw \
	$(LOCAL_PATH)/system/etc/firmware/rtl8723bs_VQ0_config:system/etc/firmware/rtl8723bs_VQ0_config \
	$(LOCAL_PATH)/system/etc/firmware/rtl8723bs_VQ0_fw:system/etc/firmware/rtl8723bs_VQ0_fw \
	$(LOCAL_PATH)/system/etc/firmware/rtl8723bu_config:system/etc/firmware/rtl8723bu_config \
	$(LOCAL_PATH)/system/etc/firmware/rtl8723d_config:system/etc/firmware/rtl8723d_config \
	$(LOCAL_PATH)/system/etc/firmware/rtl8723d_fw:system/etc/firmware/rtl8723d_fw \
	$(LOCAL_PATH)/system/etc/firmware/rtl8723ds_config:system/etc/firmware/rtl8723ds_config \
	$(LOCAL_PATH)/system/etc/firmware/rtl8723ds_fw:system/etc/firmware/rtl8723ds_fw \
	$(LOCAL_PATH)/system/etc/firmware/rtl8761a_config:system/etc/firmware/rtl8761a_config \
	$(LOCAL_PATH)/system/etc/firmware/rtl8761a_fw:system/etc/firmware/rtl8761a_fw \
	$(LOCAL_PATH)/system/etc/firmware/rtl8761at_config:system/etc/firmware/rtl8761at_config \
	$(LOCAL_PATH)/system/etc/firmware/rtl8761at_fw:system/etc/firmware/rtl8761at_fw \
	$(LOCAL_PATH)/system/etc/firmware/rtl8761au8192ee_fw:system/etc/firmware/rtl8761au8192ee_fw \
	$(LOCAL_PATH)/system/etc/firmware/rtl8761au8812ae_fw:system/etc/firmware/rtl8761au8812ae_fw \
	$(LOCAL_PATH)/system/etc/firmware/rtl8761au_fw:system/etc/firmware/rtl8761au_fw \
	$(LOCAL_PATH)/system/etc/firmware/rtl8761aw8192eu_config:system/etc/firmware/rtl8761aw8192eu_config \
	$(LOCAL_PATH)/system/etc/firmware/rtl8761aw8192eu_fw:system/etc/firmware/rtl8761aw8192eu_fw \
	$(LOCAL_PATH)/system/etc/firmware/rtl8821a_config:system/etc/firmware/rtl8821a_config \
	$(LOCAL_PATH)/system/etc/firmware/rtl8821a_fw:system/etc/firmware/rtl8821a_fw \
	$(LOCAL_PATH)/system/etc/firmware/rtl8821as_config:system/etc/firmware/rtl8821as_config \
	$(LOCAL_PATH)/system/etc/firmware/rtl8821as_fw:system/etc/firmware/rtl8821as_fw \
	$(LOCAL_PATH)/system/etc/firmware/rtl8821c_config:system/etc/firmware/rtl8821c_config \
	$(LOCAL_PATH)/system/etc/firmware/rtl8821c_fw:system/etc/firmware/rtl8821c_fw \
	$(LOCAL_PATH)/system/etc/firmware/rtl8821cs_config:system/etc/firmware/rtl8821cs_config \
	$(LOCAL_PATH)/system/etc/firmware/rtl8821cs_fw:system/etc/firmware/rtl8821cs_fw \
	$(LOCAL_PATH)/system/etc/firmware/rtl8822b_config:system/etc/firmware/rtl8822b_config \
	$(LOCAL_PATH)/system/etc/firmware/rtl8822b_fw:system/etc/firmware/rtl8822b_fw \
	$(LOCAL_PATH)/system/etc/firmware/rtl8822bs_config:system/etc/firmware/rtl8822bs_config \
	$(LOCAL_PATH)/system/etc/firmware/rtl8822bs_fw:system/etc/firmware/rtl8822bs_fw \
	$(LOCAL_PATH)/system/lib/hw/audio.vr_bee_hidraw.default.so:system/lib/hw/audio.vr_bee_hidraw.default.so \
	$(LOCAL_PATH)/system/lib/rtkbt/3dd_service.so:system/lib/rtkbt/3dd_service.so \
	$(LOCAL_PATH)/system/lib/rtkbt/autopair_huawei.so:system/lib/rtkbt/autopair_huawei.so \
	$(LOCAL_PATH)/system/lib/rtkbt/autopair.so:system/lib/rtkbt/autopair.so \
	$(LOCAL_PATH)/system/lib/rtkbt/autopair_stack.so:system/lib/rtkbt/autopair_stack.so \
	$(LOCAL_PATH)/system/lib/rtkbt/heartbeat.so:system/lib/rtkbt/heartbeat.so \
	$(LOCAL_PATH)/system/lib/rtkbt/vr_bee1_hidraw.so:system/lib/rtkbt/vr_bee1_hidraw.so \
	$(LOCAL_PATH)/system/lib/rtkbt/vr_bee2_hidraw.so:system/lib/rtkbt/vr_bee2_hidraw.so \
	$(LOCAL_PATH)/system/usr/keylayout/rtkbt_virtual_hid.kl:system/usr/keylayout/rtkbt_virtual_hid.kl \


PRODUCT_PACKAGES += \
	Bluetooth \
	audio.a2dp.default

SoulKuyan
关注
瑞芯微 RK356x 基于Android11移植usb接口rtl8723du wifi和蓝牙一体化
qq_45147279的博客
07-10 1841
Realtek RTL8723DU是一个高度集成的单片机802.11b/g/n 1T1R WLAN，和一个集成的蓝牙2.1/4.2单片机，USB 2.0多功能。它将一个WLAN MAC、一个支持1T1R的WLAN基带、BT协议栈（LM、LL和LE）、BT基带、调制解调器和WLAN/BT RF结合在单个芯片中。RTL8723DU为一个高性能集成的无线局域网和蓝牙控制器提供了一个完整的解决方案。RTL8723DU WLAN基带实现了1发射和1接收路径的正交频分多路复用（OFDM），并与802.11n规范兼容。
rtl8723du WiFi驱动，移植SDK
01-14
rtl8723du WiFi驱动及安卓通用移植文档，移植SDK，试用平台安卓 6.0，已验证ok
RTL8723DU USB接口WiFi驱动
最新发布
gitblog_06735的博客
05-02 266
RTL8723DU USB接口WiFi驱动 【下载地址】RTL8723DUUSB接口WiFi驱动 这款开源项目为RK3568平台提供了适配的RTL8723DU USB接口WiFi驱动资源，文件名为`rtl8723du.tar.gz`。通过该驱动，您可以在RK3568平台上轻松实现RTL8723DU USB接口的WiFi功...
04 RTL8723DU驱动适配
ren364940161的专栏
12-20 1023
RTL8723DU 蓝牙wifi适配
RTL8723DU蓝牙驱动及Bluez协议移植
weixin_44006670的博客
03-10 2155
一般来说，当你想使用购买的WIFI或者蓝牙芯片时，直接问厂商要服务即可。但是这里我只是想简单玩玩学习一下，就在淘宝随便买了一个USB WIFI+蓝牙适配器，驱动这些只能自己搞搞。RTL8723DU是一个 WIFI+蓝牙 二合一芯片。WIFI部分的相关移植和使用大家用的比较多，资料也很丰富，自行搜索即可，这里只针对蓝牙部分做一下记录。我所使用的是arm开发板，Linux操作系统，交叉编译工具链为arm-[vender]-linux-uclibcgnueabihf。
4.0 RTL8723DU驱动(wifi+蓝牙)
szembed的博客
09-02 2129
公司使用px30 + rtl8723du驱动来使能蓝牙和wifi功能，目前蓝牙需要厂家提供固件，调通再更新。记录一下wifi移植的时候一个奇怪的现象：rtl8723du wifi 断电重启正常，但是reboot软重启，wifi不正常。具体表现为ifconfig 看不到wlan的信息，使用ifconfig wlan0 up 显示 找不到节点，将调试构成记录一下。...
Android 系统 rtl8723du 蓝牙驱动
07-10
2. 配置内核：将驱动源代码添加到Android内核树的相应目录下，比如`drivers/staging/realtek/rtl8723du`。根据Android 11的内核配置，启用或禁用相应的模块选项。 3. 编译和集成：使用`make`命令编译内核，确保驱动...
A33添加RTL8723DU WIFI 蓝牙
02-14
在Android和Qt平台上为A33处理器添加RTL8723DU WiFi和蓝牙驱动是一项关键的任务，这将确保设备能够连接到无线网络并使用蓝牙功能。以下是对这一过程的详细阐述： 1. **RTL8723DU简介**：RTL8723DU是由Realtek公司...
RTL8723DU 蓝牙相关资料
03-10
RTL8723DU是一款由Realtek公司生产的无线网卡芯片，主要负责处理Wi-Fi和蓝牙功能。在Linux操作系统中，正确配置和驱动这款芯片对于实现无线网络连接和蓝牙设备的使用至关重要。以下是对给定文件中涉及的知识点的详细...
rtl8723du.tar.gz
09-23
《RK3568平台适配RTL8723DU USB接口WiFi驱动详解》 在当今的物联网时代，WiFi驱动程序对于智能设备来说至关重要，它连接了硬件与操作系统，使得设备能够通过无线网络进行通信。本文将深入探讨针对Rockchip RK3568...
USB rtl8723du wifi驱动程序
07-10
在linux4.19内核上移植成功
RTL8723DU模块(RL-UM02WBS-8723DU-V1.0)规格书
12-14
RL-UM02WBS-8723DU-V1.0是应用RTL8723DU开发设计的一款符合BT4.2标准的2.4G单通道蓝牙WiFi二合一模块
rtl8723dU LINUX 5.12 driver 经过验证
11-22
linux wifi driver
RTL8723DU WiFi Linux 驱动程序：为您的设备提供稳定高效的无线连接
gitblog_09779的博客
10-28 390
RTL8723DU WiFi Linux 驱动程序：为您的设备提供稳定高效的无线连接 【下载地址】RTL8723DUWiFiLinux驱动程序 RTL8723DU WiFi Linux 驱动程序 项目地址: https://git...
USB rtl8723du Wifi驱动程序
gitblog_09767的博客
10-17 397
USB rtl8723du Wifi驱动程序 【下载地址】USBrtl8723duWifi驱动程序 本仓库提供了适用于Linux 4.19内核的USB rtl8723du Wi-Fi驱动程序。rtl8723du是一款由Realtek生产的无线网络适配器芯片，广泛应用于各种便携式设备和USB无线网卡中。此驱动程序为了解决在...
为您的Linux系统带来稳定无线连接：USB rtl8723du Wi-Fi驱动程序
gitblog_09728的博客
10-21 1067
为您的Linux系统带来稳定无线连接：USB rtl8723du Wi-Fi驱动程序 【下载地址】USBrtl8723duWifi驱动程序 本仓库提供了适用于Linux 4.19内核的USB rtl8723du Wi-Fi驱动程序。rtl8723du是一款由Realtek生产的无线网络适配器芯片，广泛应用于各种便携式设备...
RTL8723DU WiFi蓝牙驱动适配
501846585_QQAndroid_java
09-27 1351
在Rockchip平台上，rk3588芯片通常不带有rtl8723du WiFi蓝牙驱动，驱动适配的过程包括获取适当的源代码、对其进行修改以匹配硬件配置，并确保其在目标平台上正确编译和安装。
评论
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付：10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明：

1.余额是钱包充值的虚拟货币，按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载，可以购买VIP、付费专栏及课程。

余额充值
