整个工程源码已上传。

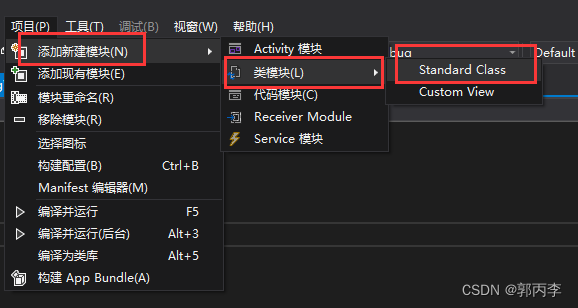

添加一个标准类模块

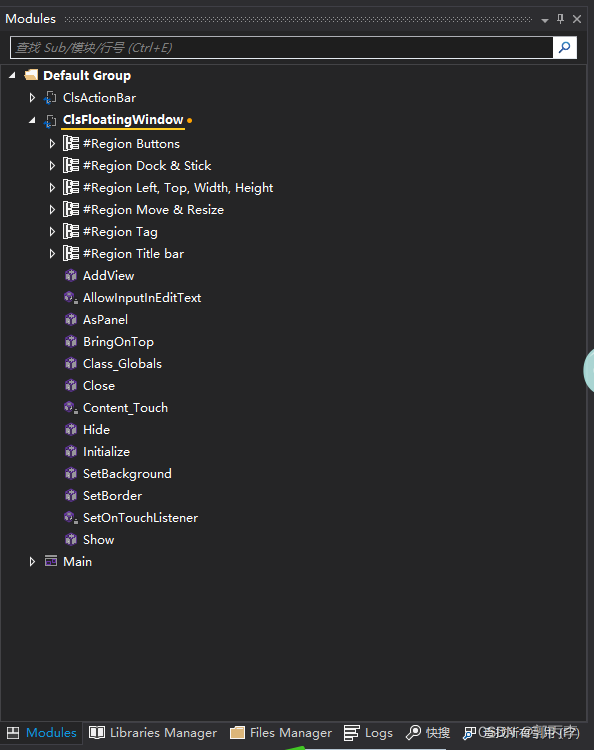

类模块结构
运行截图

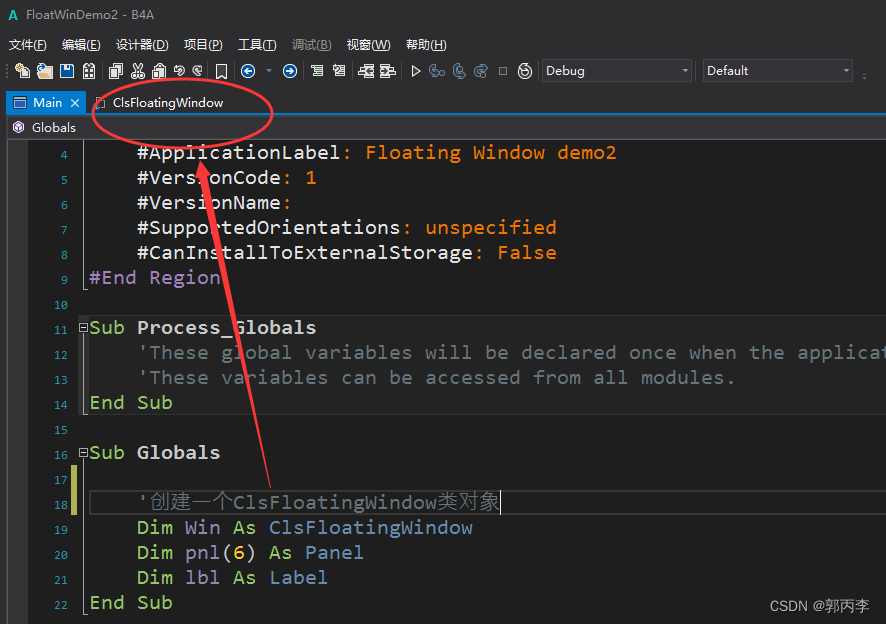

Main模块代码
#Region Module Attributes
#FullScreen: True
#IncludeTitle: False
#ApplicationLabel: Floating Window demo2
#VersionCode: 1
#VersionName:
#SupportedOrientations: unspecified
#CanInstallToExternalStorage: False
#End Region
Sub Process_Globals
'These global variables will be declared once when the application starts.
'These variables can be accessed from all modules.
End Sub
Sub Globals
'创建一个ClsFloatingWindow类对象
Dim Win As ClsFloatingWindow
'Panel是一个面板控件，主要是用来装载控件，也就是说它上面可放置很多控件
Dim pnl(6) As Panel
'标签控件
Dim lbl As Label
End Sub
'Activity模块运行时先执行这个事件
Sub Activity_Create(FirstTime As Boolean)
' Activity背景色设置
Activity.Color = Colors.RGB(0, 100, 0)
' 初始化窗体对象
Win.Initialize(Activity, 0, 0, 90dip, 90dip, Me)
'设置标题栏文本
Win.SetTitleText("Drag me")
Win.StillVisible = 90dip
Win.TouchSlop = 0 'The window will start to move immediately after a finger move
ChangeGradient(Colors.White)
' Docking areas and sticky edge
Dim wRect As Rect, Left, Top, p As Int
lbl.Initialize("")
lbl.Text = "Here is a sticky area"
lbl.TextSize = 16
If Activity.Width > Activity.Height Then
设置窗体显示的坐标位置
Win.Move(100%x - 90dip, 150dip, True)
For i = 0 To 1
For j = 0 To 2
Left = (j * 120dip) + 10dip
Top = (i * 120dip) + 10dip
p = (i*3)+j
pnl(p).Initialize("")
pnl(p).Tag = Colors.RGB(Rnd(80, 256), Rnd(80, 256), Rnd(80, 256))
pnl(p).Color = pnl(p).Tag
Activity.AddView(pnl(p), Left, Top, 110dip, 110dip)
wRect.Initialize(Left, Top, Left + 110dip, Top + 110dip)
' 添加停靠区域
' 如果窗口进入停靠区域，则该区域将可见。
' 如果移动结束时窗口仍在该区域中，则会移动窗口并调整其大小以适应该区域。
Win.AddDockingArea(wRect)
Next
Next
Win.AddStickyEdge(2, 40%x) ' The right edge is sticky
Activity.AddView(lbl, 60%x, 10dip, 40%x, 200dip)
lbl.Gravity = Gravity.RIGHT
Else
Win.Move(200dip, 100%y - 90dip, True)
For i = 0 To 2
For j = 0 To 1
Left = (j * 120dip) + 10dip
Top = (i * 120dip) + 10dip
p = (i*2)+j
pnl(p).Initialize("")
pnl(p).Tag = Colors.RGB(Rnd(80, 256), Rnd(80, 256), Rnd(80, 256))
pnl(p).Color = pnl(p).Tag
Activity.AddView(pnl(p), Left, Top, 110dip, 110dip)
wRect.Initialize(Left, Top, Left + 110dip, Top + 110dip)
' 添加停靠区域
' 如果窗口进入停靠区域，则该区域将可见。
' 如果移动结束时窗口仍在该区域中，则会移动窗口并调整其大小以适应该区域。
Win.AddDockingArea(wRect)
Next
Next
Win.AddStickyEdge(3, 40%y) ' The bottom edge is sticky
Activity.AddView(lbl, 10dip, 60%y, 200dip, 40%y)
lbl.Gravity = Gravity.BOTTOM
End If
Win.DockingAreaColor = Colors.Transparent
Win.StickyAreaColor = Colors.ARGB(60, 0, 0, 128)
Win.SetOnStickListener("After_Stick")
Win.SetOnEnterDockAreaListener("Entering_DockA")
Win.SetOnDockListener("After_Dock")
Win.SetOnUndockListener("After_Undock")
End Sub
Sub Activity_Resume
End Sub
Sub Activity_Pause (UserClosed As Boolean)
End Sub
Sub After_Stick(Window As ClsFloatingWindow, Edge As Int)
Log("Stuck ! Edge=" & Edge)
End Sub
Sub ChangeGradient(NewColor As Int)
Dim gd As GradientDrawable
Dim Couleurs(2) As Int
Couleurs(0) = Colors.Black
Couleurs(1) = NewColor
gd.Initialize("BOTTOM_TOP", Couleurs)
Win.SetBackground(gd)
End Sub
Sub ColorWindow(DockRect As Rect)
' We color the window with the panel color
For i = 0 To 5
If pnl(i).Left = DockRect.Left And pnl(i).Top = DockRect.Top Then
ChangeGradient(pnl(i).Tag)
Exit
End If
Next
End Sub
Sub Entering_DockA(Window As ClsFloatingWindow, DockRect As Rect)
' We color the window with the panel color
ColorWindow(DockRect)
End Sub
Sub After_Dock(Window As ClsFloatingWindow, DockRect As Rect)
' We change the title
Win.SetTitleText("I'm docked")
' We color the window with the panel color
ColorWindow(DockRect)
End Sub
Sub After_Undock(Window As ClsFloatingWindow)
' We return to the initial size and title
Win.Resize(90dip, 90dip)
Win.SetTitleText("Drag me")
' We center the window in the docking area
Win.Move(Win.getLeft + 10dip, Win.getTop + 10dip, True)
End Sub
类ClsFloatingWindow代码
'Class module
'Version: 1.24
Sub Class_Globals
Public DockingAreaColor As Int
Public StickyAreaColor As Int
Public PinnedWindowMsg As String
Public MinimumWidthAfterResize As Int
Public MinimumHeightAfterResize As Int
Public MaximumWidthAfterResize As Int
Public MaximumHeightAfterResize As Int
Public MinimumCoveredSurfaceForDocking As Int
Public StillVisible As Int
Public TouchSlop As Int
Private Window As Panel
Private wParent As Panel
Private wActionBar As ClsActionBar
Private wTitleBar As Panel
Private wContent As Panel
Private wFrame As Panel
Private wModule As Object
Private btnPin As View
Private btnMaximize As View
Private btnClose As View
Private btnResize As ImageView
Private wResizeBtnSize As Int
Private OnPinWinSub, OnMaximizeWinSub, OnCloseWinSub As String
Private wPinDrawable, wMaximizeDrawable, wCloseDrawable, wResizeDrawable As Object
Private wPinned, wMaximized As Boolean
Private wSavedLayout As Rect
Private wHideOnlyWhenClose As Boolean
Private wStartX, wStartY As Int
Private wMoveInProgress, wResizeMode As Boolean
Private edtInputType, edtSelectionStart As Int
Private OnMoveWinSub, OnResizeWinSub As String
Private DockingAreas As List
Private DockingPanel As Panel
Private wDocked As Boolean
Private OnEnterDockAreaWinSub, OnDockWinSub, OnUndockWinSub As String
Private StickyAreas As Map
Private StickyPanel(4) As Panel
Private wStickyEdgeEnabled As Boolean
Private OnStickWinSub As String
Private Anim As Animation
Private AfterAnim As typAfterAnim
Type typAfterAnim(WinLeft As Int, WinTop As Int, IsDocking As Boolean, _
SubName As String, DARect As Rect, SEdge As Int)
End Sub
'Initializes the floating window
'Parent = activity or panel holding the window
'Module = Me
Public Sub Initialize(Parent As Panel, Left As Int, Top As Int, Width As Int, Height As Int, Module As Object)
wParent = Parent
If Not(wParent.IsInitialized) Then
Log("'Parent' must be the current activity or an initialized panel")
Return
End If
Window.Initialize("")
wParent.AddView(Window, Left, Top, Width, Height)
wActionBar.Initialize(Window, True, True, 40dip, Me)
wActionBar.Title.Left = 10dip
wActionBar.Title.TextSize = 16
wTitleBar = wActionBar.AsPanel
wPinDrawable = wActionBar.LoadDrawable("ic_menu_goto")
wMaximizeDrawable = wActionBar.LoadDrawable("btn_zoom_page_normal")
wCloseDrawable = wActionBar.LoadDrawable("btn_close_normal")
wResizeDrawable = wActionBar.LoadDrawable("ic_btn_square_browser_zoom_page_overview_normal")
SetOnTouchListener(wTitleBar)
wContent.Initialize("")
wContent.Color = Colors.White
Window.AddView(wContent, 0, wTitleBar.Height, -1, Height - wTitleBar.Height)
SetOnTouchListener(wContent)
wFrame.Initialize("")
wFrame.Color = Colors.Transparent
Window.AddView(wFrame, 0, 0, Width, Height)
SetBorder(Colors.Black, 1dip)
DockingAreas.Initialize
StickyAreas.Initialize
DockingAreaColor = Colors.ARGB(128, 128, 128, 128)
StickyAreaColor = Colors.ARGB(128, 128, 128, 128)
wDocked = False
MinimumCoveredSurfaceForDocking = 0 'Not used by default
wStickyEdgeEnabled = False
Dim r As Reflector
r.Target = r.RunStaticMethod("android.view.ViewConfiguration", "get", Array As Object(r.GetContext), Array As String("android.content.Context"))
TouchSlop = r.RunMethod("getScaledTouchSlop")
PinnedWindowMsg = "This window is pinned. It cannot be moved or resized."
wMoveInProgress = False
wResizeMode = False
wResizeBtnSize = 30dip
MinimumWidthAfterResize = 40dip
MinimumHeightAfterResize = 40dip + wResizeBtnSize
MaximumWidthAfterResize = wParent.Width
MaximumHeightAfterResize = wParent.Height
StillVisible = 100dip
wModule = Module
End Sub
#Region Title bar
'Shows/Hides the title bar
Public Sub EnableTitleBar(Enabled As Boolean)
If wTitleBar.Visible <> Enabled Then
wTitleBar.Visible = Enabled
If wTitleBar.Visible Then
wContent.Top = wTitleBar.Height
Else
wContent.Top = 0
End If
wContent.Height = getHeight - wContent.Top
If btnResize.IsInitialized Then btnResize.Top = wContent.Height - wResizeBtnSize
End If
End Sub
'Changes the title background
'Background = a valid drawable
Public Sub SetTitleBackground(Background As Object)
wActionBar.SetBackground(Background)
End Sub
'Changes the window title text
Public Sub SetTitleText(Text As String)
wActionBar.Title.Text = Text
End Sub
'Changes the title text color
Public Sub SetTitleTextColor(Color As Int)
wActionBar.Title.TextColor = Color
End Sub
'Changes the title text size
Public Sub SetTitleTextSize(Size As Int)
wActionBar.Title.TextSize = Size
End Sub
#End Region
#Region Buttons
'Adds a custom button in the title bar
'Icon = a valid bitmap or drawable
'Position = position in the title bar, starting from the right (1 = rightmost position)
'OnClickSub = name of the sub to call in your module when the button is pressed
'OnLongClickSub = name of the sub to call in your module after a long click
'Returns a pointer on the new button
Public Sub AddCustomButton(Icon As Object, Position As Int, OnClickSub As String, OnLongClickSub As String) As View
Dim MyBtn As View, Action As typAction
MyBtn = wActionBar.AddButton(Icon, "", 5, -Position, "CustomButton_Click", "CustomButton_LongClick")
Action = MyBtn.Tag
Action.Tag = OnClickSub & "|" & OnLongClickSub
SetOnTouchListener(MyBtn)
Return MyBtn
End Sub
Private Sub CustomButton_Click(ActionBar As ClsActionBar, Btn As View)
' Redirects the Click event
Dim Action As typAction, ClickSub As String
Action = Btn.Tag
ClickSub = Action.Tag
ClickSub = ClickSub.SubString2(0, ClickSub.IndexOf("|"))
If SubExists(wModule, ClickSub) Then CallSub3(wModule, ClickSub, Me, Btn)
End Sub
Private Sub CustomButton_LongClick(ActionBar As ClsActionBar, Btn As View)
' Redirects the LongClick event
Dim Action As typAction, LongClickSub As String
Action = Btn.Tag
LongClickSub = Action.Tag
LongClickSub = LongClickSub.SubString(LongClickSub.IndexOf("|") + 1)
If SubExists(wModule, LongClickSub) Then CallSub3(wModule, LongClickSub, Me, Btn)
End Sub
Private Sub UpdateStateDrawables(Selected As Boolean, Btn As View)
Dim sd As StateListDrawable
sd.Initialize
If Selected Then
sd.AddState(sd.State_Pressed, wActionBar.LoadDrawable("list_selector_background_pressed"))
sd.AddCatchAllState(wActionBar.LoadDrawable("list_selector_background_focus"))
Else
Btn.Color = Colors.Transparent
sd.AddState(sd.State_Pressed, wActionBar.LoadDrawable("list_selector_background_pressed"))
sd.AddState(sd.State_Selected, wActionBar.LoadDrawable("list_selector_background_focus"))
sd.AddCatchAllState(Btn.Background)
End If
Btn.Background = sd
End Sub
'Shows/Hides the pin button in the title bar
'OnPinSub = name of the sub to call in your module after the window is pinned
Public Sub EnablePinButton(Enabled As Boolean, OnPinSub As String)
If Enabled <> btnPin.IsInitialized Then
If Enabled Then
btnPin = wActionBar.AddButton(wPinDrawable, "", 5, -wActionBar.GetRightCount-1, "btnPin_Click", "")
SetOnTouchListener(btnPin)
Else
wActionBar.RemoveButton(btnPin)
btnPin = Null
End If
End If
OnPinWinSub = OnPinSub
End Sub
'Changes the pin button icon
'Icon = a valid bitmap or drawable
Public Sub ChangePinIcon(NewIcon As Object)
If NewIcon = Null Then Return
If NewIcon Is Bitmap Then
Dim bd As BitmapDrawable
bd.Initialize(NewIcon)
wPinDrawable = bd
Else
wPinDrawable = NewIcon
End If
If btnPin.IsInitialized Then wActionBar.ReplaceIcon(btnPin, wPinDrawable)
End Sub
Private Sub btnPin_Click(ActionBar As ClsActionBar, Btn As View)
'Pins the window on its parent (cannot move)
wPinned = Not(wPinned)
'Update the state drawables
UpdateStateDrawables(wPinned, Btn)
If SubExists(wModule, OnPinWinSub) Then CallSub2(wModule, OnPinWinSub, Me)
End Sub
'Is the window pinned ?
Public Sub IsPinned As Boolean
Return wPinned
End Sub
'Shows/Hides the maximize/restore button in the title bar
'OnMaximizeSub = name of the sub to call in your module after the window is maximized/restored
Public Sub EnableMaximizeButton(Enabled As Boolean, OnMaximizeSub As String)
If Enabled <> btnMaximize.IsInitialized Then
If Enabled Then
btnMaximize = wActionBar.AddButton(wMaximizeDrawable, "", 5, -wActionBar.GetRightCount-1, "btnMaximize_Click", "")
SetOnTouchListener(btnMaximize)
Else
wActionBar.RemoveButton(btnMaximize)
btnMaximize = Null
End If
End If
OnMaximizeWinSub = OnMaximizeSub
End Sub
'Changes the maximize button icon
'Icon = a valid bitmap or drawable
Public Sub ChangeMaximizeIcon(NewIcon As Object)
If NewIcon = Null Then Return
If NewIcon Is Bitmap Then
Dim bd As BitmapDrawable
bd.Initialize(NewIcon)
wMaximizeDrawable = bd
Else
wMaximizeDrawable = NewIcon
End If
If btnMaximize.IsInitialized Then wActionBar.ReplaceIcon(btnMaximize, wMaximizeDrawable)
End Sub
'Enlarges the window to fill its parent (MaxSize=True) or returns to its previous position and size (MaxSize=False)
Public Sub Maximize(MaxSize As Boolean)
If wPinned Then
ToastMessageShow(PinnedWindowMsg, False)
Return
End If
If MaxSize AND Not(wMaximized) Then
wSavedLayout.Initialize(Window.Left, Window.Top, getWidth, getHeight)
MoveWin(0, 0, False)
ResizeWin(wParent.Width, wParent.Height, 0, 0, wParent.Width, wParent.Height)
BringOnTop
wMaximized = True
If btnMaximize.IsInitialized Then UpdateStateDrawables(wMaximized, btnMaximize)
If SubExists(wModule, OnMaximizeWinSub) Then CallSub2(wModule, OnMaximizeWinSub, Me)
Else If Not(MaxSize) AND wMaximized Then
Resize(wSavedLayout.Right, wSavedLayout.Bottom)
MoveWin(wSavedLayout.Left, wSavedLayout.Top, True)
wSavedLayout = Null
wMaximized = False
If btnMaximize.IsInitialized Then UpdateStateDrawables(wMaximized, btnMaximize)
If SubExists(wModule, OnMaximizeWinSub) Then CallSub2(wModule, OnMaximizeWinSub, Me)
End If
End Sub
Private Sub btnMaximize_Click(ActionBar As ClsActionBar, Btn As View)
Maximize(Not(wMaximized))
End Sub
'Is the window maximized ?
Public Sub IsMaximized As Boolean
Return wMaximized
End Sub
'Shows/Hides the close button in the title bar
'HideOnly = if True, closing the window just hides it
'OnCloseSub = name of the sub to call in your module before the window is closed
Public Sub EnableCloseButton(Enabled As Boolean, HideOnly As Boolean, OnCloseSub As String)
If Enabled <> btnClose.IsInitialized Then
If Enabled Then
btnClose = wActionBar.AddButton(wCloseDrawable, "", 5, -1, "btnClose_Click", "")
SetOnTouchListener(btnClose)
Else
wActionBar.RemoveButton(btnClose)
btnClose = Null
End If
End If
wHideOnlyWhenClose = HideOnly
OnCloseWinSub = OnCloseSub
End Sub
'Changes the close button icon
'Icon = a valid bitmap or drawable
Public Sub ChangeCloseIcon(NewIcon As Object)
If NewIcon = Null Then Return
If NewIcon Is Bitmap Then
Dim bd As BitmapDrawable
bd.Initialize(NewIcon)
wCloseDrawable = bd
Else
wCloseDrawable = NewIcon
End If
If btnClose.IsInitialized Then wActionBar.ReplaceIcon(btnClose, wCloseDrawable)
End Sub
Private Sub btnClose_Click(ActionBar As ClsActionBar, Btn As View)
If SubExists(wModule, OnCloseWinSub) Then CallSub2(wModule, OnCloseWinSub, Me)
If wHideOnlyWhenClose Then
Hide
Else
Close
End If
End Sub
'Shows/Hides the resize button in the bottom right corner
Public Sub EnableResizeButton(Enabled As Boolean)
If Enabled <> btnResize.IsInitialized Then
If Enabled Then
btnResize.Initialize("")
btnResize.Background = wResizeDrawable
btnResize.Gravity = Gravity.FILL
wContent.AddView(btnResize, getWidth - wResizeBtnSize, getContentHeight - wResizeBtnSize, wResizeBtnSize, wResizeBtnSize)
SetOnTouchListener(btnResize)
Else
btnResize.RemoveView
btnResize = Null
End If
End If
End Sub
'Changes the resize button icon
'Icon = a valid bitmap or drawable
Public Sub ChangeResizeIcon(NewIcon As Object)
If NewIcon = Null Then Return
If NewIcon Is Bitmap Then
Dim bd As BitmapDrawable
bd.Initialize(NewIcon)
wResizeDrawable = bd
Else
wResizeDrawable = NewIcon
End If
btnResize.Background = wResizeDrawable
End Sub
#End Region
'Draws a colored frame around the window
Public Sub SetBorder(Color As Int, Width As Int)
Dim C As Canvas, wRect As Rect
C.Initialize(wFrame)
C.DrawColor(Colors.Transparent)
wRect.Initialize(0 + (Width/2), 0 + (Width/2), getWidth - (Width/2), getHeight - (Width/2))
C.DrawRect(wRect, Color, False, Width)
End Sub
'Changes the main content background
'Background = a valid drawable
Public Sub SetBackground(Background As Object)
wContent.Background = Background
End Sub
'Adds a view to the window
'DelegateTouchEvent: if True, the Touch event is handled by the class and allows to move the window.
'Some views like ListView or ScrollView need DelegateTouchEvent=False if their content is not fully displayed (that allows to scroll their content but prevents from moving the window by moving the view).
Public Sub AddView(MyView As View, Left As Int, Top As Int, Width As Int, Height As Int, DelegateTouchEvent As Boolean)
wContent.AddView(MyView, Left, Top, Width, Height)
If DelegateTouchEvent Then SetOnTouchListener(MyView)
If btnResize.IsInitialized Then btnResize.BringToFront
End Sub
#Region Left, Top, Width, Height
'Gets the window left value
Public Sub getLeft As Int
Return Window.Left
End Sub
'Gets the window top value
Public Sub getTop As Int
Return Window.Top
End Sub
'Gets the window width
Public Sub getWidth As Int
If Window.Width < 0 Then
Dim r As Reflector, Largeur As Int
r.Target = Window
Largeur = r.RunMethod("getWidth")
If Largeur = 0 Then
DoEvents
Largeur = r.RunMethod("getWidth")
End If
Return Largeur
Else
Return Window.Width
End If
End Sub
'Gets the window height
'If you want only the height of the content panel, call getContentHeight
Public Sub getHeight As Int
If Window.Height < 0 Then
Dim r As Reflector, Hauteur As Int
r.Target = Window
Hauteur = r.RunMethod("getHeight")
If Hauteur = 0 Then
DoEvents
Hauteur = r.RunMethod("getHeight")
End If
Return Hauteur
Else
Return Window.Height
End If
End Sub
'Gets the content panel height
'ContentHeight = WindowHeight - ActionBarHeight
Public Sub getContentHeight As Int
Return getHeight - wTitleBar.Height
End Sub
#End Region
'Brings the window to the front
Public Sub BringOnTop()
' Successive calls to BringToFront create an issue with focus,
' so we only call BringToFront when needed
Dim OnTop As Boolean
If wParent Is Activity Then
Dim act As Activity
act = wParent
OnTop = (act.GetView(act.NumberOfViews - 1) = Window)
Else
Dim pnl As Panel
pnl = wParent
OnTop = (pnl.GetView(pnl.NumberOfViews - 1) = Window)
End If
If Not(OnTop) Then Window.BringToFront
End Sub
Private Sub SetOnTouchListener(MyView As View)
Dim r As Reflector
r.Target = MyView
r.SetOnTouchListener("Content_Touch")
End Sub
Private Sub AllowInputInEditText(MyET As Object, Enabled As Object)
Dim edt As EditText: edt = MyET
If Enabled = True Then
edt.InputType = edtInputType
edt.SelectionStart = edtSelectionStart
Else
edtInputType = edt.InputType
edtSelectionStart = edt.SelectionStart
edt.InputType = 0
edt.SelectionStart = edtSelectionStart
End If
End Sub
Private Sub Content_Touch(ViewTag As Object, Action As Int, X As Float, Y As Float, MotionEvent As Object) As Boolean
Dim SenderIsWindow As Boolean
SenderIsWindow = (Sender = Window OR Sender = wTitleBar OR _
Sender = wContent OR Sender = wFrame)
Select Action
Case 0 ' DOWN
' We bring the window to the front
BringOnTop
' We undock the window
If wDocked Then
wDocked = False
If SubExists(wModule, OnUndockWinSub) Then
Dim OldX, OldY As Int
OldX = getLeft
OldY = getTop
CallSub2(wModule, OnUndockWinSub, Me)
' We adjust the touch coordinates if the window has been moved in OnUndockWinSub
X = X + OldX - getLeft
Y = Y + OldY - getTop
End If
End If
CheckSpecialAreas(False)
' We memorize the starting position
wStartX = X
wStartY = Y
wMoveInProgress = False
' We turn the resize mode on if the user pressed the resize button
If btnResize.IsInitialized Then
If Sender = btnResize Then
If wPinned Then
ToastMessageShow(PinnedWindowMsg, False)
Else
wResizeMode = True
End If
End If
End If
Case 1 ' UP
' We perform all actions related to the docking and sticky areas
CheckSpecialAreas(True)
If wMoveInProgress Then
wMoveInProgress = False
If Sender Is ListView Then Return True
If Sender Is EditText Then AllowInputInEditText(Sender, True)
End If
wResizeMode = False
Case 2 ' MOVE
If Not(wMaximized OR wPinned) Then ' We don't move/resize a maximized or pinned window
' We block the interception of touch events
Dim r As Reflector
r.Target = Sender
If Sender Is ListView OR Sender Is ScrollView Then
r.RunMethod2("requestDisallowInterceptTouchEvent", True, "java.lang.boolean")
End If
' Is the move big enough to be considered as a move ?
Dim MoveQty As Int
MoveQty = Sqrt(Power(Abs(X - wStartX), 2) + Power(Abs(Y - wStartY), 2))
If wMoveInProgress OR MoveQty > TouchSlop Then
' We move/resize the window
If wResizeMode Then
Resize(Window.Width + X - wStartX, Window.Height + Y - wStartY)
wStartX = X
wStartY = Y
Else
MoveWin(Window.Left + X - wStartX, Window.Top + Y - wStartY, True)
End If
CheckSpecialAreas(False)
If Not(SenderIsWindow) Then
' We cancel the pressed and selected states
r.RunMethod2("setPressed", "False", "java.lang.boolean")
r.RunMethod2("setSelected", "False", "java.lang.boolean")
End If
If Not(wMoveInProgress) Then
wMoveInProgress = True
If r.Target Is EditText Then
' No input is allowed in an EditText while moving
' This also prevents the soft keyboard from appearing
AllowInputInEditText(r.Target, False)
End If
End If
End If
End If
End Select
Return SenderIsWindow
End Sub
#Region Move & Resize
Private Sub ResizeWin(NewWidth As Int, NewHeight As Int, MinWidth As Int, MinHeight As Int, _
MaxWidth As Int, MaxHeight As Int)
If NewWidth <> -1 Then
NewWidth = Min(Max(NewWidth, MinWidth), MaxWidth)
Window.Width = NewWidth
wTitleBar.Width = NewWidth
wActionBar.Invalidate
wContent.Width = NewWidth
wFrame.Width = NewWidth
If btnResize.IsInitialized Then btnResize.Left = NewWidth - wResizeBtnSize
End If
If NewHeight <> -1 Then
NewHeight = Min(Max(NewHeight, MinHeight), MaxHeight)
Window.Height = NewHeight
If wTitleBar.Visible Then
wContent.Height = NewHeight - wTitleBar.Height
Else
wContent.Height = NewHeight
End If
wFrame.Height = NewHeight
If btnResize.IsInitialized Then btnResize.Top = wContent.Height - wResizeBtnSize
End If
If SubExists(wModule, OnResizeWinSub) Then CallSub2(wModule, OnResizeWinSub, Me)
End Sub
'Resizes the window
'If a dimension is set to -1, it is left unchanged.
Public Sub Resize(NewWidth As Int, NewHeight As Int)
If wPinned Then
Log(PinnedWindowMsg)
Return
End If
ResizeWin(NewWidth, NewHeight, MinimumWidthAfterResize, MinimumHeightAfterResize, _
MaximumWidthAfterResize, MaximumHeightAfterResize)
End Sub
'Adds a listener for events onResize (fired after a resize)
'Your listener must be declared like this: myListener(Window As ClsFloatingWindow)
Public Sub SetOnResizeListener(SubName As String)
OnResizeWinSub = SubName
End Sub
Private Sub CalcNewLeft(NewLeft As Int) As Int
Return Max(StillVisible - getWidth, Min(NewLeft, wParent.Width - StillVisible))
End Sub
Private Sub CalcNewTop(NewTop As Int) As Int
Return Max(StillVisible - getHeight, Min(NewTop, wParent.Height - StillVisible))
End Sub
Private Sub MoveWin(NewLeft As Int, NewTop As Int, CheckStillVisible As Boolean)
If CheckStillVisible Then
If NewLeft <> -1 Then
Window.Left = CalcNewLeft(NewLeft)
End If
If NewTop <> -1 Then
Window.Top = CalcNewTop(NewTop)
End If
Else
If NewLeft <> -1 Then Window.Left = NewLeft
If NewTop <> -1 Then Window.Top = NewTop
End If
If SubExists(wModule, OnMoveWinSub) Then CallSub2(wModule, OnMoveWinSub, Me)
End Sub
'Moves the window
'If a position is set to -1, it is left unchanged.
'IgnoreSpecialAreas = if True, docking areas and sticky edges are ignored.
Public Sub Move(NewLeft As Int, NewTop As Int, IgnoreSpecialAreas As Boolean)
If wPinned Then
Log(PinnedWindowMsg)
Return
End If
If NewLeft <> getLeft AND NewLeft <> -1 AND NewTop <> getTop AND NewTop <> -1 Then
' The window leaves the docking area
wDocked = False
End If
MoveWin(NewLeft, NewTop, True)
If Not(IgnoreSpecialAreas) Then CheckSpecialAreas(True)
End Sub
'Adds a listener for events onMove (fired after a move)
'Your listener must be declared like this: myListener(Window As ClsFloatingWindow)
Public Sub SetOnMoveListener(SubName As String)
OnMoveWinSub = SubName
End Sub
#End Region
'Shows a hidden window
Public Sub Show
Window.Visible = True
End Sub
'Hides a window
Public Sub Hide
Window.Visible = False
End Sub
'Gets the window panel
Public Sub AsPanel As Panel
Return Window
End Sub
'Clears the content and closes the window
Public Sub Close
Dim v As View
For i = wContent.NumberOfViews - 1 To 0 Step -1
v = wContent.GetView(i)
v.RemoveView
Next
For i = Window.NumberOfViews - 1 To 0 Step -1
v = Window.GetView(i)
v.RemoveView
Next
Window.RemoveView
End Sub
#Region Dock & Stick
Private Sub UpdateAfterAnimPosition(Left As Int, Top As Int)
If Anim.IsInitialized Then
If AfterAnim.WinLeft = -1 AND Left <> -1 Then AfterAnim.WinLeft = Left
If AfterAnim.WinTop = -1 AND Top <> -1 Then AfterAnim.WinTop = Top
Else
AfterAnim.WinLeft = Left
AfterAnim.WinTop = Top
End If
End Sub
Private Sub CalcSurface(rectDock As Rect) As Long
'Computes the covered area
Dim SurfaceW As Int
Dim WinRight As Int = Window.Left + Window.Width
If Window.Left >= rectDock.Left Then
If WinRight <= rectDock.Right Then
SurfaceW = Window.Width
Else
SurfaceW = rectDock.Right - Window.Left
End If
Else
If WinRight >= rectDock.Right Then
SurfaceW = rectDock.Right - rectDock.Left
Else
SurfaceW = WinRight - rectDock.Left
End If
End If
Dim SurfaceH As Int
Dim WinBottom As Int = Window.Top + Window.Height
If Window.Top >= rectDock.Top Then
If WinBottom <= rectDock.Bottom Then
SurfaceH = Window.Height
Else
SurfaceH = rectDock.Bottom - Window.Top
End If
Else
If WinBottom >= rectDock.Bottom Then
SurfaceH = rectDock.Bottom - rectDock.Top
Else
SurfaceH = WinBottom - rectDock.Top
End If
End If
Return SurfaceW * SurfaceH
End Sub
Private Sub CheckSpecialAreas(PerformAction As Boolean)
' Initialisations
AfterAnim.Initialize
AfterAnim.WinLeft = -1
AfterAnim.WinTop = -1
' Docking areas
Dim wRect As Rect
If DockingPanel.IsInitialized Then
DockingPanel.Visible = False
If Not(wMaximized) Then
Dim Surface, BiggestSurface As Long, SelectedArea As Int
SelectedArea = -1
For i = 0 To DockingAreas.Size - 1
wRect = DockingAreas.Get(i)
If (Window.Left <= wRect.Right And Window.Left + getWidth >= wRect.Left) And _
(Window.Top <= wRect.Bottom And Window.Top + getHeight >= wRect.Top) Then
' The window is in a docking area
' We calculate the covered area
Surface = CalcSurface(wRect)
If Surface > BiggestSurface Then
' We select the docking area with the most covered surface
SelectedArea = i
BiggestSurface = Surface
End If
End If
Next
If SelectedArea <> -1 Then
wRect = DockingAreas.Get(SelectedArea)
Dim ActionIsConfirmed As Boolean
If PerformAction AND MinimumCoveredSurfaceForDocking > 0 Then
Dim CoveredSurface As Float
CoveredSurface = (BiggestSurface / ((wRect.Right - wRect.Left) * (wRect.Bottom - wRect.Top))) * 100
ActionIsConfirmed = (CoveredSurface >= MinimumCoveredSurfaceForDocking)
Else
ActionIsConfirmed = True
End If
If PerformAction AND ActionIsConfirmed Then
UpdateAfterAnimPosition(wRect.Left, wRect.Top)
Anim.InitializeTranslate("Anim", 0, 0, wRect.Left - Window.Left, wRect.Top - Window.Top)
Anim.Duration = 100
AfterAnim.SubName = OnDockWinSub
AfterAnim.IsDocking = True
AfterAnim.DARect = wRect
If wStickyEdgeEnabled Then HideStickyPanels
Anim.Start(Window)
Return ' We bypass the sticky edge check
Else
DockingPanel.SetLayout(wRect.Left, wRect.Top, wRect.Right - wRect.Left, wRect.Bottom - wRect.Top)
DockingPanel.Color = DockingAreaColor
DockingPanel.Visible = (DockingAreaColor <> Colors.Transparent)
If SubExists(wModule, OnEnterDockAreaWinSub) Then CallSub3(wModule, OnEnterDockAreaWinSub, Me, wRect)
End If
End If
End If
End If
' Sticky areas
If wStickyEdgeEnabled Then
HideStickyPanels
If Not(wMaximized) Then
Dim Edge As Int
For i = 0 To StickyAreas.Size - 1
Edge = StickyAreas.GetKeyAt(i)
Select Edge
Case 0 'LEFT
wRect.Initialize(0, 0, StickyAreas.GetValueAt(i), wParent.Height)
Case 1 'TOP
wRect.Initialize(0, 0, wParent.Width, StickyAreas.GetValueAt(i))
Case 2 'RIGHT
wRect.Initialize(wParent.Width - StickyAreas.GetValueAt(i), 0, wParent.Width, wParent.Height)
Case 3 'BOTTOM
wRect.Initialize(0, wParent.Height - StickyAreas.GetValueAt(i), wParent.Width, wParent.Height)
End Select
If (Window.Left <= wRect.Right AND Window.Left + getWidth >= wRect.Left) AND _
(Window.Top <= wRect.Bottom AND Window.Top + getHeight >= wRect.Top) Then
' The window is in the sticky area
If PerformAction Then
Select Edge
Case 0 'LEFT
UpdateAfterAnimPosition(CalcNewLeft(0), -1)
Case 1 'TOP
UpdateAfterAnimPosition(-1, CalcNewTop(0))
Case 2 'RIGHT
UpdateAfterAnimPosition(CalcNewLeft(wParent.Width - getWidth), -1)
Case 3 'BOTTOM
UpdateAfterAnimPosition(-1, CalcNewTop(wParent.Height - getHeight))
End Select
Dim DestX, DestY As Int
If AfterAnim.WinLeft <> -1 Then DestX = AfterAnim.WinLeft - Window.Left
If AfterAnim.WinTop <> -1 Then DestY = AfterAnim.WinTop - Window.Top
If DestX <> 0 OR DestY <> 0 Then
Anim.InitializeTranslate("Anim", 0, 0, DestX, DestY)
Anim.Duration = 200
AfterAnim.SubName = OnStickWinSub
AfterAnim.IsDocking = False
AfterAnim.SEdge = Edge
Anim.Start(Window)
End If
Else If Not(IsDocked OR (Anim.IsInitialized AND AfterAnim.IsDocking)) Then
StickyPanel(Edge).SetLayout(wRect.Left, wRect.Top, wRect.Right - wRect.Left, wRect.Bottom - wRect.Top)
StickyPanel(Edge).Color = StickyAreaColor
StickyPanel(Edge).Visible = (StickyAreaColor <> Colors.Transparent)
End If
End If
Next
End If
End If
End Sub
Private Sub Anim_AnimationEnd
'Sets the final position and destroys the animation
If AfterAnim.IsDocking Then
wDocked = True
MoveWin(AfterAnim.WinLeft, AfterAnim.WinTop, False)
ResizeWin(AfterAnim.DARect.Right - AfterAnim.DARect.Left, AfterAnim.DARect.Bottom - AfterAnim.DARect.Top, 0, 0, _
AfterAnim.DARect.Right - AfterAnim.DARect.Left, AfterAnim.DARect.Bottom - AfterAnim.DARect.Top)
If SubExists(wModule, AfterAnim.SubName) Then CallSub3(wModule, AfterAnim.SubName, Me, AfterAnim.DARect)
Else
MoveWin(AfterAnim.WinLeft, AfterAnim.WinTop, True)
If SubExists(wModule, AfterAnim.SubName) Then CallSub3(wModule, AfterAnim.SubName, Me, AfterAnim.SEdge)
End If
Anim = Null
End Sub
'添加停靠区域
'“如果窗口进入停靠区域，则该区域将可见。
''如果移动结束时窗口仍在该区域中，则会移动窗口并调整其大小以适应该区域。
'Adds a docking area
'If a window enters a docking area, the area becomes visible.
'If the window is still in the area when the move ends, it is moved and resized to fit the area.
Public Sub AddDockingArea(DockRect As Rect)
If Not(DockingPanel.IsInitialized) Then
DockingPanel.Initialize("")
wParent.AddView(DockingPanel, 0, 0, 0, 0)
DockingPanel.Visible = False
End If
DockingAreas.Add(DockRect)
End Sub
'Removes all docking areas
Public Sub RemoveDockingAreas
If DockingPanel.IsInitialized Then
DockingPanel.RemoveView
DockingPanel = Null
End If
DockingAreas.Clear
End Sub
'Adds a listener for the events OnEnterDockArea (fired when entering a docking area)
'Your listener must be declared like this: myListener(Window As ClsFloatingWindow, DockRect As Rect)
Public Sub SetOnEnterDockAreaListener(SubName As String)
OnEnterDockAreaWinSub = SubName
End Sub
'Adds a listener for the events OnDock (fired after docking)
'Your listener must be declared like this: myListener(Window As ClsFloatingWindow, DockRect As Rect)
Public Sub SetOnDockListener(SubName As String)
OnDockWinSub = SubName
End Sub
'Adds a listener for the events OnUndock (fired after leaving a docking area)
'Your listener must be declared like this: myListener(Window As ClsFloatingWindow)
Public Sub SetOnUndockListener(SubName As String)
OnUndockWinSub = SubName
End Sub
'Is the window docked ?
Public Sub IsDocked As Boolean
Return wDocked
End Sub
'Creates a sticky area near an edge.
'If the window enters the sticky area, the area becomes visible.
'If the window is still in the area when the move ends, it is sticked against the edge.
'Edge:
'0 = Left
'1 = Top
'2 = Right
'3 = Bottom
Public Sub AddStickyEdge(Edge As Int, Size As Int)
If Edge < 0 OR Edge > 3 Then
Log("Invalid Edge value. Must be 0, 1, 2 or 3.")
Return
End If
StickyAreas.Put(Edge, Size)
If Not(StickyPanel(Edge).IsInitialized) Then
StickyPanel(Edge).Initialize("")
wParent.AddView(StickyPanel(Edge), 0, 0, 0, 0)
StickyPanel(Edge).Visible = False
wStickyEdgeEnabled = True
End If
End Sub
' Hides all sticky panels
Private Sub HideStickyPanels
For i = 0 To 3
If StickyPanel(i).IsInitialized Then StickyPanel(i).Visible = False
Next
End Sub
'Removes all sticky areas
Public Sub RemoveStickyEdges
For i = 0 To 3
If StickyPanel(i).IsInitialized Then
StickyPanel(i).RemoveView
StickyPanel(i) = Null
End If
Next
StickyAreas.Clear
wStickyEdgeEnabled = False
End Sub
'Adds a listener for events OnStick (fired after sticking to an edge)
'Your listener must be declared like this: myListener(Window As ClsFloatingWindow, Edge As Int)
'Edge:
'0 = Left
'1 = Top
'2 = Right
'3 = Bottom
Public Sub SetOnStickListener(SubName As String)
OnStickWinSub = SubName
End Sub
#End Region
#Region Tag
'Gets the tag value
Public Sub getTag As Object
Return Window.Tag
End Sub
'Sets the tag value
Public Sub SetTag(NewValue As Object)
Window.Tag = NewValue
End Sub
#End Region
扫一扫
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
