上一篇文章Glide加载图片源码分析（一）分析了Glide加载图片的一部分流程，现在我们继续讲解图片加载流程。
上次讲到图片加载最后会调用SingleRequest的onSizeReady()方法，而onSizeReady()方法会调用Engine对象的load方法，现在我们分析Engine的load方法。
public <R> LoadStatus load(
GlideContext glideContext,
Object model,
Key signature,
int width,
int height,
Class<?> resourceClass,
Class<R> transcodeClass,
Priority priority,
DiskCacheStrategy diskCacheStrategy,
Map<Class<?>, Transformation<?>> transformations,
boolean isTransformationRequired,
boolean isScaleOnlyOrNoTransform,
Options options,
boolean isMemoryCacheable,
boolean useUnlimitedSourceExecutorPool,
boolean useAnimationPool,
boolean onlyRetrieveFromCache,
ResourceCallback cb,
Executor callbackExecutor) {
long startTime = VERBOSE_IS_LOGGABLE ? LogTime.getLogTime() : 0;
EngineKey key =
keyFactory.buildKey(
model,
signature,
width,
height,
transformations,
resourceClass,
transcodeClass,
options);
EngineResource<?> memoryResource;
synchronized (this) {
memoryResource = loadFromMemory(key, isMemoryCacheable, startTime);
if (memoryResource == null) {
return waitForExistingOrStartNewJob(
glideContext,
model,
signature,
width,
height,
resourceClass,
transcodeClass,
priority,
diskCacheStrategy,
transformations,
isTransformationRequired,
isScaleOnlyOrNoTransform,
options,
isMemoryCacheable,
useUnlimitedSourceExecutorPool,
useAnimationPool,
onlyRetrieveFromCache,
cb,
callbackExecutor,
key,
startTime);
}
}
// Avoid calling back while holding the engine lock, doing so makes it easier for callers to
// deadlock.
cb.onResourceReady(memoryResource, DataSource.MEMORY_CACHE);
return null;
}
在Engine的load方法中，首先会根据图片尺寸，Model等参数产生一个EngineKey，根据这个key在缓存中查找这个图片是否加载过，如果缓存中没有找到的话，则会调用waitForExistingOrStartNewJob()方法。
private <R> LoadStatus waitForExistingOrStartNewJob(
GlideContext glideContext,
Object model,
Key signature,
int width,
int height,
Class<?> resourceClass,
Class<R> transcodeClass,
Priority priority,
DiskCacheStrategy diskCacheStrategy,
Map<Class<?>, Transformation<?>> transformations,
boolean isTransformationRequired,
boolean isScaleOnlyOrNoTransform,
Options options,
boolean isMemoryCacheable,
boolean useUnlimitedSourceExecutorPool,
boolean useAnimationPool,
boolean onlyRetrieveFromCache,
ResourceCallback cb,
Executor callbackExecutor,
EngineKey key,
long startTime) {
EngineJob<?> current = jobs.get(key, onlyRetrieveFromCache);
if (current != null) {
current.addCallback(cb, callbackExecutor);
if (VERBOSE_IS_LOGGABLE) {
logWithTimeAndKey("Added to existing load", startTime, key);
}
return new LoadStatus(cb, current);
}
EngineJob<R> engineJob =
engineJobFactory.build(
key,
isMemoryCacheable,
useUnlimitedSourceExecutorPool,
useAnimationPool,
onlyRetrieveFromCache);
DecodeJob<R> decodeJob =
decodeJobFactory.build(
glideContext,
model,
key,
signature,
width,
height,
resourceClass,
transcodeClass,
priority,
diskCacheStrategy,
transformations,
isTransformationRequired,
isScaleOnlyOrNoTransform,
onlyRetrieveFromCache,
options,
engineJob);
jobs.put(key, engineJob);
engineJob.addCallback(cb, callbackExecutor);
engineJob.start(decodeJob);
if (VERBOSE_IS_LOGGABLE) {
logWithTimeAndKey("Started new load", startTime, key);
}
return new LoadStatus(cb, engineJob);
}
在waitForExistingOrStartNewJob()方法中，构建了一个EngineJob，EngineJob中包含了一些线程池，为后面异步加载图片做准备，接下来创建了一个DecodeJob，并调用 engineJob.start(decodeJob)方法。
public synchronized void start(DecodeJob<R> decodeJob) {
this.decodeJob = decodeJob;
GlideExecutor executor =
decodeJob.willDecodeFromCache() ? diskCacheExecutor : getActiveSourceExecutor();
executor.execute(decodeJob);
}
点进去之后发现是将decodeJob加入线程池中，所以我们继续分析DecodeJob中的run方法。DecodeJob中的run方法会调用 runWrapped()方法。我们看看 runWrapped()方法。
private void runWrapped() {
switch (runReason) {
case INITIALIZE:
stage = getNextStage(Stage.INITIALIZE);
currentGenerator = getNextGenerator();
runGenerators();
break;
case SWITCH_TO_SOURCE_SERVICE:
runGenerators();
break;
case DECODE_DATA:
decodeFromRetrievedData();
break;
default:
throw new IllegalStateException("Unrecognized run reason: " + runReason);
}
}
private Stage getNextStage(Stage current) {
switch (current) {
case INITIALIZE:
return diskCacheStrategy.decodeCachedResource()
? Stage.RESOURCE_CACHE
: getNextStage(Stage.RESOURCE_CACHE);
case RESOURCE_CACHE:
return diskCacheStrategy.decodeCachedData()
? Stage.DATA_CACHE
: getNextStage(Stage.DATA_CACHE);
case DATA_CACHE:
// Skip loading from source if the user opted to only retrieve the resource from cache.
return onlyRetrieveFromCache ? Stage.FINISHED : Stage.SOURCE;
case SOURCE:
case FINISHED:
return Stage.FINISHED;
default:
throw new IllegalArgumentException("Unrecognized stage: " + current);
}
}
private DataFetcherGenerator getNextGenerator() {
switch (stage) {
case RESOURCE_CACHE:
return new ResourceCacheGenerator(decodeHelper, this);
case DATA_CACHE:
return new DataCacheGenerator(decodeHelper, this);
case SOURCE:
return new SourceGenerator(decodeHelper, this);
case FINISHED:
return null;
default:
throw new IllegalStateException("Unrecognized stage: " + stage);
}
}
在runWrapped()方法中，runReason初始值是INITIALIZE，所以会调用getNextStage()方法获取Stage，这里我们假设不适用缓存的情况下，返回的Stage最终会是Stage.SOURCE，接下来会调用getNextGenerator()方法并赋值给currentGenerator，在stage为Stage.SOURCE，可以这里currentGenerator会被赋值为SourceGenerator。
最后会调用runGenerators()方法。
private void runGenerators() {
currentThread = Thread.currentThread();
startFetchTime = LogTime.getLogTime();
boolean isStarted = false;
while (!isCancelled
&& currentGenerator != null
&& !(isStarted = currentGenerator.startNext())) {
stage = getNextStage(stage);
currentGenerator = getNextGenerator();
if (stage == Stage.SOURCE) {
reschedule();
return;
}
}
// We've run out of stages and generators, give up.
if ((stage == Stage.FINISHED || isCancelled) && !isStarted) {
notifyFailed();
}
// Otherwise a generator started a new load and we expect to be called back in
// onDataFetcherReady.
}
在runGenerators中会调用currentGenerator.startNext()，这里刚刚分析currentGenerator的类型是SourceGenerator，所以我们继续看看SourceGenerator的startNext()方法。
@Override
public boolean startNext() {
if (dataToCache != null) {
Object data = dataToCache;
dataToCache = null;
cacheData(data);
}
if (sourceCacheGenerator != null && sourceCacheGenerator.startNext()) {
return true;
}
sourceCacheGenerator = null;
loadData = null;
boolean started = false;
while (!started && hasNextModelLoader()) {
loadData = helper.getLoadData().get(loadDataListIndex++);
if (loadData != null
&& (helper.getDiskCacheStrategy().isDataCacheable(loadData.fetcher.getDataSource())
|| helper.hasLoadPath(loadData.fetcher.getDataClass()))) {
started = true;
loadData.fetcher.loadData(helper.getPriority(), this);
}
}
return started;
}
private boolean hasNextModelLoader() {
return loadDataListIndex < helper.getLoadData().size();
}
上面代码中会通过helper.getLoadData()方法来获取可用加载器，这里的helper就是DecodeHelper类，接下来我们分析获取网络图片String url = “https://www.baidu.com/img/bd_logo1.png”;的流程。
List<LoadData<?>> getLoadData() {
if (!isLoadDataSet) {
isLoadDataSet = true;
loadData.clear();
List<ModelLoader<Object, ?>> modelLoaders = glideContext.getRegistry().getModelLoaders(model);
//noinspection ForLoopReplaceableByForEach to improve perf
for (int i = 0, size = modelLoaders.size(); i < size; i++) {
ModelLoader<Object, ?> modelLoader = modelLoaders.get(i);
LoadData<?> current = modelLoader.buildLoadData(model, width, height, options);
if (current != null) {
loadData.add(current);
}
}
}
return loadData;
}
这里会调用glideContext.getRegistry().getModelLoaders(model)，这个model其实就是我们前面Glide加载图片第二步load传递的url，getModelLoaders()函数获取到List<ModelLoader<Object, ?>>之后会循环调用modelLoader的buildLoadData()方法，如果返回不为空，则会加到loadData列表中最后返回。
现在我们看看getModelLoaders(model)方法。上面Registry中的getModelLoaders(model)如下：
@NonNull
public <Model> List<ModelLoader<Model, ?>> getModelLoaders(@NonNull Model model) {
List<ModelLoader<Model, ?>> result = modelLoaderRegistry.getModelLoaders(model);
if (result.isEmpty()) {
throw new NoModelLoaderAvailableException(model);
}
return result;
}
Registry中的getModelLoaders(model)方法又会调用ModelLoaderRegistry的getModelLoaders(model)方法，如下：
@NonNull
public <A> List<ModelLoader<A, ?>> getModelLoaders(@NonNull A model) {
List<ModelLoader<A, ?>> modelLoaders = getModelLoadersForClass(getClass(model));
int size = modelLoaders.size();
boolean isEmpty = true;
List<ModelLoader<A, ?>> filteredLoaders = Collections.emptyList();
//noinspection ForLoopReplaceableByForEach to improve perf
for (int i = 0; i < size; i++) {
ModelLoader<A, ?> loader = modelLoaders.get(i);
if (loader.handles(model)) {
if (isEmpty) {
filteredLoaders = new ArrayList<>(size - i);
isEmpty = false;
}
filteredLoaders.add(loader);
}
}
return filteredLoaders;
}
@NonNull
private synchronized <A> List<ModelLoader<A, ?>> getModelLoadersForClass(
@NonNull Class<A> modelClass) {
List<ModelLoader<A, ?>> loaders = cache.get(modelClass);
if (loaders == null) {
loaders = Collections.unmodifiableList(multiModelLoaderFactory.build(modelClass));
cache.put(modelClass, loaders);
}
return loaders;
}
ModelLoaderRegistry的getModelLoaders(model)方法会调用getModelLoadersForClass(getClass(model))来获取ModelLoader列表，这里model是String类型，所以getClass(model)是String.class。接下来会调用MultiModelLoaderFactory的build(modelClass)方法，这里的modelClass是结合上文的例子是String.class类型。
@NonNull
synchronized <Model> List<ModelLoader<Model, ?>> build(@NonNull Class<Model> modelClass) {
try {
List<ModelLoader<Model, ?>> loaders = new ArrayList<>();
for (Entry<?, ?> entry : entries) {
// Avoid stack overflow recursively creating model loaders by only creating loaders in
// recursive requests if they haven't been created earlier in the chain. For example:
// A Uri loader may translate to another model, which in turn may translate back to a Uri.
// The original Uri loader won't be provided to the intermediate model loader, although
// other Uri loaders will be.
if (alreadyUsedEntries.contains(entry)) {
continue;
}
if (entry.handles(modelClass)) {
alreadyUsedEntries.add(entry);
loaders.add(this.<Model, Object>build(entry));
alreadyUsedEntries.remove(entry);
}
}
return loaders;
} catch (Throwable t) {
alreadyUsedEntries.clear();
throw t;
}
}

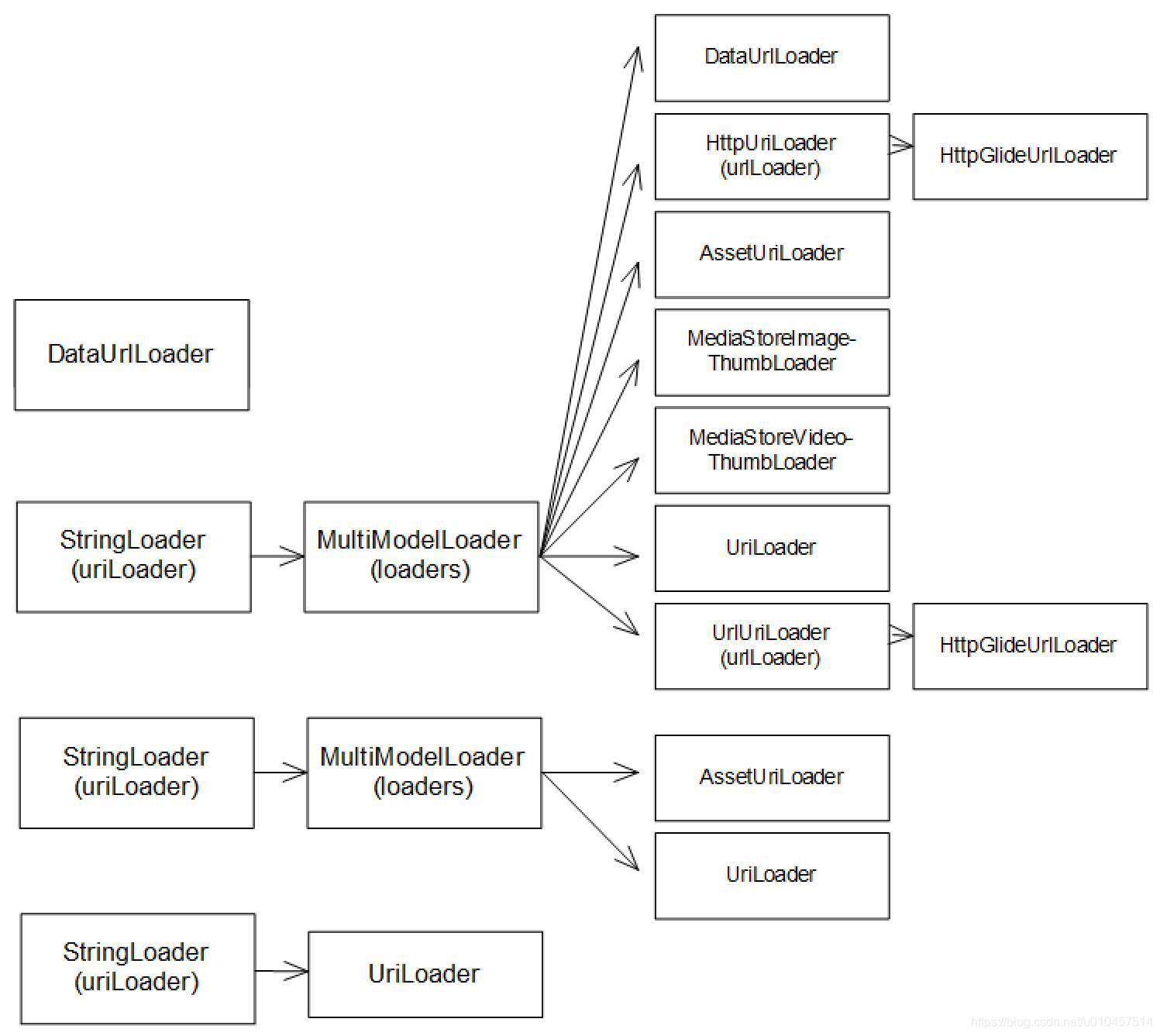

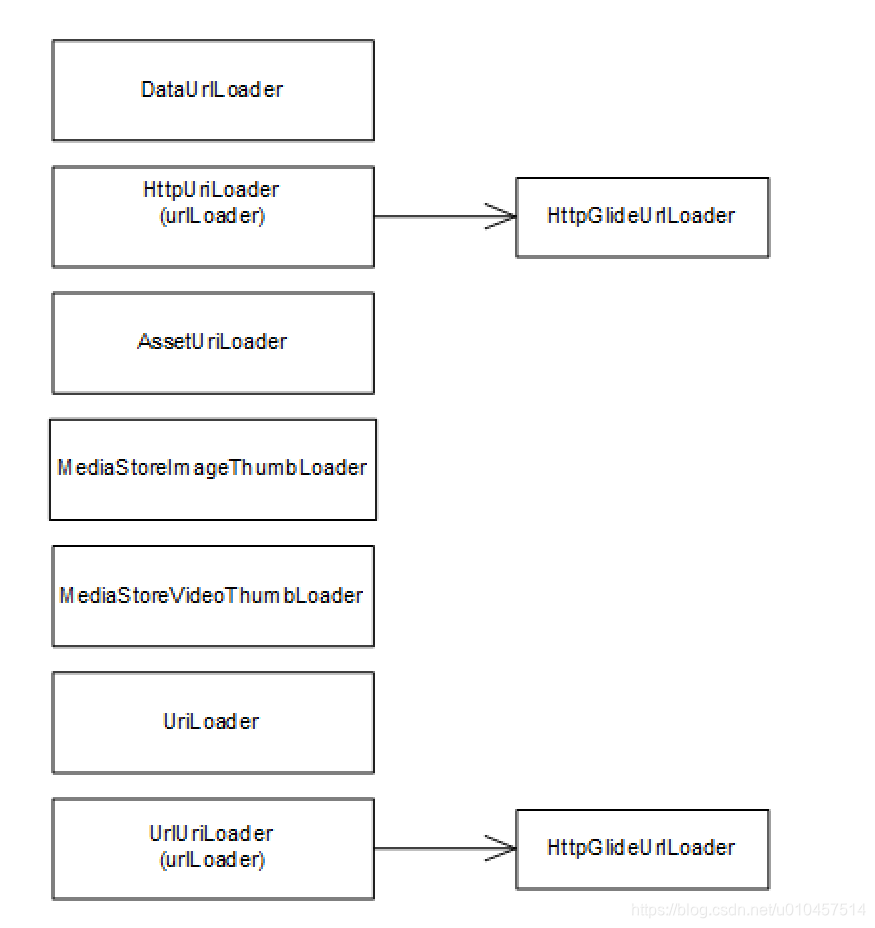

在MultiModelLoaderFactory的build(modelClass)方法中遍历entries，找到其中entry.handles(modelClass)返回为true的entry，然后根据这个entry构建一个ModelLoader并添加到loaders中去，我们看看Entry这个类。
private static class Entry<Model, Data> {
private final Class<Model> modelClass;
@Synthetic final Class<Data> dataClass;
@Synthetic final ModelLoaderFactory<? extends Model, ? extends Data> factory;
public Entry(
@NonNull Class<Model> modelClass,
@NonNull Class<Data> dataClass,
@NonNull ModelLoaderFactory<? extends Model, ? extends Data> factory) {
this.modelClass = modelClass;
this.dataClass = dataClass;
this.factory = factory;
}
public boolean handles(@NonNull Class<?> modelClass, @NonNull Class<?> dataClass) {
return handles(modelClass) && this.dataClass.isAssignableFrom(dataClass);
}
public boolean handles(@NonNull Class<?> modelClass) {
return this.modelClass.isAssignableFrom(modelClass);
}
}
handles(@NonNull Class<?> modelClass)这个方法就是判断entry的this.modelClass和传入的modelClass是否相同或者是modelClass的子类。那么回到前面entries是什么时候构建的呢？追踪分析可知，Glide的构造方法中会调用一系列registry.append()方法，如下：
registry
.append(ByteBuffer.class, new ByteBufferEncoder())
.append(InputStream.class, new StreamEncoder(arrayPool))
/* Bitmaps */
.append(Registry.BUCKET_BITMAP, ByteBuffer.class, Bitmap.class, byteBufferBitmapDecoder)
.append(Registry.BUCKET_BITMAP, InputStream.class, Bitmap.class, streamBitmapDecoder)
.append(
Registry.BUCKET_BITMAP,
ParcelFileDescriptor.class,
Bitmap.class,
parcelFileDescriptorVideoDecoder)
.append(
Registry.BUCKET_BITMAP,
AssetFileDescriptor.class,
Bitmap.class,
VideoDecoder.asset(bitmapPool))
.append(Bitmap.class, Bitmap.class, UnitModelLoader.Factory.<Bitmap>getInstance())
.append(Registry.BUCKET_BITMAP, Bitmap.class, Bitmap.class, new UnitBitmapDecoder())
.append(Bitmap.class, bitmapEncoder)
/* BitmapDrawables */
.append(
Registry.BUCKET_BITMAP_DRAWABLE,
ByteBuffer.class,
BitmapDrawable.class,
new BitmapDrawableDecoder<>(resources, byteBufferBitmapDecoder))
.append(
Registry.BUCKET_BITMAP_DRAWABLE,
InputStream.class,
BitmapDrawable.class,
new BitmapDrawableDecoder<>(resources, streamBitmapDecoder))
.append(
Registry.BUCKET_BITMAP_DRAWABLE,
ParcelFileDescriptor.class,
BitmapDrawable.class,
new BitmapDrawableDecoder<>(resources, parcelFileDescriptorVideoDecoder))
.append(BitmapDrawable.class, new BitmapDrawableEncoder(bitmapPool, bitmapEncoder))
/* GIFs */
.append(
Registry.BUCKET_GIF,
InputStream.class,
GifDrawable.class,
new StreamGifDecoder(imageHeaderParsers, byteBufferGifDecoder, arrayPool))
.append(Registry.BUCKET_GIF, ByteBuffer.class, GifDrawable.class, byteBufferGifDecoder)
.append(GifDrawable.class, new GifDrawableEncoder())
/* GIF Frames */
// Compilation with Gradle requires the type to be specified for UnitModelLoader here.
.append(
GifDecoder.class, GifDecoder.class, UnitModelLoader.Factory.<GifDecoder>getInstance())
.append(
Registry.BUCKET_BITMAP,
GifDecoder.class,
Bitmap.class,
new GifFrameResourceDecoder(bitmapPool))
/* Drawables */
.append(Uri.class, Drawable.class, resourceDrawableDecoder)
.append(
Uri.class, Bitmap.class, new ResourceBitmapDecoder(resourceDrawableDecoder, bitmapPool))
/* Files */
.register(new ByteBufferRewinder.Factory())
.append(File.class, ByteBuffer.class, new ByteBufferFileLoader.Factory())
.append(File.class, InputStream.class, new FileLoader.StreamFactory())
.append(File.class, File.class, new FileDecoder())
.append(File.class, ParcelFileDescriptor.class, new FileLoader.FileDescriptorFactory())
// Compilation with Gradle requires the type to be specified for UnitModelLoader here.
.append(File.class, File.class, UnitModelLoader.Factory.<File>getInstance())
/* Models */
.register(new InputStreamRewinder.Factory(arrayPool))
.append(int.class, InputStream.class, resourceLoaderStreamFactory)
.append(int.class, ParcelFileDescriptor.class, resourceLoaderFileDescriptorFactory)
.append(Integer.class, InputStream.class, resourceLoaderStreamFactory)
.append(Integer.class, ParcelFileDescriptor.class, resourceLoaderFileDescriptorFactory)
.append(Integer.class, Uri.class, resourceLoaderUriFactory)
.append(int.class, AssetFileDescriptor.class, resourceLoaderAssetFileDescriptorFactory)
.append(Integer.class, AssetFileDescriptor.class, resourceLoaderAssetFileDescriptorFactory)
.append(int.class, Uri.class, resourceLoaderUriFactory)
.append(String.class, InputStream.class, new DataUrlLoader.StreamFactory<String>())
.append(Uri.class, InputStream.class, new DataUrlLoader.StreamFactory<Uri>())
.append(String.class, InputStream.class, new StringLoader.StreamFactory())
.append(String.class, ParcelFileDescriptor.class, new StringLoader.FileDescriptorFactory())
.append(
String.class, AssetFileDescriptor.class, new StringLoader.AssetFileDescriptorFactory())
.append(Uri.class, InputStream.class, new HttpUriLoader.Factory())
.append(Uri.class, InputStream.class, new AssetUriLoader.StreamFactory(context.getAssets()))
.append(
Uri.class,
ParcelFileDescriptor.class,
new AssetUriLoader.FileDescriptorFactory(context.getAssets()))
.append(Uri.class, InputStream.class, new MediaStoreImageThumbLoader.Factory(context))
.append(Uri.class, InputStream.class, new MediaStoreVideoThumbLoader.Factory(context))
.append(Uri.class, InputStream.class, new UriLoader.StreamFactory(contentResolver))
.append(
Uri.class,
ParcelFileDescriptor.class,
new UriLoader.FileDescriptorFactory(contentResolver))
.append(
Uri.class,
AssetFileDescriptor.class,
new UriLoader.AssetFileDescriptorFactory(contentResolver))
.append(Uri.class, InputStream.class, new UrlUriLoader.StreamFactory())
.append(URL.class, InputStream.class, new UrlLoader.StreamFactory())
.append(Uri.class, File.class, new MediaStoreFileLoader.Factory(context))
.append(GlideUrl.class, InputStream.class, new HttpGlideUrlLoader.Factory())
.append(byte[].class, ByteBuffer.class, new ByteArrayLoader.ByteBufferFactory())
.append(byte[].class, InputStream.class, new ByteArrayLoader.StreamFactory())
.append(Uri.class, Uri.class, UnitModelLoader.Factory.<Uri>getInstance())
.append(Drawable.class, Drawable.class, UnitModelLoader.Factory.<Drawable>getInstance())
.append(Drawable.class, Drawable.class, new UnitDrawableDecoder())
/* Transcoders */
.register(Bitmap.class, BitmapDrawable.class, new BitmapDrawableTranscoder(resources))
.register(Bitmap.class, byte[].class, bitmapBytesTranscoder)
.register(
Drawable.class,
byte[].class,
new DrawableBytesTranscoder(
bitmapPool, bitmapBytesTranscoder, gifDrawableBytesTranscoder))
.register(GifDrawable.class, byte[].class, gifDrawableBytesTranscoder);
当append参数格式为append(@NonNull Class modelClass,@NonNull Class dataClass,@NonNull ModelLoaderFactory<Model, Data> factory)会调用ModelLoaderRegistry的append方法，ModelLoaderRegistry的append方法中的append方法会继续调用MultiModelLoaderFactory的append方法。
public class MultiModelLoaderFactory {
synchronized <Model, Data> void append(
@NonNull Class<Model> modelClass,
@NonNull Class<Data> dataClass,
@NonNull ModelLoaderFactory<? extends Model, ? extends Data> factory) {
add(modelClass, dataClass, factory, /*append=*/ true);
}
...
private <Model, Data> void add(
@NonNull Class<Model> modelClass,
@NonNull Class<Data> dataClass,
@NonNull ModelLoaderFactory<? extends Model, ? extends Data> factory,
boolean append) {
Entry<Model, Data> entry = new Entry<>(modelClass, dataClass, factory);
entries.add(append ? entries.size() : 0, entry);
}
}
...
MultiModelLoaderFactory的append最终会根据append的参数构建entry，添加到entries中。回到上文，当modelClass为String.class时，遍历entries，entry.handles(modelClass)为true的有4类，如下所示：
.append(String.class, InputStream.class, new DataUrlLoader.StreamFactory<String>())
.append(String.class, InputStream.class, new StringLoader.StreamFactory())
.append(String.class, ParcelFileDescriptor.class, new StringLoader.FileDescriptorFactory())
.append(String.class, AssetFileDescriptor.class, new StringLoader.AssetFileDescriptorFactory())
在获取到这些entry之后，会调用一个MultiModelLoaderFactory的build(@NonNull Entry<?, ?> entry)方法，这里再次贴下遍历获取entry的方法。
@NonNull
public synchronized <Model, Data> ModelLoader<Model, Data> build(
@NonNull Class<Model> modelClass, @NonNull Class<Data> dataClass) {
try {
List<ModelLoader<Model, Data>> loaders = new ArrayList<>();
boolean ignoredAnyEntries = false;
for (Entry<?, ?> entry : entries) {
// Avoid stack overflow recursively creating model loaders by only creating loaders in
// recursive requests if they haven't been created earlier in the chain. For example:
// A Uri loader may translate to another model, which in turn may translate back to a Uri.
// The original Uri loader won't be provided to the intermediate model loader, although
// other Uri loaders will be.
if (alreadyUsedEntries.contains(entry)) {
ignoredAnyEntries = true;
continue;
}
if (entry.handles(modelClass, dataClass)) {
alreadyUsedEntries.add(entry);
loaders.add(this.<Model, Data>build(entry));
alreadyUsedEntries.remove(entry);
}
}
if (loaders.size() > 1) {
return factory.build(loaders, throwableListPool);
} else if (loaders.size() == 1) {
return loaders.get(0);
} else {
// Avoid crashing if recursion results in no loaders available. The assertion is supposed to
// catch completely unhandled types, recursion may mean a subtype isn't handled somewhere
// down the stack, which is often ok.
if (ignoredAnyEntries) {
return emptyModelLoader();
} else {
throw new NoModelLoaderAvailableException(modelClass, dataClass);
}
}
} catch (Throwable t) {
alreadyUsedEntries.clear();
throw t;
}
}
...
@NonNull
@SuppressWarnings("unchecked")
private <Model, Data> ModelLoader<Model, Data> build(@NonNull Entry<?, ?> entry) {
return (ModelLoader<Model, Data>) Preconditions.checkNotNull(entry.factory.build(this));
}
MultiModelLoaderFactory的build(@NonNull Entry<?, ?> entry)方法会调entry中的factory的build方法。上面返回的四种entry对应的factory分别为DataUrlLoader.StreamFactory，StringLoader.StreamFactory，StringLoader.FileDescriptorFactory和StringLoader.AssetFileDescriptorFactory。这里由于比较复杂，我们一个个来分析。
- DataUrlLoader.StreamFactory
@NonNull
@Override
public ModelLoader<Model, InputStream> build(@NonNull MultiModelLoaderFactory multiFactory) {
return new DataUrlLoader<>(opener);
}
DataUrlLoader.StreamFactory的build方法会直接返回一个DataUrlLoader这个比较简单。
- StringLoader.StreamFactory
public static class StreamFactory implements ModelLoaderFactory<String, InputStream> {
@NonNull
@Override
public ModelLoader<String, InputStream> build(@NonNull MultiModelLoaderFactory multiFactory) {
return new StringLoader<>(multiFactory.build(Uri.class, InputStream.class));
}
@Override
public void teardown() {
// Do nothing.
}
}
...
public class StringLoader<Data> implements ModelLoader<String, Data> {
private final ModelLoader<Uri, Data> uriLoader;
// Public API.
@SuppressWarnings("WeakerAccess")
public StringLoader(ModelLoader<Uri, Data> uriLoader) {
this.uriLoader = uriLoader;
}
}
StringLoader.StreamFactory的build方法会返回一个StringLoader，并且其构造函数以MultiModelLoaderFactory的build(Uri.class, InputStream.class)返回值为参数，为什么这里需要传入一个ModelLoader参数，这个值赋值给了uriLoader，这个后面会用到。MultiModelLoaderFactory其实就是我们前面遍历entries获取处理String类型的entry的地方，只是这里我们传入了两个参数，这里调用的build的方法如下,
@NonNull
public synchronized <Model, Data> ModelLoader<Model, Data> build(
@NonNull Class<Model> modelClass, @NonNull Class<Data> dataClass) {
try {
List<ModelLoader<Model, Data>> loaders = new ArrayList<>();
boolean ignoredAnyEntries = false;
for (Entry<?, ?> entry : entries) {
// Avoid stack overflow recursively creating model loaders by only creating loaders in
// recursive requests if they haven't been created earlier in the chain. For example:
// A Uri loader may translate to another model, which in turn may translate back to a Uri.
// The original Uri loader won't be provided to the intermediate model loader, although
// other Uri loaders will be.
if (alreadyUsedEntries.contains(entry)) {
ignoredAnyEntries = true;
continue;
}
if (entry.handles(modelClass, dataClass)) {
alreadyUsedEntries.add(entry);
loaders.add(this.<Model, Data>build(entry));
alreadyUsedEntries.remove(entry);
}
}
if (loaders.size() > 1) {
return factory.build(loaders, throwableListPool);
} else if (loaders.size() == 1) {
return loaders.get(0);
} else {
// Avoid crashing if recursion results in no loaders available. The assertion is supposed to
// catch completely unhandled types, recursion may mean a subtype isn't handled somewhere
// down the stack, which is often ok.
if (ignoredAnyEntries) {
return emptyModelLoader();
} else {
throw new NoModelLoaderAvailableException(modelClass, dataClass);
}
}
} catch (Throwable t) {
alreadyUsedEntries.clear();
throw t;
}
}
从上面StringLoader.StreamFactory的build方法可知，这里build的方法的modelClass为Uri.class，dataClass为 InputStream.class，与上面类似，在Glide的register.append中，符合条件的有以下情况：
.append(Uri.class, InputStream.class, new DataUrlLoader.StreamFactory<Uri>())
.append(Uri.class, InputStream.class, new HttpUriLoader.Factory())
.append(Uri.class, InputStream.class, new AssetUriLoader.StreamFactory(context.getAssets()))
.append(Uri.class, InputStream.class, new MediaStoreImageThumbLoader.Factory(context))
.append(Uri.class, InputStream.class, new MediaStoreVideoThumbLoader.Factory(context))
.append(Uri.class, InputStream.class, new UriLoader.StreamFactory(contentResolver))
.append(Uri.class, InputStream.class, new UrlUriLoader.StreamFactory())
接下来依然是分别遍历这求个entry的factory的build的方法并添加到loaders中去，这里面下一层的加载就不再继续分析了，给出一个大概的结构图：
在HttpUriLoader和UrlUriLoader中有一个HttpGlideUrlLoader的对象urlLoader，其余的Factory均可以直接创造相应的ModelLoader，在MultiModelLoaderFactory的build(
@NonNull Class modelClass, @NonNull Class dataClass)方法，如果loaders只有一个则直接返回，如果有多个loaders则会调用 factory.build(loaders, throwableListPool)，这里factory指的是MultiModelLoaderFactory的静态内部类Factory，如下所示：
static class Factory {
@NonNull
public <Model, Data> MultiModelLoader<Model, Data> build(
@NonNull List<ModelLoader<Model, Data>> modelLoaders,
@NonNull Pool<List<Throwable>> throwableListPool) {
return new MultiModelLoader<>(modelLoaders, throwableListPool);
}
}
里面通过loaders构建了一个MultiModelLoader对象并返回。综合以上分析，StringLoader.StreamFactory的build方法会返回一个StringLoader，并且其成员变量urlLoader是一个MultiModelLoader的对象，该对象成员modelLoaders包含七个ModelLoder分别是DataUrlLoader，HttpUriLoader，AssetUriLoader，MediaStoreImageThumbLoader，MediaStoreVideoThumbLoader，UriLoader和UrlUriLoader。
- StringLoader.FileDescriptorFactory
根据类似上面的方法分析，StringLoader.FileDescriptorFactory的build方法中由如下代码new StringLoader<>(multiFactory.build(Uri.class, ParcelFileDescriptor.class))，也就是在Glide中寻找modelClass为Uri.class并且dataClass为ParcelFileDescriptor.class的entry，最后我们找到了两个，如下：
.append(
Uri.class,
ParcelFileDescriptor.class,
new AssetUriLoader.FileDescriptorFactory(context.getAssets()))
.append(
Uri.class,
ParcelFileDescriptor.class,
new UriLoader.FileDescriptorFactory(contentResolver))
所以StringLoader.FileDescriptorFactory会返回一个StringLoader的ModelLoader的对象，这个对象的urlLoader是一个MultiModelLoader，其中包含的loaders有两个是分别是：AssetUriLoader和UriLoader。
- StringLoader.AssetFileDescriptorFactory
在StringLoader.AssetFileDescriptorFactory的build方法中有如下代码，new StringLoader<>(multiFactory.build(Uri.class, AssetFileDescriptor.class))，会调用MultiModelLoaderFactory的build(@NonNull Class modelClass, @NonNull Class dataClass)，其中modelClass为Uri.class，dataClass为AssetFileDescriptor.class，在Glide代码中匹配如下：
.append(
Uri.class,
AssetFileDescriptor.class,
new UriLoader.AssetFileDescriptorFactory(contentResolver))
所以StringLoader.AssetFileDescriptorFactory的build方法会StringLoader的对象，这个对象的urlLoader是UriLoader的类型。
最后总结下ModelLoaderRegistry的getModelLoadersForClass(@NonNull Class modelClass) 在ModelClass为StringClass的时候会得到四个ModelLoader,其结构图如下所示：
接下来我们继续分析，在ModelLoaderRegistry的getModelLoaders()方法中：
@NonNull
public <A> List<ModelLoader<A, ?>> getModelLoaders(@NonNull A model) {
List<ModelLoader<A, ?>> modelLoaders = getModelLoadersForClass(getClass(model));
int size = modelLoaders.size();
boolean isEmpty = true;
List<ModelLoader<A, ?>> filteredLoaders = Collections.emptyList();
//noinspection ForLoopReplaceableByForEach to improve perf
for (int i = 0; i < size; i++) {
ModelLoader<A, ?> loader = modelLoaders.get(i);
if (loader.handles(model)) {
if (isEmpty) {
filteredLoaders = new ArrayList<>(size - i);
isEmpty = false;
}
filteredLoaders.add(loader);
}
}
return filteredLoaders;
}
getModelLoadersForClass(getClass(model))获取到了四个ModelLoader对象，从上图中可知，分别为一个DataUrlLoader对象和三个StringLoader对象，现在根据loader.handles(model)来进行筛选。
在DataUrlLoader中：
public final class DataUrlLoader<Model, Data> implements ModelLoader<Model, Data> {
private static final String DATA_SCHEME_IMAGE = "data:image";
...
@Override
public boolean handles(@NonNull Model model) {
// We expect Model to be a Uri or a String, both of which implement toString() efficiently. We
// should reconsider this implementation before adding any new Model types.
return model.toString().startsWith(DATA_SCHEME_IMAGE);
}
}
由于这里传递的是网络图片地址，所以handles会返回false。
在StringLoader中：
public class StringLoader<Data> implements ModelLoader<String, Data> {
...
@Override
public boolean handles(@NonNull String model) {
// Avoid parsing the Uri twice and simply return null from buildLoadData if we don't handle this
// particular Uri type.
return true;
}
}
handles返回为true，所以ModelLoaderRegistry的getModelLoaders()会返回三个ModelLoader，均为StringLoader的对象。
现在我们回到DecodeHelper的getLoadData()中，代码如下：
List<LoadData<?>> getLoadData() {
if (!isLoadDataSet) {
isLoadDataSet = true;
loadData.clear();
List<ModelLoader<Object, ?>> modelLoaders = glideContext.getRegistry().getModelLoaders(model);
//noinspection ForLoopReplaceableByForEach to improve perf
for (int i = 0, size = modelLoaders.size(); i < size; i++) {
ModelLoader<Object, ?> modelLoader = modelLoaders.get(i);
LoadData<?> current = modelLoader.buildLoadData(model, width, height, options);
if (current != null) {
loadData.add(current);
}
}
}
return loadData;
}
上面modelLoaders在上面的分析中会包含三个StringLoader的对象，接下来会调用ModelLoader的buildLoadData(model, width, height, options)方法，返回不为空就添加到loadData的List中，现在看看StringLoader的buildLoadData方法。
@Override
public LoadData<Data> buildLoadData(
@NonNull String model, int width, int height, @NonNull Options options) {
Uri uri = parseUri(model);
if (uri == null || !uriLoader.handles(uri)) {
return null;
}
return uriLoader.buildLoadData(uri, width, height, options);
}
这里会判断uri是否为空，然后判断urlLoader.handles(uri)，最后调用uriLoader.buildLoadData()方法，从上面的图中可以看出，这里的uriLoader有两种情况，第一个和第二个是MultiModelLoader，里面包含多个ModelLoader，第三个是UriLoader，首先分析下简单的在UriLoader中，
public class UriLoader<Data> implements ModelLoader<Uri, Data>{
private static final Set<String> SCHEMES =
Collections.unmodifiableSet(
new HashSet<>(
Arrays.asList(
ContentResolver.SCHEME_FILE,
ContentResolver.SCHEME_ANDROID_RESOURCE,
ContentResolver.SCHEME_CONTENT)));
@Override
public boolean handles(@NonNull Uri model) {
return SCHEMES.contains(model.getScheme());
}
}
public static final String SCHEME_CONTENT = "content";
public static final String SCHEME_ANDROID_RESOURCE = "android.resource";
public static final String SCHEME_FILE = "file";
对于网络图片，UriLoader的handles会返回false，最终第三个StringLoader的buildLoadData会返回null，所以被过滤掉了。
接下来看看MultiModelLoader。
class MultiModelLoader<Model, Data> implements ModelLoader<Model, Data> {
...
@Override
public LoadData<Data> buildLoadData(
@NonNull Model model, int width, int height, @NonNull Options options) {
Key sourceKey = null;
int size = modelLoaders.size();
List<DataFetcher<Data>> fetchers = new ArrayList<>(size);
//noinspection ForLoopReplaceableByForEach to improve perf
for (int i = 0; i < size; i++) {
ModelLoader<Model, Data> modelLoader = modelLoaders.get(i);
if (modelLoader.handles(model)) {
LoadData<Data> loadData = modelLoader.buildLoadData(model, width, height, options);
if (loadData != null) {
sourceKey = loadData.sourceKey;
fetchers.add(loadData.fetcher);
}
}
}
return !fetchers.isEmpty() && sourceKey != null
? new LoadData<>(sourceKey, new MultiFetcher<>(fetchers, exceptionListPool))
: null;
}
@Override
public boolean handles(@NonNull Model model) {
for (ModelLoader<Model, Data> modelLoader : modelLoaders) {
if (modelLoader.handles(model)) {
return true;
}
}
return false;
}
}
对于handles方法，modelLoaders中任何一个的handles(model)为true，则会返回true。这里我们举例的model是"https://www.baidu.com/img/bd_logo1.png"，在第一个MultiModelLoader中有七个ModelLoader，分别是DataUrlLoader，HttpUriLoader，AssetUriLoader，MediaStoreImageThumbLoader，MediaStoreVideoThumbLoader，UriLoader和UrlUriLoader，其中对于上述model，handles方法返回为true的只有HttpUriLoader和UrlUriLoader。这两个都包含一个HttpGlideUrlLoader的对象urlLoader，这两个类的buildLoadData()方法比较相似。这里看看HttpUriLoader中的方法：
@Override
public LoadData<InputStream> buildLoadData(
@NonNull Uri model, int width, int height, @NonNull Options options) {
return urlLoader.buildLoadData(new GlideUrl(model.toString()), width, height, options);
}
最终调用urlLoader也就是，HttpGlideUrlLoader的buildLoadData()方法。
public class HttpGlideUrlLoader implements ModelLoader<GlideUrl, InputStream> {
...
@Override
public LoadData<InputStream> buildLoadData(
@NonNull GlideUrl model, int width, int height, @NonNull Options options) {
// GlideUrls memoize parsed URLs so caching them saves a few object instantiations and time
// spent parsing urls.
GlideUrl url = model;
if (modelCache != null) {
url = modelCache.get(model, 0, 0);
if (url == null) {
modelCache.put(model, 0, 0, model);
url = model;
}
}
int timeout = options.get(TIMEOUT);
return new LoadData<>(url, new HttpUrlFetcher(url, timeout));
}
}
最终会返回创建一个LoadData，传入GlideUrl和HttpUrlFetcher。另外在UrlUriLoader中也是同样的逻辑，会在HttpGlideUrlLoader的buildLoadData中创建一个LoadData对象。
最终在MultiModelLoader的buildLoadData中：
@Override
public LoadData<Data> buildLoadData(
@NonNull Model model, int width, int height, @NonNull Options options) {
Key sourceKey = null;
int size = modelLoaders.size();
List<DataFetcher<Data>> fetchers = new ArrayList<>(size);
//noinspection ForLoopReplaceableByForEach to improve perf
for (int i = 0; i < size; i++) {
ModelLoader<Model, Data> modelLoader = modelLoaders.get(i);
if (modelLoader.handles(model)) {
LoadData<Data> loadData = modelLoader.buildLoadData(model, width, height, options);
if (loadData != null) {
sourceKey = loadData.sourceKey;
fetchers.add(loadData.fetcher);
}
}
}
return !fetchers.isEmpty() && sourceKey != null
? new LoadData<>(sourceKey, new MultiFetcher<>(fetchers, exceptionListPool))
: null;
}
这里fetchers是两个HttpUrlFetcher对象，会创建一个MultiFetcher，并传入到一个新创建的LoadData对象中去。
在另一个MultiModelLoader中有两个modelLoaders，分别是AssetUriLoader和UriLoader，这两个ModelLoader对上述网络图片的model，handles均返回为false，所以不做考虑。
综合上面的分析，DecodeHelper的getLoadData()会返回一个LoadData，DataFetcher类型是MultiFetcher，MultiFetcher的fetcher中包含两个HttpUrlFetcher对象。
现在继续回到SourceGenerator的startNext()函数中，
@Override
public boolean startNext() {
if (dataToCache != null) {
Object data = dataToCache;
dataToCache = null;
cacheData(data);
}
if (sourceCacheGenerator != null && sourceCacheGenerator.startNext()) {
return true;
}
sourceCacheGenerator = null;
loadData = null;
boolean started = false;
while (!started && hasNextModelLoader()) {
loadData = helper.getLoadData().get(loadDataListIndex++);
if (loadData != null
&& (helper.getDiskCacheStrategy().isDataCacheable(loadData.fetcher.getDataSource())
|| helper.hasLoadPath(loadData.fetcher.getDataClass()))) {
started = true;
loadData.fetcher.loadData(helper.getPriority(), this);
}
}
return started;
}
不采用缓存的情况下helper.getDiskCacheStrategy().isDataCacheable(loadData.fetcher.getDataSource())为false，接下来判断
helper.hasLoadPath(loadData.fetcher.getDataClass())，这里面的逻辑和helper.getLoadData()逻辑类似，这里就不展开一一分析了，DecodeHelper里面resourceClass是Object.class类型，transcodeClass是Drawable.class，transcodeClass这个类型是在RequestManager的load方法开始传入的类型，最后helper.hasLoadPath()会返回为true，接下来会调用loadData.fetcher.loadData(helper.getPriority(), this)，loadData.fetcher经过上文分析是MultiFetcher的类型，里面fetchers是两个HttpUrlFetcher对象。MultiFetcher的loadData()会继续调用HttpUrlFetcher的loadData方法。下面分析HttpUrlFetcher的loadData方法。
public class HttpUrlFetcher implements DataFetcher<InputStream>
{
...
@Override
public void loadData(
@NonNull Priority priority, @NonNull DataCallback<? super InputStream> callback) {
long startTime = LogTime.getLogTime();
try {
InputStream result = loadDataWithRedirects(glideUrl.toURL(), 0, null, glideUrl.getHeaders());
callback.onDataReady(result);
} catch (IOException e) {
if (Log.isLoggable(TAG, Log.DEBUG)) {
Log.d(TAG, "Failed to load data for url", e);
}
callback.onLoadFailed(e);
} finally {
if (Log.isLoggable(TAG, Log.VERBOSE)) {
Log.v(TAG, "Finished http url fetcher fetch in " + LogTime.getElapsedMillis(startTime));
}
}
}
private InputStream loadDataWithRedirects(
URL url, int redirects, URL lastUrl, Map<String, String> headers) throws IOException {
if (redirects >= MAXIMUM_REDIRECTS) {
throw new HttpException("Too many (> " + MAXIMUM_REDIRECTS + ") redirects!");
} else {
// Comparing the URLs using .equals performs additional network I/O and is generally broken.
// See http://michaelscharf.blogspot.com/2006/11/javaneturlequals-and-hashcode-make.html.
try {
if (lastUrl != null && url.toURI().equals(lastUrl.toURI())) {
throw new HttpException("In re-direct loop");
}
} catch (URISyntaxException e) {
// Do nothing, this is best effort.
}
}
urlConnection = connectionFactory.build(url);
for (Map.Entry<String, String> headerEntry : headers.entrySet()) {
urlConnection.addRequestProperty(headerEntry.getKey(), headerEntry.getValue());
}
urlConnection.setConnectTimeout(timeout);
urlConnection.setReadTimeout(timeout);
urlConnection.setUseCaches(false);
urlConnection.setDoInput(true);
// Stop the urlConnection instance of HttpUrlConnection from following redirects so that
// redirects will be handled by recursive calls to this method, loadDataWithRedirects.
urlConnection.setInstanceFollowRedirects(false);
// Connect explicitly to avoid errors in decoders if connection fails.
urlConnection.connect();
// Set the stream so that it's closed in cleanup to avoid resource leaks. See #2352.
stream = urlConnection.getInputStream();
if (isCancelled) {
return null;
}
final int statusCode = urlConnection.getResponseCode();
if (isHttpOk(statusCode)) {
return getStreamForSuccessfulRequest(urlConnection);
} else if (isHttpRedirect(statusCode)) {
String redirectUrlString = urlConnection.getHeaderField("Location");
if (TextUtils.isEmpty(redirectUrlString)) {
throw new HttpException("Received empty or null redirect url");
}
URL redirectUrl = new URL(url, redirectUrlString);
// Closing the stream specifically is required to avoid leaking ResponseBodys in addition
// to disconnecting the url connection below. See #2352.
cleanup();
return loadDataWithRedirects(redirectUrl, redirects + 1, url, headers);
} else if (statusCode == INVALID_STATUS_CODE) {
throw new HttpException(statusCode);
} else {
throw new HttpException(urlConnection.getResponseMessage(), statusCode);
}
}
}
可以看到这里进行了网络请求图片，请求成功后调用callback.onDataReady(result)返回，失败会调用callback.onLoadFailed(e)，这个callback是SourceGenerator传入的this，所以callback的实现是在SourceGenerator中。
如下所示：
class SourceGenerator
implements DataFetcherGenerator,
DataFetcher.DataCallback<Object>,
DataFetcherGenerator.FetcherReadyCallback {
...
@Override
public void onDataReady(Object data) {
DiskCacheStrategy diskCacheStrategy = helper.getDiskCacheStrategy();
if (data != null && diskCacheStrategy.isDataCacheable(loadData.fetcher.getDataSource())) {
dataToCache = data;
// We might be being called back on someone else's thread. Before doing anything, we should
// reschedule to get back onto Glide's thread.
cb.reschedule();
} else {
cb.onDataFetcherReady(
loadData.sourceKey,
data,
loadData.fetcher,
loadData.fetcher.getDataSource(),
originalKey);
}
}
@Override
public void onLoadFailed(@NonNull Exception e) {
cb.onDataFetcherFailed(originalKey, e, loadData.fetcher, loadData.fetcher.getDataSource());
}
...
}
接着会回调cb.onDataFetcherReady()方法和cb.onDataFetcherFailed()方法，这个cb是DecodeJob中传入过来的。当图片请求成功时，经过decode转换之后返回result，会调用notifyComplete()如下：
private void notifyComplete(Resource<R> resource, DataSource dataSource) {
setNotifiedOrThrow();
callback.onResourceReady(resource, dataSource);
}
这里的callback是Engine的waitForExistingOrStartNewJob()方法中传入的EngineJob类型，EngineJob中的onResourceReady会调用ResourceCallback的onResourceReady()方法，这里的ResourceCallback是在Engine.load()中传入过来的，它的实现是在SingleRequest，所以继续看SingleRequest的onResourceReady()方法。
public final class SingleRequest<R>
implements Request, SizeReadyCallback, ResourceCallback, FactoryPools.Poolable {
...
@SuppressWarnings("unchecked")
@Override
public synchronized void onResourceReady(Resource<?> resource, DataSource dataSource) {
stateVerifier.throwIfRecycled();
loadStatus = null;
if (resource == null) {
GlideException exception =
new GlideException(
"Expected to receive a Resource<R> with an "
+ "object of "
+ transcodeClass
+ " inside, but instead got null.");
onLoadFailed(exception);
return;
}
Object received = resource.get();
if (received == null || !transcodeClass.isAssignableFrom(received.getClass())) {
releaseResource(resource);
GlideException exception =
new GlideException(
"Expected to receive an object of "
+ transcodeClass
+ " but instead"
+ " got "
+ (received != null ? received.getClass() : "")
+ "{"
+ received
+ "} inside"
+ " "
+ "Resource{"
+ resource
+ "}."
+ (received != null
? ""
: " "
+ "To indicate failure return a null Resource "
+ "object, rather than a Resource object containing null data."));
onLoadFailed(exception);
return;
}
if (!canSetResource()) {
releaseResource(resource);
// We can't put the status to complete before asking canSetResource().
status = Status.COMPLETE;
return;
}
onResourceReady((Resource<R>) resource, (R) received, dataSource);
}
/**
* Internal {@link #onResourceReady(Resource, DataSource)} where arguments are known to be safe.
*
* @param resource original {@link Resource}, never <code>null</code>
* @param result object returned by {@link Resource#get()}, checked for type and never <code>null
* </code>
*/
private synchronized void onResourceReady(Resource<R> resource, R result, DataSource dataSource) {
// We must call isFirstReadyResource before setting status.
boolean isFirstResource = isFirstReadyResource();
status = Status.COMPLETE;
this.resource = resource;
if (glideContext.getLogLevel() <= Log.DEBUG) {
Log.d(
GLIDE_TAG,
"Finished loading "
+ result.getClass().getSimpleName()
+ " from "
+ dataSource
+ " for "
+ model
+ " with size ["
+ width
+ "x"
+ height
+ "] in "
+ LogTime.getElapsedMillis(startTime)
+ " ms");
}
isCallingCallbacks = true;
try {
boolean anyListenerHandledUpdatingTarget = false;
if (requestListeners != null) {
for (RequestListener<R> listener : requestListeners) {
anyListenerHandledUpdatingTarget |=
listener.onResourceReady(result, model, target, dataSource, isFirstResource);
}
}
anyListenerHandledUpdatingTarget |=
targetListener != null
&& targetListener.onResourceReady(result, model, target, dataSource, isFirstResource);
if (!anyListenerHandledUpdatingTarget) {
Transition<? super R> animation = animationFactory.build(dataSource, isFirstResource);
target.onResourceReady(result, animation);
}
} finally {
isCallingCallbacks = false;
}
notifyLoadSuccess();
}
...
}
最终会调用target.onResourceReady(result, animation)，这里的的target是DrawableImageViewTarget类型。这个target类型之前在into函数开始的时候分析过，通过imageViewTargetFactory来创建的。
public class ImageViewTargetFactory {
@NonNull
@SuppressWarnings("unchecked")
public <Z> ViewTarget<ImageView, Z> buildTarget(
@NonNull ImageView view, @NonNull Class<Z> clazz) {
if (Bitmap.class.equals(clazz)) {
return (ViewTarget<ImageView, Z>) new BitmapImageViewTarget(view);
} else if (Drawable.class.isAssignableFrom(clazz)) {
return (ViewTarget<ImageView, Z>) new DrawableImageViewTarget(view);
} else {
throw new IllegalArgumentException(
"Unhandled class: " + clazz + ", try .as*(Class).transcode(ResourceTranscoder)");
}
}
}
这里的Z是Drawable类型。最后在DrawableImageViewTarget中，代码如下：
public class DrawableImageViewTarget extends ImageViewTarget<Drawable> {
public DrawableImageViewTarget(ImageView view) {
super(view);
}
/** @deprecated Use {@link #waitForLayout()} instead. */
// Public API.
@SuppressWarnings({"unused", "deprecation"})
@Deprecated
public DrawableImageViewTarget(ImageView view, boolean waitForLayout) {
super(view, waitForLayout);
}
@Override
protected void setResource(@Nullable Drawable resource) {
view.setImageDrawable(resource);
}
}
最终在DrawableImageViewTarget的setResource将drawable显示到ImageView上。
至此，对Glide加载图片流程的分析就结束了，文章比较长，有些地方比较绕，建议对照源码分析流程。
扫一扫
2211
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
