基于对象模型的变更管理系统与大模型结合方案

本文链接：https://blog.youkuaiyun.com/tuan_zhang/article/details/148542928

变更管理在企业级应用中至关重要，结合大模型可以实现更智能、自动化的变更管理流程。以下是基于 SCSAI工业软件平台设计的变更管理对象模型与大模型集成方案：

一、变更管理核心对象模型设计

1. 变更请求 (ChangeRequest)

{
  "changeRequest": {
    "id": "CR-2023-001",
    "title": "优化ITEM_INFO_INTERNAL字段显示",
    "description": "改进字段信息展示方式，提升用户体验",
    "status": "Draft",
    "priority": "Medium",
    "requestedBy": "designer@example.com",
    "requestedOn": "2023-10-15T09:30:00Z",
    "impactAnalysis": {
      "affectedItems": ["Field:ITEM_INFO_INTERNAL", "Form:ItemDetails"],
      "riskLevel": "Low",
      "dependencies": []
    },
    "associatedArtifacts": [
      {
        "type": "Template",
        "id": "TPL-INFO-001",
        "name": "信息展示模板"
      }
    ]
  }
}

2. 变更任务 (ChangeTask)

{
  "changeTask": {
    "id": "CT-2023-001",
    "title": "实现ITEM_INFO_INTERNAL模板优化",
    "description": "根据大模型建议，重构HTML代码和样式",
    "status": "InProgress",
    "assignedTo": "developer@example.com",
    "dueDate": "2023-10-25T17:00:00Z",
    "workItems": [
      {
        "type": "CodeChange",
        "description": "重构信息展示脚本",
        "estimatedHours": 4,
        "attachments": ["optimized-template.json"]
      }
    ],
    "validationCriteria": [
      "性能提升指标：渲染时间<200ms",
      "视觉一致性：符合公司设计规范",
      "功能完整性：所有数据正确显示"
    ]
  }
}

3. 变更评估 (ChangeEvaluation)

{
  "changeEvaluation": {
    "id": "CE-2023-001",
    "changeRequestId": "CR-2023-001",
    "evaluatedBy": "reviewer@example.com",
    "evaluationDate": "2023-10-22T14:00:00Z",
    "results": {
      "performance": {
        "oldValue": "350ms",
        "newValue": "180ms",
        "improvement": "48.6%"
      },
      "compliance": {
        "designStandards": "Pass",
        "accessibility": "Pass",
        "security": "Pass"
      },
      "userFeedback": [
        {
          "user": "user1@example.com",
          "rating": 4,
          "comments": "信息展示更清晰，操作更便捷"
        }
      ]
    },
    "recommendation": "Approve",
    "approvalNotes": "变更符合预期，建议部署"
  }
}

二、大模型驱动的变更管理流程

1. 变更需求分析

javascript

async function analyzeChangeRequest(changeRequest) {
  // 调用大模型分析变更请求
  const analysis = await callLLM({
    prompt: `
      分析以下变更请求，提供：
      1. 潜在影响分析
      2. 建议的变更任务
      3. 风险评估
      4. 可能的替代方案

      变更请求: ${JSON.stringify(changeRequest)}
    `,
    model: "gpt-4"
  });

  // 更新变更请求对象
  changeRequest.impactAnalysis = analysis.impactAnalysis;
  changeRequest.recommendedTasks = analysis.recommendedTasks;

  return changeRequest;
}

2. 生成变更实现方案

javascript

async function generateChangeImplementation(changeRequest, currentTemplate) {
  // 基于当前模板和变更需求，调用大模型生成优化后的模板
  const optimizedTemplate = await callLLM({
    prompt: `
      基于以下现有模板和变更请求，生成优化后的模板：

      现有模板: ${JSON.stringify(currentTemplate)}
      变更请求: ${JSON.stringify(changeRequest)}

      请提供:
      1. 优化后的HTML代码
      2. 更新的样式配置
      3. 性能提升分析
      4. 潜在问题和解决方案
    `,
    model: "gpt-4"
  });

  return optimizedTemplate;
}

3. 自动化变更验证

javascript

async function validateChangeImplementation(originalTemplate, newTemplate) {
  // 调用大模型对比新旧模板，验证变更是否符合预期
  const validationResult = await callLLM({
    prompt: `
      对比以下两个模板，评估变更是否符合规范并可能存在的问题：

      原始模板: ${JSON.stringify(originalTemplate)}
      新模板: ${JSON.stringify(newTemplate)}

      请检查:
      1. 功能完整性
      2. 性能优化
      3. 代码可维护性
      4. 样式一致性

      输出格式:
      {
        "compliance": {
          "functionality": "Pass/Fail",
          "performance": "Pass/Fail",
          "maintainability": "Pass/Fail",
          "style": "Pass/Fail"
        },
        "issues": [...],
        "recommendations": [...]
      }
    `,
    model: "gpt-4"
  });

  return validationResult;
}

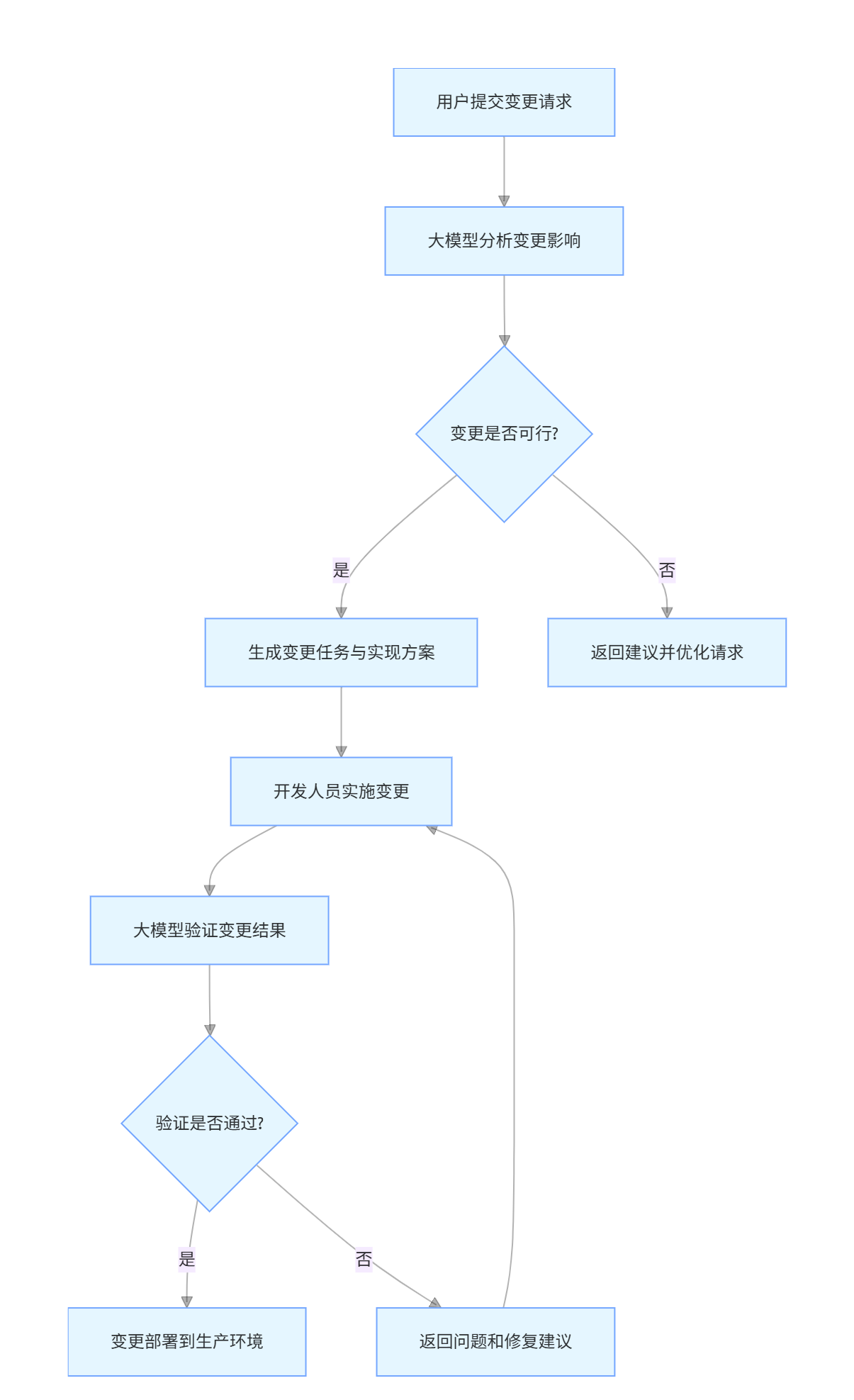

三、变更管理与大模型集成架构


四、变更管理数据模型扩展

1. 变更知识图谱

json

{
  "changeKnowledgeGraph": {
    "nodes": [
      { "id": "CR-2023-001", "type": "ChangeRequest", "label": "优化ITEM_INFO_INTERNAL字段" },
      { "id": "CT-2023-001", "type": "ChangeTask", "label": "重构HTML代码" },
      { "id": "CE-2023-001", "type": "ChangeEvaluation", "label": "性能评估" },
      { "id": "F-ITEM-INFO", "type": "Field", "label": "ITEM_INFO_INTERNAL" },
      { "id": "TPL-001", "type": "Template", "label": "信息展示模板" }
    ],
    "edges": [
      { "source": "CR-2023-001", "target": "CT-2023-001", "type": "hasTask" },
      { "source": "CT-2023-001", "target": "CE-2023-001", "type": "hasEvaluation" },
      { "source": "CR-2023-001", "target": "F-ITEM-INFO", "type": "affects" },
      { "source": "CT-2023-001", "target": "TPL-001", "type": "modifies" }
    ]
  }
}

2. 变更历史与版本控制

json

{
  "templateVersionHistory": [
    {
      "version": "v1.0",
      "timestamp": "2023-10-10T08:30:00Z",
      "author": "original@designer.com",
      "description": "初始模板版本",
      "content": { /* 模板内容 */ },
      "metrics": {
        "renderTime": "350ms",
        "codeComplexity": "120",
        "linesOfCode": 125
      }
    },
    {
      "version": "v2.0",
      "timestamp": "2023-10-25T15:45:00Z",
      "author": "developer@example.com",
      "description": "基于大模型建议优化",
      "content": { /* 优化后的模板内容 */ },
      "metrics": {
        "renderTime": "180ms",
        "codeComplexity": "85",
        "linesOfCode": 92
      },
      "changeLog": [
        "重构脚本逻辑，减少DOM操作",
        "应用CSS变量和Flex布局",
        "优化数据加载流程"
      ]
    }
  ]
}
