Rocketmq学习1

本文详细介绍了如何从GitHub拉取RocketMQ源码,并逐步配置和启动NameServer、Broker,以及如何使用Producer和Consumer进行消息发送和接收,为深入研究RocketMQ内部机制提供了一条清晰路径。

摘要生成于 C知道 ,由 DeepSeek-R1 满血版支持, 前往体验 >

首先从github中拉取Rocketmq的代码,进行运行。

1.由于rocketmq需要依赖nameServer,类似于zookeeper。首先启动时,配置好NamesrvStartup的环境变量信息,也即rocketmq的ROCKEMQ_HOME与你的项目对应。接着就可以启动了。

/**
 * nameServer启动类
 */
public class NamesrvStartup {

    private static InternalLogger log;
    private static Properties properties = null;
    private static CommandLine commandLine = null;

    public static void main(String[] args) {
        main0(args);
    }

    //启动NamesrvController做了:创建namesrvController和启动controller,返回controller
    public static NamesrvController main0(String[] args) {

        try {
            NamesrvController controller = createNamesrvController(args);
            start(controller);
            String tip = "The Name Server boot success. serializeType=" + RemotingCommand.getSerializeTypeConfigInThisServer();
            log.info(tip);
            System.out.printf("%s%n", tip);
            return controller;
        } catch (Throwable e) {
            e.printStackTrace();
            System.exit(-1);
        }

        return null;
    }

    //创建namesrvController:首先设置配置信息rocketmq的版本信息
    public static NamesrvController createNamesrvController(String[] args) throws IOException, JoranException {
        System.setProperty(RemotingCommand.REMOTING_VERSION_KEY, Integer.toString(MQVersion.CURRENT_VERSION));
        //PackageConflictDetect.detectFastjson();

        Options options = ServerUtil.buildCommandlineOptions(new Options());
        commandLine = ServerUtil.parseCmdLine("mqnamesrv", args, buildCommandlineOptions(options), new PosixParser());
        if (null == commandLine) {
            System.exit(-1);
            return null;
        }

        //创建namesrvCnfig、nettyServerConfig,并进行配置的填充
        //采用-c和-p两种方式进行填充
        final NamesrvConfig namesrvConfig = new NamesrvConfig();
        final NettyServerConfig nettyServerConfig = new NettyServerConfig();
        nettyServerConfig.setListenPort(9876);
        if (commandLine.hasOption('c')) {
            String file = commandLine.getOptionValue('c');
            if (file != null) {
                InputStream in = new BufferedInputStream(new FileInputStream(file));
                properties = new Properties();
                properties.load(in);
                MixAll.properties2Object(properties, namesrvConfig);
                MixAll.properties2Object(properties, nettyServerConfig);

                namesrvConfig.setConfigStorePath(file);

                System.out.printf("load config properties file OK, %s%n", file);
                in.close();
            }
        }

        if (commandLine.hasOption('p')) {
            InternalLogger console = InternalLoggerFactory.getLogger(LoggerName.NAMESRV_CONSOLE_NAME);
            MixAll.printObjectProperties(console, namesrvConfig);
            MixAll.printObjectProperties(console, nettyServerConfig);
            System.exit(0);
        }

        MixAll.properties2Object(ServerUtil.commandLine2Properties(commandLine), namesrvConfig);

        if (null == namesrvConfig.getRocketmqHome()) {
            System.out.printf("Please set the %s variable in your environment to match the location of the RocketMQ installation%n", MixAll.ROCKETMQ_HOME_ENV);
            System.exit(-2);
        }

        LoggerContext lc = (LoggerContext) LoggerFactory.getILoggerFactory();
        JoranConfigurator configurator = new JoranConfigurator();
        configurator.setContext(lc);
        lc.reset();
        configurator.doConfigure(namesrvConfig.getRocketmqHome() + "/conf/logback_namesrv.xml");

        log = InternalLoggerFactory.getLogger(LoggerName.NAMESRV_LOGGER_NAME);

        MixAll.printObjectProperties(log, namesrvConfig);
        MixAll.printObjectProperties(log, nettyServerConfig);

        final NamesrvController controller = new NamesrvController(namesrvConfig, nettyServerConfig);

        // remember all configs to prevent discard
        controller.getConfiguration().registerConfig(properties);

        return controller;
    }

    //启动namesrvController
    public static NamesrvController start(final NamesrvController controller) throws Exception {

        if (null == controller) {
            throw new IllegalArgumentException("NamesrvController is null");
        }

        boolean initResult = controller.initialize();
        if (!initResult) {
            controller.shutdown();
            System.exit(-3);
        }

        //添加钩子函数
        Runtime.getRuntime().addShutdownHook(new ShutdownHookThread(log, new Callable<Void>() {
            @Override
            public Void call() throws Exception {
                controller.shutdown();
                return null;
            }
        }));

        //启动controller
        controller.start();

        return controller;
    }

    public static void shutdown(final NamesrvController controller) {
        controller.shutdown();
    }

    //使用-c和-p的方式进行环境变量参数的添加
    public static Options buildCommandlineOptions(final Options options) {
        Option opt = new Option("c", "configFile", true, "Name server config properties file");
        opt.setRequired(false);
        options.addOption(opt);

        opt = new Option("p", "printConfigItem", false, "Print all config item");
        opt.setRequired(false);
        options.addOption(opt);

        return options;
    }

    public static Properties getProperties() {
        return properties;
    }
}

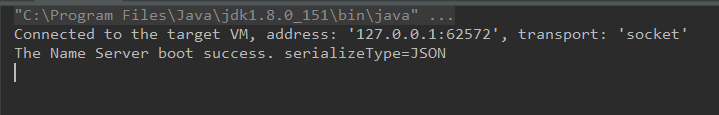

启动nameServer成功的控制台打印信息

启动NamesrvStartup的时候,控制台看到启动成功,则说明启动成功了。

2.启动brokerStartup

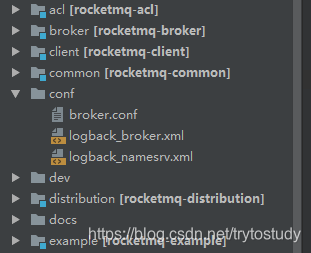

启动broker的时候,需要先配置ROCKETMQ_HOME。接着配置conf,里面有三个配置类信息
三个配置信息

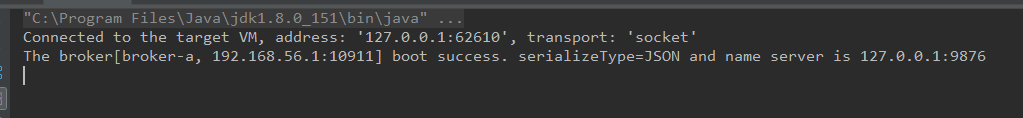

配置好了,就可以启动broker了

/**
 * broker启动类
 */
public class BrokerStartup {
    public static Properties properties = null;
    public static CommandLine commandLine = null;
    public static String configFile = null;
    public static InternalLogger log;

    public static void main(String[] args) {
        start(createBrokerController(args));
    }

    //启动brokerController
    public static BrokerController start(BrokerController controller) {
        try {

            controller.start();

            String tip = "The broker[" + controller.getBrokerConfig().getBrokerName() + ", "
                + controller.getBrokerAddr() + "] boot success. serializeType=" + RemotingCommand.getSerializeTypeConfigInThisServer();

            if (null != controller.getBrokerConfig().getNamesrvAddr()) {
                tip += " and name server is " + controller.getBrokerConfig().getNamesrvAddr();
            }

            log.info(tip);
            System.out.printf("%s%n", tip);
            return controller;
        } catch (Throwable e) {
            e.printStackTrace();
            System.exit(-1);
        }

        return null;
    }

    //关闭broker
    public static void shutdown(final BrokerController controller) {
        if (null != controller) {
            controller.shutdown();
        }
    }

    //创建BrokerController,可以看到配置信息:
    // brokerConfig,nettyServerConfig,nettyClientConfig,messageStoreConfig
    //在jvm中添加钩子函数
    public static BrokerController createBrokerController(String[] args) {
        System.setProperty(RemotingCommand.REMOTING_VERSION_KEY, Integer.toString(MQVersion.CURRENT_VERSION));

        if (null == System.getProperty(NettySystemConfig.COM_ROCKETMQ_REMOTING_SOCKET_SNDBUF_SIZE)) {
            NettySystemConfig.socketSndbufSize = 131072;
        }

        if (null == System.getProperty(NettySystemConfig.COM_ROCKETMQ_REMOTING_SOCKET_RCVBUF_SIZE)) {
            NettySystemConfig.socketRcvbufSize = 131072;
        }

        try {
            //PackageConflictDetect.detectFastjson();
            Options options = ServerUtil.buildCommandlineOptions(new Options());
            commandLine = ServerUtil.parseCmdLine("mqbroker", args, buildCommandlineOptions(options),
                new PosixParser());
            if (null == commandLine) {
                System.exit(-1);
            }

            final BrokerConfig brokerConfig = new BrokerConfig();
            final NettyServerConfig nettyServerConfig = new NettyServerConfig();
            final NettyClientConfig nettyClientConfig = new NettyClientConfig();

            nettyClientConfig.setUseTLS(Boolean.parseBoolean(System.getProperty(TLS_ENABLE,
                String.valueOf(TlsSystemConfig.tlsMode == TlsMode.ENFORCING))));
            nettyServerConfig.setListenPort(10911);
            final MessageStoreConfig messageStoreConfig = new MessageStoreConfig();

            if (BrokerRole.SLAVE == messageStoreConfig.getBrokerRole()) {
                int ratio = messageStoreConfig.getAccessMessageInMemoryMaxRatio() - 10;
                messageStoreConfig.setAccessMessageInMemoryMaxRatio(ratio);
            }

            if (commandLine.hasOption('c')) {
                String file = commandLine.getOptionValue('c');
                if (file != null) {
                    configFile = file;
                    InputStream in = new BufferedInputStream(new FileInputStream(file));
                    properties = new Properties();
                    properties.load(in);

                    properties2SystemEnv(properties);
                    MixAll.properties2Object(properties, brokerConfig);
                    MixAll.properties2Object(properties, nettyServerConfig);
                    MixAll.properties2Object(properties, nettyClientConfig);
                    MixAll.properties2Object(properties, messageStoreConfig);

                    BrokerPathConfigHelper.setBrokerConfigPath(file);
                    in.close();
                }
            }

            MixAll.properties2Object(ServerUtil.commandLine2Properties(commandLine), brokerConfig);

            if (null == brokerConfig.getRocketmqHome()) {
                System.out.printf("Please set the %s variable in your environment to match the location of the RocketMQ installation", MixAll.ROCKETMQ_HOME_ENV);
                System.exit(-2);
            }

            String namesrvAddr = brokerConfig.getNamesrvAddr();
            if (null != namesrvAddr) {
                try {
                    String[] addrArray = namesrvAddr.split(";");
                    for (String addr : addrArray) {
                        RemotingUtil.string2SocketAddress(addr);
                    }
                } catch (Exception e) {
                    System.out.printf(
                        "The Name Server Address[%s] illegal, please set it as follows, \"127.0.0.1:9876;192.168.0.1:9876\"%n",
                        namesrvAddr);
                    System.exit(-3);
                }
            }

            switch (messageStoreConfig.getBrokerRole()) {
                case ASYNC_MASTER:
                case SYNC_MASTER:
                    brokerConfig.setBrokerId(MixAll.MASTER_ID);
                    break;
                case SLAVE:
                    if (brokerConfig.getBrokerId() <= 0) {
                        System.out.printf("Slave's brokerId must be > 0");
                        System.exit(-3);
                    }

                    break;
                default:
                    break;
            }

            if (messageStoreConfig.isEnableDLegerCommitLog()) {
                brokerConfig.setBrokerId(-1);
            }

            messageStoreConfig.setHaListenPort(nettyServerConfig.getListenPort() + 1);
            LoggerContext lc = (LoggerContext) LoggerFactory.getILoggerFactory();
            JoranConfigurator configurator = new JoranConfigurator();
            configurator.setContext(lc);
            lc.reset();
            configurator.doConfigure(brokerConfig.getRocketmqHome() + "/conf/logback_broker.xml");

            //使用-p或者m添加参数
            if (commandLine.hasOption('p')) {
                InternalLogger console = InternalLoggerFactory.getLogger(LoggerName.BROKER_CONSOLE_NAME);
                MixAll.printObjectProperties(console, brokerConfig);
                MixAll.printObjectProperties(console, nettyServerConfig);
                MixAll.printObjectProperties(console, nettyClientConfig);
                MixAll.printObjectProperties(console, messageStoreConfig);
                System.exit(0);
            } else if (commandLine.hasOption('m')) {
                InternalLogger console = InternalLoggerFactory.getLogger(LoggerName.BROKER_CONSOLE_NAME);
                MixAll.printObjectProperties(console, brokerConfig, true);
                MixAll.printObjectProperties(console, nettyServerConfig, true);
                MixAll.printObjectProperties(console, nettyClientConfig, true);
                MixAll.printObjectProperties(console, messageStoreConfig, true);
                System.exit(0);
            }

            log = InternalLoggerFactory.getLogger(LoggerName.BROKER_LOGGER_NAME);
            MixAll.printObjectProperties(log, brokerConfig);
            MixAll.printObjectProperties(log, nettyServerConfig);
            MixAll.printObjectProperties(log, nettyClientConfig);
            MixAll.printObjectProperties(log, messageStoreConfig);

            final BrokerController controller = new BrokerController(
                brokerConfig,
                nettyServerConfig,
                nettyClientConfig,
                messageStoreConfig);
            // remember all configs to prevent discard
            controller.getConfiguration().registerConfig(properties);

            boolean initResult = controller.initialize();
            if (!initResult) {
                controller.shutdown();
                System.exit(-3);
            }

            //在jvm里面添加钩子函数
            Runtime.getRuntime().addShutdownHook(new Thread(new Runnable() {
                private volatile boolean hasShutdown = false;
                private AtomicInteger shutdownTimes = new AtomicInteger(0);

                @Override
                public void run() {
                    synchronized (this) {
                        log.info("Shutdown hook was invoked, {}", this.shutdownTimes.incrementAndGet());
                        if (!this.hasShutdown) {
                            this.hasShutdown = true;
                            long beginTime = System.currentTimeMillis();
                            controller.shutdown();
                            long consumingTimeTotal = System.currentTimeMillis() - beginTime;
                            log.info("Shutdown hook over, consuming total time(ms): {}", consumingTimeTotal);
                        }
                    }
                }
            }, "ShutdownHook"));

            return controller;
        } catch (Throwable e) {
            e.printStackTrace();
            System.exit(-1);
        }

        return null;
    }

    private static void properties2SystemEnv(Properties properties) {
        if (properties == null) {
            return;
        }
        String rmqAddressServerDomain = properties.getProperty("rmqAddressServerDomain", MixAll.WS_DOMAIN_NAME);
        String rmqAddressServerSubGroup = properties.getProperty("rmqAddressServerSubGroup", MixAll.WS_DOMAIN_SUBGROUP);
        System.setProperty("rocketmq.namesrv.domain", rmqAddressServerDomain);
        System.setProperty("rocketmq.namesrv.domain.subgroup", rmqAddressServerSubGroup);
    }

    //构建c、p、m方式添加参数信息
    private static Options buildCommandlineOptions(final Options options) {
        Option opt = new Option("c", "configFile", true, "Broker config properties file");
        opt.setRequired(false);
        options.addOption(opt);

        opt = new Option("p", "printConfigItem", false, "Print all config item");
        opt.setRequired(false);
        options.addOption(opt);

        opt = new Option("m", "printImportantConfig", false, "Print important config item");
        opt.setRequired(false);
        options.addOption(opt);

        return options;
    }
}

broker运行结果

控制台打印启动的信息可以看到启动成功

3.启动example中的producer

/**
 * This class demonstrates how to send messages to brokers using provided {@link DefaultMQProducer}.
 * 生产者启动类
 */
public class Producer {
    public static void main(String[] args) throws MQClientException, InterruptedException {

        /*
         * Instantiate with a producer group name.
         */
        DefaultMQProducer producer = new DefaultMQProducer("please_rename_unique_group_name");

        /*
         * Specify name server addresses.
         * <p/>
         *
         * Alternatively, you may specify name server addresses via exporting environmental variable: NAMESRV_ADDR
         * <pre>
         * {@code
         * producer.setNamesrvAddr("name-server1-ip:9876;name-server2-ip:9876");
         * }
         * </pre>
         */

        /*
         * Launch the instance.
         */
        producer.setNamesrvAddr("127.0.0.1:9876");
        producer.start();

        for (int i = 0; i < 1000; i++) {
            try {

                /*
                 * Create a message instance, specifying topic, tag and message body.
                 */
                Message msg = new Message("TopicTest" /* Topic */,
                    "TagA" /* Tag */,
                    ("Hello RocketMQ " + i).getBytes(RemotingHelper.DEFAULT_CHARSET) /* Message body */
                );

                /*
                 * Call send message to deliver message to one of brokers.
                 */
                SendResult sendResult = producer.send(msg);

                System.out.printf("%s%n", sendResult);
            } catch (Exception e) {
                e.printStackTrace();
                Thread.sleep(1000);
            }
        }

        /*
         * Shut down once the producer instance is not longer in use.
         */
        producer.shutdown();
    }
}

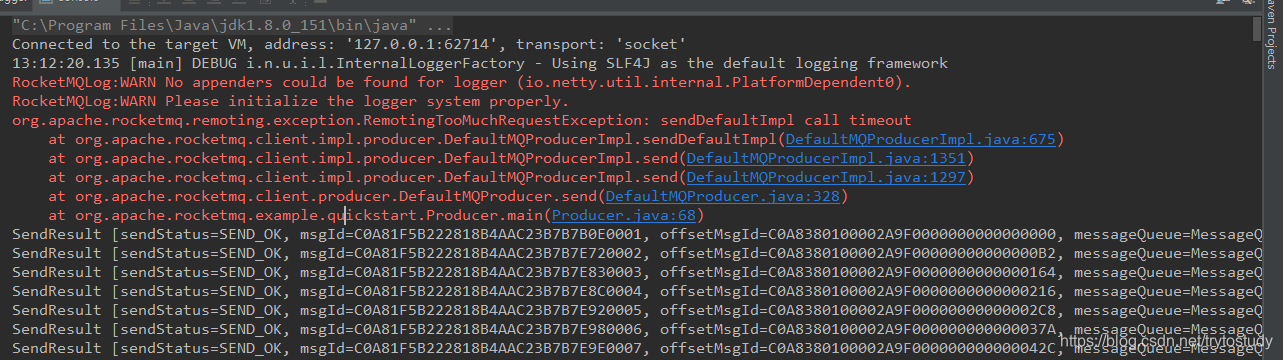

生产者启动运行结果

4.启动example中的consumer

/**
 * This example shows how to subscribe and consume messages using providing {@link DefaultMQPushConsumer}.
 * 消费者启动类
 */
public class Consumer {

    public static void main(String[] args) throws InterruptedException, MQClientException {

        /*
         * Instantiate with specified consumer group name.
         */
        DefaultMQPushConsumer consumer = new DefaultMQPushConsumer("please_rename_unique_group_name_4");

        /*
         * Specify name server addresses.
         * <p/>
         *
         * Alternatively, you may specify name server addresses via exporting environmental variable: NAMESRV_ADDR
         * <pre>
         * {@code
         * consumer.setNamesrvAddr("name-server1-ip:9876;name-server2-ip:9876");
         * }
         * </pre>
         */

        /*
         * Specify where to start in case the specified consumer group is a brand new one.
         */
        consumer.setNamesrvAddr("127.0.0.1:9876");
        consumer.setConsumeFromWhere(ConsumeFromWhere.CONSUME_FROM_FIRST_OFFSET);

        /*
         * Subscribe one more more topics to consume.
         */
        consumer.subscribe("TopicTest", "*");

        /*
         *  Register callback to execute on arrival of messages fetched from brokers.
         */
        consumer.registerMessageListener(new MessageListenerConcurrently() {

            @Override
            public ConsumeConcurrentlyStatus consumeMessage(List<MessageExt> msgs,
                ConsumeConcurrentlyContext context) {
                System.out.printf("%s Receive New Messages: %s %n", Thread.currentThread().getName(), msgs);
                return ConsumeConcurrentlyStatus.CONSUME_SUCCESS;
            }
        });

        /*
         *  Launch the consumer instance.
         */
        consumer.start();

        System.out.printf("Consumer Started.%n");
    }
}

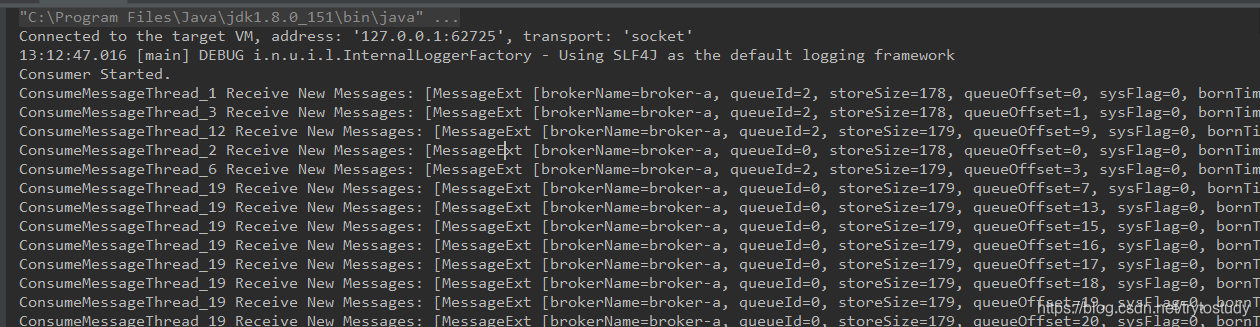

消费者运行结果

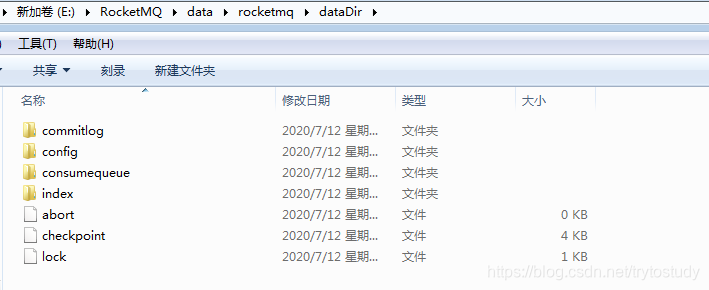

此时你还可以看到你创建好的data里面产生的文件信息:
rocketmq运行data里面产生的文件信息

可以看到里面包含了提交的日志信息、配置信息、消费者队列、索引、abort、checkpoint、lock。同时这个文件夹比较大,有2.41G。

启动完成,看到生产者和消费者的信息时,说明源码环境构建完成。同时从启动来看,也提供了分析源码和学习源码的方向,首先nameserver,然后broker,接着producer发送消息,producer消费消息。

评论
添加红包

请填写红包祝福语或标题

红包个数最小为10个

红包金额最低5元

当前余额3.43前往充值 >
需支付:10.00
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明:

1.余额是钱包充值的虚拟货币,按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载,可以购买VIP、付费专栏及课程。

余额充值
