今天使用kubebuilder，在一个Controller中编写简单的业务逻辑。

需求：

1）实现自定义对象（ats/at-sample）的状态（Status.Phase字段）的转换：PENDING>RUNNING>DONE

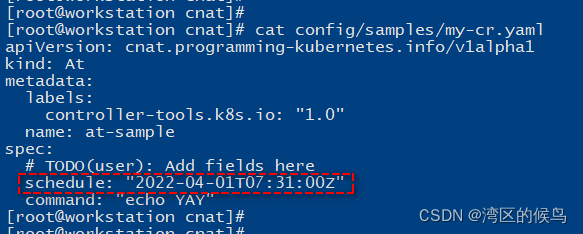

2）当前时间到了指定的时间，controller会感知到，然后创建一个Pod。

3）在POD里面启动一个BusyBox的容器，执行其Command字段中的echo命令，打印出YOY。

声明：

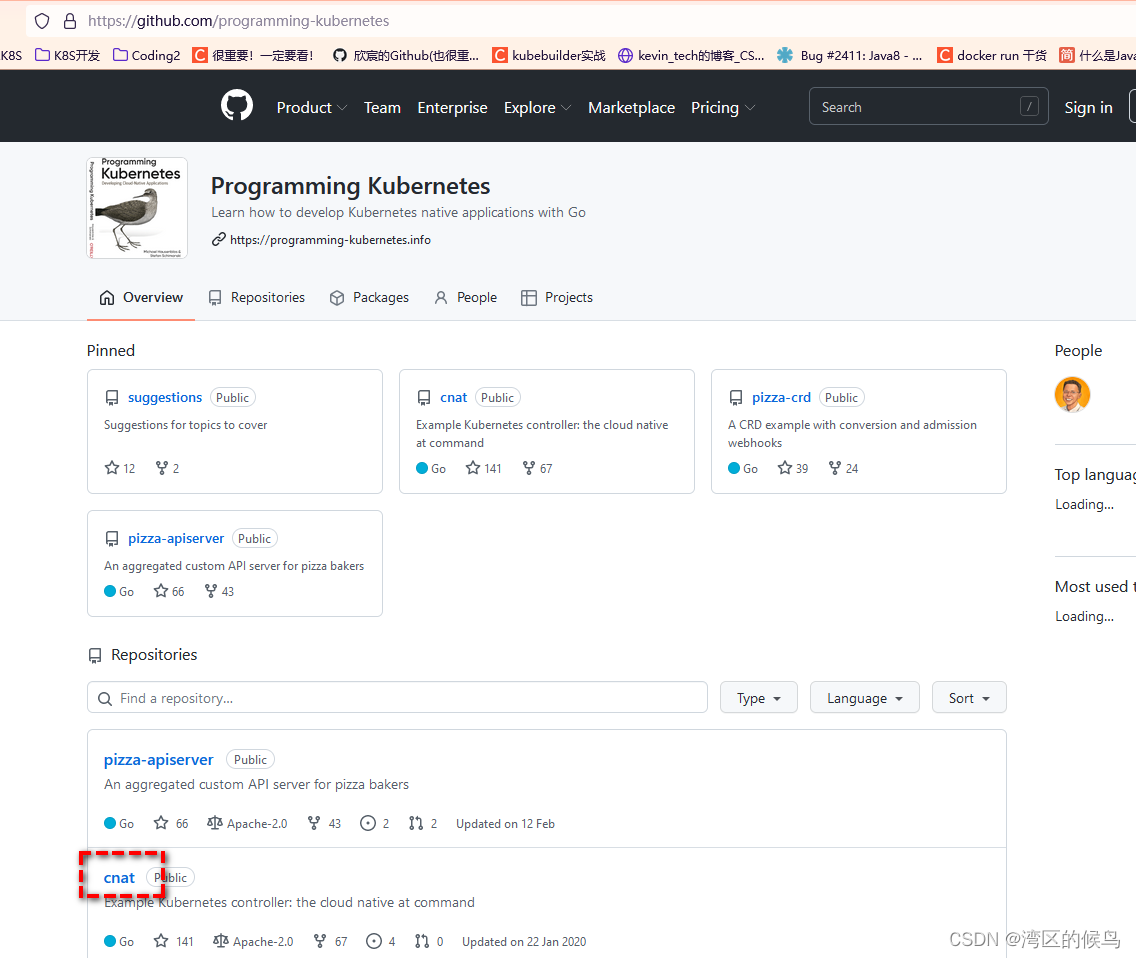

1）本文的部分源码源于《Kubernetes编程》书籍，版权属于此书作者。

2） 本文的源码已放到码云：

https://gitee.com/wqhn2020/ncat.git

）本文使用的操作环境，请参看我前面的几篇文章：

kubebuilder实践笔记(1) - CentOS 7 安装kubebuilder

kubebuilder实践笔记(2) - 入门体验

kubebuilder实践笔记(3) - 修改CRD中的字段

4）对于上面的需求1）实现对象状态的转换：PENDING>RUNNING>DONE，实际上，我现在也还不能准确理解这个需求是什么，所以不能充分验证其效果。

操作步骤：

第1步：创建工程。

[root@workstation ~]# cd "kubebuilder/projects/cnat"
[root@workstation cnat]# kubebuilder init \
> --domain programming-kubernetes.info \
> --repo my.domain/cnat
Writing kustomize manifests for you to edit...
Writing scaffold for you to edit...
Get controller runtime:
$ go get sigs.k8s.io/controller-runtime@v0.11.0
Update dependencies:
$ go mod tidy
Next: define a resource with:
$ kubebuilder create api
[root@workstation cnat]#

生成的文件如下：

[root@workstation cnat]# tree
.
├── config
│   ├── default
│   │   ├── kustomization.yaml
│   │   ├── manager_auth_proxy_patch.yaml
│   │   └── manager_config_patch.yaml
│   ├── manager
│   │   ├── controller_manager_config.yaml
│   │   ├── kustomization.yaml
│   │   └── manager.yaml
│   ├── prometheus
│   │   ├── kustomization.yaml
│   │   └── monitor.yaml
│   └── rbac
│       ├── auth_proxy_client_clusterrole.yaml
│       ├── auth_proxy_role_binding.yaml
│       ├── auth_proxy_role.yaml
│       ├── auth_proxy_service.yaml
│       ├── kustomization.yaml
│       ├── leader_election_role_binding.yaml
│       ├── leader_election_role.yaml
│       ├── role_binding.yaml
│       └── service_account.yaml
├── Dockerfile
├── go.mod
├── go.sum
├── hack
│   └── boilerplate.go.txt
├── main.go
├── Makefile
└── PROJECT

6 directories, 24 files
[root@workstation cnat]#

第2步：创建api

[root@workstation cnat]# kubebuilder create api --group cnat --version v1alpha1 --kind At
Create Resource [y/n]
y
Create Controller [y/n]
y
Writing kustomize manifests for you to edit...
Writing scaffold for you to edit...
api/v1alpha1/at_types.go
controllers/at_controller.go
Update dependencies:
$ go mod tidy
Running make:
$ make generate
go: creating new go.mod: module tmp
Downloading sigs.k8s.io/controller-tools/cmd/controller-gen@v0.8.0
go get: installing executables with 'go get' in module mode is deprecated.
	To adjust and download dependencies of the current module, use 'go get -d'.
	To install using requirements of the current module, use 'go install'.
	To install ignoring the current module, use 'go install' with a version,
	like 'go install example.com/cmd@latest'.
	For more information, see https://golang.org/doc/go-get-install-deprecation
	or run 'go help get' or 'go help install'.
go get: added github.com/fatih/color v1.12.0
go get: added github.com/go-logr/logr v1.2.0
go get: added github.com/gobuffalo/flect v0.2.3
go get: added github.com/gogo/protobuf v1.3.2
go get: added github.com/google/go-cmp v0.5.6
go get: added github.com/google/gofuzz v1.1.0
go get: added github.com/inconshreveable/mousetrap v1.0.0
go get: added github.com/json-iterator/go v1.1.12
go get: added github.com/mattn/go-colorable v0.1.8
go get: added github.com/mattn/go-isatty v0.0.12
go get: added github.com/modern-go/concurrent v0.0.0-20180306012644-bacd9c7ef1dd
go get: added github.com/modern-go/reflect2 v1.0.2
go get: added github.com/spf13/cobra v1.2.1
go get: added github.com/spf13/pflag v1.0.5
go get: added golang.org/x/mod v0.4.2
go get: added golang.org/x/net v0.0.0-20210825183410-e898025ed96a
go get: added golang.org/x/sys v0.0.0-20210831042530-f4d43177bf5e
go get: added golang.org/x/text v0.3.7
go get: added golang.org/x/tools v0.1.6-0.20210820212750-d4cc65f0b2ff
go get: added golang.org/x/xerrors v0.0.0-20200804184101-5ec99f83aff1
go get: added gopkg.in/inf.v0 v0.9.1
go get: added gopkg.in/yaml.v2 v2.4.0
go get: added gopkg.in/yaml.v3 v3.0.0-20210107192922-496545a6307b
go get: added k8s.io/api v0.23.0
go get: added k8s.io/apiextensions-apiserver v0.23.0
go get: added k8s.io/apimachinery v0.23.0
go get: added k8s.io/klog/v2 v2.30.0
go get: added k8s.io/utils v0.0.0-20210930125809-cb0fa318a74b
go get: added sigs.k8s.io/controller-tools v0.8.0
go get: added sigs.k8s.io/json v0.0.0-20211020170558-c049b76a60c6
go get: added sigs.k8s.io/structured-merge-diff/v4 v4.1.2
go get: added sigs.k8s.io/yaml v1.3.0
/root/kubebuilder/projects/cnat/bin/controller-gen object:headerFile="hack/boilerplate.go.txt" paths="./..."
Next: implement your new API and generate the manifests (e.g. CRDs,CRs) with:
$ make manifests
[root@workstation cnat]#
[root@workstation cnat]#

再次查看生成的文件：

[root@workstation cnat]# tree
.
├── api
│   └── v1alpha1
│       ├── at_types.go
│       ├── groupversion_info.go
│       └── zz_generated.deepcopy.go
├── bin
│   └── controller-gen
├── config
│   ├── crd
│   │   ├── kustomization.yaml
│   │   ├── kustomizeconfig.yaml
│   │   └── patches
│   │       ├── cainjection_in_ats.yaml
│   │       └── webhook_in_ats.yaml
│   ├── default
│   │   ├── kustomization.yaml
│   │   ├── manager_auth_proxy_patch.yaml
│   │   └── manager_config_patch.yaml
│   ├── manager
│   │   ├── controller_manager_config.yaml
│   │   ├── kustomization.yaml
│   │   └── manager.yaml
│   ├── prometheus
│   │   ├── kustomization.yaml
│   │   └── monitor.yaml
│   ├── rbac
│   │   ├── at_editor_role.yaml
│   │   ├── at_viewer_role.yaml
│   │   ├── auth_proxy_client_clusterrole.yaml
│   │   ├── auth_proxy_role_binding.yaml
│   │   ├── auth_proxy_role.yaml
│   │   ├── auth_proxy_service.yaml
│   │   ├── kustomization.yaml
│   │   ├── leader_election_role_binding.yaml
│   │   ├── leader_election_role.yaml
│   │   ├── role_binding.yaml
│   │   └── service_account.yaml
│   └── samples
│       └── cnat_v1alpha1_at.yaml
├── controllers
│   ├── at_controller.go
│   └── suite_test.go
├── Dockerfile
├── go.mod
├── go.sum
├── hack
│   └── boilerplate.go.txt
├── main.go
├── Makefile
└── PROJECT

13 directories, 37 files
[root@workstation cnat]#

第3步：修改api/v1alpha1/at_types.go，如下：

[root@workstation cnat]# cat api/v1alpha1/at_types.go
/*
Copyright 2019 We, the Kube people.

Licensed under the Apache License, Version 2.0 (the "License");
you may not use this file except in compliance with the License.
You may obtain a copy of the License at

    http://www.apache.org/licenses/LICENSE-2.0

Unless required by applicable law or agreed to in writing, software
distributed under the License is distributed on an "AS IS" BASIS,
WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
See the License for the specific language governing permissions and
limitations under the License.
*/

package v1alpha1

import (
	metav1 "k8s.io/apimachinery/pkg/apis/meta/v1"
)

const (
	PhasePending = "PENDING"
	PhaseRunning = "RUNNING"
	PhaseDone    = "DONE"
)

// AtSpec defines the desired state of At
type AtSpec struct {
	// Schedule is the desired time the command is supposed to be executed.
	// Note: the format used here is UTC time https://www.utctime.net
	Schedule string `json:"schedule,omitempty"`
	// Command is the desired command (executed in a Bash shell) to be executed.
	Command string `json:"command,omitempty"`
	// Important: Run "make" to regenerate code after modifying this file
}

// AtStatus defines the observed state of At
type AtStatus struct {
	// Phase represents the state of the schedule: until the command is executed
	// it is PENDING, afterwards it is DONE.
	Phase string `json:"phase,omitempty"`
	// Important: Run "make" to regenerate code after modifying this file
}

// +genclient
// +k8s:deepcopy-gen:interfaces=k8s.io/apimachinery/pkg/runtime.Object

// At is the Schema for the ats API
// +k8s:openapi-gen=true
// +kubebuilder:subresource:status
type At struct {
	metav1.TypeMeta   `json:",inline"`
	metav1.ObjectMeta `json:"metadata,omitempty"`

	Spec   AtSpec   `json:"spec,omitempty"`
	Status AtStatus `json:"status,omitempty"`
}

// +k8s:deepcopy-gen:interfaces=k8s.io/apimachinery/pkg/runtime.Object

// AtList contains a list of At
type AtList struct {
	metav1.TypeMeta `json:",inline"`
	metav1.ListMeta `json:"metadata,omitempty"`
	Items           []At `json:"items"`
}

func init() {
	SchemeBuilder.Register(&At{}, &AtList{})
}
[root@workstation cnat]#

第4步：重新生成代码

[root@workstation cnat]# make manifests
/root/kubebuilder/projects/cnat/bin/controller-gen rbac:roleName=manager-role crd webhook paths="./..." output:crd:artifacts:config=config/crd/bases
controllers/at_controller.go:39:2: no required module provides package github.com/programming-kubernetes/cnat/cnat-kubebuilder/pkg/apis/cnat/v1alpha1; to add it:
	go get github.com/programming-kubernetes/cnat/cnat-kubebuilder/pkg/apis/cnat/v1alpha1
controllers/at_controller.go:36:2: no required module provides package sigs.k8s.io/controller-runtime/pkg/runtime/log; to add it:
	go get sigs.k8s.io/controller-runtime/pkg/runtime/log
main.go:35:2: found packages at (at_controller.go) and controllers (suite_test.go) in /root/kubebuilder/projects/cnat/controllers
Error: not all generators ran successfully
run `controller-gen rbac:roleName=manager-role crd webhook paths=./... output:crd:artifacts:config=config/crd/bases -w` to see all available markers, or `controller-gen rbac:roleName=manager-role crd webhook paths=./... output:crd:artifacts:config=config/crd/bases -h` for usage
make: *** [manifests] Error 1
[root@workstation cnat]#

这一步会报错，根据提示，加上log依赖。

[root@workstation cnat]# go get sigs.k8s.io/controller-runtime/pkg/runtime/log
go get: module sigs.k8s.io/controller-runtime@upgrade found (v0.11.2), but does not contain package sigs.k8s.io/controller-runtime/pkg/runtime/log
[root@workstation cnat]#

再试一次，代码生成成功：

[root@workstation cnat]# make manifests
/root/kubebuilder/projects/cnat/bin/controller-gen rbac:roleName=manager-role crd webhook paths="./..." output:crd:artifacts:config=config/crd/bases
[root@workstation cnat]#
[root@workstation cnat]#

第5步：安装CRD

[root@workstation cnat]# make install
/root/kubebuilder/projects/cnat/bin/controller-gen rbac:roleName=manager-role crd webhook paths="./..." output:crd:artifacts:config=config/crd/bases
/root/kubebuilder/projects/cnat/bin/kustomize build config/crd | kubectl apply -f -
customresourcedefinition.apiextensions.k8s.io/ats.cnat.programming-kubernetes.info configured
[root@workstation cnat]#

第6步：修改at_controller.go，加上我们的业务逻辑，实现上述需求。


[root@workstation cnat]# cat controllers/at_controller.go
/*
Copyright 2019 We, the Kube people.

Licensed under the Apache License, Version 2.0 (the "License");
you may not use this file except in compliance with the License.
You may obtain a copy of the License at

    http://www.apache.org/licenses/LICENSE-2.0

Unless required by applicable law or agreed to in writing, software
distributed under the License is distributed on an "AS IS" BASIS,
WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
See the License for the specific language governing permissions and
limitations under the License.
*/

package controllers

import (
	"context"
	"fmt"
	"k8s.io/klog/v2"
	ctrl "sigs.k8s.io/controller-runtime"
	"sigs.k8s.io/controller-runtime/pkg/log"
	"strings"
	"time"

	corev1 "k8s.io/api/core/v1"
	"k8s.io/apimachinery/pkg/api/errors"
	metav1 "k8s.io/apimachinery/pkg/apis/meta/v1"
	"k8s.io/apimachinery/pkg/runtime"
	"k8s.io/apimachinery/pkg/types"
	"sigs.k8s.io/controller-runtime/pkg/client"
	//"sigs.k8s.io/controller-runtime/pkg/controller"
	"sigs.k8s.io/controller-runtime/pkg/controller/controllerutil"
	//"sigs.k8s.io/controller-runtime/pkg/handler"
	//"sigs.k8s.io/controller-runtime/pkg/manager"
	//"sigs.k8s.io/controller-runtime/pkg/reconcile"
	// logf "sigs.k8s.io/controller-runtime/pkg/runtime/log"
	//"sigs.k8s.io/controller-runtime/pkg/source"

	// cnatv1alpha1 "github.com/programming-kubernetes/cnat/cnat-kubebuilder/pkg/apis/cnat/v1alpha1"
	cnatv1alpha1 "my.domain/cnat/api/v1alpha1"
)

// AtReconciler reconciles a At object
type AtReconciler struct {
	client.Client
	Scheme *runtime.Scheme
}

//+kubebuilder:rbac:groups=cnat.programming-kubernetes.info,resources=ats,verbs=get;list;watch;create;update;patch;delete
//+kubebuilder:rbac:groups=cnat.programming-kubernetes.info,resources=ats/status,verbs=get;update;patch
//+kubebuilder:rbac:groups=cnat.programming-kubernetes.info,resources=ats/finalizers,verbs=update

// Reconcile is part of the main kubernetes reconciliation loop which aims to
// move the current state of the cluster closer to the desired state.
// TODO(user): Modify the Reconcile function to compare the state specified by
// the At object against the actual cluster state, and then
// perform operations to make the cluster state reflect the state specified by
// the user.
//
// For more details, check Reconcile and its Result here:
// - https://pkg.go.dev/sigs.k8s.io/controller-runtime@v0.11.0/pkg/reconcile
func (r *AtReconciler) Reconcile(ctx context.Context, req ctrl.Request) (ctrl.Result, error) {
	_ = log.FromContext(ctx)

	// reqLogger := log.WithValues("namespace", request.Namespace, "at", request.Name)
	klog.Infof("=== Reconciling At")
	// Fetch the At instance
	instance := &cnatv1alpha1.At{}
	err := r.Get(context.TODO(), req.NamespacedName, instance)
	if err != nil {
		if errors.IsNotFound(err) {
			// Request object not found, could have been deleted after reconcile request - return and don't requeue:
			return ctrl.Result{}, nil
		}
		// Error reading the object - requeue the request:
		return ctrl.Result{}, err
	}

	// If no phase set, default to pending (the initial phase):
	if instance.Status.Phase == "" {
		instance.Status.Phase = cnatv1alpha1.PhasePending
	}

	// Now let's make the main case distinction: implementing
	// the state diagram PENDING -> RUNNING -> DONE
	switch instance.Status.Phase {
	case cnatv1alpha1.PhasePending:
		klog.Infof("Phase: PENDING")
		// As long as we haven't executed the command yet, we need to check if it's time already to act:
		klog.Infof("Checking schedule", "Target", instance.Spec.Schedule)
		// Check if it's already time to execute the command with a tolerance of 2 seconds:
		d, err := timeUntilSchedule(instance.Spec.Schedule)
		if err != nil {
			//reqLogger.Error(err, "Schedule parsing failure")
			klog.Error(err, "Schedule parsing failure")

			// Error reading the schedule. Wait until it is fixed.
			return ctrl.Result{}, err
		}
		klog.Infof("Schedule parsing done", "Result", fmt.Sprintf("diff=%v", d))
		if d > 0 {
			// Not yet time to execute the command, wait until the scheduled time
			return ctrl.Result{RequeueAfter: d}, nil
		}
		klog.Infof("It's time!", "Ready to execute", instance.Spec.Command)
		instance.Status.Phase = cnatv1alpha1.PhaseRunning
	case cnatv1alpha1.PhaseRunning:
		klog.Infof("Phase: RUNNING")
		pod := newPodForCR(instance)
		// Set At instance as the owner and controller
		if err := controllerutil.SetControllerReference(instance, pod, r.Scheme); err != nil {
			// requeue with error
			return ctrl.Result{}, err
		}
		found := &corev1.Pod{}
		err = r.Get(context.TODO(), types.NamespacedName{Name: pod.Name, Namespace: pod.Namespace}, found)
		// Try to see if the pod already exists and if not
		// (which we expect) then create a one-shot pod as per spec:
		if err != nil && errors.IsNotFound(err) {
			err = r.Create(context.TODO(), pod)
			if err != nil {
				// requeue with error
				return ctrl.Result{}, err
			}
			klog.Infof("Pod launched", "name", pod.Name)
		} else if err != nil {
			// requeue with error
			return ctrl.Result{}, err
		} else if found.Status.Phase == corev1.PodFailed || found.Status.Phase == corev1.PodSucceeded {
			klog.Infof("Container terminated", "reason", found.Status.Reason, "message", found.Status.Message)
			instance.Status.Phase = cnatv1alpha1.PhaseDone
		} else {
			// don't requeue because it will happen automatically when the pod status changes
			return ctrl.Result{}, nil
		}
	case cnatv1alpha1.PhaseDone:
		klog.Infof("Phase: DONE")
		return ctrl.Result{}, nil
	default:
		klog.Infof("NOP")
		return ctrl.Result{}, nil
	}

	// Update the At instance, setting the status to the respective phase:
	err = r.Status().Update(context.TODO(), instance)
	if err != nil {
		return ctrl.Result{}, err
	}

	// Don't requeue. We should be reconcile because either the pod or the CR changes.
	//return reconcile.Result{}, nil
	return ctrl.Result{}, nil
}

// SetupWithManager sets up the controller with the Manager.
func (r *AtReconciler) SetupWithManager(mgr ctrl.Manager) error {
	return ctrl.NewControllerManagedBy(mgr).
		For(&cnatv1alpha1.At{}).
		Complete(r)
}


// newPodForCR returns a busybox pod with the same name/namespace as the cr
func newPodForCR(cr *cnatv1alpha1.At) *corev1.Pod {
	labels := map[string]string{
		"app": cr.Name,
	}
	return &corev1.Pod{
		ObjectMeta: metav1.ObjectMeta{
			Name:      cr.Name + "-pod",
			Namespace: cr.Namespace,
			Labels:    labels,
		},
		Spec: corev1.PodSpec{
			Containers: []corev1.Container{
				{
					Name:    "busybox",
					Image:   "hb.cn/repo/busybox:1.28",
					Command: strings.Split(cr.Spec.Command, " "),
				},
			},
			RestartPolicy: corev1.RestartPolicyOnFailure,
		},
	}
}

// timeUntilSchedule parses the schedule string and returns the time until the schedule.
// When it is overdue, the duration is negative.
func timeUntilSchedule(schedule string) (time.Duration, error) {
	now := time.Now().UTC()
	layout := "2006-01-02T15:04:05Z"
	s, err := time.Parse(layout, schedule)
	if err != nil {
		return time.Duration(0), err
	}
	return s.Sub(now), nil
}
[root@workstation cnat]#

说明：

    上面的代码要实现监听到At这种自定义资源对象，然后取得它的spec.schedule字段，值为一个时间（目标时间）。不断与当前时间比较，如果到了目标时间，则部署一个新的POD.

     代码里面的newPodForCR（）方法，创建一个新的POD，镜像为：hb.cn/repo/busybox:1.28。这是我自己搭的harbor私有镜像仓库。大家也可以使用docker hub上的，或其他公开的镜像库。

    创建了这个容器，其Command字段值为CR中的spec.command的值。这样，在容器启动后，马上执行这条Bash命令，即：echo YAY

第7步：运行controller

[root@workstation cnat]# make run
/root/kubebuilder/projects/cnat/bin/controller-gen rbac:roleName=manager-role crd webhook paths="./..." output:crd:artifacts:config=config/crd/bases
/root/kubebuilder/projects/cnat/bin/controller-gen object:headerFile="hack/boilerplate.go.txt" paths="./..."
go fmt ./...
go vet ./...
go run ./main.go
1.6487973694384649e+09	INFO	controller-runtime.metrics	Metrics server is starting to listen	{"addr": ":8080"}
1.648797369441649e+09	INFO	setup	starting manager
1.648797369442924e+09	INFO	Starting server	{"path": "/metrics", "kind": "metrics", "addr": "[::]:8080"}
1.648797369443343e+09	INFO	Starting server	{"kind": "health probe", "addr": "[::]:8081"}
1.6487973694439917e+09	INFO	controller.at	Starting EventSource	{"reconciler group": "cnat.programming-kubernetes.info", "reconciler kind": "At", "source": "kind source: *v1alpha1.At"}
1.6487973694440632e+09	INFO	controller.at	Starting Controller	{"reconciler group": "cnat.programming-kubernetes.info", "reconciler kind": "At"}
1.648797369544806e+09	INFO	controller.at	Starting workers	{"reconciler group": "cnat.programming-kubernetes.info", "reconciler kind": "At", "worker count": 1}

第8步：准备一份自定义资源(CR)

[root@workstation cnat]# cat config/samples/my-cr.yaml
apiVersion: cnat.programming-kubernetes.info/v1alpha1
kind: At
metadata:
  labels:
    controller-tools.k8s.io: "1.0"
  name: at-sample
spec:
  # TODO(user): Add fields here
  schedule: "2022-04-01T07:31:00Z"
  command: "echo YAY"
[root@workstation cnat]#

注意:

在我的环境里，运行controller的机器(workstation，运行环境见前两篇文件的介绍)是北京时间，但上面的YAML文件中，却要减8个小时才行，原因未知。

总之， 假如当前时间为：2022-04-01 15:29:00，如果我想在2022-04-01 15:31:00创建POD, 则要填写“2022-04-01T07:31:00”，如上图。

第9步：应用自定义资源(CR)

[root@workstation samples]#
[root@workstation samples]# kubectl apply -f my-cr.yaml
at.cnat.programming-kubernetes.info/at-sample created
[root@workstation samples]#

验证步骤：

验证1：查看controller日志。

可以看到当前状态为PENDING, 还剩1分47秒，然后创建POD.

I0401 15:29:12.009964   34399 at_controller.go:69] === Reconciling At
I0401 15:29:12.010004   34399 at_controller.go:91] Phase: PENDING
I0401 15:29:12.010012   34399 at_controller.go:93] Checking schedule%!(EXTRA string=Target, string=2022-04-01T07:31:00Z)
I0401 15:29:12.010025   34399 at_controller.go:103] Schedule parsing done%!(EXTRA string=Result, string=diff=1m47.989981839s)

验证2：等待1分47秒, Controller输出创建POD的信息。

 留意那行：It's time!%!(EXTRA string=Ready to execute, string=echo YAY)

I0401 15:31:00.000813   34399 at_controller.go:69] === Reconciling At
I0401 15:31:00.000927   34399 at_controller.go:91] Phase: PENDING
I0401 15:31:00.000942   34399 at_controller.go:93] Checking schedule%!(EXTRA string=Target, string=2022-04-01T07:31:00Z)
I0401 15:31:00.000987   34399 at_controller.go:103] Schedule parsing done%!(EXTRA string=Result, string=diff=-954.261µs)
I0401 15:31:00.000997   34399 at_controller.go:108] It's time!%!(EXTRA string=Ready to execute, string=echo YAY)
I0401 15:31:00.026744   34399 at_controller.go:69] === Reconciling At
I0401 15:31:00.026961   34399 at_controller.go:111] Phase: RUNNING
I0401 15:31:00.165139   34399 at_controller.go:128] Pod launched%!(EXTRA string=name, string=at-sample-pod)
I0401 16:21:35.180053   34399 at_controller.go:69] === Reconciling At

验证3：等待1分47秒, 查看busybox容器打印的日志

[root@master ~]# k get pods
NAME                             READY   STATUS             RESTARTS        AGE
at-sample-pod                    0/1     Completed          0               38m

[root@master ~]# k logs pod/at-sample-pod
YAY
[root@master ~]#

看到上面的YAY，表示Controller已成功创建POD，并且POD中的容器已正常工作。

验证4：查看ats/at-sample的描述，其Status.Phase字段值已改为RUNNING

[root@master ~]# k describe ats/at-sample
Name:         at-sample
Namespace:    default
Labels:       controller-tools.k8s.io=1.0
Annotations:  <none>
API Version:  cnat.programming-kubernetes.info/v1alpha1
Kind:         At
...
Status:
  Phase:  RUNNING
Events:   <none>
[root@master ~]#

参考：
1） 《Kubernetes编程》书籍

2）Github:  https://github.com/programming-kubernetes

评论
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付：10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明：

1.余额是钱包充值的虚拟货币，按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载，可以购买VIP、付费专栏及课程。

余额充值
