转自:http://www.cnblogs.com/bobbychencj/archive/2010/12/02/1894648.html

这次我们来说说控件属性的串行化。

目的：

我们要明确控件属性为什么要串行化？

关于串行化的定义如果你还不熟悉的话可以Baidu下，简单的说就是，我们要将我们在控件属性上设定的值持久化到代码中，这样我们下次再查看控件的值依然是我们最后一次设定的值。

备注：

关于DesignerSerializationVisibilityAttribute的解释

　　指示一个属性是否串行化和如何串行化，它的值是一个枚举，一共有三种类型Content，Hidden，Visible。

　　Content 指示代码生成器为对象包含的内容生成代码，而不是为对象本身；

　　Hidden 指示代码生成器不为对象生成代码；

　　Visible 指示代码生成器为对象生成代码。

1.假如你的控件有一个集合属性，又想在设计时自动将集合属性的内容生成代码，那么就使用这个Attribute，并将值设为DesignerSerializationVisibility.Content；

2.没有DesignerSerializationVisibilityAttribute的成员将被视为具有值为 Visible 的 DesignerSerializationVisibilityAttribute，如果可能，序列化程序会将标记为 Visible 的属性 (Property) 值序列化为该类型；

下面我来看下窗体控件的代码：

using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Drawing;
using System.Text;
using System.Windows.Forms;

namespace WinFormControlLibrary
{
    public partial class ThirdControl自定义控件属性的串行化 : Control
    {
        #region Field
        /// <summary>
        /// 名
        /// </summary>
        private String _firstName = "Bobby";
        /// <summary>
        /// 姓
        /// </summary>
        private String _lastName = "Chen";

        /// <summary>
        /// 集合1
        /// </summary>
        private List<Int32> _collection1 = new List<Int32>();
        /// <summary>
        /// 集合2
        /// </summary>
        private List<Int32> _collection2 = new List<Int32>();

        [BrowsableAttribute(true)]
        // 若不设置，则默认为 [DesignerSerializationVisibility(DesignerSerializationVisibility.Visible)]
        public List<Int32> Collection1
        {
            get { return _collection1; }
            set { _collection1 = value; }
        }

        [BrowsableAttribute(true)]
        [DesignerSerializationVisibility(DesignerSerializationVisibility.Content)]
        public List<Int32> Collection2
        {
            get { return _collection2; }
            set { _collection2 = value; }
        }

        [
        BrowsableAttribute(true),
        BindableAttribute(false),
        CategoryAttribute("自定义项目"),
        DescriptionAttribute("名"),
        ]
        public String FirstName
        {
            get { return _firstName; }
            set { _firstName = value; }
        }

        [
        BrowsableAttribute(true),
        BindableAttribute(false),
        CategoryAttribute("自定义项目"),
        DescriptionAttribute("姓"),
        ]
        public String LastName
        {
            get { return _lastName; }
            set { _lastName = value; }
        }
        #endregion

        public ThirdControl自定义控件属性的串行化()
        {
            InitializeComponent();
        }

        protected override void OnPaint(PaintEventArgs pe)
        {
            base.OnPaint(pe);

            #region 重绘控件
            Graphics g = pe.Graphics;

            //
            // 设定大小区域
            //
            Size size = new Size(Size.Width - 1, Size.Height - 1);
            //
            // 设定Control 的大小
            //
            Rectangle rectagle = new Rectangle(Point.Empty, size);

            // 绘制控件边框
            g.DrawRectangle(Pens.Black, rectagle);

            // 绘制控件内容
            for (Int32 i = 0; i < _collection1.Count; i++)
            {
                g.DrawString(_collection1[i].ToString(), Font, Brushes.Red, 1, i * FontHeight);
            }

            for (Int32 i = 0; i < _collection2.Count; i++)
            {
                g.DrawString(_collection2[i].ToString(), Font, Brushes.Red, 10, i * FontHeight);
            }
            #endregion
        }
    }
}

在这个控件中，我们定义了两个泛型集合Collection1 和 Collection2 。

Collection1默认没有使用DesignerSerializationVisibilityAttribute属性，因此会默认提供为控件指定DesignerSerializationVisibilityAttribute.Visible值；

Collection2则指定了DesignerSerializationVisibilityAttribute.Content值；

我们将控件添加到一个窗体中，并为Collection1赋值 1,2,3,4，为Collection2赋值 5,6,7,8

下面我们来看一下这个控件在窗体中的代码：

namespace 自定义窗体控件Demo
{
    partial class 之四窗体控件实现属性的串行化
    {
        /// <summary>
        /// Required designer variable.
        /// </summary>
        private System.ComponentModel.IContainer components = null;

        /// <summary>
        /// Clean up any resources being used.
        /// </summary>
        /// <param name="disposing">true if managed resources should be disposed; otherwise, false.</param>
        protected override void Dispose(bool disposing)
        {
            if (disposing && (components != null))
            {
                components.Dispose();
            }
            base.Dispose(disposing);
        }

        #region Windows Form Designer generated code

        /// <summary>
        /// Required method for Designer support - do not modify
        /// the contents of this method with the code editor.
        /// </summary>
        private void InitializeComponent()
        {
            System.ComponentModel.ComponentResourceManager resources = new System.ComponentModel.ComponentResourceManager(typeof(之四窗体控件实现属性的串行化));
            this.thirdControl自定义控件属性的串行化1 = new WinFormControlLibrary.ThirdControl自定义控件属性的串行化();
            this.SuspendLayout();
            //
            // thirdControl自定义控件属性的串行化1
            //
            this.thirdControl自定义控件属性的串行化1.Collection1 = ((System.Collections.Generic.List<int>)(resources.GetObject("thirdControl自定义控件属性的串行化1.Collection1")));
            this.thirdControl自定义控件属性的串行化1.Collection2.Add(4);
            this.thirdControl自定义控件属性的串行化1.Collection2.Add(5);
            this.thirdControl自定义控件属性的串行化1.Collection2.Add(6);
            this.thirdControl自定义控件属性的串行化1.Collection2.Add(7);
            this.thirdControl自定义控件属性的串行化1.FirstName = "Bobby";
            this.thirdControl自定义控件属性的串行化1.LastName = "Chen";
            this.thirdControl自定义控件属性的串行化1.Location = new System.Drawing.Point(30, 12);
            this.thirdControl自定义控件属性的串行化1.Name = "thirdControl自定义控件属性的串行化1";
            this.thirdControl自定义控件属性的串行化1.Size = new System.Drawing.Size(133, 93);
            this.thirdControl自定义控件属性的串行化1.TabIndex = 0;
            this.thirdControl自定义控件属性的串行化1.Text = "thirdControl自定义控件属性的串行化1";
            //
            // 之四窗体控件实现属性的串行化
            //
            this.AutoScaleDimensions = new System.Drawing.SizeF(6F, 13F);
            this.AutoScaleMode = System.Windows.Forms.AutoScaleMode.Font;
            this.ClientSize = new System.Drawing.Size(297, 262);
            this.Controls.Add(this.thirdControl自定义控件属性的串行化1);
            this.Name = "之四窗体控件实现属性的串行化";
            this.Text = "之四窗体控件实现属性的串行化";
            this.ResumeLayout(false);

        }

        #endregion

        private WinFormControlLibrary.ThirdControl自定义控件属性的串行化 thirdControl自定义控件属性的串行化1;
    }
}

em.ComponentModel.IContainer components = null;

        /// <summary>
        /// Clean up any resources being used.
        /// </summary>
        /// <param name="disposing">true if managed resources should be disposed; otherwise, false.</param>
        protected override void Dispose(bool disposing)
        {
            if (disposing && (components != null))
            {
                components.Dispose();
            }
            base.Dispose(disposing);
        }

        #region Windows Form Designer generated code

        /// <summary>
        /// Required method for Designer support - do not modify
        /// the contents of this method with the code editor.
        /// </summary>
        private void InitializeComponent()
        {
            System.ComponentModel.ComponentResourceManager resources = new System.ComponentModel.ComponentResourceManager(typeof(之四窗体控件实现属性的串行化));
            this.thirdControl自定义控件属性的串行化1 = new WinFormControlLibrary.ThirdControl自定义控件属性的串行化();
            this.SuspendLayout();
            //
            // thirdControl自定义控件属性的串行化1
            //
            this.thirdControl自定义控件属性的串行化1.Collection1 = ((System.Collections.Generic.List<int>)(resources.GetObject("thirdControl自定义控件属性的串行化1.Collection1")));
            this.thirdControl自定义控件属性的串行化1.Collection2.Add(4);
            this.thirdControl自定义控件属性的串行化1.Collection2.Add(5);
            this.thirdControl自定义控件属性的串行化1.Collection2.Add(6);
            this.thirdControl自定义控件属性的串行化1.Collection2.Add(7);
            this.thirdControl自定义控件属性的串行化1.FirstName = "Bobby";
            this.thirdControl自定义控件属性的串行化1.LastName = "Chen";
            this.thirdControl自定义控件属性的串行化1.Location = new System.Drawing.Point(30, 12);
            this.thirdControl自定义控件属性的串行化1.Name = "thirdControl自定义控件属性的串行化1";
            this.thirdControl自定义控件属性的串行化1.Size = new System.Drawing.Size(133, 93);
            this.thirdControl自定义控件属性的串行化1.TabIndex = 0;
            this.thirdControl自定义控件属性的串行化1.Text = "thirdControl自定义控件属性的串行化1";
            //
            // 之四窗体控件实现属性的串行化
            //
            this.AutoScaleDimensions = new System.Drawing.SizeF(6F, 13F);
            this.AutoScaleMode = System.Windows.Forms.AutoScaleMode.Font;
            this.ClientSize = new System.Drawing.Size(297, 262);
            this.Controls.Add(this.thirdControl自定义控件属性的串行化1);
            this.Name = "之四窗体控件实现属性的串行化";
            this.Text = "之四窗体控件实现属性的串行化";
            this.ResumeLayout(false);

        }

        #endregion

        private WinFormControlLibrary.ThirdControl自定义控件属性的串行化 thirdControl自定义控件属性的串行化1;
    }
}

我们重点看一下 thirdControl自定义控件属性的串行化1 这个代码，我把它单独列出来，如下：

//
// thirdControl自定义控件属性的串行化1
//
this.thirdControl自定义控件属性的串行化1.Collection1 = ((System.Collections.Generic.List<int>)(resources.GetObject("thirdControl自定义控件属性的串行化1.Collection1")));
this.thirdControl自定义控件属性的串行化1.Collection2.Add(4);
this.thirdControl自定义控件属性的串行化1.Collection2.Add(5);
this.thirdControl自定义控件属性的串行化1.Collection2.Add(6);
this.thirdControl自定义控件属性的串行化1.Collection2.Add(7);
this.thirdControl自定义控件属性的串行化1.FirstName = "Bobby";
this.thirdControl自定义控件属性的串行化1.LastName = "Chen";
this.thirdControl自定义控件属性的串行化1.Location = new System.Drawing.Point(30, 12);
this.thirdControl自定义控件属性的串行化1.Name = "thirdControl自定义控件属性的串行化1";
this.thirdControl自定义控件属性的串行化1.Size = new System.Drawing.Size(133, 93);
this.thirdControl自定义控件属性的串行化1.TabIndex = 0;
this.thirdControl自定义控件属性的串行化1.Text = "thirdControl自定义控件属性的串行化1";

Collection1中添加的数值（1,2,3,4）没有在窗体的Designer中生成代码，其实他被编译到窗体的资源文件中去了；

Collection2中的数值我们可以清楚的看见，因为使用了DesignerSerializationVisibilityAttribute.Content 所以指定的在窗体的Designer中自动产生了代码；

我们再来看看窗体中是怎样调用资源文件的：

System.ComponentModel.ComponentResourceManager resources = new System.ComponentModel.ComponentResourceManager(typeof(之四窗体控件实现属性的串行化));
this.thirdControl自定义控件属性的串行化1 = new WinFormControlLibrary.ThirdControl自定义控件属性的串行化();
this.SuspendLayout();

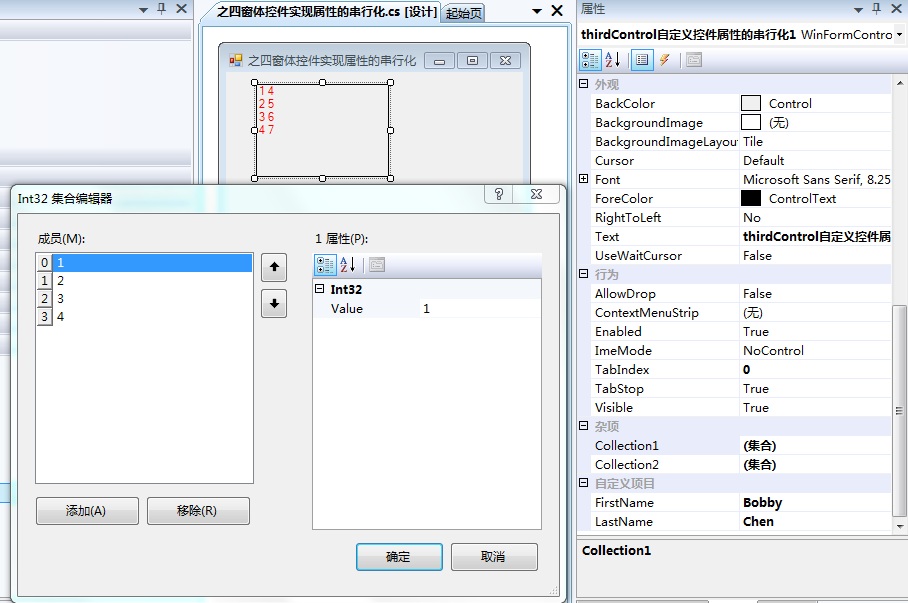

最后我们看下效果：
