下载链接： cuda9.0
在下载目录打开terminal

sudo dpkg -i cuda-repo-ubuntu1604-9-0-local_9.0.176-1_amd64.deb
sudo apt-key add /var/cuda-repo-9-0-local/7fa2af80.pub
上述指令打印OK然而并没什么卵用，可手动在系统设置-软件和更新-其他软件添加源

deb file:///var/cuda-repo-9-0-local /
然后

sudo apt-get update
sudo apt-get install cuda

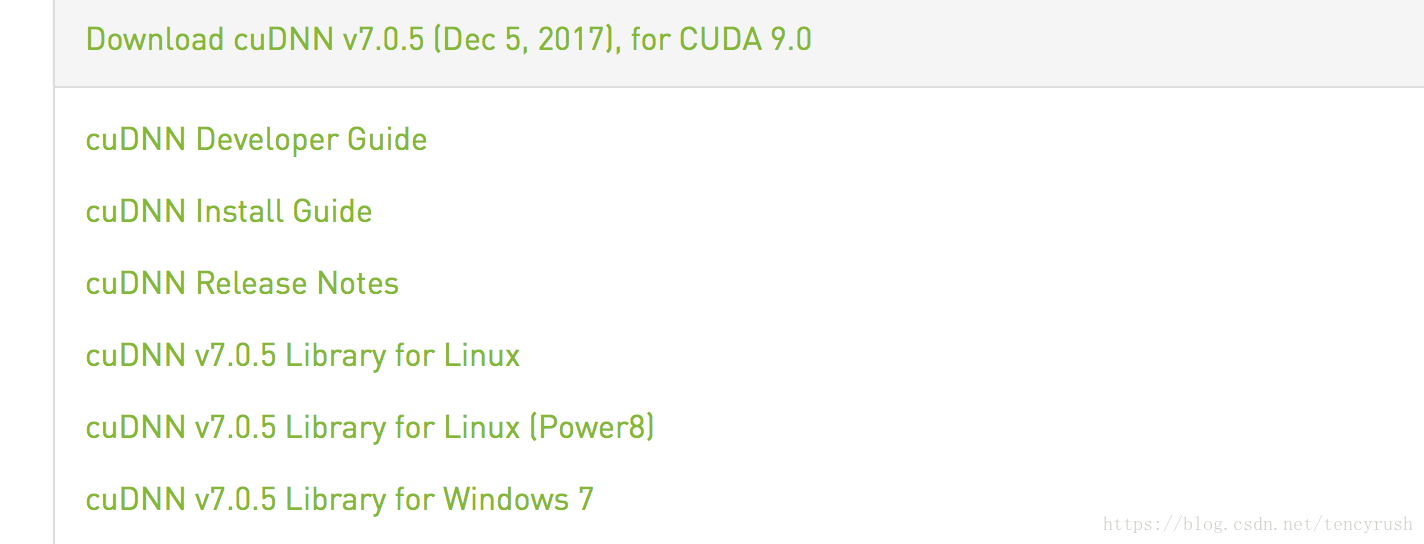

下载链接：cudnn7.0
进入下载目录

tar -xzvf cudnn-9.0-linux-x64-v7.tgz #解压
复制

sudo cp cuda/include/cudnn.h /usr/local/cuda/include/
sudo cp cuda/lib64/libcudnn* /usr/local/cuda/lib64/
sudo chmod a+r /usr/local/cuda/include/cudnn.h
sudo chmod a+r /usr/local/cuda/lib64/libcudnn*
在系统环境设置cuda路径

gedit ~/.bashrc #打开
在文末添加或修改(以前用过8.0的改成9.0就ok)

export LD_LIBRARY_PATH=/usr/local/cuda-9.0/lib64:/usr/local/cuda-9.0/extras/CUPTI/lib64:$LD_LIBRARY_PATH export CUDA_HOME=/usr/local/cuda-9.0 export PATH=/usr/local/cuda-9.0/bin:$PATH
保存

source ~/.bashrc
验证

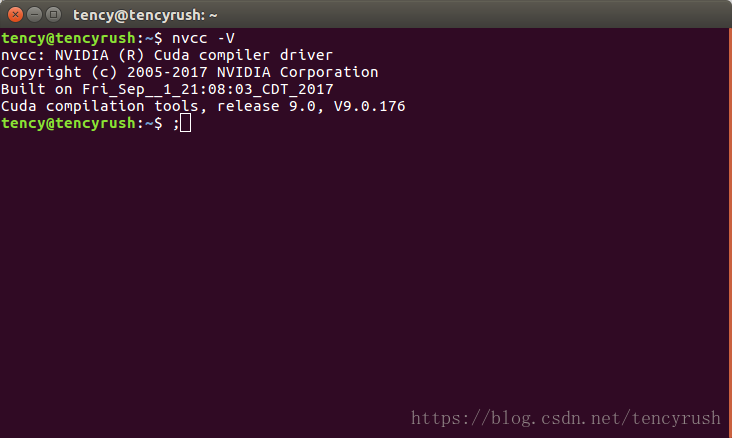

nvcc -V #查询cuda版本

cuda

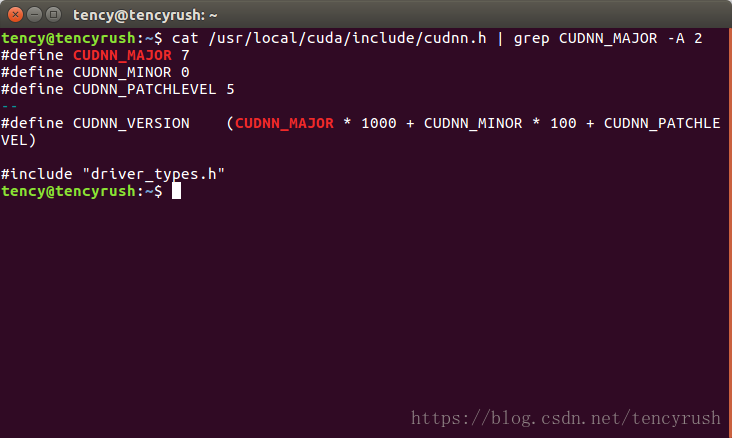

cat /usr/local/cuda/include/cudnn.h | grep CUDNN_MAJOR -A 2 #查询cudnn版本

cudnn

安装依赖包

sudo apt-get install libprotobuf-dev libleveldb-dev libsnappy-dev libopencv-dev libhdf5-serial-dev protobuf-compiler
sudo apt-get install –no-install-recommends libboost-all-dev
sudo apt-get install libopenblas-dev liblapack-dev libatlas-base-dev
sudo apt-get install libgflags-dev libgoogle-glog-dev liblmdb-dev
sudo apt-get install git cmake build-essential
caffe下载包

git clone http://github.com/weiliu89/caffe.git
备份Makefile.config

sudo cp Makefile.config.example Makefile.config
编辑Makefile.config

sudo gedit Makefile.config
打开后做如下修改
1. 应用cuDNN

  USE_CUDNN := 1
2. 应用OpenCV

  USE_OPENCV := 1
3. 根据CUDA版本进行相关的注释
4. 应用python接口

  WITH_PYTHON_LAYER := 1
5. 修改PYTHON路径

  INCLUDE_DIRS := $(PYTHON_INCLUDE) /usr/local/include LIBRARY_DIRS := $(PYTHON_LIB) /usr/local/lib /usr/lib 修改为： INCLUDE_DIRS := $(PYTHON_INCLUDE) /usr/local/include /usr/include/hdf5/serial LIBRARY_DIRS := $(PYTHON_LIB) /usr/local/lib /usr/lib /usr/lib/x86_64-linux-gnu /usr/lib/x86_64-linux-gnu/hdf5/serial
修改Makefile文档

NVCCFLAGS +=-ccbin=$(CXX) -Xcompiler-fPIC $(COMMON_FLAGS) 改为： NVCCFLAGS += -D_FORCE_INLINES -ccbin=$(CXX) -Xcompiler -fPIC $(COMMON_FLAGS)
LIBRARIES += glog gflags protobuf boost_system boost_filesystem m hdf5_hl hdf5 改为： LIBRARIES += glog gflags protobuf boost_system boost_filesystem m hdf5_serial_hl hdf5_serial
编译

make all -j8
测试

make runtest

无脑依赖库安装

sudo apt-get install python-numpy python-scipy python-matplotlib python-sklearn python-skimage python-h5py python-protobuf python-leveldb python-networkx python-nose python-pandas python-flags Cython ipython
sudo apt-get install protobuf-c-compiler protobuf-compiler
或者进入caffe/python 根据所提供的清单进行安装

for req in $(cat requirements.txt); do sudo pip install $req; done
完成后执行如下命令反馈安装结果

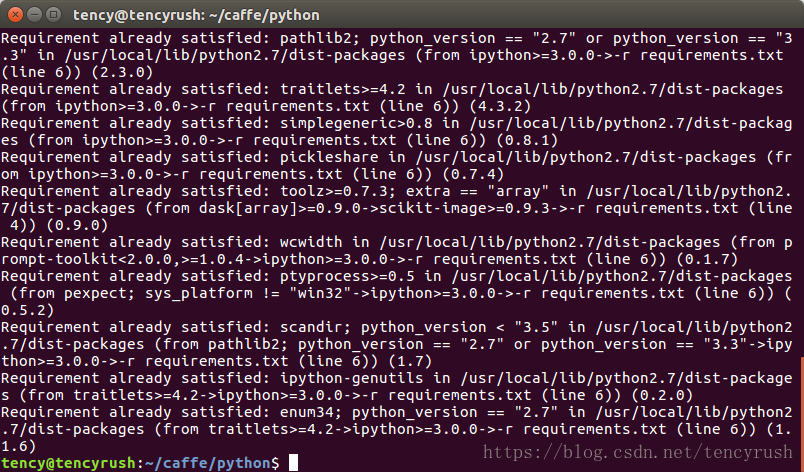

sudo pip install -r requirements.txt #打印出一堆Requirement already satisfied即可

requirements
