旁挂

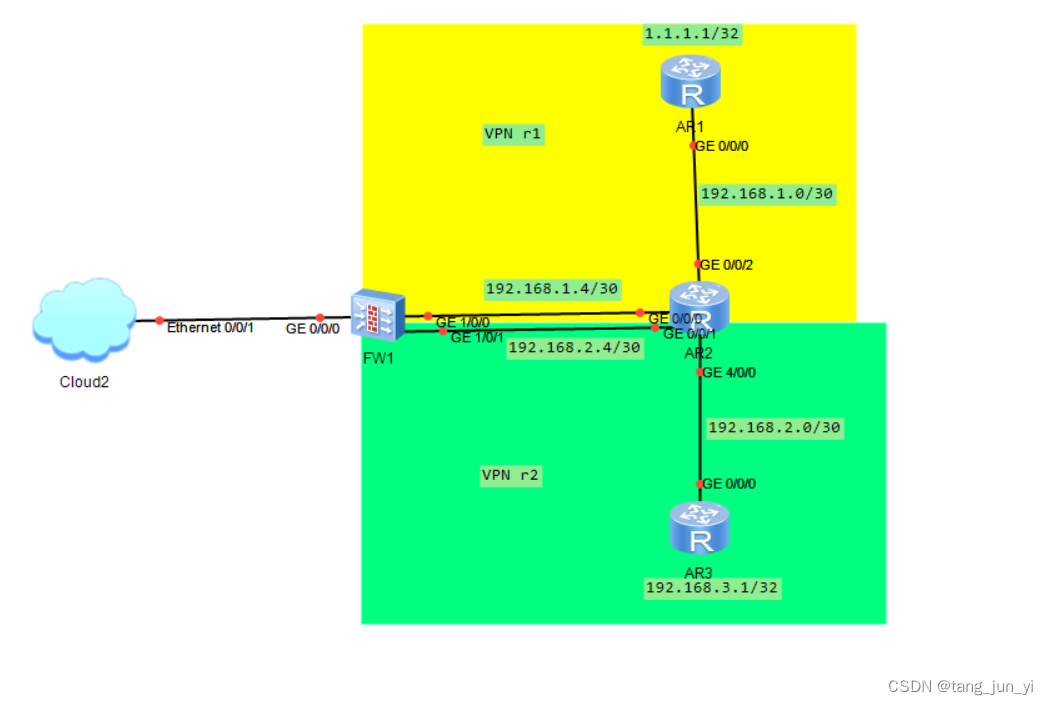

拓扑

防火墙配置

interface GigabitEthernet0/0/0
undo shutdown
ip binding vpn-instance default
ip address 172.25.254.2 255.255.255.0
alias GE0/METH
service-manage http permit
service-manage https permit
service-manage ping permit
service-manage ssh permit
service-manage snmp permit
service-manage telnet permit
#
interface GigabitEthernet1/0/0
undo shutdown
ip address 192.168.1.6 255.255.255.252
#
interface GigabitEthernet1/0/1
undo shutdown
ip address 192.168.2.6 255.255.255.252

ip route-static 0.0.0.0 0.0.0.0 GigabitEthernet1/0/0 192.168.1.5
ip route-static 192.168.3.1 255.255.255.255 GigabitEthernet1/0/1 192.168.2.5

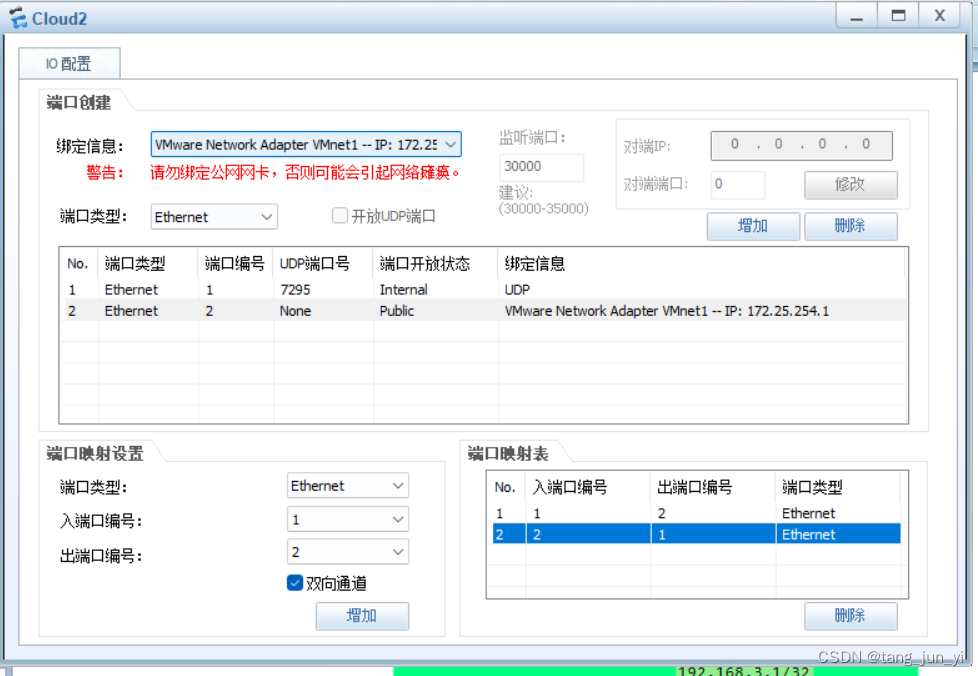

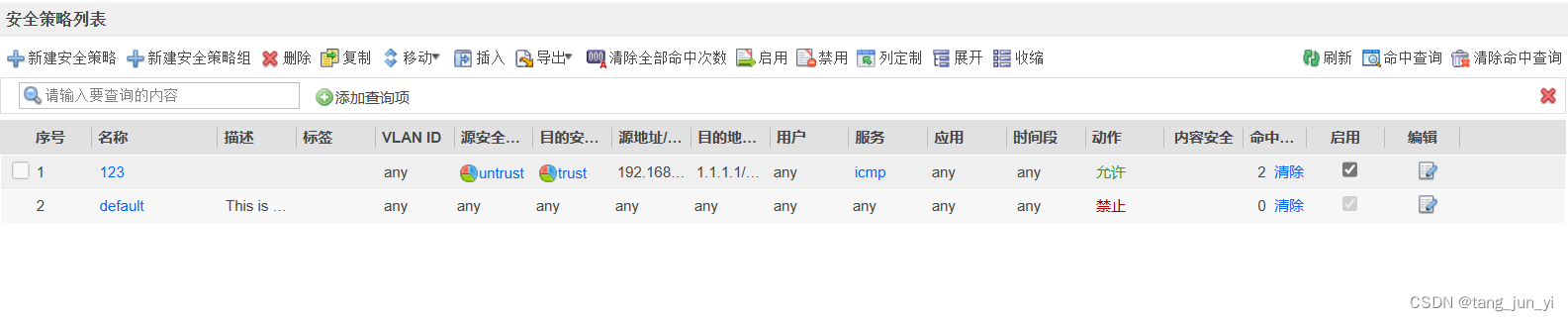

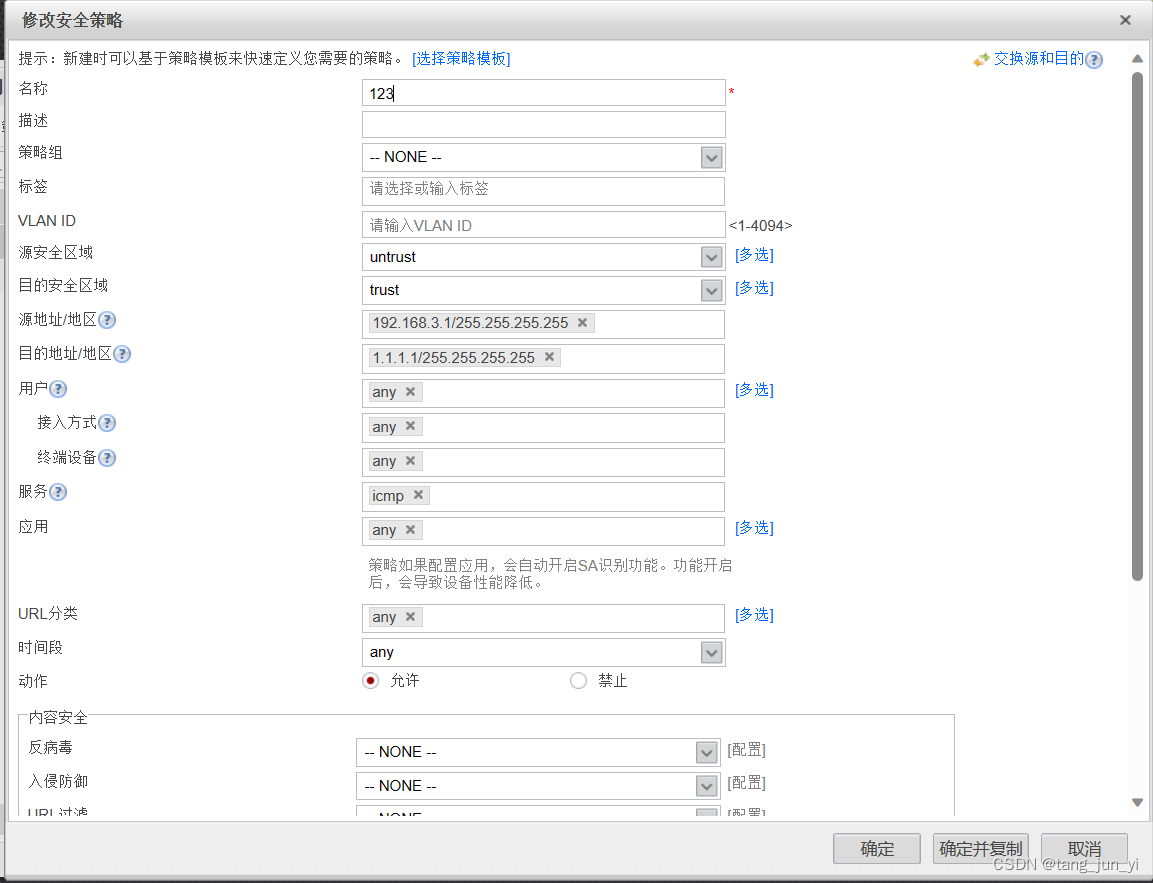

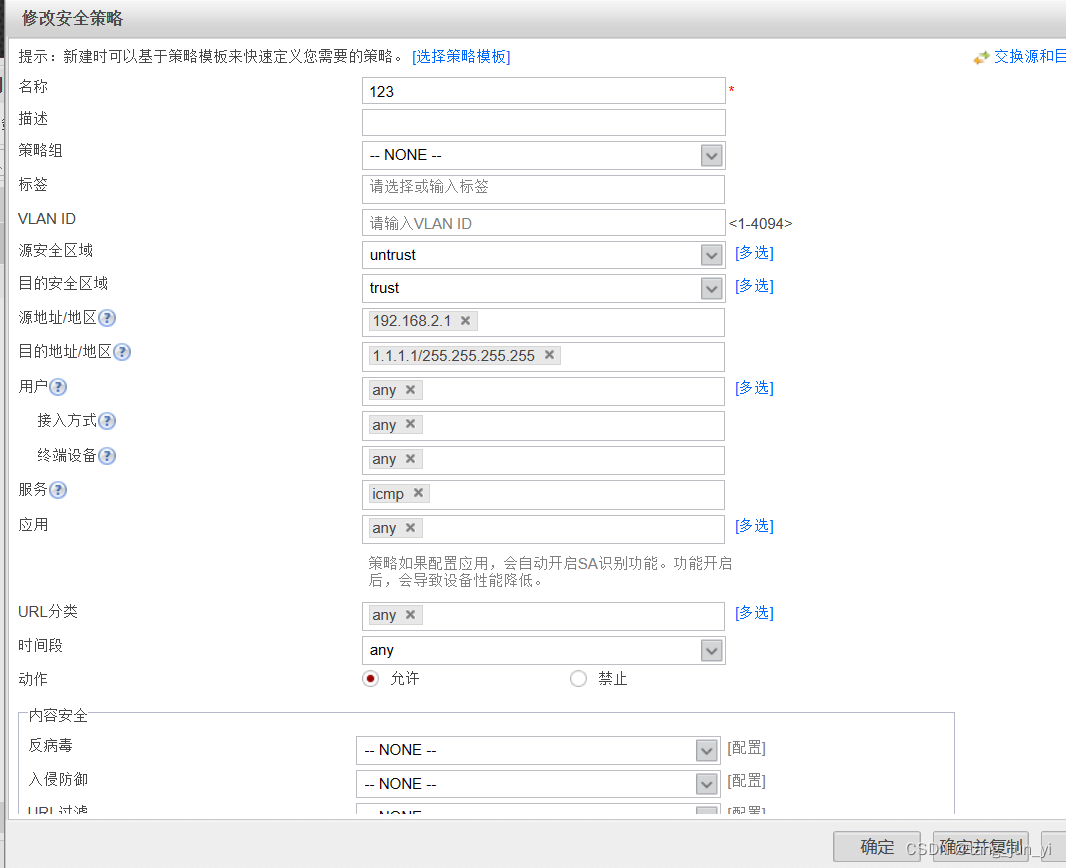

策略

r1

interface GigabitEthernet0/0/0
ip address 192.168.1.1 255.255.255.252
#
interface LoopBack0
ip address 1.1.1.1 255.255.255.255
#
ip route-static 192.168.3.1 255.255.255.255 192.168.1.2

r2

ip vpn-instance r1
ipv4-family
route-distinguisher 1:1
vpn-target 1:1 export-extcommunity
vpn-target 1:1 import-extcommunity
#
ip vpn-instance r3
ipv4-family
route-distinguisher 2:2
vpn-target 2:2 export-extcommunity
vpn-target 2:2 import-extcommunity
#
interface GigabitEthernet0/0/0
ip binding vpn-instance r1
ip address 192.168.1.5 255.255.255.252
#
interface GigabitEthernet0/0/1
ip binding vpn-instance r3
ip address 192.168.2.5 255.255.255.252
#
interface GigabitEthernet0/0/2
ip binding vpn-instance r1
ip address 192.168.1.2 255.255.255.252
#
interface GigabitEthernet4/0/0
ip binding vpn-instance r3
ip address 192.168.2.2 255.255.255.252
#
interface NULL0
#
ip route-static vpn-instance r1 1.1.1.1 255.255.255.255 192.168.1.1
ip route-static vpn-instance r1 192.168.3.1 255.255.255.255 192.168.1.6
ip route-static vpn-instance r1 192.168.3.1 255.255.255.255 vpn-instance r3 192.
168.2.1 preference 100
ip route-static vpn-instance r3 1.1.1.1 255.255.255.255 192.168.2.6
ip route-static vpn-instance r3 1.1.1.1 255.255.255.255 vpn-instance r1 192.168.
1.1 preference 100
ip route-static vpn-instance r3 192.168.3.1 255.255.255.255 192.168.2.1

r3

interface GigabitEthernet0/0/0
ip address 192.168.2.1 255.255.255.252
#
interface LoopBack0
ip address 192.168.3.1 255.255.255.255
#
ip route-static 0.0.0.0 0.0.0.0 192.168.2.2

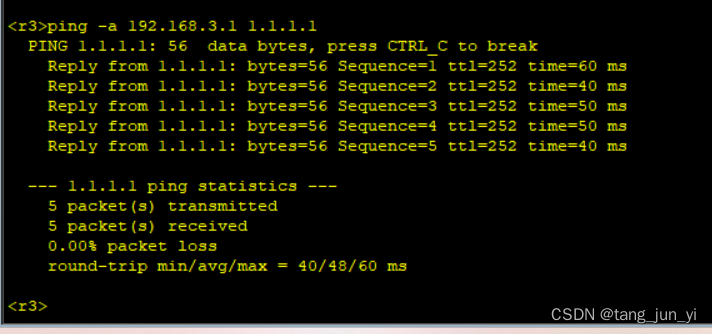

结果

热备

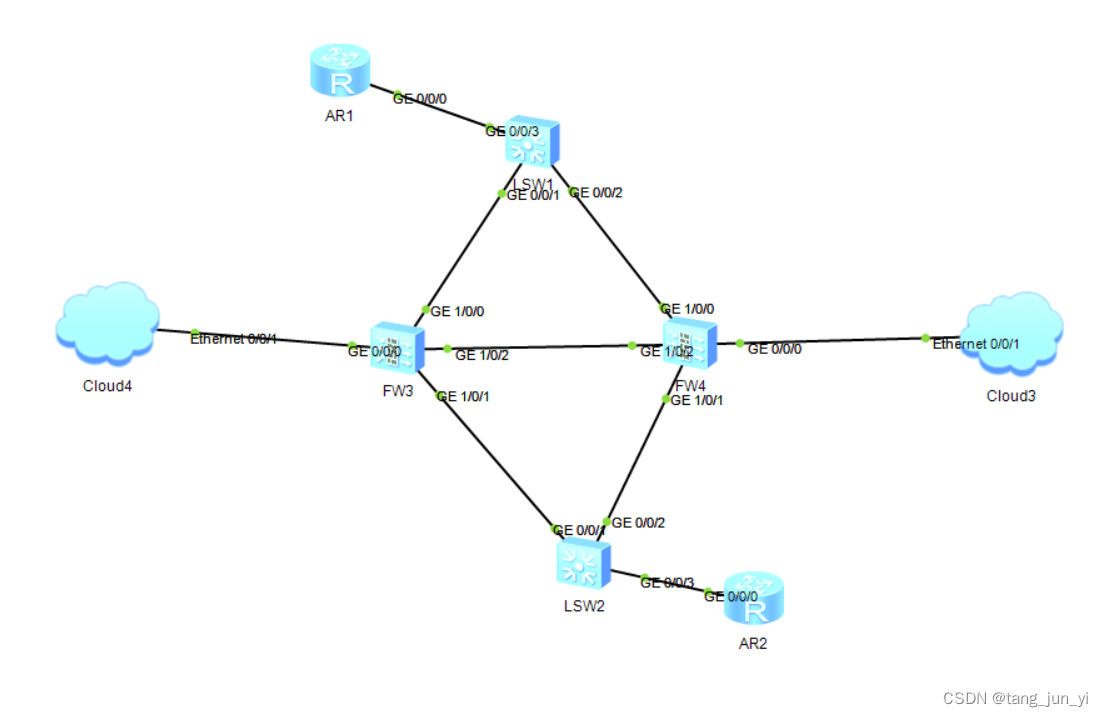

拓扑

r1

interface GigabitEthernet0/0/0
ip address 12.1.1.1 255.255.255.0
#
interface LoopBack0
ip address 1.1.1.1 255.255.255.255
#
ip route-static 192.168.2.1 255.255.255.255 12.1.1.2
ip route-static 192.168.2.1 255.255.255.255 12.1.1.3

r2

interface GigabitEthernet0/0/0
ip address 192.168.1.1 255.255.255.0
#
interface LoopBack0
ip address 192.168.2.1 255.255.255.255
#
ip route-static 1.1.1.1 255.255.255.255 192.168.1.2
ip route-static 1.1.1.1 255.255.255.255 192.168.1.3

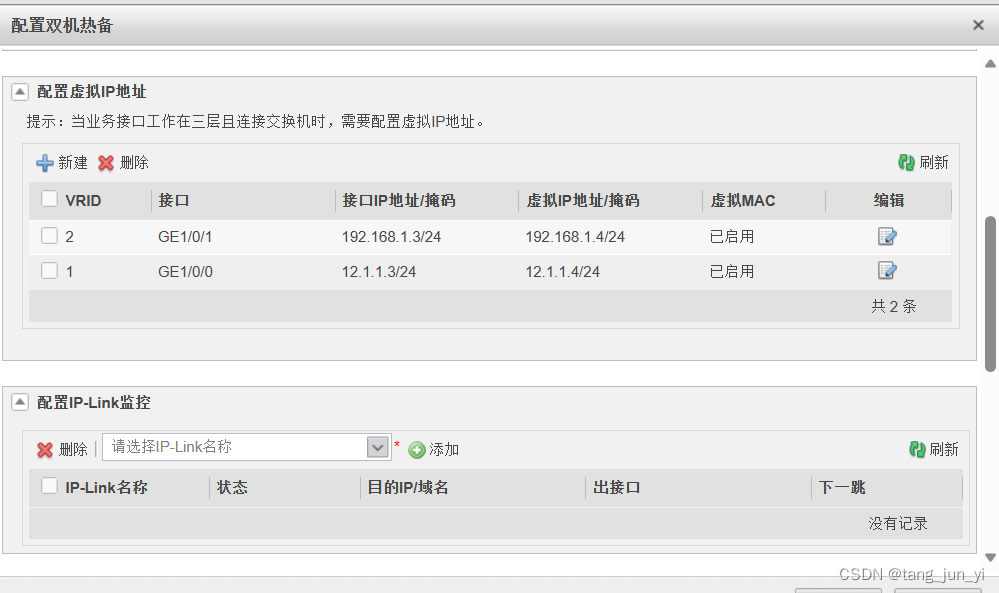

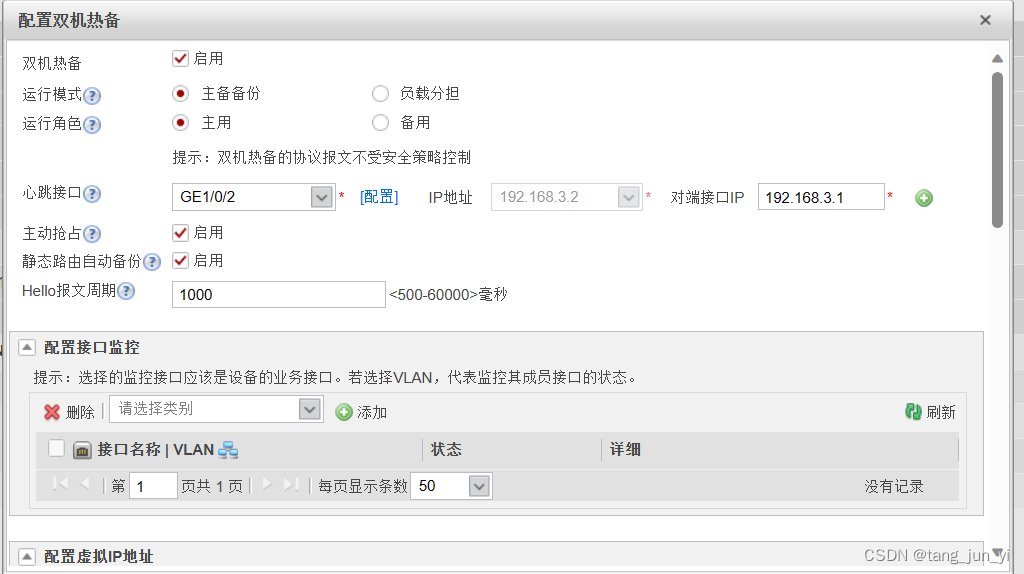

FW3

 interface GigabitEthernet0/0/0
  undo shutdown
  ip binding vpn-instance default
  ip address 172.25.254.2 255.255.255.0
  alias GE0/METH
  service-manage http permit
  service-manage https permit
  service-manage ping permit
  service-manage ssh permit
  service-manage snmp permit
  service-manage telnet permit
 #
 interface GigabitEthernet1/0/0
  undo shutdown
  ip address 12.1.1.3 255.255.255.0
  vrrp vrid 1 virtual-ip 12.1.1.4 active
  vrrp virtual-mac enable
 #
 interface GigabitEthernet1/0/1
  undo shutdown
  ip address 192.168.1.3 255.255.255.0
  vrrp vrid 2 virtual-ip 192.168.1.4 active
  vrrp virtual-mac enable
 #
 interface GigabitEthernet1/0/2
  undo shutdown
  ip address 192.168.3.2 255.255.255.0

 ip route-static 1.1.1.1 255.255.255.255 12.1.1.1
 ip route-static 192.168.2.1 255.255.255.255 192.168.1.1

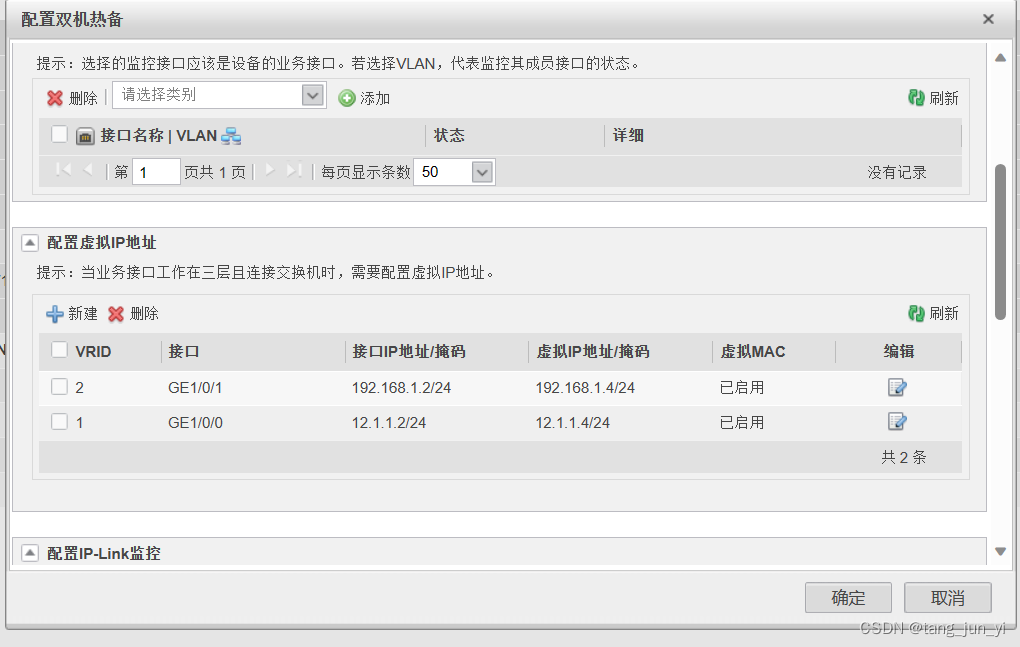

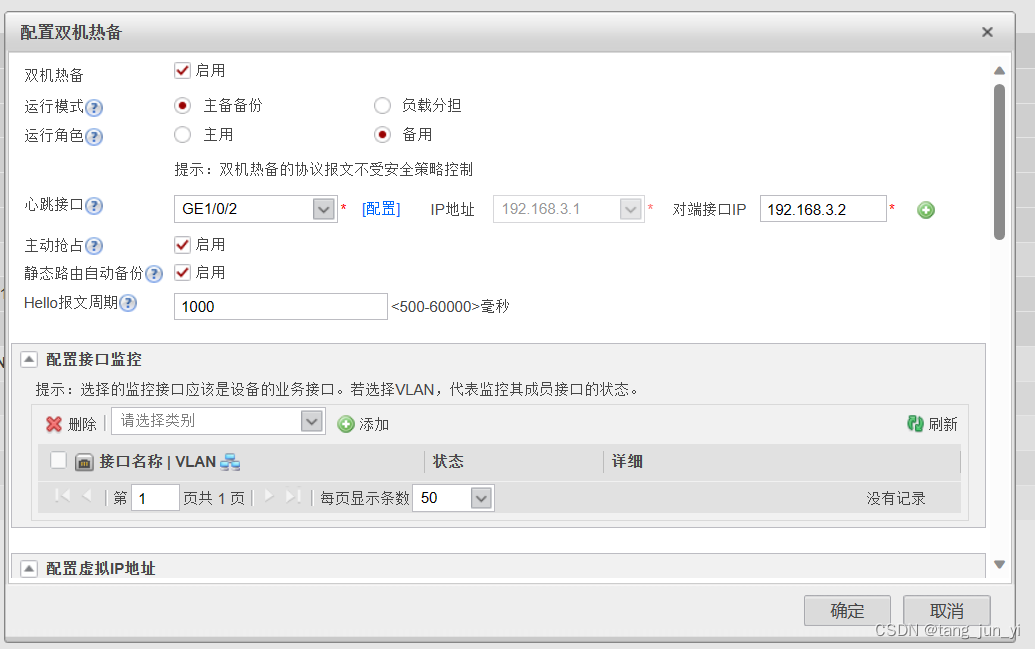

FW4

interface GigabitEthernet0/0/0
  undo shutdown
  ip binding vpn-instance default
  ip address 169.254.225.250 255.255.255.0
  alias GE0/METH
  service-manage http permit
  service-manage https permit
  service-manage ping permit
  service-manage ssh permit
  service-manage snmp permit
  service-manage telnet permit
 #
 interface GigabitEthernet1/0/0
  undo shutdown
  ip address 12.1.1.2 255.255.255.0
  vrrp vrid 1 virtual-ip 12.1.1.4 standby
  vrrp virtual-mac enable
 #
 interface GigabitEthernet1/0/1
  undo shutdown
  ip address 192.168.1.2 255.255.255.0
  vrrp vrid 2 virtual-ip 192.168.1.4 standby
  vrrp virtual-mac enable
#
 interface GigabitEthernet1/0/2
  undo shutdown
  ip address 192.168.3.1 255.255.255.0
#
  ip route-static 1.1.1.1 255.255.255.255 12.1.1.1

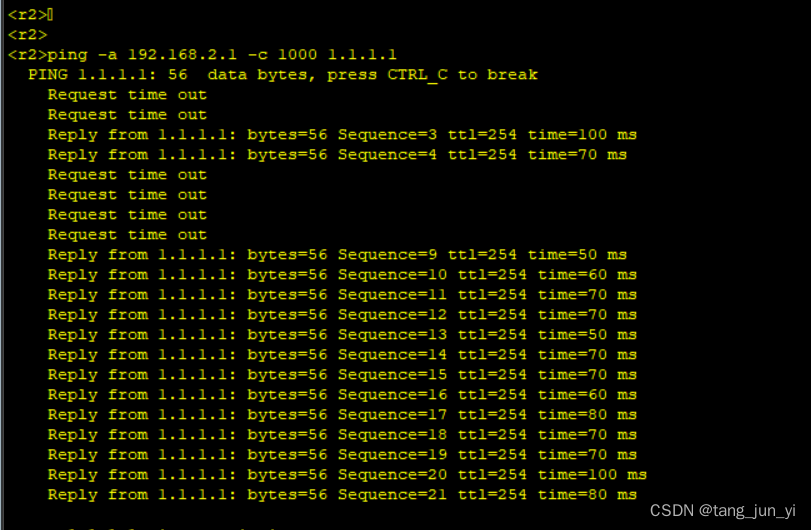

 ip route-static 192.168.2.1 255.255.255.255 192.168.1.1
