1.需求分析

• 作为从不闲着的开发人员,无时无刻不在思考怎样做用户的贴心小管家,不能让用户漏干一丁点活,不能让老板多花一分钱,多花的每一分钱都应该花在我身上,最近又被大领导PUA,说实现xxx化就给加工资,3到5K不是问题,一激动 又脑子好使了,瞬间就想到了自动化办公,事后清醒了才想起来忘记问是3K-5K还是3-5K,不过没关系,我觉悟高,毕竟我喜欢干活,要不然怎么会有干不完的活
• 活有了,该想想怎么干,需求的核心是实现自动化办公,本公司工程部的所有任务分配都是在工程管理系统上完成,分配后由专门的负责人通知到用户,这个通知得靠人去完成及追踪,这个部分很不符合我们的自动化宗旨,我们就从这部分需求下手,用户任务自动下发通知,用户实时掌控工作任务状况

2.实现逻辑

需求有了,我们看看具体的实施逻辑

• 首先,所有的订单制作分配任务是已经有了的,我们只需要获取当日的所有工作任务,此部分由管理系统提供接口以便我们获取任务数据,此部分演示我们用模拟数据
• 其次,我们解析并整理任务数据以便我们精准的推送到相关制作人员
• 再次,我们以消息弹窗的方式精准推送用户任务,用户在哪里登录我们就在哪里弹窗
• 最后,用户接收到任务后确认认领,已认领的任务将不再推送,不认领5分钟自动推送一次
• 终结,我们的弹窗怎样运行,直接使用自动任务计划(每五分钟自动运行,弹窗少于5分不操作自动退出)

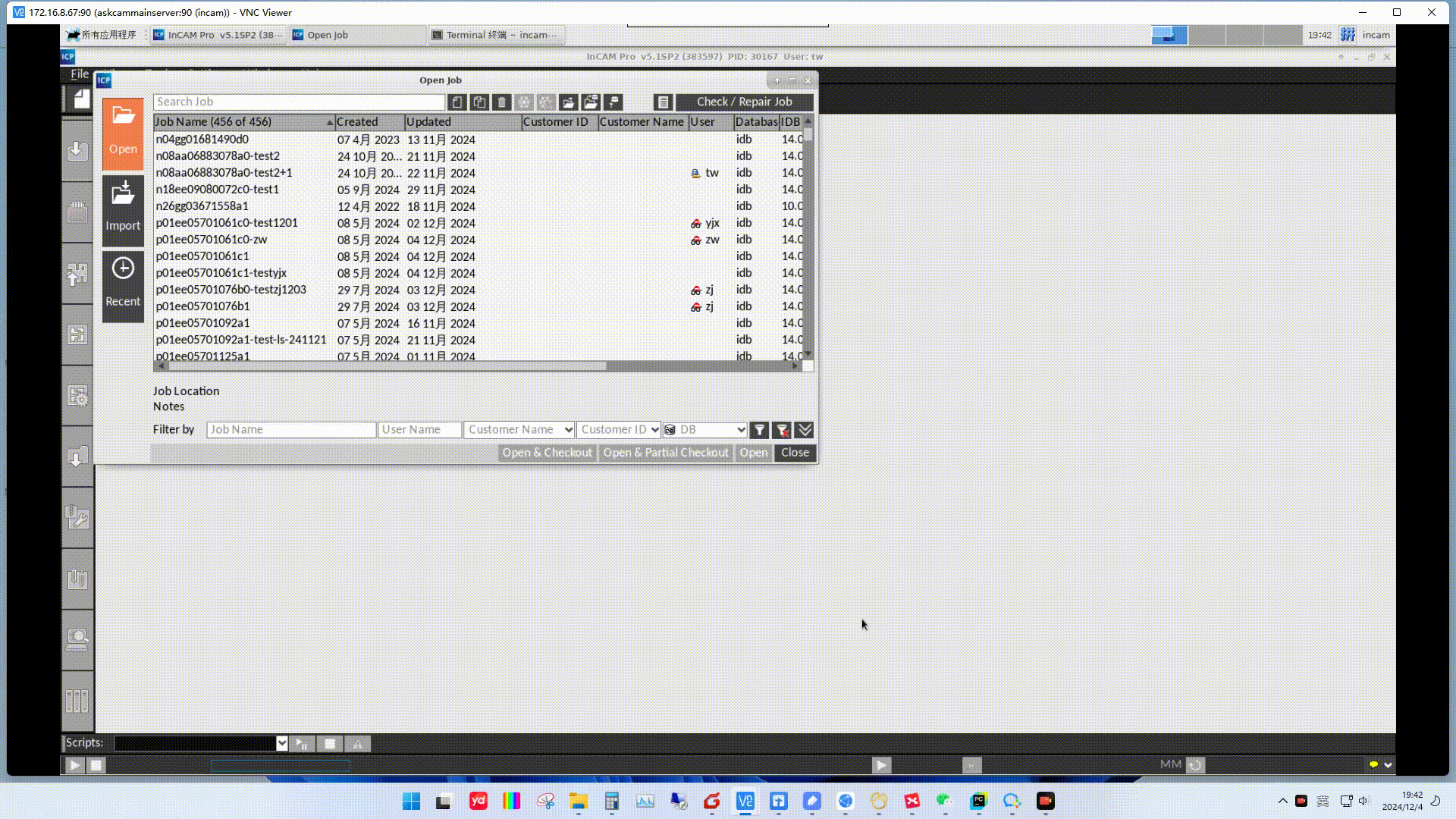

效果演示

3.代码实现

• 获取用户登录信息,不知道用户在哪里怎么弹窗
  封装好的class

  class GetUserLocationInformation:
      """
      获取用户的登录信息(InCAMPro系统)
      """
      def __init__(self):
          self.UserLocationList = []
          self.UserHostList = []
          self.UserInfoDict = {}
          self.DOMTree = xml.dom.minidom.parse("/incam/server/config/users.xml")
          self.GetUserLocationInfo()

      def GetUserLocationInfo(self):
          Users = self.DOMTree.documentElement.getElementsByTagName("user")
          for u in Users:
              user_name = u.getAttribute("name")
              d_type = u.getElementsByTagName('properties')[0]
              self.UserInfoDict[user_name + "fullName"] = d_type.getAttribute("fullName")

          GateWay = '/incam/release/bin/gateway'
          tmp_list = os.popen("{0} \"WHO *\"".format(GateWay)).read().split()
          for I in tmp_list:
              ChinaUserName = self.UserInfoDict[I.split("@")[0] + "fullName"]
              AtHostName = (I.split(".")[0].split("@")[1]).lower()
              self.UserLocationList.append(ChinaUserName)
              self.UserHostList.append(AtHostName)


  调用class获取想要的用户数据

  # 用户登录信息获取
  us = GetUserLocationInformation()
  ChainUserList = us.UserLocationList		# 获取当前执行主机所有登录InCAMPro的用户
  UserHostsList = us.UserHostList			# 获取本机需要通知的
  # 用户没有在本机登录直接退出不提醒
  if HostName not in UserHostsList:
      sys.exit()
  MessageUser = []
  K = 0
  while K < len(UserHostsList):
      if UserHostsList[K] == HostName:
          MessageUser.append(ChainUserList[K])
      K += 1

  # 本机没有要通知的用户直接退出不提醒
  if len(MessageUser) == 0:
      sys.exit()


• 获取工程管理系统任务列表,通过接口查询获取数据,此部分我们用模拟的数据(直接读取数据库模拟数据)

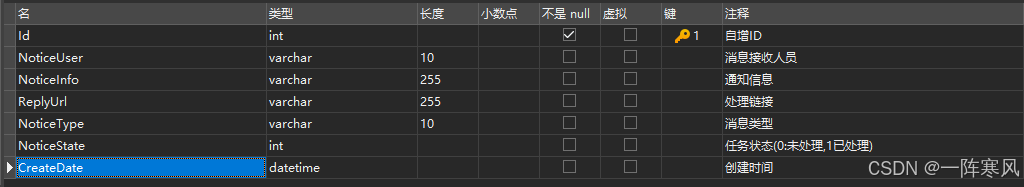

  数据库数据示例:

  用户任务清单示例:

  获取用户清单并整理成我们需要的字典:

  # 获取任务列表数据(模拟数据)
  _sql = """
          SELECT
              NoticeUser AS 通知人员,
              NoticeInfo AS 通知信息,
              ReplyUrl AS 处理链接,
              NoticeType AS 消息类型,
              CreateDate AS 创建时间
          FROM
              ask_cam_sys_notice
          WHERE
              NoticeState=0
        """
  SqlDataObject = Sql.exec_query(_sql)
  # 没有待处理任务时直接退出不提醒
  if len(SqlDataObject) == 0:
      sys.exit()

  UserInfoDict = {}
  j = 0
  for i in SqlDataObject:
      if i[0] is not None:
          UserInfoDict[i[0] + "-" + str(j)] = {}
          UserInfoDict[i[0] + "-" + str(j)]["详细事件"] = i[1].upper()
          UserInfoDict[i[0] + "-" + str(j)]["操作链接"] = i[2]
          UserInfoDict[i[0] + "-" + str(j)]["消息类型"] = i[3]
          UserInfoDict[i[0] + "-" + str(j)]["创建时间"] = i[4]
      j += 1


  返回字典如下:

  {
      "NoticeUser": "唐伟",
      "NoticeInfo": "你有新的料号123待制作",
      "ReplyUrl": "",
      "NoticeType": "知会",
      "CreateTime": "2024-12-04T17:30:30"
  },
  {
      "NoticeUser": "唐伟",
      "NoticeInfo": "查看任意1链接",
      "ReplyUrl": "www.hao123.com",
      "NoticeType": "",
      "CreateTime": "2024-12-04T17:31:09"
  },
  {
      "NoticeUser": "唐伟",
      "NoticeInfo": "查看任意2链接",
      "ReplyUrl": "www.baidu.com",
      "NoticeType": "",
      "CreateTime": "2024-12-04T18:05:41"
  }


• 编写弹窗主程式及处理逻辑

  class Ui_MainWindow3(QtWidgets.QWidget):
      def __init__(self):
          self.screen_resolution = app.desktop().screenGeometry()
          self.width, self.height = self.screen_resolution.width(), self.screen_resolution.height()
          QtWidgets.QWidget.__init__(self)
          self.ButtonDict = {}
          self.MessageUser = []
          self.ImagePath = Gui.images_path
          self._ui()
          self.retranslateUi()
          self.beautifyUi()

      def _ui(self):
          self.setWindowIcon(QIcon(self.ImagePath + "/NccIcon.png"))
          self.setFixedSize(700, 500)
          self.setGeometry(self.width - 700, self.height - 392, 700, 500)
          self.setWindowOpacity(1.0)
          self.setWindowFlags(QtCore.Qt.FramelessWindowHint | Qt.WindowStaysOnTopHint)  # 无边框&置顶

          self.pe = QPalette()
          self.setAutoFillBackground(True)
          self.pe.setColor(QPalette.Background, Qt.darkGreen)
          self.setPalette(self.pe)

          # 设置一个计时器
          self.count = 239
          self.timer = QTimer()  # 初始化一个定时器
          self.timer.setInterval(1000)
          self.timer.start()
          self.timer.timeout.connect(self.operate)  # 计时结束调用operate()方法

          # 关闭按钮
          self.pushbutton_close = QtWidgets.QPushButton()
          self.pushbutton_close.setFixedSize(30, 30)
          self.pushbutton_close.setObjectName("pushButton")
          self.pushbutton_close.clicked.connect(self.close)  # 关闭窗口

          # 显示窗口关闭倒计时
          self.lcd = QtWidgets.QLabel()
          self.lcd.setFixedSize(351, 30)

          # 显示提示标题
          self.label = QtWidgets.QLabel()
          self.label.setObjectName("label")
          self.label.setAlignment(Qt.AlignCenter)

          # 显示通知信息
          self.text_label = QtWidgets.QLabel()
          self.text_label.setFixedSize(679, 91)
          self.text_label.setObjectName("text_label")
          self.text_label.setAlignment(Qt.AlignCenter)

          # 滚动条
          self.topFiller = QtWidgets.QWidget()
          self.topFiller.setMinimumSize(669, 90)

          # 详细操作链接按钮
          self.ThingButtonBox = QtWidgets.QVBoxLayout()
          filename = 0
          for k, v in UserInfoDict.items():
              # 被通知用户没有登录InCAMPro不提醒

              if k.split("-")[0] in MessageUser:
                  tmp_ty = UserInfoDict[k]["详细事件"].split("】")[0].replace("【", "")
                  self.MessageUser.append(k.split("-")[0])
                  self.ButtonDict[k] = QtWidgets.QCommandLinkButton(self.topFiller)
                  self.ButtonDict[k].setStyleSheet('QCommandLinkButton{'
                                                   'border:none;'
                                                   'font-size:14px;'
                                                   'color:#FF7F2A; '
                                                   '} '
                                                   )
                  # self.ButtonDict[k].setFixedSize(480, 71)
                  self.ButtonDict[k].setToolTip("单击打开链接{0}".format(UserInfoDict[k]["操作链接"]))
                  self.ButtonDict[k].setText(f'{UserInfoDict[k]["详细事件"]} '
                                             f'时间:{UserInfoDict[k]["创建时间"]}-->{k.split("-")[0]}')
                  self.ButtonDict[k].clicked.connect(lambda unknown_bool=False,
                                                            url=UserInfoDict[k]["操作链接"],
                                                            ty=tmp_ty,
                                                            tmp_type=UserInfoDict[k]["消息类型"],
                                                            but=self.ButtonDict[k]:
                                                     self.pushButtonMethods(unknown_bool, url, ty, tmp_type, but))
                  self.ButtonDict[k].move(10, filename * 20)
                  filename += 1
                  # self.ThingButtonBox.addWidget(self.ButtonDict[k], 0, Qt.AlignTop)

          self.scroll = QtWidgets.QScrollArea()
          self.scroll.setWidget(self.topFiller)

          # # 被通知用户不在待通知用户中跳过
          # if len(self.MessageUser) == 0:
          #     sys.exit()

          # 显示空行
          self.row_label = QtWidgets.QLabel()
          self.row_label.setObjectName(" ")
          self.row_label.setAlignment(Qt.AlignCenter)

          # 容器
          self.MainBox = QtWidgets.QVBoxLayout()
          self.CloseButtonBox = QtWidgets.QHBoxLayout()
          self.CloseButtonBox.addWidget(self.pushbutton_close)
          self.CloseButtonBox.addWidget(self.lcd)
          self.CloseButtonBox.setAlignment(QtCore.Qt.AlignLeft)

          self.setLayout(self.MainBox)
          self.MainBox.addLayout(self.CloseButtonBox)
          self.MainBox.addWidget(self.label)
          self.MainBox.addWidget(self.text_label)

          self.ThingButtonBox.addWidget(self.scroll)
          self.MainBox.addLayout(self.ThingButtonBox)
          self.MainBox.addWidget(self.row_label)

      def retranslateUi(self):
          self.setWindowTitle("消息框")
          self.pushbutton_close.setText("×")
          self.pushbutton_close.setToolTip("关闭窗口")
          self.label.setText("温馨提示")
          self.text_label.setText("{0}您好!您有未处理的任务请查收\n请点击下列详细事项链接及时处理\n"
                                  "祝您工作愉快!".format("&".join(list(set(self.MessageUser)))))

      def beautifyUi(self):
          self.lcd.setStyleSheet('QLabel{'
                                 'color:red;'
                                 'font-size:18px;'
                                 'font-family:楷体;'
                                 '}')

          self.pushbutton_close.setStyleSheet('QPushButton{'
                                              'background:red; '
                                              'font-size:30px;'
                                              'color:black;'
                                              'border-radius:15px;'
                                              '} '
                                              'QPushButton:hover{'
                                              'background:#F76677;'
                                              '}'
                                              )

          self.label.setStyleSheet('QLabel{'
                                   'color:white;'
                                   'font-size:40px;'
                                   'font-family:楷体;'
                                   '}'
                                   )

          self.text_label.setStyleSheet('QLabel{'
                                        'color:darkGray;'
                                        'background:white;'
                                        'border:2px solid #F3F3F5;'
                                        'border-radius:35px;'
                                        'font-size:16pt; '
                                        'font-weight:400;'
                                        'font-family: 楷体;'
                                        '}'
                                        )

      @staticmethod
      def pushButtonMethods(unknown_bool, url, ty, tmp_type, but):
          if tmp_type not in ["知会"]:      # 直接打开链接
              QtGui.QDesktopServices.openUrl(QtCore.QUrl(url))
          else:
              but.setStyleSheet('QCommandLinkButton{'
                                'border:none;'
                                'font-size:14px;'
                                'color:#C2BBB8; '
                                '} '
                                )
              sql_string = """
                              UPDATE
                                  ask_cam_sys_notice
                              SET
                                  NoticeState={0}
                              WHERE
                                  ReplyUrl='{1}'
                           """.format(1, url)
              Sql.exec_query(sql_string)

      def operate(self):
          if self.count >= 0:
              self.lcd.setText("   距离窗口关闭还有{0}秒".format(str(self.count)))
              self.count -= 1
          else:
              self.timer.stop()
              self.count = 59


  调用弹窗class并设置4分钟后自动关系(自动关闭时间需比自动任务间隔时间短)

  if __name__ == '__main__':
      app = QtWidgets.QApplication(sys.argv)
      Gui = MainGui()
      Sql = AskCamMainServer(_mode=False)

      HostName = (os.environ.get("HOSTNAME")).lower()

      # 用户登录信息获取
      us = GetUserLocationInformation()
      ChainUserList = us.UserLocationList
      UserHostsList = us.UserHostList
      # 用户没有在本机登录直接退出不提醒
      if HostName not in UserHostsList:
          sys.exit()
      MessageUser = []
      K = 0
      while K < len(UserHostsList):
          if UserHostsList[K] == HostName:
              MessageUser.append(ChainUserList[K])
          K += 1

      # 本机没有要通知的用户直接退出不提醒
      if len(MessageUser) == 0:
          sys.exit()

      # 获取任务列表数据(模拟数据)
      _sql = """
              SELECT
                  NoticeUser AS 通知人员,
                  NoticeInfo AS 通知信息,
                  ReplyUrl AS 处理链接,
                  NoticeType AS 消息类型,
                  CreateDate AS 创建时间
              FROM
                  ask_cam_sys_notice
              WHERE
                  NoticeState=0
            """
      SqlDataObject = Sql.exec_query(_sql)
      # 没有待处理任务时直接退出不提醒
      if len(SqlDataObject) == 0:
          sys.exit()

      # 用户任务清单获取
      UserInfoDict = {}
      j = 0
      for i in SqlDataObject:
          if i[0] is not None:
              UserInfoDict[i[0] + "-" + str(j)] = {}
              UserInfoDict[i[0] + "-" + str(j)]["详细事件"] = i[1].upper()
              UserInfoDict[i[0] + "-" + str(j)]["操作链接"] = i[2]
              UserInfoDict[i[0] + "-" + str(j)]["消息类型"] = i[3]
              UserInfoDict[i[0] + "-" + str(j)]["创建时间"] = i[4]
          j += 1

      # 界面及主程式
      ui = Ui_MainWindow3()
      ui.show()

      # 自动关闭程式配置
      QTimer.singleShot(240000, ui.close)  # 4分钟后自动关闭

      sys.exit(app.exec_())


  完整代码

  #!/usr/bin/env py3k

  from PyQt5 import QtCore, QtWidgets, QtGui
  from PyQt5.QtCore import Qt, QTimer
  from PyQt5.QtGui import QPalette, QIcon
  import sys
  import os
  from xml.dom.minidom import parse
  import xml.dom.minidom

  sys.path.append('/incam/server/site_data/scripts/py3_package')
  from SqlClasses import AskCamMainServer
  from GuiClasses import MainGui


  class Ui_MainWindow3(QtWidgets.QWidget):
      def __init__(self):
          self.screen_resolution = app.desktop().screenGeometry()
          self.width, self.height = self.screen_resolution.width(), self.screen_resolution.height()
          QtWidgets.QWidget.__init__(self)
          self.ButtonDict = {}
          self.MessageUser = []
          self.ImagePath = Gui.images_path
          self._ui()
          self.retranslateUi()
          self.beautifyUi()

      def _ui(self):
          self.setWindowIcon(QIcon(self.ImagePath + "/NccIcon.png"))
          self.setFixedSize(700, 500)
          self.setGeometry(self.width - 700, self.height - 392, 700, 500)
          self.setWindowOpacity(1.0)
          self.setWindowFlags(QtCore.Qt.FramelessWindowHint | Qt.WindowStaysOnTopHint)  # 无边框&置顶

          self.pe = QPalette()
          self.setAutoFillBackground(True)
          self.pe.setColor(QPalette.Background, Qt.darkGreen)
          self.setPalette(self.pe)

          # 设置一个计时器
          self.count = 239
          self.timer = QTimer()  # 初始化一个定时器
          self.timer.setInterval(1000)
          self.timer.start()
          self.timer.timeout.connect(self.operate)  # 计时结束调用operate()方法

          # 关闭按钮
          self.pushbutton_close = QtWidgets.QPushButton()
          self.pushbutton_close.setFixedSize(30, 30)
          self.pushbutton_close.setObjectName("pushButton")
          self.pushbutton_close.clicked.connect(self.close)  # 关闭窗口

          # 显示窗口关闭倒计时
          self.lcd = QtWidgets.QLabel()
          self.lcd.setFixedSize(351, 30)

          # 显示提示标题
          self.label = QtWidgets.QLabel()
          self.label.setObjectName("label")
          self.label.setAlignment(Qt.AlignCenter)

          # 显示通知信息
          self.text_label = QtWidgets.QLabel()
          self.text_label.setFixedSize(679, 91)
          self.text_label.setObjectName("text_label")
          self.text_label.setAlignment(Qt.AlignCenter)

          # 滚动条
          self.topFiller = QtWidgets.QWidget()
          self.topFiller.setMinimumSize(669, 90)

          # 详细操作链接按钮
          self.ThingButtonBox = QtWidgets.QVBoxLayout()
          filename = 0
          for k, v in UserInfoDict.items():
              # 被通知用户没有登录InCAMPro不提醒

              if k.split("-")[0] in MessageUser:
                  tmp_ty = UserInfoDict[k]["详细事件"].split("】")[0].replace("【", "")
                  self.MessageUser.append(k.split("-")[0])
                  self.ButtonDict[k] = QtWidgets.QCommandLinkButton(self.topFiller)
                  self.ButtonDict[k].setStyleSheet('QCommandLinkButton{'
                                                   'border:none;'
                                                   'font-size:14px;'
                                                   'color:#FF7F2A; '
                                                   '} '
                                                   )
                  # self.ButtonDict[k].setFixedSize(480, 71)
                  self.ButtonDict[k].setToolTip("单击打开链接{0}".format(UserInfoDict[k]["操作链接"]))
                  self.ButtonDict[k].setText(f'{UserInfoDict[k]["详细事件"]} '
                                             f'时间:{UserInfoDict[k]["创建时间"]}-->{k.split("-")[0]}')
                  self.ButtonDict[k].clicked.connect(lambda unknown_bool=False,
                                                            url=UserInfoDict[k]["操作链接"],
                                                            ty=tmp_ty,
                                                            tmp_type=UserInfoDict[k]["消息类型"],
                                                            but=self.ButtonDict[k]:
                                                     self.pushButtonMethods(unknown_bool, url, ty, tmp_type, but))
                  self.ButtonDict[k].move(10, filename * 20)
                  filename += 1
                  # self.ThingButtonBox.addWidget(self.ButtonDict[k], 0, Qt.AlignTop)

          self.scroll = QtWidgets.QScrollArea()
          self.scroll.setWidget(self.topFiller)

          # # 被通知用户不在待通知用户中跳过
          # if len(self.MessageUser) == 0:
          #     sys.exit()

          # 显示空行
          self.row_label = QtWidgets.QLabel()
          self.row_label.setObjectName(" ")
          self.row_label.setAlignment(Qt.AlignCenter)

          # 容器
          self.MainBox = QtWidgets.QVBoxLayout()
          self.CloseButtonBox = QtWidgets.QHBoxLayout()
          self.CloseButtonBox.addWidget(self.pushbutton_close)
          self.CloseButtonBox.addWidget(self.lcd)
          self.CloseButtonBox.setAlignment(QtCore.Qt.AlignLeft)

          self.setLayout(self.MainBox)
          self.MainBox.addLayout(self.CloseButtonBox)
          self.MainBox.addWidget(self.label)
          self.MainBox.addWidget(self.text_label)

          self.ThingButtonBox.addWidget(self.scroll)
          self.MainBox.addLayout(self.ThingButtonBox)
          self.MainBox.addWidget(self.row_label)

      def retranslateUi(self):
          self.setWindowTitle("消息框")
          self.pushbutton_close.setText("×")
          self.pushbutton_close.setToolTip("关闭窗口")
          self.label.setText("温馨提示")
          self.text_label.setText("{0}您好!您有未处理的任务请查收\n请点击下列详细事项链接及时处理\n"
                                  "祝您工作愉快!".format("&".join(list(set(self.MessageUser)))))

      def beautifyUi(self):
          self.lcd.setStyleSheet('QLabel{'
                                 'color:red;'
                                 'font-size:18px;'
                                 'font-family:楷体;'
                                 '}')

          self.pushbutton_close.setStyleSheet('QPushButton{'
                                              'background:red; '
                                              'font-size:30px;'
                                              'color:black;'
                                              'border-radius:15px;'
                                              '} '
                                              'QPushButton:hover{'
                                              'background:#F76677;'
                                              '}'
                                              )

          self.label.setStyleSheet('QLabel{'
                                   'color:white;'
                                   'font-size:40px;'
                                   'font-family:楷体;'
                                   '}'
                                   )

          self.text_label.setStyleSheet('QLabel{'
                                        'color:darkGray;'
                                        'background:white;'
                                        'border:2px solid #F3F3F5;'
                                        'border-radius:35px;'
                                        'font-size:16pt; '
                                        'font-weight:400;'
                                        'font-family: 楷体;'
                                        '}'
                                        )

      @staticmethod
      def pushButtonMethods(unknown_bool, url, ty, tmp_type, but):
          if tmp_type not in ["知会"]:      # 直接打开链接
              QtGui.QDesktopServices.openUrl(QtCore.QUrl(url))
          else:
              but.setStyleSheet('QCommandLinkButton{'
                                'border:none;'
                                'font-size:14px;'
                                'color:#C2BBB8; '
                                '} '
                                )
              sql_string = """
                              UPDATE
                                  ask_cam_sys_notice
                              SET
                                  NoticeState={0}
                              WHERE
                                  ReplyUrl='{1}'
                           """.format(1, url)
              Sql.exec_query(sql_string)

      def operate(self):
          if self.count >= 0:
              self.lcd.setText("   距离窗口关闭还有{0}秒".format(str(self.count)))
              self.count -= 1
          else:
              self.timer.stop()
              self.count = 59


  class GetUserLocationInformation:
      """
      获取用户的登录信息(InCAMPro系统)
      """
      def __init__(self):
          self.UserLocationList = []
          self.UserHostList = []
          self.UserInfoDict = {}
          self.DOMTree = xml.dom.minidom.parse("/incam/server/config/users.xml")
          self.GetUserLocationInfo()

      def GetUserLocationInfo(self):
          Users = self.DOMTree.documentElement.getElementsByTagName("user")
          for u in Users:
              user_name = u.getAttribute("name")
              d_type = u.getElementsByTagName('properties')[0]
              self.UserInfoDict[user_name + "fullName"] = d_type.getAttribute("fullName")

          GateWay = '/incam/release/bin/gateway'
          tmp_list = os.popen("{0} \"WHO *\"".format(GateWay)).read().split()
          for I in tmp_list:
              ChinaUserName = self.UserInfoDict[I.split("@")[0] + "fullName"]
              AtHostName = (I.split(".")[0].split("@")[1]).lower()
              self.UserLocationList.append(ChinaUserName)
              self.UserHostList.append(AtHostName)


  if __name__ == '__main__':
      app = QtWidgets.QApplication(sys.argv)
      Gui = MainGui()
      Sql = AskCamMainServer(_mode=False)

      HostName = (os.environ.get("HOSTNAME")).lower()

      # 用户登录信息获取
      us = GetUserLocationInformation()
      ChainUserList = us.UserLocationList
      UserHostsList = us.UserHostList
      # 用户没有在本机登录直接退出不提醒
      if HostName not in UserHostsList:
          sys.exit()
      MessageUser = []
      K = 0
      while K < len(UserHostsList):
          if UserHostsList[K] == HostName:
              MessageUser.append(ChainUserList[K])
          K += 1

      # 本机没有要通知的用户直接退出不提醒
      if len(MessageUser) == 0:
          sys.exit()

      # 获取任务列表数据(模拟数据)
      _sql = """
              SELECT
                  NoticeUser AS 通知人员,
                  NoticeInfo AS 通知信息,
                  ReplyUrl AS 处理链接,
                  NoticeType AS 消息类型,
                  CreateDate AS 创建时间
              FROM
                  ask_cam_sys_notice
              WHERE
                  NoticeState=0
            """
      SqlDataObject = Sql.exec_query(_sql)
      # 没有待处理任务时直接退出不提醒
      if len(SqlDataObject) == 0:
          sys.exit()

      # 用户任务清单获取
      UserInfoDict = {}
      j = 0
      for i in SqlDataObject:
          if i[0] is not None:
              UserInfoDict[i[0] + "-" + str(j)] = {}
              UserInfoDict[i[0] + "-" + str(j)]["详细事件"] = i[1].upper()
              UserInfoDict[i[0] + "-" + str(j)]["操作链接"] = i[2]
              UserInfoDict[i[0] + "-" + str(j)]["消息类型"] = i[3]
              UserInfoDict[i[0] + "-" + str(j)]["创建时间"] = i[4]
          j += 1

      # 界面及主程式
      ui = Ui_MainWindow3()
      ui.show()

      # 自动关闭程式配置
      QTimer.singleShot(240000, ui.close)  # 4分钟后自动关闭

      sys.exit(app.exec_())



• 自动执行任务计划编写(CentOS 7为例)
  编写一个SHELL脚本启动弹窗,并配置必要的环境变量,放置在弹窗程式相同路径下并命名为"tw.sh"

  #!/bin/sh
  DISPLAY=:0		# 设置环境变量(当使用vnc时指定弹窗端口号)
  export DISPLAY
  source /etc/profile
  py3k /incam/server/site_data/scripts/CAM_public_system/自动消息弹窗/cam_message_box.py


  配置自动任务计划
  • (1).进入root用户,终端下输入su回车

    $ su
    密码: <输入密码后回车>
    #


  • (2).编辑任务计划

    # crontab -e
    # 输入以下内容
    # 自动消息弹窗(每5分钟自动执行)
    */5 * * * *    /bin/sh /incam/server/site_data/scripts/CAM_public_system/自动消息弹窗/tw.sh >/日志文件保存路径/crontab.log 2>&1
