PCB制前工程CAM资料日备份项目制作

1. 编写备份自动化程式

• 需求汇总分析:
  自动备份CAM资料库近三天有修改保存的料号(增量备份)

  #!/usr/bin/env py3k
  # Linux系统自动执行任务计划设置模板（如何自动执行备份脚本）
  # crontab setup  (Used by system automatic execution) :
  # command : minute hour day month week command
  #      ex :   30    23   *    *    *   python3  /incam/server/site_data/scripts/backup_day_jobs.py
  #      ex :   00    12   *    *    *   python3  /incam/server/site_data/scripts/backup_day_jobs.py
  #      ex :   30    17   *    *    *   python3  /incam/server/site_data/scripts/backup_day_jobs.py

  import os
  import sys
  import time
  import re
  import datetime
  import xml.dom.minidom
  import smtplib
  from email.mime.text import MIMEText
  from email.mime.multipart import MIMEMultipart
  from email.header import Header

  # 自定义包
  sys.path.append('/incam/server/site_data/scripts/py3_package')
  import sendMail
  from ApiClasses import *

  # 开发日志
  _header = {
      '脚本名称': 'InCAM料号增量备份',
      '开发人员': 'Twei Tang',
      '开发时间': '2022年11月15日',
      '版本信息': 'A.1.0',
      '联系方式': (
          '邮箱地址<>',
          '微信号码<>',
          '手机号码<>'
      ),
      '开发信息': (
          '无'
      ),
      '修改信息': (
          '当前版本(A.1.0)，首次开发测试，暂无版本变更信息'
      ),
      '沟通记录': (
          '无'
      )
  }


  class BackUpJobs(object):
      def __init__(self):
          super(BackUpJobs, self).__init__()
          self.curDate = ""

          # 备份服务器路径(料号备份在何处)
          self.AllJobsPath = time.strftime("%Y-%m-%d-%H", time.localtime())
          self.ser_backPath = '/backup/backup/Backup_tgz/cam_job_bak/days_backup/' + self.AllJobsPath

          if not os.path.exists(self.ser_backPath):
              try:
                  os.system(f"mkdir -p {self.ser_backPath}")
              except BaseException as e:
                  print(e)

          # 备份log文件
          self.backOkLogfile = self.ser_backPath + f'/备份成功料号清单-{self.AllJobsPath}.log'
          self.backNgLogfile = self.ser_backPath + f'/备份失败料号清单-{self.AllJobsPath}.log'

          self.backTime = time.strftime('%Y-%m-%d', time.localtime())
          self.runTime = time.strftime('%Y-%m-%d %H:%M:%S', time.localtime())

          # 执行完成状态(收集ok/ng各自料号清单)
          self.backOkJobsList = []
          self.backNgJobsList = []

          # rcs状态(收集被锁定的料号清单)
          self.jobNameListRcs = []
          self.DBpath = []

  		# 获取incam/incampro的所有资料库
          self.getDBlist()

  		# 获取指定时间的
          self.getCurDate()
          self.getRcsJobs()
          self.getFwJobs()
          self.getBakJobsLog()
          self.SendMail()

          # 企微推送系统维护人员
          self.send_wechat_message()

      def getDBlist(self):
          """
          获取资料库列表
          :return: dblist
          """
          # 此处在执行crontab时会报错，需改为绝对路径
          # db_list_file = os.environ.get("INCAM_DIR") + "/server/site_data/dblist.xml"
          db_list_file = "/incam/server/site_data/dblist.xml"
          DOMTree = xml.dom.minidom.parse(db_list_file)
          DBLists = DOMTree.documentElement.getElementsByTagName("db")
          for u in DBLists:
              self.DBpath.append(u.getAttribute("nfspath"))

      def getCurDate(self):
          """近3天的日期"""
          curDateTmp = datetime.datetime.now()
          curDateTmp2 = (curDateTmp + datetime.timedelta(days=-8)).strftime("%Y-%m-%d %H:%M:%S")
          tmp1 = str(curDateTmp2.split(" ")[0]).split("-")
          self.curDate = tmp1[0] + tmp1[1] + tmp1[2]

      def getRcsJobs(self):
          """获取rcs文件里的job"""
          rcsFile = "/incam/server/config/rcs"
          f = open(rcsFile, 'r')
          for line in f:
              if line.find('NAME') > 0:
                  tmp2 = line.split('=')[1][1:]
                  tmp3 = tmp2.replace("\n", "")
                  self.jobNameListRcs.append(tmp3)
          f.close()

      def getFwJobs(self):
          """获取所有的jobs"""
          for db in self.DBpath:
              # 路径
              incamJobPath = db + '/' + 'jobs'
              jobDirs = os.listdir(incamJobPath)
              for job in jobDirs:
                  tmp = incamJobPath + "/" + job
                  if os.path.isdir(tmp) and os.path.exists(tmp + "/misc/last_save"):
                      with open(tmp + "/misc/last_save", "r") as t:
                          T = t.readline().split(".")[0]
                      try:
                          SaveTime = datetime.datetime(int(T[0:4]), int(T[4:6]), int(T[6:]))
                      except BaseException as e:
                          print(e)
                          SaveTime = datetime.datetime(int("20" + T[0:2]), int(T[2:4]), int(T[4:]))
                      CompTime = datetime.datetime(int(self.curDate[0:4]), int(self.curDate[4:6]), int(self.curDate[6:]))
                      if (SaveTime - CompTime).days >= 0:
                          cadTure = re.match("^[a-zA-Z]\d{2}[a-zA-Z]{2}\d{4}\d{4}[a-zA-Z]\d-org$", job)
                          OldCadTure = re.match("^[a-zA-Z0-9]{2}[a-zA-Z][0-9]{7}[a-zA-Z]\d-org$", job)
                          workTure = re.match("^[a-zA-Z]\d{2}[a-zA-Z]{2}\d{4}\d{4}[a-zA-Z]\d$", job)
                          OldWorkTure = re.match("^[a-zA-Z0-9]{2}[a-zA-Z][0-9]{7}[a-zA-Z]\d$", job)
                          if cadTure or OldCadTure:
                              self.__backUpJobs(job, incamJobPath, "原稿料号")
                          elif workTure or OldWorkTure:
                              self.__backUpJobs(job, incamJobPath, "工作料号")

      def __backUpJobs(self, jobName_, scrPath_, jobType_):
          jobPath = scrPath_ + "/" + jobName_
          ser_backPath = self.ser_backPath + "/" + jobName_ + '.tgz'
          # Tar
          if os.path.isdir(jobPath):
              os.system("cd {0}".format(scrPath_))
              try:
                  os.system(f"tar czvf {ser_backPath} -C {scrPath_} {jobName_}")
                  self.backOkJobsList.append(jobName_)
              except BaseException as f:
                  self.backNgJobsList.append(jobName_ + f"    错误信息:{f}")

      def getBakJobsLog(self):
          if len(self.backOkJobsList) != 0:
              JobListString = "\n".join(self.backOkJobsList)
              if not os.path.exists(self.backOkLogfile):
                  os.system("touch {0}".format(self.backOkLogfile))
              with open(self.backOkLogfile, "w") as f:
                  f.write(JobListString)

          if len(self.backNgJobsList) != 0:
              JobListString = "\n".join(self.backNgJobsList)
              if not os.path.exists(self.backNgLogfile):
                  os.system("touch {0}".format(self.backNgLogfile))
              with open(self.backNgLogfile, "w") as f:
                  f.write(JobListString)

      def SendMail(self):
          att_list = []
          if os.path.exists(self.backOkLogfile):
              att_list.append(self.backOkLogfile)
          if os.path.exists(self.backNgLogfile):
              att_list.append(self.backNgLogfile)
          _log_text = "某某基地服务器CAM料号增量备份完成,详细备份清单参考附件,增量备份每天执行三次"
          mess_list = [f'<tr bgcolor=#DDDDDD><th>backup_day_jobs.py</th><th>{self.runTime}</th><th>{_log_text}</th></tr>']
          mess_text = "\n".join(mess_list)
          html_text = f'''
                      <p>某某基地服务器CAM料号增量备份日志</p>
                       <table border=2 bordercolor=#1212FC>
                       <tr border=2 bgcolor=#FF6666><th>程序</th><th>时间</th><th>日志信息</th></tr>
                       {mess_text}
                       </table>
                      '''
          _to_list = ["用户邮箱1", "用户邮箱2", "用户邮箱3"]	# 替换成你需要接收邮件信息的email地址
          _send_server = "sysinfo@askpcb.com"		# 替换成你发送邮件的服务器的email地址
          try:
              SM = sendMail.MailMain("某某基地服务器(backup_day_jobs.py)",
                                     _send_server,
                                     _to_list,
                                     f"{html_text}",
                                     f"某某基地CAM料号增量备份日志")
              if len(att_list) > 0:
                  SM.SendMail(text_type="html", att_type=att_list)
              else:
                  SM.SendMail(text_type="html")
          except BaseException as e:
              _error_log = f"/incam/server/logs/料号备份邮件发送失败日志/{self.AllJobsPath}.log"
              if not os.path.exists(_error_log):
                  os.system(f"touch {_error_log}")
              with open(_error_log, "a", encoding="utf-8") as f:
                  f.write(f"Error: 无法发送邮件, 详情:{e}\n")

      @staticmethod
      def send_wechat_message():
          _wc = WeChatMessage()
          html_text = (f'某某基地服务器CAM料号增量备份日志\n'
                       f'执行程序:<你的脚本程式路径(此处标明可以方便维护人员随时查看维护)>\n'
                       f'执行时间:午夜23:00,中午12:00,下午17:30\n'
                       f'执行频率:每天执行三次\n'
                       f'执行权限:incam普通用户\n'
                       f'执行内容:备份三天内有保存修改的正式&原稿料号')
          _dict = _wc.get_users_id()
          _users_id = [list(i.values())[0] for i in _dict["接收信息的部门"] if
                       list(i.keys())[0] in ["接收用户1", "接收用户2", "接收用户3"]]

          _wc.send_text_message(to_users=_users_id,
                                agent_id=你的企微应用ID,
                                _msg_system="某某基地服务器CAM料号增量备份",
                                _message=html_text)


  		if __name__ == '__main__':
  		    buj = BackUpJobs()



2. 配置脚本自动执行

• 创建自动执行任务计划
  (1).进入root用户,终端下输入su回车

  $ su
  密码: <输入密码后回车>
  #


  (2).编辑任务计划

  # crontab -e
  输入以下内容
  # CAM料号增量备份(23:00)
  0 23 * * *      /usr/bin/python3 /备份脚本目录/backup_day_jobs.py >/日志文件保存路径/crontab.log 2>&1

  # CAM料号增量备份(12:00)
  0 12 * * *      /usr/bin/python3 备份脚本目录/backup_day_jobs.py >/日志文件保存路径/crontab.log 2>&1

  # CAM料号增量备份(17:30)
  30 17 * * *     /usr/bin/python3 /备份脚本目录/backup_day_jobs.py >/日志文件保存路径/crontab.log 2>&1


3. 自动任务执行效果

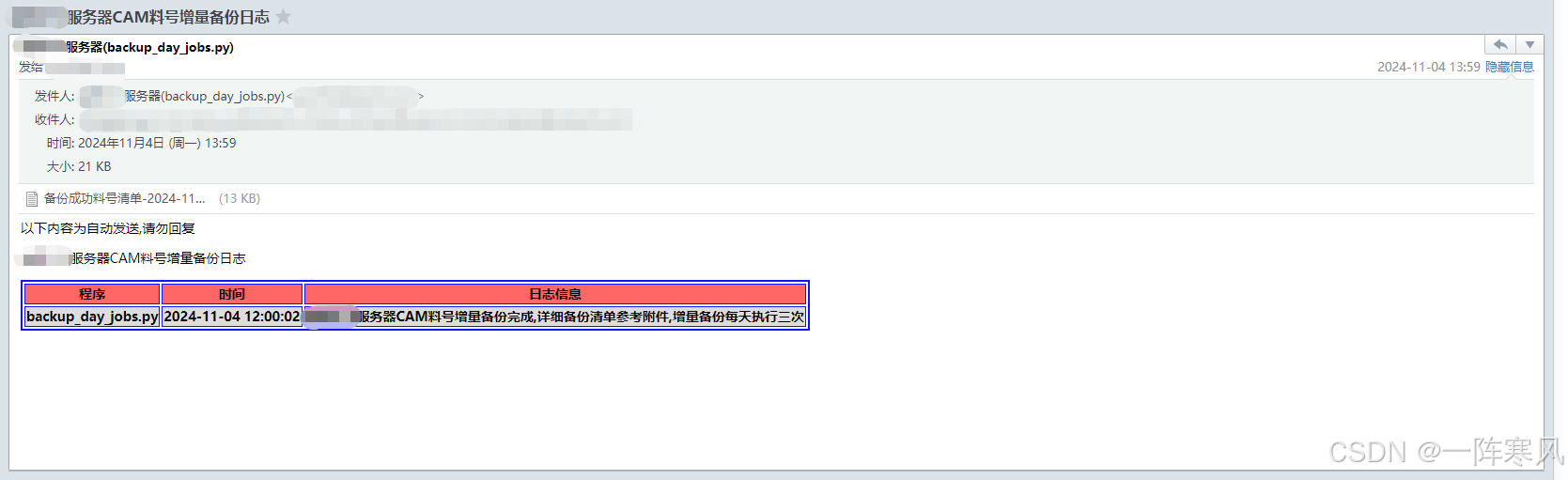

• 自动邮件信息:

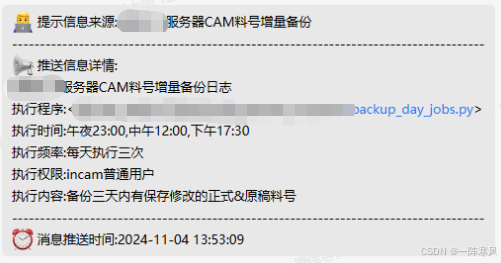

  - 自动企业微信信息推送:
