情况一：spring-boot-starter
公共部分

Jackson	2.12.0	2.18.2
mybatisplus	3.3.1	3.5.9
	mybatis-plus-boot-starter	mybatis-plus-spring-boot3-starter
log4j	2.16.0	2.24.3
gson	2.8.9	2.11.0
fastjson	1.2.78	2.0.48

maven-compiler-plugin	3.8.1及以下	3.11.0
spring-boot-maven-plugin	2.5.15	3.2.0

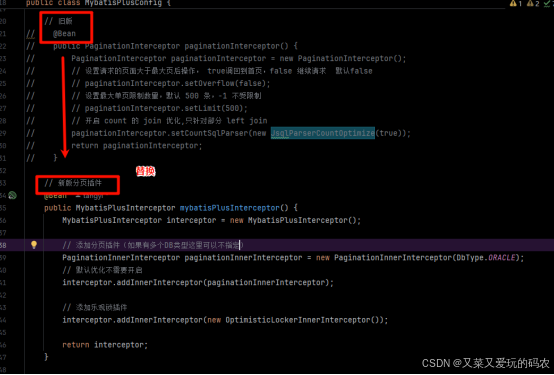

1.1 找不到符号PaginationInterceptor

修改部分：分页插件平替

@Bean
    public MybatisPlusInterceptor mybatisPlusInterceptor() {
        MybatisPlusInterceptor interceptor = new MybatisPlusInterceptor();

        // 添加分页插件（如果有多个DB类型这里可以不指定）
        PaginationInnerInterceptor paginationInnerInterceptor = new PaginationInnerInterceptor(DbType.ORACLE);
        // 默认优化不需要开启
        interceptor.addInnerInterceptor(paginationInnerInterceptor);

        // 添加乐观锁插件
        interceptor.addInnerInterceptor(new OptimisticLockerInnerInterceptor());

        return interceptor;
    }

1.2 找不到符号getOrders()

修改部分：

page.getOrders()->page.orders()

1.3 MybatisPlusException: @TableId can't more than one in Class:

修改部分：

@TableId("REF_ID")->@TableField("REF_ID")

1.4 javax.validation.ValidationException: Unable to create a Configuration, because no Bean Validation provider could be found

文件位置：

pom.xml

修改部分：

添加依赖

<groupId>org.apache.bval</groupId>

</dependency>

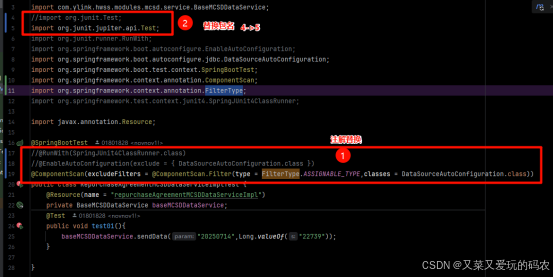

1.5 测试类修改

修改范围：所有业务下测试类

修改内容：

import org.junit.Test

import org.junit.jupiter.api.Test

@RunWith(SpringJUnit4ClassRunner.class)

@EnableAutoConfiguration(exclude = { DataSourceAutoConfiguration.class })

@ComponentScan(excludeFilters = @ComponentScan.Filter(type = FilterType.ASSIGNABLE_TYPE,classes = DataSourceAutoConfiguration.class))

@Before

@BeforeEach

业务部分

java部分

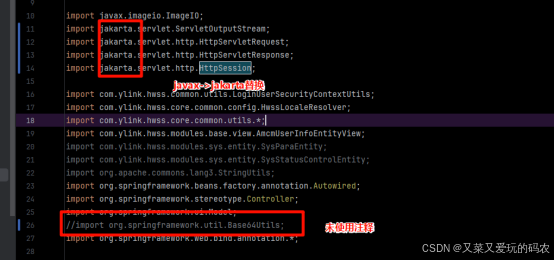

1.1 java: 不兼容的类型: jakarta.servlet无法转换为javax.servle

修改部分：

①将javax.servlet.*替换为jakarta.servlet.*

②注释未使用引入

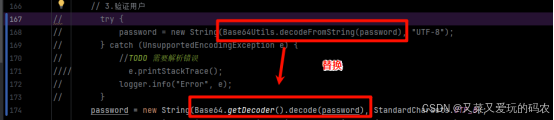

1.2 找不到符号.Base64Utils

修改部分：

①将Base64Utils.*替换为Base64.*

原代码	替换代码
Base64Utils.decodeFromString(*)	Base64.getDecoder().decode(*)

②注释未使用引入

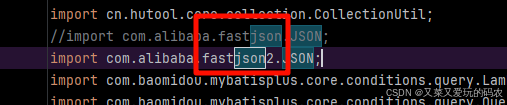

1.3 找不到符号.JSON

修改部分：

①将com.alibaba.fastjson.*替换为com.alibaba.fastjson2.*

1.4 java: 不兼容的类型: java.lang.Long无法转换为int

各业务模块改动

示例：

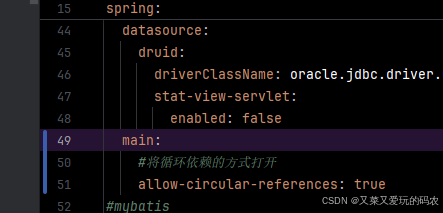

1.5 The dependencies of some of the beans in the application context form a cycle:

循环依赖问题：配置类加参数

spring

main:

#将循环依赖的方式打开

allow-circular-references: true

1.6 启动报错反射异常

添加启动参数：--add-opens java.base/java.util=ALL-UNNAMED

参数允许你指定模块和包，让它们对指定的模块或所有模块开放，以便通过反射进行访问。

1.7 手動替換javax.annotation->jakarta.annotation

javax.validation->jakarta.validation

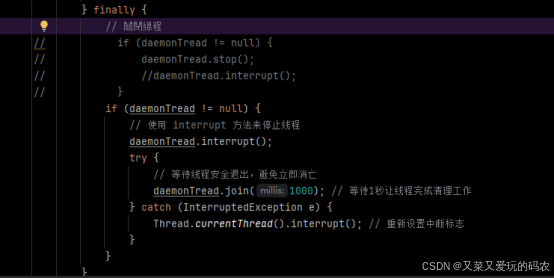

1.8 java.lang.UnsupportedOperationException: null

具体信息：at java.base/java.lang.Thread.stop(Thread.java:1667)

解决方案：因为stop方法已被启用，改用interrupt

// 使用 interrupt 方法来停止线程

daemonTread.interrupt();

try {

// 等待线程安全退出，避免立即消亡

daemonTread.join(1000); // 等待1秒让线程完成清理工作

} catch (InterruptedException e) {

Thread.currentThread().interrupt(); // 重新设置中断标志

}

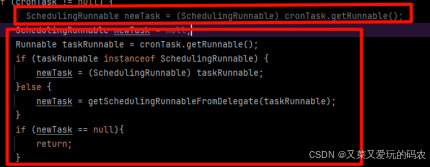

1.9 java.lang.ClassCastException:

具体信息： class org.springframework.scheduling.config.Task$OutcomeTrackingRunnable cannot be cast to class com.ylink.hwss.timmer.common.run.SchedulingRunnable (org.springframework.scheduling.config.Task$OutcomeTrackingRunnable and com.ylink.hwss.timmer.common.run.SchedulingRunnable are in unnamed module of loader 'app')

解决方案：Springboot3中cronTask.getRunnable()改为了OutcomeTrackingRunnable。所以不能直接强制转换，通过反射获取，代码如下

// 获取 taskRunnable 的内部委托字段

Runnable taskRunnable = cronTask.getRunnable();

Field delegateField = taskRunnable.getClass().getDeclaredField("runnable");

delegateField.setAccessible(true);

// 获取委托对象并检查是否是 SchedulingRunnable

Runnable delegate = (Runnable) delegateField.get(taskRunnable);

if (delegate instanceof SchedulingRunnable) {

SchedulingRunnable newTask = (SchedulingRunnable) delegate;

}

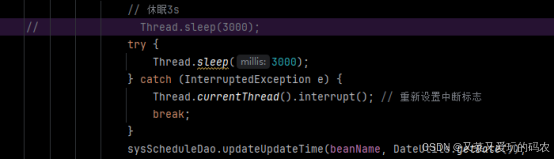

1.10 java.lang.InterruptedException: sleep interrupted

解决方案：加trycatch

情况二：spring-boot-dependencies

pom文件修改

名称	当前版本	升级版本	备注（默认版本号）
java	1.8	21
spring-boot	2.5.15	3.4.1
maven-compiler	3.1	3.13.0	不修改也行
maven-jar-plugin	3.1.1	3.4.2	不修改也行
mysql-connector-java			废弃
mysql-connector-j		9.1.0	代替上面的mysql
jaxb-api		2.3.1	需显示指定版本号
java.servlet-api			棄用，替換為 tomcat-embed-core
tomcat-embed-core		10.1.34	在父工程中顯示聲明，解決找不到servlet
httpclient		4.5.13	需显示指定版本号
<fork>			注释掉，已弃用
mybatis-plus-jsqlparser		3.5.9	新增

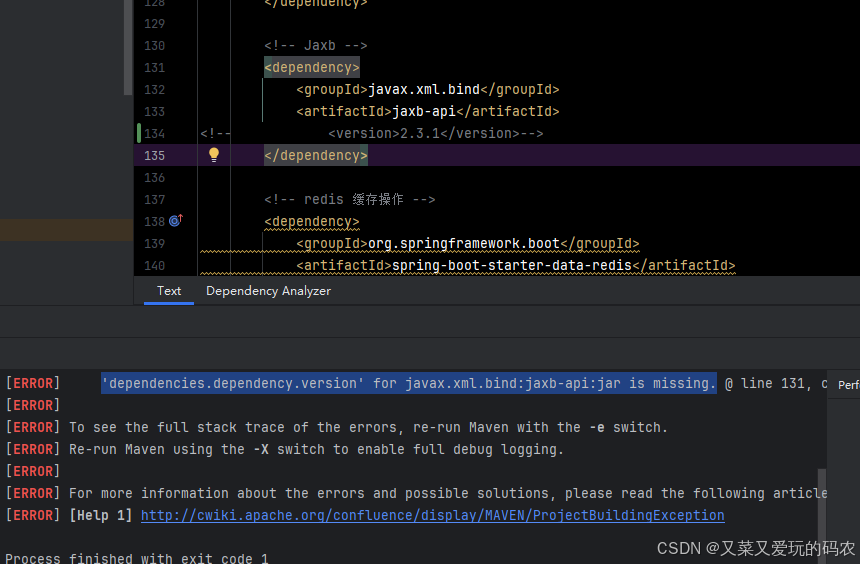

1.1 未显示指定版本号，执行maven的clear操作会导致报错图如下

java文件修改

1.1 java: 程序包javax.*不存在

将所有的javax.*改为jakarta.*
举例

javax.annotation 替换成 jakarta.annotation
javax.servlet    替换成 jakarta.servlet
javax.validation 替换成 jakarta.validation
javax.mail 替换成 jakarta.mail
javax.jms 替換 jakarta.jms
javax.xxxxxxxxxx 替换成 jakarta.xxxxxxxxxx

不需要改的

import javax.imageio.ImageIO;
import javax.net.ssl.HostnameVerifier;
import javax.net.ssl.HttpsURLConnection;
import javax.net.ssl.SSLContext;
import javax.net.ssl.SSLSession;
import javax.net.ssl.TrustManager;
import javax.net.ssl.X509TrustManager;
import javax.sql.DataSource

1.2 找不到jakarta.servlet

父工程顯示聲明，子模塊引用

1.3 java: 找不到符号类 WebSecurityConfigurerAdapter

package com.ylink.hwss.framework.config;

import com.ylink.hwss.framework.config.properties.PermitAllUrlProperties;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.http.HttpMethod;
import org.springframework.security.authentication.AuthenticationManager;
import org.springframework.security.authentication.ProviderManager;
import org.springframework.security.authentication.dao.DaoAuthenticationProvider;
import org.springframework.security.config.annotation.authentication.builders.AuthenticationManagerBuilder;
import org.springframework.security.config.annotation.method.configuration.EnableGlobalMethodSecurity;
import org.springframework.security.config.annotation.web.builders.HttpSecurity;
//import org.springframework.security.config.annotation.web.configuration.WebSecurityConfigurerAdapter;
import org.springframework.security.config.annotation.web.configurers.ExpressionUrlAuthorizationConfigurer;
import org.springframework.security.config.annotation.web.configurers.HeadersConfigurer;
import org.springframework.security.config.annotation.web.configurers.AbstractHttpConfigurer;
import org.springframework.security.config.http.SessionCreationPolicy;
import org.springframework.security.core.userdetails.UserDetailsService;
import org.springframework.security.crypto.bcrypt.BCryptPasswordEncoder;
import org.springframework.security.web.SecurityFilterChain;
import org.springframework.security.web.authentication.UsernamePasswordAuthenticationFilter;
import org.springframework.security.web.authentication.logout.LogoutFilter;
import org.springframework.security.web.firewall.HttpFirewall;
import org.springframework.security.web.firewall.StrictHttpFirewall;
import org.springframework.web.filter.CorsFilter;
import com.ylink.hwss.framework.security.filter.JwtAuthenticationTokenFilter;
import com.ylink.hwss.framework.security.handle.AuthenticationEntryPointImpl;
import com.ylink.hwss.framework.security.handle.LogoutSuccessHandlerImpl;

/**
 * spring security配置
 *
 * @author ruoyi
 */
@EnableGlobalMethodSecurity(prePostEnabled = true, securedEnabled = true)
//public class SecurityConfig extends WebSecurityConfigurerAdapter
@Configuration
public class SecurityConfig
{
    /**
     * 自定义用户认证逻辑
     */
    @Autowired
    private UserDetailsService userDetailsService;

    /**
     * 认证失败处理类
     */
    @Autowired
    private AuthenticationEntryPointImpl unauthorizedHandler;

    /**
     * 退出处理类
     */
    @Autowired
    private LogoutSuccessHandlerImpl logoutSuccessHandler;

    /**
     * token认证过滤器
     */
    @Autowired
    private JwtAuthenticationTokenFilter authenticationTokenFilter;

    /**
     * 跨域过滤器
     */
    @Autowired
    private CorsFilter corsFilter;

    /**
     * 允许匿名访问的地址
     */
    @Autowired
    private PermitAllUrlProperties permitAllUrl;

    /**
     * 解决 无法直接注入 AuthenticationManager
     *
     * @return
     * @throws Exception
     */
    @Bean
    AuthenticationManager authenticationManager()
    {
        DaoAuthenticationProvider daoAuthenticationProvider = new DaoAuthenticationProvider();
        // 身份认证接口
        daoAuthenticationProvider.setUserDetailsService(userDetailsService);
        daoAuthenticationProvider.setPasswordEncoder(bCryptPasswordEncoder());
        return new ProviderManager(daoAuthenticationProvider);
    }

    /**
     * anyRequest          |   匹配所有请求路径
     * access              |   SpringEl表达式结果为true时可以访问
     * anonymous           |   匿名可以访问
     * denyAll             |   用户不能访问
     * fullyAuthenticated  |   用户完全认证可以访问（非remember-me下自动登录）
     * hasAnyAuthority     |   如果有参数，参数表示权限，则其中任何一个权限可以访问
     * hasAnyRole          |   如果有参数，参数表示角色，则其中任何一个角色可以访问
     * hasAuthority        |   如果有参数，参数表示权限，则其权限可以访问
     * hasIpAddress        |   如果有参数，参数表示IP地址，如果用户IP和参数匹配，则可以访问
     * hasRole             |   如果有参数，参数表示角色，则其角色可以访问
     * permitAll           |   用户可以任意访问
     * rememberMe          |   允许通过remember-me登录的用户访问
     * authenticated       |   用户登录后可访问
     */
    @Bean
    SecurityFilterChain filterChain(HttpSecurity httpSecurity) throws Exception {
        return httpSecurity
                // CSRF禁用，因为不使用session
                .csrf(AbstractHttpConfigurer::disable)
                // 禁用HTTP响应标头
                .headers(header -> header.cacheControl(HeadersConfigurer.CacheControlConfig::disable).frameOptions(HeadersConfigurer.FrameOptionsConfig::disable))
                // 认证失败处理类
                .exceptionHandling(exception -> exception.authenticationEntryPoint(unauthorizedHandler))
                // 基于token，所以不需要session
                .sessionManagement(session -> session.sessionCreationPolicy(SessionCreationPolicy.STATELESS))
                // 注解标记允许匿名访问的url
                .authorizeHttpRequests((requests) -> {
                    permitAllUrl.getUrls().forEach(url -> requests.requestMatchers(url).permitAll());
                    // 对于登录login 注册register 验证码captchaImage 允许匿名访问
                    requests.requestMatchers("/login", "/register", "/captchaImage").permitAll()
                            // 静态资源，可匿名访问
                            .requestMatchers(HttpMethod.GET, "/", "/*.html", "/**/*.html", "/**/*.css", "/**/*.js", "/**/*.map", "/profile/**").permitAll()
                            .requestMatchers("/swagger-ui.html", "/swagger-resources/**", "/webjars/**", "/*/api-docs", "/*/api-docs/**", "/druid/**").permitAll()
                            //積木報表
                            .requestMatchers("/jmreport/**").anonymous()
                            // 除上面外的所有请求全部需要鉴权认证
                            .anyRequest().authenticated();
                })
                //禁用 X-Frame-Options 头,防止点击劫持（Clickjacking）攻击，允许页面被嵌套在框架中
                .headers(headers -> headers.frameOptions(HeadersConfigurer.FrameOptionsConfig::disable))
                // 添加Logout filter
                .logout(logout -> logout.logoutUrl("/logout").logoutSuccessHandler(logoutSuccessHandler))
                // 添加JWT filter
                .addFilterBefore(authenticationTokenFilter, UsernamePasswordAuthenticationFilter.class)
                // 添加CORS filter
                .addFilterBefore(corsFilter, JwtAuthenticationTokenFilter.class)
                .addFilterBefore(corsFilter, LogoutFilter.class).build();
    }

    /**
     * 强散列哈希加密实现
     */
    @Bean
    public BCryptPasswordEncoder bCryptPasswordEncoder()
    {
        return new BCryptPasswordEncoder();
    }

    /**
     * 身份认证接口
     */
    protected void configure(AuthenticationManagerBuilder auth) throws Exception
    {
        auth.userDetailsService(userDetailsService).passwordEncoder(bCryptPasswordEncoder());
    }

    /**
     * 配置地址栏不能识别 特殊字符 的情况
     * @return
     */
    @Bean
    public HttpFirewall allowUrlEncodedSlashHttpFirewall() {
        StrictHttpFirewall firewall = new StrictHttpFirewall();
        //此处可添加别的规则
        firewall.setAllowUrlEncodedDoubleSlash(true);
        firewall.setAllowUrlEncodedPercent(true);
        return firewall;
    }
}

1.4 Invalid bean definition with name 'xxxMapper' defined in file

更新mybatis-plus

            <dependency>
                <groupId>com.baomidou</groupId>
                <artifactId>mybatis-plus-boot-starter</artifactId>
                <version>3.5.9</version>
            </dependency>

            <dependency>
                <groupId>com.baomidou</groupId>
                <artifactId>mybatis-plus-jsqlparser</artifactId>
                <version>3.5.9</version>
            </dependency>

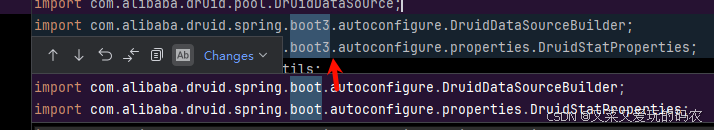

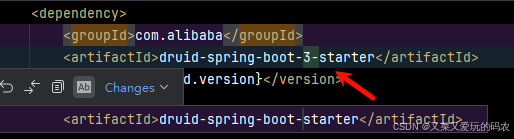

1.5 java: 程序包com.alibaba.druid.spring.boot.autoconfigure不存在

1.6 Parameter 0 of method removeDruidFilterRegistrationBean in com.ylink.hwss.framework.config.DruidConfig required a bean of type 'com.alibaba.druid.spring.boot.autoconfigure.properties.DruidStatProperties' that could not be found.

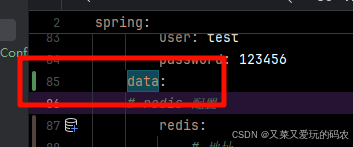

1.7 Connection refused: getsockopt: localhost/127.0.0.1:6379

升級後，reids在配置文件data下

配置文件同

1.7 Error creating bean with name 'com.github.pagehelper.autoconfigure.PageHelperAutoConfiguration': net/sf/jsqlparser/statement/select/SelectBody

原因是jsqlparser冲突了，分页插件排除依赖

            <!-- pagehelper 分页插件 -->
            <dependency>
                <groupId>com.github.pagehelper</groupId>
                <artifactId>pagehelper-spring-boot-starter</artifactId>
                <version>${pagehelper.boot.version}</version>
                <exclusions>
                    <exclusion>
                        <groupId>com.github.jsqlparser</groupId>
                        <artifactId>jsqlparser</artifactId>
                    </exclusion>
                </exclusions>
            </dependency>

1.8 java: java.lang.NoSuchFieldError: Class com.sun.tools.javac.tree.JCTree$JCImport does not have member field 'com.sun.tools.javac.tree.JCTree qualid'

build報錯，原因：lombok未显示指定版本，根据Dependency Versions可直接查看对应的版本添加即可

<dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <version>${lombok.version}</version>
</dependency>

1.9 Cannot invoke “org.springframework.web.servlet.mvc.condition.PatternsRequestCondition.getPatterns()“

配置文件添加:更改spring mvc的默认路径匹配规则，默认是正则

spring
    mvc:
        #Ant风格的路径匹配策略
        pathmatch:
          matching-strategy: ANT_PATH_MATCHER

记录一次springboot2.x升级3.x,jdk8升级21

情况一：spring-boot-starter

公共部分

1.1 找不到符号PaginationInterceptor

1.2 找不到符号getOrders()

1.3 MybatisPlusException: @TableId can't more than one in Class:

1.4 javax.validation.ValidationException: Unable to create a Configuration, because no Bean Validation provider could be found

1.5 测试类修改

业务部分

1.1 java: 不兼容的类型: jakarta.servlet无法转换为javax.servle

1.2 找不到符号.Base64Utils

1.3 找不到符号.JSON

1.4 java: 不兼容的类型: java.lang.Long无法转换为int

1.5 The dependencies of some of the beans in the application context form a cycle:

1.6 启动报错反射异常

1.7 手動替換javax.annotation->jakarta.annotation

1.8 java.lang.UnsupportedOperationException: null

1.9 java.lang.ClassCastException:

1.10 java.lang.InterruptedException: sleep interrupted

情况二：spring-boot-dependencies

pom文件修改

1.1 未显示指定版本号，执行maven的clear操作会导致报错图如下

java文件修改

1.1 java: 程序包javax.*不存在

1.2 找不到jakarta.servlet

1.3 java: 找不到符号 类 WebSecurityConfigurerAdapter

1.4 Invalid bean definition with name 'xxxMapper' defined in file

1.5 java: 程序包com.alibaba.druid.spring.boot.autoconfigure不存在

1.6 Parameter 0 of method removeDruidFilterRegistrationBean in com.ylink.hwss.framework.config.DruidConfig required a bean of type 'com.alibaba.druid.spring.boot.autoconfigure.properties.DruidStatProperties' that could not be found.

1.7 Error creating bean with name 'com.github.pagehelper.autoconfigure.PageHelperAutoConfiguration': net/sf/jsqlparser/statement/select/SelectBody

1.8 java: java.lang.NoSuchFieldError: Class com.sun.tools.javac.tree.JCTree$JCImport does not have member field 'com.sun.tools.javac.tree.JCTree qualid'

1.9 Cannot invoke “org.springframework.web.servlet.mvc.condition.PatternsRequestCondition.getPatterns()“

1.3 java: 找不到符号类 WebSecurityConfigurerAdapter
