ipv6ready(Section 1: RFC 8200 - IPv6 Specification)

ipv6Ready测试遇到如下问题：测试仪将一个报文分为两个分片，第一个分片报文未包含原报文的所有报头，发送两个分片报文，设备应该丢弃两个分片报文，并回复ICMPv6 error报文，在测试过程中测试仪未收到该错误报文。

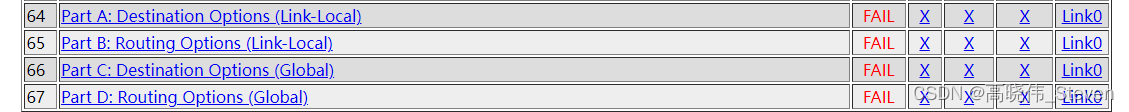

具体case号是IPv6 Specification 的64-67。

修改 net\ipv6\ip6_input.c 文件中的 ip6_input_finish 函数：

static int ip6_input_finish(struct net *net, struct sock *sk, struct sk_buff *skb)
{
	const struct inet6_protocol *ipprot;
	struct inet6_dev *idev;
	unsigned int nhoff;
	int nexthdr = -1;
    int preNextHdr;
	bool raw;
	bool have_final = false;

	/*
	 *	Parse extension headers
	 */

	rcu_read_lock();
resubmit:
	idev = ip6_dst_idev(skb_dst(skb));
	if (!pskb_pull(skb, skb_transport_offset(skb)))
		goto discard;
	nhoff = IP6CB(skb)->nhoff;
	nexthdr = skb_network_header(skb)[nhoff];

resubmit_final:
	raw = raw6_local_deliver(skb, nexthdr);
	ipprot = rcu_dereference(inet6_protos[nexthdr]);
	if (ipprot) {
		int ret;

		if (have_final) {
			if (!(ipprot->flags & INET6_PROTO_FINAL)) {
				/* Once we've seen a final protocol don't
				 * allow encapsulation on any non-final
				 * ones. This allows foo in UDP encapsulation
				 * to work.
				 */
				goto discard;
			}
		} else if (ipprot->flags & INET6_PROTO_FINAL) {
			const struct ipv6hdr *hdr;

			/* Only do this once for first final protocol */
			have_final = true;

			/* Free reference early: we don't need it any more,
			   and it may hold ip_conntrack module loaded
			   indefinitely. */
			nf_reset(skb);

			skb_postpull_rcsum(skb, skb_network_header(skb),
					   skb_network_header_len(skb));
			hdr = ipv6_hdr(skb);
			if (ipv6_addr_is_multicast(&hdr->daddr) &&
			    !ipv6_chk_mcast_addr(skb->dev, &hdr->daddr,
			    &hdr->saddr) &&
			    !ipv6_is_mld(skb, nexthdr, skb_network_header_len(skb)))
				goto discard;
		}
		if (!(ipprot->flags & INET6_PROTO_NOPOLICY) &&
		    !xfrm6_policy_check(NULL, XFRM_POLICY_IN, skb))
			goto discard;

		if ( 44 == preNextHdr && (6 != nexthdr && 17 != nexthdr && 58 != nexthdr && 59 != nexthdr) )
		{
	        printk("fragpacket5, %d, %d, %p\n", preNextHdr, nexthdr, skb);
			icmpv6_send(skb, ICMPV6_PARAMPROB, 3, 0);
		}

		ret = ipprot->handler(skb);
		if (ret > 0) {
			if (ipprot->flags & INET6_PROTO_FINAL) {
				/* Not an extension header, most likely UDP
				 * encapsulation. Use return value as nexthdr
				 * protocol not nhoff (which presumably is
				 * not set by handler).
				 */
				nexthdr = ret;
				goto resubmit_final;
			} else {
                preNextHdr = nexthdr;
				goto resubmit;
			}
		} else if (ret == 0) {
			__IP6_INC_STATS(net, idev, IPSTATS_MIB_INDELIVERS);
		}
	} else {
		if (!raw) {
			if (xfrm6_policy_check(NULL, XFRM_POLICY_IN, skb)) {
				__IP6_INC_STATS(net, idev,
						IPSTATS_MIB_INUNKNOWNPROTOS);
				icmpv6_send(skb, ICMPV6_PARAMPROB,
					    ICMPV6_UNK_NEXTHDR, nhoff);
			}
			kfree_skb(skb);
		} else {
			__IP6_INC_STATS(net, idev, IPSTATS_MIB_INDELIVERS);
			consume_skb(skb);
		}
	}
	rcu_read_unlock();
	return 0;

discard:
	__IP6_INC_STATS(net, idev, IPSTATS_MIB_INDISCARDS);
	rcu_read_unlock();
	kfree_skb(skb);
	return 0;
}

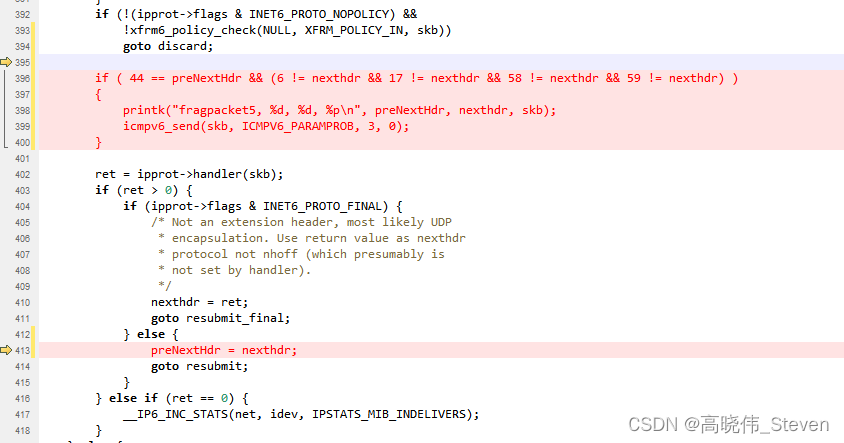

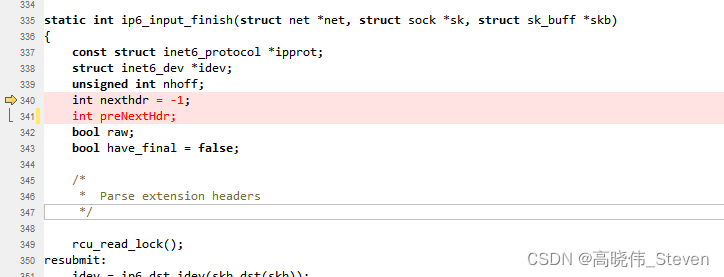

修改后的函数与源函数对比：

增加preNextHdr记录前一个包的nexthdr;

检查第一个分片报文中的各个报头，当最后一个报头不是上层报头如icmp、udp、等或no next header时，判断要素为上一个报头中的next header域，给原节点反馈一个icmp parameter problem（code=3，pointer=0）。

 注：我测试用的内核版本是 linux-4.19.155，其它内核版本可能需要做相应的调整。
