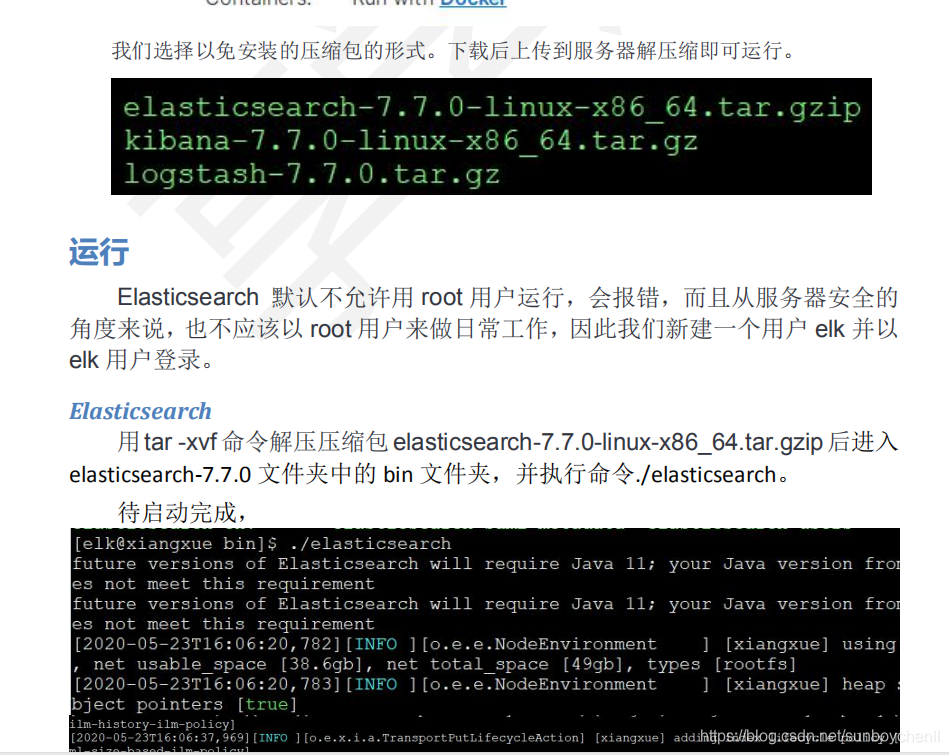

ELK 之 elasticsearch-7.7.0 及kibana-7.7.0 安装 并指定JDK

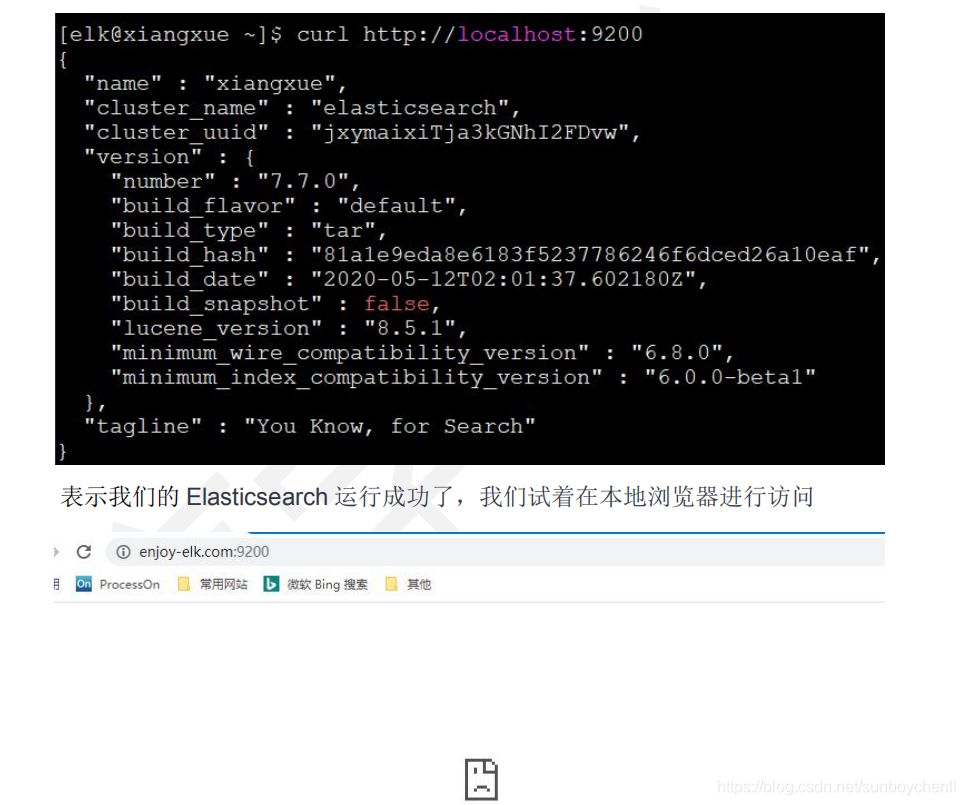

却显示“ 拒绝了我们的连接请求 ”，因此我们还需要配置一下 Elasticsearch

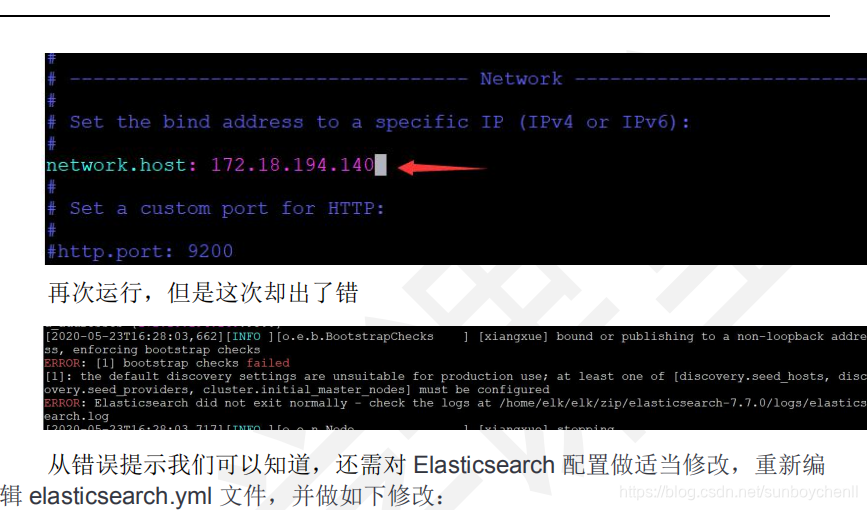

以允许我们进行外网访问，进入 elasticsearch-7.7.0 下的 config 目录，编辑

elasticsearch.yml 文件，删除 network.host 前的 # 字符，并写入服务器的地址并

保存

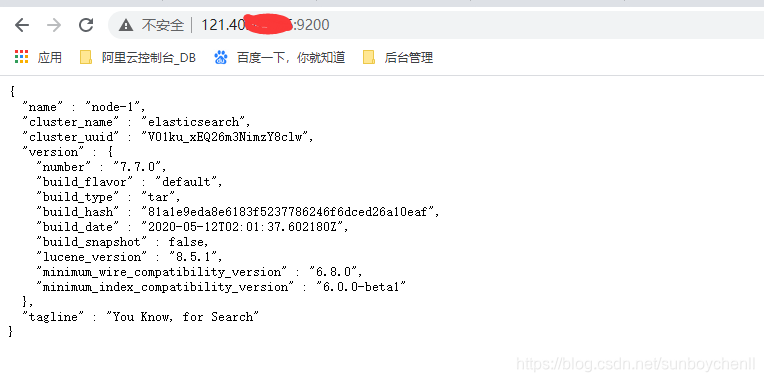

http://121.40.42.***:9200/  显示如下：

---

---

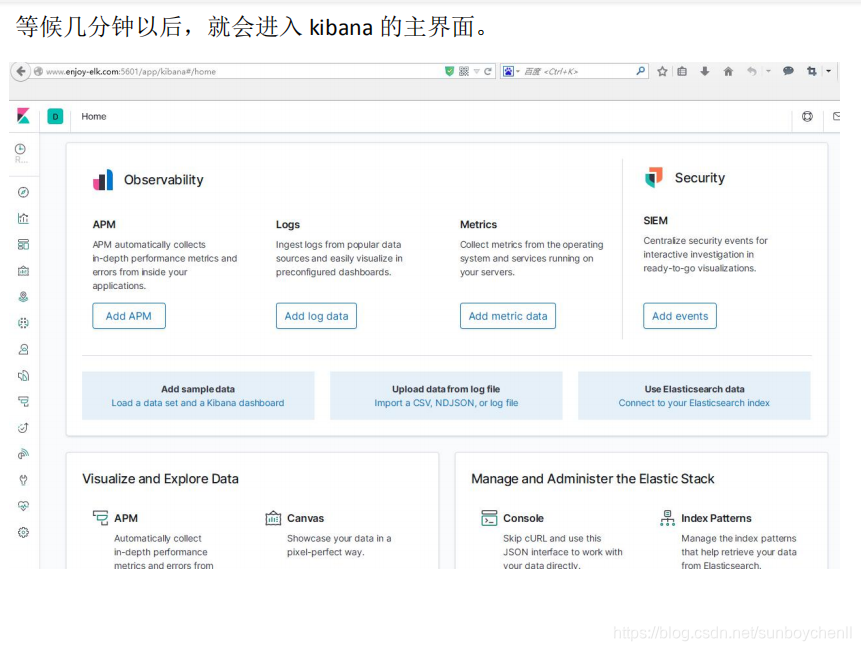

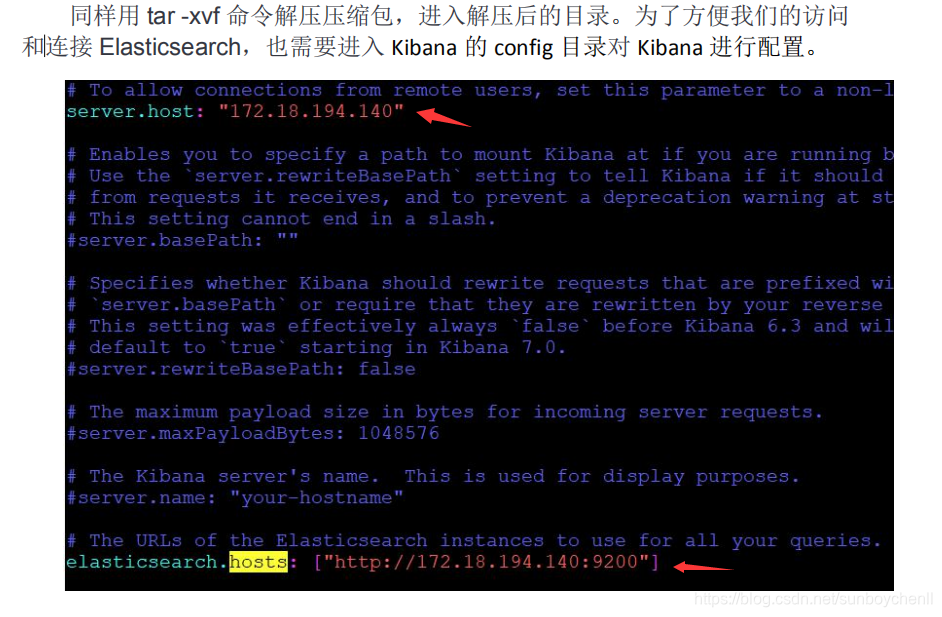

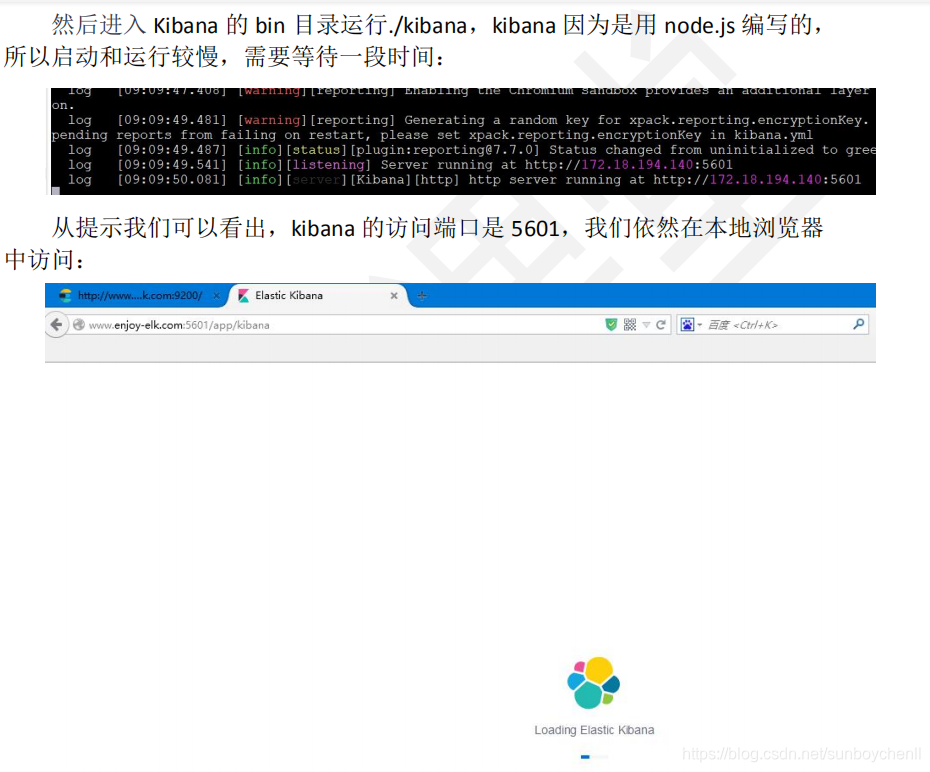

Kibana 安装

---

启动时提示需要用户名和密码登录

{
    "type":"log",
    "@timestamp":"2019-08-19T09:16:54Z",
    "tags":[
        "license",
        "warning",
        "xpack"
    ],
    "pid":4010,
    "message":"License information from the X-Pack plugin could not be obtained from Elasticsearch for the [data] cluster. [security_exception] missing authentication credentials for REST request [/_xpack], with { header={ WWW-Authenticate="Basic realm=\"security\" charset=\"UTF-8\"" } } :: {"path":"/_xpack","statusCode":401,"response":"{\"error\":{\"root_cause\":[{\"type\":\"security_exception\",\"reason\":\"missing authentication credentials for REST request [/_xpack]\",\"header\":{\"WWW-Authenticate\":\"Basic realm=\\\"security\\\" charset=\\\"UTF-8\\\"\"}}],\"type\":\"security_exception\",\"reason\":\"missing authentication credentials for REST request [/_xpack]\",\"header\":{\"WWW-Authenticate\":\"Basic realm=\\\"security\\\" charset=\\\"UTF-8\\\"\"}},\"status\":401}","wwwAuthenticateDirective":"Basic realm=\"security\" charset=\"UTF-8\""}"
}

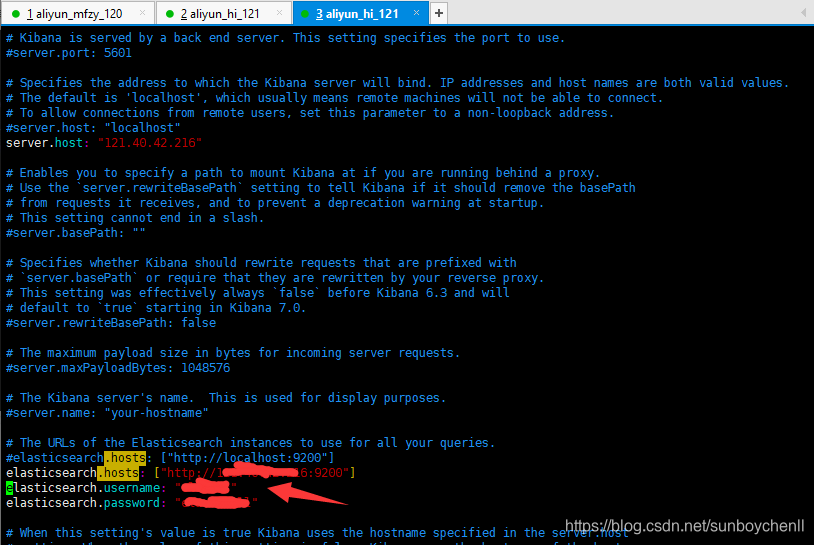

elasticsearch.username: "elastic"
elasticsearch.password: "elasticCll"

---

nohup ./kibana &

提示：

[~]$ appending output to nohup.out

嗯，证明运行成功，同时把程序运行的输出信息放到当前目录的 nohup.out 文件中去。

nohup 命令

用途：LINUX命令用法，不挂断地运行命令。

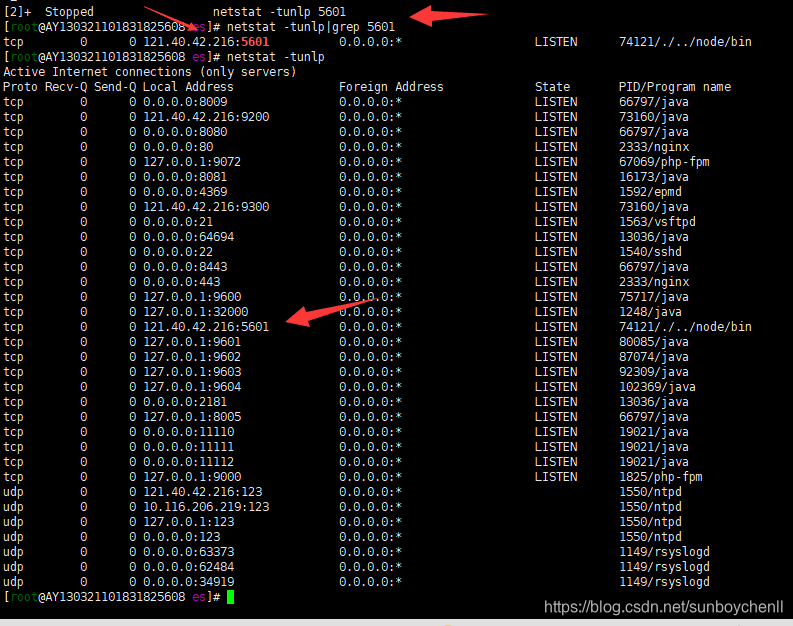

查看kibana是否启动了，用如下命令：

netstat -tunlp|grep 5601

netstat -tunlp



---

---

由于我们日常的代码开发都是使用的JDK1.8，所以这里不会把JAVA_HOME配置成JDK11，我们只需更改Elasticsearch的启动文件，使它指向我们下载的JDK11.

修改配置文件
[root@centos7 bin]# pwd
/home/wx/elasticsearch-7.9.0/bin
[root@centos7 bin]# vi elasticsearch
添加以下几行内容
#配置自己的jdk11
export JAVA_HOME=/usr/local/jdk-11.0.8/
export PATH=$JAVA_HOME/bin:$PATH

#添加jdk判断
if [ -x "$JAVA_HOME/bin/java" ]; then
        JAVA="/usr/local/jdk-11.0.8//bin/java"
else
        JAVA=`which java`
fi

---

---

4.ELASTICSEARCH文件全部内容

[root@centos7 bin]# cat elasticsearch
#!/bin/bash

# CONTROLLING STARTUP:
#
# This script relies on a few environment variables to determine startup
# behavior, those variables are:
#
#   ES_PATH_CONF -- Path to config directory
#   ES_JAVA_OPTS -- External Java Opts on top of the defaults set
#
# Optionally, exact memory values can be set using the `ES_JAVA_OPTS`. Example
# values are "512m", and "10g".
#
#   ES_JAVA_OPTS="-Xms8g -Xmx8g" ./bin/elasticsearch

#配置自己的jdk11
export JAVA_HOME=/usr/local/jdk-11.0.8
export PATH=$JAVA_HOME/bin:$PATH

#添加jdk判断
if [ -x "$JAVA_HOME/bin/java" ]; then
        JAVA="/usr/local/jdk-11.0.8/bin/java"
else
        JAVA=`which java`
fi
source "`dirname "$0"`"/elasticsearch-env
CHECK_KEYSTORE=true
DAEMONIZE=false
for option in "$@"; do
  case "$option" in
    -h|--help|-V|--version)
      CHECK_KEYSTORE=false
      ;;
    -d|--daemonize)
      DAEMONIZE=true
      ;;
  esac
done
if [ -z "$ES_TMPDIR" ]; then
  ES_TMPDIR=`"$JAVA" "$XSHARE" -cp "$ES_CLASSPATH" org.elasticsearch.tools.launchers.TempDirectory`
fi
# get keystore password before setting java options to avoid
# conflicting GC configurations for the keystore tools
unset KEYSTORE_PASSWORD
KEYSTORE_PASSWORD=
if [[ $CHECK_KEYSTORE = true ]] \
    && bin/elasticsearch-keystore has-passwd --silent
then
  if ! read -s -r -p "Elasticsearch keystore password: " KEYSTORE_PASSWORD ; then
    echo "Failed to read keystore password on console" 1>&2
    exit 1
  fi
fi
# The JVM options parser produces the final JVM options to start Elasticsearch.
# It does this by incorporating JVM options in the following way:
#   - first, system JVM options are applied (these are hardcoded options in the
#     parser)
#   - second, JVM options are read from jvm.options and jvm.options.d/*.options
#   - third, JVM options from ES_JAVA_OPTS are applied
#   - fourth, ergonomic JVM options are applied
ES_JAVA_OPTS=`export ES_TMPDIR; "$JAVA" "$XSHARE" -cp "$ES_CLASSPATH" org.elasticsearch.tools.launchers.JvmOptionsParser "$ES_PATH_CONF"`

# manual parsing to find out, if process should be detached
if [[ $DAEMONIZE = false ]]; then
  exec \
    "$JAVA" \
    "$XSHARE" \
    $ES_JAVA_OPTS \
    -Des.path.home="$ES_HOME" \
    -Des.path.conf="$ES_PATH_CONF" \
    -Des.distribution.flavor="$ES_DISTRIBUTION_FLAVOR" \
    -Des.distribution.type="$ES_DISTRIBUTION_TYPE" \
    -Des.bundled_jdk="$ES_BUNDLED_JDK" \
    -cp "$ES_CLASSPATH" \
    org.elasticsearch.bootstrap.Elasticsearch \
    "$@" <<<"$KEYSTORE_PASSWORD"
else
  exec \
    "$JAVA" \
    "$XSHARE" \
    $ES_JAVA_OPTS \
    -Des.path.home="$ES_HOME" \
    -Des.path.conf="$ES_PATH_CONF" \
    -Des.distribution.flavor="$ES_DISTRIBUTION_FLAVOR" \
    -Des.distribution.type="$ES_DISTRIBUTION_TYPE" \
    -Des.bundled_jdk="$ES_BUNDLED_JDK" \
    -cp "$ES_CLASSPATH" \
    org.elasticsearch.bootstrap.Elasticsearch \
    "$@" \
    <<<"$KEYSTORE_PASSWORD" &
  retval=$?
  pid=$!
  [ $retval -eq 0 ] || exit $retval
  if [ ! -z "$ES_STARTUP_SLEEP_TIME" ]; then
    sleep $ES_STARTUP_SLEEP_TIME
  fi
  if ! ps -p $pid > /dev/null ; then
    exit 1
  fi
  exit 0
fi
