本文介绍如何使用Apache Spark Streaming通过pull和push两种方式从Apache Flume接收实时数据流，详细展示了配置过程及代码实现。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

poll方式：

package test01

import org.apache.spark.SparkConf
import org.apache.spark.streaming.dstream.ReceiverInputDStream
import org.apache.spark.streaming.flume.{FlumeUtils, SparkFlumeEvent}
import org.apache.spark.streaming.{Seconds, StreamingContext}

object SparkFlumePollDemo extends App {
  private val conf: SparkConf = new SparkConf().setAppName("flume02").setMaster("local[2]")
  private val ssc = new StreamingContext(conf,Seconds(5))

  //TODO poll方式
  private val flumeStream= FlumeUtils.createPollingStream(ssc,"192.168.106.107",555)

  flumeStream.map(x=>new String(x.event.getBody.array()).trim)
    .flatMap(_.split(" ")).map((_,1)).reduceByKey(_+_).print()

ssc.start()
  ssc.awaitTermination()

}

push方式

package test01

import org.apache.spark.SparkConf
import org.apache.spark.streaming.dstream.ReceiverInputDStream
import org.apache.spark.streaming.flume.{FlumeUtils, SparkFlumeEvent}
import org.apache.spark.streaming.{Seconds, StreamingContext}

object SparkFlumePushDemo extends App {
  private val conf: SparkConf = new SparkConf().setAppName("flume01").setMaster("local[2]")
  private val ssc = new StreamingContext(conf,Seconds(5))


  private val flumeStream: ReceiverInputDStream[SparkFlumeEvent] = FlumeUtils.createStream(ssc,"192.168.106.107",555)

  flumeStream.map(x=>new String(x.event.getBody.array()).trim)
    .flatMap(_.split(" ")).map((_,1)).reduceByKey(_+_).print()

ssc.start()
  ssc.awaitTermination()

}

按照此博客的配置打胖包

flume的conf文件

stream-flume.conf

a1.sources = s1
a1.channels = c1
a1.sinks = k1

a1.sources.s1.type = netcat
a1.sources.s1.bind = 192.168.106.107
a1.sources.s1.port = 44444
a1.sources.s1.channels = c1

a1.channels.c1.type = memory
a1.channels.c1.capacity = 1000

# AvroSink向Spark(55555)推送数据
# 使用push  createStream
a1.sinks.k1.type = avro
a1.sinks.k1.hostname = 192.168.106.107
a1.sinks.k1.port = 55555
a1.sinks.k1.channel = c1

启动flume

flume-ng agent --name a1 --conf conf/ --conf-file /路径/stream-flume.conf -Dflume.root.logger=INFO,console

运行上传的spark jar包

spark-submit --class 包名字.tes01.SparkFlumePushDemo /路径/spark-1.0-SNAPSHOT.jar

启动telnet

telnet 192.168.106.107 44444

二、

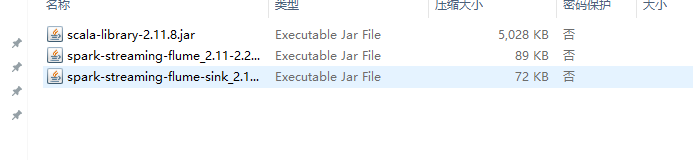

将以下3个jar包导入到flume的lib目录下，并删除对应的低版本的jar包

在这里插入图片描述
conf文件

agent.sources = s1
agent.channels = c1
agent.sinks = sk1

#设置Source的内省为netcat，使用的channel为c1
agent.sources.s1.type = netcat
agent.sources.s1.bind = 19
agent.sources.s1.port = 444
agent.sources.s1.channels = c1


#SparkSink,要求flume lib目录存在spark-streaming-flume-sink_2.11-x.x.x.jar
agent.sinks.sk1.type=org.apache.spark.streaming.flume.sink.SparkSink
agent.sinks.sk1.hostname=192.168.106.107
agent.sinks.sk1.port=555
agent.sinks.sk1.channel = c1
#设置channel信息


#内存模式
agent.channels.c1.type = memory
agent.channels.c1.capacity = 1000

步骤同上
