Xmanager远程连接centos6.9

1.安装gdm (若已安装则不需安装)yum -y install gdm

我们已经安装

[arcgis@r2-oracle12c serverdiag]$ yum list installed|grep gdm
gdm.x86_64              1:2.30.4-67.el6 @base
gdm-libs.x86_64         1:2.30.4-67.el6 @base
gdm-plugin-fingerprint.x86_64
gdm-user-switch-applet.x86_64
plymouth-gdm-hooks.x86_64
pulseaudio-gdm-hooks.x86_64
[arcgis@r2-oracle12c serverdiag]$ yum info gdm
Loaded plugins: fastestmirror, refresh-packagekit, security
Loading mirror speeds from cached hostfile
Installed Packages
Name        : gdm
Arch        : x86_64
Epoch       : 1
Version     : 2.30.4
Release     : 67.el6
Size        : 4.6 M
Repo        : installed
From repo   : base
Summary     : The GNOME Display Manager
URL         : http://download.gnome.org/sources/gdm
License     : GPLv2+
Description : GDM provides the graphical login screen, shown shortly after boot up,
            : log out, and when user-switching.

2.配置系统为图形模式，打开/etc/inittab，修改为id:5:initdefault: (若已为5则不需修改)

vi /etc/inittab

3.打开/etc/gdm/custom.conf，在[security]和[xdmcp]字段下分别添加如下内容：

[security]
AllowRemoteRoot=true
[xdmcp]
Port=177
Enable=1

4.关闭防火墙(service iptables stop)或在防火墙上打开udp 协议177 端口。默认是关闭的。

[root@r2-oracle12c gdm]# /etc/init.d/iptables status
iptables: Firewall is not running.

5.重启机器

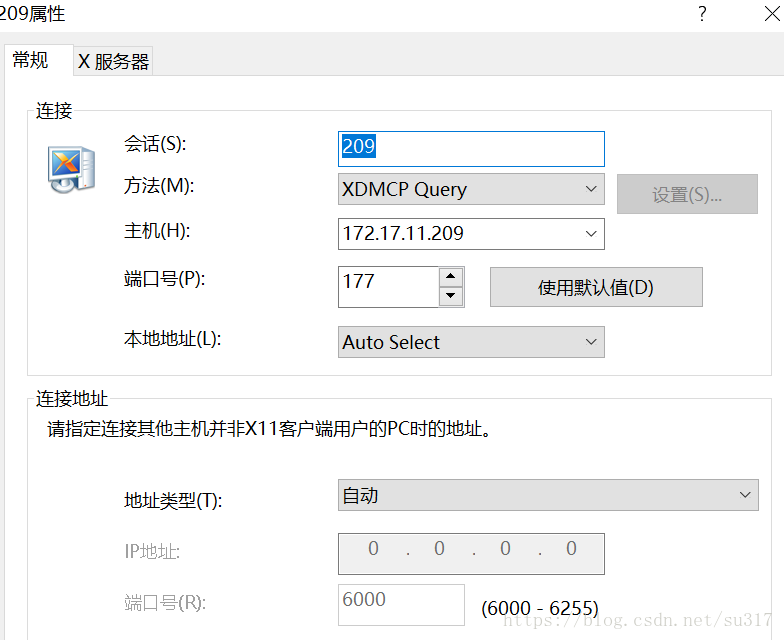

6.xmanger连接
