延迟调度实现

很多时候我们想把事件在某些事件之后执行

如：提交失败的数据每隔一些时间段执行一次（1min，30min，2h）
如：订单下单没有付款，第1天，第3天发短信提示

一、这就需要延迟调度实现，本文介绍两种方式

1、使用消息中间件rabbitmq延迟死信队列实现

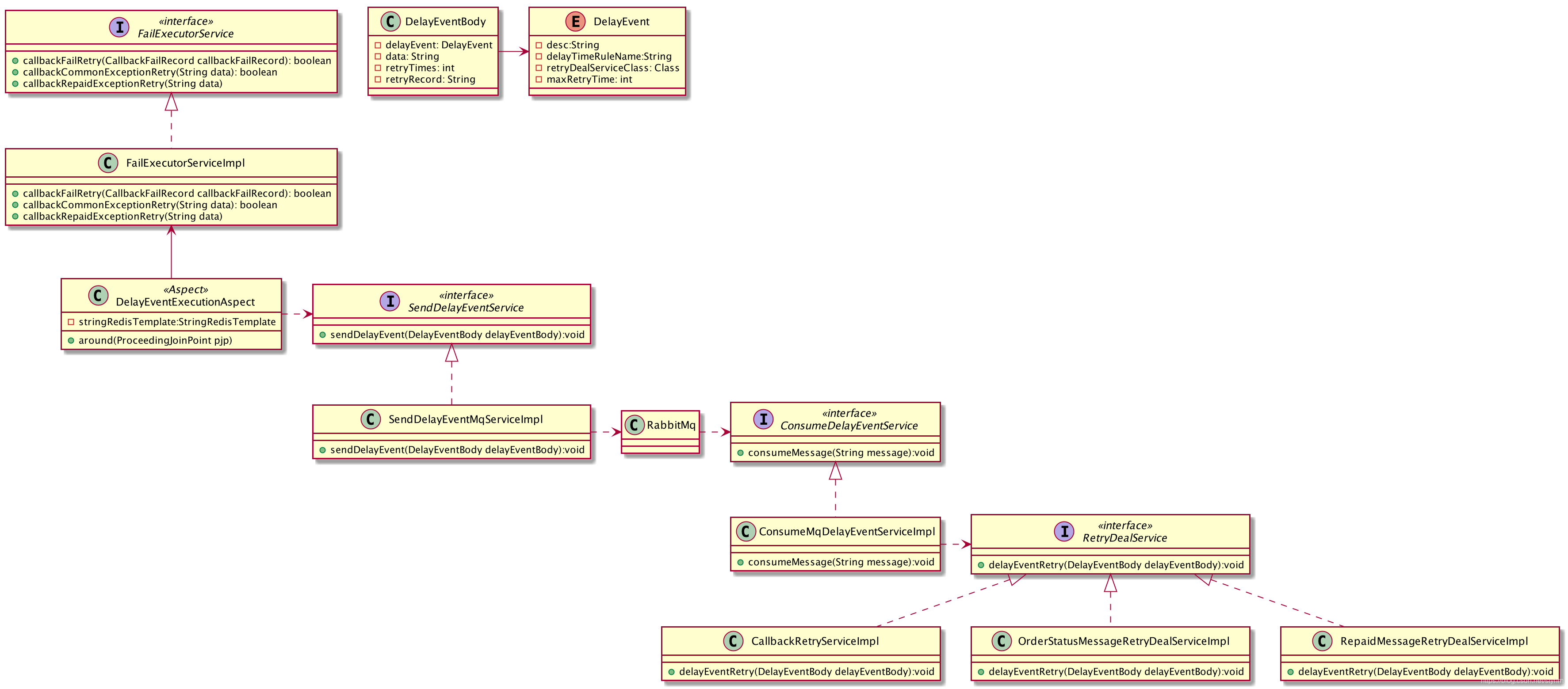

rabbitmq方式类图展示

rabbitmq

package cn.quantgroup.cashloanflow.config.mq;

import cn.quantgroup.clf.api.delayretry.service.consumer.ConsumeDelayEventService;
import cn.quantgroup.tech.brave.service.ITechRabbitBuilder;
import org.springframework.amqp.core.*;
import org.springframework.amqp.rabbit.config.SimpleRabbitListenerContainerFactory;
import org.springframework.amqp.rabbit.config.SimpleRabbitListenerEndpoint;
import org.springframework.amqp.rabbit.connection.CachingConnectionFactory;
import org.springframework.amqp.rabbit.connection.ConnectionFactory;
import org.springframework.amqp.rabbit.core.RabbitTemplate;
import org.springframework.amqp.rabbit.listener.SimpleMessageListenerContainer;
import org.springframework.amqp.rabbit.listener.adapter.MessageListenerAdapter;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.beans.factory.annotation.Qualifier;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

import java.util.HashMap;
import java.util.Map;

/**
 * @author: amen
 * @date: 2019-01-08
 */

@Configuration
public class DelayMqConfig {

    @Value("${ka.rabbitmq.connection.host}")
    private String host;
    @Value("${ka.rabbitmq.connection.port}")
    private Integer port;
    @Value("${ka.rabbitmq.connection.user}")
    private String user;
    @Value("${ka.rabbitmq.connection.password}")
    private String password;
    @Value("${ka.rabbitmq.connection.virtual-host}")
    private String kaLoanVirtualHost;


    @Value("${ka.rabbitmq.delay.queue:ka.delay.queue}")
    private String delayQueue;
    @Value("${ka.rabbitmq.delay.exchange:ka.delay.exchange}")
    private String delayExchange;
    @Value("${ka.rabbitmq.delay.routingKey:ka.delay.routingKey}")
    private String delayRoutingKey;

    @Value("${ka.rabbitmq.dlx.queue:ka.dlx.queue}")
    private String dlxQueue;
    @Value("${ka.rabbitmq.dlx.exchange:ka.dlx.exchange}")
    private String dlxExchange;
    @Value("${ka.rabbitmq.dlx.routingKey:ka.dlx.routingKey}")
    private String dlxRoutingKey;



    @Autowired
    @Qualifier( "techRabbitBuilder" )
    private ITechRabbitBuilder techRabbitBuilder;

    @Bean("delayCachingConnectionFactory")
    public CachingConnectionFactory delayCachingConnectionFactory() {
        CachingConnectionFactory connectionFactory = new CachingConnectionFactory(host, port);
        connectionFactory.setCacheMode(CachingConnectionFactory.CacheMode.CONNECTION);
        connectionFactory.setChannelCacheSize(1024);
        connectionFactory.setConnectionCacheSize(1024);
        connectionFactory.setUsername(user);
        connectionFactory.setPassword(password);
        connectionFactory.setVirtualHost(kaLoanVirtualHost);
        connectionFactory.setPublisherReturns(false);
        connectionFactory.setPublisherConfirms(false);
        return connectionFactory;
    }


    /**
     * 申明死信队列
     * @return
     */
    @Bean("dlxExchangeBean")
    public DirectExchange dlxExchangeBean() {
        return new DirectExchange(dlxExchange);
    }

    @Bean("dlxQueueBean")
    public Queue dlxQueueBean() {
        return new Queue(dlxQueue);
    }


    @Bean
    public Binding binding(@Qualifier("dlxExchangeBean") DirectExchange dlxExchange, @Qualifier("dlxQueueBean") Queue dlxQueue) {
        return BindingBuilder.bind(dlxQueue).to(dlxExchange).with(dlxRoutingKey);
    }


    /**
     * 申明延时队列
     * @return
     */
    @Bean("delayExchange")
    public DirectExchange delayExchangeBean() {
        return new DirectExchange(delayExchange);
    }

    @Bean("delayQueue")
    public Queue orderQueueBean() {
        Map<String, Object> arguments = new HashMap<>(4);
        // 绑定该队列到死信交换机
        arguments.put("x-dead-letter-exchange", dlxExchange);
        arguments.put("x-dead-letter-routing-key", dlxRoutingKey);
        return new Queue(delayQueue, true, false, false, arguments);
    }

    @Bean
    public Binding orderBinding(@Qualifier("delayExchange") DirectExchange delayExchange, @Qualifier("delayQueue") Queue delayQueue) {
        return BindingBuilder.bind(delayQueue).to(delayExchange).with(delayRoutingKey);
    }




    /**
     * 监听死信队列
     * @param consumeDelayEventService
     * @param cachingConnectionFactory
     * @param dlxQueue
     * @return
     */
    @Bean("delaySimpleMessageListenerContainer")
    public SimpleMessageListenerContainer delaySimpleMessageListenerContainer(@Qualifier("consumeMqDelayEventService") ConsumeDelayEventService consumeDelayEventService,
                                                                                         @Qualifier("delayCachingConnectionFactory") CachingConnectionFactory cachingConnectionFactory,
                                                                                         @Qualifier("dlxQueueBean") Queue dlxQueue) {
        SimpleRabbitListenerContainerFactory simpleRabbitListenerContainerFactory = techRabbitBuilder
                .createSimpleRabbitListenerContainerFactory(cachingConnectionFactory);
        SimpleRabbitListenerEndpoint simpleRabbitListenerEndpoint = new SimpleRabbitListenerEndpoint();
        simpleRabbitListenerEndpoint.setQueues(dlxQueue);
        simpleRabbitListenerEndpoint.setMessageListener(new MessageListenerAdapter(consumeDelayEventService, "consumeMessage"));
        SimpleMessageListenerContainer container = simpleRabbitListenerContainerFactory.createListenerContainer(simpleRabbitListenerEndpoint);
        container.setAcknowledgeMode(AcknowledgeMode.AUTO);
        container.setConcurrentConsumers(10);
        container.start();
        return container;

    }


    @Bean(name = "delayRabbitTemplate")
    public RabbitTemplate delayRabbitTemplate(@Qualifier("delayCachingConnectionFactory") ConnectionFactory connectionFactory) {
        RabbitTemplate rabbitTemplate = techRabbitBuilder.createRabbitTemplate(connectionFactory);
        rabbitTemplate.setExchange(delayExchange);
        rabbitTemplate.setRoutingKey(delayRoutingKey);
        return rabbitTemplate;
    }
}

    @Resource(name = "delayRabbitTemplate")
    private RabbitTemplate rabbitTemplate;


    @Override
    public void sendDelayEvent(DelayEventBody delayEventBody) {
        Long delayMillis = DelayRetryUtil.getDelayMillis(delayEventBody);

        rabbitTemplate.convertAndSend(JSONTools.serialize(delayEventBody), message -> {
                    message.getMessageProperties().setDeliveryMode(MessageDeliveryMode.PERSISTENT);
                    message.getMessageProperties().setExpiration(delayMillis + "");
                    return message;
                });

        final Date executeTime = new Date(System.currentTimeMillis() + delayMillis);

        log.info("[delayMessageSend][RabbitMqDelay]延迟消息已发送, 延迟时间为:{},执行时间为:{},消息体为:{}",
                JSONTools.serialize(DelayRetryUtil.getDelayTimeModel(delayEventBody)),
                DateUtil.format(executeTime, DateUtil.DATE_FORMAT_1), JSONTools.serialize(delayEventBody));

    }

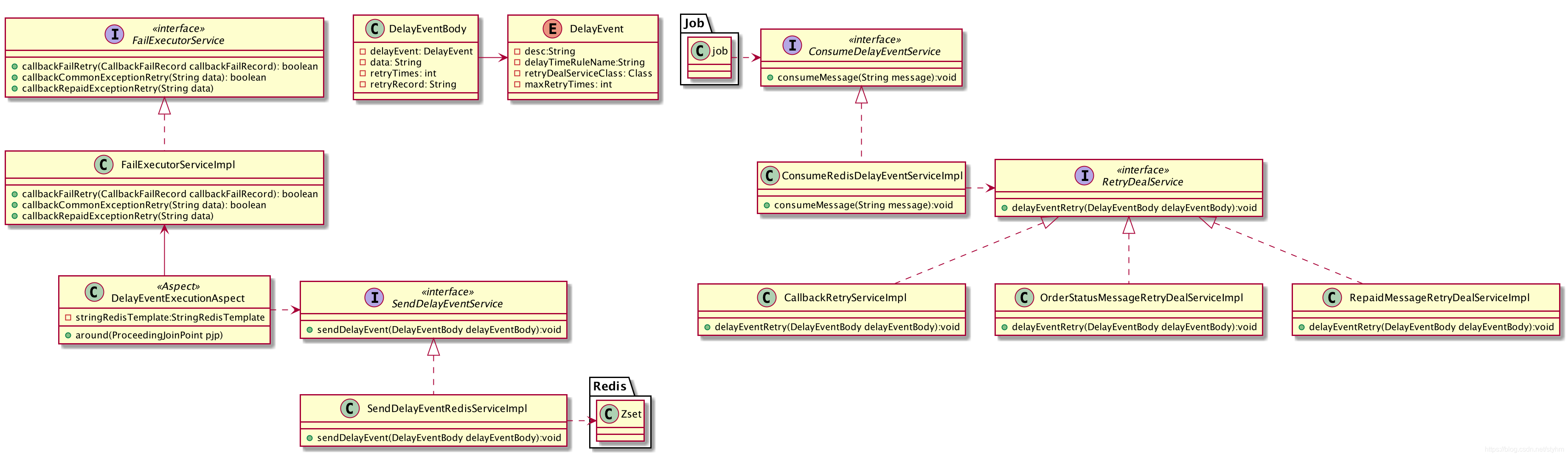

2、使用redis.zset存储关键key，使用执行时间作为score，每次取set首位元素比较当前时间（需要定时调度任务辅助） redis方式类图展示

redis

二、这种设计支持分布式，也支持高可用

不管对于mq还是redis，一般同一个服务不会是一台宿主机，多个宿主机节点。mq多个消费者监听同一个队列，由mq管理有效消费者。多个服务当定时任务触发的机器去请求redis,这种情况最好定时任务是支持分布式的.可以结合当当网elastic job(https://blog.youkuaiyun.com/styhm/article/details/81034729)



git项目:https://github.com/foxiaotao/delay-event-job.git
