.flo文件读写与转换

1. 光流图像转numpy

import numpy as np

def load_flow_to_numpy(path):
    with open(path, 'rb') as f:
        magic = np.fromfile(f, np.float32, count=1)
        assert (202021.25 == magic), 'Magic number incorrect. Invalid .flo file'
        h = np.fromfile(f, np.int32, count=1)[0]
        w = np.fromfile(f, np.int32, count=1)[0]
        data = np.fromfile(f, np.float32, count=2 * w * h)
    data2D = np.resize(data, (w, h, 2))
    return data2D


if __name__ == '__main__':
    flo = load_flow_to_numpy('frame_0001.flo')
    print(flo.shape)  # (436, 1024, 2)

2. 光流图像转图像

import numpy as np
from matplotlib.colors import hsv_to_rgb
import matplotlib.pyplot as plt

def load_flow_to_numpy(path):
    with open(path, 'rb') as f:
        magic = np.fromfile(f, np.float32, count=1)
        assert (202021.25 == magic), 'Magic number incorrect. Invalid .flo file'
        h = np.fromfile(f, np.int32, count=1)[0]
        w = np.fromfile(f, np.int32, count=1)[0]
        data = np.fromfile(f, np.float32, count=2 * w * h)
    data2D = np.resize(data, (w, h, 2))
    return data2D


def load_flow_to_png(path):
    flow = load_flow_to_numpy(path)
    image = flow_to_image(flow)
    return image


def flow_to_image(flow, max_flow=256):
    if max_flow is not None:
        max_flow = max(max_flow, 1.)
    else:
        max_flow = np.max(flow)

    n = 8
    u, v = flow[:, :, 0], flow[:, :, 1]
    mag = np.sqrt(np.square(u) + np.square(v))
    angle = np.arctan2(v, u)
    im_h = np.mod(angle / (2 * np.pi) + 1, 1)
    im_s = np.clip(mag * n / max_flow, a_min=0, a_max=1)
    im_v = np.clip(n - im_s, a_min=0, a_max=1)
    im = hsv_to_rgb(np.stack([im_h, im_s, im_v], 2))
    return (im * 255).astype(np.uint8)

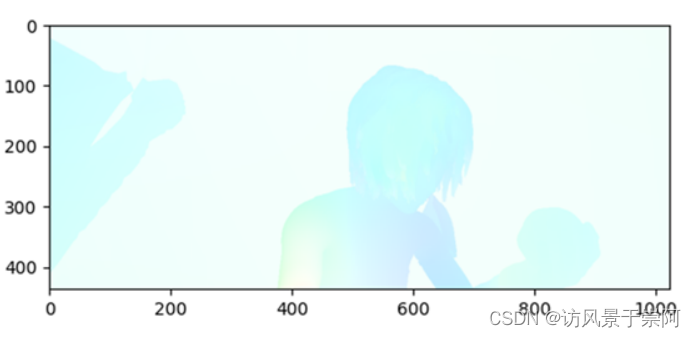

if __name__ == '__main__':
    image = load_flow_to_png('frame_0001.flo')
    plt.imshow(image)
    plt.show()

 参考：光流文件(.flo),numpy,图像(.png)相互转换——完全python实现_python如何打开flo文件_曲怪曲怪的博客-优快云博客
