如何编写Silverlight动画效果控件



作为开发人员我一直存在2个问题,相信很多人也有这样的问题:

1、 懒惰,为了实现一些Silverlight特殊效果要写烦乱的XAML语句,这太可怕了;

2、 因为不是设计人员,很难做出一些非常美观的界面

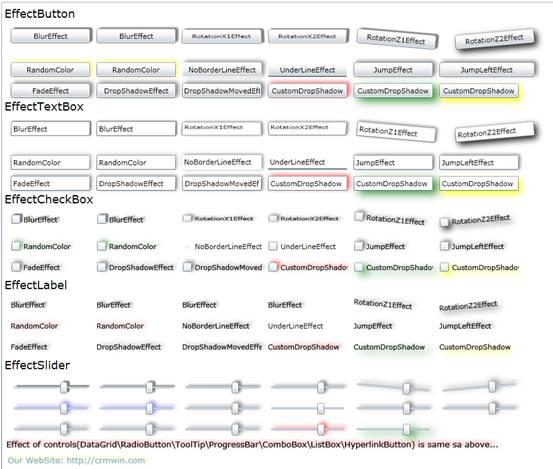

于是,我就写了EffectControls控件集,目的是用最短的时间和最短的代码实现很酷的控件效果。开放源码,欢迎您的使用和改进,如果有好玩的特效,请一定要通知我。





在线演示地址
http://crmwin.com/EffectControlsTestPage.html



源代码下载:

Open Source Web Address:
http://www.CrmWin.com
Blog address:



写一下我的设计思路吧,希望您能有更好的改进版本,请也给我一份哦

我的联系方式:

Name:   王昕

Mail:  475660@QQ.com or StarSuit@gmail.com

Mobile:  13710637136



首先:编写EffectControlHelper帮助类,这个类帮助我们创建各种效果:



ExpandedBlockStart.gif View Code
public   class  EffectControlHelper

{

public   static   void  DropShadowEffect( object  control,  string  EffectType, Color EffectColor,

double  EffectRadius,  double  EffectDirection,  double  EffectOpacity,  double  EffectShadowDepth)

{

DropShadowEffect Effect
=   new  DropShadowEffect();

Random r
=   new  Random();



List
< Color >  colors  =   new  List < Color > ();

colors.Add(Colors.Black);

colors.Add(Colors.Blue);

colors.Add(Colors.Brown);

colors.Add(Colors.Cyan);

colors.Add(Colors.DarkGray);

colors.Add(Colors.Gray);

colors.Add(Colors.Green);

colors.Add(Colors.LightGray);

colors.Add(Colors.Magenta);

colors.Add(Colors.Orange);

colors.Add(Colors.Purple);

colors.Add(Colors.Red);

colors.Add(Colors.White);

colors.Add(Colors.Yellow);

colors.Add(Colors.Blue);

colors.Add(Colors.Green);

colors.Add(Colors.Red);

colors.Add(Colors.Yellow);



Color RandomColor
=  colors[r.Next( 18 )];



if  (EffectType  ==   " DropShadowMovedEffect " )

{

Effect.Direction
=  r.Next( 180 );

Effect.Color
=  EffectColor;

}

else

{

Effect.Color
=  EffectColor;

}



if  (EffectType  ==   " RandomColor " )

{

Effect.Color
=  RandomColor;

}



Effect.Direction
=  EffectDirection;

Effect.BlurRadius
=  EffectRadius;

Effect.Opacity
=  EffectOpacity;

Effect.ShadowDepth
=  EffectShadowDepth;

(control
as  FrameworkElement).Effect  =  Effect;

}



public   static   void  EffectMouseEnter( object  control,  string  EffectType,  double  EffectRadius)

{

if  (EffectType  ==   " FadeEffect " )

{

Storyboard stb
=  StoryboardHelper.FadeOutFrameworkElement(control  as  FrameworkElement, . 5 0 );



if  (stb  !=   null )

{

stb.Begin();

}



}



if  (EffectType  ==   " BlurEffect " )

{

(control
as  FrameworkElement).Effect  =   new  BlurEffect() { Radius  =  EffectRadius };



}



if  (EffectType  ==   " DropShadowEffect " )

{

(control
as  FrameworkElement).Effect  =   null ;

}



}



public   static   void  EffectMouseLeave( object  control,  string  EffectType)

{





if  (EffectType  ==   " FadeEffect " )

{

Storyboard fadeInRect
=  StoryboardHelper.FadeInFrameworkElement(control  as  FrameworkElement, . 2 0 );

if  (fadeInRect  !=   null )

{

fadeInRect.Begin();

}



}



if  (EffectType  ==   " JumpEffect " )

{

Storyboard stb1
=  StoryboardHelper.JumpUpFrameworkElement(control  as  FrameworkElement, . 5 0 , (control  as  FrameworkElement).Height);



if  (stb1  !=   null )

{

stb1.Begin();

}



}



if  (EffectType  ==   " JumpLeftEffect " )

{

Storyboard stb1
=  StoryboardHelper.JumpLeftFrameworkElement(control  as  FrameworkElement, . 5 0 , (control  as  FrameworkElement).Height);



if  (stb1  !=   null )

{

stb1.Begin();

}



}



(control
as  FrameworkElement).Effect  =   null ;

}



public   static   void  LoadedEffect( object  control,  string  EffectType)

{



if  (EffectType  ==   " UnderLineEffect " )

{

(control
as  Control).BorderThickness  =   new  Thickness( 0 0 0 2 );

(control
as  Control).Effect  =   null ;

}



if  (EffectType  ==   " NoBorderLineEffect " )

{

(control
as  Control).BorderThickness  =   new  Thickness( 0 0 0 0 );

(control
as  Control).BorderBrush  = null ;

(control
as  Control).Effect  =   null ;

}



if  (EffectType  ==   " RotationX1Effect " )

{

PlaneProjection ppj
=   new  PlaneProjection();

ppj.RotationX
=   - 45 ;

ppj.CenterOfRotationY
=   0.1 ;

(control
as  Control).Projection  =  ppj;

}

if  (EffectType  ==   " RotationX2Effect " )

{

PlaneProjection ppj
=   new  PlaneProjection();

ppj.RotationX
=   45 ;

ppj.CenterOfRotationY
=   0.1 ;

(control
as  Control).Projection  =  ppj;

}

if  (EffectType  ==   " RotationY1Effect " )

{

PlaneProjection ppj
=   new  PlaneProjection();

ppj.RotationY
=   - 45 ;

ppj.CenterOfRotationX
=   0.1 ;

(control
as  Control).Projection  =  ppj;

}

if  (EffectType  ==   " RotationY2Effect " )

{

PlaneProjection ppj
=   new  PlaneProjection();

ppj.RotationY
=   45 ;

ppj.CenterOfRotationX
=   0.1 ;

(control
as  Control).Projection  =  ppj;

}

if  (EffectType  ==   " RotationZ1Effect " )

{

PlaneProjection ppj
=   new  PlaneProjection();

ppj.RotationZ
=   - 5 ;

(control
as  Control).Projection  =  ppj;

}

if  (EffectType  ==   " RotationZ2Effect " )

{

PlaneProjection ppj
=   new  PlaneProjection();

ppj.RotationZ
=   5 ;

(control
as  Control).Projection  =  ppj;

}

}







}





其中有StoryboardHelper帮助类,是辅助动画生成的类



代码如下:



public class StoryboardHelper

    {

        public static Storyboard ProjectiontAction(Control Control, Double duration, Double delay, double height)

        {

            // Create the animation

            DoubleAnimation AnimationUp = new DoubleAnimation();



            // Set the values that the animation starts and ends with



            AnimationUp.From = 30;



            AnimationUp.To = 0;



            // Set the time the animation is to begin

            AnimationUp.BeginTime = TimeSpan.FromSeconds(delay);



            // Set the duration of the animation

            AnimationUp.Duration = new Duration(TimeSpan.FromSeconds(duration));



            // Set the target of the animation

            Storyboard.SetTarget(AnimationUp, Control);



            // Set the property the animation is to affect

            Storyboard.SetTargetProperty(AnimationUp, new PropertyPath(Control.ProjectionProperty));



            // Create a new storyboard

            Storyboard stb = new Storyboard();



            // Add the animation to the storyboard

            stb.Children.Add(AnimationUp);



            // Set return variable to the new storyboard

            return stb;

        }


ExpandedBlockStart.gif View Code
public   static  Storyboard JumpUpFrameworkElement(FrameworkElement frameworkElement, Double duration, Double delay,  double  height)

{

//  Create the animation

DoubleAnimation AnimationUp
=   new  DoubleAnimation();



//  Set the values that the animation starts and ends with



AnimationUp.From
=   0 ;





AnimationUp.To
=  height;



if  (height  <   23 )

{

AnimationUp.To
=   23 ;

}



//  Set the time the animation is to begin

AnimationUp.BeginTime
=  TimeSpan.FromSeconds(delay);



//  Set the duration of the animation

AnimationUp.Duration
=   new  Duration(TimeSpan.FromSeconds(duration));



//  Set the target of the animation

Storyboard.SetTarget(AnimationUp, frameworkElement);



//  Set the property the animation is to affect

Storyboard.SetTargetProperty(AnimationUp,
new  PropertyPath(FrameworkElement.HeightProperty));



//  Create a new storyboard

Storyboard stb
=   new  Storyboard();



//  Add the animation to the storyboard

stb.Children.Add(AnimationUp);



//  Set return variable to the new storyboard

return  stb;

}



public   static  Storyboard JumpLeftFrameworkElement(FrameworkElement frameworkElement, Double duration, Double delay,  double  width)

{





//  Create the animation

DoubleAnimation AnimationUp
=   new  DoubleAnimation();



//  Set the values that the animation starts and ends with



AnimationUp.From
=   0 ;



AnimationUp.To
=  width;



if  (width  <   150 )

{

AnimationUp.To
=   150 ;

}



//  Set the time the animation is to begin

AnimationUp.BeginTime
=  TimeSpan.FromSeconds(delay);



//  Set the duration of the animation

AnimationUp.Duration
=   new  Duration(TimeSpan.FromSeconds(duration));



//  Set the target of the animation

Storyboard.SetTarget(AnimationUp, frameworkElement);



//  Set the property the animation is to affect

Storyboard.SetTargetProperty(AnimationUp,
new  PropertyPath(FrameworkElement.WidthProperty));



//  Create a new storyboard

Storyboard stb
=   new  Storyboard();



//  Add the animation to the storyboard

stb.Children.Add(AnimationUp);



//  Set return variable to the new storyboard

return  stb;

}













public   static  Storyboard ColorChange(Control control, Double duration, Double delay, Color from, Color to, string  property)

{



System.Windows.Media.Animation.ColorAnimation Animation
=   new  System.Windows.Media.Animation.ColorAnimation();

Animation.From
=  from;

Animation.To
=  to;





SolidColorBrush myAnimatedBrush
=   new  SolidColorBrush();

myAnimatedBrush.Color
=  from;



if  (property  ==   " Background " )

{

(control
as  Button).Background  =  myAnimatedBrush;

}

if  (property  ==   " Foreground " )

{

(control
as  Button).Foreground  =  myAnimatedBrush;

}



// page.RegisterName("MyAnimatedBrush", myAnimatedBrush);





Storyboard.SetTargetName(Animation,
" MyAnimatedBrush " );

//  Set the property the animation is to affect





Storyboard.SetTargetProperty(

Animation,
new  PropertyPath(SolidColorBrush.ColorProperty));



//  Set the time the animation is to begin

Animation.BeginTime
=  TimeSpan.FromSeconds(delay);



//  Set the duration of the animation

Animation.Duration
=   new  Duration(TimeSpan.FromSeconds(duration));



//  Set the target of the animation

Storyboard.SetTarget(Animation, control);



//  Create a new storyboard

Storyboard stb
=   new  Storyboard();



//  Add the animation to the storyboard

stb.Children.Add(Animation);



//  Set return variable to the new storyboard

return  stb;

}



public   static  Storyboard FadeInFrameworkElement(FrameworkElement frameworkElement, Double duration, Double delay)

{

//  Create the animation

DoubleAnimation Animation
=   new  DoubleAnimation();



//  Set the values that the animation starts and ends with

Animation.From
=   0.3 ;

Animation.To
=   1 ;



//  Set the time the animation is to begin

Animation.BeginTime
=  TimeSpan.FromSeconds(delay);



//  Set the duration of the animation

Animation.Duration
=   new  Duration(TimeSpan.FromSeconds(duration));



//  Set the target of the animation

Storyboard.SetTarget(Animation, frameworkElement);



//  Set the property the animation is to affect

Storyboard.SetTargetProperty(Animation,
new  PropertyPath(FrameworkElement.OpacityProperty));



//  Create a new storyboard

Storyboard stb
=   new  Storyboard();



//  Add the animation to the storyboard

stb.Children.Add(Animation);



//  Set return variable to the new storyboard

return  stb;

}



public   static  Storyboard FadeOutFrameworkElement(FrameworkElement frameworkElement, Double duration, Double delay)

{

//  Create the animation

DoubleAnimation FadeOutAnimation
=   new  DoubleAnimation();



//  Set the values that the animation starts and ends with

FadeOutAnimation.From
=   1 ;

FadeOutAnimation.To
=   0.3 ;



//  Set the time the animation is to begin

FadeOutAnimation.BeginTime
=  TimeSpan.FromSeconds(delay);



//  Set the duration of the animation

FadeOutAnimation.Duration
=   new  Duration(TimeSpan.FromSeconds(duration));



//  Set the target of the animation

Storyboard.SetTarget(FadeOutAnimation, frameworkElement);



//  Set the property the animation is to affect

Storyboard.SetTargetProperty(FadeOutAnimation,
new  PropertyPath(FrameworkElement.OpacityProperty));



//  Create a new storyboard

Storyboard FadeInTBSB
=   new  Storyboard();



//  Add the animation to the storyboard

FadeInTBSB.Children.Add(FadeOutAnimation);



//  Set return variable to the new storyboard

return  FadeInTBSB;

}

    }





然后,定义扩展的控件,比如EffectButton,是从Button继承的

比如要在鼠标进入时增加效果。

我们可以这样写:



        void Effect_MouseEnter(object sender, MouseEventArgs e)

        {

            EffectControlHelper.EffectMouseEnter(sender, EffectType, EffectRadius);

        }

使用帮助



首先要在页面中加入引用:

例如:

xmlns:efcs="clr-namespace:EffectControls;assembly=EffectControlsLibrary"



DropShadowEffect

用于控件阴影的显示

使用方法:

1

                <efcs:EffectButton EffectType="DropShadowEffect"

                         Content="DropShadowEffect" >

                </efcs:EffectButton>



2

                <efcs:EffectTextBox EffectType="DropShadowEffect" EffectColor="Red" EffectRadius="10" EffectDirection="30" EffectOpacity="0.6" EffectShadowDepth="5"

                         Text="CustomDropShadow" Height="23" HorizontalAlignment="Left" Margin="10,10,0,0"  VerticalAlignment="Top" Width="125" >

                </efcs:EffectTextBox>











效果

正常状态:

http://images.cnblogs.com/cnblogs_com/FreeForm/305772/r_image002.jpg



BlurEffect

使用方法:

1

                <efcs:EffectCheckBox EffectType="BlurEffect" EffectRadius="2"

                         Content="BlurEffect" >

                </efcs:EffectCheckBox>





2

<efcs:EffectLabel EffectType="BlurEffect" EffectRadius="2"

                         Content="BlurEffect" >

                </efcs:EffectLabel>



效果:

正常状态:

http://images.cnblogs.com/cnblogs_com/FreeForm/305772/r_image003.jpg

鼠标经过:



其他效果也是类似的,请看帮助文档。



源代码下载:

Open Source Web Address:
http://www.CrmWin.com
评论
添加红包

请填写红包祝福语或标题

红包个数最小为10个

红包金额最低5元

当前余额3.43前往充值 >
需支付:10.00
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明:

1.余额是钱包充值的虚拟货币,按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载,可以购买VIP、付费专栏及课程。

余额充值
