Maven学习(九）Maven项目SpringCloud微服务工程构建（基于单一案例的逻辑）

源代码地址：https://gitee.com/hs-sunrui/maven_study_micro.git

一、创建工程

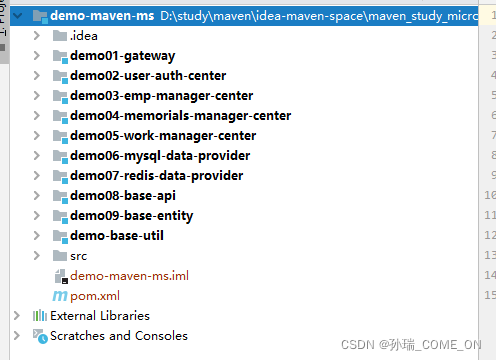

1.创建工程

工程名	地位	说明
demo-maven-ms	父工程	总体管理各个子工程
demo01-gateway	子工程	网关
demo02-user-auth-center	子工程	用户中心
demo03-emp-manager-center	子工程	员工数据维护中心
demo04-memorials-manager-center	子工程	奏折数据维护中心
demo05-work-manager-center	子工程	批阅奏折工作中心
demo06-mysql-data-provider	子工程	mysql数据提供者
demo07-redis-data-provider	子工程	Redis数据提供者
demo08-base-api	子工程	声明feign接口
demo09-base-entity	子工程	实体类
demo-base-util	子工程	工具类

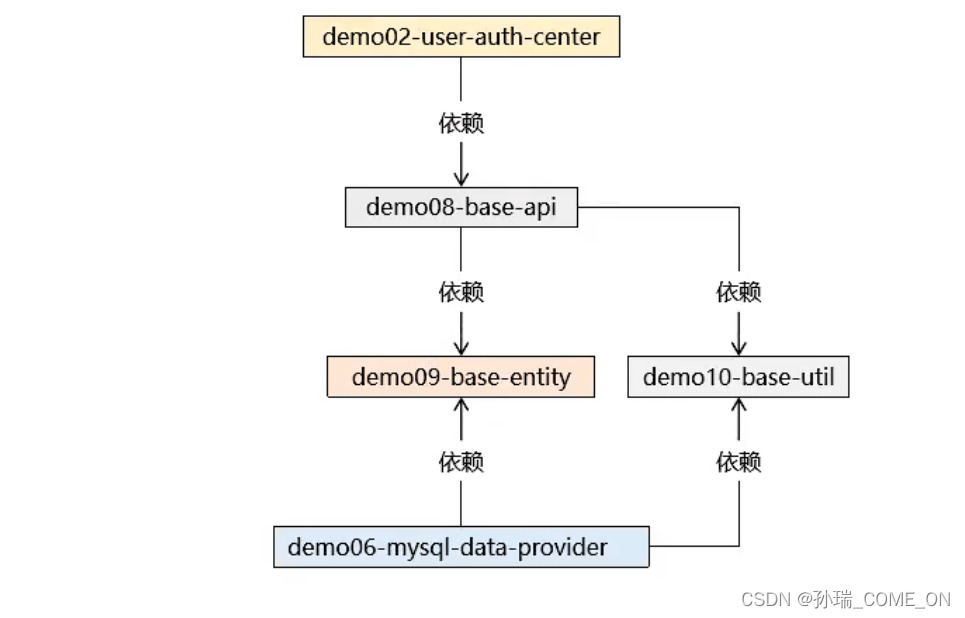

2.建立工程间依赖关系

二、父工程管理依赖

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>com.sr.maven</groupId>
    <artifactId>demo-maven-ms</artifactId>
    <packaging>pom</packaging>
    <version>1.0-SNAPSHOT</version>
    <modules>
        <module>demo01-gateway</module>
        <module>demo02-user-auth-center</module>
        <module>demo03-emp-manager-center</module>
        <module>demo04-memorials-manager-center</module>
        <module>demo05-work-manager-center</module>
        <module>demo06-mysql-data-provider</module>
        <module>demo07-redis-data-provider</module>
        <module>demo08-base-api</module>
        <module>demo09-base-entity</module>
        <module>demo-base-util</module>
    </modules>

    <dependencyManagement>
        <dependencies>
            <!--springcloud依赖导入-->
            <!-- https://mvnrepository.com/artifact/org.springframework.cloud/spring-cloud-dependencies -->
            <dependency>
                <groupId>org.springframework.cloud</groupId>
                <artifactId>spring-cloud-dependencies</artifactId>
                <version>Hoxton.SR9</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>

            <!--springcloud Alibab依赖导入-->
            <!-- https://mvnrepository.com/artifact/org.springframework.cloud/spring-cloud-dependencies -->
            <dependency>
                <groupId>com.alibaba.cloud</groupId>
                <artifactId>spring-cloud-alibaba-dependencies</artifactId>
                <version>2.2.6.RELEASE</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
            <!--springboot依赖-->
            <dependency>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-dependencies</artifactId>
                <version>2.3.6.RELEASE</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>

            <!--通用mapper依赖-->
            <!-- https://mvnrepository.com/artifact/tk.mybatis/mapper-spring-boot-starter -->
            <dependency>
                <groupId>tk.mybatis</groupId>
                <artifactId>mapper-spring-boot-starter</artifactId>
                <version>2.1.5</version>
            </dependency>
            <!--druid数据源-->
            <!-- https://mvnrepository.com/artifact/com.alibaba/druid-spring-boot-starter -->
            <dependency>
                <groupId>com.alibaba</groupId>
                <artifactId>druid-spring-boot-starter</artifactId>
                <version>1.1.10</version>
            </dependency>
            <!--JPA依赖-->
            <!-- https://mvnrepository.com/artifact/javax.persistence/persistence-api -->
            <dependency>
                <groupId>javax.persistence</groupId>
                <artifactId>persistence-api</artifactId>
                <version>1.0</version>
            </dependency>


        </dependencies>
    </dependencyManagement>
</project>

三、打基础

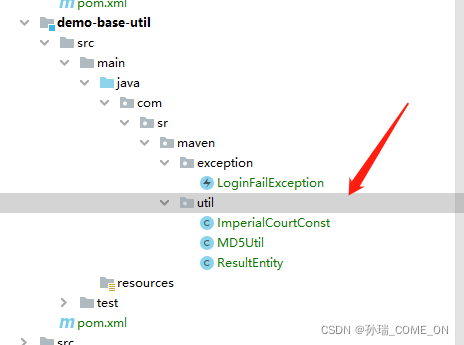

1.demo10-base-util

把前面工程的工具类和异常类拷贝过来

package com.sr.maven.exception;

public class LoginFailException extends RuntimeException{


    public LoginFailException() {

        super();
    }

    public LoginFailException(String message) {

        super(message);
    }

    public LoginFailException(String message, Throwable cause) {

        super(message, cause);
    }

    public LoginFailException(Throwable cause) {

        super(cause);
    }

    protected LoginFailException(String message, Throwable cause, boolean enableSuppression, boolean writableStackTrace) {

        super(message, cause, enableSuppression, writableStackTrace);
    }
}

package com.sr.maven.util;

public class ImperialCourtConst {


    public  static final String LOGIN_FAIL_MESSAGE = "帐号、密码错误，不可进宫！";

    public static final String ACCESS_DENIED_MESSAGE = "宫闱禁地，不可擅入！";

    public static final String LOGIN_EMP_ATTR_NAME = "loginInfo";
}
