tensorflow训练经典的LeNet5模型

两层卷积,两层池化,两层全联接:

import tensorflow as tf
import numpy as np
from tensorflow.examples.tutorials.mnist import input_data
batch_size = 100
learning_rate = 0.01
learning_rate_decay = 0.99
max_steps = 30000
def hidden_layer(input_tensor,regularizer,avg_class,resuse):
    with tf.variable_scope("C1-conv",reuse=resuse):
        conv1_weights = tf.get_variable("weight", [5, 5, 1, 32],
                        initializer=tf.truncated_normal_initializer(stddev=0.1))
        conv1_biases = tf.get_variable("bias", [32], initializer=tf.constant_initializer(0.0))
        conv1 = tf.nn.conv2d(input_tensor, conv1_weights, strides=[1, 1, 1, 1], padding="SAME")
        relu1 = tf.nn.relu(tf.nn.bias_add(conv1, conv1_biases))
    with tf.name_scope("S2-max_pool",):
        pool1 = tf.nn.max_pool(relu1, ksize=[1, 2, 2, 1], strides=[1, 2, 2, 1], padding="SAME")
    with tf.variable_scope("C3-conv",reuse=resuse):
        conv2_weights = tf.get_variable("weight", [5, 5, 32, 64],
                                     initializer=tf.truncated_normal_initializer(stddev=0.1))
        conv2_biases = tf.get_variable("bias", [64], initializer=tf.constant_initializer(0.0))
        conv2 = tf.nn.conv2d(pool1, conv2_weights, strides=[1, 1, 1, 1], padding="SAME")
        relu2 = tf.nn.relu(tf.nn.bias_add(conv2, conv2_biases))
    with tf.name_scope("S4-max_pool",):
        pool2 = tf.nn.max_pool(relu2, ksize=[1, 2, 2, 1], strides=[1, 2, 2, 1], padding="SAME")
        shape = pool2.get_shape().as_list()
        nodes = shape[1] * shape[2] * shape[3]
        reshaped = tf.reshape(pool2, [shape[0], nodes])
    with tf.variable_scope("layer5-full1",reuse=resuse):
        Full_connection1_weights = tf.get_variable("weight", [nodes, 512],
                                      initializer=tf.truncated_normal_initializer(stddev=0.1))
        tf.add_to_collection("losses", regularizer(Full_connection1_weights))
        Full_connection1_biases = tf.get_variable("bias", [512],
                                                     initializer=tf.constant_initializer(0.1))
        if avg_class ==None:
            Full_1 = tf.nn.relu(tf.matmul(reshaped, Full_connection1_weights) + \
                                                                   Full_connection1_biases)
        else:
            Full_1 = tf.nn.relu(tf.matmul(reshaped, avg_class.average(Full_connection1_weights))
                                                   + avg_class.average(Full_connection1_biases))
    with tf.variable_scope("layer6-full2",reuse=resuse):
        Full_connection2_weights = tf.get_variable("weight", [512, 10],
                                      initializer=tf.truncated_normal_initializer(stddev=0.1))
        tf.add_to_collection("losses", regularizer(Full_connection2_weights))
        Full_connection2_biases = tf.get_variable("bias", [10],
                                                   initializer=tf.constant_initializer(0.1))
        if avg_class == None:
            result = tf.matmul(Full_1, Full_connection2_weights) + Full_connection2_biases
        else:
            result = tf.matmul(Full_1, avg_class.average(Full_connection2_weights)) + \
                                                  avg_class.average(Full_connection2_biases)
        return result
x = tf.placeholder(tf.float32, [batch_size ,28,28,1],name="x-input")
y_ = tf.placeholder(tf.float32, [None, 10], name="y-input")
regularizer = tf.contrib.layers.l2_regularizer(0.0001)
y = hidden_layer(x,regularizer,avg_class=None,resuse=False)
training_step = tf.Variable(0, trainable=False)
variable_averages = tf.train.ExponentialMovingAverage(0.99, training_step)
variables_averages_op = variable_averages.apply(tf.trainable_variables())
average_y = hidden_layer(x,regularizer,variable_averages,resuse=True)
cross_entropy = tf.nn.sparse_softmax_cross_entropy_with_logits(logits=y, labels=tf.argmax(y_, 1))
cross_entropy_mean = tf.reduce_mean(cross_entropy)
loss = cross_entropy_mean + tf.add_n(tf.get_collection('losses'))
learning_rate = tf.train.exponential_decay(learning_rate,training_step, mnist.train.num_examples /batch_size ,learning_rate_decay, staircase=True)
train_step = tf.train.GradientDescentOptimizer(learning_rate). \minimize(loss, global_step=training_step)
train_step = tf.train.GradientDescentOptimizer(learning_rate). \ minimize(loss, global_step=training_step)
train_step = tf.train.GradientDescentOptimizer(learning_rate). \
    minimize(loss, global_step=training_step)
with tf.control_dependencies([train_step, variables_averages_op]):
    train_op = tf.no_op(name='train')
crorent_predicition = tf.equal(tf.arg_max(average_y,1),tf.argmax(y_,1))
accuracy = tf.reduce_mean(tf.cast(crorent_predicition,tf.float32))
with tf.Session() as sess:
    tf.global_variables_initializer().run()
    for i in range(max_steps):
        if i %1000==0:
            x_val, y_val = mnist.validation.next_batch(batch_size)
            reshaped_x2 = np.reshape(x_val, (batch_size,28,28, 1))
            validate_feed = {x: reshaped_x2, y_: y_val}
            validate_accuracy = sess.run(accuracy, feed_dict=validate_feed)
            print("After %d trainging step(s) ,validation accuracy"
                  "using average model is %g%%" % (i, validate_accuracy * 100))
        x_train, y_train = mnist.train.next_batch(batch_size)
        reshaped_xs = np.reshape(x_train, (batch_size ,28,28,1))
        sess.run(train_op, feed_dict={x: reshaped_xs, y_: y_train})

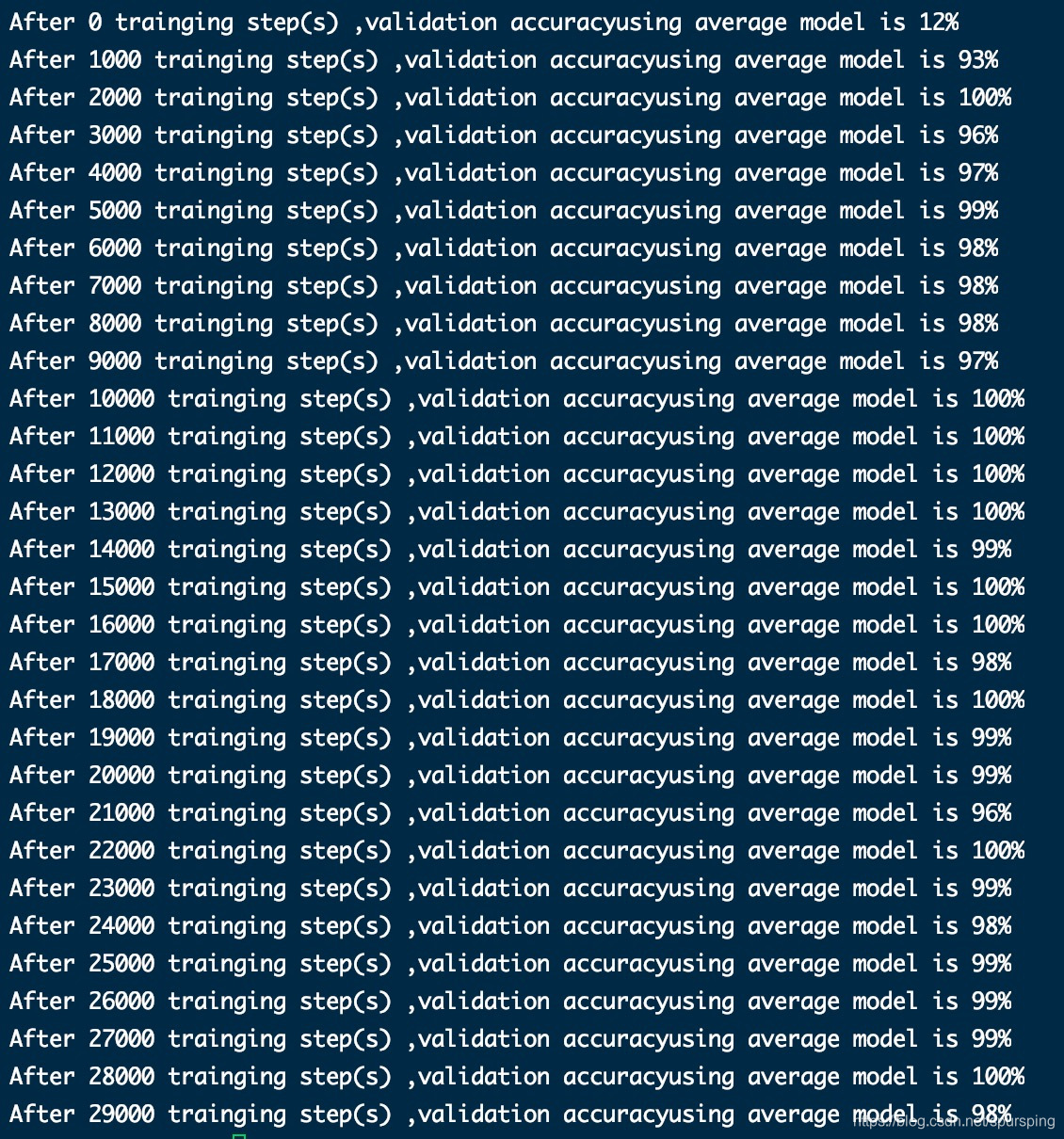

训练结果:
