GraphQL

介绍

• GraphQL是Facebook开发的一种数据查询语言，并于2015年公开发布，它是REST API的替代品
• GraphQL既是一种用于API的查询语言也是一个满足数据查询运行时，GraphQL对API中的数据提供了一套易于理解的完整描述，使得客户端能够准确地获得它需要的数据，而且没有任何冗余，更容易随着时间推移而演进
• 官网 - https://graphql.org/

特点

1. 请求需要的数据，不少不多
2. 获取多个资源，只用一个请求
3. 描述所有可能类型的系统，便于维护，根据需求平滑演进，添加或者隐藏字段

GraphQL与restful对比

• restful一个接口只能返回一个资源，graphql一次可以获取多个资源
• restful用不同的url来区分资源，graphql用类型区分资源

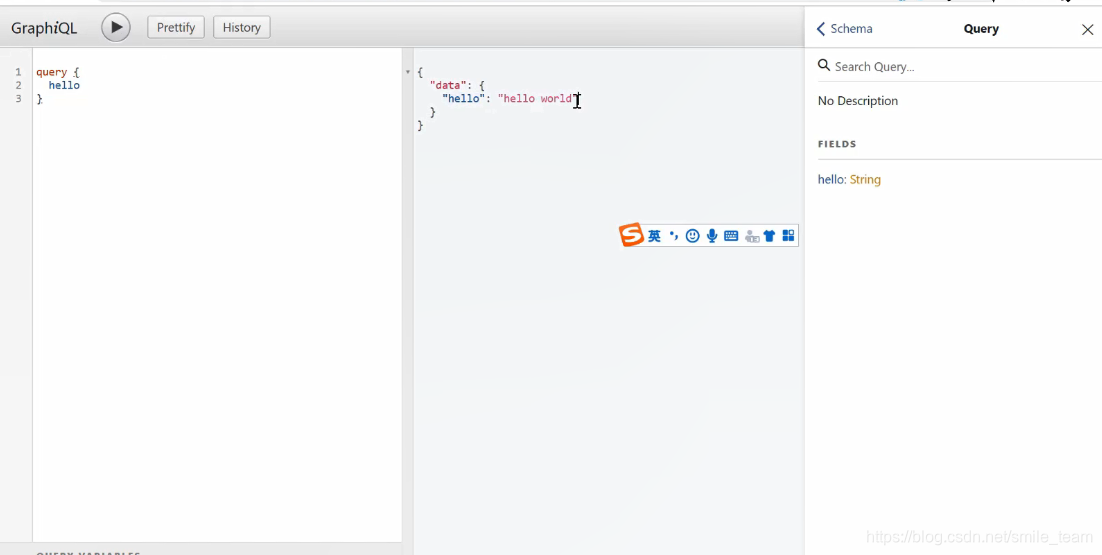

GraphQL的基本使用

const express = require('express')
const { buildSchema } = require('graphql')
const {graphqlHTTP} = require('express-graphql')

//定义schema，查询
const schema = buildSchema(`
    type Query {
        hello:String
    }
`)

const root = {
    hello:() => {
        return 'hello world'
    }
}

const app = express()

app.use('/graphql',graphqlHTTP({
    schema:schema,
    rootValue:root,
    graphiql:true
}))


app.listen(3000)

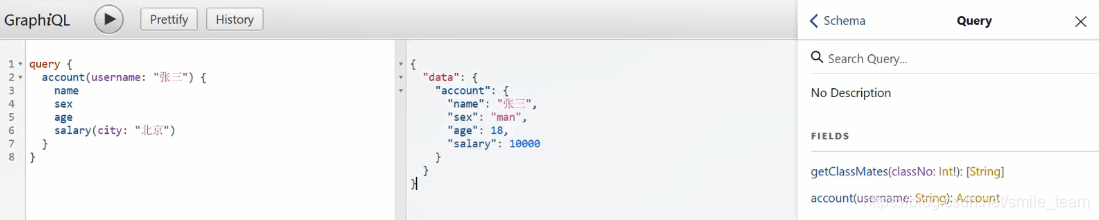

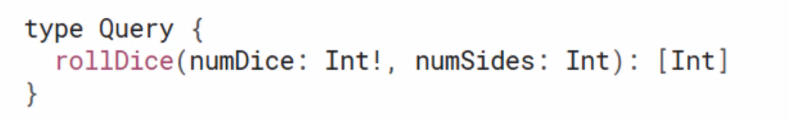

参数类型和参数传递

• 和js传递参数一样，小括号内定义形参，但是注意：参数需要定义类型
• ！（叹号）表示参数不能为空

const express = require('express')
const { buildSchema } = require('graphql')
const {graphqlHTTP} = require('express-graphql')

//定义schema，查询和类型
const schema = buildSchema(`
    type Account{
        name:String
        age:Int
        sex:String
        department:String
        salary(city:String):Int
    }
    type Query {
        getClassMates(classNa:Int!):[String]
        account(username:String):Account
    }
`)

//定义查询对应的处理器
const root = {
    getClassMates({classNa}){
        const obj = {
            31:['111','222','3333'],
            61:['4444','5555','6666']
        }
        return obj[classNa]
    },
    account({username}){
        const name = username
        const sex = 'man'
        const age = 18
        const department = '开发部'
        const salary = ({city}) => {
            if(city === '111' || city === '222' || city === '3333'){
                return 10000
            }
            return 3000
        }
        return{
            name,sex,age,department,salary
        }
    }
}

const app = express()

app.use('/graphql',graphqlHTTP ({
    schema:schema,
    rootValue:root,
    graphiql:true
}))


app.listen(3000)

#### clients

hellow-world.js

const express = require('express')
const { buildSchema } = require('graphql')
const {graphqlHTTP} = require('express-graphql')

//定义schema，查询和类型
const schema = buildSchema(`
    type Account{
        name:String
        age:Int
        sex:String
        department:String
        salary(city:String):Int
    }
    type Query {
        getClassMates(classNa:Int!):[String]
        account(username:String):Account
    }
`)

//定义查询对应的处理器
const root = {
    getClassMates({classNa}){
        const obj = {
            31:['111','222','3333'],
            61:['4444','5555','6666']
        }
        return obj[classNa]
    },
    account({username}){
        const name = username
        const sex = 'man'
        const age = 18
        const department = '开发部'
        const salary = ({city}) => {
            if(city === '111' || city === '222' || city === '3333'){
                return 10000
            }
            return 3000
        }
        return{
            name,sex,age,department,salary
        }
    }
}

const app = express()

app.use('/graphql',graphqlHTTP ({
    schema:schema,
    rootValue:root,
    graphiql:true
}))

app.use(express.static('public'))

app.listen(3000)

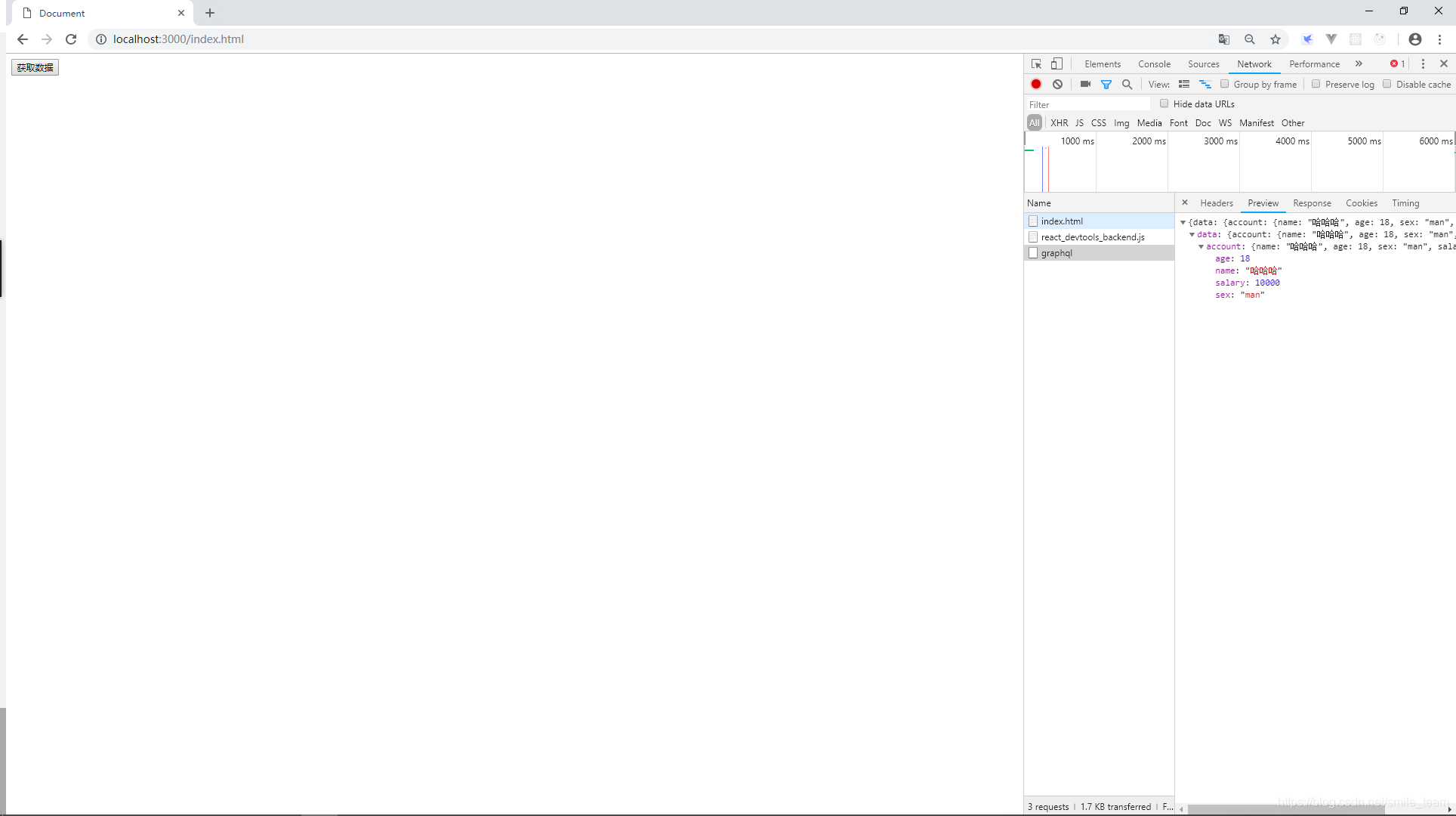

index.html

    <button onclick="getData()">获取数据</button>
    <script>
        function getData(){
            const query = `
            query Account($username:String){
                account(username:$username){
                    name
                    age
                    sex
                    salary(city:"111")
                }
            }
            `

            const variables = {username:'哈哈哈'}

            fetch('/graphql',{
                method:"post",
                headers:{
                    'Content-Type':'application/json',
                    'Accept':'application/json'
                },
                body:JSON.stringify({
                    query:query,
                    variables:variables
                })
            }),then(json => res.json).then(json => {
                console.log(data);
            })
        }
    </script>

使用Mutation修改数据

• 查询用query，修改用Mutation

const express = require('express')
const {buildSchema, isInputObjectType} = require('graphql')
const {graphqlHTTP} = require('express-graphql')

//定义schema,查询和类型，mutation
const schema = buildSchema(`
    input AccountInput {
        name:String
        age:Int
        sex:String
        department:String
    }
    type Account{
        name:String
        age:Int
        sex:String
        department:String
    }
    type Mutation{
        createAccount(input:AccountInput):Account
        updateAccount(id:ID!,input:AccountInput):Account
    }
    type Query{
        accounts:[Account]
    }
`)

const fakeDb = {}

//定义查询对应的处理器
const root = {
    accounts(){
        var arr = []
        for(const key in fakeDb){
            arr.push(fakeDb[key])
        }
        return arr
    },
    createAccount({input}){
        //相当于数据库的存储
        fakeDb[input.name] = input
        //返回保存的结果
        return fakeDb[input.name]
    },
    updateAccount({id,input}){
        //相当于覆盖
        const updateAccount = Object.assign({},fakeDb[id],input)
        fakeDb[id] = updateAccount
        //返回修改结果
        return updateAccount
    }
}

const app = express()

app.use('/graphql',graphqlHTTP({
    schema:schema,
    rootValue:root,
    graphiql:true
}))

app.listen(3000)

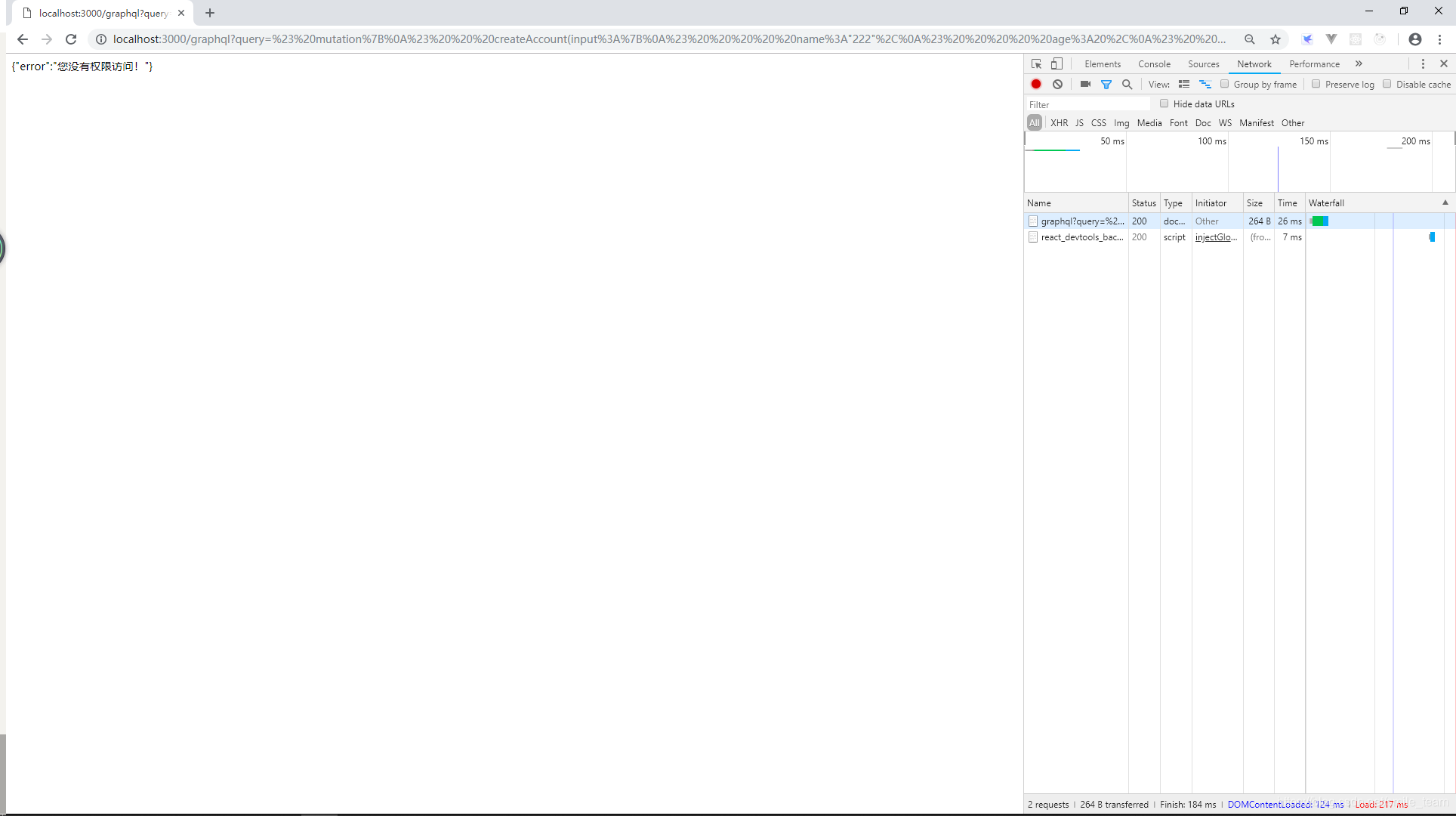

认证与中间件

//认证
const middlaware = (req,res,next) => {
    if(req.url.indexOf('/graphql') !== -1 && req.headers.cookie.indexOf('auth')  === -1 ){
        res.send(JSON.stringify({
            error:"您没有权限访问！"
        }))
        return
    }
    next()
}
app.use(middlaware)

Constructing Type

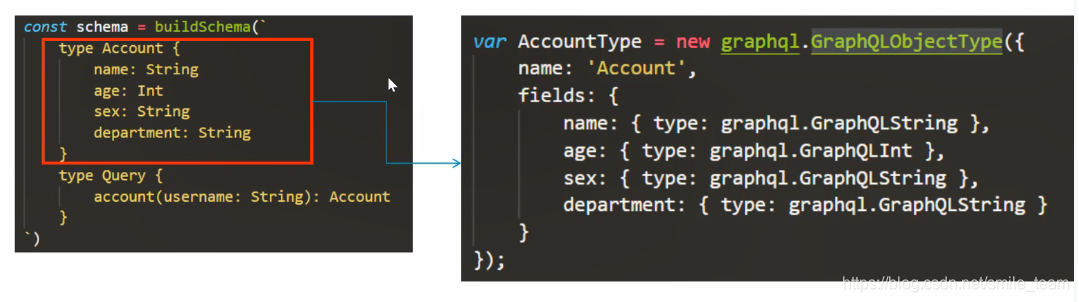

1. 使用GraphQLObjectType定义type（类型）

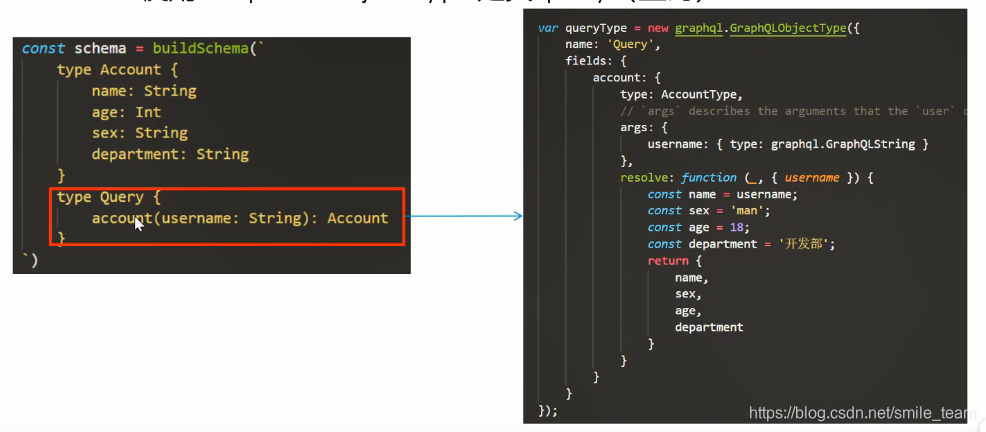

2. 使用GraphALObjectType定义query（查询）

查询）

[外链图片转存中…(img-t6bIR0hO-1607994356170)]

与数据库连接

`
