go orm框架 支持分库分表查询

支持能力

ORM框架支持基于Builder模式构建SQL查询,利用reflect与unsafe技术处理结果集,同时具备元数据维护、中间件集成、链式调用、事务管理和分库分表查询能力

sql builder

.
|____common
| |____sentence_builder.go // 公共Builder 存放Core和strings.Builder
|____executor
| |____inserter
| | |____inserter.go
| | |____updater.go // insert冲突部分处理 on duplicate key update
|____querior
| |____selector
| | |____order_by
| | |____selector.go
| |____sharding_selector // 分库分表selector
|____raw_query // 万金油 支持传入原始SQL
|____types.go

executer

onduplicateKey
type OnDuplicateKeyBuilder[T any] struct {
	i	*Inserter[T]
	conflictColumns []predicate.Column
}
func (o *OnDuplicateKeyBuilder[T]) Update(assigns ...predicate.Assignable) *Inserter[T] {
	o.i.OnDuplicateKey = &dialect.OnDuplicateKey{
		Assigns:         assigns,
		ConflictColumns: o.conflictColumns,
	}
	return o.i
}
哇塞用法

insertor => duplicateBuilder => insertor

NewInserter[data.User](db).GetOnDuplicateKeyBuilder().Update(predicate.Assign("Email", "更新重复1357"))

predicate

.
|____aggregate.go // 聚合函数,如SUM、AVG
|____assignment.go // 赋值语句 用于on duplicate key update [assignment]
|____column.go // 列
|____join.go // join语句
|____predicate.go // predicate语句,用在select * from tableNane where []predicate
|____raw_expr.go // 原始sql
|____subQuery.go // 子查询语句
|____table.go // select * from tableReference(包括:table、join、subQuery)
|____valuer.go // 值 column = [valuer]

Expression

// Expression 标记 表示 语句 或 语句的部分
type Expression interface {
	expr()
}

var _ Expression = Column{}
var _ Expression = Aggregate{}
var _ Expression = RawExpr{}
var _ Expression = Predicate{}
var _ Expression = Valuer{}

Selectable

// Selectable selector中通过.Select(select selectable)使用
// Selectable 标记 canSelect 列、聚合函数、子查询、表达式(是 Expression)
// Selectable 的部分都可以设置别名alias
type Selectable interface {
	selectable()
}

db

dialect

type Dialect interface {
	Quoter() string
	BuildOnDuplicateKey(OnDuplicateKey *OnDuplicateKey) (*OnDuplicateKeyStatement, error)
}
var _ Dialect = &StandardSQL{}
var _ Dialect = &MysqlSQL{}
standardSql

quoter -> 双引号

duplicateKey语句: on conflict columnName do update set col1=exclued.col1

mysqlSql

quoter -> `

duplicateKey语句:on duplicate key update col1=values(col1)

onduplicatekey
type OnDuplicateKey struct {
	Assigns         []predicate.Assignable // 支持两种形式 col=values(col)、col=具体值
	ConflictColumns []predicate.Column // 冲突列 standardSql 语句构造使用
}

session(上下文)

// Session 是 db、tx的顶层抽象
type Session interface {
  GetCore() Core
  ExecContext(ctx context.Context, query string, args ...any) *sql2.QueryResult
  QueryContext(ctx context.Context, query string, args ...any) (*sql.Rows, error)
}

var _ Session = &DB{}
var _ Session = &Tx{}
db

支持doTx(闭包事务)、beginTx

sharding_db

支持主从数据库

model

  • 维护数据结构(如User)和数据库中相应表、字段的关系

  • register(注册中心)

    • 维护models,支持注册model、缓存model、get model
  • 维护分库分表键和规则

valuer

type Value interface {
	// SetColumns 反射设置值;selector中将db返回结果通过row.Scan塞进&user{}中
	SetColumns(rows *sql.Rows, quote string) error
	// Field 反射获取值;inserter中遍历&user{Name: "zly", Birthdate: "1999-06-06"}获取每个字段及其值生成相应的sql语句
	Field(colName string) (any, error)
}

// Creator 支持unsafe、reflect两种方式,unsafe性能更好,默认使用unsafe
type Creator func(val any, model *model.Model) (Value, error)

type Values interface {
	// SetValues 反射设置多值
	SetValues(rows *sql.Rows) error
}

aop

支持数据观测、统计

type Handler func(ctx context.Context, qc *orm.QueryContext) *orm.QueryResult

type Middleware func(next Handler) Handler

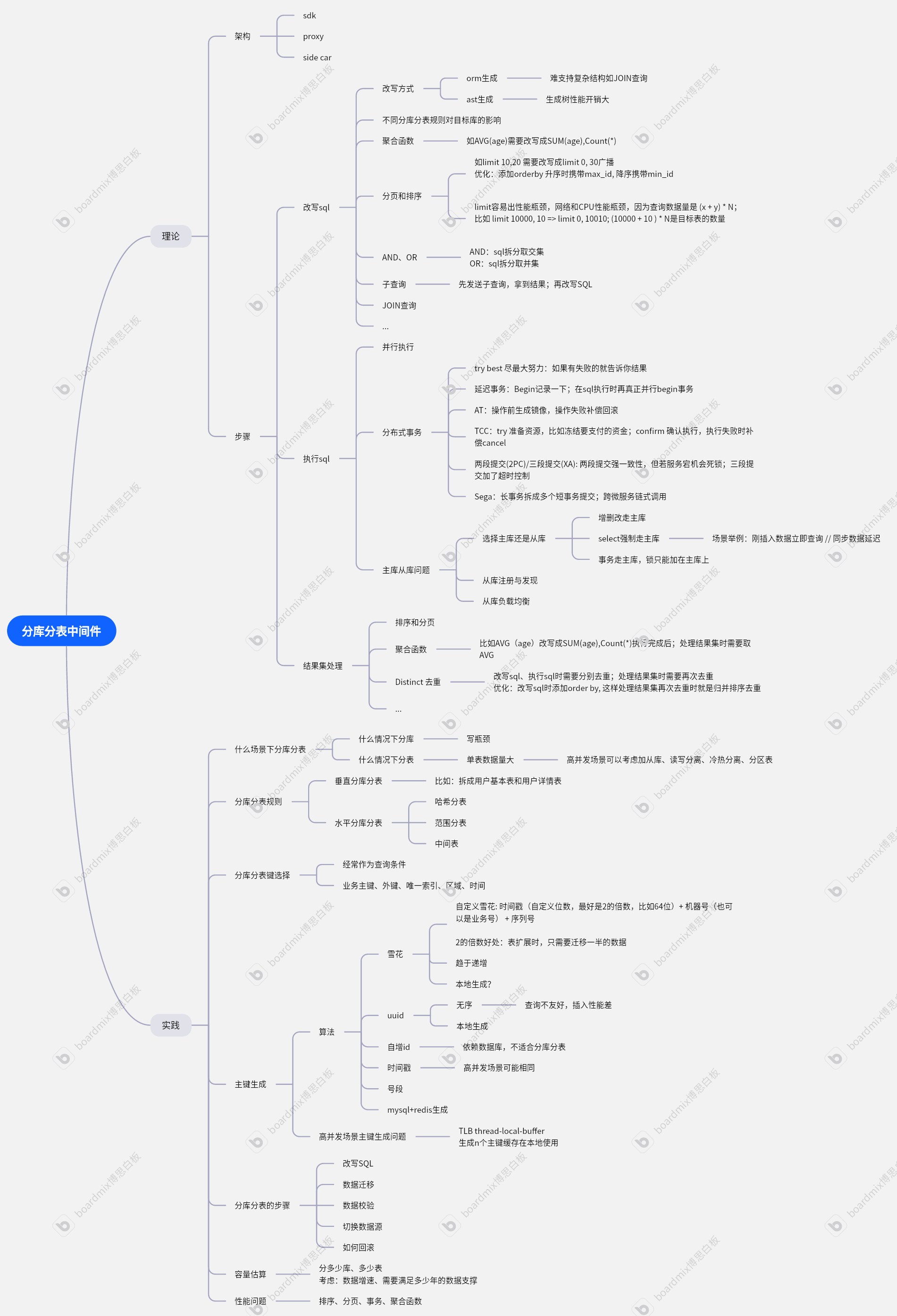

分库分表中间件设计思路梳理

在这里插入图片描述

源码

gitee: https://gitee.com/go_web_1/server/tree/master/framework/orm

测试

普通orm

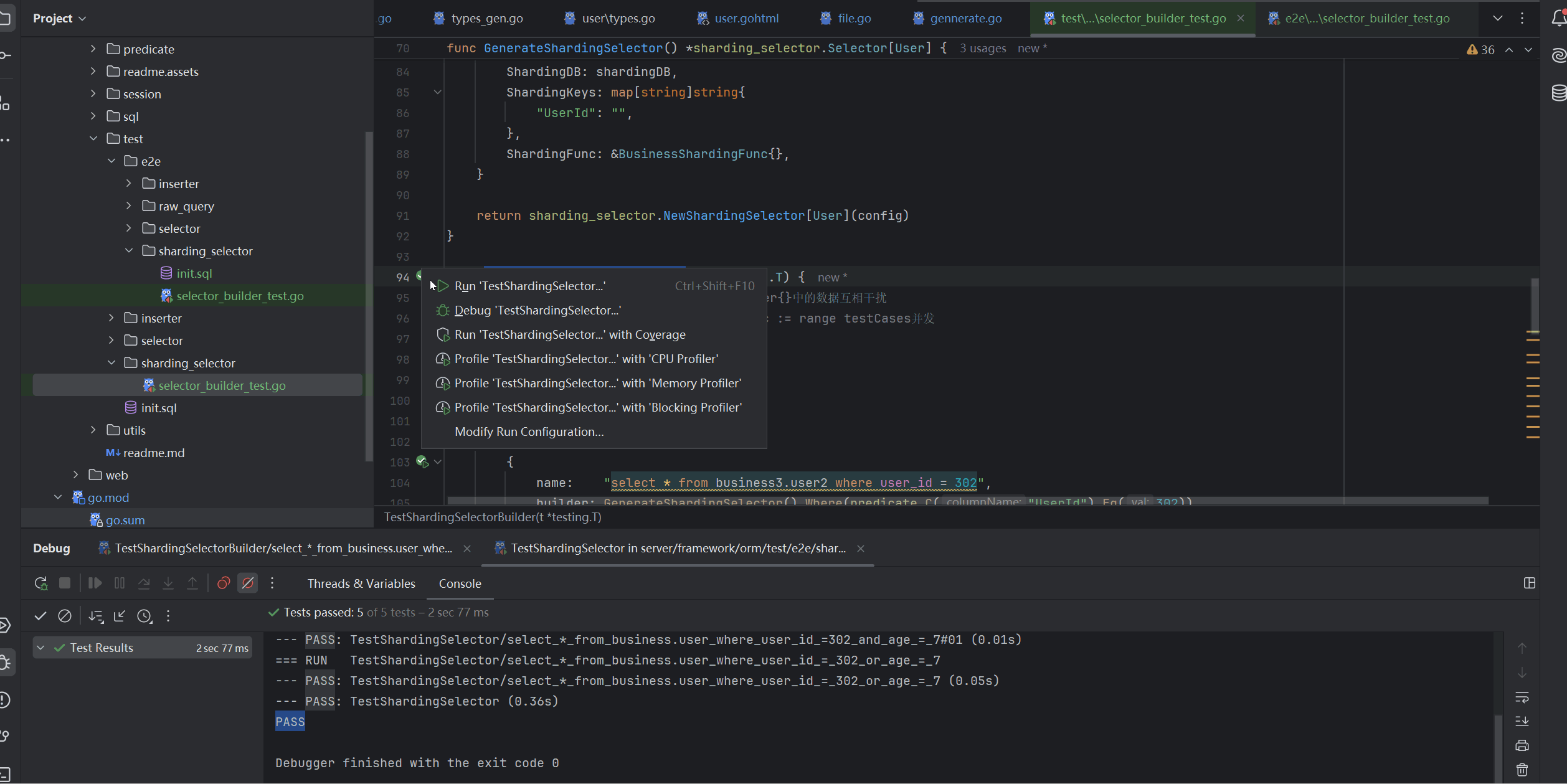

单元测试

在这里插入图片描述

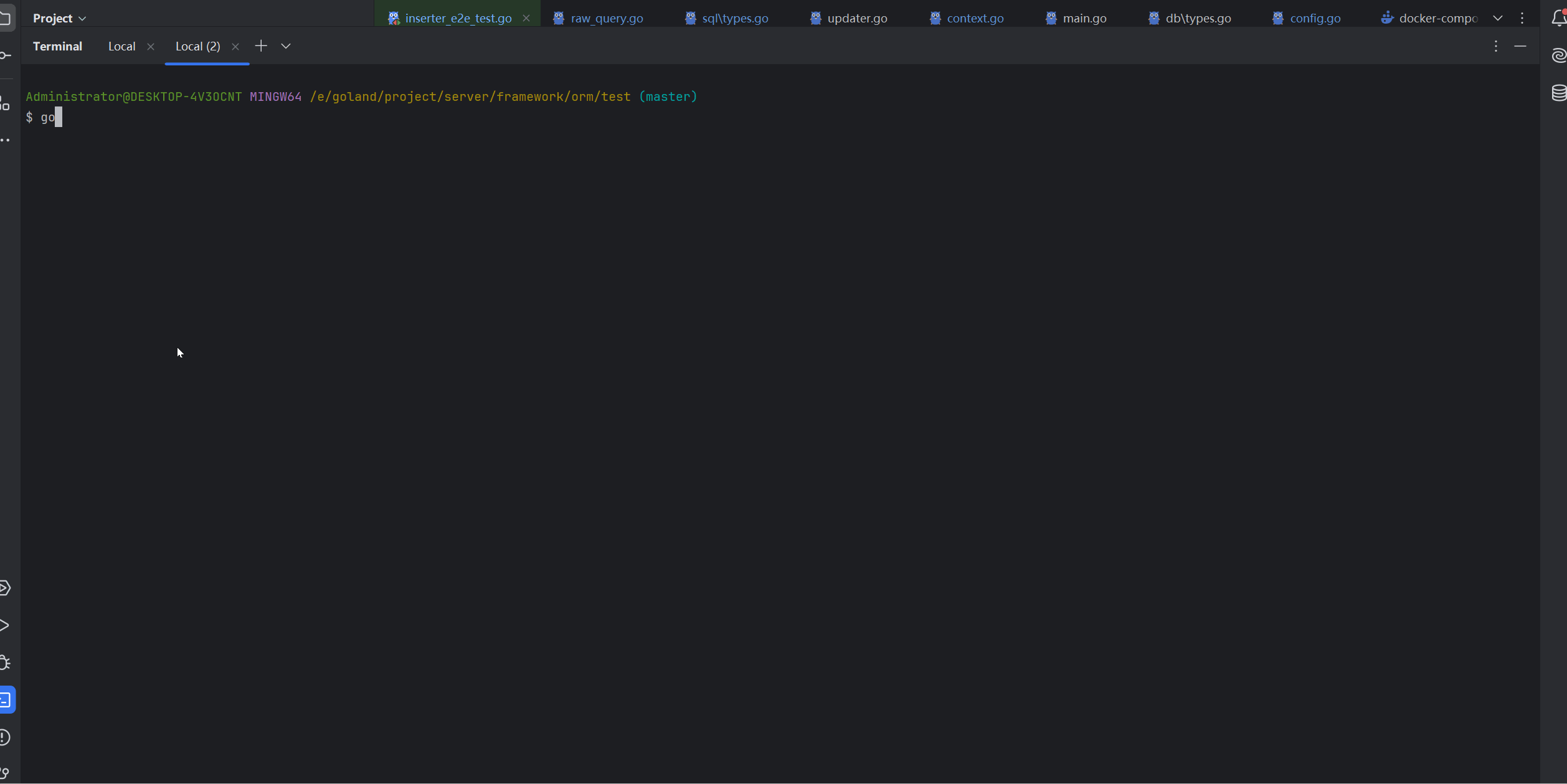

e2e测试

在这里插入图片描述

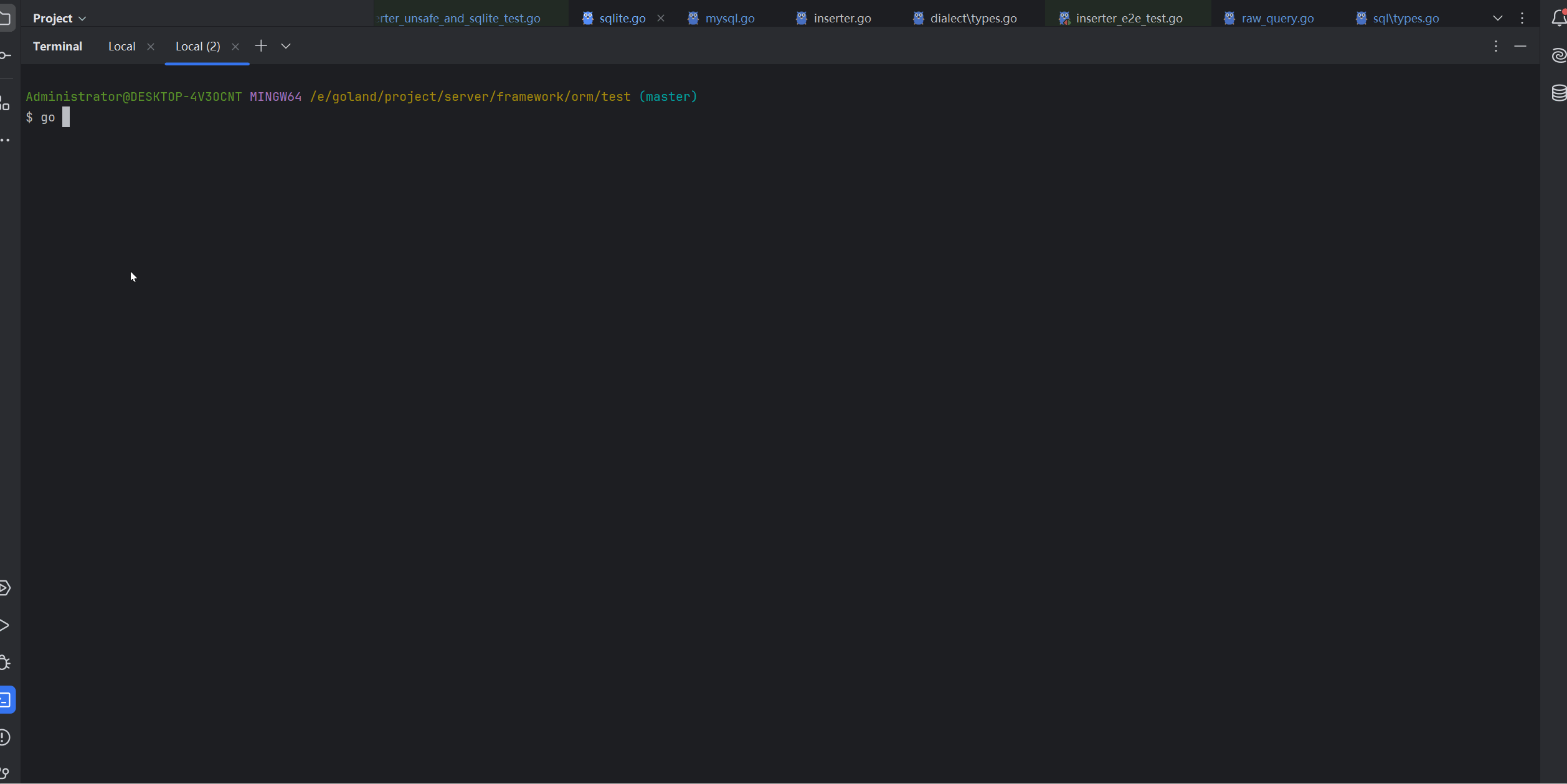

分库分表orm

在这里插入图片描述

相关资料

没有tree命令生成目录树

find . -type d \( -name 'readme.assets' -o -name 'test' \) -prune -o -print | sed -e 's;[^/]*/;|____;g' -e 's;____|; |;g'

AST生成常用ORM语句

go 代码生成技术
