hadoop-3.2.1从零到一分布式环境搭建（一）

前言
时隔多年，终于回来学hadoop了，曾经买的《hadoop权威指南》都不权威了，
本文是根据hadoop官方文档部署，讲解的从虚拟机配置到hadoop集群的基础部署，
如有错误，劳烦指出
官网地址http://hadoop.apache.org/docs/r3.2.1/hadoop-project-dist/hadoop-common/ClusterSetup.html

环境

hadoop-3.2.1.tar.gz
Jdk1.8.0_181 - jdk-8u181-linux-x64.tar.gz
虚拟机Centos7

• 192.168.1.10 ip10.hadoop.com
• 192.168.1.11 ip11.hadoop.com
• 192.168.1.12 ip12.hadoop.com
• 192.168.1.13 ip13.hadoop.com

安装部署第一台虚拟机 - ip10.hadoop.com

新建一台虚拟机，操作该虚拟机

• 配置该虚拟机为192.168.1.10 ip10.hadoop.com
• 网络配置见:[Linux虚拟机-桥接网络-可视化简单配置](https://blog.youkuaiyun.com/sinat_25528181/article/details/106327434)
• 配置hostname

ip10.hadoop.com

• 配置/etc/hosts

192.168.1.10 ip10.hadoop.com
192.168.1.11 ip11.hadoop.com
192.168.1.12 ip12.hadoop.com
192.168.1.13 ip13.hadoop.com

• 创建用户

#创建hadoop用户
[root@ip10]# useradd hadoop
[root@ip10]# passwd hadoop #用户名密码一致

• 解压jdk到/home/hadoop/jdk1.8.0_181
• 解压hadoop到/home/hadoop/hadoop-3.2.1

[root@ip10] tar -xvf jdk-8u181-linux-x64.tar.gz
[root@ip10] tar -xvf hadoop-3.2.1.tar.gz
#添加环境变量
[root@ip10] vim /etc/profile
###########
export JAVA_HOME=/home/hadoop/jdk1.8.0_181
export HADOOP_HOME=/home/hadoop/hadoop-3.2.1
export PATH=$PATH:$JAVA_HOME/bin:$HADOOP_HOME/bin:$HADOOP_HOME/sbin
###########

hadoop配置

设置HADOOP_PID_DIR 默认路径

#设置HADOOP_PID_DIR 默认路径
#log不设置，为默认值$HADOOP/logs
[hadoop@ip10 hadoop]$ echo 'export HADOOP_PID_DIR=$HADOOP_HOME/pid/' >> /home/hadoop/hadoop-3.2.1/etc/hadoop/hadoop-env.sh

设置JAVA_HOME默认路径

这里必须设置，本来我以为设置环境变量就可以了，没想到不好使，必须在hadoop-env.sh设置JAVA_HOME变量

#设置JAVA_HOME
[hadoop@ip10 hadoop]$ echo 'export JAVA_HOME=/home/hadoop/jdk1.8.0_181' >> /home/hadoop/hadoop-3.2.1/etc/hadoop/hadoop-env.sh

设置core-site.xml

[hadoop@ip13 ~]$ mkdir /home/hadoop/workdata/hadoop/tmp -p
[hadoop@ip10 hadoop]$ vim /home/hadoop/hadoop-3.2.1/etc/hadoop/core-site.xml
<configuration>
	<property>
              <name>fs.defaultFS</name>
	      <value>hdfs://ip10.hadoop.com:9000</value>
       </property>
       <property>
              <name>hadoop.tmp.dir</name>
              <value>/home/hadoop/workdata/hadoop/tmp</value>
       </property>
</configuration>

设置hdfs-site.xml

[hadoop@ip10 hadoop]$ vim /home/hadoop/hadoop-3.2.1/etc/hadoop/hdfs-site.xml
<configuration>
	<property>
              <name>dfs.replication</name>
              <value>3</value>
       </property>
       <property>
        <name>dfs.namenode.secondary.http-address</name>
        <value>ip10.hadoop.com:50090</value>
    </property>
</configuration>

设置workers （原slaves）

 #从节点，原来叫slaves
[hadoop@ip10 hadoop]$ vim /home/hadoop/hadoop-3.2.1/etc/hadoop/workers
ip11.hadoop.com
ip12.hadoop.com
ip13.hadoop.com

克隆第二台虚拟机

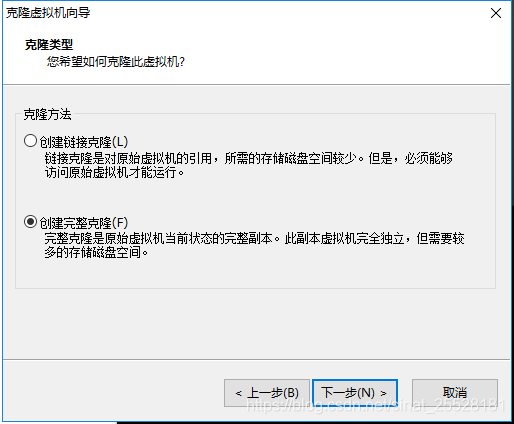

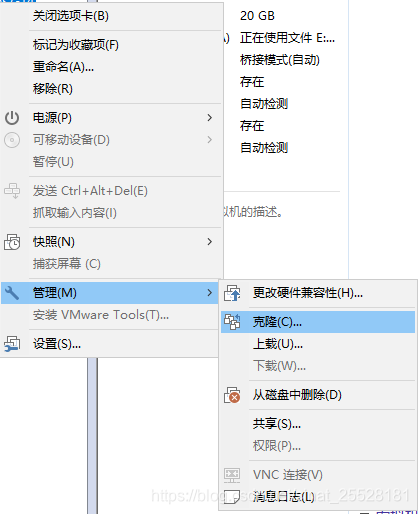

配置好如上配置后，关闭ip10虚拟机，克隆虚拟机，选择完整克隆。

配置第二台虚拟机网络 - ip11.hadoop.com

网络配置见:[Linux虚拟机-桥接网络-可视化简单配置](https://blog.youkuaiyun.com/sinat_25528181/article/details/106327434)

• 设置ip为192.168.1.11
• hostname ip11.hadoop.com

配置免密登录

• 在ip10服务器做如下操作

#配置免密登录
[hadoop@ip10 ~]$ ssh-keygen -t rsa -P '' -f ~/.ssh/id_rsa
[hadoop@ip10 ~]$ cat ~/.ssh/id_rsa.pub >> ~/.ssh/authorized_keys
[hadoop@ip10 ~]$ ssh-copy-id ip11.hadoop.com

• 在ip11服务器做如下操作

#配置免密登录
[hadoop@ip11 ~]$ ssh-keygen -t rsa -P '' -f ~/.ssh/id_rsa
[hadoop@ip11 ~]$ cat ~/.ssh/id_rsa.pub >> ~/.ssh/authorized_keys
[hadoop@ip11 ~]$ ssh-copy-id ip10.hadoop.com

即可实现ip10和ip11的免密登录

克隆第三台虚拟机 - ip12.hadoop.com

网络配置见:[Linux虚拟机-桥接网络-可视化简单配置](https://blog.youkuaiyun.com/sinat_25528181/article/details/106327434)

• 设置ip为192.168.1.12
• hostname ip12.hadoop.com

克隆第四台虚拟机 - ip13.hadoop.com

网络配置见:[Linux虚拟机-桥接网络-可视化简单配置](https://blog.youkuaiyun.com/sinat_25528181/article/details/106327434)

• 设置ip为192.168.1.13
• hostname ip13.hadoop.com

截至目前，四台机器均完成免密配置，但是需要相互之间ssh一下，首次连接需要输个yes

启动测试

#格式化namenode节点
[hadoop@ip10 hadoop-3.2.1]$ hdfs namenode -format
#启动
[hadoop@ip10 hadoop-3.2.1]$ start-all.sh
WARNING: Attempting to start all Apache Hadoop daemons as hadoop in 10 seconds.
WARNING: This is not a recommended production deployment configuration.
WARNING: Use CTRL-C to abort.
Starting namenodes on [ip10.hadoop.com]
Starting datanodes
Starting secondary namenodes [ip10.hadoop.com]
Starting resourcemanager
Starting nodemanagers

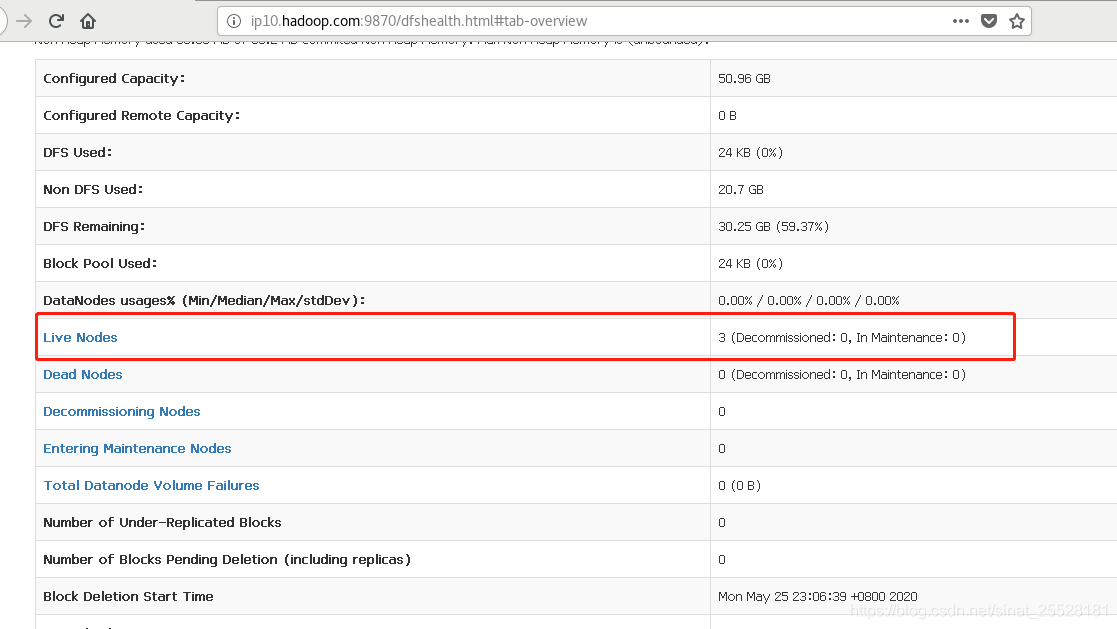

查看web页面

• MapReduce JobHistory Server 没启，就不看了

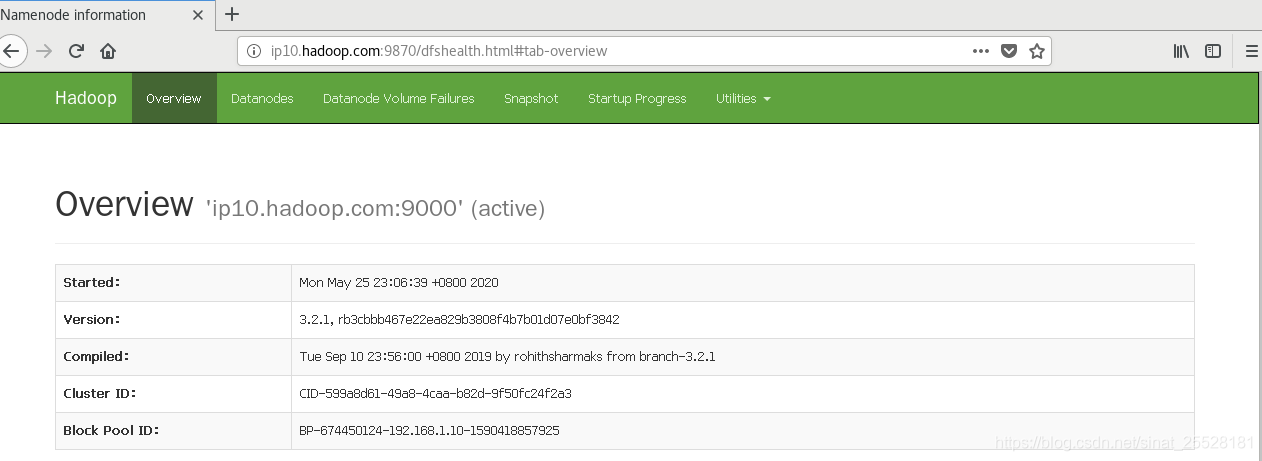

• http://ip10.hadoop.com:9870/

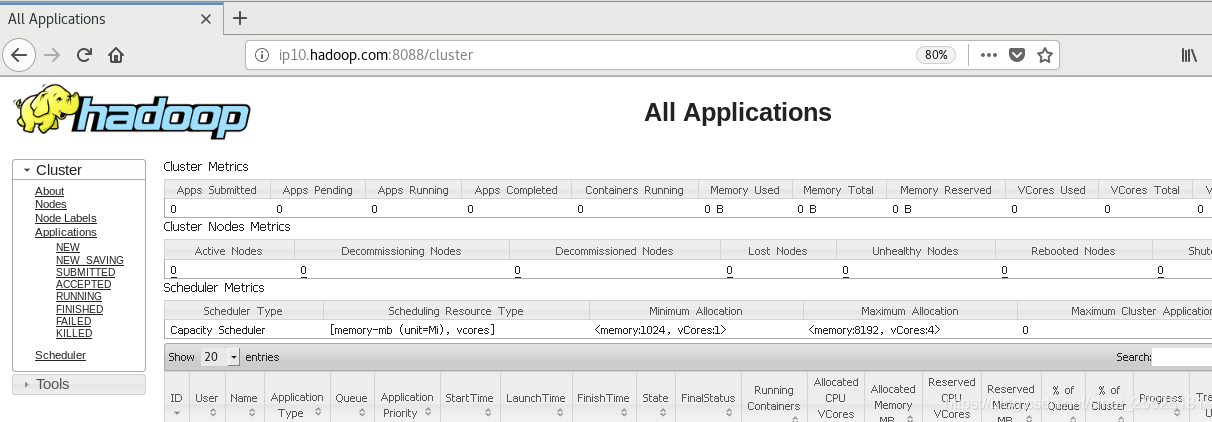

• http://ip10.hadoop.com:8088/



问题记录

• 开始以为配置了jdk的环境变量就不用配置hadoop-env.sh ，直到启动的时候看见报错，所以这个还是有必要的:echo 'export JAVA_HOME=/home/hadoop/jdk1.8.0_181' >> /home/hadoop/hadoop-3.2.1/etc/hadoop/hadoop-env.sh

hadoop@ip10 sbin]$ start-all.sh
WARNING: Attempting to start all Apache Hadoop daemons as hadoop in 10 seconds.
WARNING: This is not a recommended production deployment configuration.
WARNING: Use CTRL-C to abort.
Starting namenodes on [ip10.hadoop.com]
ip10.hadoop.com: ERROR: JAVA_HOME is not set and could not be found.
Starting datanodes
ip13.hadoop.com: ERROR: JAVA_HOME is not set and could not be found.
ip11.hadoop.com: ERROR: JAVA_HOME is not set and could not be found.
ip12.hadoop.com: ERROR: JAVA_HOME is not set and could not be found.

• 官网配置文件属性太多了，暂均默认，后期遇到问题再加吧

发现

发现所有节点配置均一致，是不是将hadoop安装目录做个目录共享就可以了，就不需要来回配置了?
