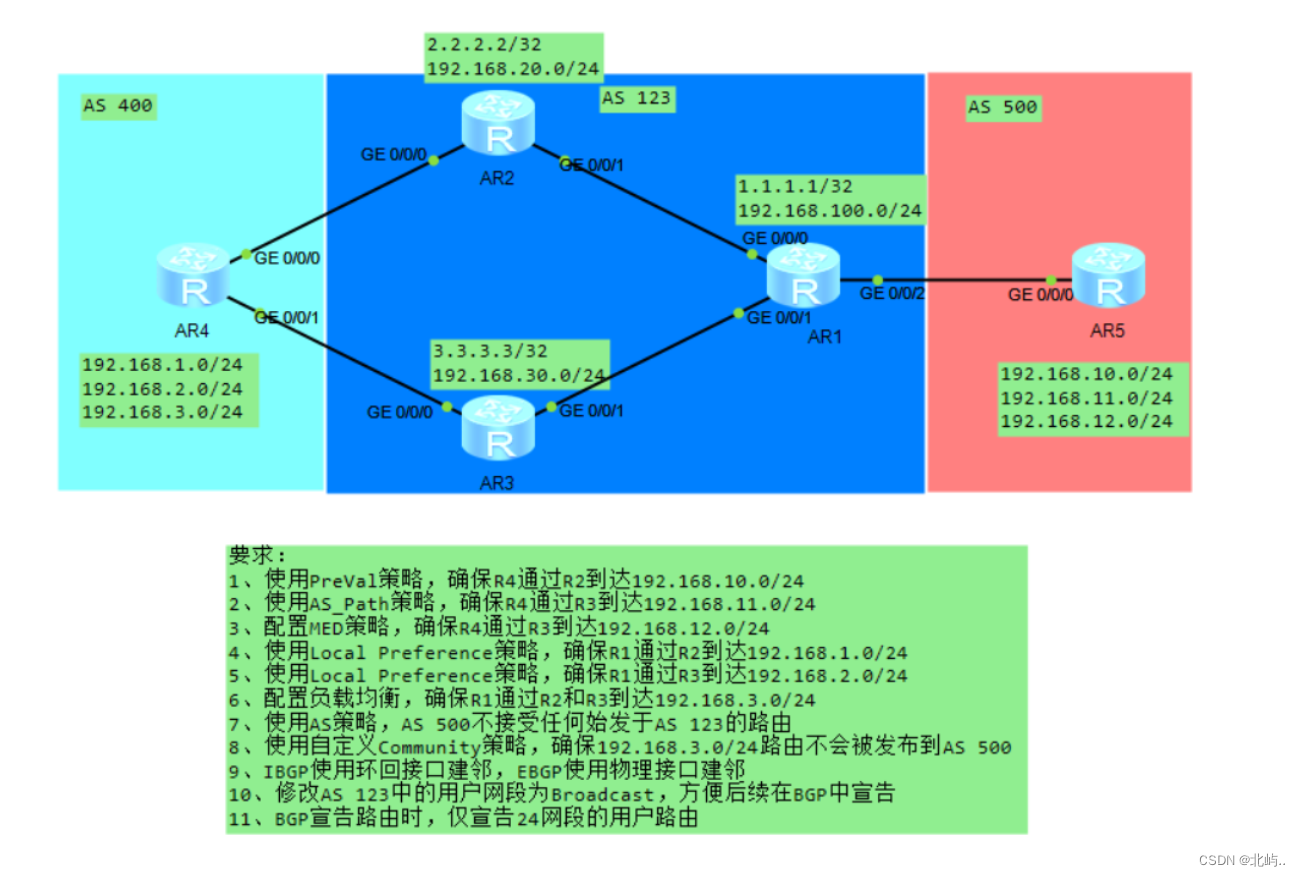

BGP路由策略实验 作业

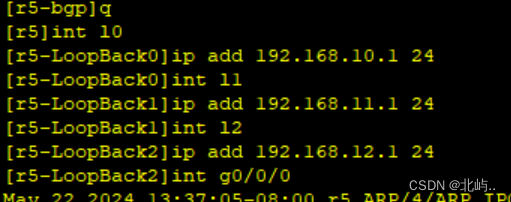

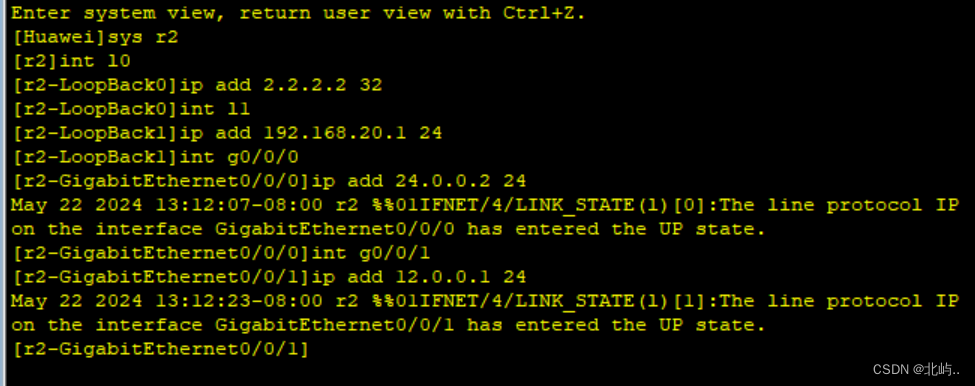

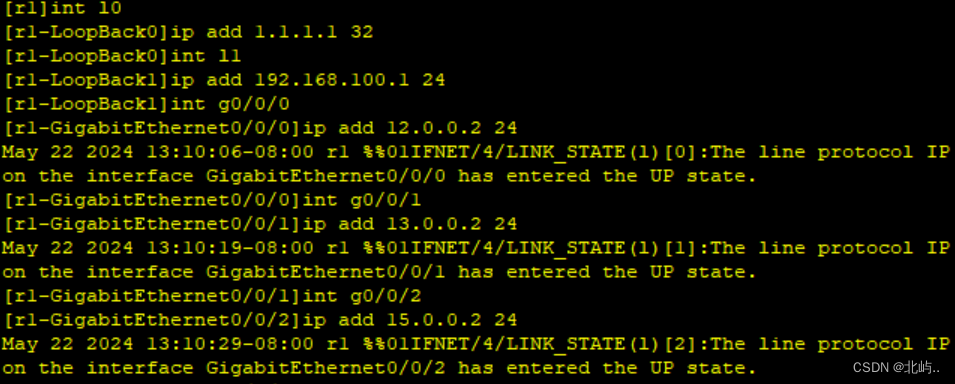

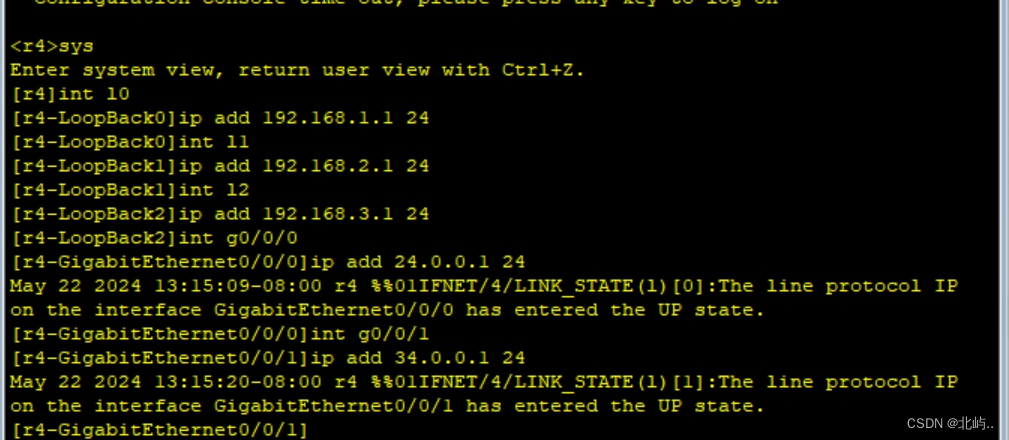

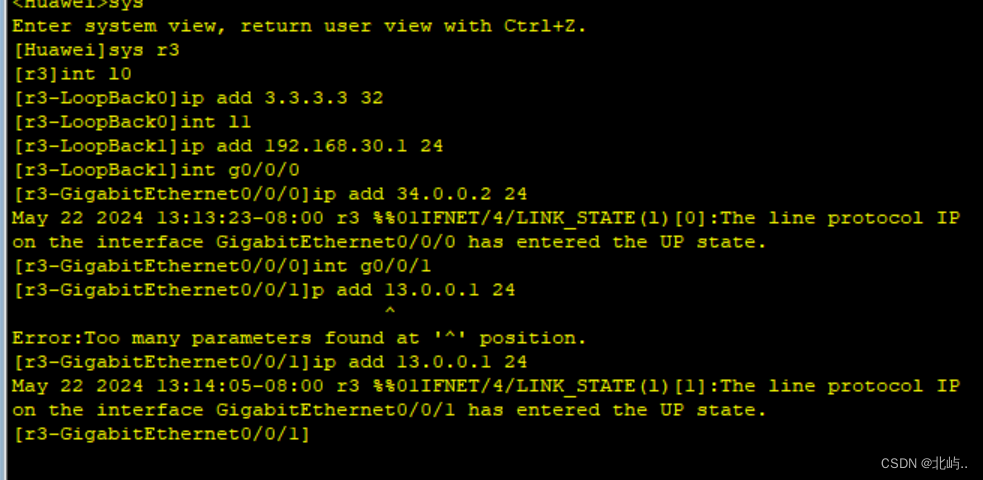

一. 配置IP接口

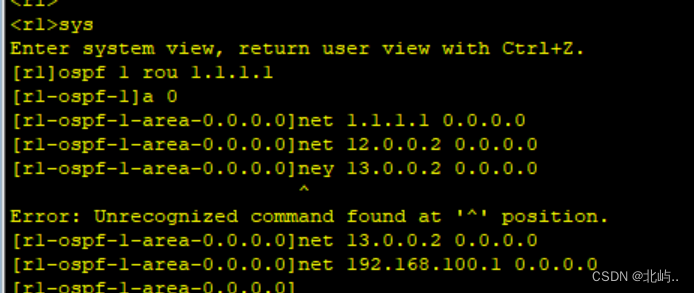

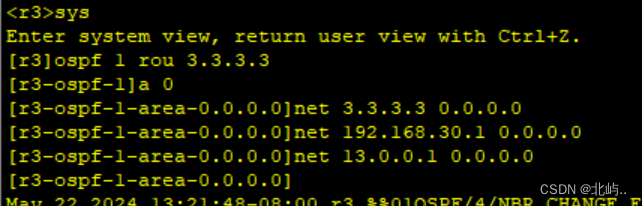

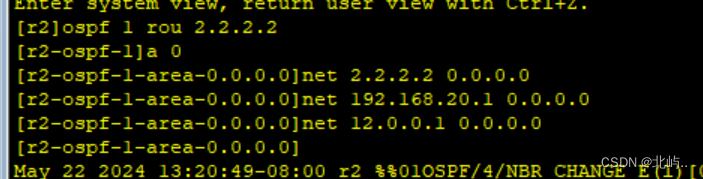

二.IGP协议

测试一下连通性

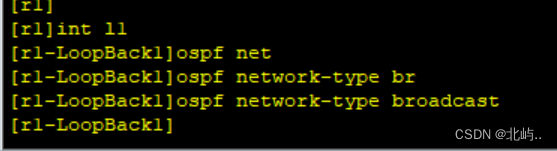

三.修改环回接口网络类型

r2 r3同理

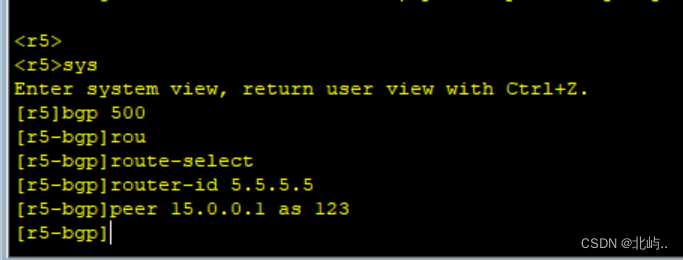

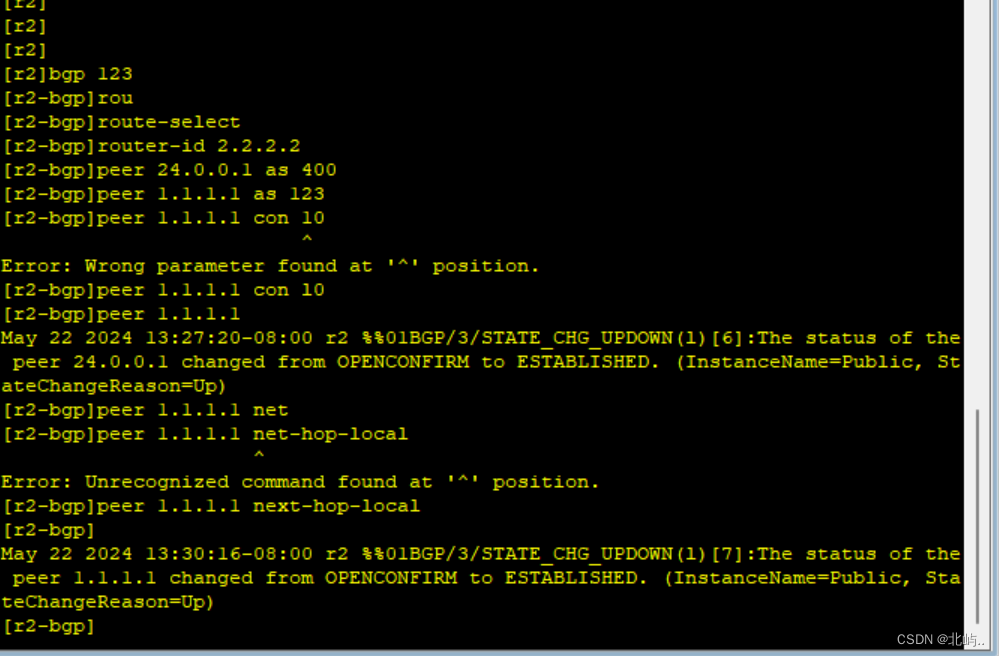

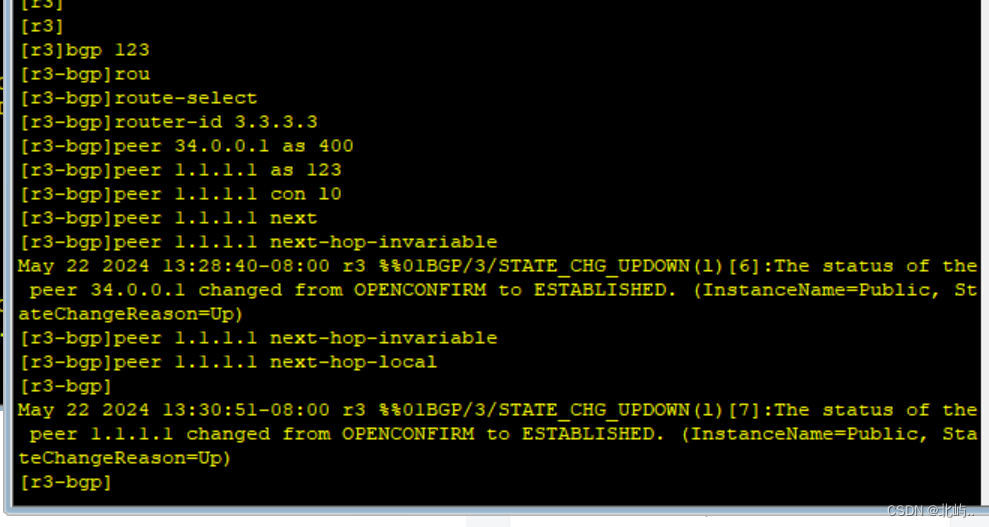

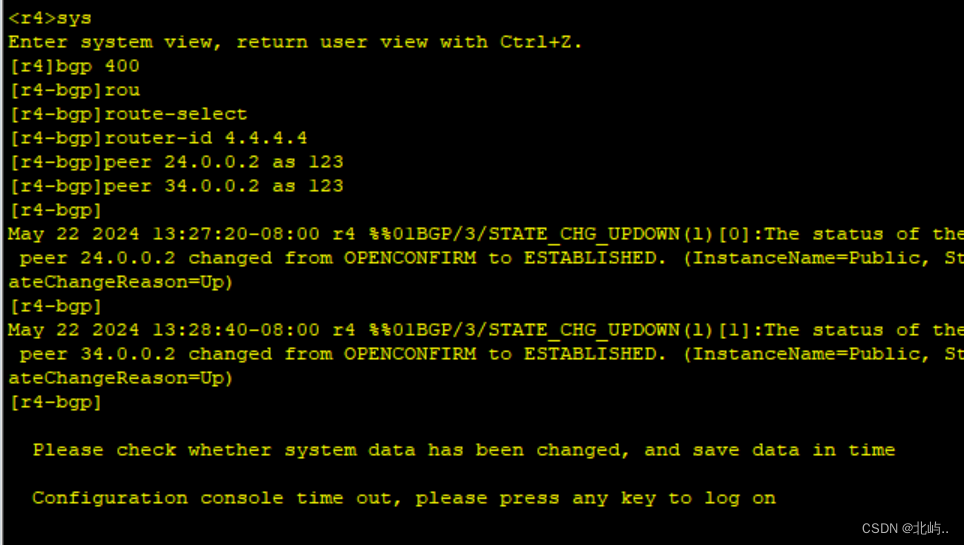

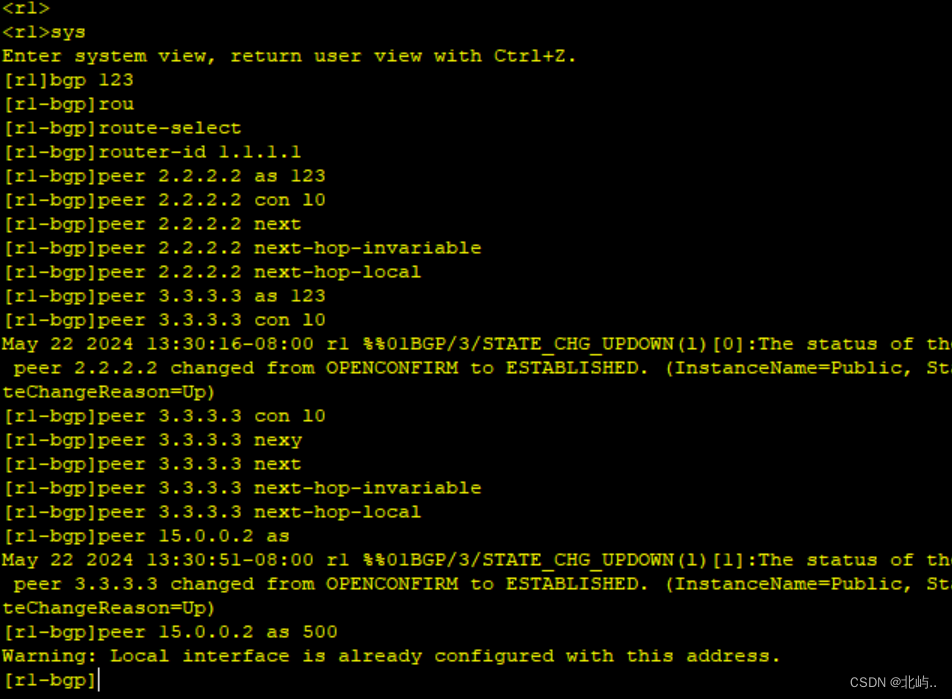

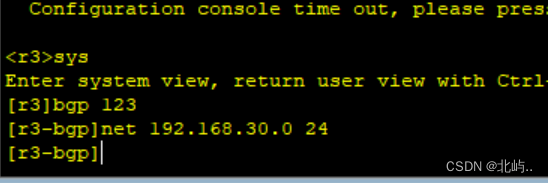

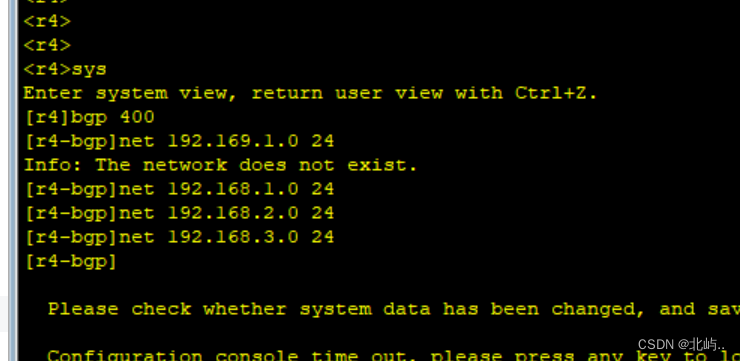

四.BGP协议

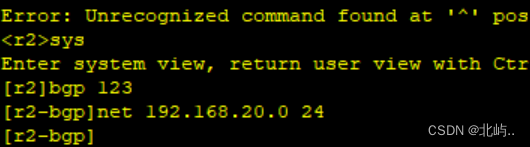

五.查看路由宣告

六.路由策略

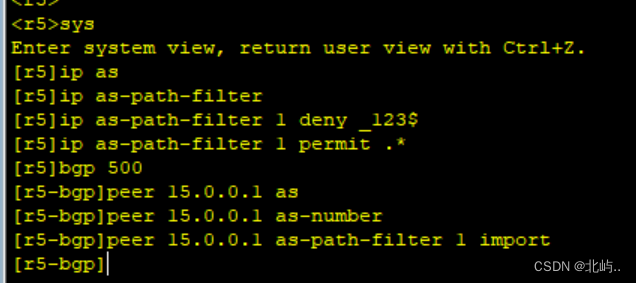

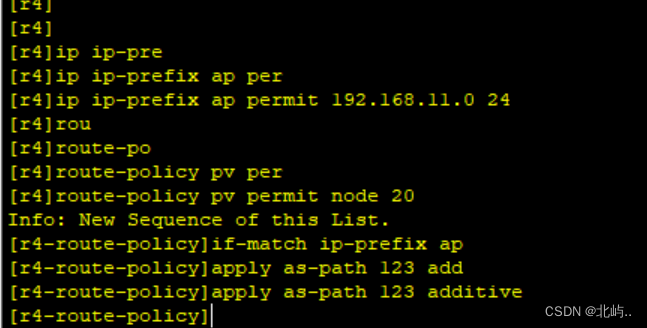

使用AS_Path策略

‘

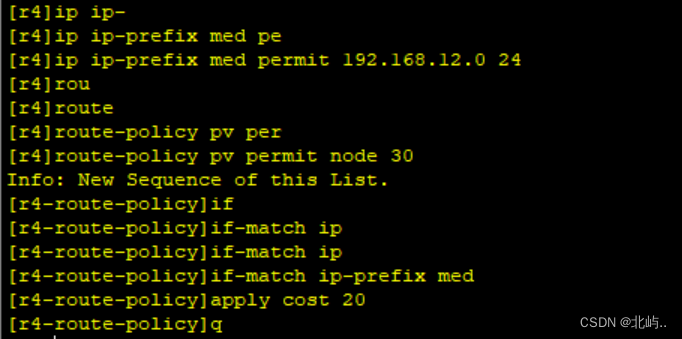

配置MED策略

’

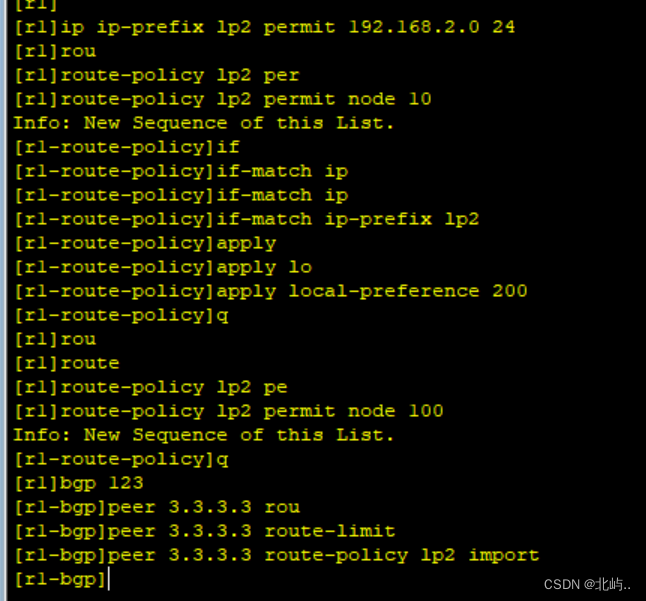

使用Local Preference策略

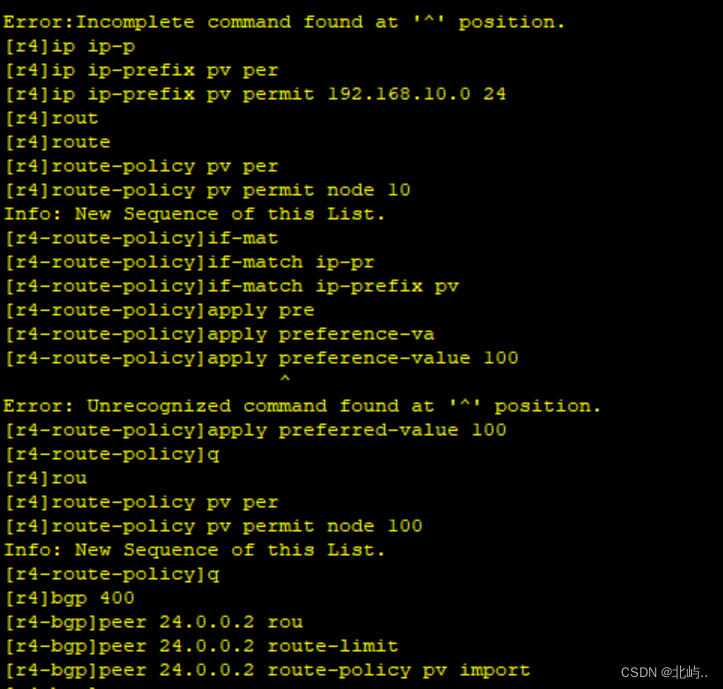

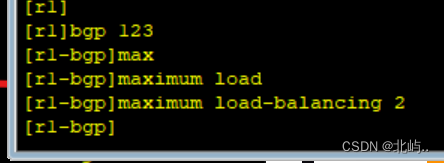

开启负载分担功能

使用As策略

使用自定义Community策略

[R4]route-policy com-1 permit node 10
Info: New Sequence of this List.
[R4-route-policy]apply community 400:111
[R4-route-policy]q
[R4]bgp 400
[R4-bgp]net 192.168.3.0 24 route-policy com-1

[R4-bgp]peer 24.0.0.2 advertise-community
[R4-bgp]peer 34.0.0.2 advertise-community

[R2]bgp 123
[R2-bgp]peer 1.1.1.1 advertise-community

[R3]bgp 123
[R3-bgp]peer 1.1.1.1 advertise-community

[R2]ip community-filter 1 permit 400:111
[R2]route-policy com permit node 10
Info: New Sequence of this List.
[R2-route-policy]if-match community-filter 1
[R2-route-policy]apply community no-export additive
[R2-route-policy]q
[R2]route-policy com permit node 100
Info: New Sequence of this List.
[R2-route-policy]q

[R3]ip community-filter 1 permit 400:111
[R3]route-policy com permit node 10
Info: New Sequence of this List.
[R3-route-policy]if-match community-filter 1
[R3-route-policy]apply community no-export additive
[R3-route-policy]q
[R3]route-policy com permit node 100
Info: New Sequence of this List.
[R3-route-policy]q

[R2]bgp 123
[R2-bgp]peer 24.0.0.1 route-policy com import

[R3]bgp 123
[R3-bgp]peer 34.0.0.1 route-policy com import


查看BGP表是否成功
