nginx平滑升级源码走读

于 2024-11-10 21:55:14 发布
阅读量680 收藏 29
点赞数 22
文章标签： nginx
版权声明：本文为博主原创文章，遵循 CC 4.0 BY-SA 版权协议，转载请附上原文出处链接和本声明。
本文链接：https://blog.youkuaiyun.com/shuzishiyingzhong/article/details/132806065
版权

nginx常用的平滑升级指令

kill -USR2 <master_pid>

kill -WINCH <master_pid>

kill -QUIT <master_pid>

本文主要介绍当master进程接收到上述信号量时，执行了哪些操作，完成了nginx的平滑升级

信号量注册

上述的操作均使用kill指令，通过向进程发送信号量来通知master进程进行处理，在linux操作系统中，定义了很多种信号量，例如我们会经常使用kill -9 pid暴力杀死某个异常的进程，使用kill -l可以查看linux自带的信号量。

一旦有信号产生，进程会对信号存在下面几种处理方式

  1. 执行默认操作。操作系统对每种信号都规定了默认操作，例如kill -9 <pid>,当进程接受到该信号时，会强制终止并退出。

  2. 执行自定义操作。对于某些信号，如果不想让进程执行默认操作，linux提供了函数sigaction，用来对特定的信号注册相应的信号处理函数，当进程捕捉到信号时，会执行对应的回调函数。

  3. 忽略信号。当不希望处理某些信号的时候，可以忽略该信号

针对上面三种信号量，nginx通过调用sigaction自定义了信号量处理方式,回调函数为ngx_signal_handler

#define NGX_SHUTDOWN_SIGNAL      QUIT
#define NGX_TERMINATE_SIGNAL     TERM
#define NGX_NOACCEPT_SIGNAL      WINCH
#define NGX_RECONFIGURE_SIGNAL   HUP

#if (NGX_LINUXTHREADS)
#define NGX_REOPEN_SIGNAL        INFO
#define NGX_CHANGEBIN_SIGNAL     XCPU
#else
#define NGX_REOPEN_SIGNAL        USR1
#define NGX_CHANGEBIN_SIGNAL     USR2
#endif
ngx_signal_t  signals[] = {
    { ngx_signal_value(NGX_RECONFIGURE_SIGNAL),
      "SIG" ngx_value(NGX_RECONFIGURE_SIGNAL),
      "reload",
      ngx_signal_handler },

    { ngx_signal_value(NGX_REOPEN_SIGNAL),
      "SIG" ngx_value(NGX_REOPEN_SIGNAL),
      "reopen",
      ngx_signal_handler },
    // WINCH
    { ngx_signal_value(NGX_NOACCEPT_SIGNAL),
      "SIG" ngx_value(NGX_NOACCEPT_SIGNAL),
      "",
      ngx_signal_handler },

    { ngx_signal_value(NGX_TERMINATE_SIGNAL),
      "SIG" ngx_value(NGX_TERMINATE_SIGNAL),
      "stop",
      ngx_signal_handler },
    // QUIT
    { ngx_signal_value(NGX_SHUTDOWN_SIGNAL),
      "SIG" ngx_value(NGX_SHUTDOWN_SIGNAL),
      "quit",
      ngx_signal_handler },
    // US2回调函数
    { ngx_signal_value(NGX_CHANGEBIN_SIGNAL),
      "SIG" ngx_value(NGX_CHANGEBIN_SIGNAL),
      "",
      ngx_signal_handler },

    { SIGALRM, "SIGALRM", "", ngx_signal_handler },

    { SIGINT, "SIGINT", "", ngx_signal_handler },

    { SIGIO, "SIGIO", "", ngx_signal_handler },

    { SIGCHLD, "SIGCHLD", "", ngx_signal_handler },

    { SIGSYS, "SIGSYS, SIG_IGN", "", NULL },

    { SIGPIPE, "SIGPIPE, SIG_IGN", "", NULL },

    { 0, NULL, "", NULL }
};

信号量注册

ngx_int_t
ngx_init_signals(ngx_log_t *log)
{
    ngx_signal_t      *sig;
    struct sigaction   sa;

    for (sig = signals; sig->signo != 0; sig++) {
        ngx_memzero(&sa, sizeof(struct sigaction));

        if (sig->handler) {
            sa.sa_sigaction = sig->handler; // 回调函数
            sa.sa_flags = SA_SIGINFO;

        } else {
            sa.sa_handler = SIG_IGN;
        }

        sigemptyset(&sa.sa_mask);
        // 注册信号量回调函数
        if (sigaction(sig->signo, &sa, NULL) == -1) {
            return NGX_ERROR;

        }
    }

    return NGX_OK;
}

信号处理

ngx_signal_handler回调函数是一个通用信号处理函数，内部针对不同的信号量进行了不同的处理，重点关注上面三种信号量的处理，其余信号量在这里不再叙述，感兴趣的可以自行走读源码

static void
ngx_signal_handler(int signo, siginfo_t *siginfo, void *ucontext)
{
    char            *action;
    ngx_int_t        ignore;
    ngx_err_t        err;
    ngx_signal_t    *sig;

    ignore = 0;

    err = ngx_errno;

    for (sig = signals; sig->signo != 0; sig++) {
        if (sig->signo == signo) {
            break;
        }
    }

    ngx_time_sigsafe_update();

    action = "";

    switch (ngx_process) {

    case NGX_PROCESS_MASTER:
    case NGX_PROCESS_SINGLE:
        switch (signo) {

        case ngx_signal_value(NGX_SHUTDOWN_SIGNAL):
            ngx_quit = 1;
            action = ", shutting down";
            break;

        case ngx_signal_value(NGX_TERMINATE_SIGNAL):
        case SIGINT:
            ngx_terminate = 1;
            action = ", exiting";
            break;

        case ngx_signal_value(NGX_NOACCEPT_SIGNAL):
            if (ngx_daemonized) {
                ngx_noaccept = 1;
                action = ", stop accepting connections";
            }
            break;

        case ngx_signal_value(NGX_RECONFIGURE_SIGNAL):
            if (ngx_process == NGX_PROCESS_SINGLE) {
                ngx_terminate = 1;
                action = ", exiting";

            } else {
                ngx_reconfigure = 1;
                action = ", reconfiguring";
            }

            break;

        case ngx_signal_value(NGX_REOPEN_SIGNAL):
            ngx_reopen = 1;
            action = ", reopening logs";
            break;

        case ngx_signal_value(NGX_CHANGEBIN_SIGNAL):
            if (ngx_getppid() == ngx_parent || ngx_new_binary > 0) {

                /*
                 * Ignore the signal in the new binary if its parent is
                 * not changed, i.e. the old binary's process is still
                 * running.  Or ignore the signal in the old binary's
                 * process if the new binary's process is already running.
                 */

                action = ", ignoring";
                ignore = 1;
                break;
            }

            ngx_change_binary = 1;
            action = ", changing binary";
            break;

        case SIGALRM:
            ngx_sigalrm = 1;
            break;

        case SIGIO:
            ngx_sigio = 1;
            break;

        case SIGCHLD:
            ngx_reap = 1;
            break;
        }

        break;

    case NGX_PROCESS_WORKER:
    case NGX_PROCESS_HELPER:
        switch (signo) {

        case ngx_signal_value(NGX_NOACCEPT_SIGNAL):
            if (!ngx_daemonized) {
                break;
            }
            ngx_debug_quit = 1;
            /* fall through */
        case ngx_signal_value(NGX_SHUTDOWN_SIGNAL):
            ngx_quit = 1;
            action = ", shutting down";
            break;

        case ngx_signal_value(NGX_TERMINATE_SIGNAL):
        case SIGINT:
            ngx_terminate = 1;
            action = ", exiting";
            break;

        case ngx_signal_value(NGX_REOPEN_SIGNAL):
            ngx_reopen = 1;
            action = ", reopening logs";
            break;

        case ngx_signal_value(NGX_RECONFIGURE_SIGNAL):
        case ngx_signal_value(NGX_CHANGEBIN_SIGNAL):
        case SIGIO:
            action = ", ignoring";
            break;
        }

        break;
    }

    if (siginfo && siginfo->si_pid) {
        ngx_log_error(NGX_LOG_NOTICE, ngx_cycle->log, 0,
                      "signal %d (%s) received from %P%s",
                      signo, sig->signame, siginfo->si_pid, action);

    } else {
        ngx_log_error(NGX_LOG_NOTICE, ngx_cycle->log, 0,
                      "signal %d (%s) received%s",
                      signo, sig->signame, action);
    }

    if (ignore) {
        ngx_log_error(NGX_LOG_CRIT, ngx_cycle->log, 0,
                      "the changing binary signal is ignored: "
                      "you should shutdown or terminate "
                      "before either old or new binary's process");
    }

    if (signo == SIGCHLD) {
        ngx_process_get_status();
    }

    ngx_set_errno(err);
}

当接受到USR2信号量时，子进程不做处理，master进程会将ngx_change_binary这个变量置为1

        case ngx_signal_value(NGX_CHANGEBIN_SIGNAL):
             // 子进程不做处理 或者 ngx_new_binary 大于0不处理
            if (ngx_getppid() == ngx_parent || ngx_new_binary > 0) {

                /*
                 * Ignore the signal in the new binary if its parent is
                 * not changed, i.e. the old binary's process is still
                 * running.  Or ignore the signal in the old binary's
                 * process if the new binary's process is already running.
                 */

                action = ", ignoring";
                ignore = 1;
                break;
            }
            // master进程处理逻辑
            ngx_change_binary = 1;
            action = ", changing binary";
            break;

当接受到WINCH信号量，将 ngx_noaccept置为1

        case ngx_signal_value(NGX_NOACCEPT_SIGNAL):
            if (ngx_daemonized) {
                ngx_noaccept = 1;
                action = ", stop accepting connections";
            }
            break;

当接受QUIT信号量时，将ngx_quit置为1

        case ngx_signal_value(NGX_SHUTDOWN_SIGNAL):
            ngx_quit = 1;
            action = ", shutting down";
            break;

nginx master的循环任务中，会根据上述变量的变化，执行对应的操作。

master平滑升级流程

nginx的master进程启动后，会进入ngx_master_process_cycle函数，该函数首先会进行一系列初始化操作，创建work进程，设置信号处理机制等，最后进入循环状态，不断检查和处理各种事件。

void
ngx_master_process_cycle(ngx_cycle_t *cycle)
{
  ...

    ngx_new_binary = 0;
    delay = 0;
    sigio = 0;
    live = 1;
   // 主进程循环任务
    for ( ;; ) {
        if (delay) {
            if (ngx_sigalrm) {
                sigio = 0;
                delay *= 2;
                ngx_sigalrm = 0;
            }

            ngx_log_debug1(NGX_LOG_DEBUG_EVENT, cycle->log, 0,
                           "termination cycle: %M", delay);

            itv.it_interval.tv_sec = 0;
            itv.it_interval.tv_usec = 0;
            itv.it_value.tv_sec = delay / 1000;
            itv.it_value.tv_usec = (delay % 1000 ) * 1000;

            if (setitimer(ITIMER_REAL, &itv, NULL) == -1) {
                ngx_log_error(NGX_LOG_ALERT, cycle->log, ngx_errno,
                              "setitimer() failed");
            }
        }

        ngx_log_debug0(NGX_LOG_DEBUG_EVENT, cycle->log, 0, "sigsuspend");

        sigsuspend(&set);

        ngx_time_update();

        ngx_log_debug1(NGX_LOG_DEBUG_EVENT, cycle->log, 0,
                       "wake up, sigio %i", sigio);

        if (ngx_reap) {
            ngx_reap = 0;
            ngx_log_debug0(NGX_LOG_DEBUG_EVENT, cycle->log, 0, "reap children");

            live = ngx_reap_children(cycle);
        }

        if (!live && (ngx_terminate || ngx_quit)) {
            ngx_master_process_exit(cycle);
        }

        if (ngx_terminate) {
            if (delay == 0) {
                delay = 50;
            }

            if (sigio) {
                sigio--;
                continue;
            }

            sigio = ccf->worker_processes + 2 /* cache processes */;

            if (delay > 1000) {
                ngx_signal_worker_processes(cycle, SIGKILL);
            } else {
                ngx_signal_worker_processes(cycle,
                                       ngx_signal_value(NGX_TERMINATE_SIGNAL));
            }

            continue;
        }

        if (ngx_quit) {
            ngx_signal_worker_processes(cycle,
                                        ngx_signal_value(NGX_SHUTDOWN_SIGNAL));
            ngx_close_listening_sockets(cycle);

            continue;
        }

......

        if (ngx_change_binary) {
            ngx_change_binary = 0;
            ngx_log_error(NGX_LOG_NOTICE, cycle->log, 0, "changing binary");
            ngx_new_binary = ngx_exec_new_binary(cycle, ngx_argv);
        }

        if (ngx_noaccept) {
            ngx_noaccept = 0;
            ngx_noaccepting = 1;
            ngx_signal_worker_processes(cycle,
                                        ngx_signal_value(NGX_SHUTDOWN_SIGNAL));
        }
    }
}

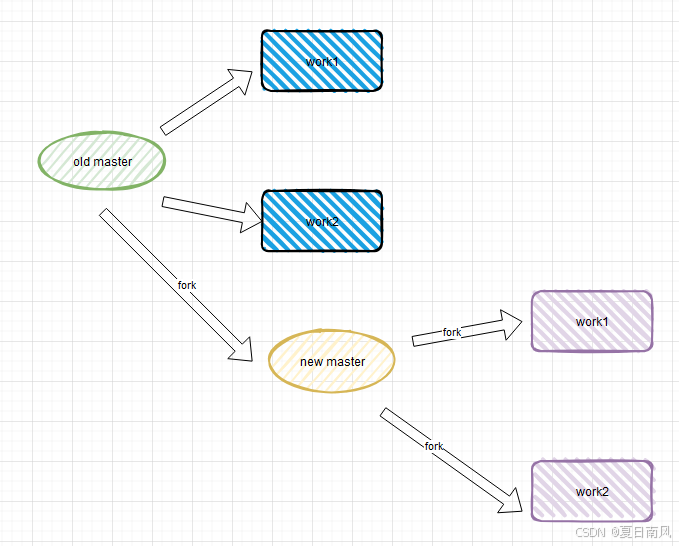

当master进程接收到USR2信号量时，信号回调函数会将ngx_change_binary设置为1。在master循环任务中，ngx_exec_new_binary为1时，会调用ngx_exec_new_binary函数，在该函数内，会基于新的二进制文件创建一个新的master进程，同时新的master进程也会创建新的work进程，新的work进程会承担原先的work职责，监听客户端请求

        if (ngx_change_binary) {
            ngx_change_binary = 0;
            ngx_log_error(NGX_LOG_NOTICE, cycle->log, 0, "changing binary");
            ngx_new_binary = ngx_exec_new_binary(cycle, ngx_argv);
        }

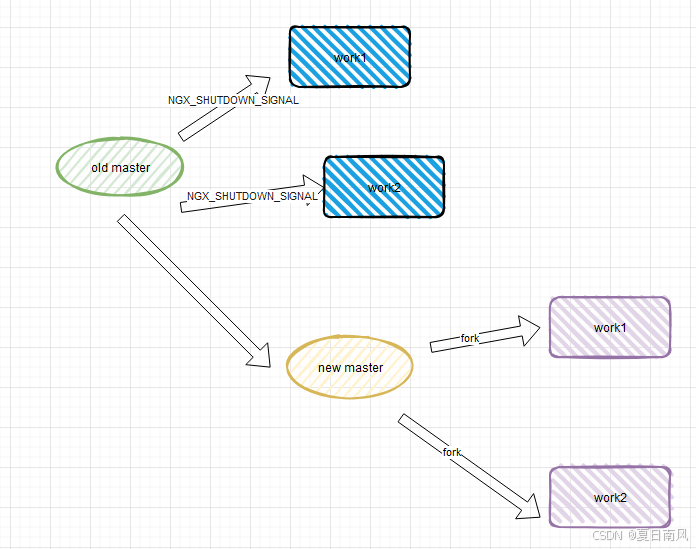

随后，old master进程接收到WINCH信号量，回调函数将ngx_noaccept置为1。在old master的循环任务中，当检测到ngx_noaccept为1时，会向master的子进程发送NGX_SHUTDOWN_SIGNAL信号量（new master进程除外），work子进程收到NGX_SHUTDOWN_SIGNAL信号量后，结束进程任务

        if (ngx_noaccept) {
            ngx_noaccept = 0;
            ngx_noaccepting = 1;
            ngx_signal_worker_processes(cycle,
                                        ngx_signal_value(NGX_SHUTDOWN_SIGNAL));
        }

master进程通过执行ngx_signal_worker_processes向work进程发送信号量

static void
ngx_signal_worker_processes(ngx_cycle_t *cycle, int signo)
{
    ngx_int_t      i;
    ngx_err_t      err;
    ngx_channel_t  ch;

    ngx_memzero(&ch, sizeof(ngx_channel_t));

    switch (signo) {

    case ngx_signal_value(NGX_SHUTDOWN_SIGNAL):
        ch.command = NGX_CMD_QUIT;
        break;

    case ngx_signal_value(NGX_TERMINATE_SIGNAL):
        ch.command = NGX_CMD_TERMINATE;
        break;

    case ngx_signal_value(NGX_REOPEN_SIGNAL):
        ch.command = NGX_CMD_REOPEN;
        break;

    default:
        ch.command = 0;
    }

#endif

    ch.fd = -1;


    for (i = 0; i < ngx_last_process; i++) {

        // new master的detached为1，old master 不会向new master发送kill信号量
        if (ngx_processes[i].detached || ngx_processes[i].pid == -1) {
            continue;
        }

        if (ngx_processes[i].just_spawn) {
            ngx_processes[i].just_spawn = 0;
            continue;
        }

        if (ngx_processes[i].exiting
            && signo == ngx_signal_value(NGX_SHUTDOWN_SIGNAL))
        {
            continue;
        }

        if (ch.command) {
            if (ngx_write_channel(ngx_processes[i].channel[0],
                                  &ch, sizeof(ngx_channel_t), cycle->log)
                == NGX_OK)
            {
                if (signo != ngx_signal_value(NGX_REOPEN_SIGNAL)) {
                    ngx_processes[i].exiting = 1;
                }

                continue;
            }
        }

       // master进程向work进程发送NGX_SHUTDOWN_SIGNAL信号量，通知子进程退出
        if (kill(ngx_processes[i].pid, signo) == -1) {
            err = ngx_errno;
            ngx_log_error(NGX_LOG_ALERT, cycle->log, err,
                          "kill(%P, %d) failed", ngx_processes[i].pid, signo);

            if (err == NGX_ESRCH) {
                ngx_processes[i].exited = 1;
                ngx_processes[i].exiting = 0;
                ngx_reap = 1;
            }

            continue;
        }

        if (signo != ngx_signal_value(NGX_REOPEN_SIGNAL)) {
            ngx_processes[i].exiting = 1;
        }
    }
}

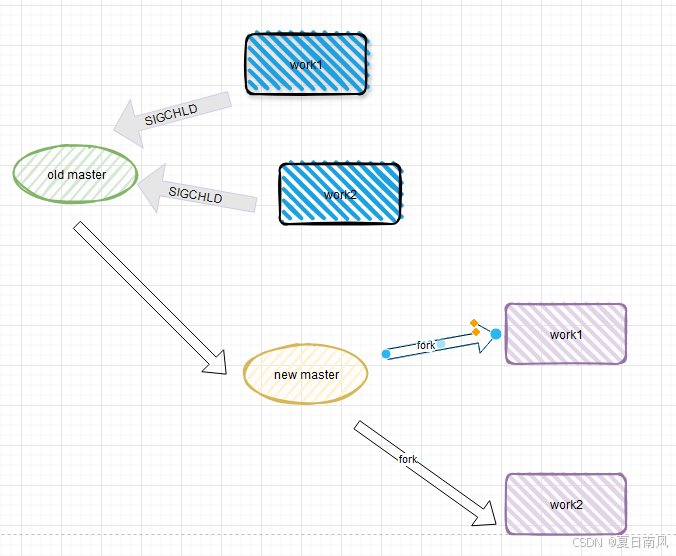

子进程退出后会向父进程发送SIGCHLD信号量通知父进程退出，父进程调用waitpid获取子进程的状态，当work进程（除new master进程外）全部退出后，live变量置为0

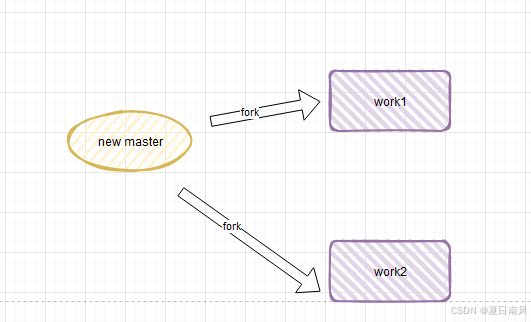

最后，向old master进程发送QUIT信号量，将ngx_quit变量置为1，当ngx_quit为1且无子进程存活（live = 0）后，执行ngx_master_process_exit，老master进程退出

        if (!live && (ngx_terminate || ngx_quit)) {
            ngx_master_process_exit(cycle);
        }
