通过Spring Admin搭建简单监控平台





通过Spring Admin搭建简单监控平台

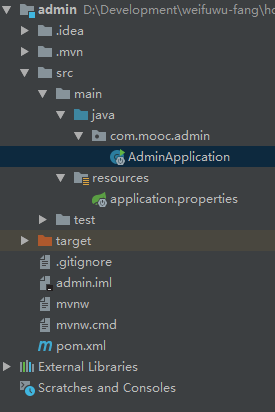

创建监控工程





pom.xml配置

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
	<modelVersion>4.0.0</modelVersion>

	<groupId>com.mooc.admin</groupId>
	<artifactId>admin</artifactId>
	<version>0.0.1-SNAPSHOT</version>
	<packaging>jar</packaging>

	<name>admin</name>
	<description>监控平台</description>

	<parent>
		<groupId>org.springframework.boot</groupId>
		<artifactId>spring-boot-starter-parent</artifactId>
		<version>1.5.3.RELEASE</version>
		<relativePath/> <!-- lookup parent from repository -->
	</parent>

	<properties>
		<project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
		<project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
		<java.version>1.8</java.version>
	</properties>

	<dependencies>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter</artifactId>
		</dependency>

		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-test</artifactId>
			<scope>test</scope>
		</dependency>


		<dependency>
		    <groupId>de.codecentric</groupId>
		    <artifactId>spring-boot-admin-server</artifactId>
		    <version>1.5.2</version>
		</dependency>

		<dependency>
		    <groupId>de.codecentric</groupId>
		    <artifactId>spring-boot-admin-server-ui</artifactId>
		    <version>1.5.2</version>
		</dependency>
	</dependencies>

	<build>
		<plugins>
			<plugin>
				<groupId>org.springframework.boot</groupId>
				<artifactId>spring-boot-maven-plugin</artifactId>
			</plugin>
		</plugins>
	</build>


</project>



application.properties

server.port=8070





启动类-AdminApplication

package com.mooc.admin;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;

import de.codecentric.boot.admin.config.EnableAdminServer;

@SpringBootApplication
@EnableAdminServer
public class AdminApplication {

	public static void main(String[] args) {
		SpringApplication.run(AdminApplication.class, args);
	}
}

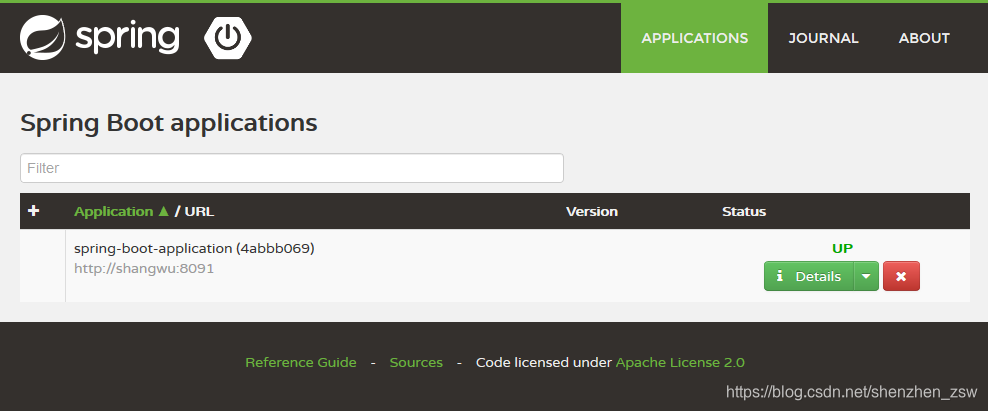

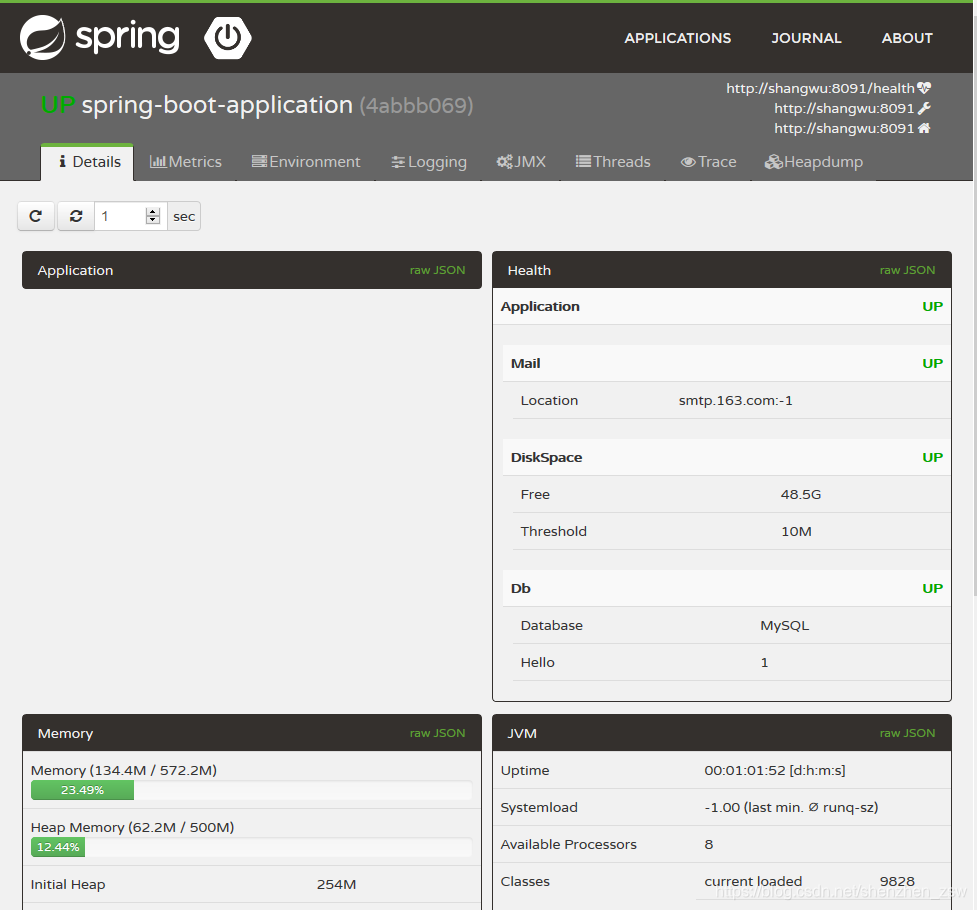

访问监控平台

http://shangwu:8070





==============================
