本文详细介绍如何在Spring框架中整合MyBatis，包括配置数据源、事务管理、使用SqlSessionDaoSupport等步骤，并提供了具体的代码实现。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

mybatis 使用SqlsessionDaoSupport 调用sql,如此，不需要配置mapper包扫描，可以将接口与sql映射文件放入不同的文件夹。

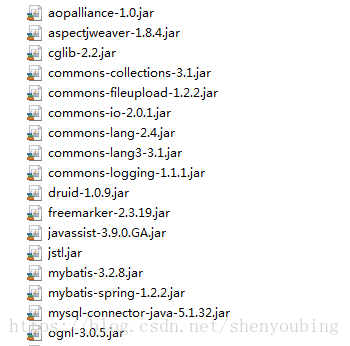

1.需要使用的jar包

2.web.xml配置

<!-- 设置spring字符编码过滤器 -->
	   <filter>
	    <filter-name>characterEncoding</filter-name>
	    <filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class>
	    <init-param>
	        <param-name>encoding</param-name>
	        <param-value>UTF-8</param-value>
	    </init-param>
	  </filter>
	  <filter-mapping>
	    <filter-name>characterEncoding</filter-name>
	    <url-pattern>/*</url-pattern>
	  </filter-mapping>
	  <!-- 配置spring启动的监听 -->
	  <context-param>
	  	<param-name>contextConfigLocation</param-name>
	  	<param-value>classpath:applicationContext.xml</param-value>
	  </context-param>
	  <listener>
	  	<listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
	  </listener>
	  	<!-- 配置struts2启动过滤器 -->
	  <filter>
	  	<filter-name>struts2</filter-name>
	  	<filter-class>org.apache.struts2.dispatcher.ng.filter.StrutsPrepareAndExecuteFilter</filter-class>
	  </filter>
	  <filter-mapping>
	  	<filter-name>struts2</filter-name>
	  	<url-pattern>/*</url-pattern>
	  </filter-mapping>

3.ApplicationContext.xml 配置

	<!-- 配置外部数据库连接信息-->
	<context:property-placeholder location="classpath:db.properties"/>
	<!-- 配置数据源 -->
	<bean id="dataSource" class="com.alibaba.druid.pool.DruidDataSource" destroy-method="close">
		<property name="url" value="${jdbc.url}" />
		<property name="username" value="${jdbc.username}" />
		<property name="password" value="${jdbc.password}" />
		<property name="driverClassName" value="${jdbc.driverClassName}" />
		<property name="maxActive" value="10" />
		<property name="minIdle" value="5" />
	</bean>

	<!-- 配置sqlsessionfactory -->
	<bean id="sqlsessionfactory" class="org.mybatis.spring.SqlSessionFactoryBean">
		<property name="configLocation" value="classpath:SqlMapConfig.xml"></property>
		<property name="dataSource" ref="dataSource"></property>
	</bean>
	<!--  配置事务  -->
	<!-- 1.配置事务管理器 -->
	<bean id="transManager" class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
		<property name="dataSource" ref="dataSource"></property>
	</bean>

	<!-- 2.配置事务通知 -->
	<tx:advice id="txAdvice" transaction-manager="transManager">
		<tx:attributes>
			<tx:method name="save*" isolation="DEFAULT" propagation="REQUIRED" read-only="false"/>
			<tx:method name="insert*" isolation="DEFAULT" propagation="REQUIRED" read-only="false"/>
			<tx:method name="update*" isolation="DEFAULT" propagation="REQUIRED" read-only="false"/>
			<tx:method name="delete*" isolation="DEFAULT" propagation="REQUIRED" read-only="false"/>
			<tx:method name="*" read-only="true" />
		</tx:attributes>
	</tx:advice>

	<!-- 3.配置切面 -->
	<aop:config>
	<aop:advisor advice-ref="txAdvice"
		pointcut="execution(* com.ibatis.service.*.*(..))" />
	</aop:config>

    <!-- 将sqlSessionTemplate手工注入到SqlSessionDaoSupport中 -->
    <bean id="sqlSessionTemplate" class="org.mybatis.spring.SqlSessionTemplate">
        <constructor-arg index="0" ref="sqlsessionfactory"/>
    </bean>

	<!-- 导入相关配置 -->
	<import resource="classpath:spring/applicationContext-dao.xml"/>
	<import resource="classpath:spring/applicationContext-service.xml"/>
	<import resource="classpath:spring/applicationContext-action.xml"/>

4.applicationContext-dao.xml配置

 	<!-- 继承SqlSessionDaoSupport类，使用mybatis底层封装的方法，需要注入sqlSessionTemplate -->
 	<bean id="mybatisPersistence" class="com.ibatis.mapper.impl.MybatisPersistenceImpl">
  		<property name="sqlSessionTemplate" ref="sqlSessionTemplate"/>
	</bean>
	<!-- 继承了工具类，需要注入工具类注入的属性sqlsessionTemplate 如果不继承，调用工具类的接口则无需注入SqlSessionDaoSupport的属性sqlSessionTemplate-->
 	<bean id="mybatisDao" class="com.ibatis.dao.impl.MybatisDaoImpl">
 		<property name="sqlSessionTemplate" ref="sqlSessionTemplate"/>
 	<!-- 	<property name="mybatisPersistence" ref="mybatisPersistence"></property> -->
	</bean>

5.applicationContext-service.xml配置

	 <bean id="mybatisService" class="com.ibatis.service.impl.MybatisServiceImpl">
		<property name="mybatisDao" ref="mybatisDao"></property>
	</bean>

7.applicationContext-action.xml配置

 	<bean id="mybatisAction" class="com.ibatis.action.MybatisAction">
		<property name="mybatisService" ref="mybatisService"></property>
	</bean>

8.db.properties 外部数据源配置

jdbc.url=jdbc:mysql:///activitiwebporject?createDatabaseIfNotExist=true&useUnicode=true&characterEncoding=utf8
jdbc.driverClassName=com.mysql.jdbc.Driver
jdbc.username=root
jdbc.password=root

9.sqlMapConfig.xml的配置

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE configuration
		PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
		"http://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration>
	<!-- 配置sql路径 -->
 <mappers>
	  <mapper resource="application\testMybatis.xml"/>
	  <mapper resource="application\AEmployee.xml"/>
</mappers>
</configuration>

10.struts.xml

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE struts PUBLIC
	"-//Apache Software Foundation//DTD Struts Configuration 2.3//EN"
	"http://struts.apache.org/dtds/struts-2.3.dtd">
<struts>
    <!-- 配置模式为开发模式，自动加载struts.xml和显示错误提示信息 -->
    <constant name="struts.devMode" value="true" />
    <!-- 设置页面主题为简单主题，去掉struts2开发提供的样式 -->
<!--     <constant name="struts.ui.theme" value="simple" /> -->

    <package name="default" namespace="/" extends="struts-default">
    	<!-- 拦截器配置 -->
    	<!-- <interceptors>
    		定义了一个用于拦截器登录的拦截器
    		<interceptor name="loginInterceptor" class="com.ibatis.utils.LoginInteceptor"></interceptor>
    		定义一个拦截器栈
    		<interceptor-stack name="systemStack">
				<interceptor-ref name="defaultStack" />
				<interceptor-ref name="loginInterceptor" />
			</interceptor-stack>
    	</interceptors> -->

  		<!-- 定义系统默认拦截器 全局 -->
		<!-- <default-interceptor-ref name="systemStack" />  -->
    	<!-- 全局结果视图 -->
     	<global-results>
    		<result name="login" type="redirect">
    			login.jsp
    		</result>
    	</global-results>

    	<action name="select_*" class="mybatisAction" method="{1}">
        	<result name="show">WEB-INF/jsp/show.jsp</result>
        </action>
    </package>
</struts>

11.使用SqlSessionDaoSupport定义工具方法

package com.ibatis.mapper.impl;

import java.lang.reflect.Array;
import java.util.List;
import javax.annotation.Resource;
import org.mybatis.spring.SqlSessionTemplate;
import org.mybatis.spring.support.SqlSessionDaoSupport;
import com.ibatis.mapper.MybatisPersistence;

public class MybatisPersistenceImpl extends SqlSessionDaoSupport implements MybatisPersistence{

	@Resource
    public void setSqlSessionTemplate(SqlSessionTemplate sqlSessionTemplate){
       super.setSqlSessionTemplate(sqlSessionTemplate);
    }

	/**
	 * 执行模板sql插入数据
	 * @param obj
	 */
	public void insertEntity(Object obj){
		String sqlid = obj.getClass().getName()+".insertEntity";
		this.getSqlSession().insert(sqlid,obj);
	}

	/**
	 * 执行模板sql更新数据
	 * @param obj
	 */
	public void updateEntity(Object obj){
		String sqlid = obj.getClass().getName()+".updateEntity";
		this.getSqlSession().update(sqlid, obj);
	}

	/**
	 * 执行模板sql三层数据
	 * @param obj
	 */
	public void delete(Object obj){
		String sqlid = obj.getClass().getName()+".delete";
		this.getSqlSession().delete(sqlid, obj);
	}

	/**
	 * clazz 返回值类型
	 * sqlId namespace+sqlId
	 * param 参数
	 */
	public <T> T[] findList(Class<?> clazz,String sqlId, Object param) throws Exception{
		T[] dataObject = null;
		 List<?> list = this.getSqlSession().selectList(sqlId, param);
		 dataObject = list.toArray((T[]) Array.newInstance(clazz, list.size()));
		return dataObject;
	}
}

12.AEmployee.xml 单表模型sql

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd" >
<mapper namespace="com.ibatis.pojo.Employee" >

  <insert id="insertEntity" parameterType="com.ibatis.pojo.Employee" >
 	 <![CDATA[
 	 	 insert into a_employee (
 	 	 	name,
 	 	 	password,
      		email,
      		role
      	) values(
      		#{name},
      		#{password},
      		#{email},
      		#{role}
      )
 	 ]]>
  </insert>

  <update id="updateEntity" parameterType="com.ibatis.pojo.Employee" >
    update a_employee
    <set >
      <if test="name != null" >
        name = #{name,jdbcType=VARCHAR},
      </if>
      <if test="password != null" >
        password = #{password,jdbcType=VARCHAR},
      </if>
      <if test="email != null" >
        email = #{email,jdbcType=VARCHAR},
      </if>
      <if test="role != null" >
        role = #{role,jdbcType=VARCHAR},
      </if>
    </set>
    where id = #{id,jdbcType=BIGINT}
  </update>
  <delete id="delete" parameterType="com.ibatis.pojo.Employee" >
  	<![CDATA[
  		delete from a_employee where id = #{id}
  	]]>
  </delete>

13.testMybatis.xml命名sql

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd" >
<mapper namespace="com.mybatis" >
  <select id="queryEmployee" resultType="com.ibatis.pojo.Employee" parameterType="java.util.Map">
   	select * from a_employee where id = #{id}
   </select>
</mapper>
