.Net5 框架搭建（六）：使用自定义中间件对数据进行加密解密

前言

因为项目需要，要求数据交互不能是明文，所以我们的项目的设计是这样子的，前端加密请求数据=》后端解密请求数据。一开始用着也没啥问题，直到我这边有个接口居然报请求数据太大，我就奇怪，这才多少量，也达不到post请求最大值。直到我发现，原来入参都放在header里面。。。。（别问我为什么入参会放在请求header，有些项目就是这么的匪夷所思！！！！）
话不多说，直接开始我们的整改环节。

什么是中间件

中间件是一种装配到应用管道以处理请求和响应的软件。

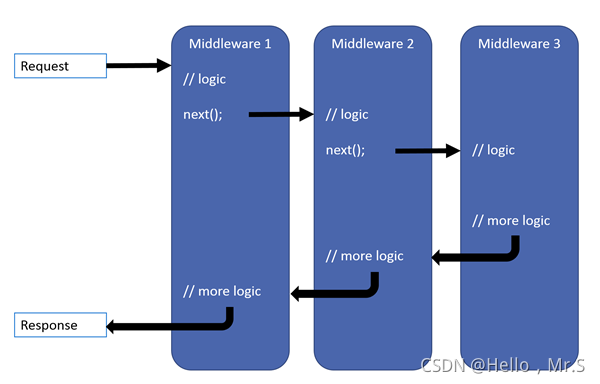

ASP.NET Core 请求管道包含一系列请求委托，依次调用。 下图演示了这一概念。 沿黑色箭头执行。

更多详情可以看看官网说明《中间件》

编写自定义中间件

大致步骤：
前端将加密过的数据放在body=》接收request=》解密请求内容，将内容写入新的Request Stream=>等待其他中间件执行完毕=》加密响应内容，将内容写入新的Response Stream=》结束，返回数据给前端

为了简单演示，这里我用到的加密解密用的是AES，生产环境不推荐使用。还有这里我只是对关键信息进行了加密解密处理，并不是对全部请求数据，响应数据进行处理，看个人实际应用场景。

HttpContextMiddleware.cs

    /// <summary>
    /// 请求上下文中间件
    /// </summary>
    public class HttpContextMiddleware
    {
        private readonly RequestDelegate _next;
        private readonly ILogger<HttpContextMiddleware> _logger;
        private readonly string noEncryptAction = "[/api/Login/GetToken];";//不参与解密的接口
        private readonly string aeskey = "OiISGKCzs0dlRlHl";//aes密钥
        public HttpContextMiddleware(RequestDelegate requestDelegate, ILogger<HttpContextMiddleware> logger)
        {
            _next = requestDelegate;
            _logger = logger;
        }

        public async Task Invoke(HttpContext context)
        {
            // 替换原本的 Response.Body 流在 _next(context) 执行下一个中间件后，需要读取数据，原本的流不可读 canReader = false
            var originalResponseStream = context.Response.Body;
            using var replaceResponseStream = new MemoryStream();
            context.Response.Body = replaceResponseStream;
            var path = "[" + context.Request.Path + "]";
            if (context.Request.Method.Equals(Microsoft.AspNetCore.Http.HttpMethods.Post, StringComparison.CurrentCultureIgnoreCase) && !noEncryptAction.Contains(path))
            {
                // 过滤请求
                await FilterRequest(context, originalResponseStream);
            }
            await _next(context);
            if (context.Response.StatusCode != StatusCodes.Status200OK)
                return;

            // 过滤响应
            await FilterResponse(context, originalResponseStream, replaceResponseStream);
        }
        /// <summary>
        /// 过滤请求
        /// </summary>
        /// <param name="context"></param>
        /// <returns></returns>
        private async Task<HttpContext> FilterRequest(HttpContext context, Stream originalResponseStream)
        {
            try
            {
                var requestData = string.Empty;
                //将请求 Body Stream读取并解密
                using (var reader = new StreamReader(context.Request.Body))
                {
                    requestData = await reader.ReadToEndAsync();
                    var dict = JsonConvert.DeserializeObject<Dictionary<string, object>>(requestData);
                    if (dict != null & dict.ContainsKey("data"))
                    {
                        requestData = dict["data"].ToString();
                    }
                    requestData = AESHelper.AesDecrypt(requestData, aeskey);//解密json数据
                    if (string.IsNullOrEmpty(requestData))
                    {
                        await originalResponseStream.WriteAsync(Encoding.Default.GetBytes(JsonConvert.SerializeObject(new DXResult { code = DXCode.BadRequest, msg = "解密数据异常" })));
                    }
                }
                var requestStringContent = new StringContent(requestData);
                context.Request.Body = await requestStringContent.ReadAsStreamAsync();
            }
            catch (Exception ex)
            {

                // 将返回的 Response 流 Copy 到原始流
                await originalResponseStream.WriteAsync(Encoding.Default.GetBytes(JsonConvert.SerializeObject(new DXResult { code = DXCode.BadRequest, msg = "请求数据异常" })));
                context.Response.Body = originalResponseStream;
                _logger.LogError("参数解密异常：{@ex}", ex);
                //await context.Response.WriteAsJsonAsync<DXResult>(new DXResult { code = DXCode.BadRequest, msg = "请求数据异常" });
            }
            return context;
        }

        /// <summary>
        /// 过滤响应
        /// </summary>
        /// <param name="context"></param>
        /// <param name="originalResponseStream"></param>
        /// <param name="replaceResponseStream"></param>
        /// <returns></returns>
        private async Task FilterResponse(HttpContext context, Stream originalResponseStream, MemoryStream replaceResponseStream)
        {
            try
            {
                var responseData = string.Empty;
                using (var reader = new StreamReader(replaceResponseStream))
                {
                    context.Response.Body.Seek(0, SeekOrigin.Begin);
                    responseData = await reader.ReadToEndAsync();
                    //对data里面的数据进行加密
                    var dict = JsonConvert.DeserializeObject<Dictionary<string, object>>(responseData);
                    if (dict != null & dict.ContainsKey("data"))
                    {
                        var data = dict["data"];
                        var aeskey = "OiISGKCzs0dlRlHl";
                        if (data != null)
                        {
                            var newData = AESHelper.AesEncrypt(JsonConvert.SerializeObject(data), aeskey);
                            dict.Remove("data");
                            dict.Add("data", newData);
                        }
                        responseData = JsonConvert.SerializeObject(dict);
                    }
                }
                // 将返回的 Response 流 Copy 到原始流
                await originalResponseStream.WriteAsync(Encoding.Default.GetBytes(responseData.ToString()));
                context.Response.Body = originalResponseStream;
            }
            catch (Exception ex)
            {
                _logger.LogError("参数加密异常：{@ex}", ex);
                await context.Response.WriteAsJsonAsync<DXResult>(new DXResult { code = DXCode.BadRequest, msg = "响应数据异常" });
            }
        }
    }

中间件帮助类
MiddlewareExtensions.cs

/// <summary>
/// 中间件扩展帮助类
/// </summary>
public static class MiddlewareExtensions
{
        /// <summary>
        /// 请求上下文中间件
        /// </summary>
        /// <param name="app"></param>
        /// <returns></returns>
        public static IApplicationBuilder UseHttpContextMildd(this IApplicationBuilder app)
        {
            return app.UseMiddleware<HttpContextMiddleware>();
        }
}

最后将我们写好的自定义中间件注册进来管道，这里需要注意中间件的顺序

/// 此方法由运行时调用。使用此方法配置HTTP请求管道。
/// </summary>
/// 中间件的注册顺序严格按照官方配置推荐依次顺序，更多请看https://docs.microsoft.com/zh-cn/aspnet/core/fundamentals/middleware/?view=aspnetcore-5.0
/// ExceptionHandler=>HSTS=>HttpsRedirection=>Static Files=>CORS=>Authentication=>Authorization=>自定义中间组件=》Endpoint
public void Configure(IApplicationBuilder app, IWebHostEnvironment env)
{
            if (env.IsDevelopment())
            {
                app.UseDeveloperExceptionPage();
                app.UseSwagger();
                app.UseSwaggerUI(c => c.SwaggerEndpoint("/swagger/v1/swagger.json", "CuoDing.Core v1"));
            }
            app.UseResponseCompression();
            app.UseHttpsRedirection();

            app.UseRouting();

            app.UseAuthentication();
            app.UseAuthorization();
            if (Appsettings.app(new string[] { "IsEncrypt" }).ObjToBool())
            {
                //请求上下文中间件
                app.UseHttpContextMildd();
            }
            app.UseEndpoints(endpoints =>
            {
                endpoints.MapControllers();
            });
}

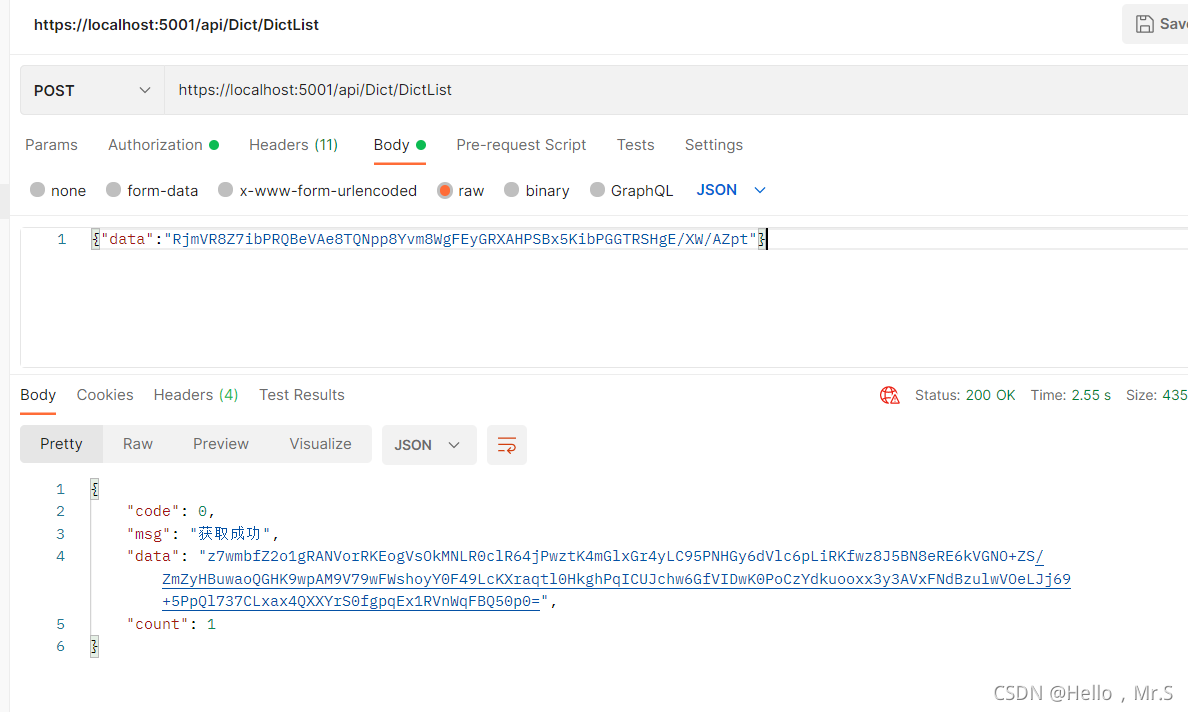

测试效果

存在问题（已修复）

假如遇到返回响应的数据量较大，会报一个异常错误
Response Content-Length mismatch: too many bytes written (2048 of 1943).

解决方案：修改Content-Length大小

// 将返回的 Response 流 Copy 到原始流
var dataByte = Encoding.Default.GetBytes(responseData.ToString());
context.Response.ContentType = "application/json";
context.Response.Headers.Remove("Content-Length");
context.Response.Headers.Add("Content-Length", new[] { dataByte.Length.ToString() });
await originalResponseStream.WriteAsync(dataByte,0, dataByte.Length);
context.Response.Body = originalResponseStream;

完整代码已上传码云：https://gitee.com/shao-jiayong/cuo-ding
