stm32入门 第三周

本文内容基于https://www.bilibili.com/video/BV1Lx411Z7Qa

P18

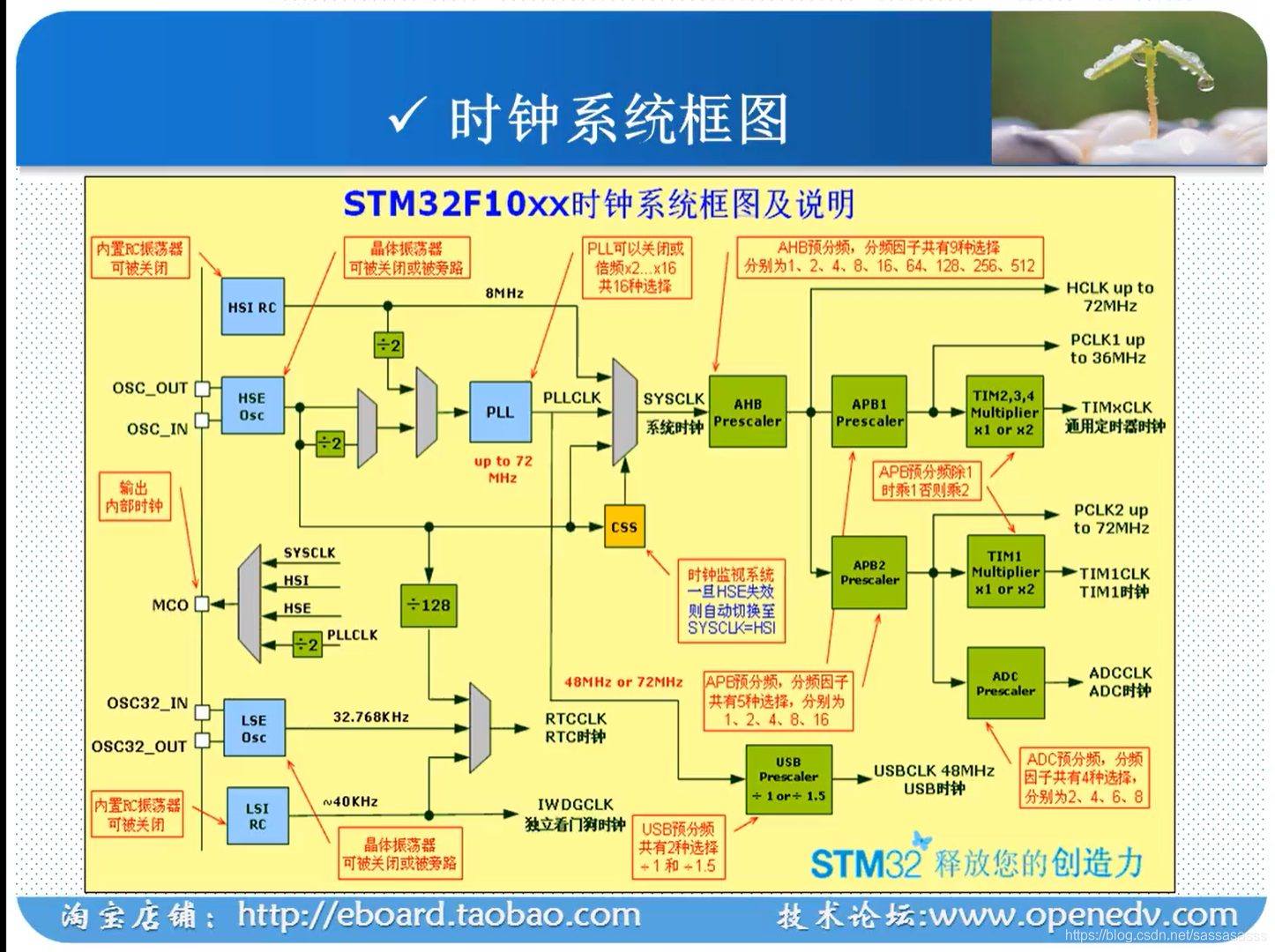

分频：当原来的信号经过n的周期，新的信号跳变一次，这样新信号周期就是原信号的N倍，频率则是1/N,新信号频率基于老频率则叫N分频

倍频：与分频相反，频率是增大，当新频率是老频率的N倍，则称为N倍频

好处：一个晶振一般只有一个固有频率，通过分频，倍频技术就可以扩展出很多频率，使用灵活，不必每个频率都要配一个对应的晶振。



P19

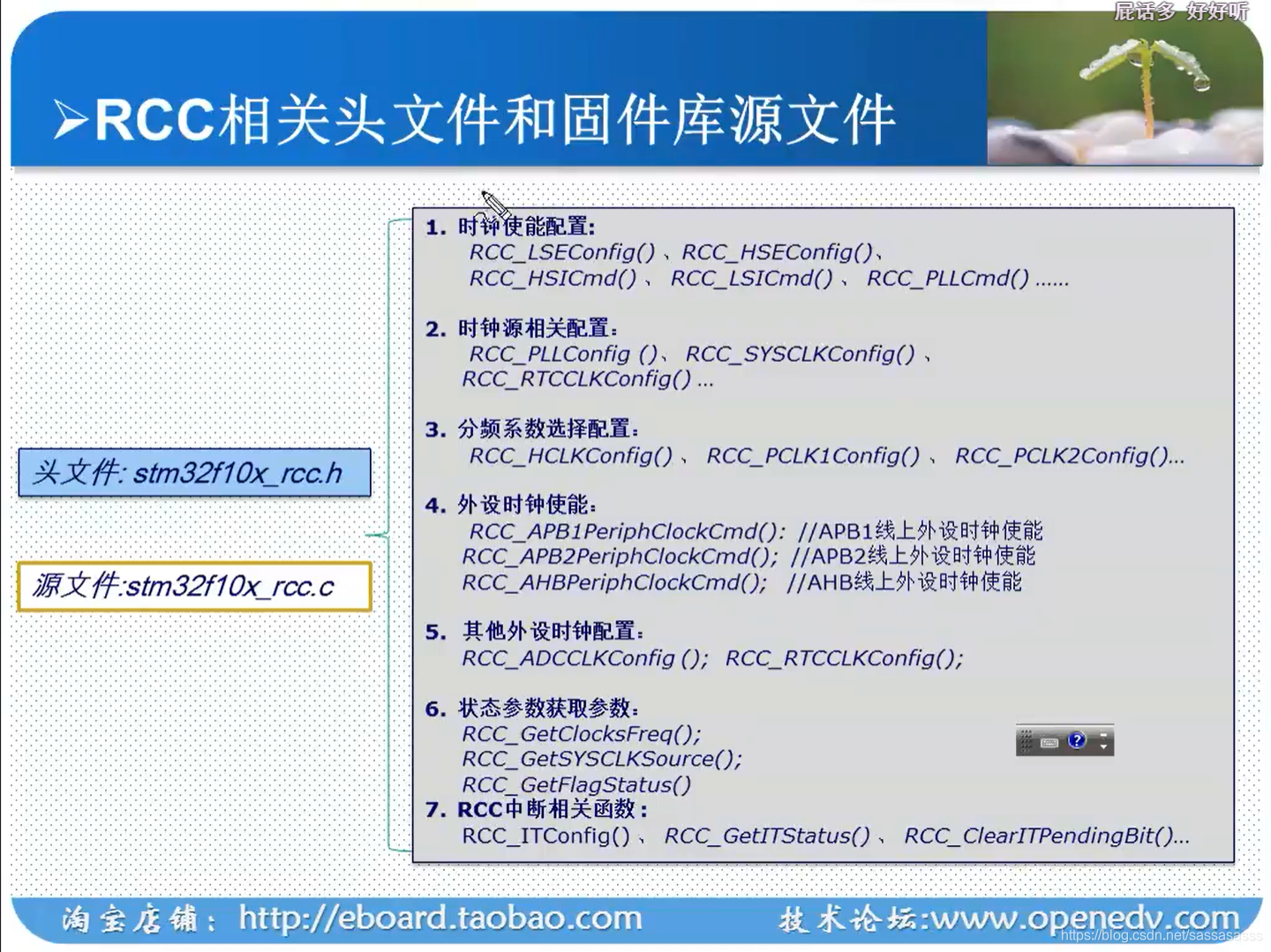

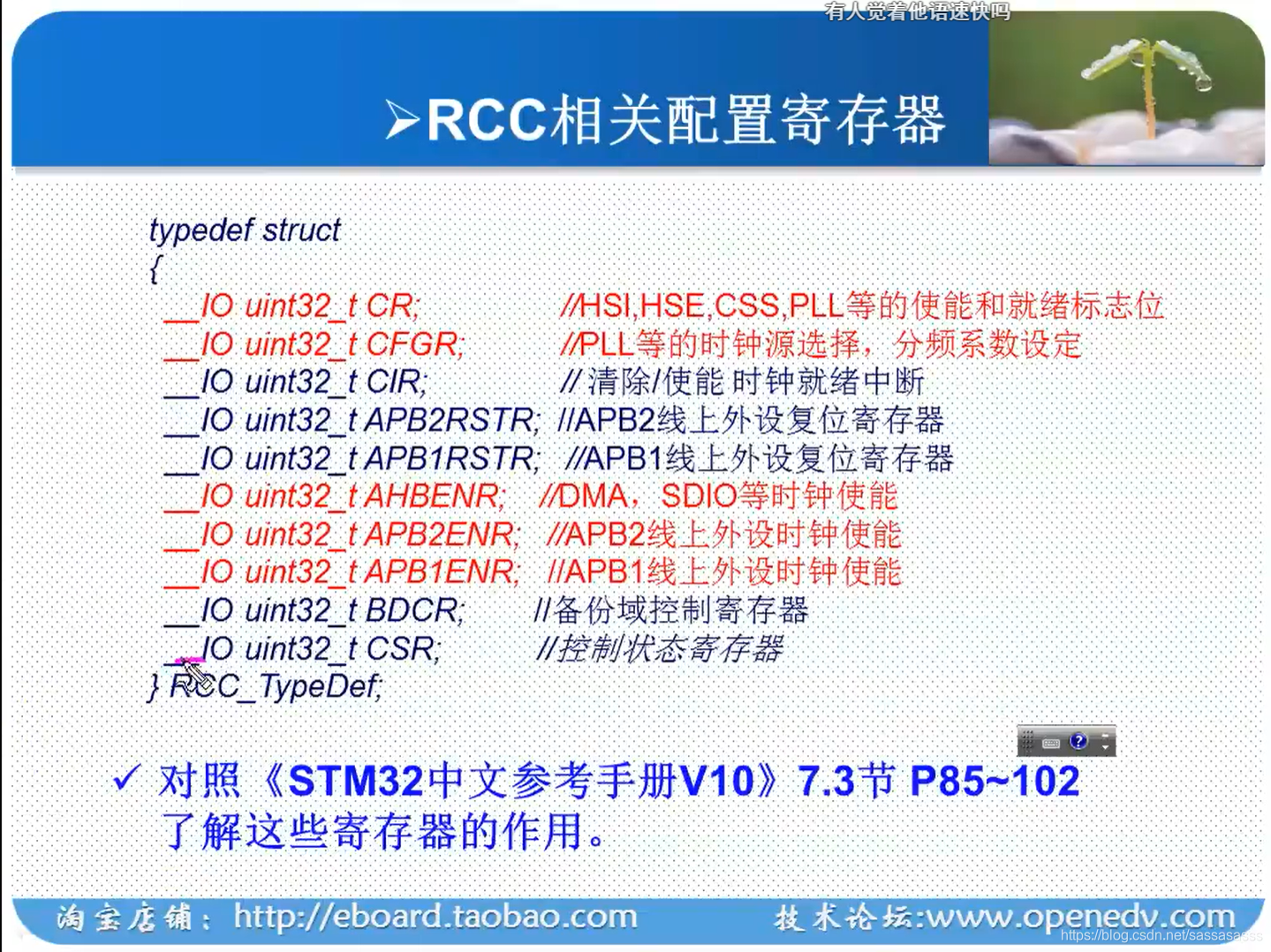

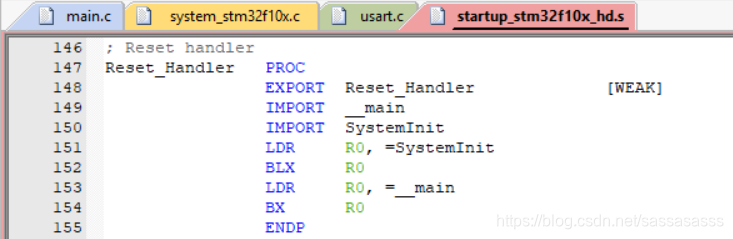

这里调用了系统初始化函数，如果要自己写初始化函数的话要改这里的代码

void SystemInit (void)

{

  /* Reset the RCC clock configuration to the default reset state(for debug purpose) */

  /* Set HSION bit */  //内部高速时钟（8M振荡器）使能

  RCC->CR |= (uint32_t)0x00000001;



  /* Reset SW, HPRE, PPRE1, PPRE2, ADCPRE and MCO bits */  //置0，初始化状态

#ifndef STM32F10X_CL

  RCC->CFGR &= (uint32_t)0xF8FF0000;

#else

  RCC->CFGR &= (uint32_t)0xF0FF0000;

#endif /* STM32F10X_CL */



  /* Reset HSEON, CSSON and PLLON bits */

  RCC->CR &= (uint32_t)0xFEF6FFFF;



  /* Reset HSEBYP bit */

  RCC->CR &= (uint32_t)0xFFFBFFFF;



  /* Reset PLLSRC, PLLXTPRE, PLLMUL and USBPRE/OTGFSPRE bits */

  RCC->CFGR &= (uint32_t)0xFF80FFFF;



#ifdef STM32F10X_CL

  /* Reset PLL2ON and PLL3ON bits */

  RCC->CR &= (uint32_t)0xEBFFFFFF;



  /* Disable all interrupts and clear pending bits  */

  RCC->CIR = 0x00FF0000;



  /* Reset CFGR2 register */

  RCC->CFGR2 = 0x00000000;

#elif defined (STM32F10X_LD_VL) || defined (STM32F10X_MD_VL) || (defined STM32F10X_HD_VL)

  /* Disable all interrupts and clear pending bits  */

  RCC->CIR = 0x009F0000;



  /* Reset CFGR2 register */

  RCC->CFGR2 = 0x00000000;

#else

  /* Disable all interrupts and clear pending bits  */  //置零

  RCC->CIR = 0x009F0000;

#endif /* STM32F10X_CL */



#if defined (STM32F10X_HD) || (defined STM32F10X_XL) || (defined STM32F10X_HD_VL)

  #ifdef DATA_IN_ExtSRAM

    SystemInit_ExtMemCtl();

  #endif /* DATA_IN_ExtSRAM */

#endif



  /* Configure the System clock frequency, HCLK, PCLK2 and PCLK1 prescalers */

  /* Configure the Flash Latency cycles and enable prefetch buffer */

  SetSysClock();  //设置时钟



#ifdef VECT_TAB_SRAM

  SCB->VTOR = SRAM_BASE | VECT_TAB_OFFSET; /* Vector Table Relocation in Internal SRAM. */

#else

  SCB->VTOR = FLASH_BASE | VECT_TAB_OFFSET; /* Vector Table Relocation in Internal FLASH. */

#endif

}

---

static void SetSysClockTo72(void)

{

  __IO uint32_t StartUpCounter = 0, HSEStatus = 0;



  /* SYSCLK, HCLK, PCLK2 and PCLK1 configuration ---------------------------*/

  /* Enable HSE */

  RCC->CR |= ((uint32_t)RCC_CR_HSEON);



  /* Wait till HSE is ready and if Time out is reached exit */

  do

  {

    HSEStatus = RCC->CR & RCC_CR_HSERDY;

    StartUpCounter++;

  } while((HSEStatus == 0) && (StartUpCounter != HSE_STARTUP_TIMEOUT));



  if ((RCC->CR & RCC_CR_HSERDY) != RESET)

  {

    HSEStatus = (uint32_t)0x01;

  }

  else

  {

    HSEStatus = (uint32_t)0x00;

  }



  if (HSEStatus == (uint32_t)0x01)

  {

    /* Enable Prefetch Buffer */

    FLASH->ACR |= FLASH_ACR_PRFTBE;



    /* Flash 2 wait state */

    FLASH->ACR &= (uint32_t)((uint32_t)~FLASH_ACR_LATENCY);

    FLASH->ACR |= (uint32_t)FLASH_ACR_LATENCY_2;   //CPU速度快于闪存，要两个等待状态



 //时钟频率配置

    /* HCLK = SYSCLK */

    RCC->CFGR |= (uint32_t)RCC_CFGR_HPRE_DIV1;



    /* PCLK2 = HCLK */

    RCC->CFGR |= (uint32_t)RCC_CFGR_PPRE2_DIV1;



    /* PCLK1 = HCLK/2  */

    RCC->CFGR |= (uint32_t)RCC_CFGR_PPRE1_DIV2;



#ifdef STM32F10X_CL

    /* Configure PLLs ------------------------------------------------------*/

    /* PLL2 configuration: PLL2CLK = (HSE / 5) * 8 = 40 MHz */

    /* PREDIV1 configuration: PREDIV1CLK = PLL2 / 5 = 8 MHz */



    RCC->CFGR2 &= (uint32_t)~(RCC_CFGR2_PREDIV2 | RCC_CFGR2_PLL2MUL |

                              RCC_CFGR2_PREDIV1 | RCC_CFGR2_PREDIV1SRC);

    RCC->CFGR2 |= (uint32_t)(RCC_CFGR2_PREDIV2_DIV5 | RCC_CFGR2_PLL2MUL8 |

                             RCC_CFGR2_PREDIV1SRC_PLL2 | RCC_CFGR2_PREDIV1_DIV5);



    /* Enable PLL2 */

    RCC->CR |= RCC_CR_PLL2ON;

    /* Wait till PLL2 is ready */

    while((RCC->CR & RCC_CR_PLL2RDY) == 0)

    {

    }





    /* PLL configuration: PLLCLK = PREDIV1 * 9 = 72 MHz */  //配置PLLCLK

    RCC->CFGR &= (uint32_t)~(RCC_CFGR_PLLXTPRE | RCC_CFGR_PLLSRC | RCC_CFGR_PLLMULL);

    RCC->CFGR |= (uint32_t)(RCC_CFGR_PLLXTPRE_PREDIV1 | RCC_CFGR_PLLSRC_PREDIV1 |

                            RCC_CFGR_PLLMULL9);

#else

    /*  PLL configuration: PLLCLK = HSE * 9 = 72 MHz */

    RCC->CFGR &= (uint32_t)((uint32_t)~(RCC_CFGR_PLLSRC | RCC_CFGR_PLLXTPRE |

                                        RCC_CFGR_PLLMULL));

    RCC->CFGR |= (uint32_t)(RCC_CFGR_PLLSRC_HSE | RCC_CFGR_PLLMULL9);

#endif /* STM32F10X_CL */



    /* Enable PLL */

    RCC->CR |= RCC_CR_PLLON;



    /* Wait till PLL is ready */

    while((RCC->CR & RCC_CR_PLLRDY) == 0)

    {

    }



    /* Select PLL as system clock source */   //配置系统时钟

    RCC->CFGR &= (uint32_t)((uint32_t)~(RCC_CFGR_SW));

    RCC->CFGR |= (uint32_t)RCC_CFGR_SW_PLL;



    /* Wait till PLL is used as system clock source */

    while ((RCC->CFGR & (uint32_t)RCC_CFGR_SWS) != (uint32_t)0x08)

    {

    }

  }

  else

  { /* If HSE fails to start-up, the application will have wrong clock

         configuration. User can add here some code to deal with this error */

  }

}

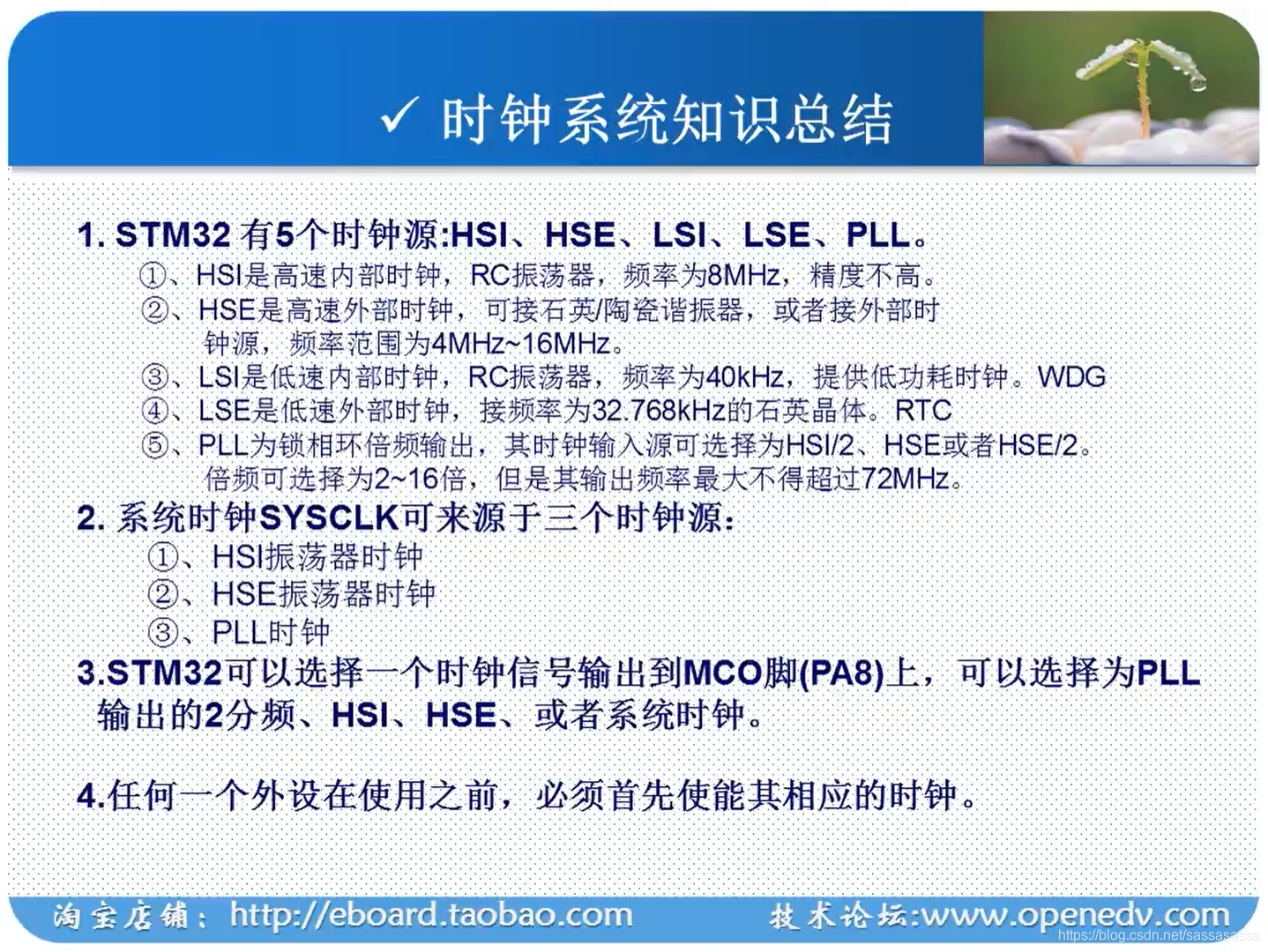

SystemCoreClock系统时钟频率 可通过该变量获取系统时钟



P20

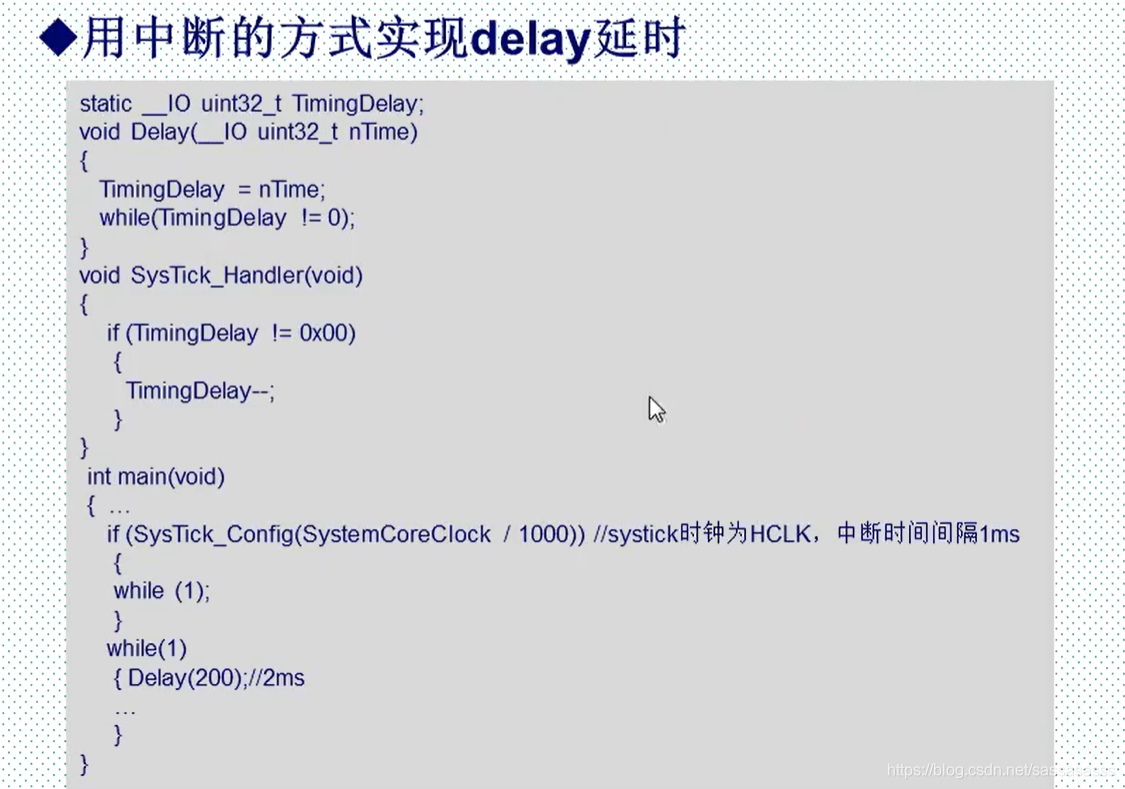

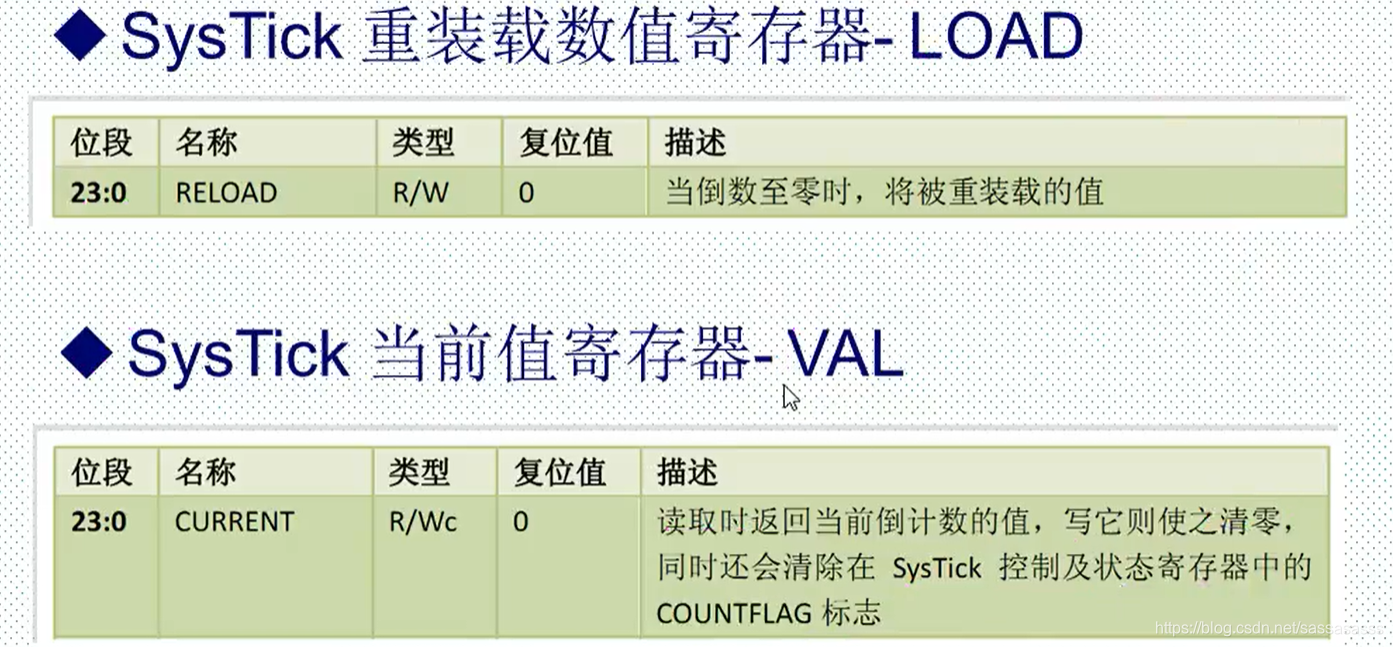

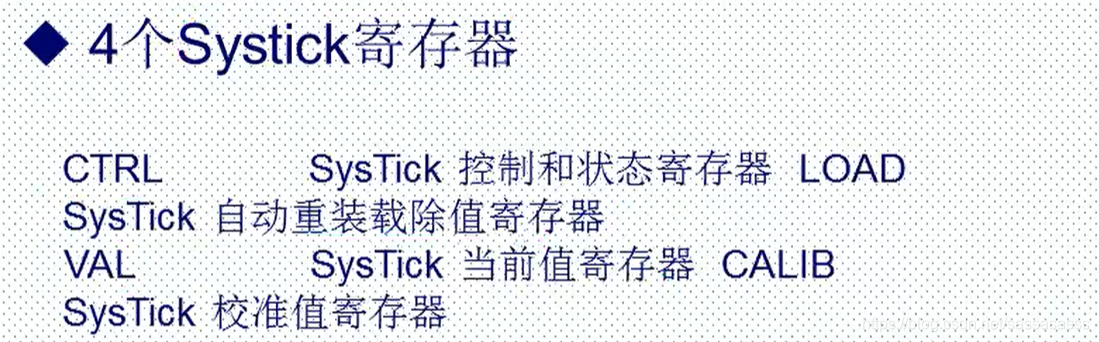

是ROAD寄存器

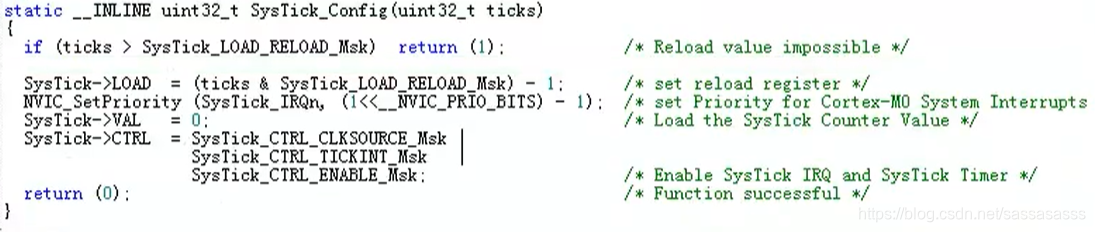

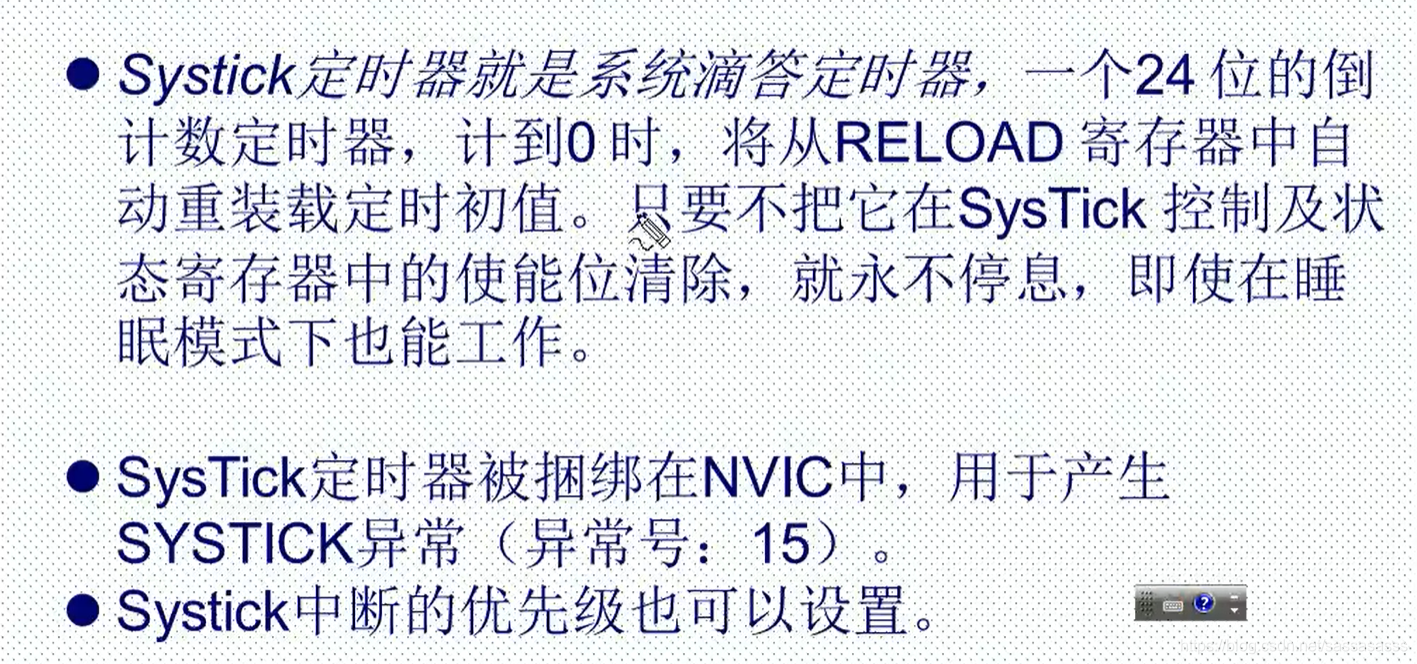

在misc.c文件下定义了SysTick时钟初始化函数

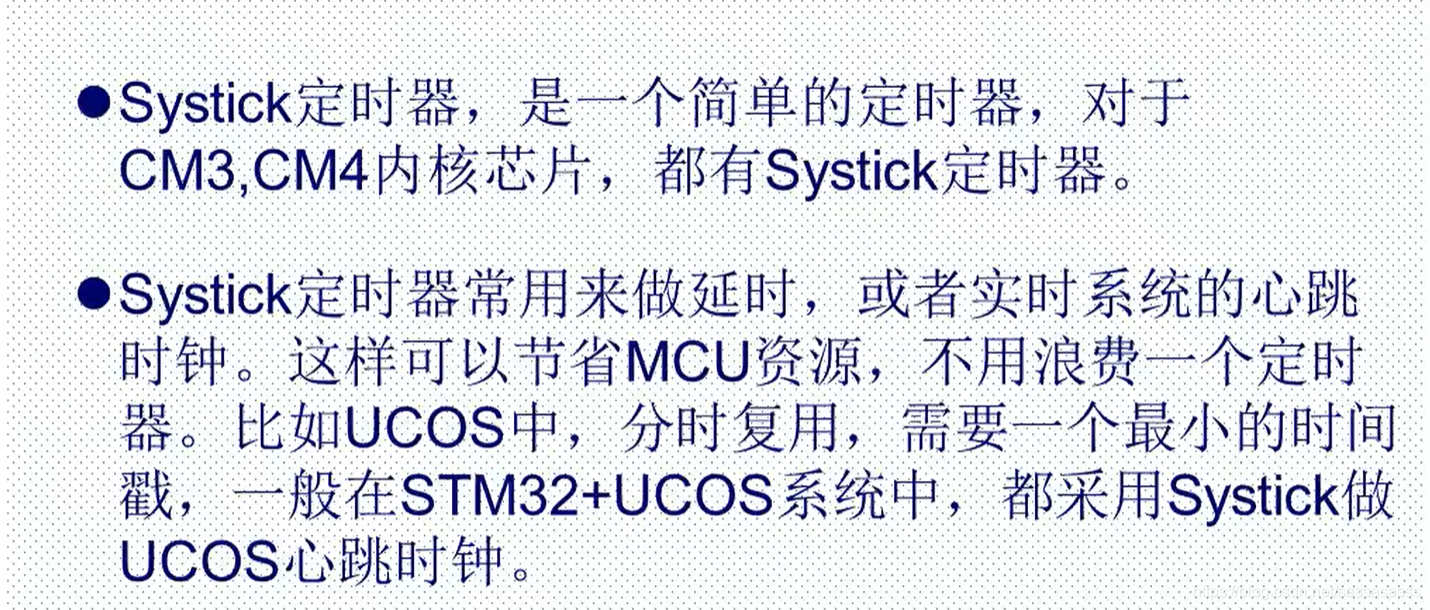

此为内核级别，对所有M3内核都通用

先判断载入的ticks数是否大于上限值

之后装载LOAD寄存器初值，该过程要一个时钟周期，所以要-1

设置中断

设置初值

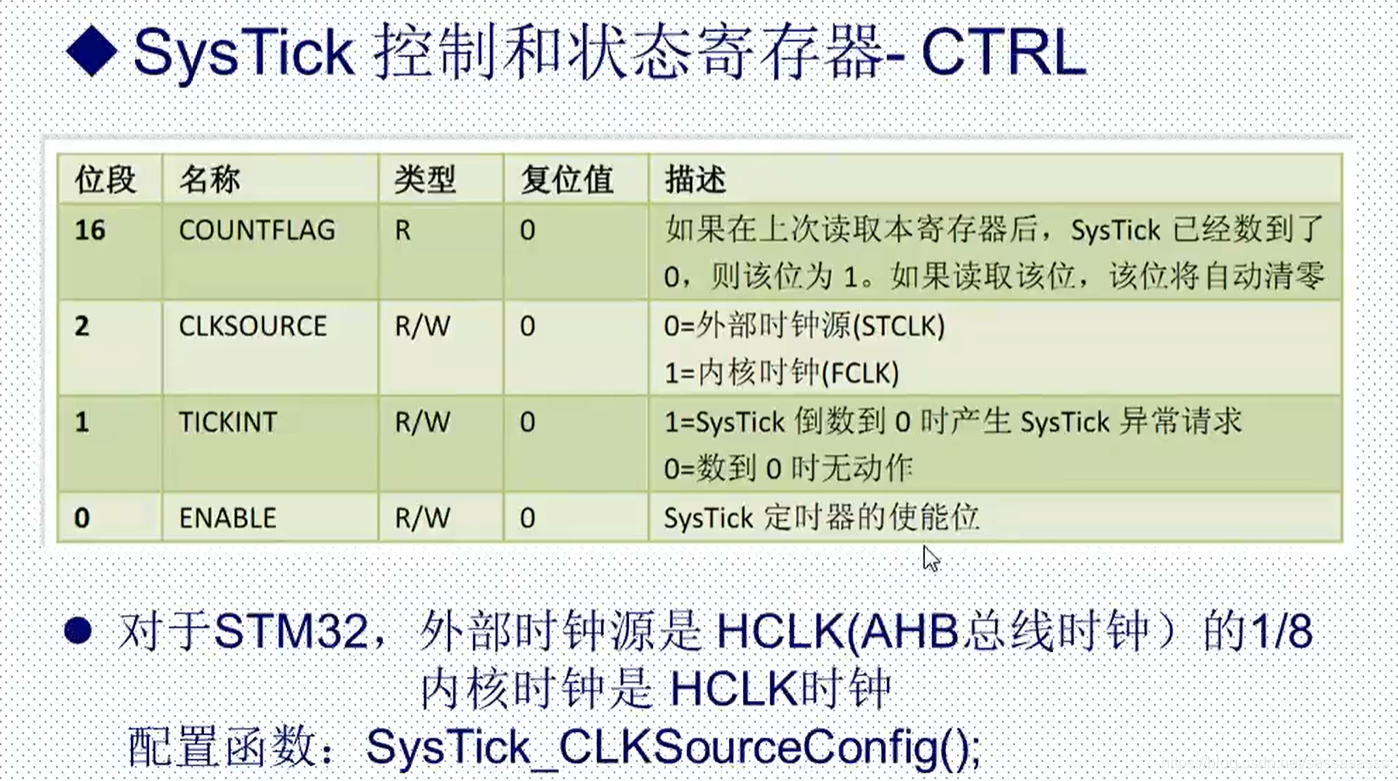

使能时钟，选择时钟源
